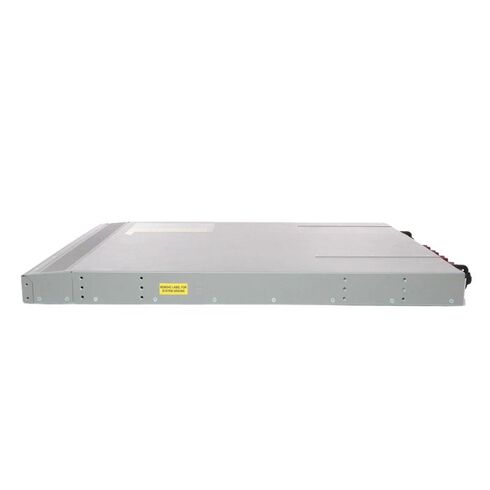

Cisco N9K-C93180YC-EX Nexus 9300 48-Port Rack Mountable Managed Switch

Ports

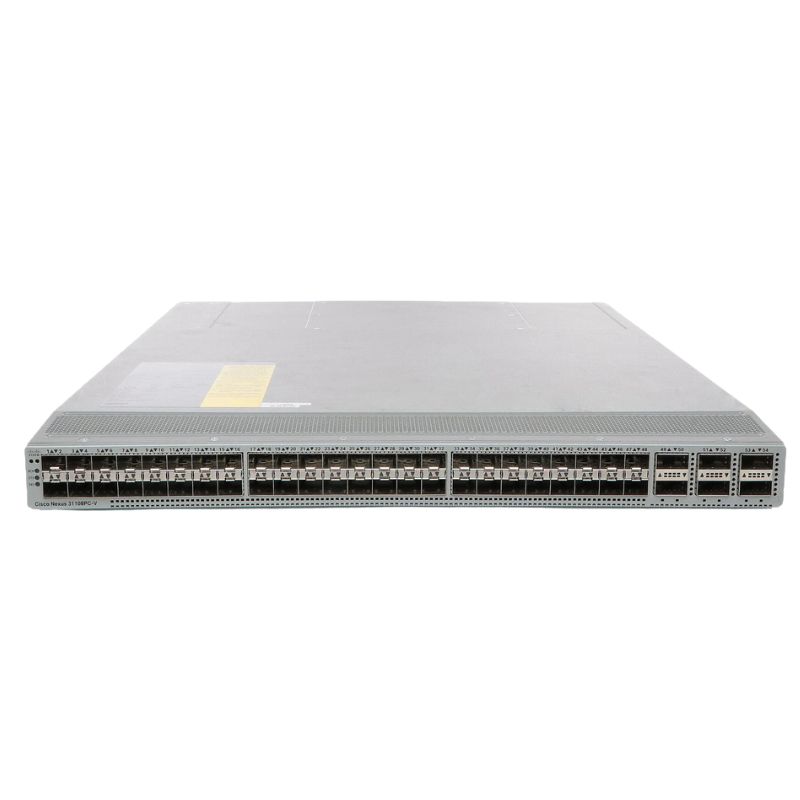

The Cisco N9K-C93180YC-EX Managed Switch is equipped with 48 ports, making it an ideal choice for businesses and organizations that require a high number of network connections. These ports provide seamless connectivity for various devices such as computers, servers, printers, and IP phones.

Device Specifications of the Managed Switch

Device Type and Design

• Type: Network Switch with 48 Ports - Layer 3 (L3)
• Form Factor: Rack-mountable, 1U
• Port Subtype: 25 Gigabit Ethernet

Port Details

• 48 x 1/10/25 Gigabit SFP+
• 6 x 40/100 Gigabit QSFP+

Performance Metrics

• Bandwidth Capacity: 3.6 Tbps
• Active Spanning Tree Sessions: 4

Capacity and Scalability

• Spanning Tree Protocol Instances: 64
• HSRP Groups: 490
• Rapid Spanning Tree Instances per VLAN: 4000
• Maximum Links in a Port Channel: 32
• Maximum Port Channels: 512
• ECMP Paths: 64
• VRF Instances: 1000
• VLAN Support: 4096
• ACL Entries (Egress): 2000
• ACL Entries (Ingress): 4000
• IGMP Snooping Groups: 8000
• Multicast Routes: 8000

MAC Address Table

• Size: 512,000 Entries

Routing Protocols

• OSPF, RIP, RIP-2, BGP, EIGRP
• HSRP, PIM-SM, MSDP
• ECMP, MPLS

Advanced Features

• Layer 3 Switching Capabilities
• High Availability Design
• Hot-Swappable Fans (4 units)
• Virtual PortChannel (vPC) Technology
• In-Service Software Upgrades (ISSU)
• NPV Gateway Mode
• Virtual Extensible LAN (VXLAN)
• Source-Specific Multicast (SSM)
• Ethernet Virtual Private Network (EVPN)
• 40 MB System Buffer

Memory and Storage

• RAM: 16 GB
• Built-in Storage: 64 GB SSD

Connectivity and Expansion

• 48 x 1/10/25 Gigabit LAN SFP+ Downlink Ports
• 6 x 40/100 Gigabit LAN QSFP28 Uplink Ports
• 1 x Management RJ-45 Port
• 1 x Management SFP+ Port
• 1 x USB Port
• 1 x Serial Port (RS-232)

Power Management

• Power Device: Internal Power Supply (Hot-plug)
• Maximum Supported Power Supplies: 2
• Power Redundancy: Optional
• Redundancy Scheme: N+1

Increased Connectivity

The 48 ports of the Cisco N9K-C93180YC-EX Managed Switch allow users to connect multiple devices simultaneously. This eliminates the need for additional switches or hubs, simplifying the network infrastructure and reducing costs. With more ports available, businesses can easily expand their network to accommodate growing needs without investing in additional equipment.

High-Speed Data Transfer

The 48 ports on this switch support high-speed data transfer rates, enabling efficient communication between devices. Whether it's transferring large files or streaming multimedia content, users can rely on the Cisco N9K-C93180YC-EX Managed Switch to maintain fast and reliable data transmission across the network.

Improved Performance

The abundance of ports on this switch ensures that each connected device can operate at its maximum performance potential. With dedicated ports for each device, there is no competition for bandwidth, resulting in smooth and uninterrupted data flow. This is particularly beneficial in environments where latency and downtime can have significant consequences, such as data centers or large-scale enterprises.

Simplified Network Management

Having 48 ports on a single switch simplifies network management and reduces complexity. IT administrators can easily monitor and control all connected devices from a centralized interface, eliminating the need to navigate through multiple switches. This streamlines troubleshooting and configuration processes, saving time and effort.

Mount Type

The Cisco N9K-C93180YC-EX Managed Switch is rack-mountable, offering users a convenient and efficient way to organize and manage their network infrastructure. This mount type provides numerous benefits for users in terms of flexibility, scalability, and space optimization.

Space Optimization

Rack-mountable switches allow users to neatly organize their network equipment in a compact and organized manner. By mounting the Cisco N9K-C93180YC-EX Managed Switch in a rack, users can free up valuable floor or desk space, making the most of their available area. This is particularly advantageous in environments with limited space, such as small offices or server rooms.

Easy Scalability

With a rack-mountable switch like the Cisco N9K-C93180YC-EX, users can easily scale their network infrastructure as their needs grow. The standardized design of rack-mounted equipment allows for effortless integration of additional switches, routers, or other networking devices. This flexibility ensures that the network can expand seamlessly without causing disruptions or requiring extensive reconfiguration.

Improved Airflow and Cooling

Rack-mounted switches are designed to optimize airflow and cooling within the rack enclosure. The Cisco N9K-C93180YC-EX Managed Switch features a rack-mountable design that promotes proper ventilation, preventing overheating and ensuring the longevity of the switch. This is crucial for maintaining optimal performance and reducing the risk of hardware failures.

Centralized Management

Rack-mounted switches offer centralized management capabilities, allowing users to conveniently monitor and control their entire network from a single location. By housing all network equipment in a rack, IT administrators can easily access and manage each device without having to physically visit different locations within the infrastructure. This simplifies network administration tasks, enhances security measures, and improves overall efficiency.
