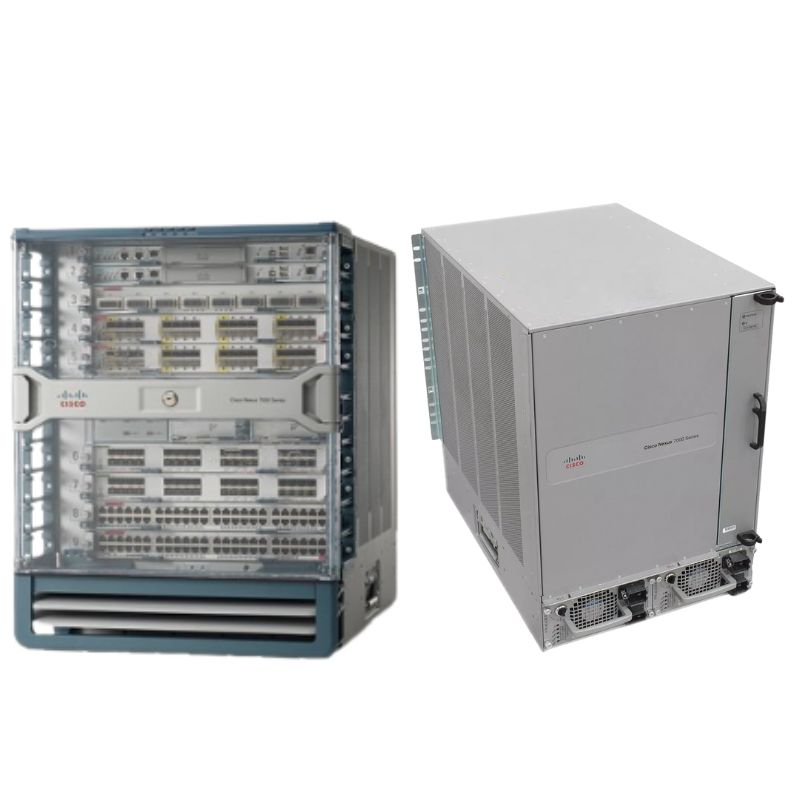

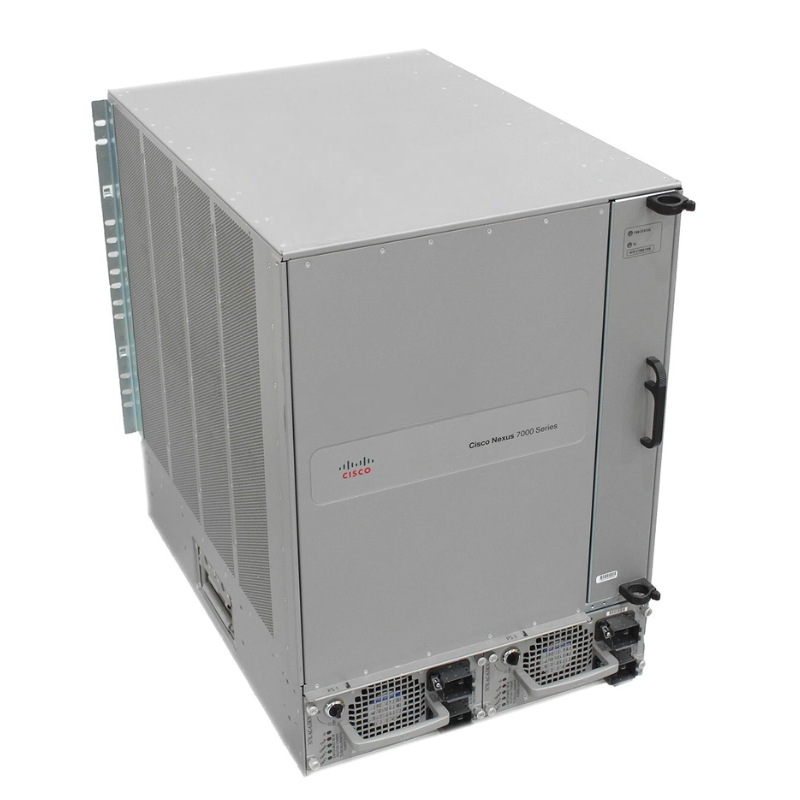

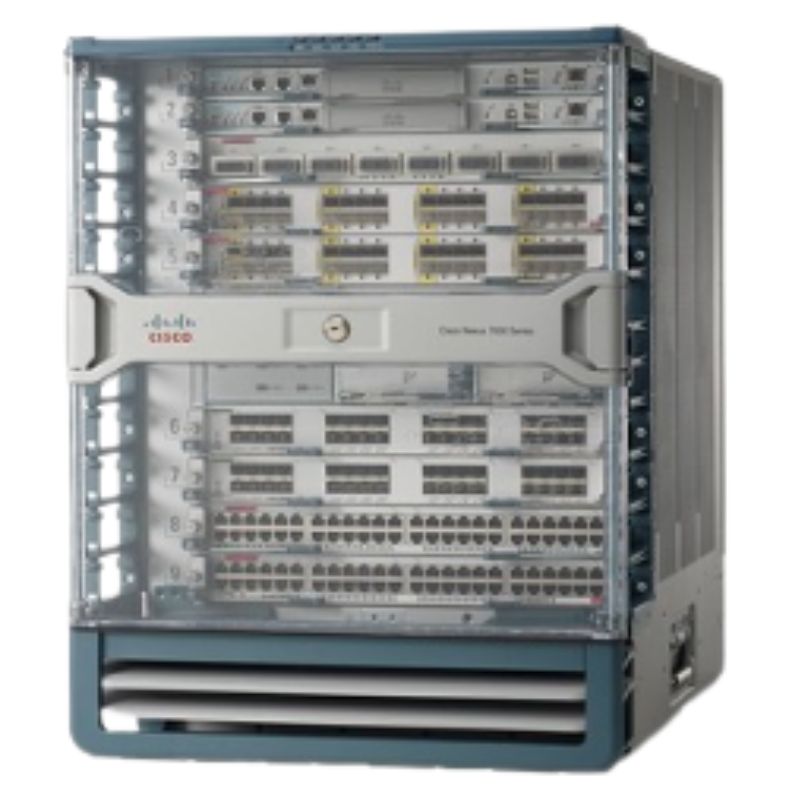

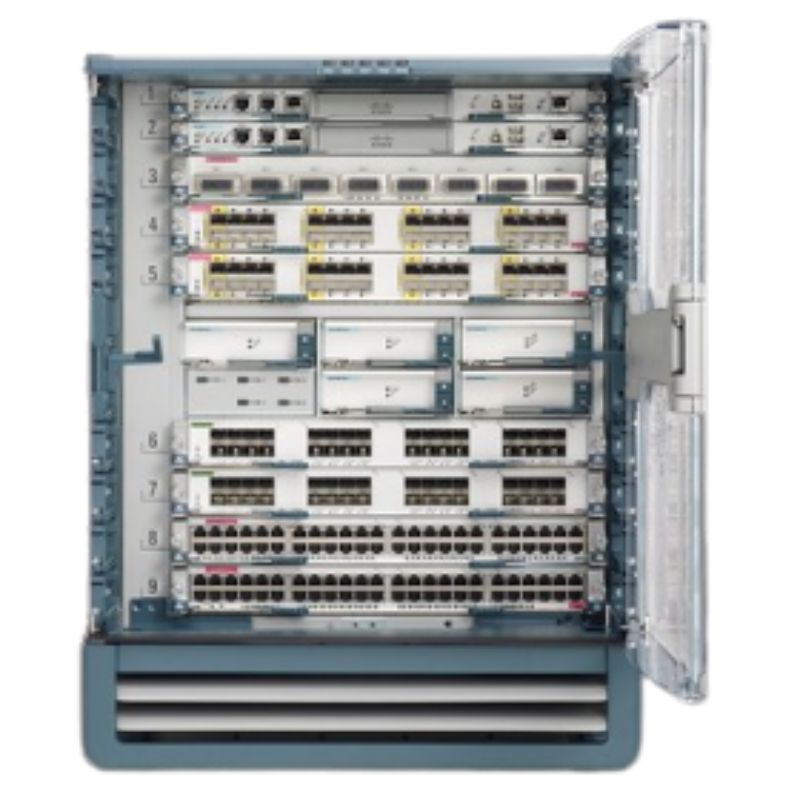

N7K-C7009-B2S2E-R Cisco Nexus 7009 10GBPS L3 Managed Switch

Cisco N7K-C7009-B2S2E-R Nexus 7009 Bundle Managed Switch

N7K-C7009-B2S2E-R is a Cisco Nexus 7009 modular switch bundle designed for enterprise and data center core networks. It includes a 9-slot chassis, dual Supervisor 2E modules, and five Fabric-2 modules, but does not include power supplies. The platform delivers high scalability, redundancy, and high availability, making it suitable for mission-critical environments that require reliable Layer 2/Layer 3 switching and future expansion.

General Information

• Manufacturer: Cisco
• Part Number: N7K-C7009-B2S2E-R
• Device Type: Advanced Managed Switch

Technical Specifications

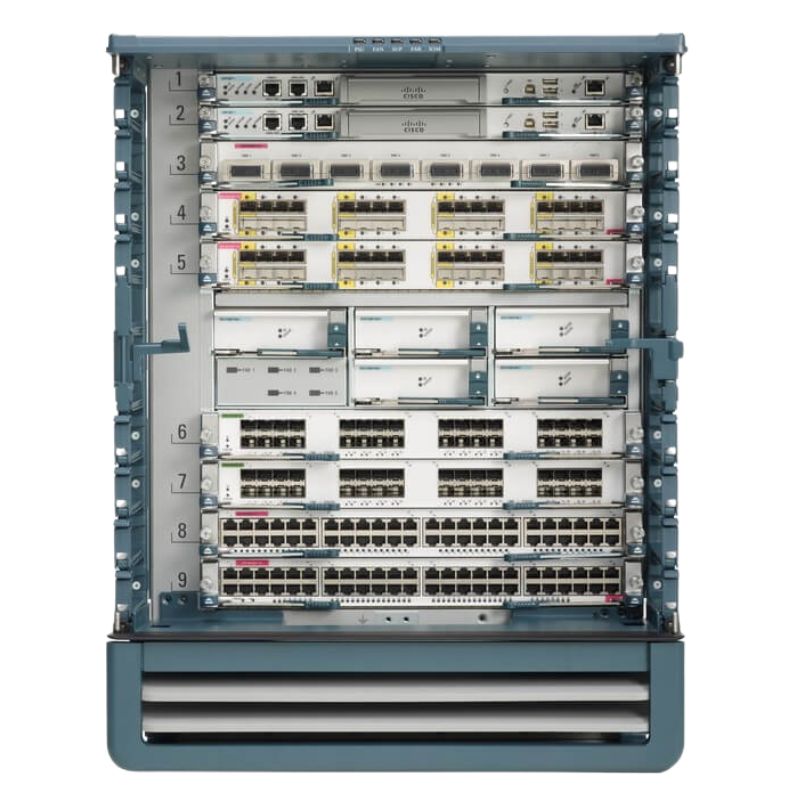

• 9-Slot Modular Chassis
• Height × Width × Depth: 24.5 × 17.3 × 24 inches
• Metric: 622 × 439 × 610 mm
• Rack Size: 14RU
• Bundle Includes: Nexus 7009 Chassis, Dual Supervisor Engine 2E (SUP2E), Five Fabric Module 2 (FAB2)
• No Power Supplies Included
• Supervisor Slots: 2 Dedicated
• I/O Module Slots: 7 Available
• Fabric Module Slots: 5 Installed
• Power Supply Bays: 2
• Fabric Capacity: More than 15 Tbps
• Local Switching Capacity: 600 Gbps per I/O Slot
• Inter-Slot Switching Capacity: 550 Gbps per I/O Slot

Cooling and Redundancy

• Hot-swappable Fan Trays
• Dual Supervisor Redundancy
• Fabric Module Redundancy
• Power Supply Redundancy
• Fan Tray Redundancy

Packet Forwarding

• Performance: Up to 5.04 Billion Packets Per Second

Operating System

• Cisco NX-OS
• Minimum Supported Version: 5.2 or Later
• Layer Support: Layer 2 and Layer 3

Compatibility

Hardware Compatibility

• Compatible with all Cisco Nexus 7000 Series I/O Modules
• Supports Supervisor Engine 2 and Supervisor Engine 2E
• Compatible with Fabric Module 2 (FAB2)
• Supports Cisco Nexus M-Series Line Cards
• Supports Cisco Nexus F-Series Line Cards

Ethernet Module

• 1GE, 10GE, 40GE, and selected 100GE Ethernet modules

Software Compatibility

• Compatible with Cisco NX-OS Software Release 5.2 and later
• Supports Cisco DCNM Management Platform

Overview Cisco N7K-C7009-B2S2E-R Managed Switch

The Cisco N7K-C7009-B2S2E-R Nexus 7009 Bundle 10 GBPS Layer 3 Managed Switch is manufactured by Cisco Systems, a global leader in networking hardware and enterprise solutions. N7K-C7009-B2S2E-R identifies this specific bundle, ensuring compatibility and recognition across Cisco’s Nexus 7000 series ecosystem.

Device Type

This bundle represents a fully integrated Layer 3 managed switch solution, designed for enterprise-grade data centers and high-performance networking environments. It combines scalability, resilience, and advanced management features to deliver optimal throughput and reliability.

Port Density and Speed

This bundle supports multiple 10 Gigabit Ethernet ports, delivering high-speed connectivity across data center fabrics. Each port is engineered to handle intensive workloads, ensuring wire-rate forwarding and ultra-low latency performance.

Total Switching Capacity

The system is capable of delivering multi-terabit switching capacity, ensuring that enterprises can scale their operations without bottlenecks. This capacity supports virtualization, cloud workloads, and high-density traffic environments.

Forwarding Performance

With billions of packets per second forwarding capability, the Cisco N7K-C7009-B2S2E-R ensures that mission-critical applications run smoothly, even under peak traffic conditions. This performance is essential for organizations requiring consistent throughput and reliability.

Layer 2 and Layer 3 Features

The switch supports comprehensive Layer 2 and Layer 3 protocols, enabling advanced routing, switching, and segmentation. This ensures flexibility in network design, allowing enterprises to deploy complex topologies with ease.

ASIC and SoC Integration

Powered by Cisco’s advanced switching-on-chip architecture, the bundle delivers optimized packet processing, reduced latency, and enhanced efficiency. The ASIC design ensures scalability and supports modern networking protocols.

DRAM and Buffer Resources

The system integrates high-capacity DRAM and virtual output queue buffers, ensuring smooth traffic handling and congestion management. This memory architecture supports large-scale routing tables and ACL entries, making it suitable for enterprise-grade deployments.

MAC Address and Routing Tables

With hundreds of thousands of MAC address entries and extensive IPv4 and IPv6 routing support, the switch can handle complex enterprise networks. This ensures compatibility with modern IP addressing schemes and supports future scalability.

Hot Swappable Components

The bundle supports hot-swappable modules, allowing administrators to replace or upgrade components without downtime. This feature enhances reliability and ensures continuous service availability.

Dimensions and Weight

The chassis is engineered with compact dimensions and manageable weight, making it suitable for rack-mounted installations in enterprise data centers. Its design ensures efficient airflow and cooling.

Cisco NX-OS Integration

The switch operates on Cisco NX-OS, a robust and modular operating system designed for high availability and scalability. NX-OS provides advanced features such as virtualization, automation, and programmability.

Compatible Chassis

The Cisco N7K-C7009-B2S2E-R bundle is compatible with multiple Nexus 7000 series chassis, ensuring flexibility in deployment. This compatibility allows enterprises to integrate the bundle into existing infrastructures seamlessly.

Supervisor Modules

It supports Supervisor Engine modules that provide centralized management, redundancy, and control plane scalability. These modules enhance resilience and ensure continuous operation.

Fabric Modules

Fabric modules compatible with the bundle deliver high-speed interconnectivity across the chassis, ensuring optimal throughput and redundancy.

Transceivers and Cables

The system supports a wide range of transceivers and cables, including 10G optical transceivers, DAC, AOC, and breakout cables. This ensures flexibility in connectivity options and supports diverse deployment scenarios.

Ultra-Low Latency

The switch delivers ultra-low latency forwarding, making it ideal for environments where speed and responsiveness are critical. This performance is essential for financial services, cloud computing, and real-time applications.

Scalability

With its modular design and extensive feature set, the Cisco N7K-C7009-B2S2E-R offers scalability for growing enterprises. Organizations can expand their networks without compromising performance or reliability.

Resilience and Redundancy

Redundant components and hot-swappable modules ensure resilience, minimizing downtime and enhancing service continuity. This reliability is crucial for mission-critical applications.

Data Center Deployments

The Cisco N7K-C7009-B2S2E-R is designed for large-scale data centers, providing high-speed connectivity, scalability, and advanced management features. It supports virtualization, cloud workloads, and enterprise applications.

Enterprise Networking

Enterprises benefit from the switch’s advanced Layer 3 capabilities, enabling efficient routing, segmentation, and traffic optimization. It supports complex topologies and ensures secure communication across departments.

Cloud and Virtualization

With VXLAN and EVPN support, the switch enables cloud-ready architectures, supporting virtualized environments and multi-tenant deployments. This makes it suitable for hybrid and private cloud infrastructures.

High-Performance Computing

The ultra-low latency and high throughput make the switch ideal for high-performance computing environments, ensuring smooth operation of demanding applications.

Access Control Lists

Extensive ACL support ensures granular traffic control, enhancing security across the network. Enterprises can define policies to restrict unauthorized access and optimize traffic flows.

Quality of Service

QoS features enable prioritization of critical traffic, ensuring that essential applications receive the necessary bandwidth and performance. This is vital for voice, video, and real-time applications.

Telemetry and Monitoring

Advanced telemetry features provide real-time visibility into network performance, enabling proactive management and troubleshooting. This ensures optimal operation and enhances reliability.

Support for Emerging Protocols

The Cisco N7K-C7009-B2S2E-R supports emerging networking protocols, ensuring that enterprises remain future-ready. This adaptability allows organizations to integrate new technologies seamlessly.

Automation and Programmability

NX-OS provides programmability features, enabling automation of network tasks and integration with orchestration tools. This reduces operational complexity and enhances efficiency.

Virtualization and Cloud Integration

With support for VXLAN and EVPN, the switch integrates seamlessly into cloud architectures, enabling scalable and flexible deployments.

Enterprise Value

The Cisco N7K-C7009-B2S2E-R Nexus 7009 Bundle 10 GBPS Layer 3 Managed Switch delivers unmatched performance, scalability, and reliability. It is engineered for enterprises seeking advanced networking solutions, ensuring that organizations can meet current demands while preparing for future growth.

Strategic Deployment

By integrating this bundle into enterprise infrastructures, organizations gain a competitive edge, leveraging advanced features, resilience, and scalability to optimize their networking environments.
