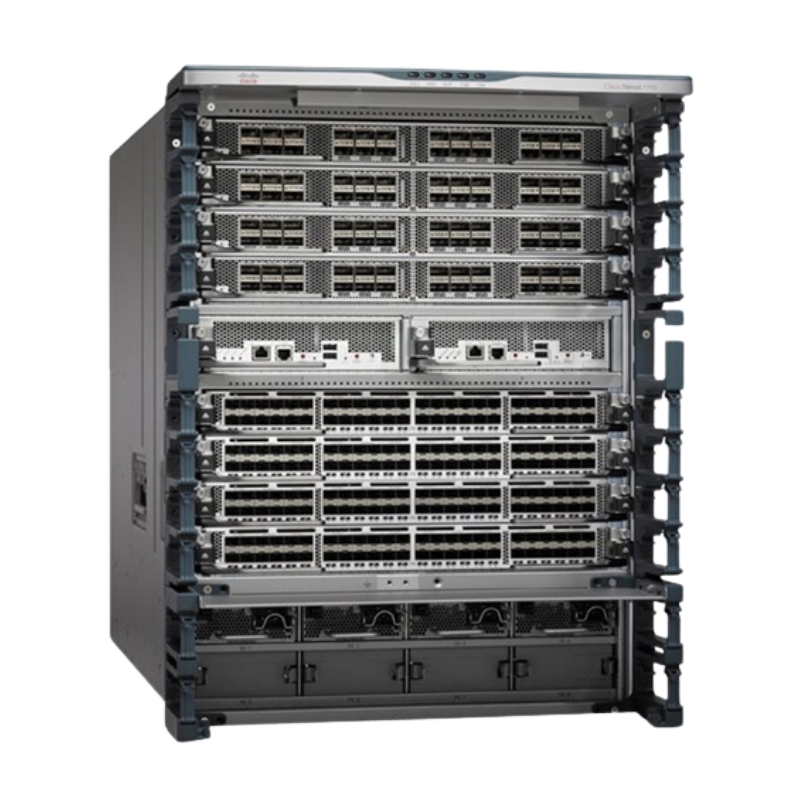

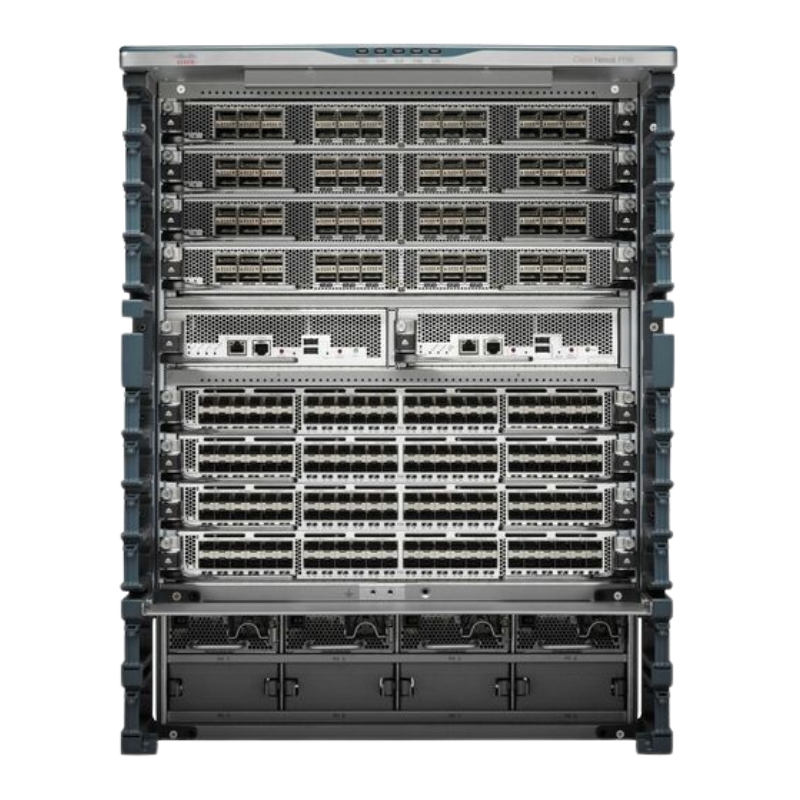

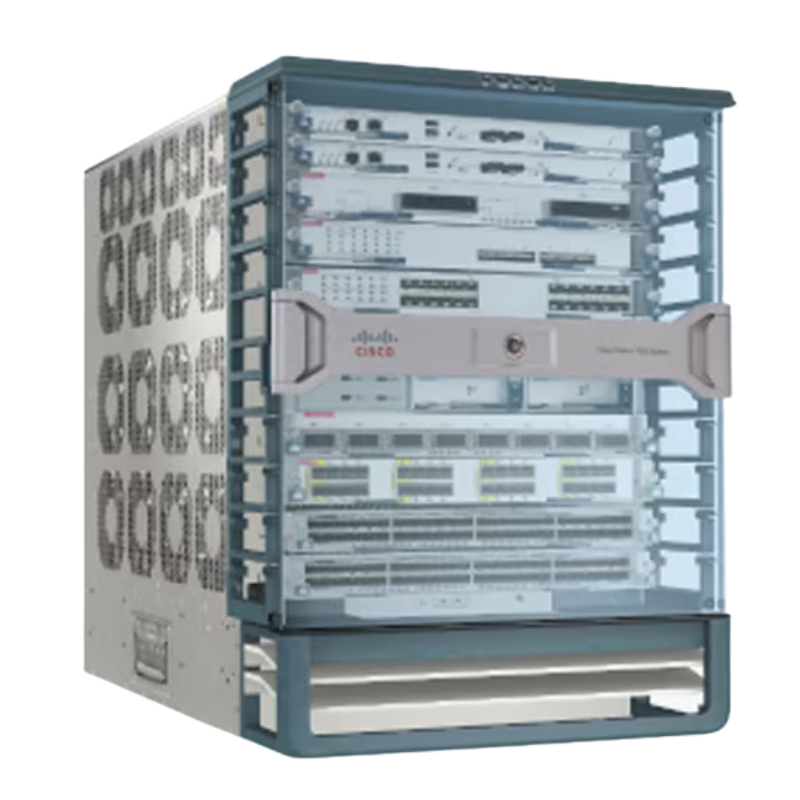

N7K-C7009-B2S2 Cisco Nexus 7009 Switch Bundle

Cisco N7K-C7009-B2S2 Nexus 7009 Bundle Managed Switch

N7K-C7009-B2S2 is a Cisco Nexus 7009 modular data center switch bundle designed for high-performance enterprise and cloud networks. It includes a 9-slot chassis, 1 Supervisor 2 module, and 5 Fabric 2 modules, but does not include power supplies. It supports Layer 2 and Layer 3 networking, high availability, virtualization, and scalable 10/40/100 Gigabit Ethernet deployments, making it suitable for mission-critical data center environments running Cisco NX-OS.

General Information

• Manufacturer: Cisco
• Part Number: N7K-C7009-B2S2
• Device Type: Advanced Managed Switch

Technical Specifications

• Chassis Type: Cisco Nexus 7009 Modular Switch
• Rack Size: 14 RU
• Total Slots: 9
• Switching Fabric Capacity: More than 15 Tbps system architecture
• Local Switching Capacity: Up to 600 Gbps
• Inter-Slot Switching Capacity: Up to 550 Gbps
• Forwarding Performance: Up to 5.04 Billion Packets Per Second
• Layer Support: Layer 2 & Layer 3
• 2 × Dedicated Supervisor Slots
• 7 × I/O Module Slot
• 1 × Supervisor 2 (SUP2)
• 5 × Fabric-2 (FAB2) Modules
• Power Supplies: Not Included
• Cooling: Hot-swappable Fan Trays

Software and Operating System

• Operating System: Cisco NX-OS
• Minimum Supported NX-OS Version: 5.2 or later
• Virtual Device Contexts (VDC): Supported
• Virtual Port Channel: Supported
• FCoE: Supported
• MPLS: Supported
• VXLAN: Supported
• QoS: Advanced Quality of Service

Physical Details

• 24.5 × 17.3 × 24.0 inches
• 62.2 × 43.9 × 61.0 cm
• Rack Mount: Yes (14U)
• Airflow: Front-to-Back
• Operating Temperature: 0°C to 40°C
• Humidity: 5%–95%

Compatibility

Supervisor Modules

• Cisco Nexus SUP1
• Cisco Nexus SUP2
• Cisco Nexus SUP2E

Fabric Modules

• N7K-C7009-FAB2
• Supports Fabric-2 Architecture
• Does not support Fabric-1 Modules

Line Card Compatibility

• M1 Series Modules
• M2 Series Modules
• F2 Series Modules
• F2e Series Modules
• F3 Series Modules

Interface Types Supported

• 1 Gigabit Ethernet
• 10 Gigabit Ethernet
• 40 Gigabit Ethernet
• 100 Gigabit Ethernet

Optics Compatibility

• SFP
• SFP+
• QSFP+
• CFP/100G optics (supported line cards)

Software Compatibility

• Cisco NX-OS 5.2 and later
• Cisco DCNM Management

Deployment Compatibility

• Enterprise Data Centers
• Core Switching
• Aggregation Layer
• Spine Layer
• Virtualized Data Centers
• Storage Networks
• High Availability Environments
• Large Campus Core Networks

Cisco N7K-C7009-B2S2 Nexus 7009 Managed Switch Overview

The Cisco N7K-C7009-B2S2 Nexus 7009 Bundle Managed Switch represents a cornerstone in advanced data center networking, designed to deliver scalable performance, resilient architecture, and comprehensive management capabilities. This modular switch bundle integrates high-speed fabric modules, supervisor engines, and expansion slots to support enterprise-grade workloads, ensuring that organizations can meet the demands of modern applications, virtualization, and cloud-driven environments. Its nine-slot chassis provides flexibility for expansion while maintaining optimized throughput and packet forwarding efficiency, making it a preferred choice for enterprises seeking robust infrastructure solutions.

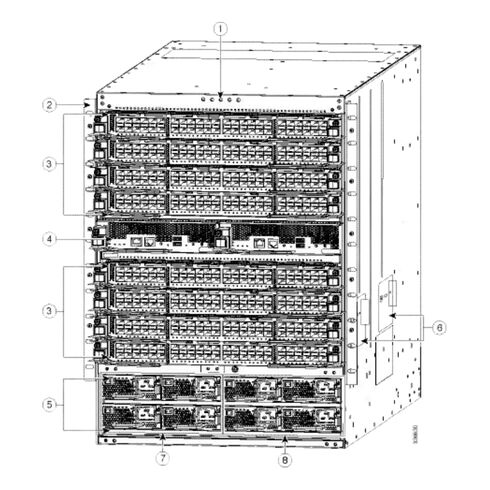

Modular Nine-Slot Chassis

The nine-slot chassis of the Cisco N7K-C7009-B2S2 Nexus 7009 Bundle is engineered to accommodate supervisor engines, fabric modules, and I/O modules, offering a balance between scalability and compact design. With a rack size of 14RU, the chassis fits seamlessly into standard data center racks, providing efficient space utilization without compromising on performance. The modularity ensures that organizations can tailor configurations to their specific networking requirements, whether focusing on high-density Ethernet connectivity or advanced Layer 3 routing capabilities.

Crossbar Fabric Architecture

The switch employs a crossbar fabric architecture, enabling non-blocking communication between modules and ensuring consistent throughput across all slots. This design supports up to 15 Tbps of system throughput and a packet forwarding rate of up to 720 Mpps, allowing enterprises to handle intensive workloads, large-scale virtualization, and high-bandwidth applications with ease. The per-slot bandwidth of up to 550 Gbps ensures that each module can operate at peak efficiency, minimizing latency and maximizing data flow.

Supervisor Engine 2E

The inclusion of the Supervisor Engine 2E provides centralized control, management, and monitoring of the switch. It supports Cisco NX-OS, offering advanced features such as in-service software upgrades, virtual device contexts, and high availability mechanisms. The SUP2E ensures that the switch can adapt to evolving network demands while maintaining operational stability and resilience.

Fabric Module 2

Five Fabric Module 2 units are integrated into the bundle, delivering high-speed interconnectivity between I/O modules and supervisor engines. These modules are hot-swappable, allowing for seamless maintenance and upgrades without disrupting network operations. The fabric modules enhance scalability and ensure that the switch can support diverse traffic patterns and workloads across enterprise environments.

Hot-Swappable Components

The Cisco N7K-C7009-B2S2 Nexus 7009 Bundle emphasizes high availability through hot-swappable supervisor engines, fabric modules, and fan trays. This design minimizes downtime during maintenance or upgrades, ensuring continuous network operations. Enterprises benefit from reduced risk of service interruptions, which is critical for mission-critical applications and services.

Redundant Power Supply Support

Although power supplies are not included in the bundle, the chassis supports redundant power configurations, enabling organizations to implement dual power sources for enhanced reliability. This redundancy ensures that the switch remains operational even in the event of a power supply failure, safeguarding against unexpected outages.

Cisco NX-OS Operating System

The switch operates on Cisco NX-OS, a robust and flexible operating system designed for data center environments. NX-OS provides advanced features such as virtualization support, automation capabilities, and comprehensive security mechanisms. It enables administrators to configure, monitor, and optimize the switch with ease, ensuring efficient management of complex network infrastructures.

Management Tools and Protocols

Administrators can leverage Cisco Data Center Network Manager SNMP v1/v2c/v3, XML API, and scriptable CLI for comprehensive management and monitoring. These tools provide visibility into network performance, facilitate automation, and enable proactive troubleshooting, ensuring that enterprises can maintain optimal network health and performance.

Line Card Support

The Cisco N7K-C7009-B2S2 Nexus 7009 Bundle is compatible with all Cisco Nexus 7000 Series line cards, supporting a wide range of Ethernet speeds including 1G, 10G, 40G, and 100G. This compatibility ensures that organizations can expand their network capabilities as needed, accommodating diverse workloads and future growth.

Advanced Networking Features

The switch supports advanced networking features such as Virtual Device Context, Virtual Port Channel, VXLAN, MPLS, IPv4, IPv6, and Fibre Channel over Ethernet. These features enable enterprises to implement flexible, scalable, and secure networking solutions, supporting modern applications, cloud integration, and virtualization strategies.

Redundant Fan Trays

Cooling is managed through redundant hot-swappable fan trays, ensuring consistent airflow and temperature regulation within the chassis. This redundancy minimizes the risk of overheating and maintains optimal operating conditions, which is essential for sustaining high-performance operations in demanding data center environments.

Compact Yet Powerful Design

The chassis measures approximately 36.5 inches in height, 17.3 inches in width, and 15.4 inches in depth. Despite its compact footprint, the switch delivers enterprise-grade performance, making it an efficient solution for organizations seeking to maximize rack space while maintaining robust networking capabilities.

Data Center Networking

The Cisco N7K-C7009-B2S2 Nexus 7009 Bundle is ideal for data center networking, providing scalable connectivity, high throughput, and advanced management features. It supports virtualization, cloud integration, and high-density Ethernet, enabling enterprises to build resilient and flexible data center infrastructures.

Mission-Critical Applications

With its high availability features, redundant components, and advanced management tools, the switch is well-suited for mission-critical applications that demand continuous uptime and reliable performance. Enterprises can deploy the switch to support financial services, healthcare systems, and other industries where downtime is not an option.

Scalable Enterprise Growth

The modular design and compatibility with diverse line cards make the switch an excellent choice for enterprises planning future growth. Organizations can expand their networking capabilities without replacing the entire chassis, ensuring cost-effective scalability and long-term investment protection.

Infrastructure Solution

The Cisco N7K-C7009-B2S2 Nexus 7009 Bundle Managed Switch delivers a comprehensive infrastructure solution, combining modular design, high availability, advanced management, and compatibility with modern networking technologies. Its robust architecture and scalable performance make it a cornerstone for enterprises seeking to build resilient, flexible, and future-ready data center networks.
