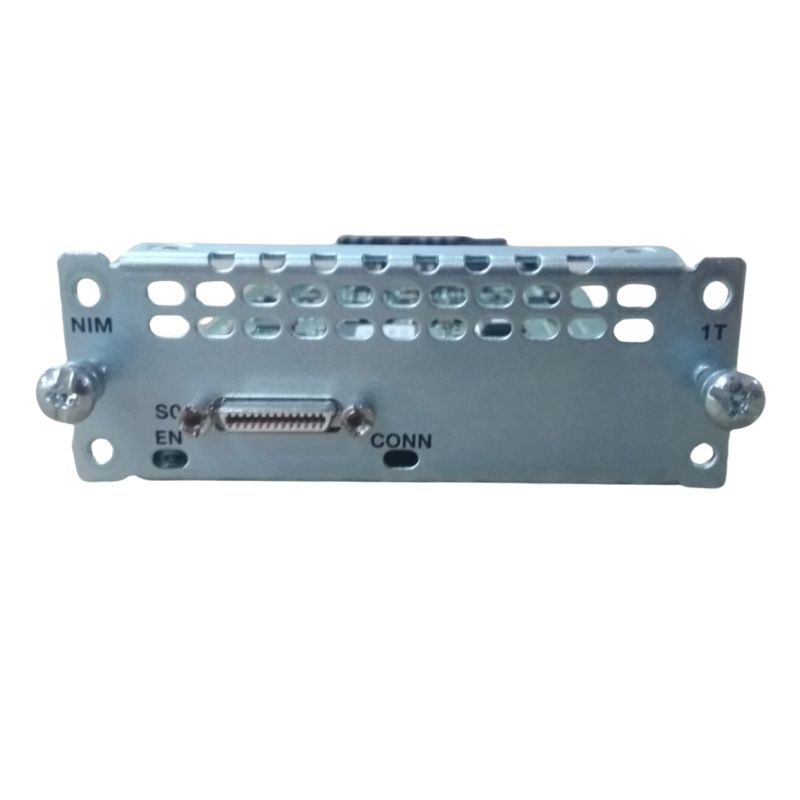

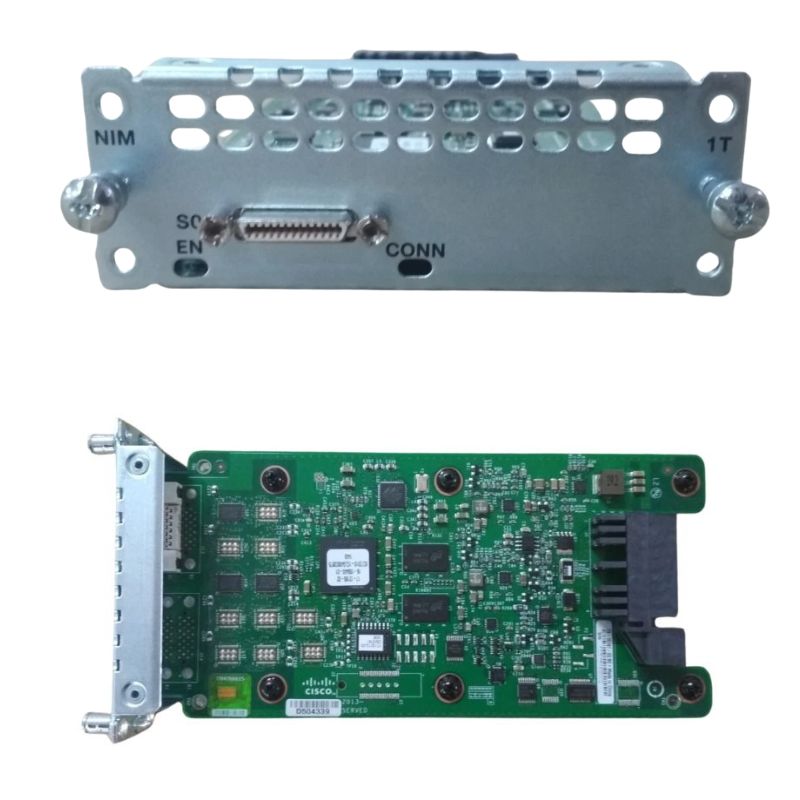

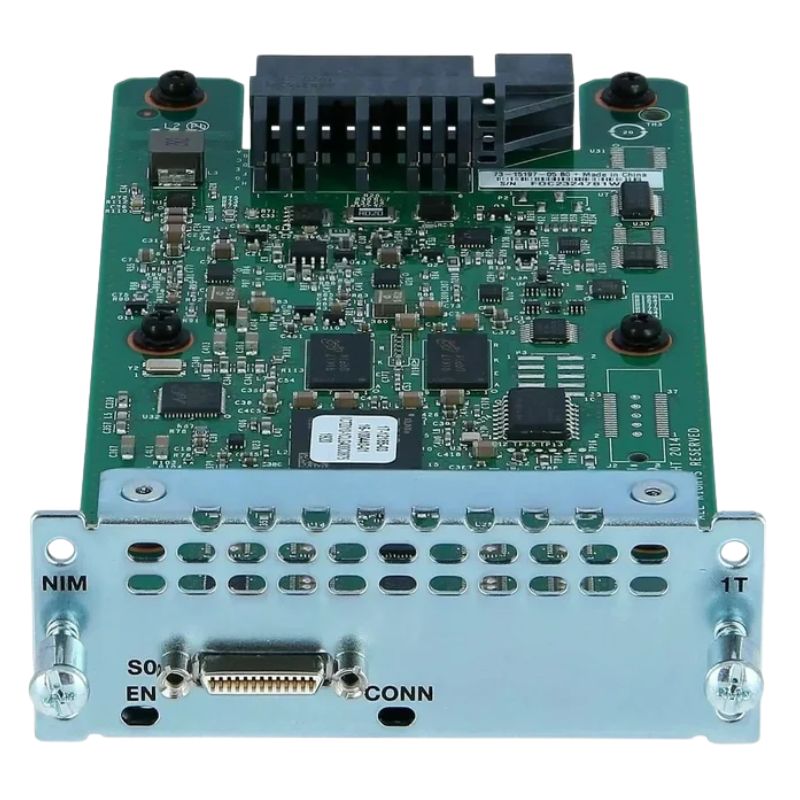

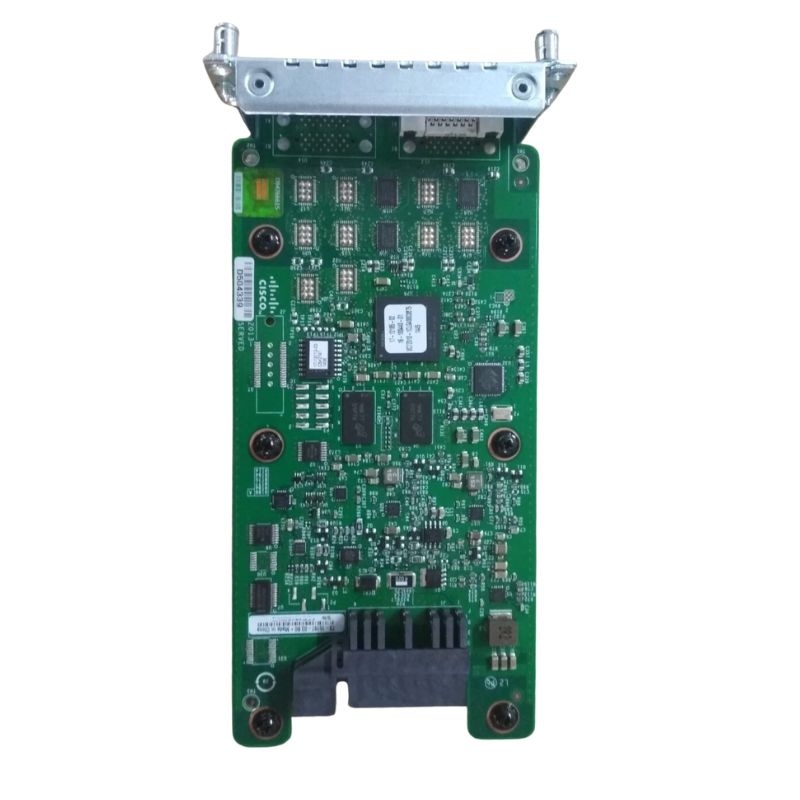

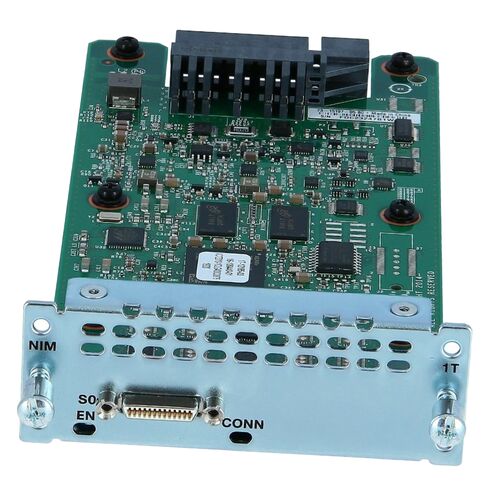

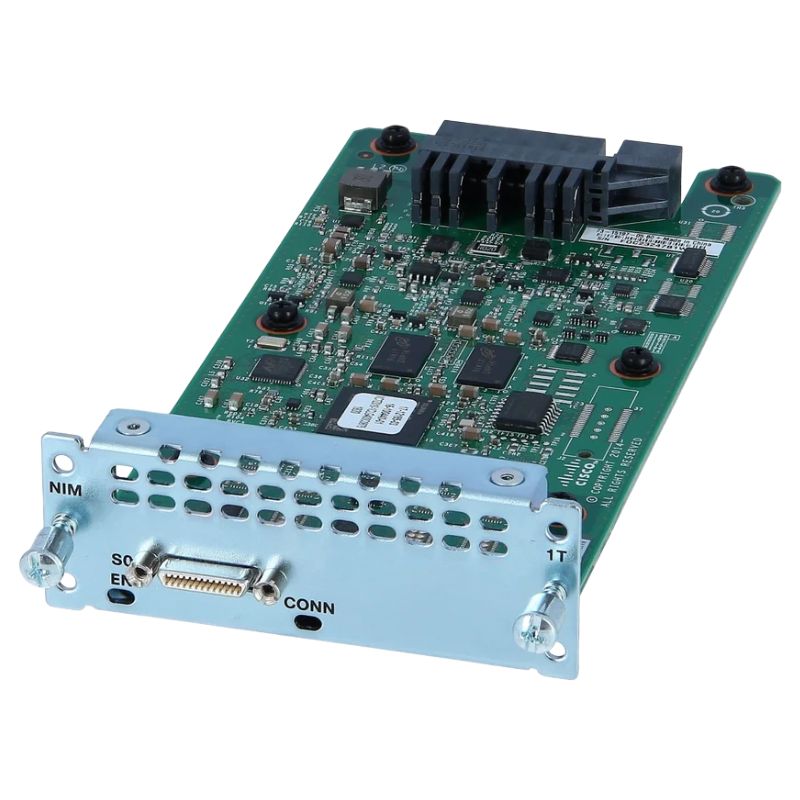

Cisco NIM-1T= Network WAN Interface Module 1 Port Plug-in Module

Explore the Cisco NIM-1T= Network Module

Manufacturer Details

• Brand: Cisco
• Part Number: NIM-1T=
• Category: Network Devices
• Product Sub-Type: Network Module

Interface Card Performance

• Device Type: Serial Adapter
• Form Factor: Plug-in Module
• Ports Available: RS-232/449/530/V.35/X.21 (1 port)
• Connection Type: Wired
• Data Transfer Protocols Supported: RS-232, RS-530, X.21, V.35, RS-449, RS-530a
• Maximum Data Transfer Speed: Up to 8 Mbps
• Total Ports for Networking: 1

Connection and Compatibility

• Compatible Platforms: Works seamlessly with Cisco 4000 Series Integrated Services Routers
• Network Connectivity: Offers reliable, wired connectivity for high-speed data transfers

Optimized Data Transfer Capabilities

• High-Speed Transmission: Up to 8 Mbps transfer rates, ensuring fast data communication
• Multi-Protocol Support: Functions with multiple data link protocols like RS-232, RS-530, X.21, and more

Ports and Interface Flexibility

• Diverse Port Options: Equipped with RS-232/449/530/V.35/X.21 interfaces
• Single Port Convenience: Features one versatile port, adaptable to various configurations

Build and Design

• Compact Form Factor: Plug-in module design, ideal for space-efficient setups
• Robust and Reliable: Engineered to meet demanding networking needs with superior build quality

Comprehensive Compatibility

• Seamless Router Integration: Specially designed for Cisco 4000 Series Routers, ensuring optimal performance
• Efficient Network Expansion: Easily enhances your existing network setup with minimal configuration

Conclusion-Free Information

• This Cisco NIM-1T= network module provides unmatched reliability, performance, and compatibility for advanced networking needs.

Cisco NIM-1T= Network WAN Interface Module

Overview

The Cisco NIM-1T= Network WAN Interface Module is a versatile and reliable solution for expanding the connectivity options of your Cisco Integrated Services Router (ISR). With this module, you can easily integrate traditional T1/E1 networks into your network infrastructure, providing seamless connectivity and enhanced performance.

Key Features

High-Speed Connectivity

The NIM-1T= module offers high-speed connectivity options with support for T1 and E1 interfaces. It allows you to connect your ISR to T1 or E1 networks, enabling efficient data transmission and reliable communication across your network.

Flexible Deployment

This module is designed to be easily deployed in a variety of network environments. Whether you need to connect remote locations, branch offices, or provide backup connectivity, the NIM-1T= module offers the flexibility to meet your specific requirements. Its compact form factor allows for easy installation in your Cisco ISR.

Advanced Protocol Support

The NIM-1T= module supports a wide range of protocols, including HDLC, PPP, and Frame Relay. This ensures compatibility with various network technologies and allows for seamless integration into your existing network infrastructure. You can leverage these protocols to optimize data transfer and ensure efficient communication between different network devices.

Enhanced Security

Security is a top priority for any network infrastructure. The NIM-1T= module incorporates advanced security features, including integrated encryption and authentication mechanisms. With these features, you can ensure the confidentiality and integrity of your data during transmission, protecting it from unauthorized access or interception.

Benefits

Increased Network Performance

By integrating the NIM-1T= module into your network infrastructure, you can enhance network performance by leveraging high-speed T1/E1 connectivity. This allows for faster data transfer rates, minimizing latency and improving overall network efficiency. Whether you are transferring large files or facilitating real-time communication, this module enables smooth and uninterrupted data flow.

Improved Network Scalability

With the NIM-1T= module, you can easily expand your network connectivity options. Whether you need to establish connections with remote locations or add additional branches to your network, this module provides the scalability required to accommodate your growing network requirements. Its flexibility ensures that your network can adapt and evolve as your business needs change.

Cost-Effective Solution

The NIM-1T= module offers a cost-effective solution for integrating T1/E1 networks into your existing infrastructure. Instead of investing in separate hardware or dedicated lines, this module allows you to leverage your existing Cisco ISR and utilize its capabilities to connect to T1/E1 networks. This not only reduces upfront costs but also simplifies management and reduces maintenance efforts.

Reliable Connectivity

The NIM-1T= module ensures reliable connectivity by providing redundancy options and failover capabilities. In case of a network failure or link disruption, the module can seamlessly switch to an alternative route, ensuring uninterrupted communication. This reliability is crucial for critical applications and remote locations where downtime can cause significant disruptions.

Technical Specifications

Interface

The NIM-1T= module features a single T1/E1 interface, allowing for seamless integration with T1 or E1 networks. It supports both full-duplex and half-duplex modes, providing flexibility based on your specific requirements.

Dimensions

The module has a compact form factor, measuring approximately 3.08 x 7.28 x 0.82 inches (WxDxH). Its small size allows for easy installation and saves valuable space in your network infrastructure.

Compatibility

The NIM-1T= module is compatible with Cisco Integrated Services Routers (ISR) models, including the 4000 and 4400 series. This ensures seamless integration into your existing Cisco network infrastructure without the need for additional hardware or complex configuration.

Power Requirements

The module requires a +3.3V power supply, which can be conveniently provided by your Cisco ISR. This eliminates the need for separate power sources, simplifying installation and reducing overall power consumption.

Operating Temperature

The NIM-1T= module is designed to operate within a wide temperature range, from 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit). This allows for deployment in various environments, including both office and industrial settings.

Management

The module can be easily managed through the Cisco IOS Software, providing a familiar and intuitive interface for configuration and monitoring. With the Cisco IOS Software, you can efficiently manage your network and ensure optimal performance of the NIM-1T= module.

Conclusion

The Cisco NIM-1T= Network WAN Interface Module offers a reliable and scalable solution for integrating T1/E1 networks into your existing infrastructure. With its high-speed connectivity, advanced protocol support, and enhanced security features, this module provides the performance and flexibility required for modern network environments. By leveraging the benefits of the NIM-1T= module, you can enhance network performance, improve scalability, reduce costs, and ensure reliable connectivity across your network infrastructure.
