NME-AIR-WLC12-K9 Cisco WLAN Controller Network Module

Overview NME-AIR-WLC12-K9 WLAN Controller Network Module

The Cisco NME-AIR-WLC12-K9 WLAN Controller Network Module is a specialized internal enhanced network module designed to integrate seamlessly into Cisco Integrated Services Routers. This module provides centralized wireless LAN management capabilities, supporting up to twelve Cisco Lightweight Access Points. It is engineered to deliver enterprise-grade wireless connectivity, security, and scalability for organizations seeking reliable WLAN solutions within their existing Cisco infrastructure.

Hardware Design

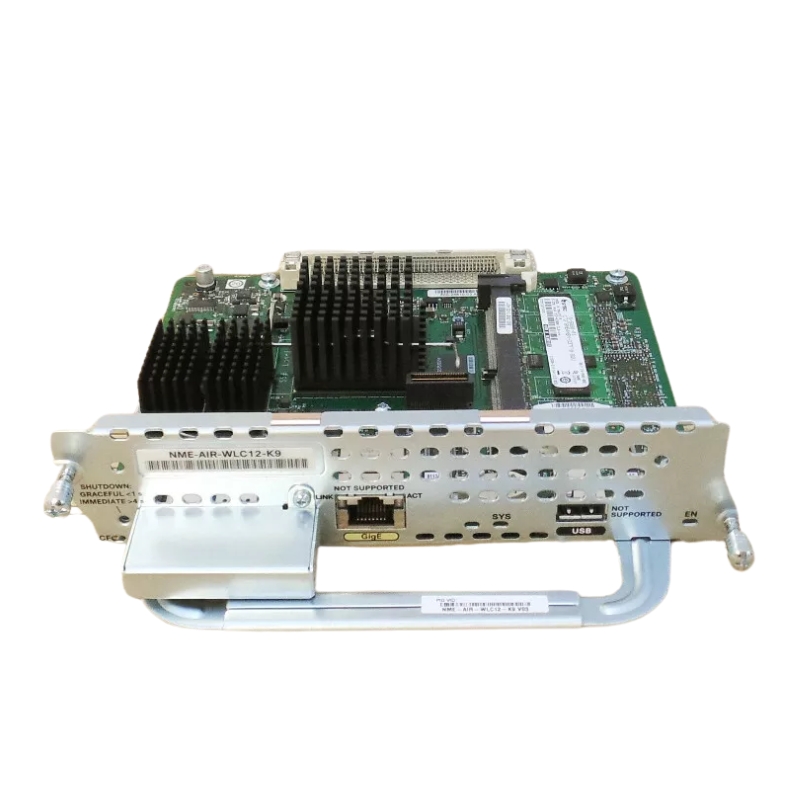

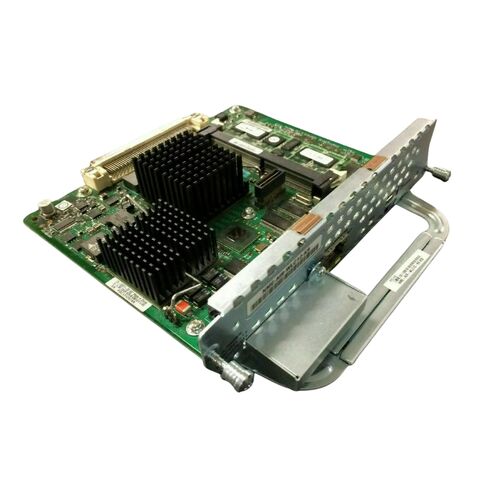

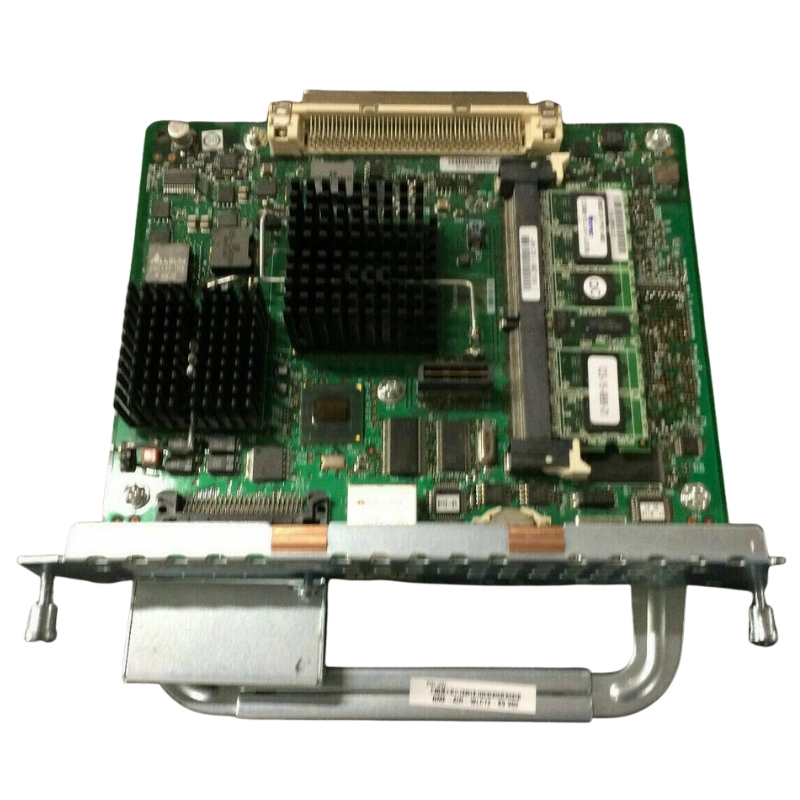

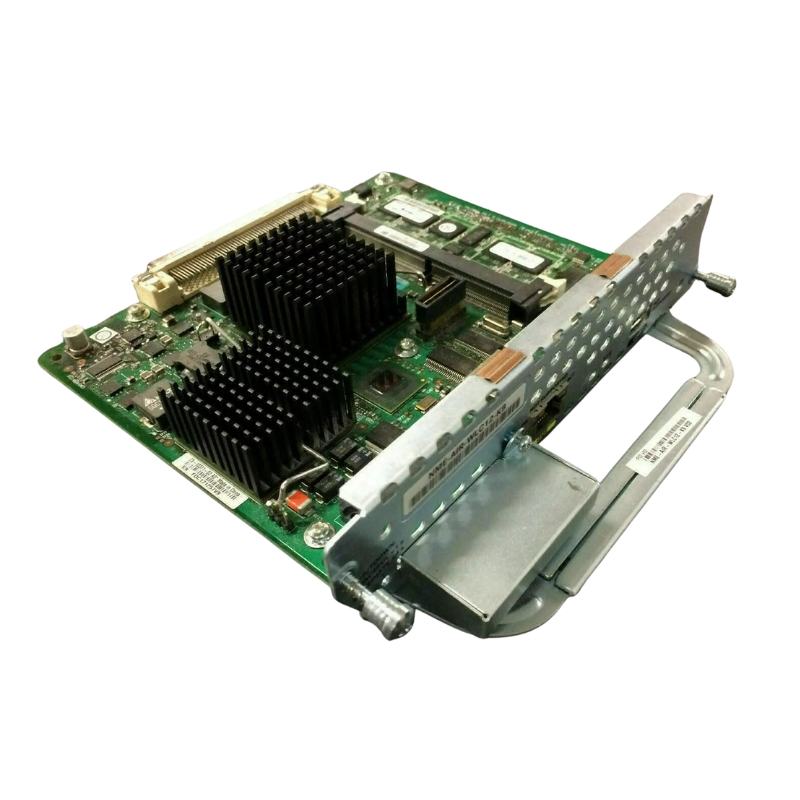

The Cisco NME-AIR-WLC12-K9 features a compact internal module form factor, optimized for installation within Cisco ISR platforms. It is equipped with 256 MB DRAM, ensuring smooth operation of wireless management tasks. The module operates without a hard disk, relying on a diskless design that enhances reliability and reduces potential points of failure. A single Gigabit Ethernet interface provides high-speed connectivity, enabling efficient communication between the module and connected access points.

Management Interfaces

Administrators can manage the Cisco NME-AIR-WLC12-K9 through multiple interfaces, including a web-based GUI, command-line interface and SNMP. This flexibility allows IT teams to choose the management method that best suits their operational environment. The module also integrates with Cisco Wireless Control System providing advanced monitoring, configuration, and troubleshooting capabilities across large-scale deployments.

Security Features

Security is a cornerstone of the Cisco NME-AIR-WLC12-K9 design. The module supports WPA and WPA2 encryption standards, IEEE 802.1X authentication, AES encryption, and TKIP encryption. These features ensure that wireless communications remain protected against unauthorized access and potential threats. By implementing enterprise-grade security protocols, the module safeguards sensitive data transmitted across WLAN networks.

Centralized WLAN

The Cisco NME-AIR-WLC12-K9 enables centralized control of up to twelve Cisco Lightweight Access Points. This centralized approach simplifies configuration, monitoring, and troubleshooting, reducing administrative overhead while ensuring consistent policy enforcement across the wireless network.

RF

Advanced RF management capabilities allow the module to optimize wireless coverage and performance. It automatically adjusts channel assignments and power levels to minimize interference and maximize throughput. This ensures that users experience stable and high-quality wireless connectivity, even in environments with dense access point deployments.

Rogue AP Detection

The module includes rogue access point detection, a critical feature for maintaining network integrity. By identifying unauthorized access points, administrators can take immediate action to prevent potential security breaches and ensure compliance with organizational policies.

Layer 3 Fast Secure Roaming

Layer 3 fast secure roaming enables seamless mobility for users moving across different subnets. This feature ensures uninterrupted connectivity for applications such as VoIP, video conferencing, and real-time collaboration tools, enhancing productivity and user experience.

Quality of Service

Quality of Service capabilities prioritize critical traffic, ensuring that latency-sensitive applications receive the necessary bandwidth. This is particularly important for voice and video applications, where consistent performance is essential for effective communication.

VLAN Support

VLAN support allows administrators to segment wireless traffic, enhancing security and performance. By isolating different types of traffic, organizations can enforce policies more effectively and optimize resource allocation across the network.

Operating Conditions

The Cisco NME-AIR-WLC12-K9 is designed to operate within a temperature range of 0°C to 40°C, making it suitable for typical enterprise environments. It can be stored at temperatures ranging from -25°C to 70°C, ensuring durability during transportation and storage. Operating humidity levels range from 10% to 95% non-condensing, accommodating diverse environmental conditions.

Power Consumption

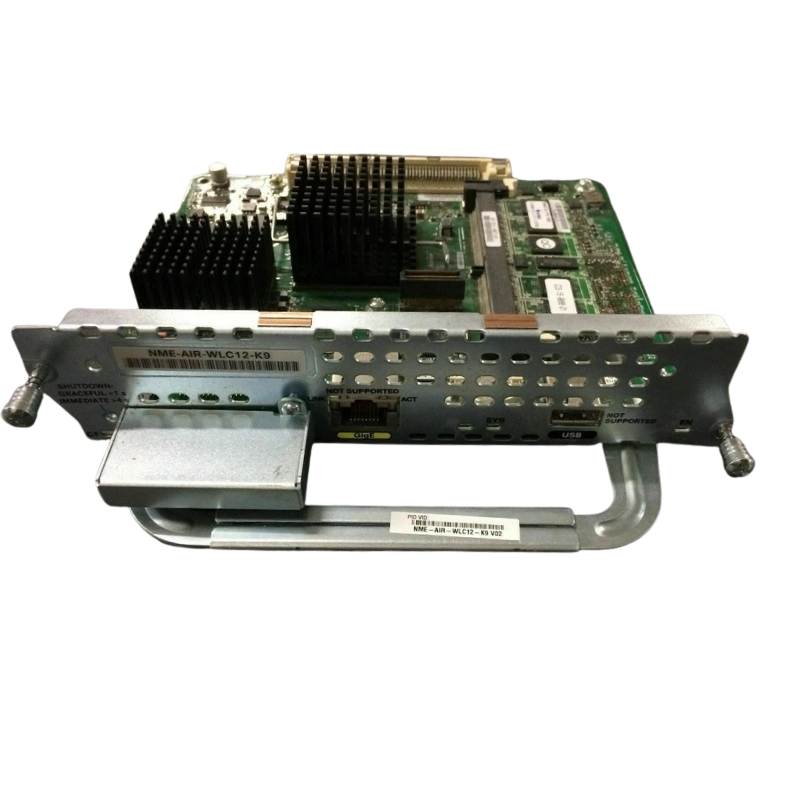

The module consumes approximately 30 watts of power, balancing performance with energy efficiency. LED indicators provide visual feedback on system status, including power, enable, link, activity, and CompactFlash status, simplifying monitoring and troubleshooting.

Software Requirements

The Cisco NME-AIR-WLC12-K9 requires Cisco IOS Release 12.4 T or later, ensuring compatibility with modern Cisco router platforms. It integrates seamlessly with Cisco Wireless Control System providing centralized management and monitoring capabilities across large-scale wireless deployments.

Compatible Cisco Routers

The module is compatible with Cisco 2800 Series Integrated Services Routers (excluding Cisco 2801) and Cisco 3800 Series Integrated Services Routers. This compatibility ensures that organizations can leverage existing infrastructure investments while enhancing wireless capabilities.

Compatible Cisco Lightweight Access Points

The Cisco NME-AIR-WLC12-K9 supports multiple Cisco Aironet series, including the 1000 Series, 1130AG Series, and 1200 Series Lightweight Access Points. This broad compatibility allows organizations to deploy a diverse range of access points, tailored to specific coverage and performance requirements.

Compatible Cisco Wireless Platforms

In addition to Cisco WCS, the module integrates with Cisco 2700 Wireless Location Appliance, Cisco 2106 Wireless LAN Controller, Cisco 4400 Series Wireless LAN Controllers, and Cisco Catalyst 6500 Wireless Services Module. This interoperability ensures that organizations can build scalable and flexible wireless infrastructures.

Deployment Scenarios

In enterprise environments, the Cisco NME-AIR-WLC12-K9 provides centralized management of wireless networks, ensuring consistent policy enforcement and high-quality connectivity. It supports mobility, security, and scalability, making it ideal for organizations with diverse user requirements.

Branch Offices

For branch offices, the module offers a cost-effective solution for extending enterprise-grade wireless capabilities. By integrating into Cisco ISR platforms, organizations can deploy secure and reliable WLAN services without the need for standalone controllers.

Educational Institutions

Educational institutions benefit from the module’s ability to support multiple access points, providing coverage across classrooms, libraries, and common areas. Features such as fast secure roaming and QoS ensure that students and faculty experience seamless connectivity for learning and collaboration.

Healthcare Facilities

In healthcare environments, the Cisco NME-AIR-WLC12-K9 supports secure and reliable wireless connectivity for critical applications. Features such as rogue AP detection and WPA2 encryption safeguard sensitive patient data, while QoS ensures consistent performance for medical applications.

Certifications

The Cisco NME-AIR-WLC12-K9 complies with CE, FCC, UL 60950-1, EN 60950, and RoHS standards. These certifications demonstrate the module’s adherence to international safety, environmental, and performance requirements, ensuring reliability and sustainability.

Scalability

Supporting up to twelve access points, the Cisco NME-AIR-WLC12-K9 provides scalability for growing organizations. As wireless demands increase, administrators can expand coverage by adding compatible access points, ensuring that the network evolves with organizational needs.

Reliability

The diskless design enhances reliability by eliminating potential points of failure. Combined with robust security features and advanced RF management, the module delivers consistent performance across diverse deployment scenarios.

Integration with Cisco Ecosystem

By integrating seamlessly with Cisco routers, access points, and management platforms, the Cisco NME-AIR-WLC12-K9 protects organizational investments. It ensures compatibility with existing infrastructure while providing a pathway for future upgrades and expansions.

Modern Applications

Features such as fast secure roaming, QoS, and VLAN support enable the module to support modern applications, including real-time collaboration, video conferencing, and cloud-based services. This future-proofing ensures that organizations remain competitive in dynamic digital environments.
