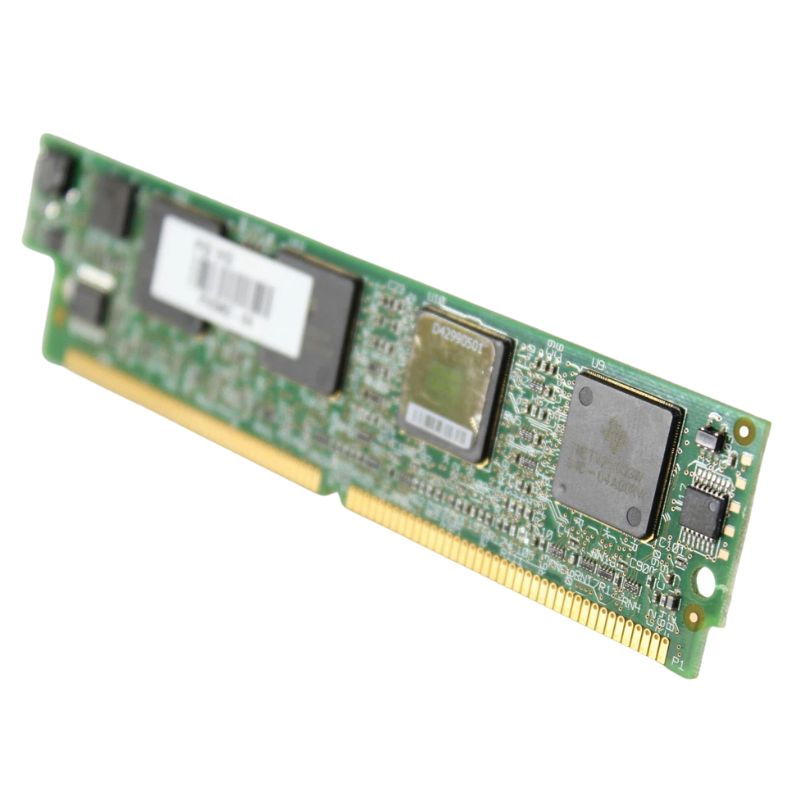

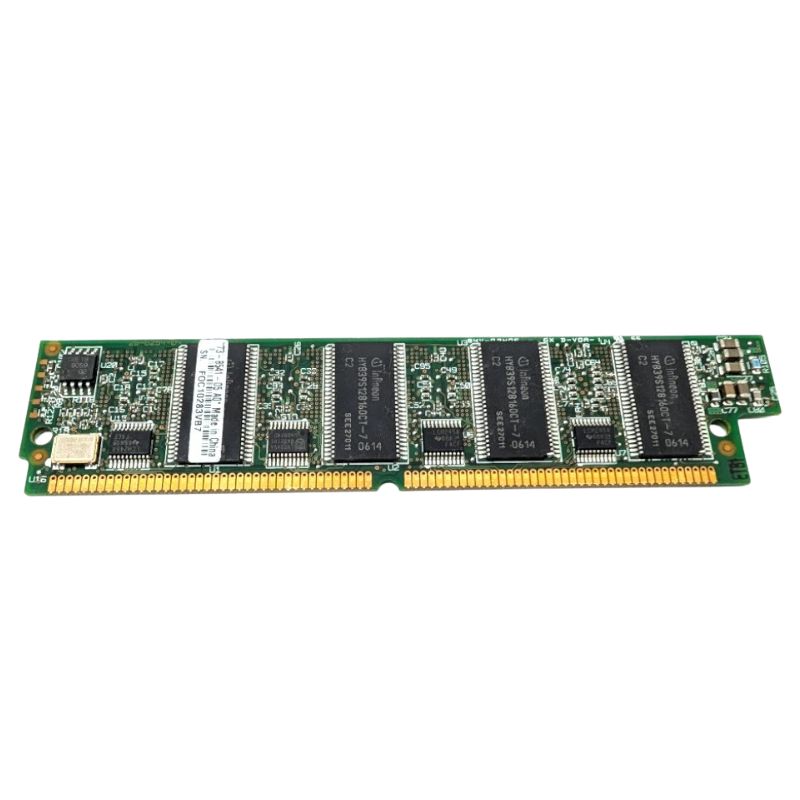

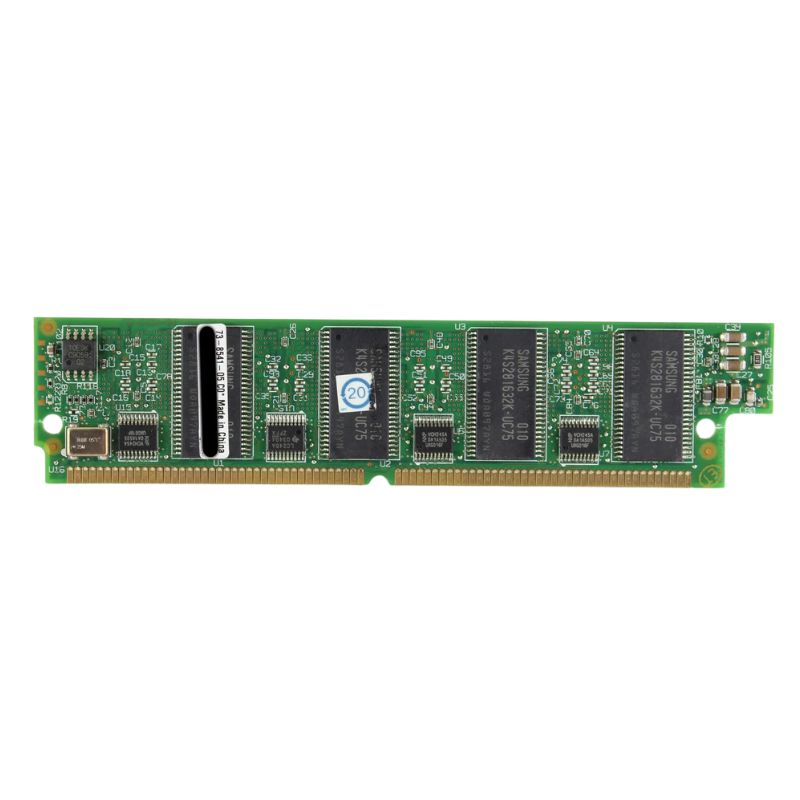

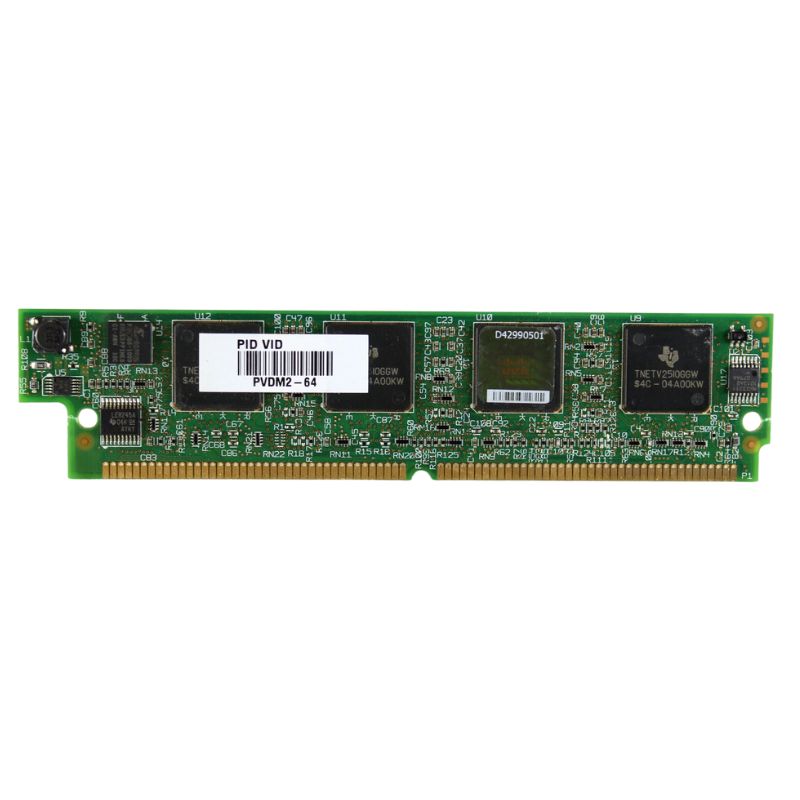

Cisco PVDM2-64= Fax Module - Channel DSP

Overview of Cisco PVDM2-64=

Product Details

• Manufacturer: Cisco
• Part Number: PVDM2-64=
• Product Name: 64-Channel Packet Fax/Voice DSP Module
• Type: Telephony Module

Technical Specifications

General Features

• Application: Voice Communication
• Processor: 4 Digital Signal Processors (DSPs)
• Description: Cisco Voice and Fax Module
• Device Type: Voice/Fax Module
• Form Factor: Plug-in Module
• Data Compression: G.711 Codec
• System Compatibility: Cisco IOS 12.3(7)T and higher

Environmental Conditions

• Operating Temperature: 32°F (0°C) to 104°F (40°C)
• Storage Temperature: -13°F (-25°C) to 158°F (70°C)
• Operating Humidity: 5% to 85% Non-condensing
• Storage Humidity: 5% to 95% Non-condensing

Channel Capacities

• High Complexity: Up to 24 Channels
• Medium Complexity: Up to 32 Channels
• Flexi Complexity: 24 to 64 Channels

Supported Vocoders

• High-Complexity: G.711, G.726, G.729, G.723.1, G.728, GSM-EFR, Fax Relay
• Medium-Complexity: G.711, G.726, G.729a, GSM, Fax Relay
• Flexi Complexity: G.711, G.726, G.729, G.723.1, G.728, Fax Relay

System Requirements

Supported Platforms and IOS Versions

• Cisco 2600XM: Requires IOS 12.3(7)T
• Cisco 2691: Requires IOS 12.3(7)T
• Cisco 3700: Requires IOS 12.3(7)T

Memory Requirements

• Cisco 2600XM: 64 MB DRAM, 32 MB Flash
• Cisco 2691: 128 MB DRAM, 32 MB Flash
• Cisco 3700: 128 MB DRAM, 32 MB Flash

Compatibility

• Compatible Network Modules: NM-HDV2, NM-HDV2-1T1/E1, NM-HDV2-2T1/E1

Cisco PVDM2-64= Channel DSP Fax Module

Overview

The Cisco PVDM2-64= Channel DSP Fax Module is a powerful and versatile solution that enhances the functionality of Cisco voice routers. This module allows for efficient fax transmission and reception over IP networks, providing seamless integration of fax services into your existing infrastructure. With 64 channels of digital signal processing (DSP), this module can handle high volumes of fax traffic, ensuring reliable and fast fax communication.

Key Features

1. High Capacity

The PVDM2-64= Channel DSP Fax Module offers 64 channels of DSP, enabling it to support a large number of simultaneous fax transmissions. This high capacity ensures that your organization can handle high volumes of fax traffic without any performance issues or bottlenecks.

2. Seamless Integration

This module seamlessly integrates with Cisco voice routers, making it easy to incorporate fax services into your existing network infrastructure. The integration process is straightforward and does not require any major changes to your network setup, allowing for a hassle-free deployment.

3. Reliable Fax Communication

With the PVDM2-64= Channel DSP Fax Module, you can rely on stable and consistent fax communication. The module leverages advanced digital signal processing technology to optimize fax transmission and reception, ensuring that every fax is delivered accurately and efficiently.

4. IP Network Support

This module supports fax communication over IP networks, allowing you to take advantage of the cost savings and flexibility offered by IP telephony. By transmitting faxes over your existing IP network, you can eliminate the need for dedicated analog phone lines, reducing operational costs and simplifying your fax infrastructure.

5. Enhanced Fax Features

The PVDM2-64= Channel DSP Fax Module provides a range of enhanced fax features to streamline your fax operations. These features include automatic fax detection, error correction, and fax compression, improving the overall performance and efficiency of your fax communications.

Benefits

1. Cost Savings

By leveraging the PVDM2-64= Channel DSP Fax Module, you can significantly reduce costs associated with traditional fax infrastructure. The module allows you to transmit faxes over your IP network, eliminating the need for dedicated analog phone lines and reducing monthly expenses.

2. Improved Efficiency

With its high capacity and advanced features, this module enhances the efficiency of your fax communications. It can handle a large volume of faxes simultaneously, reducing transmission times and improving overall productivity. The automatic fax detection and error correction features ensure that every fax is sent and received accurately, further enhancing operational efficiency.

3. Scalability

The PVDM2-64= Channel DSP Fax Module offers scalability to accommodate the growing needs of your organization. As your business expands, you can easily add more modules to increase the number of available fax channels, ensuring that your fax infrastructure remains capable of handling higher volumes of traffic.

4. Flexibility

By integrating fax services into your IP network, you gain the flexibility to send and receive faxes from anywhere with an internet connection. This eliminates geographical limitations and allows for remote faxing, enabling your employees to work efficiently from any location.

5. Simplified Management

With this module, managing your fax infrastructure becomes easier and more centralized. The integration with Cisco voice routers provides a single interface for managing both voice and fax services, simplifying administration and reducing complexity.

Conclusion

In conclusion, the Cisco PVDM2-64= Channel DSP Fax Module is a reliable and feature-rich solution for integrating fax services into your IP network. With its high capacity, seamless integration, and enhanced features, this module offers numerous benefits including cost savings, improved efficiency, scalability, flexibility, and simplified management. Upgrade your fax infrastructure today and experience the advantages of this powerful module.
