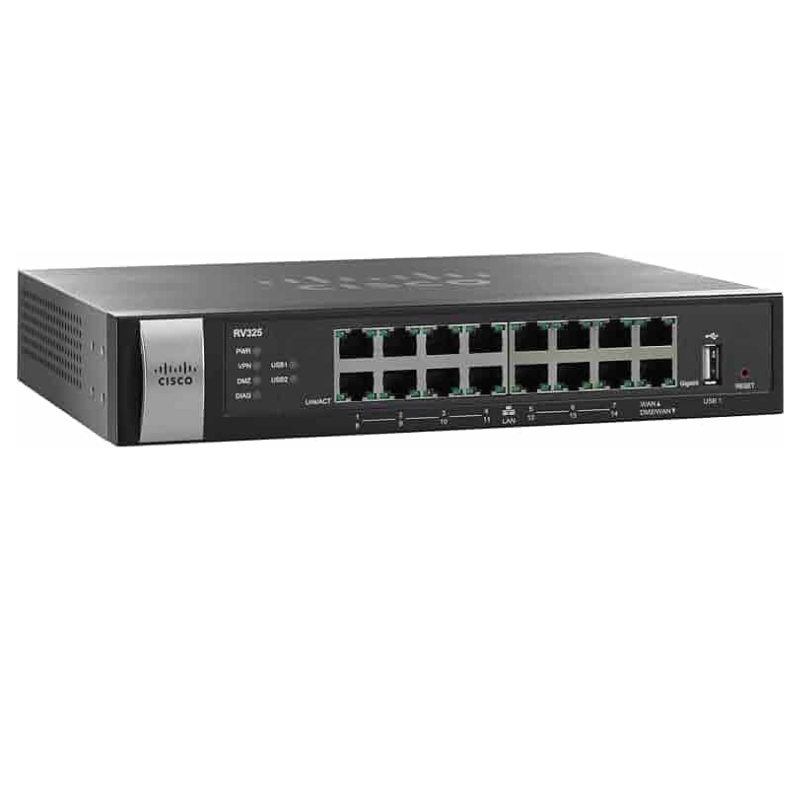

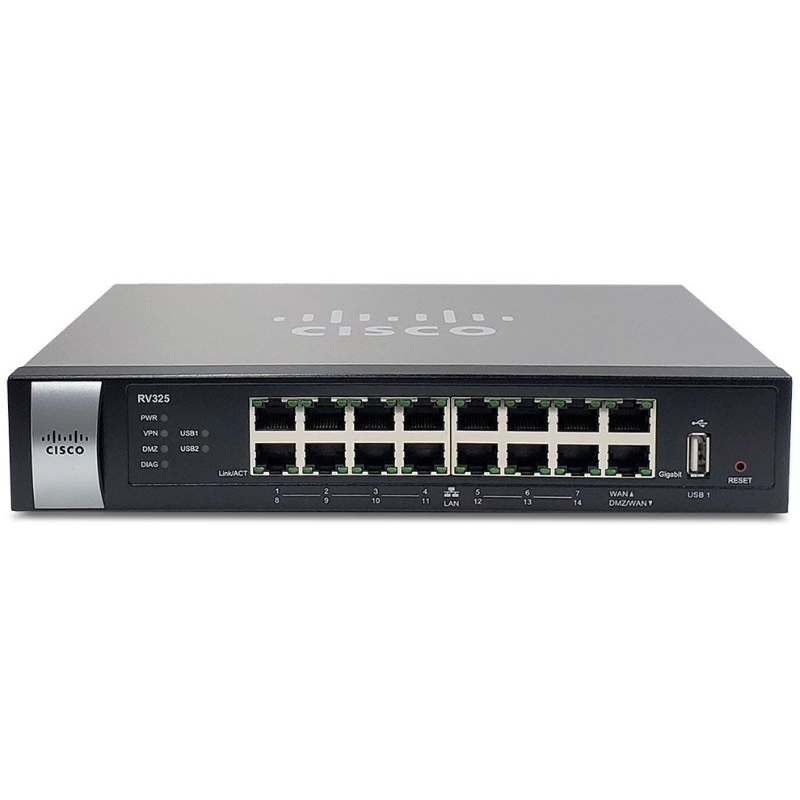

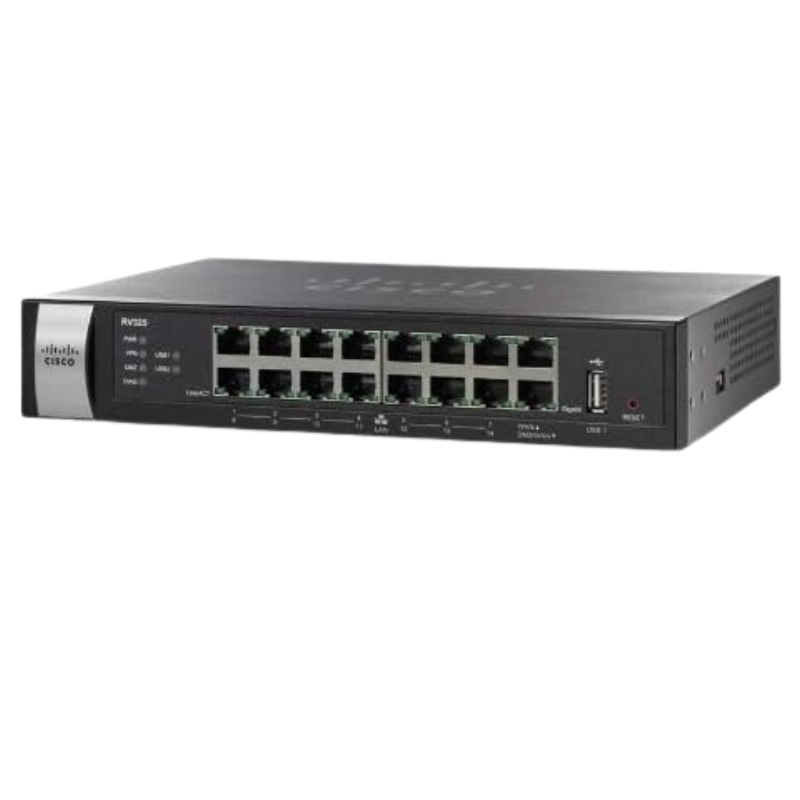

Cisco RV325-K9-NA Dual WAN VPN Router (16 Ports)

Manufacturer & Model Details

• Manufacturer: Cisco
• Model Number: RV325-K9-NA
• Product Series: RV
• Product Name: RV325 Gigabit Dual WAN VPN Router
• Product Type: Router

Port Configuration

• Total Ports: 16
• Network (RJ-45) Ports: 14
• Broadband (RJ-45) Ports: 2
• USB Ports: Yes
• Power Line: No
• Token Ring Port: No
• Serial V.35 Interface: No

Network & Communication

WAN Technology

• Network Technology: 10/100/1000Base-T
• Ethernet Technology: Gigabit Ethernet

Protocols & Management

• Network / Transport Protocols: Bonjour, DDNS, DHCP, IPSec, L2TP, PPPoE, PPTP
• Routing Protocols: RIP-1, RIP-2, RIPng, Static IP Routing
• Remote Management Protocols: HTTP, HTTPS, SNMP v1, SNMP v2c, SNMP v3

Security Features

Firewall & Protection

• Firewall Type: SPI Firewall
• Protection Against: DoS attacks, Ping of Death, SYN Floods, Land Attacks, IP Spoofing
• Email Alerts: Yes, for hacker attacks
• Access Rules: Up to 50 entries, Schedule-based
• Port Forwarding: Up to 30 entries
• Port Triggering: Up to 30 entries
• Content Filtering: Static URL and Keyword Blocking
• Secure Management: HTTPS Web Access, Username/Password Complexity Enforcement

VLAN Support

• VLAN Technology: 802.1Q VLAN
• VLANs Supported: 17

WAN & LAN Ports

• WAN Ports: 2 x 10/100/1000 Mbps
• LAN Ports: 14 x 10/100/1000 Mbps

VPN Capabilities

VPN Types & Throughput

• IPsec Tunnels: 25 Site-to-Site Tunnels, 25 Remote Access Tunnels (via Cisco VPN Client and third-party clients such as “TheGreenBow”)
• SSL VPN Tunnels: 10
• PPTP Tunnels: 10
• IPsec VPN Throughput: 100 Mbps
• SSL VPN Throughput: 20 Mbps

Encryption & Authentication

• Encryption Standards: DES, 3DES, AES (AES-128, AES-192, AES-256)
• Authentication: MD5, SHA1
• IPsec NAT Traversal: Supported for Gateway-to-Gateway and Client-to-Gateway Tunnels

Advanced VPN Features

• Dead Peer Detection (DPD): Yes
• Split DNS: Yes
• VPN Backup: Yes
• Internet Key Exchange (IKE): With Certificate
• VPN Pass-Through: PPTP, L2TP, IPsec

Physical Dimensions & Power Specifications

• Width: 7.00 Inches
• Depth: 9.60 Inches
• Height: 1.80 Inches

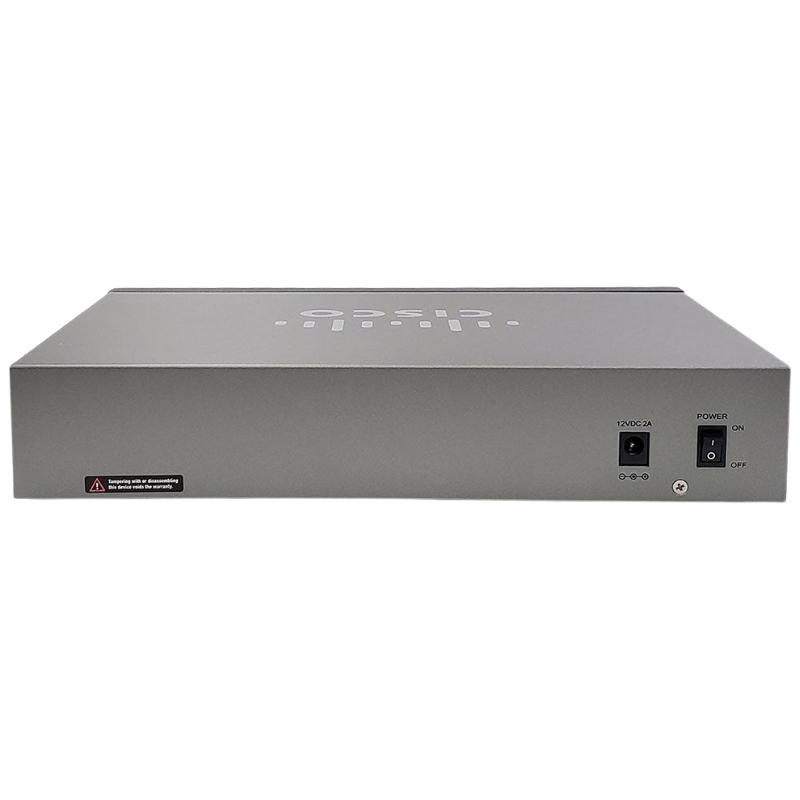

• Power Description: 12 V DC Input Voltage
• Power Source: AC Adapter
• PoE (RJ-45) Port: No

Ports

The Cisco RV325 Dual WAN VPN Router is equipped with an impressive 16 ports, making it a versatile and powerful networking solution for businesses of all sizes. These ports offer a wide range of benefits and play a critical role in ensuring seamless connectivity and efficient data transfer.

Enhanced Connectivity

With 16 ports at your disposal, the Cisco RV325 allows you to connect multiple devices simultaneously. This is particularly beneficial for businesses that require numerous network connections, such as offices with multiple departments or organizations that rely heavily on data-intensive tasks. The abundance of ports ensures that each device can be connected directly to the router without the need for additional networking equipment, simplifying the setup process and minimizing potential points of failure.

Network Segmentation

The large number of ports on the Cisco RV325 enables network segmentation, which is crucial for enhancing security and optimizing network performance. By dividing your network into separate segments, you can isolate different departments or user groups, preventing unauthorized access to sensitive data. Additionally, this segregation allows you to allocate bandwidth more effectively, ensuring critical applications receive priority without affecting the performance of other devices on the network.

Improved Data Transfer Speeds

The Cisco RV325's 16 ports support Gigabit Ethernet connections, providing lightning-fast data transfer speeds of up to 1000 Mbps. This is particularly advantageous for businesses that rely heavily on file sharing, video conferencing, or other bandwidth-intensive applications. With faster data transfer speeds, you can significantly reduce the time required to upload or download large files, improving overall productivity and efficiency.

Versatile Network Expansion

The abundance of ports allows for easy network expansion and scalability. As your business grows and demands increase, you may need to add more devices to your network. With the Cisco RV325's 16 ports, you have ample room for future expansion without the need to invest in additional networking infrastructure. This scalability ensures that your network can adapt to the changing needs of your business without incurring significant costs.

Redundancy and Failover

The Cisco RV325's dual WAN capability, coupled with the 16 ports, offers redundancy and failover protection. In the event of a primary internet connection failure, the router can automatically switch to an alternate connection, ensuring uninterrupted connectivity. The multiple ports allow you to connect different ISPs or utilize multiple connections from a single ISP, distributing network traffic and minimizing downtime. This feature is particularly valuable for businesses that heavily rely on internet connectivity to carry out their day-to-day operations.

Optimized Network Performance

The 16 ports on the Cisco RV325 enable advanced network management and optimization features. With support for VLANs (Virtual Local Area Networks), you can logically separate devices or groups of devices based on their roles or requirements. This segmentation allows for efficient traffic management and enhances network security by isolating different types of data. Additionally, the router supports Quality of Service (QoS) features, enabling you to prioritize critical applications or services over less important ones, ensuring optimal performance for essential tasks.

Streamlined Device Management

Managing a network with numerous devices can be challenging, but the Cisco RV325 simplifies this process. The 16 ports provide a dedicated connection for each device, allowing for easy identification and troubleshooting. With clear visibility into each connected device, network administrators can quickly identify and resolve any issues that may arise. This streamlined device management saves time and resources, allowing IT personnel to focus on more critical tasks.

In conclusion, the Cisco RV325 Dual WAN VPN Router's 16 ports offer numerous benefits and are crucial for businesses seeking enhanced connectivity, network segmentation, improved data transfer speeds, versatile network expansion, redundancy and failover protection, optimized network performance, and streamlined device management. With its robust port capacity, this router provides a reliable and scalable solution for businesses of all sizes.
