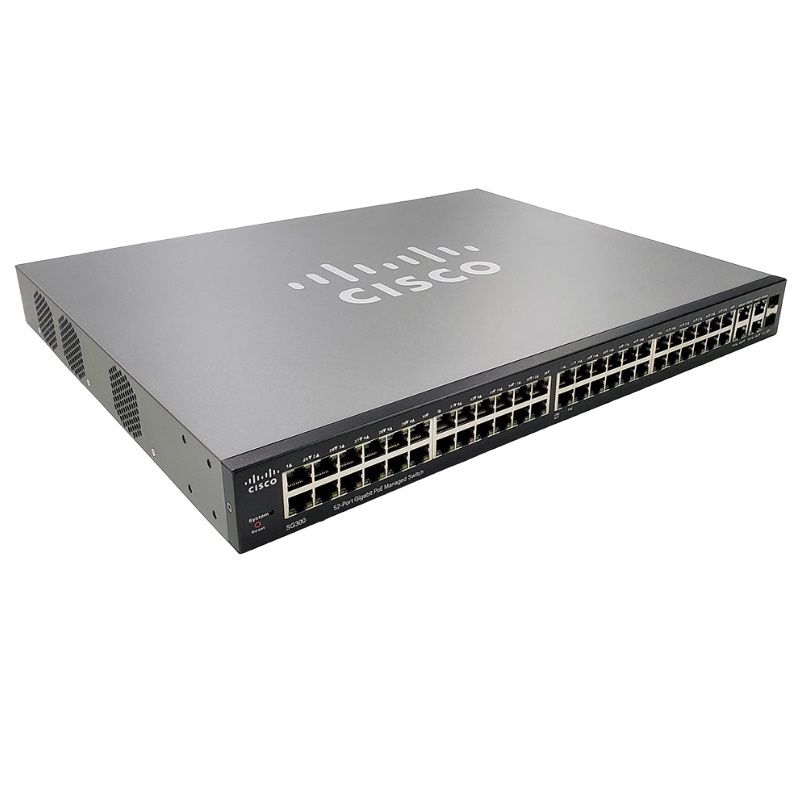

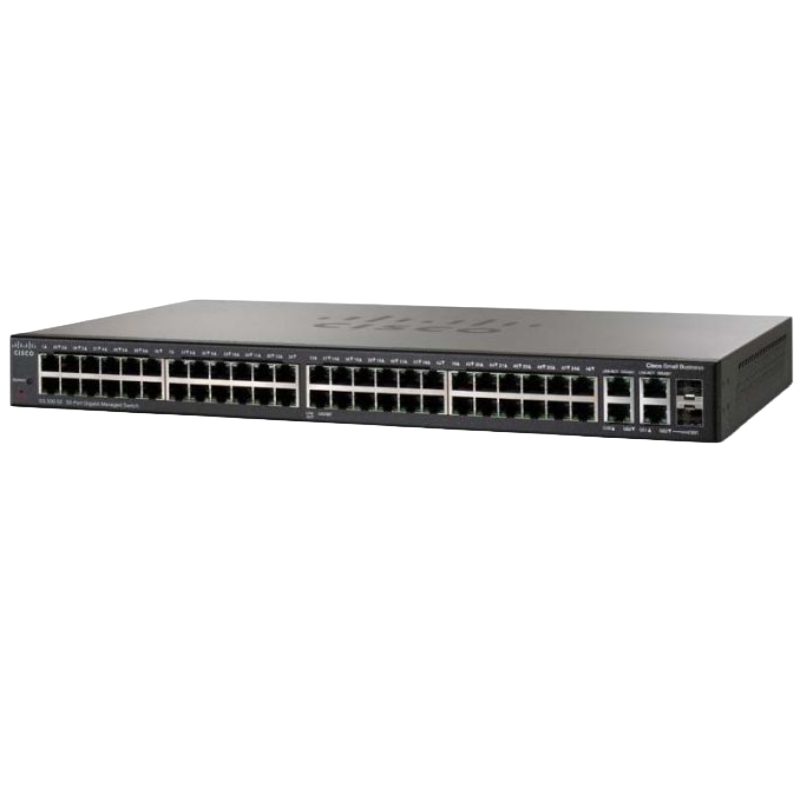

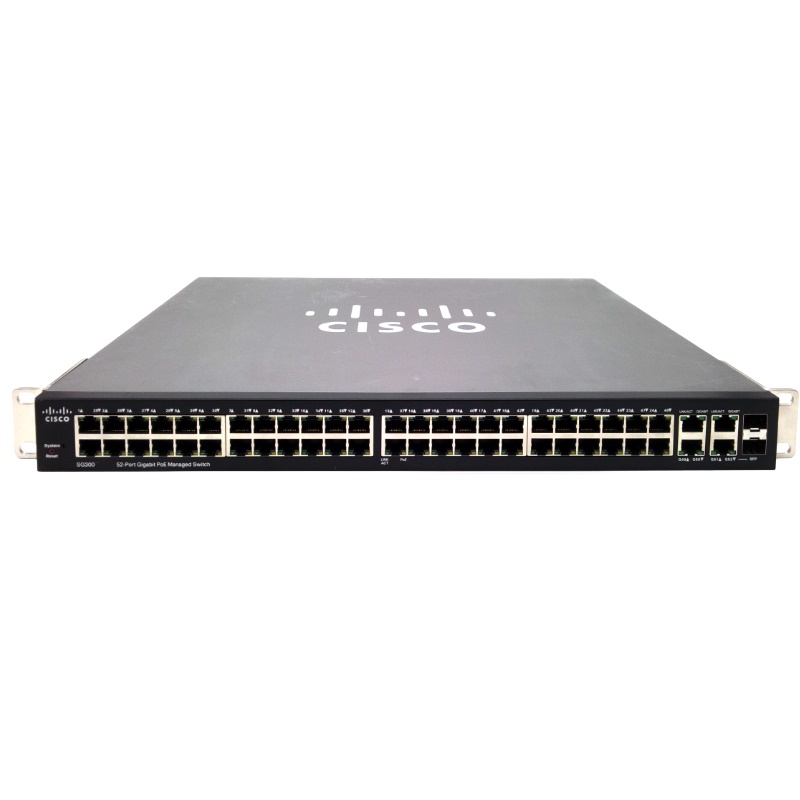

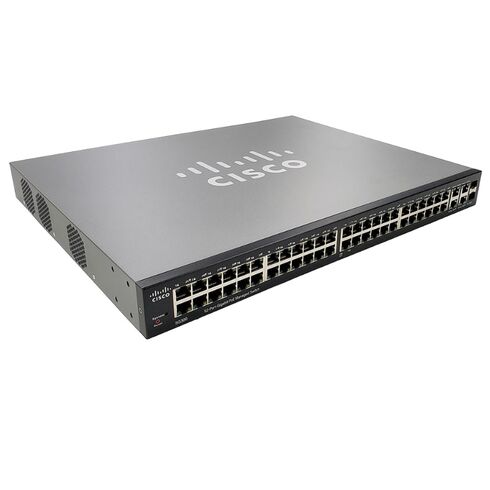

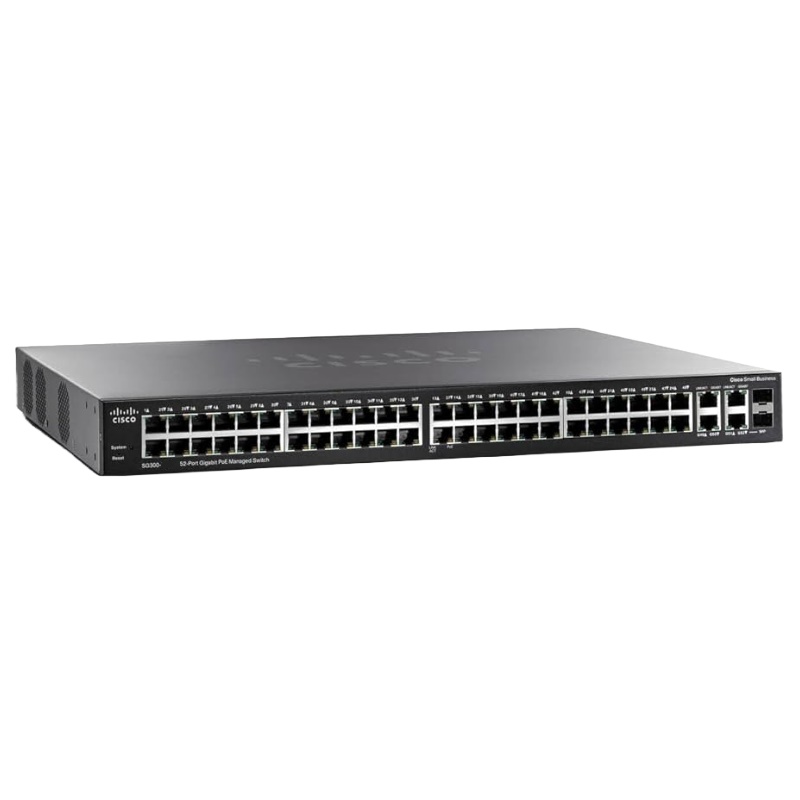

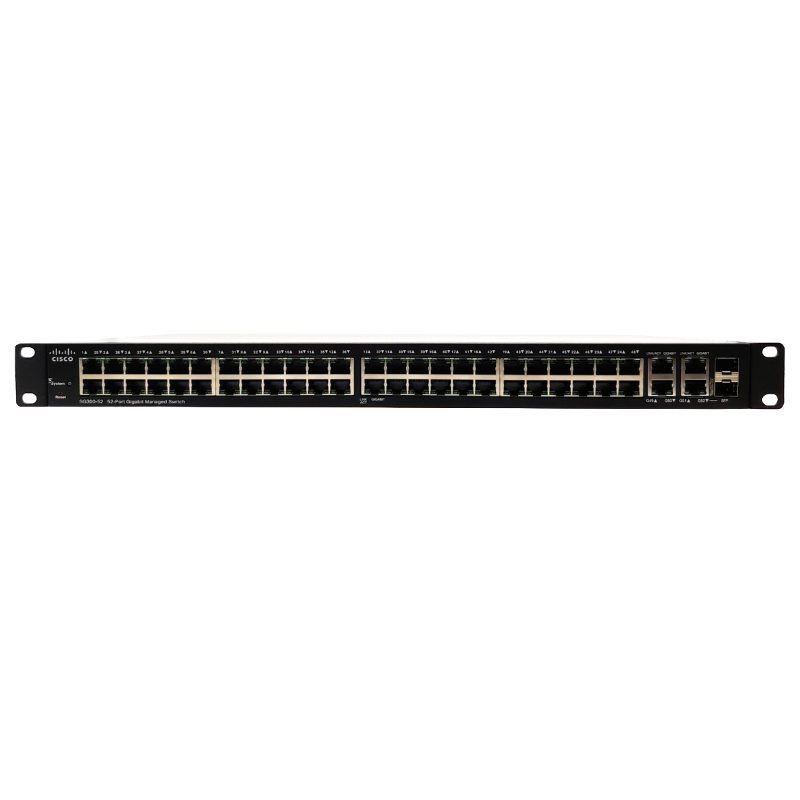

Cisco SG300-52P-K9 52 Ports Layer 3 Managed Switch

Ports

The Cisco SG300-52P-K9 Layer 3 Managed Switch is equipped with an impressive 52 ports, making it an excellent choice for businesses with high network traffic and connectivity needs. With this extensive number of ports, users can enjoy seamless communication and data transfer across multiple devices simultaneously.

Device Overview of Managed Switch

• Type: Managed Switch
• Port Count: 52 Ports
• Layer: Layer 3
• Mounting Options: Desktop or Rack-mountable (1U)

Connectivity and Ports

• Port Types: 50 x 10/100/1000 (PoE+), 2 x Combo Gigabit SFP
• PoE Capability: PoE+
• PoE Power Budget: 375 Watts

Performance Specifications

Switching Capacity

• Capacity: 104 Gbps
• Forwarding Rate: 77.38 Mpps (64-byte packet size)

Data Handling Capabilities

• ACL Rules: Supports up to 512 rules
• MAC Address Table: 8,000 entries
• Jumbo Frame Size: Up to 10 KB

Routing and Management

Routing Protocols

• Supported Routing: Static IPv4 Routing

Management Protocols

• SNMP (v1, v2c, v3)
• RMON (v1, v2, v3, v9)
• Telnet
• HTTP, HTTPS
• SSH
• CLI (Command Line Interface)

Key Features

Switching Capabilities

• Layer 3 and Layer 2 Switching
• Support for DHCP and BOOTP
• VLAN Support
• IGMP Snooping
• Syslog Support
• DoS Attack Prevention

Advanced Features

• Port Mirroring
• Diffserv Support
• Weighted Round Robin (WRR) Queuing
• Broadcast Storm Control
• IPv6 Support
• Multicast and Unicast Storm Control
• Firmware Upgradable
• Spanning Tree Protocols (STP, RSTP, MSTP)
• Trivial File Transfer Protocol (TFTP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• Jumbo Frames Support
• MLD Snooping

Compliance and Standards

• IEEE 802.3, IEEE 802.3u, IEEE 802.3z
• IEEE 802.1d, IEEE 802.1q, IEEE 802.3ab
• IEEE 802.1p, IEEE 802.3af, IEEE 802.3x
• IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
• IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at

Power Requirements

• AC Voltage: 120/230 V (50/60 Hz)

Increased Network Scalability

The 52 ports featured in the Cisco SG300-52P-K9 Layer 3 Managed Switch provide businesses with enhanced network scalability. This means that as your organization grows, you can easily accommodate additional devices without worrying about running out of ports. Whether it's connecting computers, printers, servers, or other network devices, the ample number of ports ensures that you have the flexibility to expand your network infrastructure effortlessly.

Reduced Network Congestion

Having numerous ports available on the Cisco SG300-52P-K9 Layer 3 Managed Switch helps alleviate network congestion. When multiple devices are connected to a limited number of ports, it can lead to bottlenecks and decreased network performance. However, with 52 ports at your disposal, you can distribute the network load more evenly, reducing congestion and ensuring smooth data flow. This is particularly essential for businesses that rely heavily on real-time data transfer, such as video conferencing or cloud-based applications.

Improved Network Efficiency and Speed

By providing an abundance of ports, the Cisco SG300-52P-K9 Layer 3 Managed Switch enhances network efficiency and speed. With more available ports, users can establish direct connections between devices, eliminating the need for complex network topologies or daisy-chaining. Direct connections streamline data transmission and reduce latency, resulting in faster and more efficient communication between devices.

Power over Ethernet (PoE) Support

Beyond the sheer number of ports, the Cisco SG300-52P-K9 Layer 3 Managed Switch also supports Power over Ethernet (PoE). This feature allows devices to receive power through the Ethernet cable, eliminating the need for separate power cables. With 52 PoE ports, businesses can conveniently power devices such as IP cameras, wireless access points, and IP phones directly from the switch, reducing clutter and simplifying installation.

Enhanced Network Security

The Cisco SG300-52P-K9 Layer 3 Managed Switch offers advanced security features to protect your network and connected devices. With 52 ports, you have the flexibility to create separate VLANs (Virtual Local Area Networks) to isolate and secure sensitive data or specific user groups. This prevents unauthorized access and potential security breaches, ensuring the integrity and confidentiality of your network.

Cost-Effective Solution

Investing in the Cisco SG300-52P-K9 Layer 3 Managed Switch with its 52 ports is a cost-effective solution for businesses. Instead of purchasing multiple switches or additional equipment to accommodate growing network demands, having an ample number of ports in a single device eliminates the need for additional expenses. By consolidating your network infrastructure, you not only save money but also simplify management and reduce maintenance costs.

Future-Proofing Your Network

With technology advancing rapidly, it's crucial to future-proof your network infrastructure. The Cisco SG300-52P-K9 Layer 3 Managed Switch with its 52 ports ensures that your network can adapt and grow alongside your business. By investing in a switch that offers such a generous number of ports, you can confidently meet the connectivity needs of emerging technologies or expand operations without worrying about outdated or insufficient equipment.

In conclusion, the Cisco SG300-52P-K9 Layer 3 Managed Switch's standout feature is its 52 ports. This abundance of ports enables businesses to scale their networks effortlessly, reduce congestion, improve network efficiency and speed, support Power over Ethernet, enhance security, and save costs. With its future-proof design, this switch ensures that your network infrastructure remains robust and adaptable to evolving technology requirements. Whether you're a small business or a large enterprise, the Cisco SG300-52P-K9 Layer 3 Managed Switch with its 52 ports is a reliable solution to meet your network connectivity needs.
