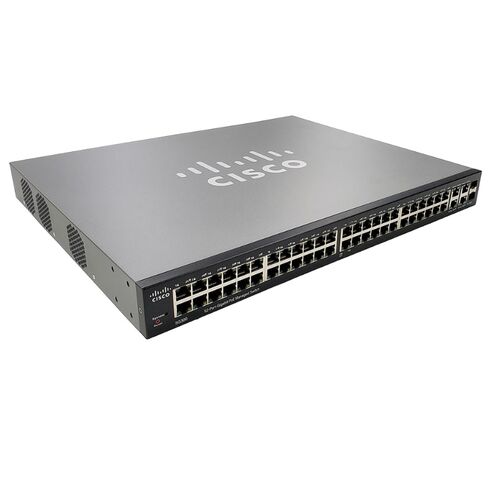

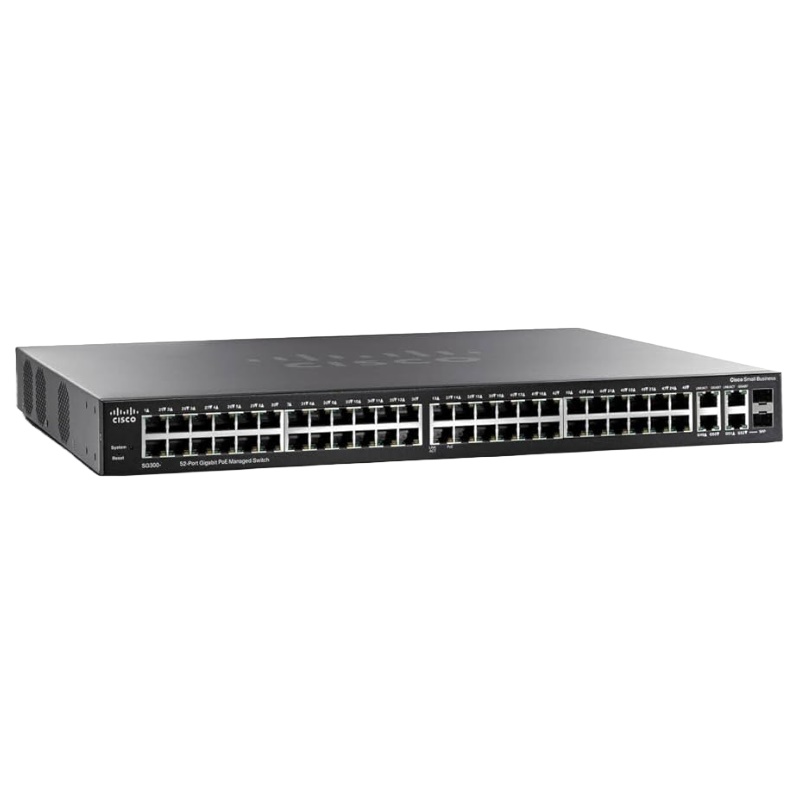

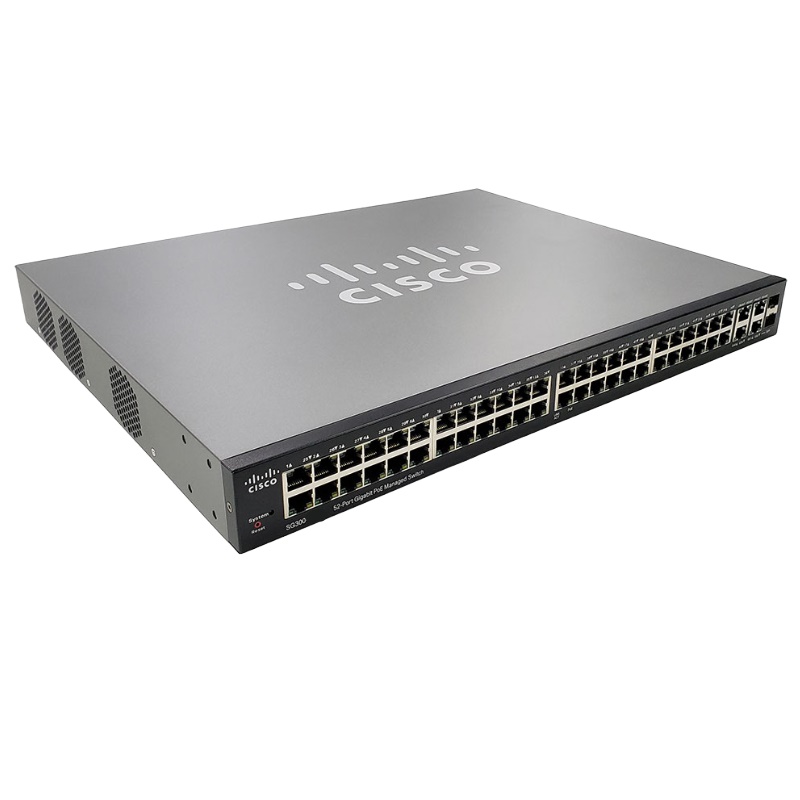

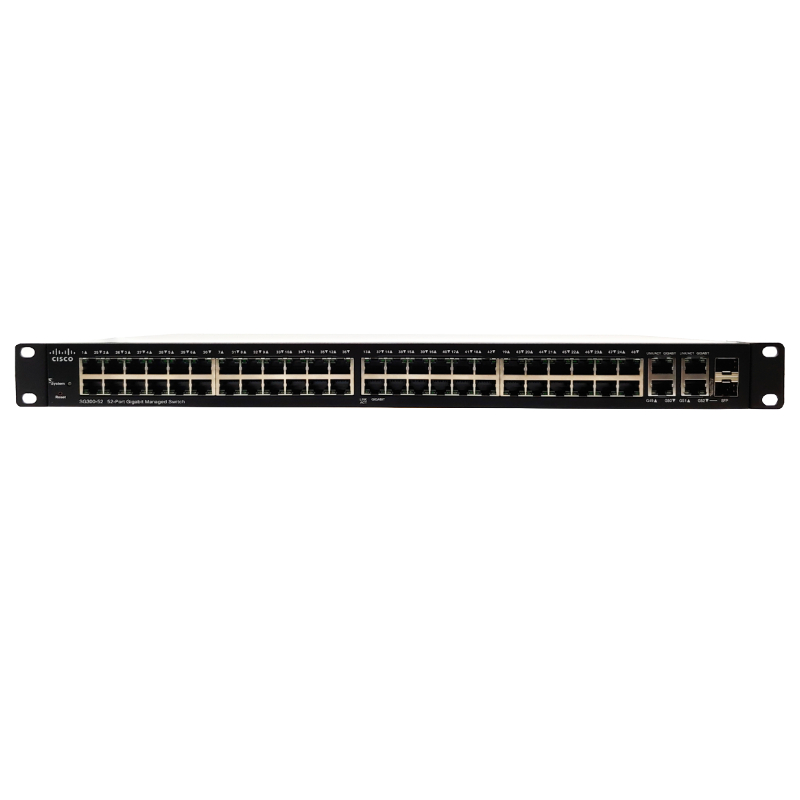

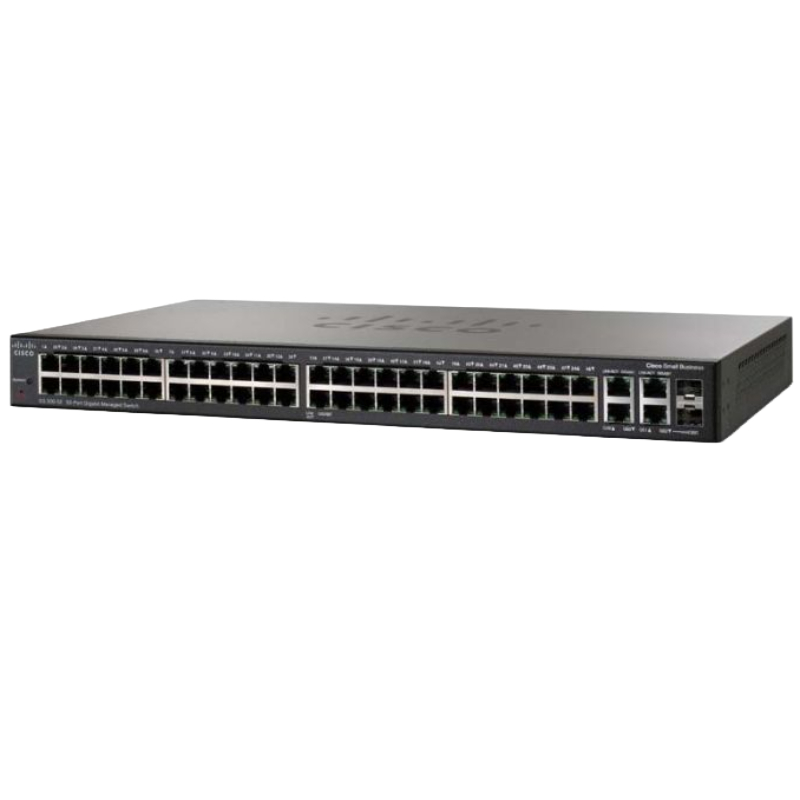

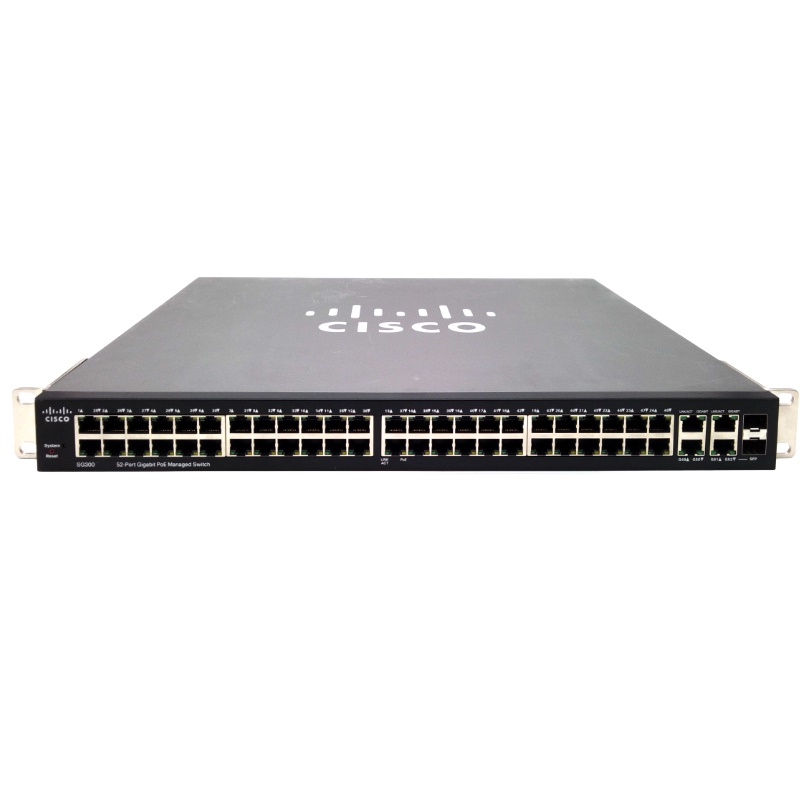

Cisco SG300-52P-K9-NA 52 Ports Layer 3 Managed Switch

Ports

The Cisco SG300-52P-K9-NA Layer 3 Managed Switch is equipped with an impressive 52 ports, making it a highly versatile and powerful networking solution. This abundance of ports ensures that users have ample connectivity options for their devices and enables seamless data transfer and communication across their network infrastructure.

Cisco SG300-52P-K9-NA Overview

General Specifications

• Manufacturer: Cisco
• Part Number/SKU: SG300-52P-K9-NA
• Product Series: 300
• Model: SG300-52P
• Type: Layer 3 Switch

Network Ports and Interfaces

• Total Network Ports: 52
• Token Ring Ports: None
• LRE Ports: None
• Bypass: Not Available
• Management Port: Available
• PoE (RJ-45) Ports: 52

Expansion Capabilities

• Expansion Slots: 2
• Slot Type: SFP
• Shared SFP Slots: Yes
• Number of SFP Slots: 2

Performance and Media

• Supported Media Type: Twisted Pair
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T
• Power Over Ethernet (PoE): PoE+
• PoE Budget: 375 W
• Switching Capacity: 104 Gbps
• Forwarding Performance (64-byte Packet Size): 77.38 MPPS
• ACL Rules Capacity: Up to 512
• MAC Address Table Size: 8K Entries
• Jumbo Frame Support: 10KB

Routing and Management Protocols

• Routing Protocol: Static IPv4 Routing
• Remote Management: SNMP (v1, v2c, v3), RMON (1, 2, 3, 9), Telnet, HTTP, HTTPS, SSH, CLI
• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at

Advanced Features

• Layer 3 and Layer 2 Switching
• DHCP and BOOTP Support
• VLAN Support
• IGMP Snooping
• Syslog Support
• DoS Attack Prevention
• Port Mirroring
• DiffServ and Weighted Round Robin (WRR) Queuing
• Broadcast Storm Control
• IPv6 Support
• Multicast and Unicast Storm Control
• Firmware Upgradable
• Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP) Support
• Trivial File Transfer Protocol (TFTP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• Jumbo Frames Support
• MLD Snooping

Network & Communication

• Layer Supported: 3

Management and Protocols

• Manageable: Yes
• Management Interfaces: Web-based, CLI, Telnet
• Supported Features: QoS, DHCP, MIB, RMON, VLAN, Syslog, SNMP v1/v2c/v3

Memory Specifications

• RAM: 128 MB
• Flash Memory: 16 MB

Power Requirements

• PoE (RJ-45) Port: Yes
• Input Voltage: 110 V / 220 V
• Power Source: Power Supply
• Redundant Power Supply: Not Supported

Environmental Conditions

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 104 °F
• Operating Humidity: 10 – 90% (non-condensing)
• Minimum Storage Temperature: -4 °F
• Maximum Storage Temperature: 158 °F
• Storage Humidity: 10 – 90% (non-condensing)

Included Accessories

• Power Cord
• Mounting Hardware
• Serial Cable
• CD-ROM with User Documentation (PDF)
• Quick Start Guide

Flexibility and Scalability

The 52 ports featured in the Cisco SG300-52P-K9-NA Layer 3 Managed Switch provide users with unparalleled flexibility and scalability. With this many ports, organizations can easily expand their network as their business grows or their requirements change. The switch allows for effortless integration of new devices or the addition of more network segments, ensuring that businesses can adapt to their evolving needs without any hassle.

Increased Device Connectivity

Having 52 ports means that users can connect a wide range of devices simultaneously without the need for additional switches or hardware. This is particularly beneficial for businesses or organizations with multiple departments or work areas that require extensive network connectivity. Users can connect computers, printers, servers, IP phones, access points, security cameras, and many other devices to the switch, creating a comprehensive and efficient network infrastructure.

Reduced Network Congestion

The abundance of ports offered by the Cisco SG300-52P-K9-NA Layer 3 Managed Switch helps to alleviate network congestion. With more ports available, the switch distributes the network traffic evenly, preventing bottlenecks and ensuring smooth data flow throughout the network. This is especially crucial in high-demand environments where large amounts of data are transmitted simultaneously. By reducing network congestion, businesses can ensure optimal performance and avoid any potential slowdowns or disruptions.

Enhanced Network Performance

The 52 ports on this Managed Switch contribute significantly to enhancing overall network performance. Each port supports high-speed data transfer rates, allowing for quick and efficient communication between connected devices. This is particularly important in environments where real-time data transmission is critical, such as video conferencing, multimedia streaming, or online gaming.

Boosted Productivity

The enhanced network performance resulting from the 52 ports of the Cisco SG300-52P-K9-NA Layer 3 Managed Switch directly translates into increased productivity. With faster data transfer speeds, employees can access and share information more quickly, leading to improved collaboration and efficiency. Tasks that would have otherwise taken longer to complete due to network constraints can now be executed promptly, enabling businesses to optimize their operational processes and achieve higher productivity levels.

Seamless Network Management

The Cisco SG300-52P-K9-NA Layer 3 Managed Switch's 52 ports simplify network management tasks. The switch supports advanced management features, such as VLANs (Virtual Local Area Networks) and QoS (Quality of Service), which allow administrators to prioritize specific types of traffic and allocate bandwidth accordingly. With this level of control, organizations can ensure that critical applications or services receive the necessary network resources while preventing non-essential traffic from impacting overall performance.

Cost Savings

By offering 52 ports in a single switch, the Cisco SG300-52P-K9-NA Layer 3 Managed Switch eliminates the need for multiple switches or additional hardware. This not only reduces upfront costs but also minimizes ongoing maintenance expenses. Consolidating network devices into a single switch simplifies management and troubleshooting processes, saving both time and resources. Additionally, businesses can avoid the complexities associated with interconnecting multiple switches and enjoy a more streamlined network infrastructure.

In conclusion, the Cisco SG300-52P-K9-NA Layer 3 Managed Switch's 52 ports provide users with unmatched flexibility, scalability, and connectivity options. With benefits ranging from increased device connectivity and reduced network congestion to enhanced network performance and seamless management, this switch is an ideal choice for businesses of all sizes. Moreover, the cost savings resulting from consolidating multiple switches make it a cost-effective solution in the long run. Upgrade your network infrastructure with the Cisco SG300-52P-K9-NA Layer 3 Managed Switch and experience the power of 52 ports.
