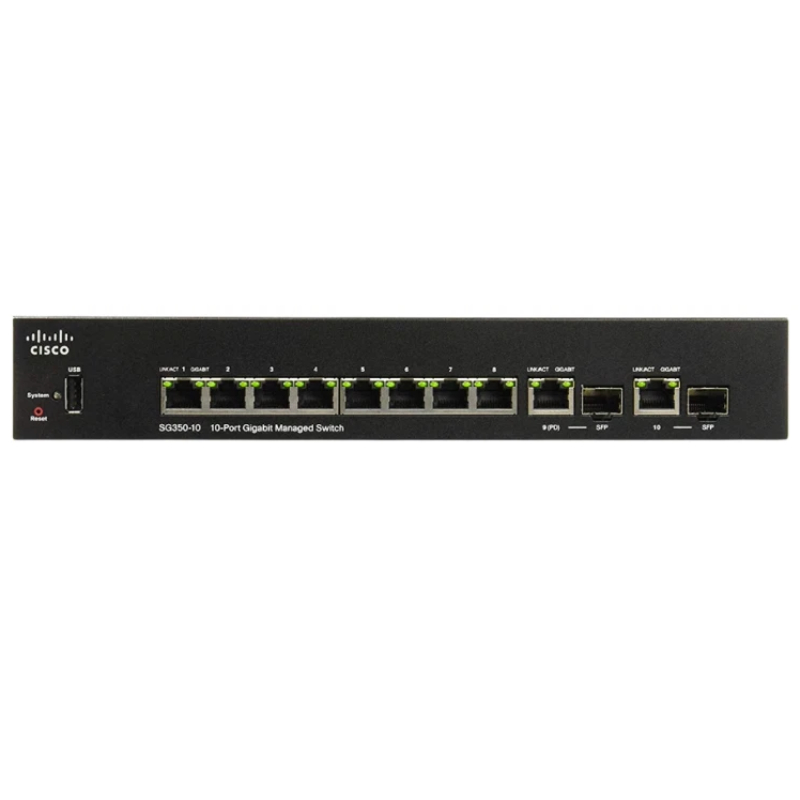

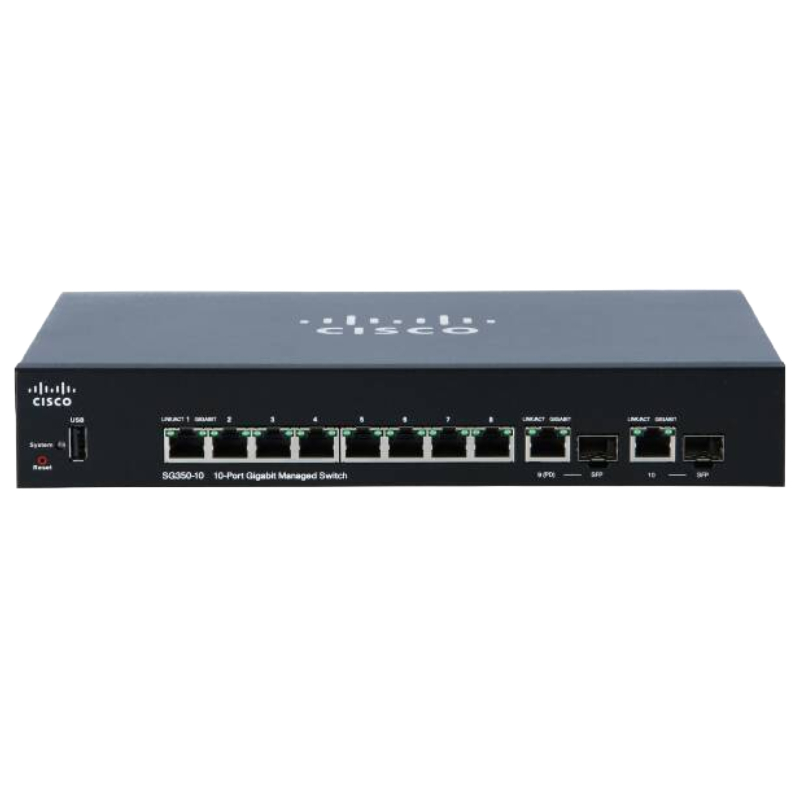

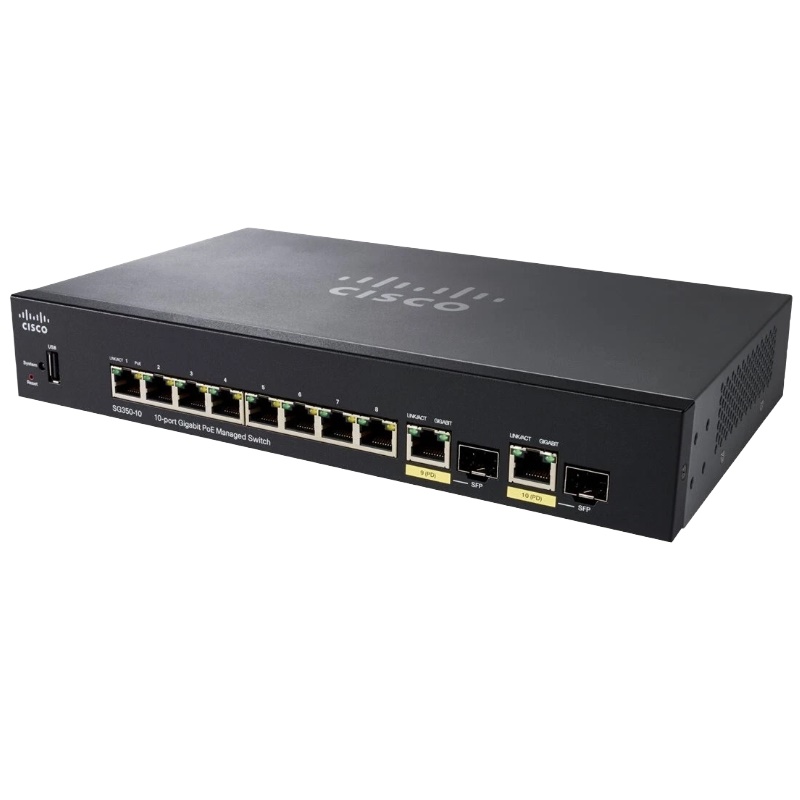

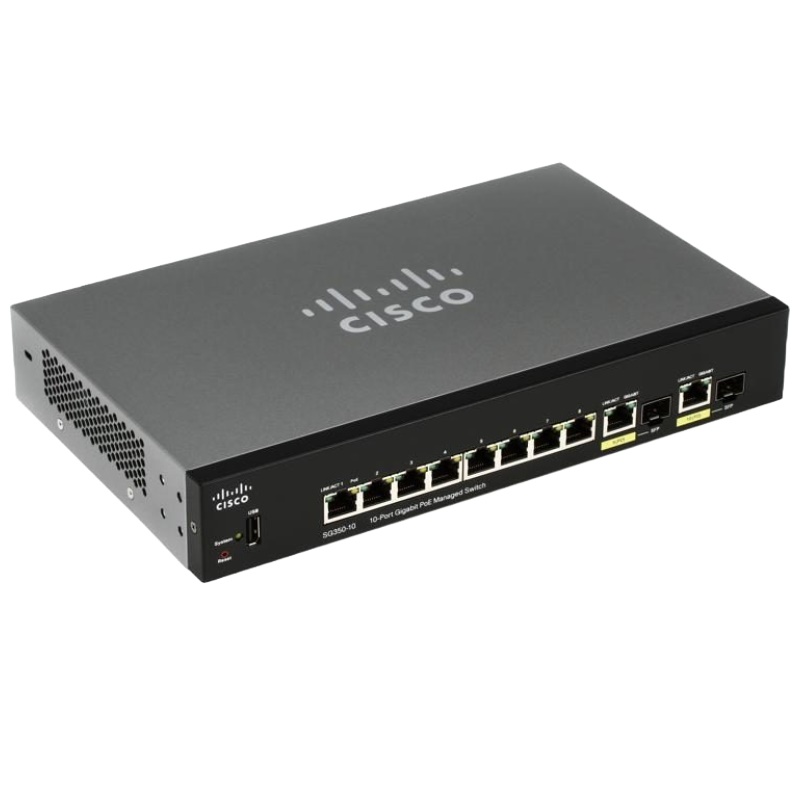

Cisco SG350-10-K9-NA Managed Switch (10-Ports)

Ports

The Cisco SG350-10-K9-NA Managed Switch is equipped with 10 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network infrastructure. These ports provide the necessary connectivity to connect various devices such as computers, servers, printers, and IP phones.

Cisco SG350-10-K9-NA Overview

Manufacturer Details

• Brand: Cisco
• Model: SG350-10-K9-NA
• Series: 350
• Type: Ethernet Switch

Ports and Interfaces

• Total Ports: 10
• Uplink Port: Yes
• Modular Design: Yes
• Stack Port: No
• Port Details:
• 2 x Gigabit Ethernet Expansion Slots
• 10 x Gigabit Ethernet Network Ports

Performance Specifications

• Optical Fiber
• Twisted Pair

Ethernet and Network Technologies

• Gigabit Ethernet Technology
• Network Technologies: 1000Base-X, 10/100/1000Base-T
• Switching Capacity: 20 Gbps
• Forwarding Rate (64-byte packets): 14.88 Mpps

I/O Expansion Details

• Total Expansion Slots: 2
• Slot Type: SFP
• Shared SFP Slot: Yes
• Number of SFP Slots: 2

Additional Features

• Layer 3 Support
• Enclosure Type: Desktop, 1U
• Connectivity: Wired
• MAC Address Table Size: 16K entries
• Jumbo Frame Support: Up to 9216 bytes

Management and Protocols

• Manageable: Yes
• Routing Protocols: CIDR, Static IPv4 routing
• Remote Management Protocols: CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP

Power Specifications

• Power Source: External Power Supply
• Voltage Required: AC 120/230 V
• Frequency: 50/60 Hz
• Current: 700 mA
• Power Consumption: 9.01 Watts
• Redundant Power Supply: Not Supported

Environmental Conditions

• Operating Temperature: 32 °F to 104 °F
• Operating Humidity: 10 – 90% (non-condensing)
• Storage Temperature: -4 °F to 158 °F
• Storage Humidity: 10 – 90% (non-condensing)

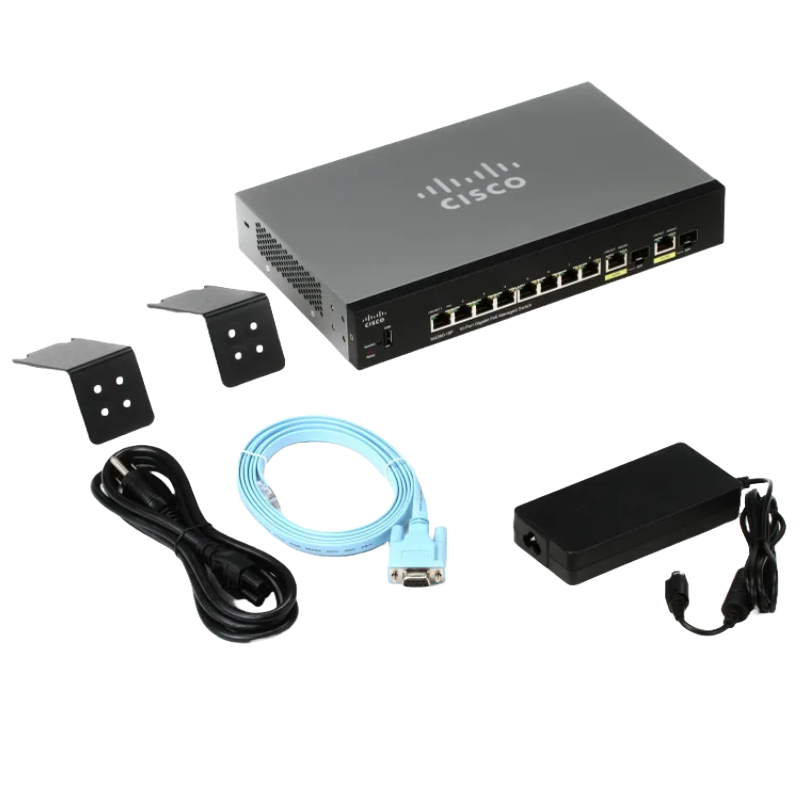

Included Accessories

• SG350-10 10-Port Gigabit Managed Switch
• Power Cord
• Mounting Kit
• Console Cable
• Quick Start Guide

Compliance and Standards

• IEEE 802.1D
• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3ad (LACP)
• IEEE 802.3az
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3z

Increased Connectivity

The 10 ports on this managed switch offer increased connectivity options, allowing businesses to easily expand their network as their needs grow. With more ports available, users can connect multiple devices simultaneously without the need for additional switches or hubs. This eliminates the hassle of dealing with complex cabling and provides a simplified and streamlined network setup.

Efficient Data Transfer

Each port on the Cisco SG350-10-K9-NA Managed Switch supports high-speed data transfer, enabling quick and efficient communication between devices. Whether it's transferring large files, streaming multimedia content, or accessing cloud-based applications, the 10 ports ensure a smooth and uninterrupted data flow. This is particularly beneficial for businesses that rely heavily on data-intensive tasks, such as video conferencing or data backup.

Enhanced Network Performance

By providing 10 ports, this managed switch offers enhanced network performance compared to switches with fewer ports. The increased number of ports reduces bottlenecks and congestion, allowing for faster data transmission and improved overall network performance. Users can experience reduced latency, minimized packet loss, and improved network responsiveness.

Flexibility in Network Design

The 10 ports on the Cisco SG350-10-K9-NA Managed Switch provide flexibility in network design. Users have the freedom to connect devices in various configurations based on their specific requirements. Whether it's creating separate VLANs (Virtual Local Area Networks) for different departments or implementing a hierarchical network design, the ample number of ports ensures that users can design their network infrastructure in a way that optimizes performance and meets their unique needs.

Power over Ethernet (PoE) Support

In addition to offering 10 ports, this managed switch also supports Power over Ethernet (PoE). PoE technology allows the switch to provide power to compatible devices, such as IP phones, wireless access points, and security cameras, through the Ethernet cables. This eliminates the need for separate power adapters and simplifies the installation process. With PoE support, users can conveniently deploy network devices in locations where power outlets may be limited or inaccessible.

Cost-Effective Solution

Having 10 ports on a single managed switch eliminates the need for purchasing multiple switches or hubs, resulting in cost savings for businesses. Instead of investing in additional networking equipment, users can rely on the Cisco SG350-10-K9-NA Managed Switch to provide sufficient connectivity for their devices. Additionally, the PoE support further enhances cost-effectiveness by reducing the expenses associated with separate power supplies for compatible devices.

Scalability

The 10 ports on this managed switch allow for easy scalability as businesses expand or add new devices to their network. With extra ports available, users can seamlessly integrate new devices without disrupting the existing network infrastructure. This scalability ensures that businesses can adapt to changing needs and accommodate future growth without major network overhauls or investments.

Reliability and Redundancy

The Cisco SG350-10-K9-NA Managed Switch's 10 ports provide reliability and redundancy in network connectivity. In case one port malfunctions or encounters an issue, the other ports continue to function unaffected. This redundancy ensures uninterrupted network connectivity and minimizes downtime, which is crucial for businesses that heavily rely on a stable network for their day-to-day operations.

In conclusion, the 10 ports feature of the Cisco SG350-10-K9-NA Managed Switch offers numerous benefits and importance to users. It provides increased connectivity options, efficient data transfer, enhanced network performance, flexibility in network design, PoE support, cost-effectiveness, scalability, and reliability. Whether it's for small to medium-sized businesses or larger enterprises, the 10 ports feature makes this managed switch a valuable asset for creating a robust and reliable network infrastructure.
