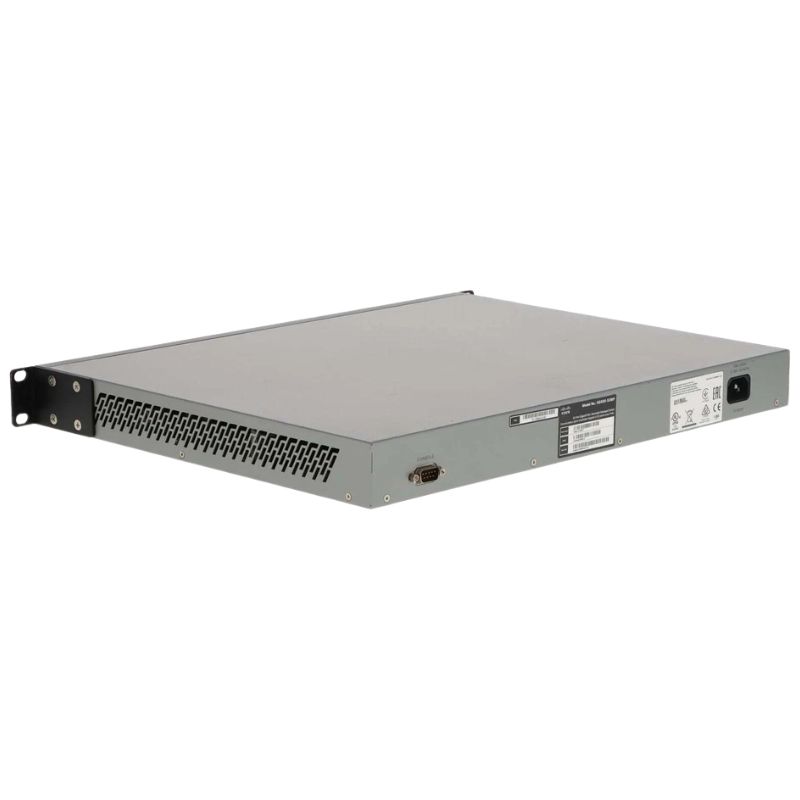

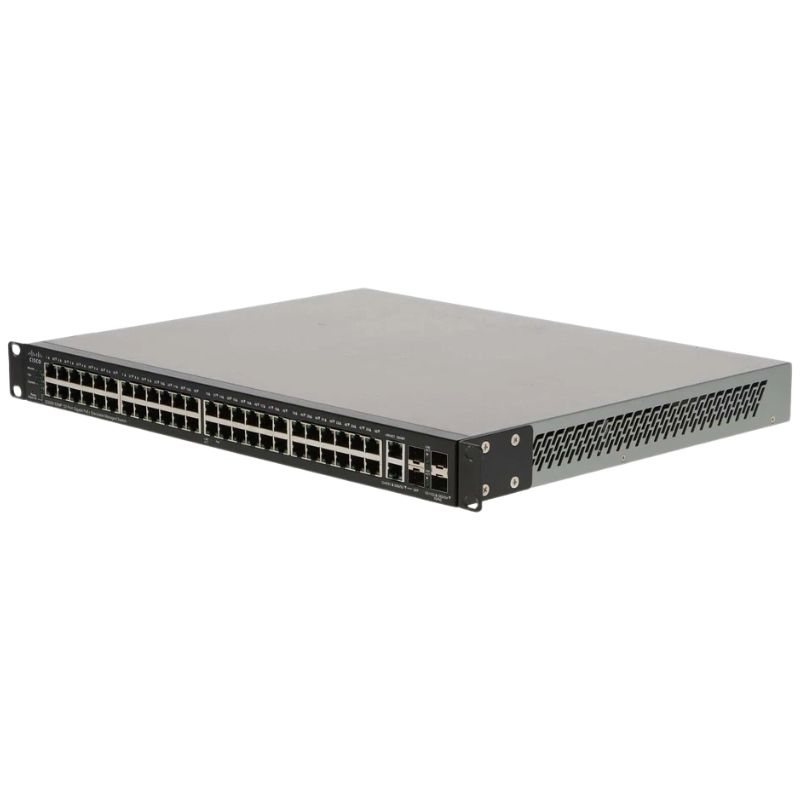

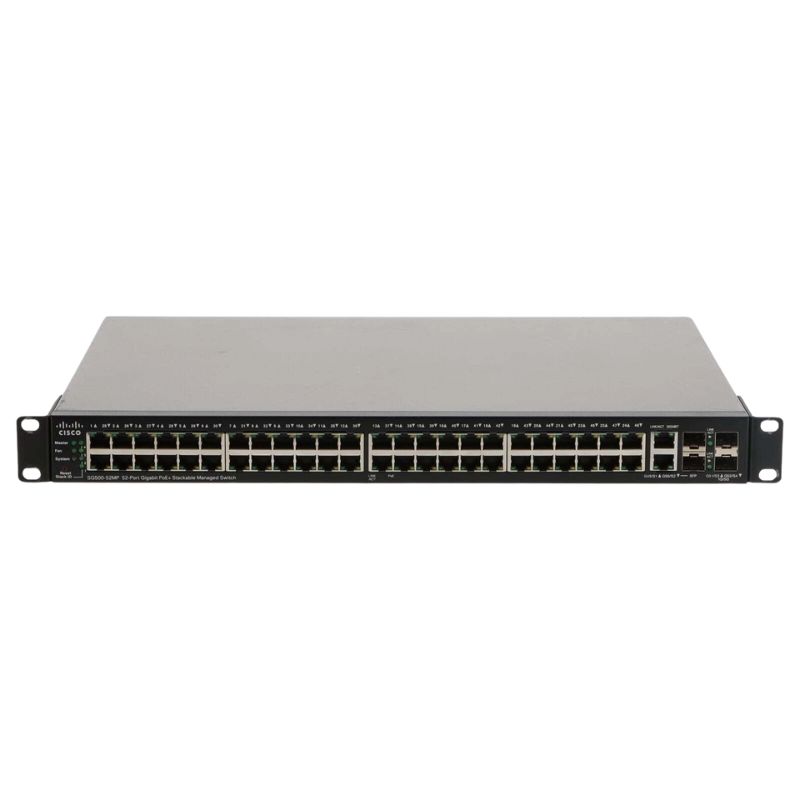

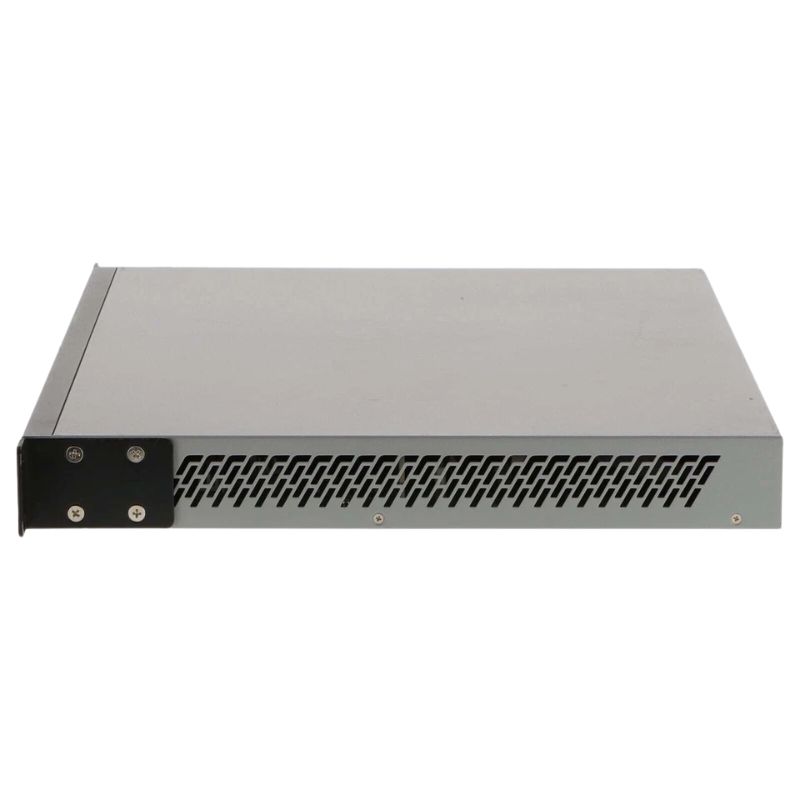

Cisco SG500-52MP-K9-NA 52-Ports Gigabit Ethernet Managed Switch

Cisco SG500-52MP-K9-NA 52-Port Managed Switch

General Product Information

• Manufacturer: Cisco
• Part Number: SG500-52MP-K9-NA
• Product Line: Smart Plus
• Product Series: 500
• Model: SG500-52P
• Type: Layer 3 Switch

Interfaces and Ports

• Total Network Ports: 52
• Uplink Ports: Yes
• Modular Design: No
• Gigabit Ethernet Ports: 50
• Expansion Slots:
  • Type: SFP
  • Number: 2
  • Shared Slot: Yes

Media and Performance

• Media Type: Twisted Pair
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T
• Jumbo Frame Support: 9216 bytes

Layer and Management

• Layer Supported: 3
• Manageable: Yes
• Routing Protocol: Static IP Routing
• Remote Management Protocols:
  • SNMP 1, 2c, 3
  • RMON 1, 2, 3, 9
  • HTTP, HTTPS
  • SSH, SSH-2
  • CLI
• Authentication Methods: RADIUS, TACACS+

Compliance and Features

Compliant Standards:

• IEEE 802.3at, 802.3az
• IEEE 802.1w, 802.1x, 802.1s, 802.1ab (LLDP)
• IEEE 802.1p, 802.3af, 802.3x, 802.3ad (LACP)
• IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab

Key Features:

• Flow Control
• Layer 2 Switching
• Power over Ethernet (PoE)
• VLAN Support
• IGMP Snooping
• DoS Attack Prevention
• Port Mirroring
• Weighted Round Robin (WRR) Queuing
• Broadcast Storm Control
• IPv6 Support
• Multicast Storm Control
• Unicast Storm Control
• Spanning Tree Protocol (STP) Support
• Rapid Spanning Tree Protocol (RSTP) Support
• Multiple Spanning Tree Protocol (MSTP) Support
• DHCP Snooping
• Access Control List (ACL) Support
• Quality of Service (QoS)
• RADIUS Support
• DHCP Server
• MLD Snooping
• Dynamic ARP Inspection (DAI)
• PoE+
• Reset Button
• STP Root Guard
• Uni-Directional Link Detection (UDLD)
• LACP Support
• LLDP Support
• DHCP Relay
• Energy Efficient Ethernet
• Dynamic VLAN Support (GVRP)
• Class of Service (CoS)
• Strict Priority (SP)
• Generic Attribute Registration Protocol (GARP)
• 16MB Packet Buffer

Reliability and Power

• MTBF (Mean Time Between Failures): 186,968 Hours
• Power Source: Internal Power Supply
• Voltage Required: AC 120/230 V (50/60 Hz)

Environmental Specifications

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 122 °F
• Operating Humidity Range: 10 – 90% (non-condensing)
• Minimum Storage Temperature: -4 °F
• Maximum Storage Temperature: 158 °F
• Storage Humidity Range: 10 – 90% (non-condensing)

Additional Components

• Included with Product:
  • Power Cord
  • Mounting Kit
  • Serial Cable
  • CD-ROM with User Documentation (PDF)

Ports

The Cisco SG500-52MP-K9-NA Managed Switch is equipped with an impressive 52 ports, making it an ideal choice for businesses and organizations that require a high level of connectivity. Whether you need to connect multiple devices within your office or establish network connections across different departments, this switch has got you covered.

Increased Connectivity

With 52 ports at your disposal, you can easily connect a wide range of devices such as computers, printers, servers, and IP cameras. This ensures that all your devices can communicate and share resources seamlessly. The abundance of ports eliminates the need for additional switches or hubs, saving you money and simplifying your network infrastructure.

Flexibility and Scalability

The SG500-52MP-K9-NA offers tremendous flexibility to accommodate your growing network needs. Each port supports both Power over Ethernet (PoE) and Power over Ethernet Plus (PoE+) technology. This means you can power compatible devices, such as IP phones and wireless access points, directly through the Ethernet cable, eliminating the need for separate power adapters and reducing cable clutter.

Additionally, the switch supports link aggregation, allowing you to combine multiple ports into a single high-bandwidth connection. This feature is particularly useful when connecting to devices that demand high data transfer rates, such as servers or network-attached storage (NAS) devices.

Improved Network Performance

By utilizing all 52 ports effectively, you can distribute network traffic evenly across your devices. This prevents congestion and bottlenecks that could slow down your network. With a managed switch like the SG500-52MP-K9-NA, you have full control over the traffic flow through features like Quality of Service (QoS), which prioritizes certain types of data over others.

Enhanced Security

Having 52 ports on a managed switch allows you to separate different departments or user groups onto separate VLANs (Virtual Local Area Networks). This isolation enhances network security by preventing unauthorized access to sensitive information and resources. Additionally, the switch supports advanced security features like Access Control Lists (ACLs) and port security, further safeguarding your network from unauthorized access.

Ease of Management

Managing a network with 52 ports can be a daunting task, but the SG500-52MP-K9-NA simplifies it with its intuitive web-based interface. You can easily configure and monitor each port, set up VLANs, and apply security policies. The switch also supports Simple Network Management Protocol (SNMP), making it compatible with various network management systems for centralized control and monitoring.

Speed

One of the standout features of the Cisco SG500-52MP-K9-NA Managed Switch is its support for Gigabit Ethernet. This high-speed connectivity ensures that your network can handle data-intensive tasks and provides a seamless user experience.

Fast Data Transfer

Gigabit Ethernet offers data transfer speeds of up to 1000 Mbps, which is ten times faster than standard Fast Ethernet. This speed is crucial in today's fast-paced business environment where large files, video conferencing, and real-time collaboration are the norm. With Gigabit Ethernet, you can transfer files quickly, stream high-definition media without buffering, and ensure smooth communication between devices.

Improved Productivity

The increased speed provided by Gigabit Ethernet directly translates into improved productivity for your business. Employees can access shared resources, such as databases or cloud-based applications, in a fraction of the time compared to slower connections. This eliminates frustrating delays and allows employees to work more efficiently.

Seamless Multimedia Streaming

In today's digital age, multimedia content plays a significant role in various industries. Whether you're in the creative field or need to deliver training videos to your employees, having Gigabit Ethernet ensures that you can stream high-quality videos without interruption. The fast data transfer speed guarantees smooth playback, eliminating buffering and pixelation.

Future-Proofing Your Network

Investing in a switch with Gigabit Ethernet support is a smart move for future-proofing your network infrastructure. As technology advances and more devices require high-speed connectivity, Gigabit Ethernet ensures that your network can handle the increased demand. By choosing a switch like the SG500-52MP-K9-NA, you can avoid potential bottlenecks and the need for costly upgrades down the line.

Compatibility and Interoperability

The SG500-52MP-K9-NA supports both Gigabit Ethernet over copper (RJ-45) and fiber-optic connections. This flexibility allows you to connect a wide range of devices and take advantage of the benefits of Gigabit Ethernet. Whether you have legacy devices with copper connections or need to establish long-distance connections using fiber optics, this switch has the necessary ports to accommodate your requirements.

In conclusion, the Cisco SG500-52MP-K9-NA Managed Switch's 52 ports and support for Gigabit Ethernet make it an excellent choice for businesses seeking increased connectivity, flexibility, and network performance. With its advanced features and ease of management, this switch empowers organizations to build secure and high-performing networks that can keep up with evolving technological demands.
