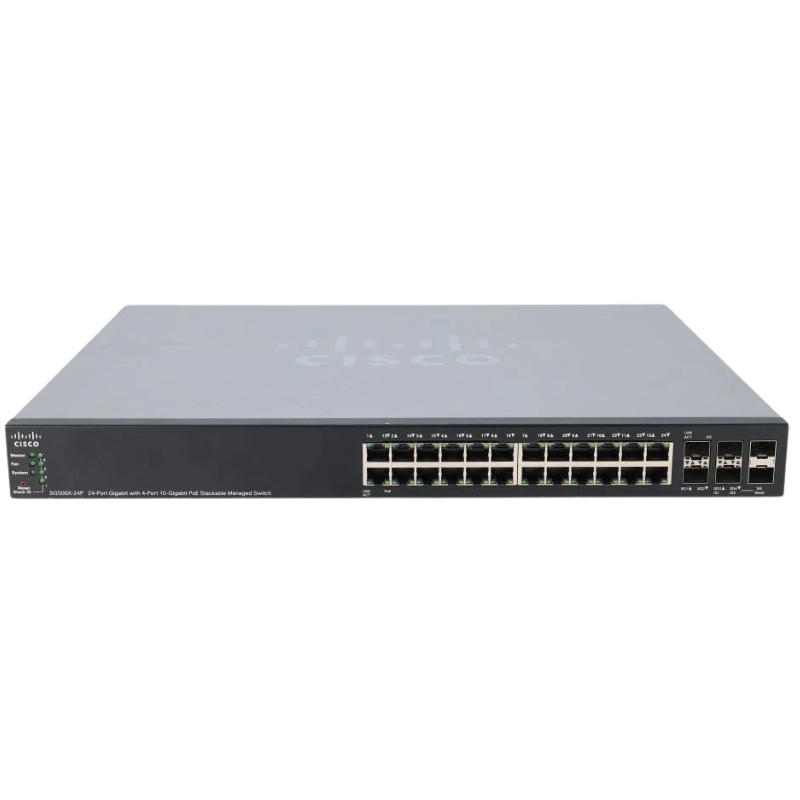

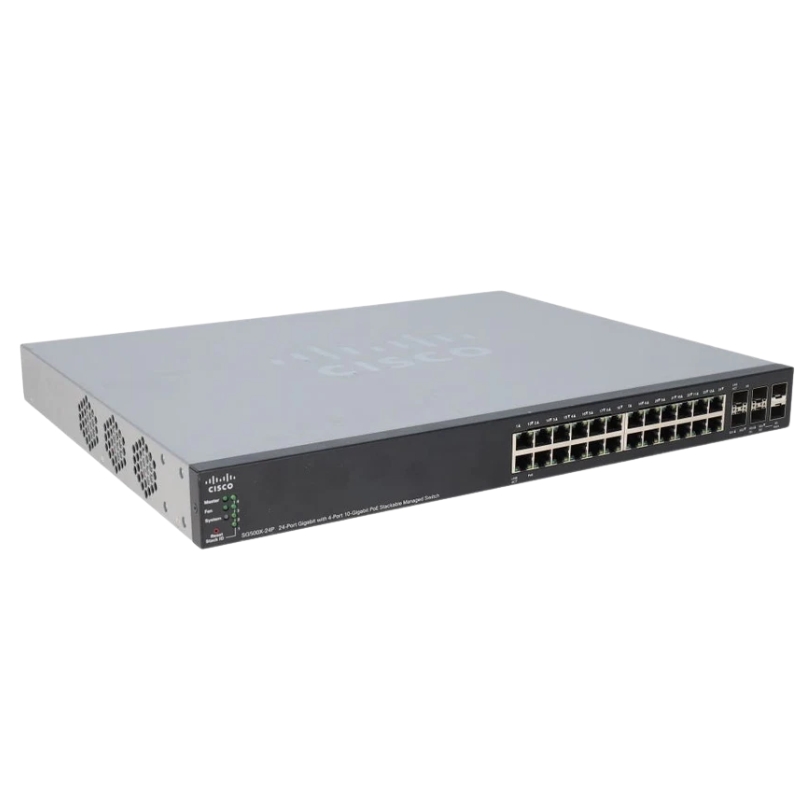

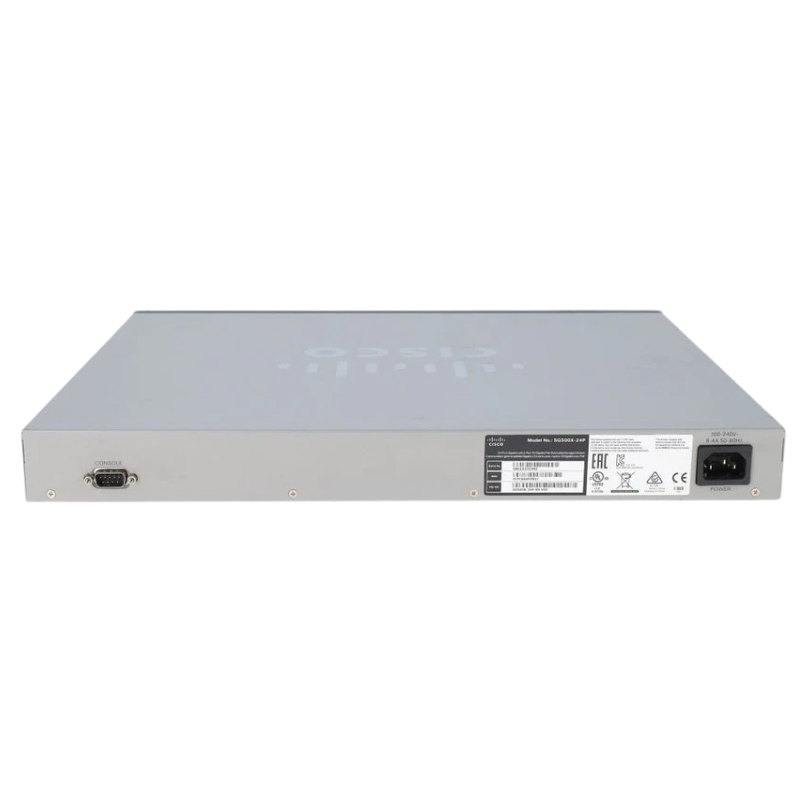

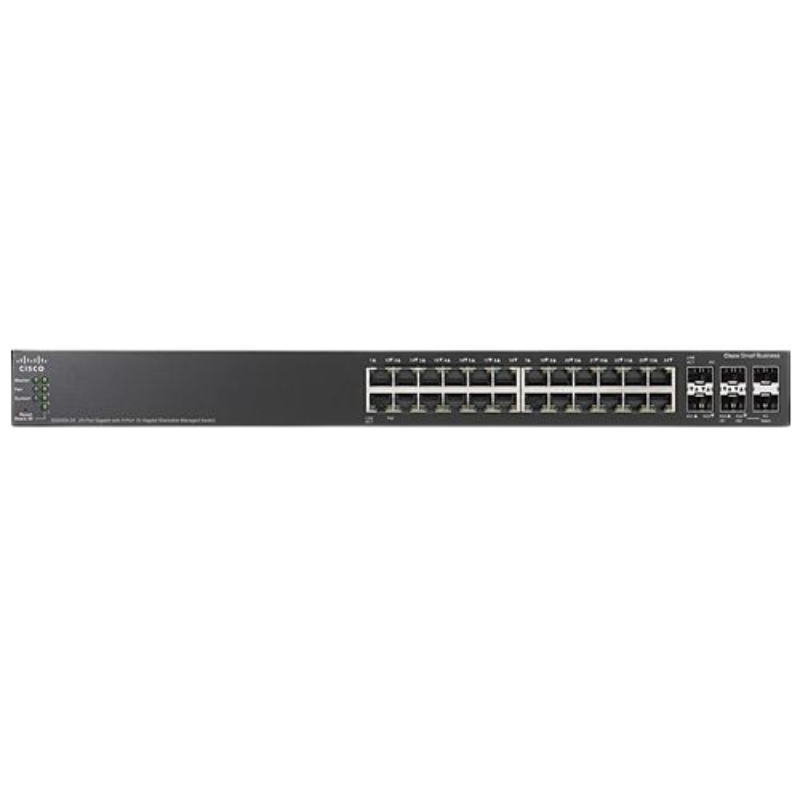

Cisco SG500X-24P-K9-NA 24 Ports Managed Switch Layer 3 Twisted Pair

Overview of the Cisco SG500X-24P-K9-NA

The Cisco SG500X-24P-K9-NA is a high-performance managed switch designed for Layer 3 networking. Ideal for various enterprise environments, this model provides robust connectivity and versatile features to enhance network efficiency.

Product Details of Cisco SG500X-24P-K9-NA

• Manufacturer: Cisco
• Part Number: SG500X-24P-K9-NA
• Type: Managed Switch

Port Specifications

• Total Ports: 24
• PoE (RJ-45) Ports: 24
• Management Port: Yes
• Stack Port: Yes
• Network Ports (RJ-45): 24
• Token Ring Port: None
• LRE Port: None
• Bypass: No
• Modular: No

Performance and Technology

• Media Type: Twisted Pair
• Cable Standard: Category 5
• Ethernet Technology: Gigabit Ethernet, Fast Ethernet
• Network Technology: 10/100/1000Base-T

Expansion Capabilities

• Expansion Slots: 4 Total
• SFP+ Slots: 4

Networking Features

• Layer Support: 3
• VLAN Support: Yes
• Quality of Service (QoS): Yes
• Dynamic VLAN Support (GVRP): Yes
• IPv6 Support: Yes
• Spanning Tree Protocols:
• Spanning Tree Protocol (STP)
• Rapid Spanning Tree Protocol (RSTP)
• Multiple Spanning Tree Protocol (MSTP)
• Access Control List (ACL) Support: Yes
• Link Aggregation Control Protocol (LACP) Support: Yes
• Energy Efficient Ethernet: Yes

Management and Configuration

• Management Methods:
• Command Line Interface (CLI)
• Graphical User Interface (GUI)
• Dynamic Host Configuration Protocol (DHCP)
• Simple Network Management Protocol (SNMP)

Memory Specifications

• Standard Memory: 256 MB
• Flash Memory: 32 MB

Power and Compliance

• Power Over Ethernet (PoE): Yes
• Input Voltage: 110 V AC, 220 V AC
• Power Source: Power Supply

Standards Compliance

• IEEE Standards:
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1D
• IEEE 802.1Q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3af
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.1s
• IEEE 802.3at
• IEEE 802.3az

Ports

The Cisco SG500X-24P-K9-NA Managed Switch is equipped with 24 ports, making it a versatile and powerful networking solution for businesses of all sizes. These ports offer numerous benefits and play a crucial role in ensuring seamless connectivity and efficient data transfer within a network.

Increased Connectivity

With 24 ports, this managed switch provides users with the ability to connect multiple devices simultaneously. Whether it's computers, printers, servers, or other networking devices, the ample number of ports ensures that you can easily connect all your devices without the need for additional equipment or complex configurations. This convenience is particularly important for businesses that require a large number of devices to be connected to their network.

Flexibility and Scalability

The 24 ports on the Cisco SG500X-24P-K9-NA Managed Switch offer flexibility and scalability for growing businesses. As your business expands and more devices need to be connected, you can easily add them to the network without any hassle. The switch's high port count allows for future growth and eliminates the need for costly upgrades or replacements.

Ease of Management

Managing a network with multiple devices can be challenging, but the Cisco SG500X-24P-K9-NA Managed Switch simplifies this process. Each port on the switch can be configured individually, allowing you to apply specific settings and policies to different devices connected to the network. This level of control enhances network security and performance by enabling administrators to prioritize traffic, control bandwidth allocation, and enforce access policies.

Quality of Service (QoS)

The switch's 24 ports support Quality of Service (QoS) features, which prioritize certain types of network traffic over others. This ensures that critical applications such as VoIP or video conferencing receive sufficient bandwidth and low latency, while less time-sensitive traffic is allocated lower priority. With QoS, you can optimize network performance and guarantee a smooth user experience for mission-critical applications.

Link Aggregation

Link aggregation, also known as port trunking, is another valuable feature offered by the Cisco SG500X-24P-K9-NA Managed Switch. This feature allows you to combine multiple ports into a single logical link, increasing bandwidth and providing redundancy. By aggregating ports, you can achieve higher throughput and enhance network reliability, making it an ideal solution for bandwidth-intensive tasks or applications that require high availability.

Power over Ethernet (PoE)

Additionally, the Cisco SG500X-24P-K9-NA Managed Switch supports Power over Ethernet (PoE) on all 24 ports. PoE eliminates the need for separate power cables by delivering both data and power over a single Ethernet cable. This feature is particularly useful for devices such as IP phones, wireless access points, and surveillance cameras, as it simplifies installation and reduces clutter. With PoE, you can easily deploy and power network devices without the need for additional electrical outlets.

Energy Efficiency

The switch incorporates energy-saving technologies that help reduce power consumption without compromising performance. It supports IEEE 802.3az Energy Efficient Ethernet (EEE) standards, which automatically detects idle or low-traffic links and reduces power consumption accordingly. This not only lowers energy costs but also contributes to a greener and more sustainable environment.

Enhanced Security

Security is a top concern for any network administrator. The Cisco SG500X-24P-K9-NA Managed Switch offers advanced security features to protect your network and data. With 24 ports, you can implement access control policies, segment your network into virtual LANs (VLANs), and enforce security measures at a granular level. Additionally, the switch supports MAC-based port security, DHCP snooping, and IP Source Guard to prevent unauthorized access and mitigate potential security threats.

Layer

The Cisco SG500X-24P-K9-NA Managed Switch operates at Layer 3 of the OSI model, providing users with advanced networking capabilities and enhanced performance. This layer refers to the network layer, responsible for facilitating communication between different networks and enabling routing functionality.

Efficient Network Routing

By operating at Layer 3, the Cisco SG500X-24P-K9-NA Managed Switch can perform efficient network routing. It can analyze IP addresses and make intelligent routing decisions to ensure that data packets are delivered to their intended destinations in the most efficient way possible. This capability is particularly valuable for businesses with multiple networks or remote locations, as it enables seamless interconnectivity and optimal data transfer across different networks.

Scalability and Growth

Layer 3 switches offer superior scalability compared to lower-layer switches. The Cisco SG500X-24P-K9-NA Managed Switch's Layer 3 capabilities allow for the creation of multiple VLANs and the implementation of dynamic routing protocols such as OSPF or EIGRP. This enables businesses to scale their networks easily as they grow, without compromising performance or introducing network bottlenecks.

Enhanced Security

Layer 3 switches provide enhanced security features compared to lower-layer switches. With Layer 3 functionality, the Cisco SG500X-24P-K9-NA Managed Switch can implement access control lists (ACLs) at the network layer, allowing administrators to define granular rules for packet filtering and traffic control. This helps protect against unauthorized access and potential security breaches by allowing only desired traffic to traverse the network.

Inter-VLAN Routing

One of the key benefits of Layer 3 switches is the ability to perform inter-VLAN routing. This means that different VLANs can communicate with each other through the Layer 3 switch, enabling efficient and secure data transfer between different departments or segments of a network. Inter-VLAN routing helps organizations maintain network segmentation while facilitating necessary communication, ensuring both security and efficiency.

Redundancy and High Availability

The Cisco SG500X-24P-K9-NA Managed Switch's Layer 3 capabilities also contribute to network redundancy and high availability. By supporting routing protocols such as OSPF or EIGRP, the switch can automatically detect network failures and reroute traffic to alternative paths. This ensures uninterrupted connectivity and minimizes downtime in case of link failures or network outages, providing businesses with a reliable and resilient network infrastructure.

Quality of Service (QoS)

Layer 3 switches can prioritize traffic based on a variety of criteria, including IP addresses, protocols, or application types. The Cisco SG500X-24P-K9-NA Managed Switch's Layer 3 functionality enables the implementation of Quality of Service (QoS) policies to ensure that critical applications receive the necessary bandwidth and low latency. By prioritizing important traffic, businesses can optimize network performance and deliver a consistent user experience for latency-sensitive applications.

Interface

The Cisco SG500X-24P-K9-NA Managed Switch features an interface that supports Twisted Pair connectivity, offering several benefits for users.

Compatibility

Twisted Pair is a widely used interface technology in networking, making the Cisco SG500X-24P-K9-NA Managed Switch compatible with various devices and networking standards. This interface allows for the use of standard Ethernet cables, which are readily available and cost-effective. Whether you need to connect computers, printers, or other networking devices, the Twisted Pair interface ensures seamless connectivity without the need for specialized cables or adapters.

Easy Installation

The Twisted Pair interface simplifies the installation process of the Cisco SG500X-24P-K9-NA Managed Switch. With standard Ethernet cables, connecting devices to the switch becomes a straightforward task. The plug-and-play nature of Twisted Pair ensures that you can quickly set up your network without any complex configurations or additional equipment, saving time and effort.

Reliable Performance

Twisted Pair offers reliable performance, ensuring stable and high-quality data transmission. This interface technology minimizes interference and crosstalk, resulting in improved signal integrity and reduced data errors. The Cisco SG500X-24P-K9-NA Managed Switch's Twisted Pair interface allows for reliable communication between devices, delivering consistent network performance and minimizing packet loss or latency issues.

Distance Limitations

It's important to note that Twisted Pair has distance limitations compared to other interface technologies like fiber optics. The maximum distance over which Twisted Pair can reliably transmit data is typically limited to around 100 meters (328 feet). However, for most business environments, this distance is more than sufficient, as it covers the majority of office spaces and small to medium-sized networks.

Cost-Effectiveness

One of the significant advantages of the Twisted Pair interface is its cost-effectiveness. Ethernet cables using Twisted Pair technology are widely available at affordable prices, making them a cost-efficient solution for network connectivity. Compared to other interfaces like fiber optics, Twisted Pair offers a lower upfront investment without compromising performance or reliability.

Compatibility with Existing Infrastructure

The Twisted Pair interface ensures compatibility with existing network infrastructure that may already be using this technology. This is particularly beneficial for businesses looking to upgrade their networking equipment without the need for a complete overhaul. The Cisco SG500X-24P-K9-NA Managed Switch's Twisted Pair interface allows for seamless integration with your current network, minimizing disruptions and reducing costs associated with infrastructure changes.

Future-Proofing

While Twisted Pair is a well-established technology, it continues to evolve, offering higher speeds and improved performance. The Cisco SG500X-24P-K9-NA Managed Switch's Twisted Pair interface can support Gigabit Ethernet speeds, ensuring that your network is ready to handle future bandwidth requirements. By investing in a switch with a Twisted Pair interface, you can future-proof your network infrastructure and avoid the need for immediate upgrades as your business grows or network demands increase.
