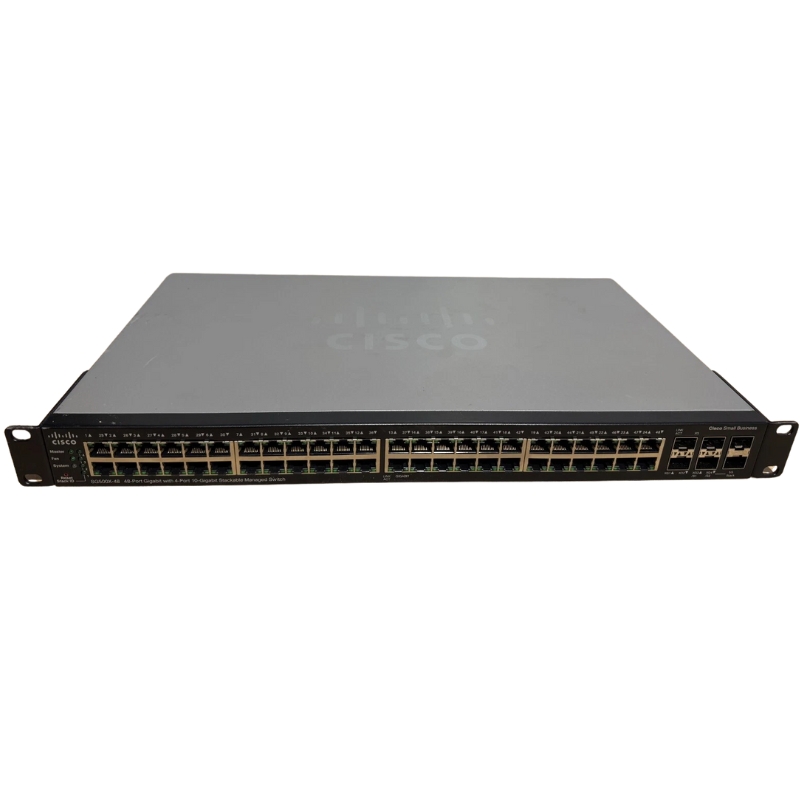

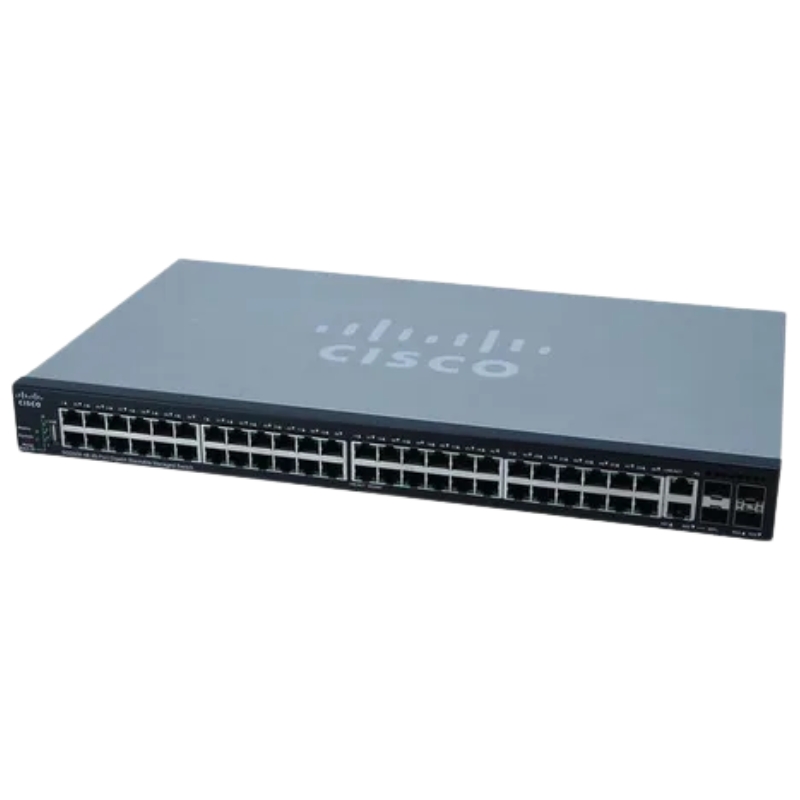

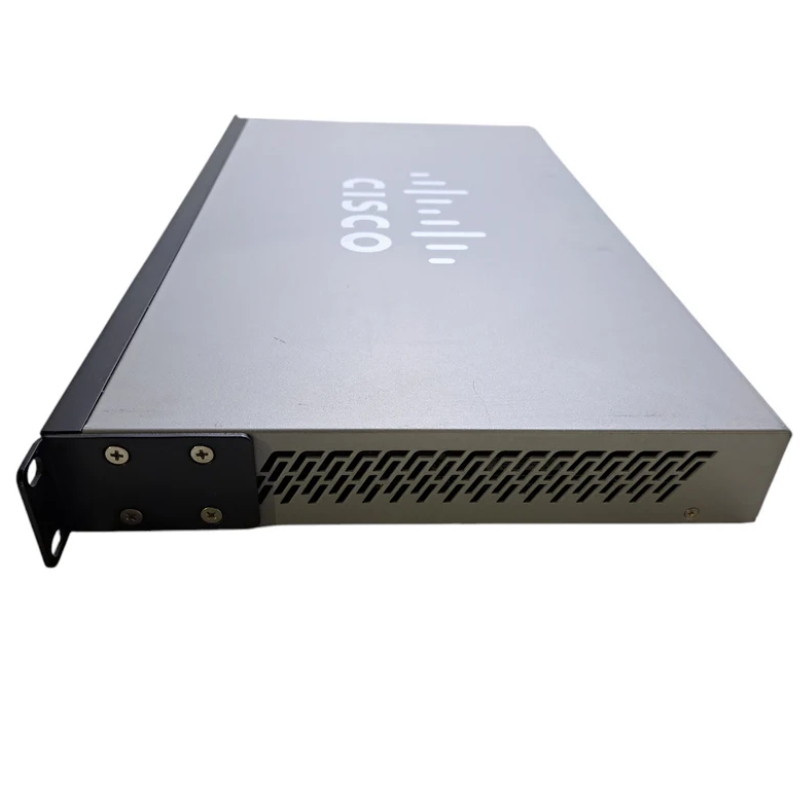

Cisco SG500X-48MP-K9 Layer 3 Switch Manageable

Detailed Specifications of Cisco SG500X-48MP-K9

Product Overview

• Manufacturer: Cisco
• Part Number: SG500X-48MP-K9
• Product Series: 500 Series
• Type: Networking Device
• Product Type: Layer 3 Managed Switch

Interface and Ports

• Total Network Ports: 48
• Power Over Ethernet (PoE+) Ports: 48 (RJ-45)
• Stack Port: Yes
• USB Ports: No
• Management Port: Yes
• Modular Design: No

Port and Expansion Slot Details

• Network Ports: 48 x Gigabit Ethernet
• Expansion Slots: 4 x 10 Gigabit Ethernet (SFP+)
• Shared SFP Slot: Yes

Performance Specifications

• Rack Unit Compatibility: 1U
• Form Factor: Rack-Mountable or Desktop
• Supported Media Types: Twisted Pair Cables (Cat 5)
• Ethernet Technology: 10 Gigabit Ethernet, Gigabit Ethernet
• Network Technology: 10/100/1000Base-T, 10GBase-X
• MTBF (Mean Time Between Failures): 307,978 hours

Expansion and Connectivity

• Total Expansion Slots: 4
• Expansion Slot Type: SFP+

Environmental Specifications

• Operating Temperature: 32°F to 122°F
• Storage Temperature: -4°F to 158°F
• Operating Humidity: 10% – 90% (non-condensing)
• Storage Humidity: 10% – 90% (non-condensing)

Network and Communication

• Layer Support: Layer 3

Supported Routing Protocols

• RIP-2
• VRRP
• Static IPv4 & IPv6 Routing
• CIDR

Remote Management Protocols

• SNMP (v1, v2c, v3)
• RMON (1, 2, 3, 9)
• Telnet, SSH, CLI
• HTTP/HTTPS

Memory Specifications

• Standard Memory: 256 MB
• Flash Memory: 32 MB

Compliance and Standards

• Industry Standards Supported:
• IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q
• IEEE 802.3ab, 802.1p, 802.3af, 802.3x
• IEEE 802.3ad (LACP), 802.1w, 802.1x, 802.1s
• IEEE 802.1ab (LLDP), 802.3at, 802.3az

Key Features

• Layer 2 and Layer 3 switching capabilities
• VLAN, IGMP snooping, and BOOTP support
• Protection against DoS attacks
• Syslog, port mirroring, and QoS support
• Spanning Tree Protocol (STP, RSTP, MSTP) support
• Access Control List (ACL) and DHCP snooping
• Energy-efficient Ethernet (EEE)
• Support for Jumbo Frames and Dynamic VLAN (GVRP)
• Multiple storm controls: Broadcast, Multicast, and Unicast
• Reset button and firmware upgrade capability

Advanced Features

• Weighted Round Robin (WRR) queuing
• DiffServ Code Point (DSCP) support
• Uni-Directional Link Detection (UDLD)
• Multicast Listener Discovery (MLD) snooping
• Dynamic ARP Inspection (DAI)

Power and Electrical Specifications

• PoE (Power over Ethernet) Support: Yes
• Input Voltage: 120V AC / 230V AC
• Power Source: Internal Power Supply
• Redundant Power Supply: No

Cooling System

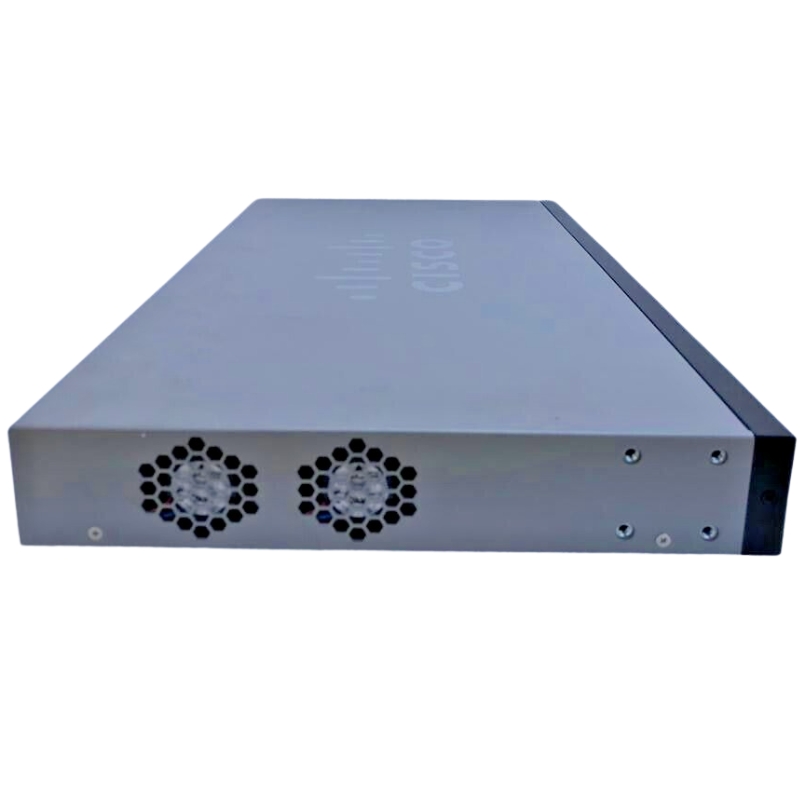

• 4 Fans for optimized cooling

Manageable

The Cisco SG500X-48MP-K9 Layer 3 Switch is a highly advanced and feature-rich networking solution designed for businesses of all sizes. One of its standout features is its extensive range of management capabilities, making it an ideal choice for organizations that require complete control and flexibility over their network infrastructure. In this section, we will explore the various benefits and importance of the manageable feature offered by this exceptional switch.

Efficient Network Configuration

The manageable feature of the Cisco SG500X-48MP-K9 enables network administrators to easily configure and customize their network settings according to their specific requirements. With a user-friendly web interface, administrators can quickly set up VLANs, assign IP addresses, and manage routing protocols. This level of control allows businesses to optimize their network configuration, ensuring faster data transmission and minimizing the risk of bottlenecks or congestion.

Enhanced Security Measures

In today's digital landscape, security is a top concern for any organization. The Cisco SG500X-48MP-K9 Layer 3 Switch offers an array of security features that can be efficiently managed through its interface. Administrators can implement access control lists (ACLs) to restrict unauthorized access to the network, set up virtual private networks (VPNs) for secure remote connections, and enable port security to prevent unauthorized devices from connecting to the switch. With these robust security measures, businesses can safeguard their valuable data and protect against potential cyber threats.

Quality of Service (QoS) Optimization

To ensure a seamless user experience, especially in bandwidth-intensive environments, the Cisco SG500X-48MP-K9 provides advanced Quality of Service (QoS) capabilities. Administrators can prioritize network traffic based on specific applications or services, guaranteeing that critical data, such as voice or video communications, receives the necessary bandwidth and is not affected by other less important traffic. This feature is particularly vital for businesses that rely on real-time applications like video conferencing or VoIP calls, as it prevents latency or packet loss issues that can degrade the overall quality of communication.

Monitoring and Troubleshooting

The manageable feature of the Cisco SG500X-48MP-K9 empowers network administrators with comprehensive monitoring and troubleshooting tools. Through the switch's web interface, administrators can monitor network performance in real-time, track bandwidth utilization, and identify potential bottlenecks or network disruptions. In case of any issues, administrators can access detailed logs and error messages to quickly diagnose and resolve problems, minimizing downtime and ensuring uninterrupted network connectivity.

Network Traffic Analysis

Understanding how network traffic flows within an organization is crucial for optimizing performance. The Cisco SG500X-48MP-K9 offers advanced network traffic analysis capabilities that enable administrators to gain deep insights into traffic patterns, identify bandwidth-hungry applications or devices, and take appropriate actions to balance the load or allocate additional resources where needed. This level of visibility allows businesses to proactively address potential performance issues and ensure smooth operations.

Remote Management

For organizations with multiple branches or remote locations, managing network infrastructure can be a challenging task. However, with the manageable feature of the Cisco SG500X-48MP-K9, remote management becomes a breeze. Administrators can securely access and manage the switch from anywhere using a secure web-based interface or command-line interface (CLI). This remote management capability eliminates the need for on-site visits, saves time and costs associated with traveling, and enables centralized control over distributed networks.

Scalability and Flexibility

As businesses grow and evolve, their network requirements change. The Cisco SG500X-48MP-K9 is designed with scalability and flexibility in mind. With its manageable feature, administrators can easily add or remove devices from the network, configure new VLANs, or adjust routing protocols to accommodate changing needs. Whether it's expanding the network to new office spaces or integrating new technologies, this switch offers the necessary tools to scale and adapt the network infrastructure without significant disruptions.

Centralized Firmware Management

Updating firmware across multiple switches can be a daunting task. However, the Cisco SG500X-48MP-K9 simplifies this process with its centralized firmware management feature. Administrators can effortlessly upgrade or patch the switch firmware from a central location, ensuring that all switches within the network are running the latest and most secure software versions. This centralized approach saves time, reduces complexity, and ensures consistent performance across the network.

Interoperability with Network Management Systems

The Cisco SG500X-48MP-K9 is compatible with various network management systems (NMS), allowing businesses to integrate it seamlessly into their existing network infrastructure. Administrators can leverage popular NMS platforms like Cisco Prime or third-party solutions to manage and monitor the switch alongside other networking devices. This interoperability simplifies network administration tasks, enhances visibility, and promotes efficient network management practices.

Conclusion

In summary, the manageable feature of the Cisco SG500X-48MP-K9 Layer 3 Switch offers numerous benefits and is of utmost importance for businesses seeking robust control over their network infrastructure. From efficient network configuration to enhanced security measures, quality of service optimization to comprehensive monitoring and troubleshooting capabilities, this switch empowers administrators to effectively manage their networks. Additionally, its scalability, flexibility, and compatibility with network management systems ensure seamless integration and future-proofing. With the Cisco SG500X-48MP-K9, businesses can optimize their network performance, enhance security, and adapt to evolving needs effortlessly.
