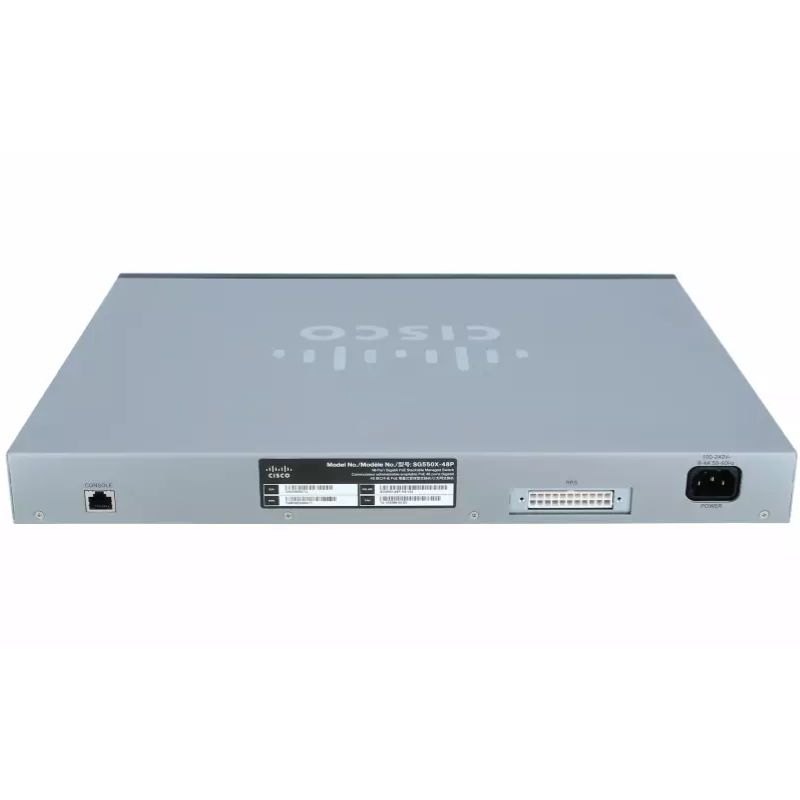

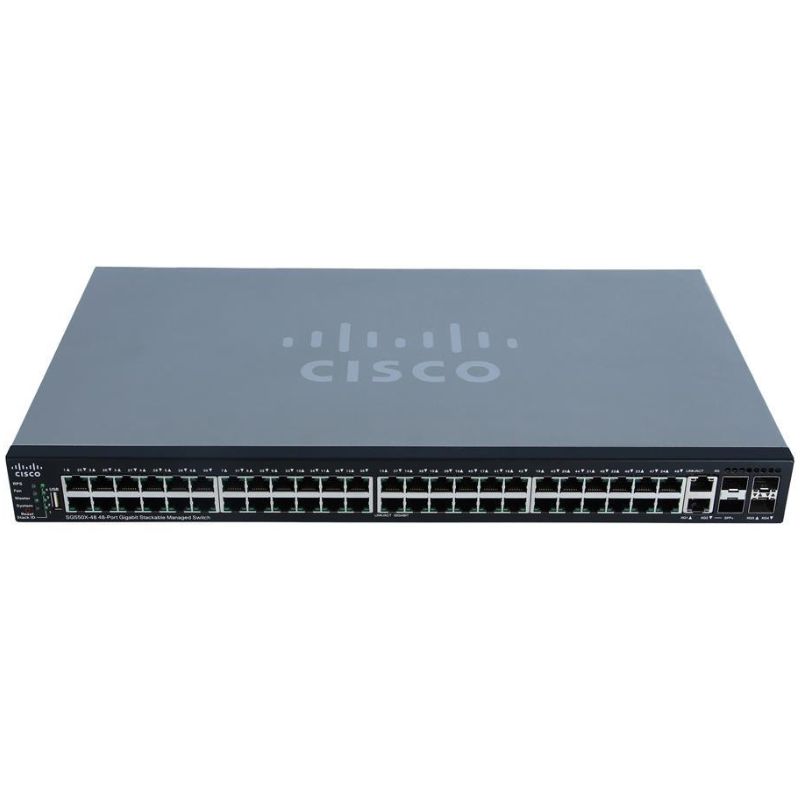

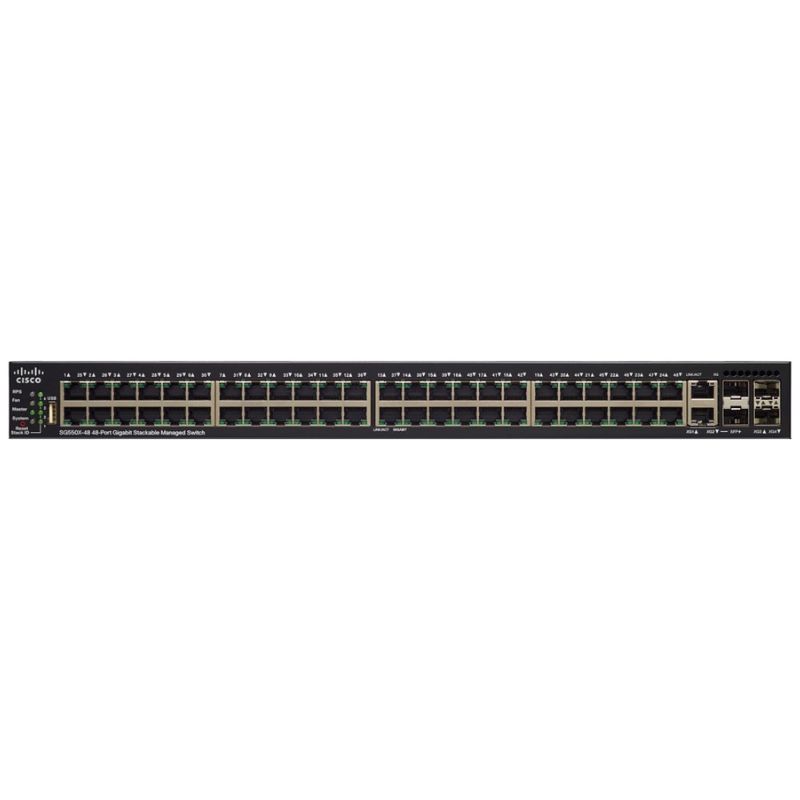

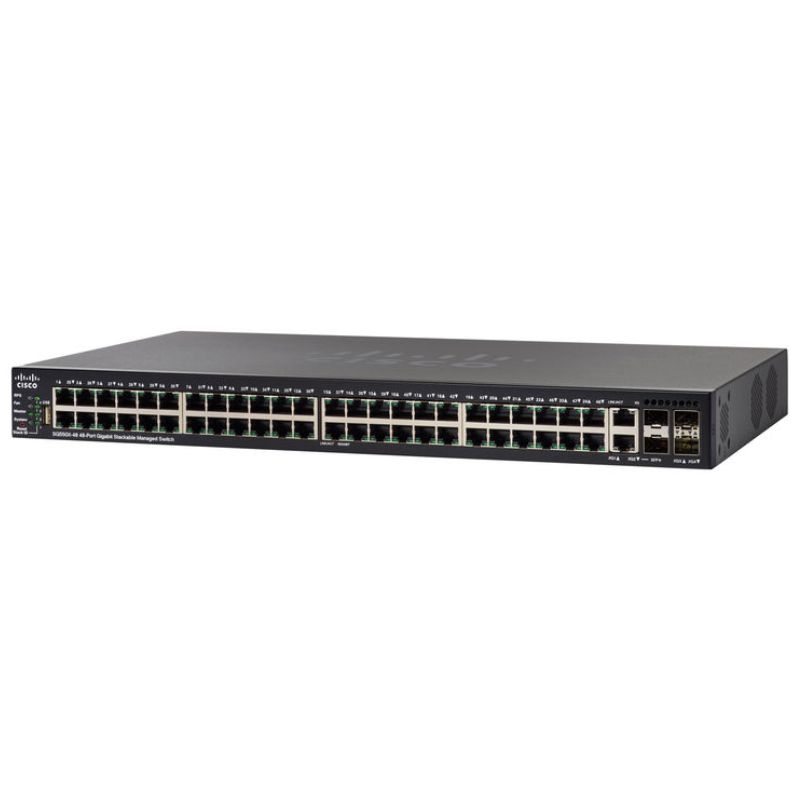

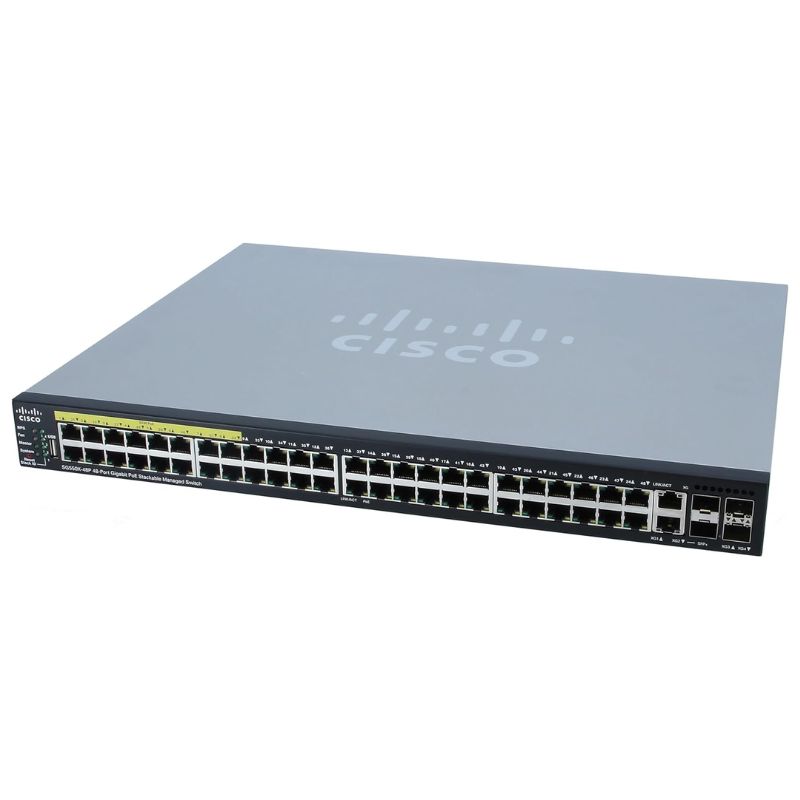

Cisco SG550X-48P-K9 48 Ports Managed Switch Gigabit Ethernet Expansion Slot

Ports

The Cisco SG550X-48P-K9 Managed Switch is equipped with 48 ports, making it an ideal choice for businesses that require a high number of network connections. These ports provide the means to connect various devices, such as computers, printers, and servers, to the network.

Overview of Cisco SG550X-48P-K9 Ethernet Switch

Manufacturer & Model Information

• Brand: Cisco
• Model Number: SG550X-48P-K9
• Series: 550X
• Type: Layer 3 Switch

Network Interfaces and Ports

Port Specifications

• Total Network Ports: 48
• Uplink Ports: Yes
• Modular Design: Yes
• Stacking Ports: Yes

Detailed Port/Expansion Slots

• Expansion Slots: 4 x 10 Gigabit Ethernet
• Gigabit Ethernet Ports: 48
• 10 Gigabit Ethernet Uplinks: 2

Media Types and Performance

Supported Media Types

• Twisted Pair
• Optical Fiber

Performance Metrics

• Forwarding Rate: 130.94 Mpps (64-byte packets)
• Switching Capacity: 176 Gbps

Expansion Capabilities

Expansion Slot Details

• Total Expansion Slots: 4
• Expansion Slot Type: SFP+
• Shared SFP Slot: Yes
• Number of SFP+ Slots: 4

Power Specifications

Power Supply and Consumption

• Power Device: Internal power supply
• Voltage Requirements: AC 120/230 V (50/60 Hz)
• Power over Ethernet (PoE): Yes
• PoE Power per Port: 60 W
• Operational Power Consumption: 494.3 Watts
• Redundant Power Supply Support: No
• Total PoE Budget: 382 Watts

Processor and Memory

• RAM: 512 MB
• Flash Memory: 256 MB

Increased Connectivity

With 48 ports available, users can connect a large number of devices to the switch without the need for additional hardware. This means that businesses can easily expand their network infrastructure and accommodate more devices as their needs grow. Whether it's adding new workstations or integrating new equipment, the ample number of ports ensures that there will be sufficient connectivity options.

Efficient Data Transfer

Each port on the Cisco SG550X-48P-K9 Managed Switch supports high-speed data transfer rates, allowing for seamless communication between connected devices. This is particularly important in environments where large amounts of data need to be transferred quickly, such as in multimedia production or data-intensive applications. The 48 ports ensure that data can flow smoothly without bottlenecks or delays.

Versatile Connectivity Options

The switch features a combination of Ethernet ports, including 10/100/1000BASE-T RJ-45 Gigabit Ethernet ports, which provide versatile connectivity options for different types of devices. The Gigabit Ethernet ports offer faster data transfer speeds compared to standard Ethernet ports, making them suitable for bandwidth-intensive tasks like video streaming or large file transfers.

The abundance of ports also allows for flexibility in network design. Businesses can create separate VLANs (Virtual Local Area Networks) or connect specific devices to dedicated ports for enhanced security or performance optimization. This level of customization ensures that the network can be tailored to meet specific requirements.

Speed

One of the standout features of the Cisco SG550X-48P-K9 Managed Switch is its support for Gigabit Ethernet. This high-speed connectivity option offers numerous benefits for users who require fast and reliable data transfer.

Enhanced Productivity

The Gigabit Ethernet capability of the switch enables users to transfer data at speeds of up to 1000 Mbps. This significantly enhances productivity by reducing the time required for tasks such as file transfers, data backup, and system updates. Employees can work more efficiently, saving valuable time that can be allocated to other important tasks.

Optimized Multimedia Streaming

In today's digital age, multimedia content has become an integral part of many businesses. Whether it's video conferencing, streaming high-definition videos, or hosting webinars, a reliable and high-speed network is crucial to ensure smooth playback without buffering or lag. The Gigabit Ethernet support of the Cisco SG550X-48P-K9 Managed Switch guarantees that multimedia content can be streamed seamlessly, providing an uninterrupted experience for users.

Future-Proofing

As technology continues to advance, network demands are increasing exponentially. By investing in a switch with Gigabit Ethernet capabilities, businesses are future-proofing their network infrastructure. The switch's ability to handle higher data transfer speeds ensures that it can keep up with the ever-growing demands of modern applications and devices. This eliminates the need for premature hardware upgrades and allows businesses to focus on their core operations without worrying about network limitations.

Expansion Slot

The Cisco SG550X-48P-K9 Managed Switch comes equipped with one expansion slot, providing additional flexibility and scalability to accommodate future network expansion or integration of specialized modules.

Scalability

The presence of an expansion slot allows businesses to easily expand their network capabilities without the need for a complete hardware overhaul. It provides the option to add modules or cards that offer specific functionalities, such as additional ports, fiber connectivity, or advanced security features. This scalability ensures that the switch can adapt to changing business requirements and support future growth.

Specialized Functionality

The expansion slot enables businesses to customize the switch according to their specific needs. For example, an organization that requires a higher number of fiber connections can add a fiber module to the expansion slot, allowing for seamless integration of fiber-optic cables into the network. This level of customization ensures that the switch can meet the unique demands of different industries and applications.

Investment Protection

By featuring an expansion slot, the Cisco SG550X-48P-K9 Managed Switch offers investment protection for businesses. It allows them to upgrade or add new capabilities without having to replace the entire switch. This not only saves costs but also extends the lifespan of the switch, ensuring that it remains relevant and functional for years to come.

In conclusion, the Cisco SG550X-48P-K9 Managed Switch provides users with a multitude of benefits through its ports, speed, and expansion slot features. The 48 ports offer increased connectivity, efficient data transfer, and versatile connectivity options. The support for Gigabit Ethernet enhances productivity, optimizes multimedia streaming, and future-proofs the network. Finally, the expansion slot provides scalability, specialized functionality, and investment protection. With these features, businesses can create a robust and adaptable network infrastructure that caters to their unique needs.
