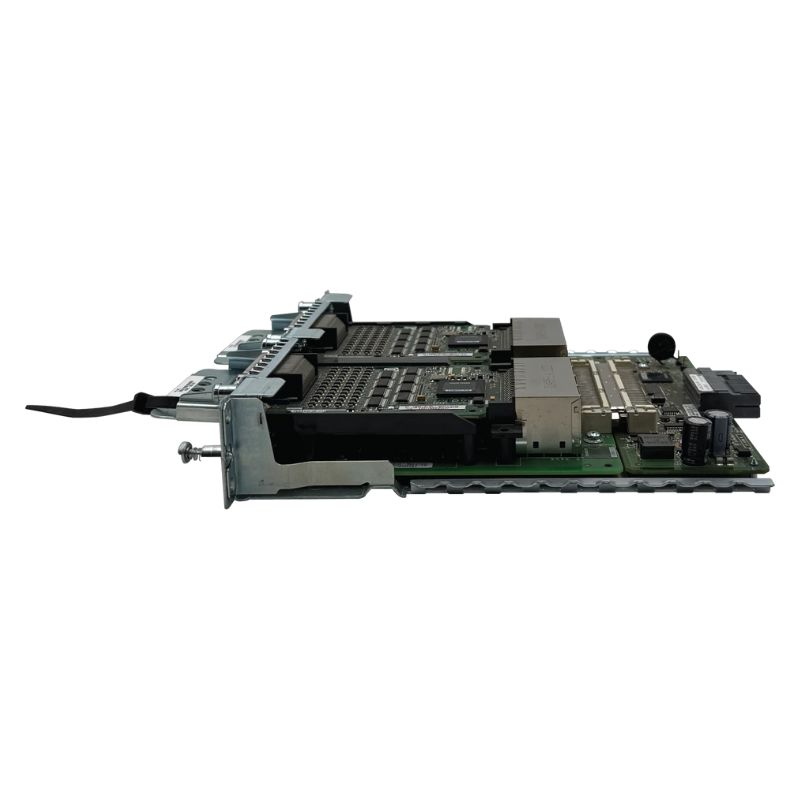

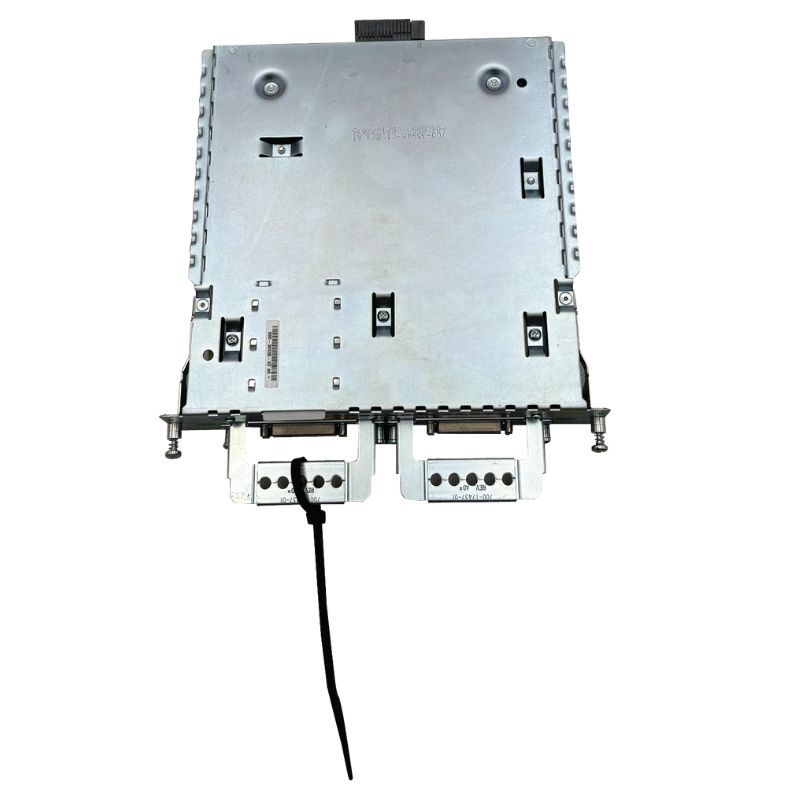

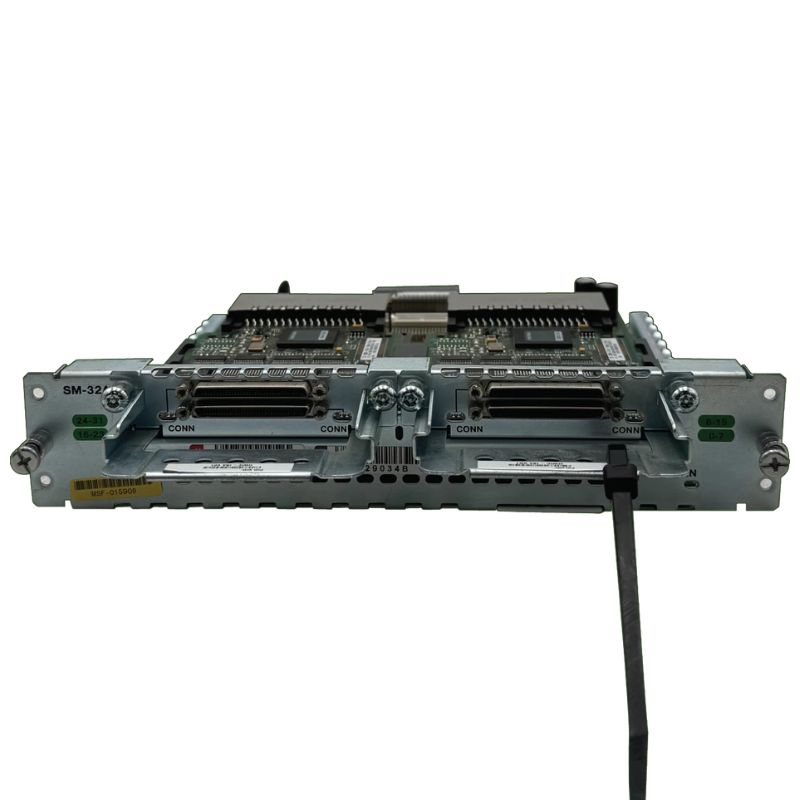

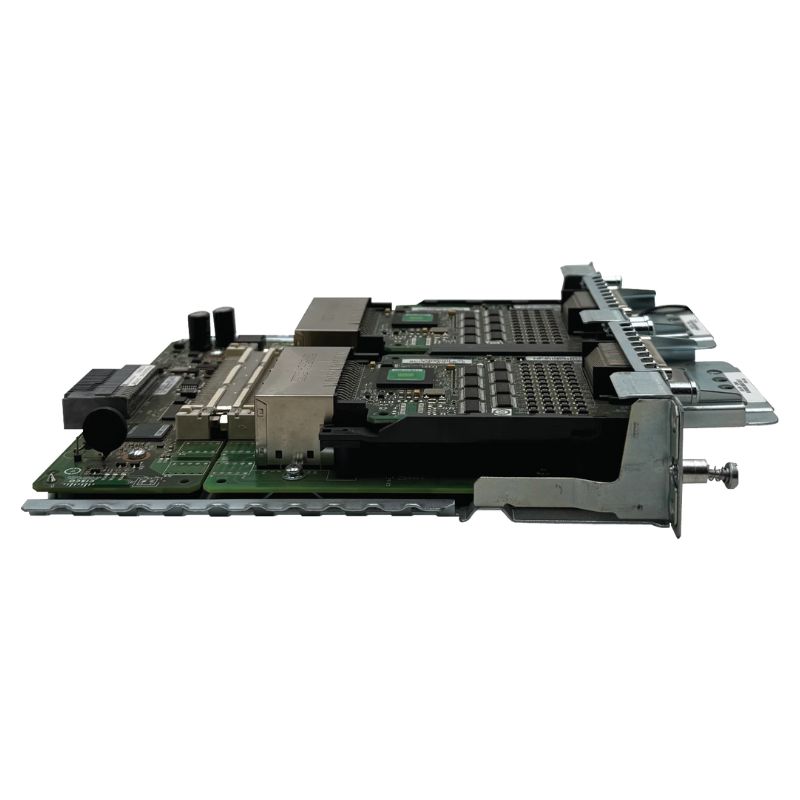

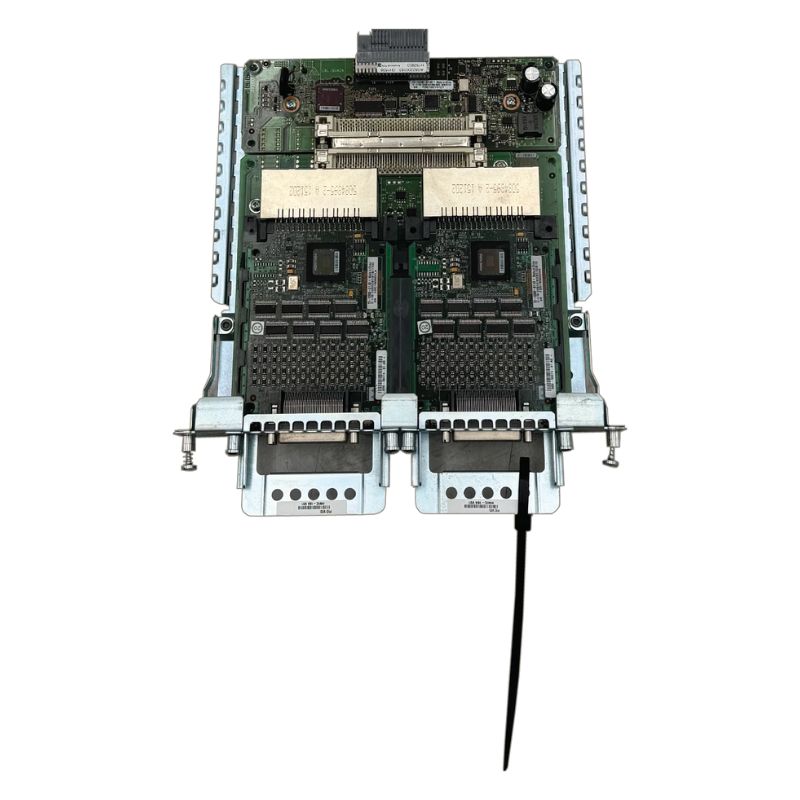

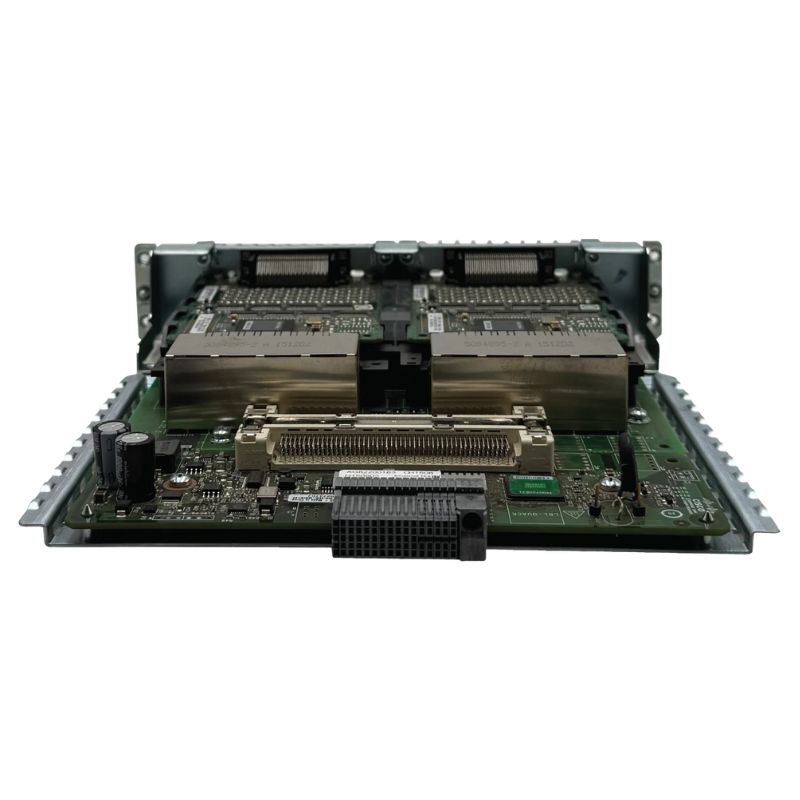

SM-32A Cisco 32-Ports Asynchronous Module

Overview of Cisco SM-32A Service Module

The SM-32A Cisco 32-Ports Asynchronous Module is a high-density serial communication expansion component designed to enhance the capabilities of Cisco access servers and modular networking platforms. It is widely utilized in enterprise-grade networking environments where large-scale asynchronous serial connectivity is required for device management, console access, and remote administration of network infrastructure components. This module is engineered to support up to 32 independent asynchronous serial ports, providing scalable connectivity for routers, switches, firewalls, and other network appliances that require out-of-band management.

General Information

• Product Type: Service Module
• Manufacturer: Cisco Systems
• Part Number: SM-32A

Technical Features

• Application: Ideal for Data Networking environments
• Total Ports: Equipped with 32 Ports for seamless connectivity
• Product Type: 32-Port Asynchronous Serial Service Module card.

• Form Factor: Single-wide Service Module (SM) internal hardware design.
• Interface Density: 32 high-density asynchronous serial connectivity ports total.
• Data Rate: Speeds up to 230.4 kbps per interface port.
• Interface Protocol: EIA-232 / RS-232 serial signaling standard implementation.
• Physical Connectors: Uses high-density proprietary SCSI-style multi-pin connector slots.
• Visual Indicators: Integrated Enable (EN) status LED on front plate.
• Hot Swapping: Supports full Online Insertion and Removal (OIR) mechanics.
• Power Draw: Maximum power consumption capped at 15.72 Watts.
• Dimensions: Measures 1.58 x 7.44 x 7.50 inches across.
• Operating Temperature: Safe performance range from 0°C to 40°C.
• Relative Humidity: 10 to 90 percent non-condensing atmosphere requirement.

Compatibility

• Cisco ISR G2: Engineered for Integrated Services Routers Generation 2.
• 2900 Series: Supported on Cisco 2911, 2921, and 2951 routers.
• 3900 Series: Supported on Cisco 3925, 3925E, 3945, and 3945E routers.
• Legacy Isolation: Explicitly incompatible with older Cisco 1800, 2800, and 3800 routers.
• Minimum Software: Requires Cisco IOS Software Release 15.1(4)M or higher.
• Platform Release: Requires 15.1(4)M3 specifically for the Cisco 2900 series.
• E-Series Release: Requires 15.1(4)M2 or 15.2(1)T1 for 3900E router lines.
• Breakout Cabling: Requires 8-port CAB-OCTAL-ASYNC= or CAB-OCTAL-MODEM= RJ45 breakout cables.
• Target Devices: Connects to server consoles, modems, switches, and patch panels

The Cisco 32-Ports Asynchronous Module

As modern network infrastructures grow in complexity, centralized management of devices becomes essential. The SM-32A module addresses this requirement by offering a consolidated interface that allows administrators to manage multiple devices simultaneously through serial connections. This makes it an indispensable component in data centers, telecom environments, ISP facilities, and enterprise network operations centers (NOCs).

Built with Cisco’s robust hardware architecture, the SM-32A ensures reliable data transmission, low-latency communication, and stable long-term operation under continuous workloads. It is designed to integrate seamlessly with Cisco access servers and terminal server platforms, enabling efficient deployment without significant configuration overhead.

High-Density 32-Port Serial Connectivity

One of the primary features of the SM-32A module is its ability to support up to 32 asynchronous serial ports within a single modular unit. This high port density allows organizations to reduce hardware footprint while maximizing connectivity. Each port operates independently, enabling simultaneous management of multiple devices without performance degradation.

Out-of-Band Network Management Support

The module is specifically designed for out-of-band (OOB) management, which provides administrators with secure access to network devices even during primary network failures. This capability is critical in mission-critical environments where uptime and rapid recovery are essential.

Compatibility with Cisco Access Platforms

The SM-32A is engineered for integration with Cisco access servers and modular chassis systems. This compatibility ensures seamless interoperability with Cisco IOS-based environments and allows administrators to leverage existing infrastructure investments.

Reliable Asynchronous Communication

Each port on the module supports asynchronous serial communication protocols commonly used in networking equipment consoles. This ensures compatibility with a wide range of legacy and modern devices, including routers, switches, UNIX terminals, and industrial control systems.

Scalability for Enterprise Environments

The module supports scalable deployment strategies, allowing organizations to expand their serial connectivity infrastructure as needed. Multiple modules can be deployed across chassis systems to accommodate large-scale environments with hundreds of managed devices.

Specifications of SM-32A Cisco 32-Ports Asynchronous

The SM-32A module provides 32 RJ-45 serial interfaces designed for asynchronous communication. These ports support standard serial signaling used in console and terminal connections. Each port is independently addressable, enabling granular control and monitoring.

Data Transmission Capabilities

The module supports asynchronous data transmission with configurable baud rates depending on connected devices. This flexibility ensures compatibility with a wide range of networking equipment, from legacy systems to modern enterprise devices.

Hardware Integration

Designed as a modular component, the SM-32A fits into compatible Cisco chassis systems and access servers. It leverages backplane connectivity for communication with the host system, ensuring efficient data handling and minimal latency.

Power Efficiency and Thermal Design

The module is engineered for low power consumption while maintaining stable performance under heavy usage. Its thermal design ensures efficient heat dissipation, making it suitable for dense rack-mounted environments in data centers.

Reliability and Operational Stability

Cisco’s hardware engineering standards ensure high reliability and long operational lifespan. The SM-32A is built to support continuous 24/7 operation, which is essential for enterprise-grade network management systems.

Architecture and Design of SM-32A Module

The SM-32A follows a modular architecture that allows it to be inserted into compatible Cisco platforms. This design enables easy upgrades, replacements, and scalability without disrupting existing network infrastructure. The modular approach also simplifies maintenance and reduces downtime.

Serial Communication Processing

Internally, the module processes asynchronous serial data streams through dedicated communication controllers. These controllers handle buffering, signal conversion, and port multiplexing, ensuring efficient data handling across all 32 ports.

Backplane Integration

The module communicates with the host device through a high-speed backplane interface. This integration ensures that serial traffic is efficiently routed between connected devices and centralized management systems.

Signal Isolation and Integrity

To maintain signal integrity, the SM-32A incorporates electrical isolation mechanisms that reduce interference and prevent cross-talk between ports. This is particularly important in high-density deployments where multiple devices operate in close proximity.

Use Cases of SM-32A Cisco 32-Ports Asynchronous Module

In data center environments, the SM-32A module is commonly used to manage large numbers of networking devices through serial console access. Administrators can monitor, configure, and troubleshoot equipment without relying on network-based access methods.

Network Operations Centers (NOC)

Network operations centers benefit significantly from centralized console access provided by the SM-32A. It allows engineers to manage multiple remote devices from a single interface, improving operational efficiency and response times.

Telecommunications Infrastructure

Telecom providers use asynchronous modules like the SM-32A to manage switching equipment, routing systems, and transmission hardware. The module ensures reliable access to critical infrastructure components even during network outages.

Enterprise IT Environments

Large enterprises deploy the SM-32A to streamline IT infrastructure management. It simplifies the administration of distributed network devices across multiple office locations.

Industrial and Embedded Systems

Beyond traditional networking, the module can also be used in industrial environments where serial communication is required for monitoring embedded systems, controllers, and automation equipment.

Integration with Cisco Platforms

The SM-32A module is designed to work with Cisco access servers, enabling centralized management of serial devices. It integrates seamlessly with Cisco IOS-based systems, allowing administrators to configure and manage ports using familiar command-line interfaces.

Terminal Server Functionality

When deployed in a terminal server configuration, the SM-32A provides remote console access to connected devices. This eliminates the need for physical proximity to equipment, significantly improving operational flexibility.

IOS-Based Configuration

Configuration of the SM-32A module is typically performed using Cisco IOS commands. Administrators can define port settings, manage access controls, and monitor activity using standardized command-line tools.

Scalable Network Architecture

Cisco modular systems allow multiple asynchronous modules to be deployed simultaneously, creating a scalable architecture capable of supporting hundreds of serial connections within a single environment.

Performance and Scalability of SM-32A Cisco Module

The module is optimized to handle simultaneous data streams across all 32 ports without performance bottlenecks. This ensures consistent responsiveness even in high-demand environments.

Multi-Device Management Efficiency

By centralizing console access, the SM-32A significantly improves operational efficiency. Administrators can manage multiple devices concurrently, reducing the need for physical intervention.

Scalability in Large Networks

The module supports scalable deployment in large networks, allowing organizations to expand their serial infrastructure as operational requirements grow.

Load Distribution and Optimization

Traffic across ports is efficiently distributed to prevent congestion. This ensures that even during peak usage, performance remains stable and predictable.

Security and Access Control

The SM-32A supports secure administrative access through controlled terminal sessions. This ensures that only authorized personnel can interact with connected devices.

User Authentication Mechanisms

Integration with Cisco authentication systems allows administrators to enforce user-level access control, improving overall network security.

Session Monitoring and Logging

The module supports session tracking and logging, enabling administrators to monitor access activities and maintain audit trails for compliance purposes.

Isolation of Device Communications

Each port operates independently, ensuring that communication between devices remains isolated and secure.

Advantages of SM-32A Cisco 32-Ports Asynchronous Module

By consolidating 32 serial ports into a single module, organizations reduce hardware complexity and rack space usage.

Improved Operational Control

Centralized management simplifies administrative tasks and enhances visibility across network devices.

Enhanced Reliability

Cisco engineering ensures long-term operational stability, making the module suitable for mission-critical environments.

Cost-Effective Scalability

The module provides a cost-effective way to scale serial connectivity without deploying multiple standalone devices.

Extended Deployment Scenarios

Internet service providers leverage asynchronous modules to manage extensive router and switch networks across distributed infrastructures.

Research and Development Networks

Engineering labs and R&D environments use the SM-32A for testing and development of network configurations and device interoperability.

Government and Military Applications

Secure communication and controlled access requirements make asynchronous modules valuable in government and defense network environments.

Financial Institutions

Banks and financial systems use centralized console access to ensure rapid response to network events and maintain uptime for critical systems.

Operational Best Practices

Proper cable organization reduces errors and improves maintainability in high-density deployments.

Access Segmentation

Segmenting access by user roles ensures that only authorized personnel can manage specific device groups.

Regular Monitoring

Continuous monitoring of port activity helps detect anomalies early and prevents potential downtime.

Redundancy Planning

Deploying redundant modules and access paths ensures uninterrupted operation in case of hardware failure.

Future-Proofing Network Infrastructure with SM-32A

The SM-32A supports both legacy serial devices and modern networking hardware, ensuring long-term usability across evolving infrastructures.

Expandable Network Architecture

Organizations can expand their serial management systems without redesigning existing infrastructure, making the module a future-ready solution.

Support for Hybrid Environments

Hybrid IT environments that combine physical and virtual infrastructure benefit from centralized console access provided by asynchronous modules.

Long-Term Investment Value

Due to its durability, scalability, and compatibility, the SM-32A represents a long-term investment in network management efficiency.
