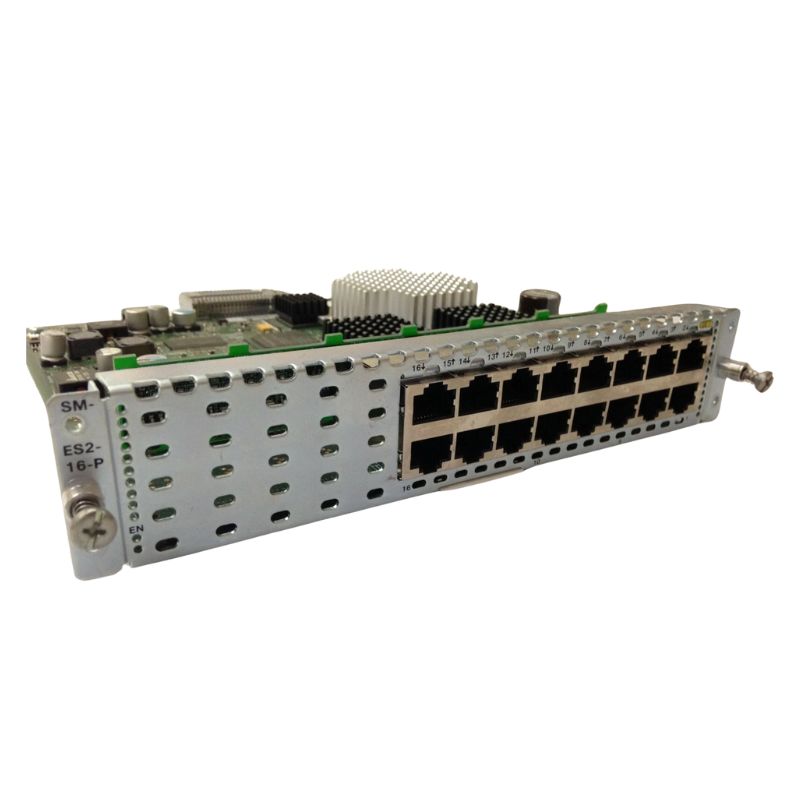

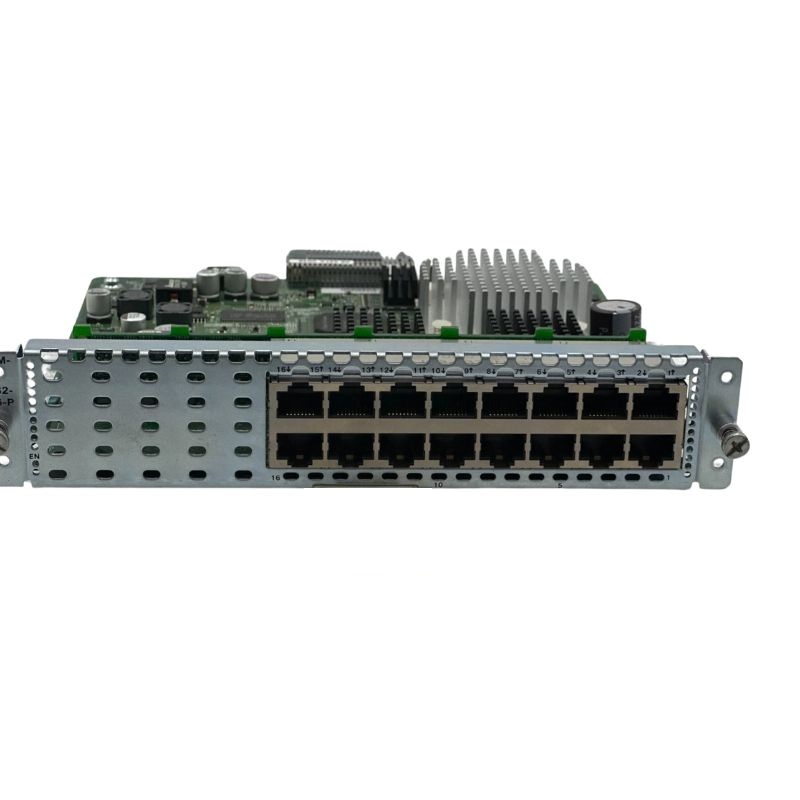

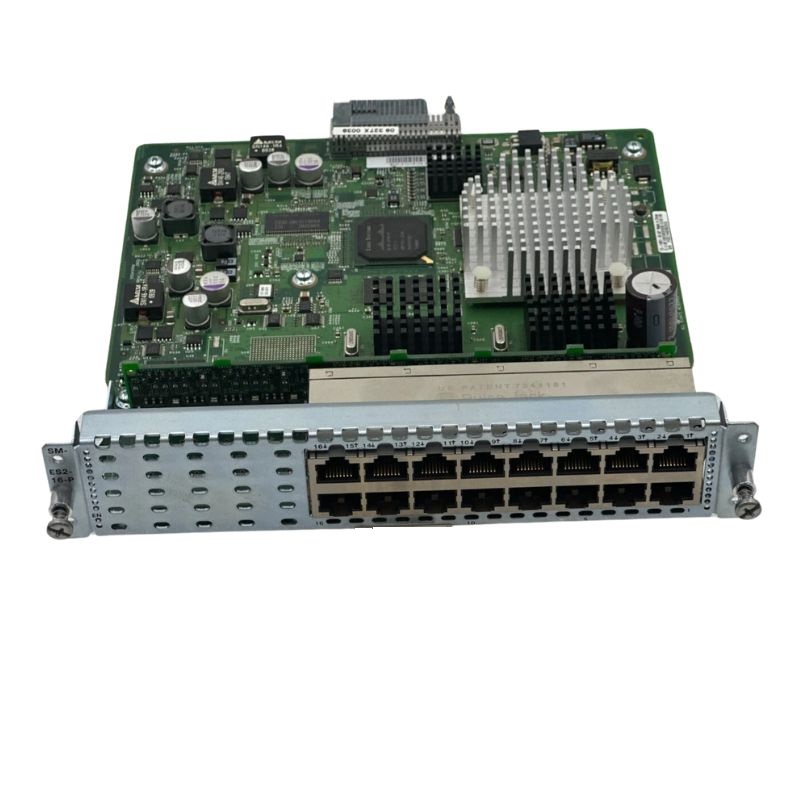

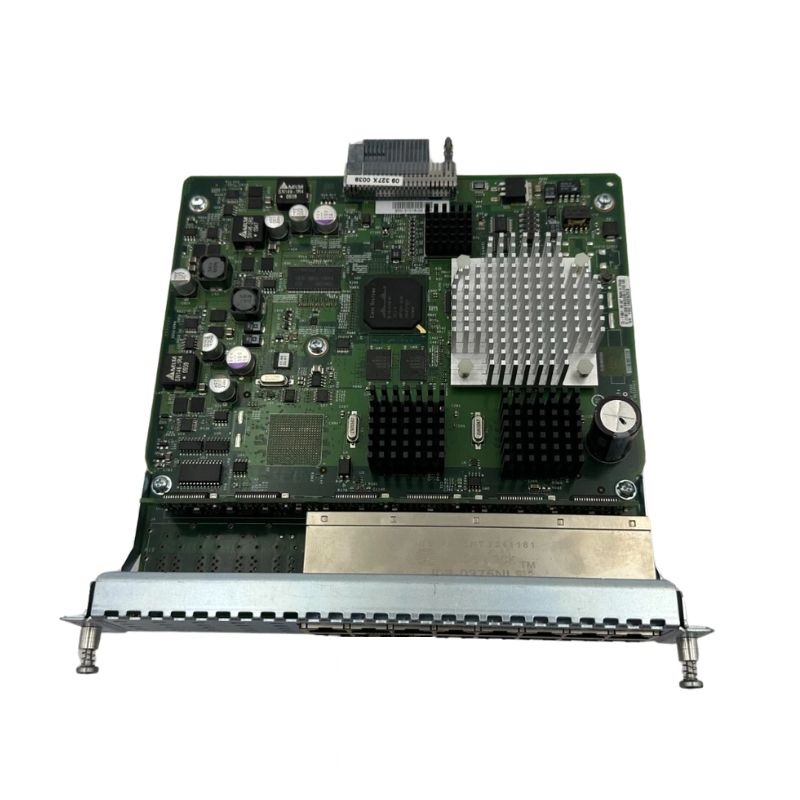

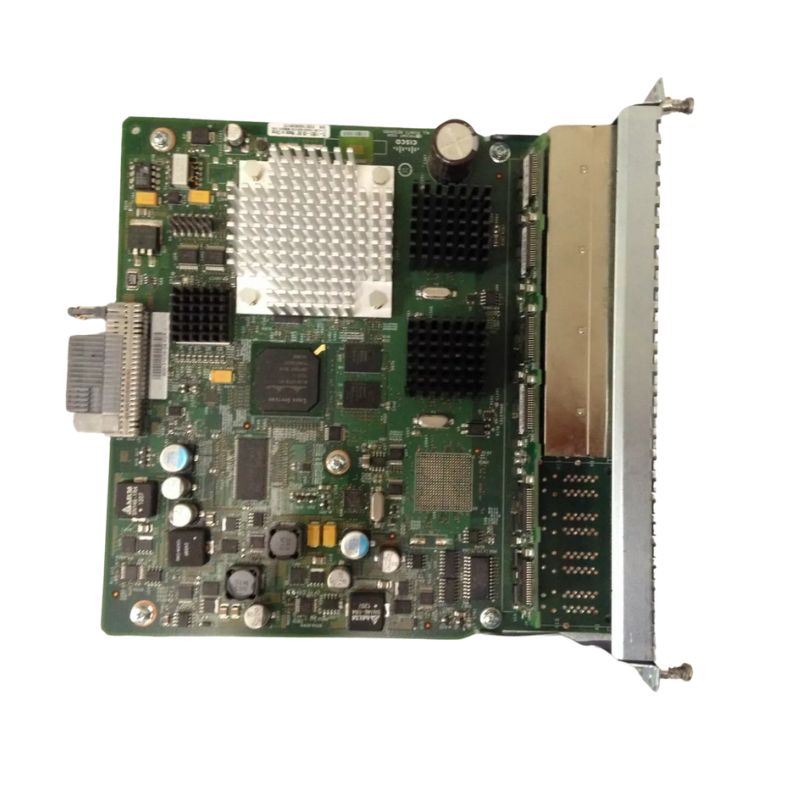

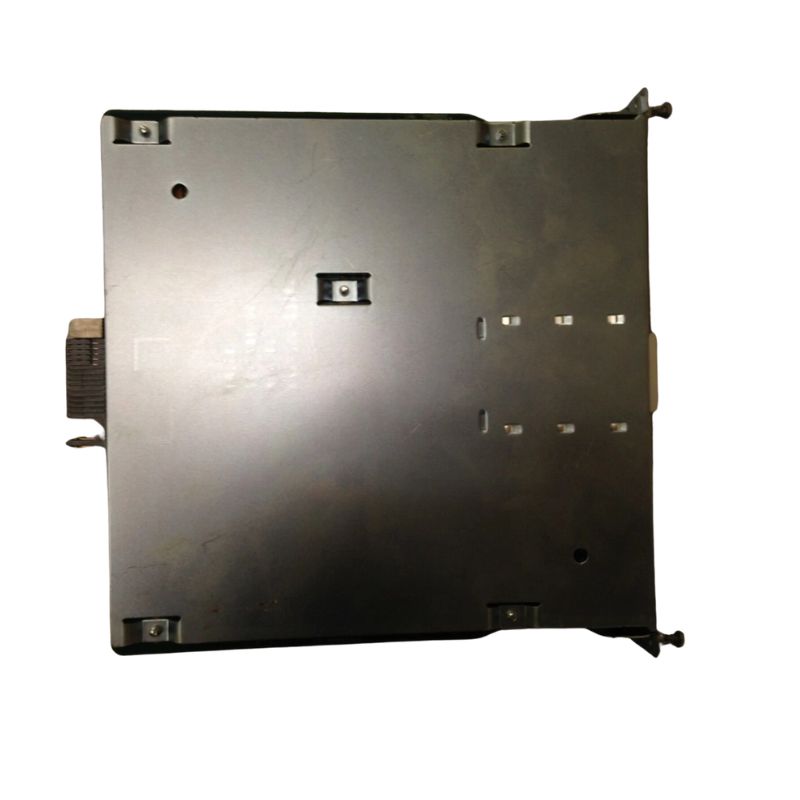

SM-ES2-16-P Cisco 16 Ports PoE Plug-in Module

Cisco SM-ES2-16-P Managed PoE Switch Module Overview

The Cisco SM-ES2-16-P is a high-performance 16-port service module designed to deliver reliable network connectivity with Power over Ethernet (PoE) capabilities. Ideal for enterprise networks, this module integrates seamlessly with Cisco systems to ensure efficient data transfer and robust network management.

Key Features of Cisco SM-ES2-16-P

• Manufacturer: Cisco
• Model Number: SM-ES2-16-P
• Product Type: Managed Switch Module
• Port Count: 16 Ports (15 Fast Ethernet + 1 Gigabit Ethernet)
• Power Over Ethernet (PoE) Support: Yes
• Enclosure: Plug-in Module

Technical Specifications

Device & Management

• Device Type: Managed Switch
• Port Speed: 15 x 10/100 Mbps + 1 x 10/100/1000 Mbps
• Management Protocols: SNMP v3, HTTP, SSH
• Enclosure Type: Hot-swappable Plug-in Module

Connectivity & Expansion

• Interfaces: 15 x 100Base-TX RJ-45, 1 x 1000Base-T RJ-45
• Expansion Capabilities: Supports seamless network scaling and additional modules

Performance & Efficiency

• Fast Ethernet connectivity ensures smooth data flow for medium-scale networks
• PoE functionality powers connected devices such as IP phones, cameras, and access points directly
• Remote management via SNMP, HTTP, and SSH allows for easy monitoring and configuration

Cisco SM-ES2-16-P Managed PoE Service Module Category

The Cisco SM-ES2-16-P 16 Ports Service Module Managed PoE Plug-in Module belongs to a specialized category of embedded switching and Power over Ethernet solutions designed for Cisco Integrated Services Routers. This category focuses on modular network expansion components that allow organizations to extend switching, power delivery, and management capabilities directly within router platforms. By integrating switching functionality into the router chassis, service modules such as the Cisco SM-ES2-16-P reduce the need for external switches while maintaining enterprise-grade performance, resiliency, and centralized control.

This category is particularly relevant for branch offices, remote locations, and distributed enterprise environments where space efficiency, simplified cabling, and unified management are critical. The Cisco SM-ES2-16-P exemplifies how service modules can transform a router into a converged networking platform, supporting data, voice, video, and power delivery through a single integrated solution. As part of Cisco’s broader modular networking ecosystem, this category aligns with scalable network design principles and long-term infrastructure investment protection.

Embedded Switching Architecture and Design Philosophy

Service modules in this category are built around an embedded switching architecture that operates seamlessly within the host router. The Cisco SM-ES2-16-P leverages this design to provide sixteen Ethernet switch ports with integrated PoE support while sharing the router’s power, cooling, and management resources. This architecture eliminates the complexity of managing separate devices and ensures consistent policy enforcement across routing and switching functions.

The design philosophy emphasizes modularity and flexibility. Organizations can deploy the service module as needs evolve, adding switching and PoE capabilities without replacing existing routers. This approach reduces capital expenditure and supports gradual network growth. Embedded switching also improves performance by minimizing latency between routing and switching processes, enabling faster packet handling and more efficient traffic flows within the network.

Integration with Cisco Integrated Services Routers

The Cisco SM-ES2-16-P category is tightly integrated with compatible Cisco Integrated Services Routers, ensuring optimal interoperability and feature alignment. This integration allows administrators to manage both routing and switching features through familiar Cisco IOS interfaces. The result is a unified operational model that simplifies configuration, monitoring, and troubleshooting.

By residing inside the router, the service module benefits from direct access to routing tables, security policies, and quality of service configurations. This close coupling enhances the ability to implement end-to-end network policies, particularly in branch environments where consistent performance and security are essential.

Space-Efficient and Power-Conscious Deployment

Another defining characteristic of this category is space efficiency. The Cisco SM-ES2-16-P enables organizations to deploy switching and PoE capabilities without additional rack-mounted equipment. This is especially advantageous in locations with limited physical space, such as retail outlets, healthcare clinics, or remote offices.

Power efficiency is also a core consideration. By consolidating devices, the overall power footprint can be reduced compared to deploying separate routers and switches. The integrated PoE functionality ensures that connected devices receive power directly from the module, further simplifying power distribution and reducing the need for external power adapters.

Power over Ethernet Capabilities and Use Cases

The managed PoE functionality defines a significant portion of this category’s value. The Cisco SM-ES2-16-P provides Power over Ethernet across its sixteen ports, enabling it to supply power to a wide range of networked devices. This capability supports modern network deployments where endpoints often require both data connectivity and power from a single Ethernet cable.

PoE support enhances deployment flexibility and reduces installation complexity. Devices can be placed where needed without concern for nearby power outlets. This characteristic is especially beneficial in environments where aesthetics, safety, or infrastructure limitations restrict traditional power delivery methods.

Support for IP Telephony and Unified Communications

Within this category, one of the most common use cases is IP telephony. The Cisco SM-ES2-16-P can power IP phones directly, enabling unified communications deployments in branch offices. By integrating PoE switching into the router, voice traffic can be prioritized using quality of service mechanisms, ensuring clear and reliable communications.

The close integration between routing, switching, and PoE allows administrators to apply voice VLANs, traffic shaping, and security policies consistently. This results in improved call quality and simplified management compared to deploying separate devices.

Wireless Access Points and Edge Connectivity

Another important application area for this category is wireless networking. The Cisco SM-ES2-16-P can supply power to wireless access points, facilitating the deployment of secure and high-performance wireless networks in remote or branch locations. This integrated approach ensures that wireless traffic is handled efficiently and securely from the access layer through the WAN.

By supporting PoE-powered access points, organizations can rapidly expand wireless coverage while maintaining centralized control and visibility. This capability aligns with modern mobility requirements and supports a wide range of enterprise wireless strategies.

Managed Switching Features and Network Control

Managed switching functionality is a core aspect of this category. The Cisco SM-ES2-16-P offers advanced Layer 2 switching features that enable precise control over traffic flows, network segmentation, and performance optimization. These features are essential for maintaining reliable and secure networks in multi-device environments.

Administrators benefit from the ability to configure VLANs, manage port settings, and monitor traffic directly through the router’s management interface. This unified control model simplifies operations and reduces the learning curve for network teams.

VLAN Segmentation and Traffic Isolation

VLAN support within this category allows organizations to logically separate network traffic without additional hardware. The Cisco SM-ES2-16-P enables the creation of multiple VLANs across its sixteen ports, supporting segmentation for voice, data, management, and guest traffic.

This segmentation improves security by isolating sensitive traffic and reduces broadcast traffic, enhancing overall network performance. VLANs also provide the foundation for implementing quality of service policies and access controls tailored to specific application requirements.

Quality of Service for Critical Applications

Quality of service capabilities are integral to managed PoE service modules. The Cisco SM-ES2-16-P supports traffic prioritization mechanisms that ensure critical applications receive the necessary bandwidth and low latency. This is particularly important for voice, video, and real-time collaboration tools.

By applying QoS policies at the embedded switch level, organizations can maintain consistent application performance even in bandwidth-constrained environments. This category’s focus on integrated QoS simplifies deployment and ensures predictable network behavior.

Security Enhancements within the Service Module Category

Security is a foundational consideration in this category of managed service modules. The Cisco SM-ES2-16-P contributes to a secure network architecture by supporting features that protect against unauthorized access and network threats at the access layer.

Embedded switching security complements the router’s existing security capabilities, creating a layered defense strategy. This integration enables consistent enforcement of security policies across all connected devices.

Port-Level Security and Access Control

Port-level security features allow administrators to control which devices can connect to the network. The Cisco SM-ES2-16-P supports mechanisms that limit access based on predefined criteria, helping to prevent unauthorized connections.

This capability is especially valuable in environments where physical access to network ports cannot be fully controlled. By enforcing access policies at the switch port level, organizations can reduce the risk of internal security breaches.

Alignment with Network-Wide Security Policies

The category’s integration with Cisco IOS enables seamless alignment with broader network security strategies. Access control lists, authentication mechanisms, and monitoring tools can be applied consistently across routing and switching functions.

This unified approach simplifies compliance with organizational security standards and regulatory requirements. It also enhances visibility into network activity, enabling faster detection and response to potential threats.

Scalability and Future-Ready Networking

Scalability is a defining attribute of the Cisco SM-ES2-16-P service module category. By enabling incremental expansion of switching and PoE capabilities, these modules support evolving business needs without disruptive infrastructure changes.

Organizations can start with a basic configuration and add service modules as device counts and application demands increase. This modular scalability aligns with long-term network planning and investment protection strategies.

Support for Growing Device Ecosystems

The increasing number of network-connected devices in modern enterprises drives demand for scalable access solutions. The Cisco SM-ES2-16-P addresses this requirement by providing sixteen managed PoE ports within a compact form factor.

This capacity supports a wide range of endpoints, from phones and access points to specialized IoT devices. The category’s flexibility ensures that networks can adapt to new technologies and use cases as they emerge.

Compatibility with Evolving Network Standards

Service modules in this category are designed to align with Cisco’s roadmap for network standards and best practices. The Cisco SM-ES2-16-P benefits from Cisco’s ongoing software and feature updates, ensuring continued compatibility with evolving network architectures.

This forward-looking design helps organizations maintain modern, secure, and high-performing networks without frequent hardware replacements.

Operational Efficiency and Centralized Management

Operational efficiency is a key advantage of deploying managed PoE service modules. The Cisco SM-ES2-16-P enables centralized management of routing, switching, and power delivery through a single interface, reducing administrative overhead.

This category supports streamlined workflows for configuration, monitoring, and troubleshooting. Network teams can leverage familiar tools and processes, improving productivity and reducing the likelihood of configuration errors.

Simplified Deployment and Maintenance

By consolidating multiple network functions into a single module, deployment complexity is significantly reduced. The Cisco SM-ES2-16-P can be installed and configured as part of the router, minimizing additional cabling and setup requirements.

Maintenance is also simplified, as fewer devices need to be monitored and serviced. This efficiency translates into lower operational costs and improved network reliability.

Enhanced Visibility and Monitoring

Centralized management provides enhanced visibility into network performance and device status. Administrators can monitor port utilization, power consumption, and traffic patterns directly through the router’s management interface.

This visibility enables proactive network management and faster resolution of issues. By identifying trends and potential bottlenecks early, organizations can maintain optimal network performance.

Enterprise and Branch Office Deployment Scenarios

The Cisco SM-ES2-16-P category is well suited for a wide range of deployment scenarios, particularly in enterprise branch offices. Its integrated design supports consistent network services across distributed locations.

Branch deployments benefit from reduced hardware footprints, simplified management, and reliable performance. These characteristics are essential for maintaining service quality in geographically dispersed environments.

Retail, Healthcare, and Education Environments

Industries such as retail, healthcare, and education often require compact, reliable networking solutions with PoE support. The Cisco SM-ES2-16-P enables these environments to connect essential devices while maintaining centralized control and security.

The ability to support voice, wireless, and data devices within a single module makes this category highly adaptable to diverse operational requirements.

Remote Offices and Distributed Enterprises

For remote offices and distributed enterprises, the Cisco SM-ES2-16-P provides a consistent networking foundation that mirrors headquarters capabilities. This consistency simplifies network design and ensures uniform user experiences across locations.

The category’s emphasis on integration and manageability supports efficient operations and reliable connectivity, even in challenging deployment environments.

Value Proposition of Cisco SM-ES2-16-P Service Modules

The overall value proposition of this category lies in its ability to deliver enterprise-grade switching and PoE functionality within a modular, integrated form factor. The Cisco SM-ES2-16-P exemplifies how service modules can enhance network flexibility, efficiency, and performance.

By combining managed switching, power delivery, security, and centralized management, this category addresses the complex requirements of modern networks. Organizations benefit from reduced complexity, scalable growth, and long-term reliability, making the Cisco SM-ES2-16-P a strategic component in integrated networking architectures.
