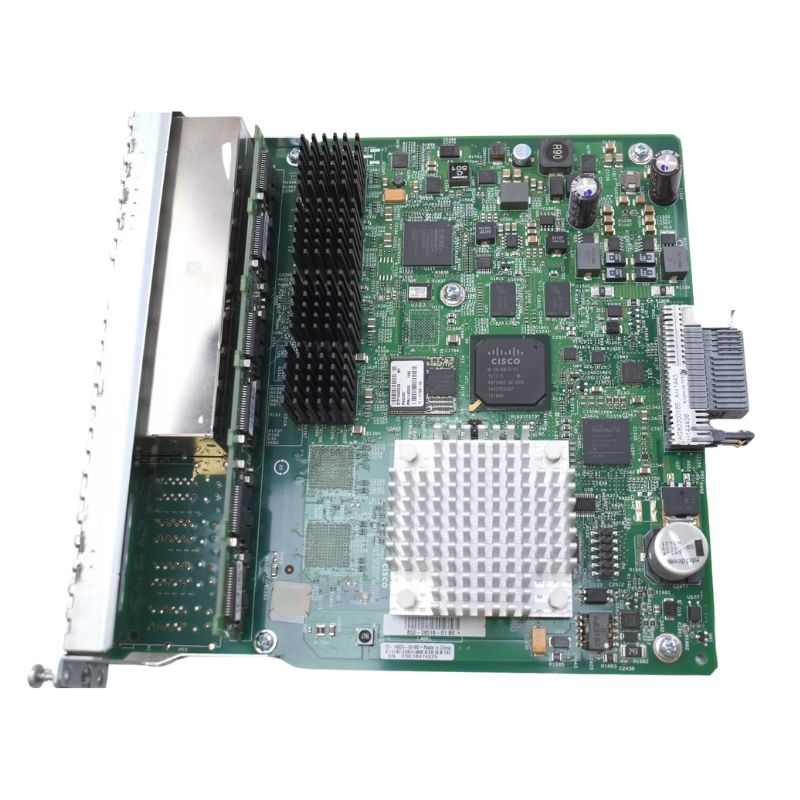

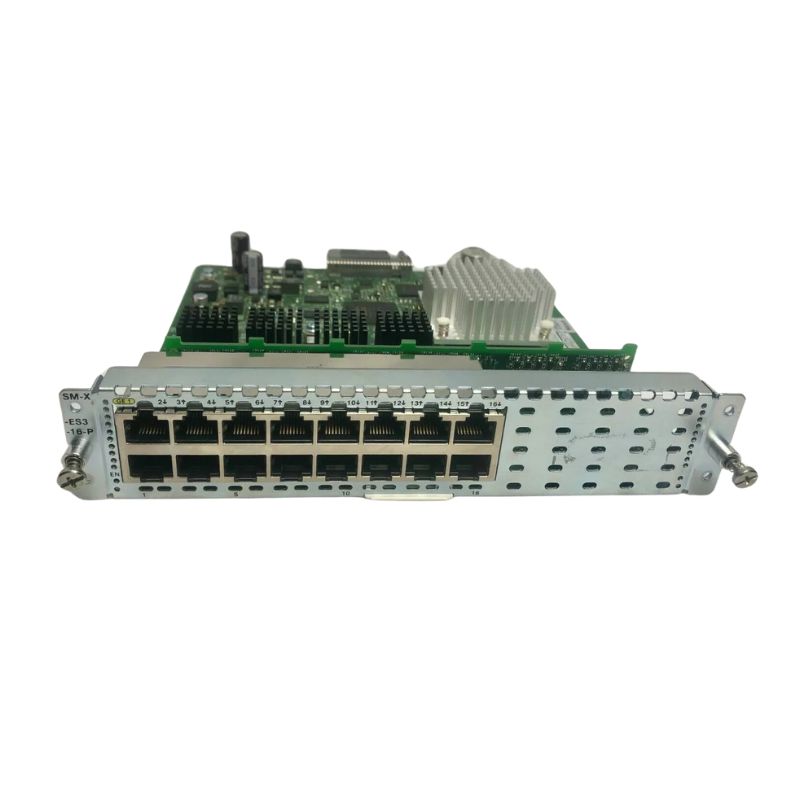

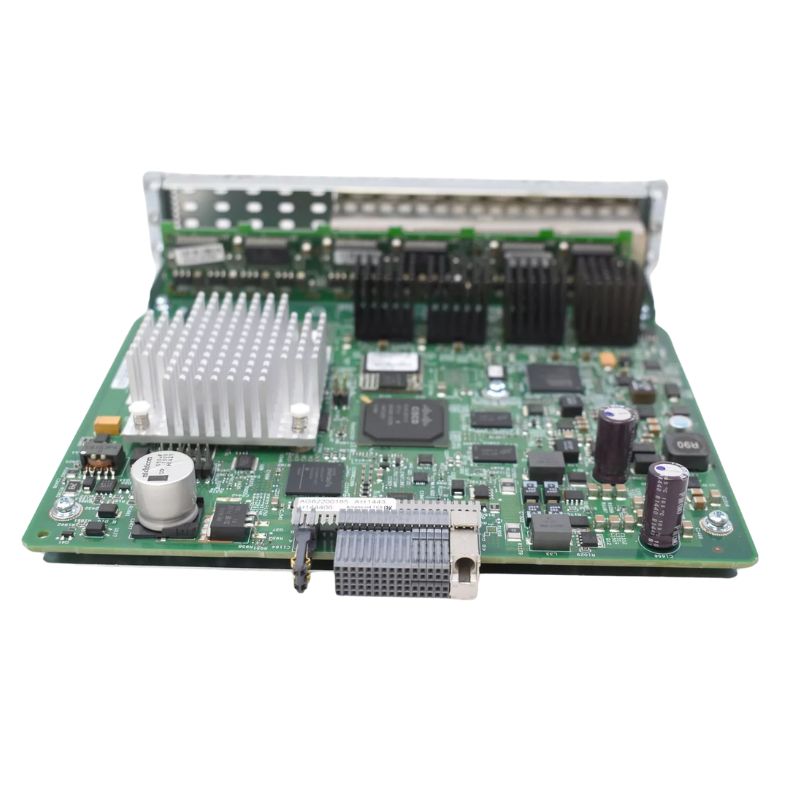

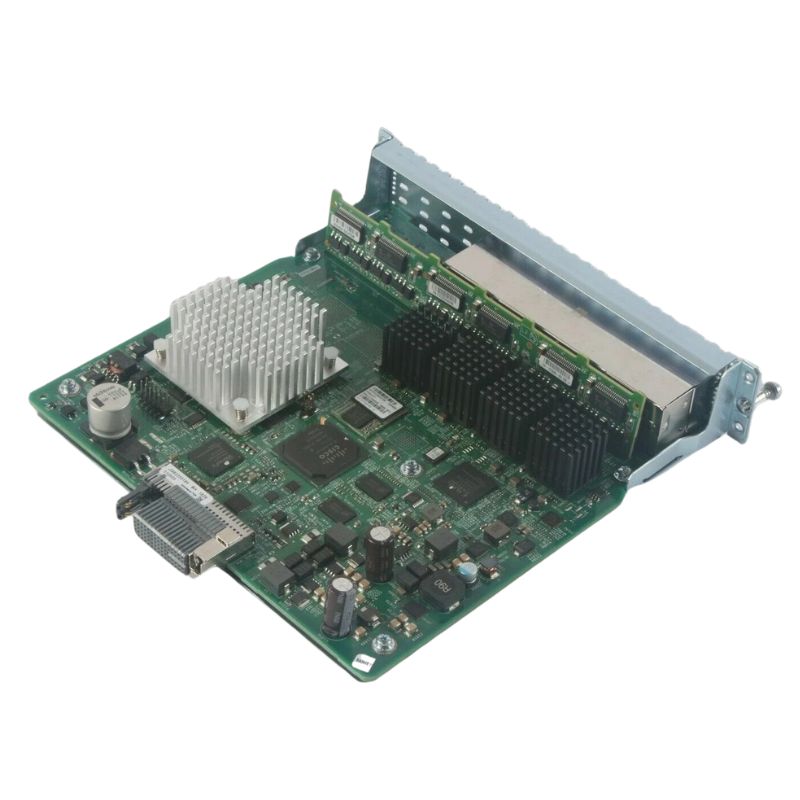

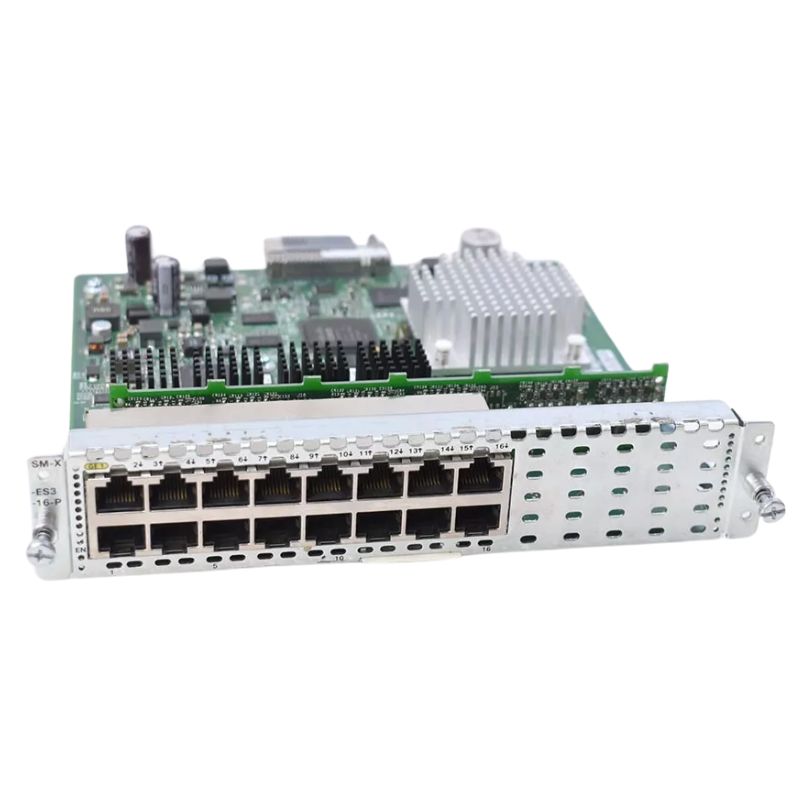

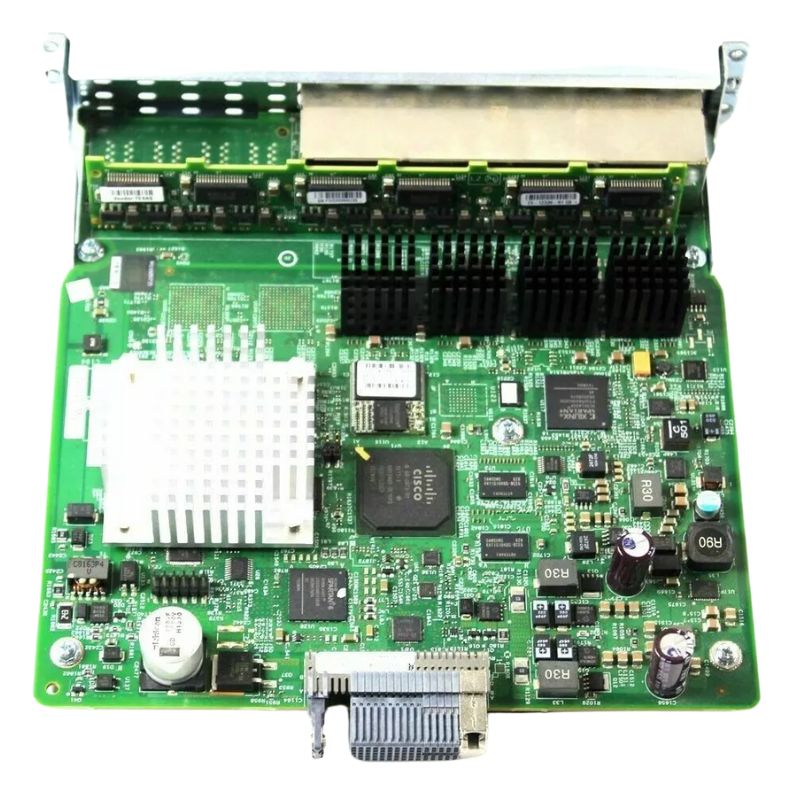

Cisco SM-X-ES3-16-P 16 Ports Managed Switch Service Module Twisted Pair

Product Overview

The SM-X-ES3-16-P is a high-performance managed switch module designed for robust network management and flexibility. It features advanced capabilities for efficient data handling and enhanced network security.

Key Features

Device Specifications

• Part Number: SM-X-ES3-16-P
• Manufacturer: Cisco
• Type: Switch - 16 Ports - Managed
• Form Factor: Plug-in Module
• Network Standard: Gigabit Ethernet
• Port Count: 16 x 10/100/1000 (PoE+)

Power and Capacity

• Power Over Ethernet (PoE): PoE+
• Virtual LAN Support: Up to 255 VLANs

Management and Protocols

• Remote Management: Telnet, SNMP v3, SSH
• Features: Layer 2 Switching, DHCP Snooping, Access Control List (ACL) Support, Dynamic ARP Inspection (DAI), CISCO EnergyWise Technology, Unicast Reverse Path Forwarding (URPF)

Compliance and Standards

• Standards Compliance: IEEE 802.3af, IEEE 802.1x, IEEE 802.3at

Physical Dimensions

• Dimensions (WxDxH): 8.1 in x 8.1 in x 1.6 in
• Weight: 2 lbs

Compatibility

• Compatible With: CISCO 4451-X, 4451-X Application Experience, 4451-X Integrated Services Router Security Bundle, 4451-X Integrated Services Router Voice and Video Bundle, 4451-X Integrated Services Router Voice Security Bundle

Ports

The Cisco SM-X-ES3-16-P Managed Switch Service Module is equipped with an impressive 16 ports, making it an ideal choice for businesses and organizations that require high-performance networking solutions. These ports provide users with the ability to connect multiple devices, enabling seamless communication and data transfer across the network.

Increased Connectivity

With 16 ports available, this switch service module offers a significant increase in connectivity options compared to standard switches. This is particularly beneficial for larger organizations that have numerous devices and require a robust network infrastructure. The abundance of ports allows users to connect a wide range of devices such as computers, printers, servers, and IP phones without the need for additional switches or hubs.

Improved Network Performance

The Cisco SM-X-ES3-16-P Managed Switch Service Module's 16 ports are designed to handle high volumes of data traffic efficiently. Each port is capable of delivering fast and reliable connections, ensuring smooth and uninterrupted communication between devices. This is especially crucial in environments where network performance directly impacts productivity and business operations.

Flexibility and Scalability

The 16-port configuration offers users the flexibility to expand their network as their needs grow. With additional ports at their disposal, businesses can easily accommodate new devices or connect remote offices without worrying about running out of available connections. This scalability makes the Cisco SM-X-ES3-16-P an investment that can adapt to evolving business requirements.

Enhanced Network Security

Having 16 ports on a managed switch service module brings added benefits in terms of network security. With each port capable of being individually configured, administrators can implement granular access control policies. This allows for better segregation of network resources, preventing unauthorized access and potential security breaches. Additionally, the switch module supports advanced security features like VLANs (Virtual Local Area Networks) and MAC (Media Access Control) address filtering, further enhancing network security.

VLAN Support

The Cisco SM-X-ES3-16-P Managed Switch Service Module offers VLAN support, allowing network administrators to segment the network into virtual LANs. VLANs provide enhanced security by isolating traffic between different groups or departments within an organization. By separating network traffic, VLANs prevent unauthorized access to sensitive data and improve overall network performance.

MAC Address Filtering

With MAC address filtering, administrators can specify which devices are allowed to connect to the network through the switch module. By creating a whitelist of approved MAC addresses, unauthorized devices are unable to gain access. This feature adds an extra layer of security to the network, ensuring that only authorized devices can connect and communicate.

Efficient Network Management

The 16-port capability of the Cisco SM-X-ES3-16-P Managed Switch Service Module simplifies network management tasks and enhances overall efficiency. With more ports available, administrators can better organize and categorize devices based on their specific requirements. This allows for easier troubleshooting, monitoring, and configuration of individual ports or groups of ports.

Port Monitoring

Monitoring network traffic is critical for identifying potential bottlenecks or anomalies. With 16 ports, this switch service module provides comprehensive port monitoring capabilities. Administrators can analyze traffic patterns, identify congested ports, and take proactive measures to optimize network performance. This level of visibility enables efficient network management and ensures that resources are allocated effectively.

Port Configuration

Each of the 16 ports on the Cisco SM-X-ES3-16-P Managed Switch Service Module can be individually configured to meet specific requirements. Administrators have the flexibility to set port speed, duplex mode, and other parameters according to the devices connected. This level of control allows for fine-tuning the network for optimal performance and ensures compatibility with a wide range of devices.

In conclusion, the 16 ports offered by the Cisco SM-X-ES3-16-P Managed Switch Service Module provide users with numerous benefits. From increased connectivity and improved network performance to enhanced security and efficient network management, these ports offer a versatile solution for businesses of all sizes. With the ability to scale and adapt to evolving needs, this switch service module ensures that businesses can meet their networking requirements both now and in the future.
