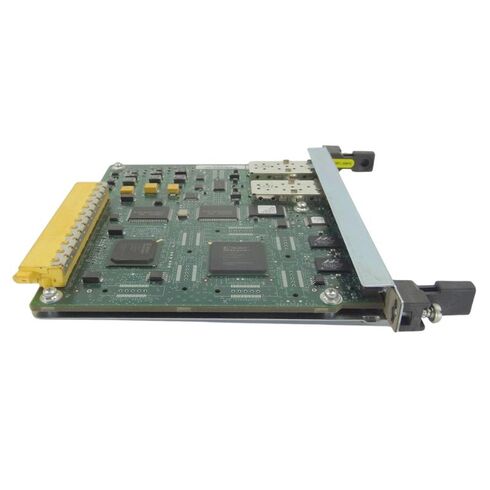

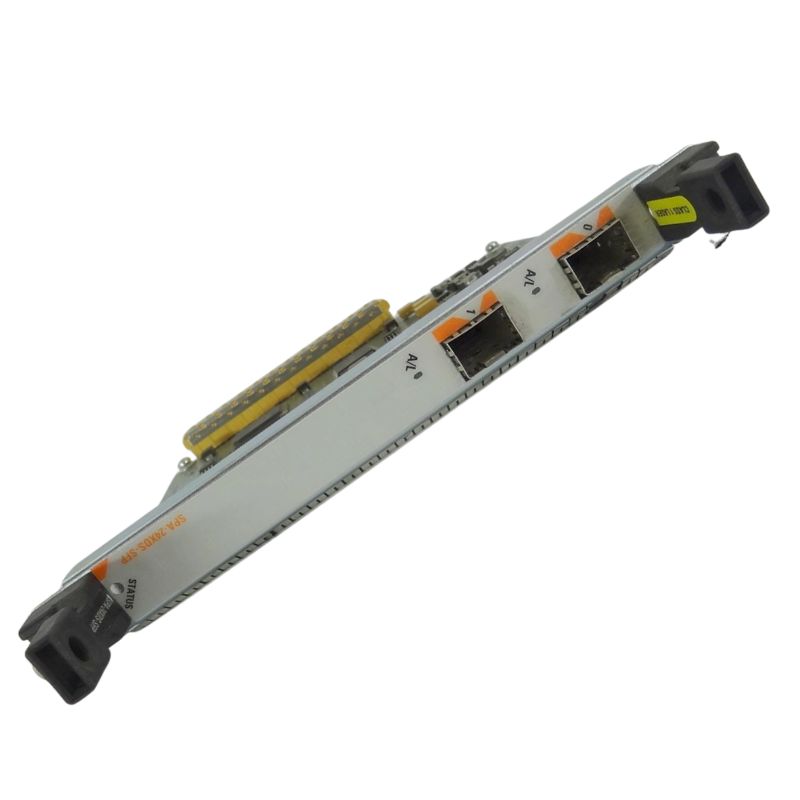

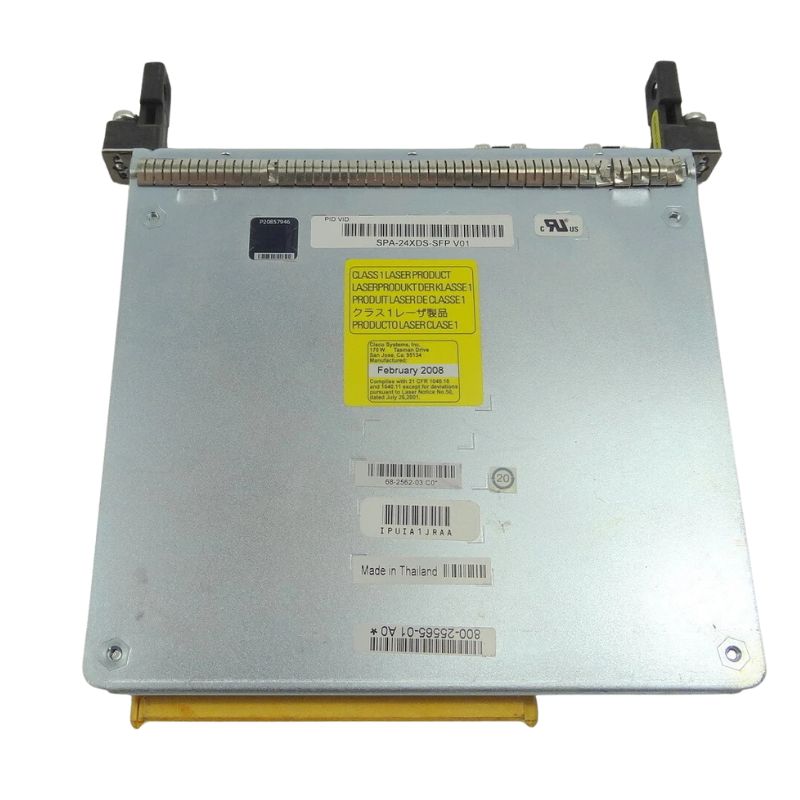

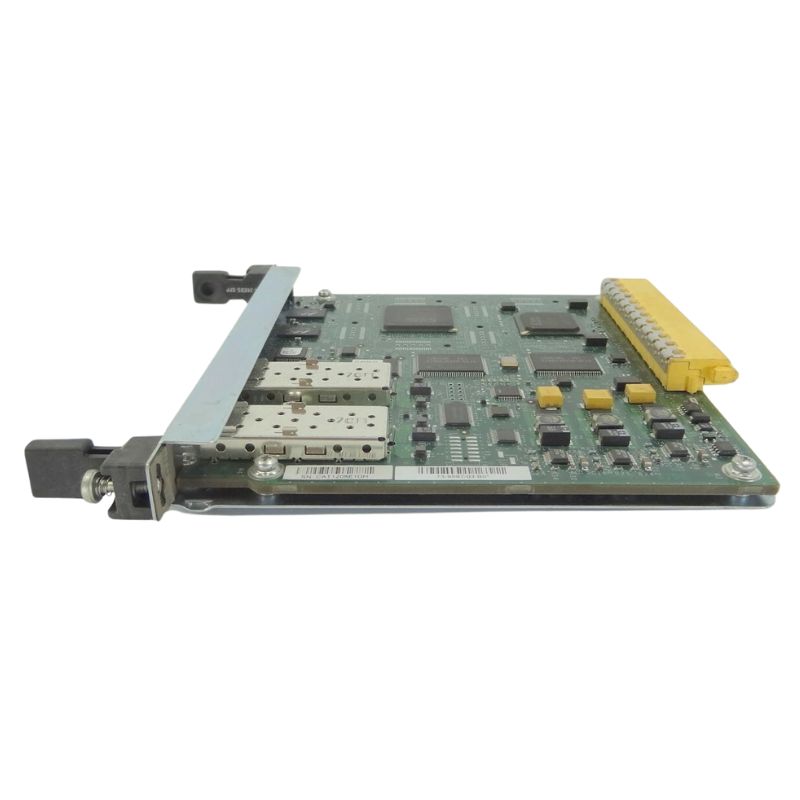

SPA-24XDS-SFP Cisco Ubr10012 Wideband Downstream SPA Adapter (24-Ports)

Cisco SPA-24XDS-SFP 24-Port Shared Port Adapter

The Cisco SPA-24XDS-SFP is a high-performance Shared Port Adapter designed for broadband service providers and carrier-grade network infrastructures. Engineered for the Cisco uBR10012 Universal Broadband Router platform, this advanced downstream adapter delivers scalable, high-density connectivity with reliable data throughput. It is optimized for wideband DOCSIS environments, enabling efficient traffic distribution and enhanced network performance in cable broadband architectures.

Product Details

• Manufacturer: Cisco
• Part Number: SPA-24XDS-SFP
• Product Type: Shared Port Adapter (SPA)
• Data Rate: Up to 1 Gbps
• Compatible Platform: Cisco uBR10012 Universal Broadband Router
• Optical Expansion: 2 x SFP (Mini-GBIC) slots

High-Performance Data Handling

• Supports up to 1 Gbps data throughput
• Optimized for wideband downstream traffic
• Efficient packet forwarding for DOCSIS architectures
• Low latency performance for real-time services

Benefits of SPA Architecture

• Hot-swappable modular design
• Scalable network expansion capability
• Reduced operational downtime
• Easy maintenance and upgrades
• Optimized resource utilization

Optical Connectivity Features

• 2 x SFP mini-GBIC expansion slots
• Supports fiber-based network uplinks
• Modular transceiver compatibility
• Flexible deployment across optical networks

Platform Compatibility Advantages

• Native integration with Cisco uBR10012
• Seamless system interoperability
• Carrier-class reliability
• High-density broadband support

Traffic Optimization Features

• Efficient downstream channel allocation
• Reduced network congestion
• Improved quality of service (QoS)
• Stable multicast and unicast handling

Reliability Benefits

• Enterprise-grade hardware design
• Continuous operation support
• Robust fault tolerance
• Low maintenance requirements

Cisco SPA-24XDS-SFP 24-Port UBR10012 SPA Adapter Overview

High-Capacity Broadband Infrastructure Expansion Module

The Cisco SPA-24XDS-SFP 24-Port UBR10012 Wideband Downstream SPA Adapter is a high-density service provider line card designed to extend and enhance the downstream capacity of carrier-grade cable access systems. Engineered for integration within the Cisco uBR10012 Universal Broadband Router platform, this Shared Port Adapter (SPA) module is optimized for scalable broadband delivery, enabling operators to support increasing subscriber demand, high-speed data transmission, and next-generation multimedia services.

Built with a focus on modular scalability, the adapter provides 24 wideband downstream ports that significantly increase channel density and spectral efficiency. It is specifically designed for large-scale cable MSO (Multiple System Operator) environments where consistent throughput, reliability, and network expansion flexibility are critical requirements.

Carrier-Class Design Principles and Engineering

The Cisco SPA-24XDS-SFP module is developed under stringent carrier-class design standards, ensuring long-term operational stability in high-availability environments. Its architecture supports continuous uptime requirements typical of broadband aggregation networks, where downtime directly impacts service-level agreements and customer experience.

The hardware integrates advanced RF signal processing capabilities and optimized digital signal paths to support wideband downstream transport. This allows operators to maximize the utilization of existing coaxial infrastructure while transitioning toward more efficient broadband delivery models.

Modular SPA Architecture Integration

As part of Cisco’s SPA (Shared Port Adapter) ecosystem, the 24-port wideband downstream module fits seamlessly into the modular slot architecture of the uBR10012 chassis. This architecture enables service providers to mix and match different SPAs depending on network requirements, allowing flexible upgrades without full system replacement.

The modular approach also ensures future-proof scalability, where additional downstream capacity can be introduced incrementally, reducing capital expenditure while maintaining operational continuity.

Integration with Cisco uBR10012 Broadband Router Platform

Seamless System-Level Compatibility

The Cisco uBR10012 platform is widely recognized as a high-performance cable modem termination system (CMTS) used in large broadband networks. The SPA-24XDS-SFP adapter is specifically engineered for compatibility with this chassis, ensuring tight hardware and software integration.

Once installed, the module operates as a fully managed component of the CMTS, leveraging centralized control functions such as traffic shaping, bandwidth allocation, and downstream channel bonding. This integration allows service providers to maintain consistent QoS (Quality of Service) across thousands of subscribers.

Wideband Downstream Technology Architecture

Advanced RF Spectrum Utilization

The wideband downstream architecture embedded in the Cisco SPA-24XDS-SFP adapter enables the consolidation of multiple RF carriers into broader spectrum channels. This significantly increases spectral efficiency and allows service providers to deliver higher throughput over existing hybrid fiber-coaxial (HFC) networks.

By aggregating multiple downstream frequencies, the module improves data distribution efficiency and supports higher-order modulation schemes used in modern broadband systems. This results in improved subscriber experience, especially for bandwidth-intensive applications such as video streaming, cloud computing, and online gaming.

Channel Bonding and Load Distribution

Channel bonding is a key feature supported by this adapter, allowing multiple downstream channels to be grouped into a single logical data pipe. This increases effective bandwidth and ensures balanced load distribution across available RF resources.

The system dynamically adjusts traffic allocation based on network demand, helping prevent congestion and maintaining consistent performance even during peak usage periods.

Performance Optimization and Scalability

High-Density Port Configuration Benefits

With 24 independent wideband downstream ports, the Cisco SPA-24XDS-SFP adapter significantly increases the density of downstream signal delivery per chassis slot. This high-density configuration allows operators to scale their infrastructure without requiring additional physical space or extensive hardware expansion.

Each port is designed to support stable signal output with minimal interference, ensuring high-quality transmission across extended cable plant environments.

Traffic Engineering and Throughput Management

Advanced traffic engineering capabilities embedded within the system enable intelligent routing of downstream packets. This ensures optimized bandwidth allocation across subscriber groups and service tiers, allowing providers to implement differentiated service models.

The system supports dynamic bandwidth allocation strategies, ensuring efficient utilization of network resources while maintaining service fairness across all active connections.

Deployment in Service Provider and Cable MSO Networks

Scalable Broadband Delivery Infrastructure

The adapter is widely deployed in cable operator environments where large-scale subscriber management and high-throughput delivery are essential. It plays a critical role in supporting DOCSIS-based broadband systems and hybrid fiber-coaxial network infrastructures.

Its scalable architecture allows service providers to expand network capacity incrementally, adapting to subscriber growth without requiring disruptive infrastructure overhauls.

Headend and Hub Site Implementation

In typical deployments, the Cisco SPA-24XDS-SFP module is installed at headend or hub site facilities where centralized traffic aggregation occurs. From these locations, downstream signals are distributed across regional access networks to end-user premises.

This centralized approach improves manageability and allows operators to implement consistent service policies across large geographic areas.

SNMP and System-Level Integration

The module integrates with standard SNMP-based network management systems, providing compatibility with widely used monitoring platforms. This ensures seamless integration into existing operational support systems (OSS).

Administrators can configure alerts, thresholds, and automated responses based on network conditions, improving operational efficiency and reducing manual intervention.

Firmware, Software Control, and Upgradability

Adaptive Software-Defined Control

The adapter operates under software-defined control mechanisms managed by the Cisco uBR10012 system software. This allows dynamic updates to operational parameters, enabling optimization based on evolving network demands.

Firmware updates can be deployed without requiring physical replacement of hardware, ensuring long-term adaptability and reduced maintenance overhead.

Protocol Support and Standards Compliance

The module is designed to support industry-standard broadband protocols and RF transmission standards used in cable access networks. This ensures interoperability with a wide range of subscriber devices and network equipment.

Operational Advantages and Network Efficiency

Optimized Bandwidth Utilization

One of the primary advantages of the Cisco SPA-24XDS-SFP adapter is its ability to maximize bandwidth utilization across available spectrum resources. By leveraging wideband channel aggregation, the module ensures that available RF spectrum is used efficiently.

This optimization reduces wasted capacity and allows operators to deliver higher service tiers without requiring additional infrastructure investment.

Reduced Infrastructure Complexity

The high-density 24-port configuration reduces the need for multiple discrete line cards, simplifying overall system architecture. This leads to easier maintenance, reduced power consumption per transmitted bit, and improved operational efficiency.

Signal Processing and Transmission Stability

The adapter incorporates advanced signal conditioning mechanisms to ensure stable downstream transmission across all operating conditions. This includes noise suppression, signal equalization, and adaptive power control.

These features help maintain consistent signal quality even in environments with high RF interference or long cable distances.

Environmental and Operational Resilience

Designed for telecom-grade environments, the module operates reliably under varying temperature conditions and continuous load scenarios. Its ruggedized design ensures long-term durability in demanding carrier environments.
