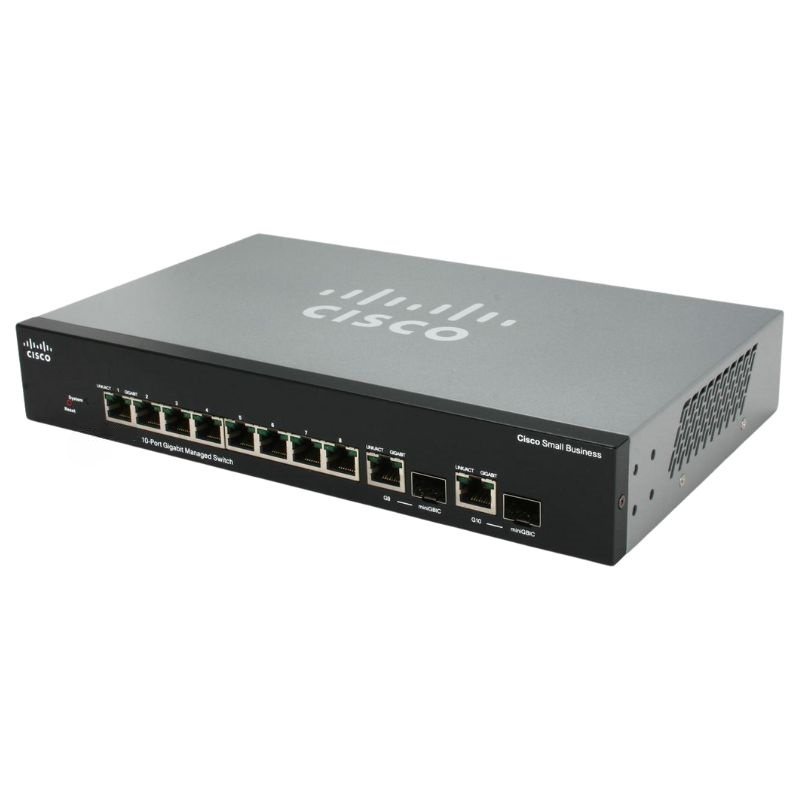

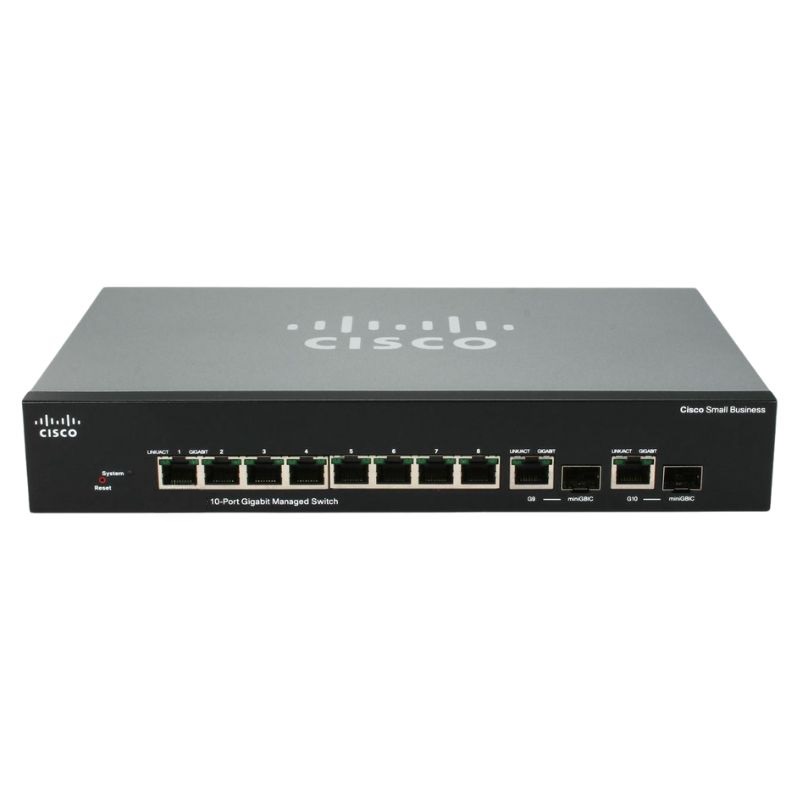

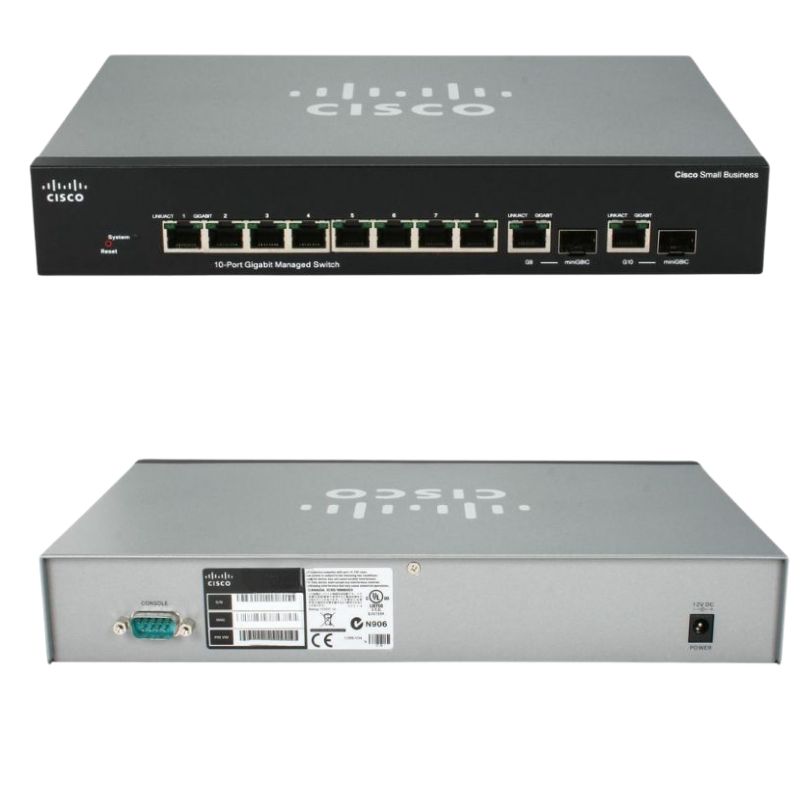

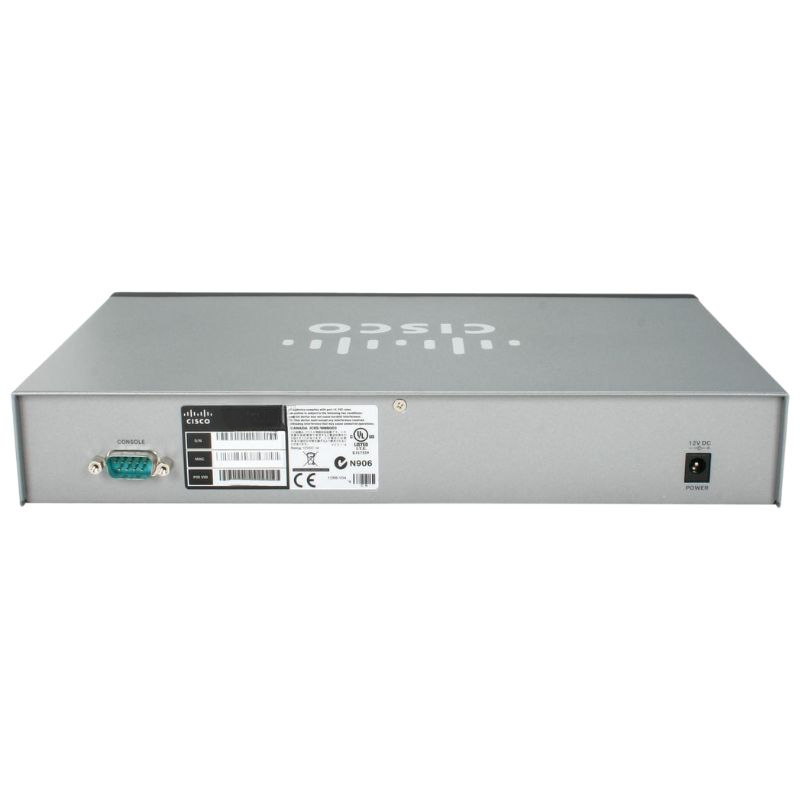

Cisco SRW2008-K9 Managed Switch, 10 Ports

General Overview of Cisco SRW2008-K9-NA

Manufacturer Details

• Manufacturer: Cisco
• Model Number/SKU: SRW2008-K9-NA
• Product Series: 300
• Product Model: SG300-10
• Product Name: SG300-10 Ethernet Switch
• Product Type: Ethernet Switch

Network Interfaces and Ports

• Total Network Ports: 10
• Uplink Port: Yes
• Management Port: Yes
• Network Ports (RJ-45): 8
• Port/Expansion Slot Details:
  • 8 x Gigabit Ethernet Network Ports
  • 2 x Gigabit Ethernet Uplink Ports
  • 2 x Gigabit Ethernet Expansion Slots

Performance Specifications

• Ethernet Technologies:
  • Gigabit Ethernet
  • Fast Ethernet
• Network Technology: 10/100/1000Base-T

I/O Expansion Details

• Total Expansion Slots: 2
• Expansion Slot Type: SFP
• Shared SFP Slot: Yes
• Number of SFP Slots: 2

Network Layer Support

• Layer Supported: 2

Memory Specifications

• Standard Memory: 128 MB
• Flash Memory: 16 MB

Power Requirements

• Input Voltage: 110 V AC / 220 V AC
• Power Source: Power Supply

Additional Information

• Compliance Standards:
  • UL 60950
  • CSA 22.2 No. 60950
  • FCC Part 15 A
• Rack Mounting Kit: Not Included
• Cables Included: None
• MTBF (Mean Time Between Failures): 74,294 hours

Environmental Conditions

• Minimum Operating Temperature: 0 °C
• Maximum Operating Temperature: 40 °C
• Operating Humidity Range: 10 – 90% (non-condensing)

Ports

The Cisco SRW2008-K9 Managed Switch is equipped with 10 ports, making it an ideal solution for small to medium-sized businesses that require high-performance networking capabilities. With these 10 ports, users can connect multiple devices such as computers, printers, servers, and other network devices to create a reliable and efficient network infrastructure.

Increased Connectivity

The 10 ports featured in the Cisco SRW2008-K9 Managed Switch provide increased connectivity options for users. This means that businesses can easily expand their network as their needs grow, without the need for additional equipment or complex configurations. With more ports available, businesses can connect more devices directly to the switch, eliminating the need for additional switches or hubs.

Improved Efficiency

Having 10 ports on the Cisco SRW2008-K9 Managed Switch allows for improved efficiency in network operations. With more ports available, businesses can distribute network traffic evenly across multiple devices, reducing congestion and improving overall network performance. This is especially important in busy office environments where multiple users are accessing the network simultaneously.

Flexibility in Network Design

The 10 ports on the Cisco SRW2008-K9 Managed Switch offer flexibility in network design. Users can choose to connect devices directly to the switch or utilize additional switches or hubs to create a hierarchical network structure. This flexibility enables businesses to tailor their network design to meet their specific requirements, ensuring optimal performance and scalability.

Enhanced Security

The Cisco SRW2008-K9 Managed Switch's 10 ports also contribute to enhanced network security. With more ports available, businesses can separate different departments or groups within the organization onto different VLANs (Virtual Local Area Networks). This isolation helps prevent unauthorized access to sensitive information and improves overall network security.

Granular Control

The 10 ports on the Cisco SRW2008-K9 Managed Switch allow for granular control over network traffic. Administrators can implement access control policies, allocate bandwidth, and prioritize certain types of traffic. This level of control ensures that critical applications receive the necessary resources while preventing non-essential traffic from impacting network performance.

Improved Network Performance

By utilizing the 10 ports on the Cisco SRW2008-K9 Managed Switch, businesses can experience improved network performance. With more ports available, businesses can create dedicated connections for high-bandwidth applications such as video streaming or file transfers. This helps prevent bottlenecks and ensures that these applications operate smoothly without affecting the performance of other devices on the network.

Seamless Integration

The 10 ports on the Cisco SRW2008-K9 Managed Switch seamlessly integrate with existing network infrastructure. Whether businesses are upgrading their current network or starting from scratch, the switch's compatibility with industry-standard protocols and its ability to auto-negotiate network speeds make it easy to incorporate into any environment.

Cost-Effective Solution

The 10 ports featured in the Cisco SRW2008-K9 Managed Switch offer a cost-effective networking solution for small to medium-sized businesses. By providing ample connectivity options in a single device, businesses can save on the cost of purchasing multiple switches or hubs. Additionally, the switch's advanced features and management capabilities eliminate the need for expensive third-party software or additional IT resources.

In conclusion, the 10 ports on the Cisco SRW2008-K9 Managed Switch provide numerous benefits for users. From increased connectivity and improved efficiency to enhanced security and granular control, these ports offer flexibility in network design and seamless integration with existing infrastructure. With its cost-effective nature, this switch is an ideal choice for businesses looking to create a reliable and high-performance network environment.
