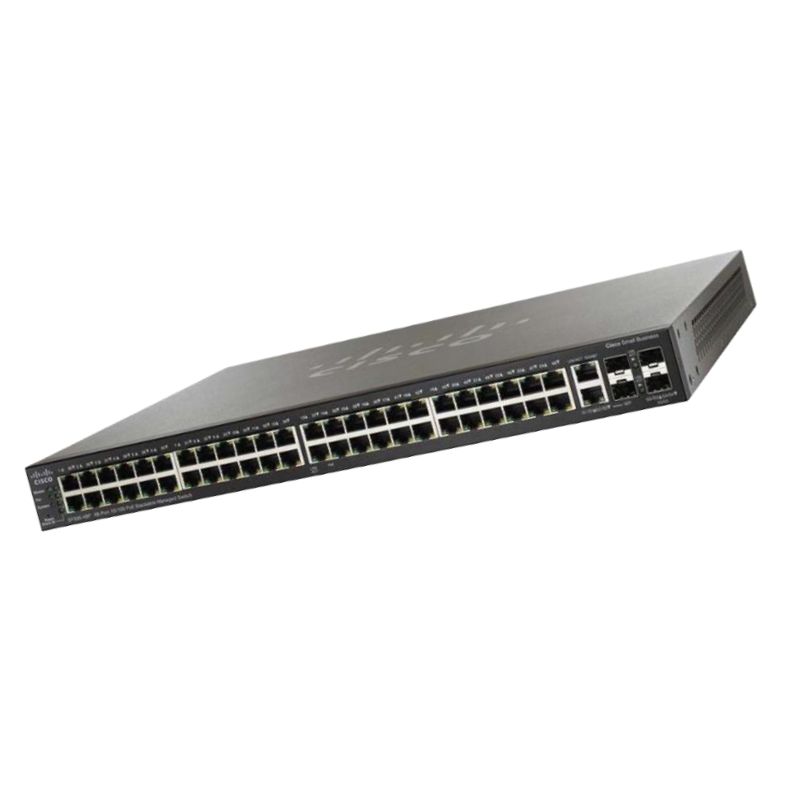

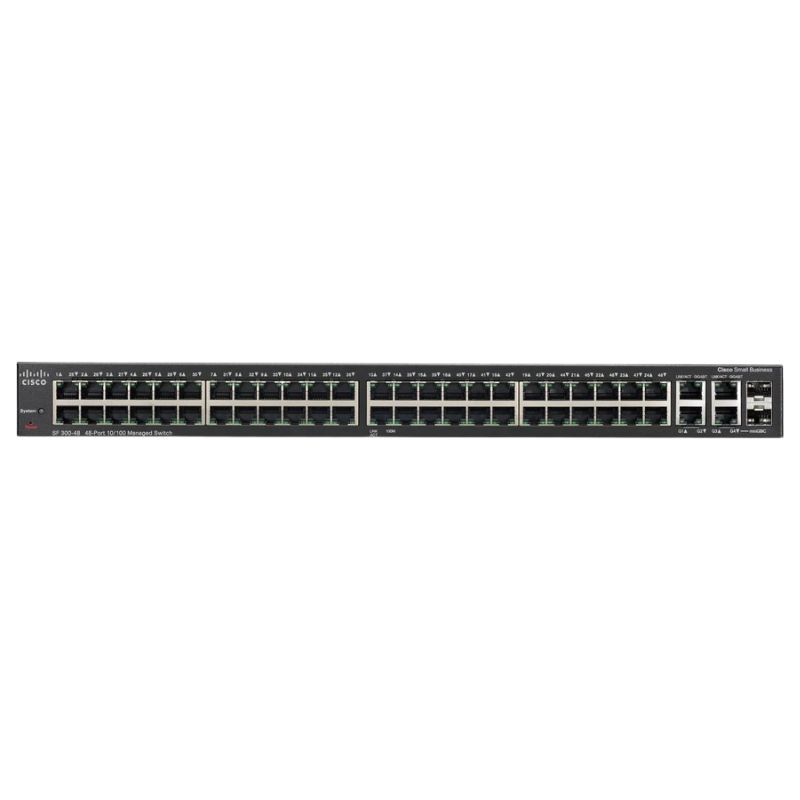

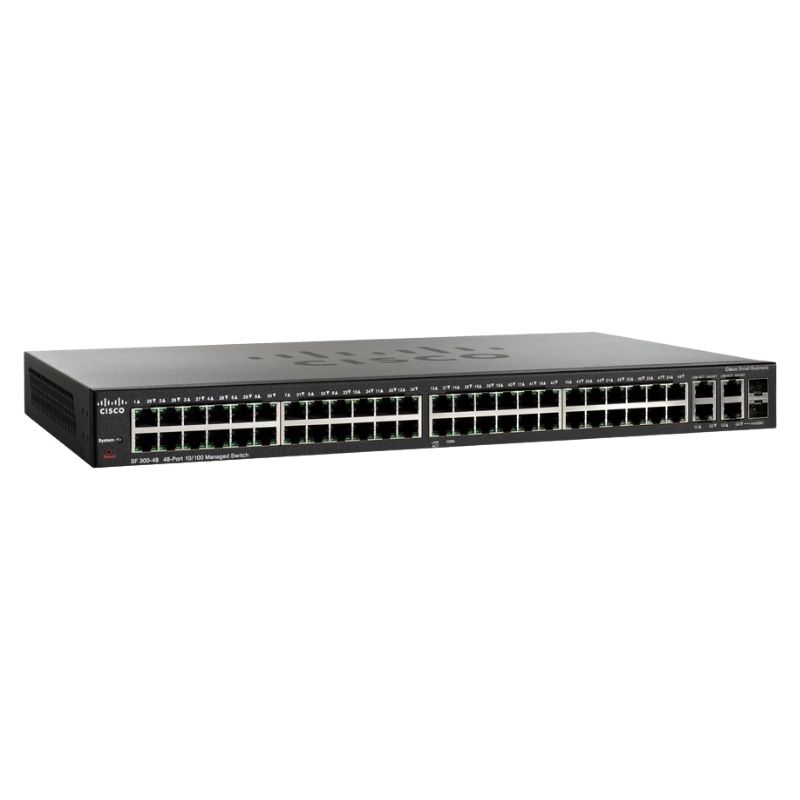

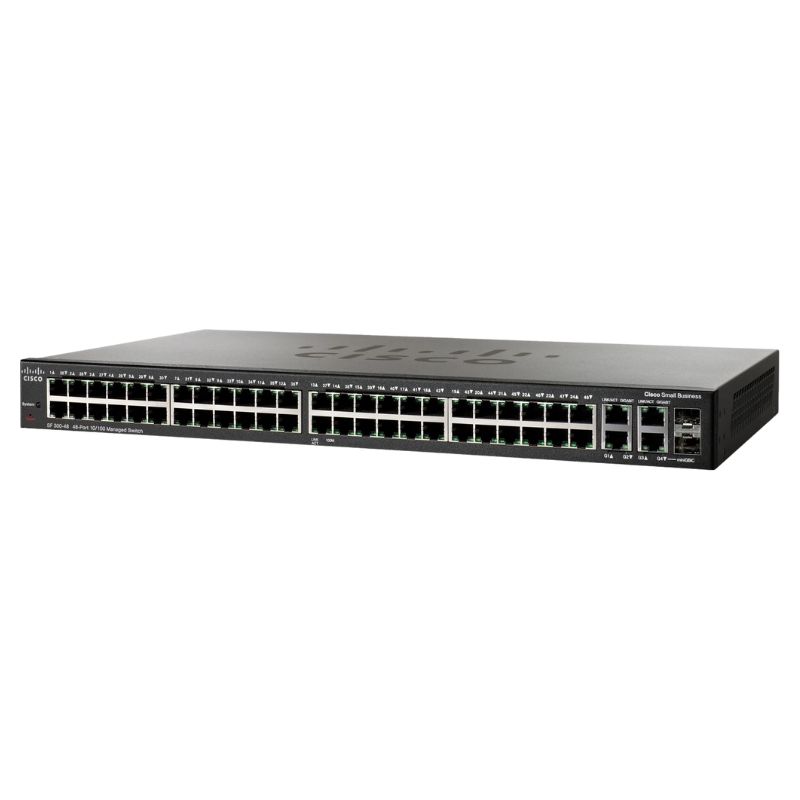

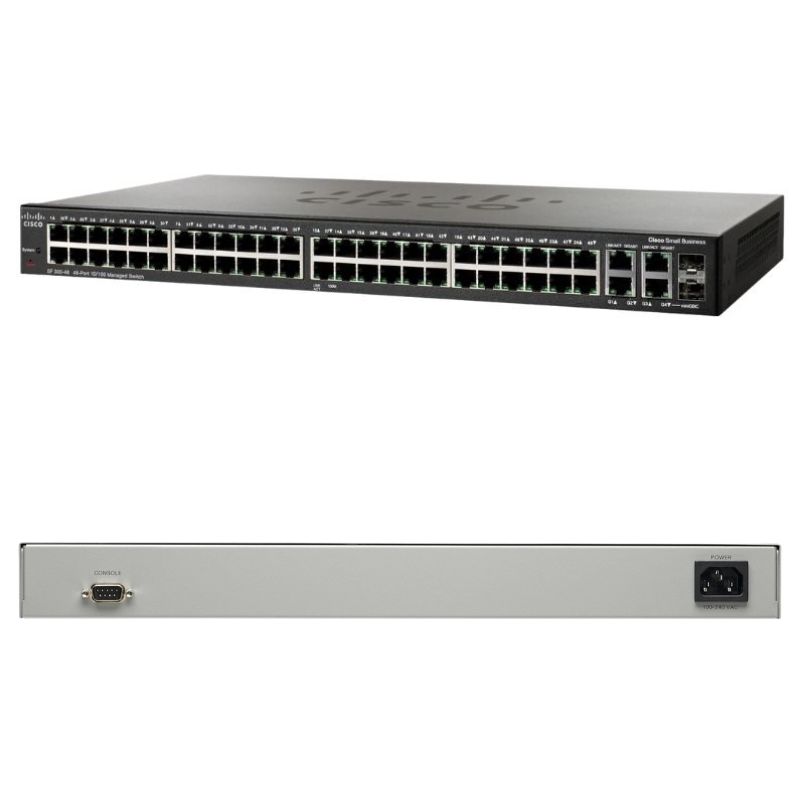

Cisco SRW248G4P-K9 Ethernet Switch 48 Ports

Cisco SRW248G4P-K9 Ethernet Switch

General Information

• Manufacturer: Cisco
• Model Number: SRW248G4P-K9
• Product Series: 300
• Product Model: SF300-48P
• Product Name: SF300-48P Ethernet Switch
• Product Type: Ethernet Switch

Interfaces and Ports

Port Configuration

• Total Number of Network Ports: 52
• Uplink Ports: Yes
• Number of PoE (RJ-45) Ports: 48

Port/Expansion Slot Details

• 48 x Fast Ethernet Network Ports
• 4 x Gigabit Ethernet Uplink Ports
• 2 x Gigabit Ethernet Expansion Slots

Performance and Connectivity

Ethernet and Network Technology

• Ethernet Technology: Fast Ethernet, Gigabit Ethernet
• Network Technology: 10/100/1000Base-T, 10/100Base-TX

Expansion Capabilities

• Total Number of Expansion Slots: 2
• Expansion Slot Type: SFP
• Shared SFP Slots: Yes
• Number of SFP Slots: 2

Network & Communication

Layer Support

• Layer: 3

Management & Protocols

• Management Features:
  • Syslog
  • Telnet
  • VLAN
  • DHCP
  • QoS
  • Web user interface
  • SNMP v1, v2c, v3
  • RMON
  • Textview CLI

Memory & Storage

• Flash Memory: 16 MB

Product Features

• Layer 3 and Layer 2 switching
• DHCP and BOOTP support
• VLAN, IGMP snooping, and Syslog support
• DoS attack prevention
• Port mirroring and DiffServ support
• Weighted Round Robin (WRR) queuing
• Storm control for multicast, broadcast, and unicast
• Spanning Tree Protocol (STP), Rapid STP (RSTP), Multiple STP (MSTP)
• Trivial File Transfer Protocol (TFTP) support
• Access Control List (ACL) support
• Quality of Service (QoS)
• Support for Jumbo Frames and MLD snooping

Compliant Standards

• IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab
• IEEE 802.1p, 802.3af, 802.3x, 802.3ad (LACP)
• IEEE 802.1w, 802.1x

Environmental Specifications

• Operating Temperature Range: 32°F to 104°F
• Humidity Range (Operating): 10% to 90% (non-condensing)
• Storage Temperature Range: -4°F to 158°F
• Humidity Range (Storage): 10% to 90% (non-condensing)

Power Details

• PoE (RJ-45) Port: Yes
• Input Voltage: 110V AC, 220V AC
• Power Source: Power Supply

Ports

The Cisco SRW248G4P-K9 Ethernet Switch is equipped with an impressive 48 ports, making it an ideal choice for businesses and organizations with high network demands. These ports provide users with the ability to connect multiple devices and expand their network capabilities, ensuring smooth and efficient communication between various systems.

Scalability and Flexibility

With 48 ports, this Cisco Ethernet Switch offers exceptional scalability and flexibility. Whether you are a small business or a large enterprise, the ample number of ports allows you to connect numerous devices such as computers, printers, servers, IP phones, surveillance cameras, and more. This ensures that your network can accommodate the growing demands of your organization without any limitations.

Efficient Network Management

The abundance of ports on the Cisco SRW248G4P-K9 Ethernet Switch simplifies network management. Each port can be assigned to a specific device or department, allowing for organized and efficient network administration. This level of control enables IT administrators to monitor and manage network traffic effectively, ensuring optimal performance and minimizing any potential bottlenecks.

Increased Bandwidth

Having 48 ports means that the switch can handle heavy network traffic without compromising on speed or performance. Each port supports high-speed data transfer rates, enabling large file transfers, video streaming, and other bandwidth-intensive activities. This increased bandwidth ensures that your network remains fast and responsive even during peak usage periods.

Seamless Collaboration

The Cisco SRW248G4P-K9 Ethernet Switch's 48 ports enable seamless collaboration among employees and departments. With multiple devices connected, colleagues can easily share files, access shared resources, and collaborate on projects in real-time. This promotes productivity and teamwork within your organization, enhancing overall efficiency.

Power Over Ethernet (PoE)

One of the standout features of the Cisco SRW248G4P-K9 Ethernet Switch is its Power Over Ethernet capability, which allows both data and power to be transmitted over a single Ethernet cable. This feature is particularly beneficial in environments where power outlets are limited or inaccessible.

Simplified Installation

By utilizing Power Over Ethernet, the Cisco SRW248G4P-K9 eliminates the need for additional power cables and outlets. This simplifies the installation process, reduces clutter, and saves valuable time and resources. Whether you are setting up a new network or expanding an existing one, the ability to power devices directly from the switch significantly streamlines the deployment process.

Cost Savings

The Power Over Ethernet feature of this Cisco switch helps reduce costs associated with infrastructure and electrical work. With traditional setups, deploying devices in locations without nearby power outlets would require additional wiring and potentially significant expenses. By leveraging PoE, you can save on these costs and allocate your resources more efficiently.

Flexibility in Device Placement

Power Over Ethernet allows for greater flexibility in device placement. Devices such as IP phones, wireless access points, and IP cameras can be installed in areas that were previously inaccessible due to limited power availability. This freedom of placement ensures that you can optimize your network's coverage without compromising on functionality.

Remote Power Management

Another advantage of Power Over Ethernet is the ability to remotely manage and control the power supply to connected devices. This feature allows IT administrators to reset or power cycle devices without physical access, reducing downtime and minimizing disruptions. Additionally, remote power management enables efficient energy usage by turning off or reducing power to unused devices, contributing to cost savings and environmental sustainability.

In conclusion, the Cisco SRW248G4P-K9 Ethernet Switch's 48 ports provide scalability, flexibility, efficient network management, increased bandwidth, and seamless collaboration. The Power Over Ethernet feature further enhances its value by simplifying installation, reducing costs, offering flexibility in device placement, and enabling remote power management. With these features, this switch is an excellent choice for businesses and organizations looking for a reliable and versatile networking solution.
