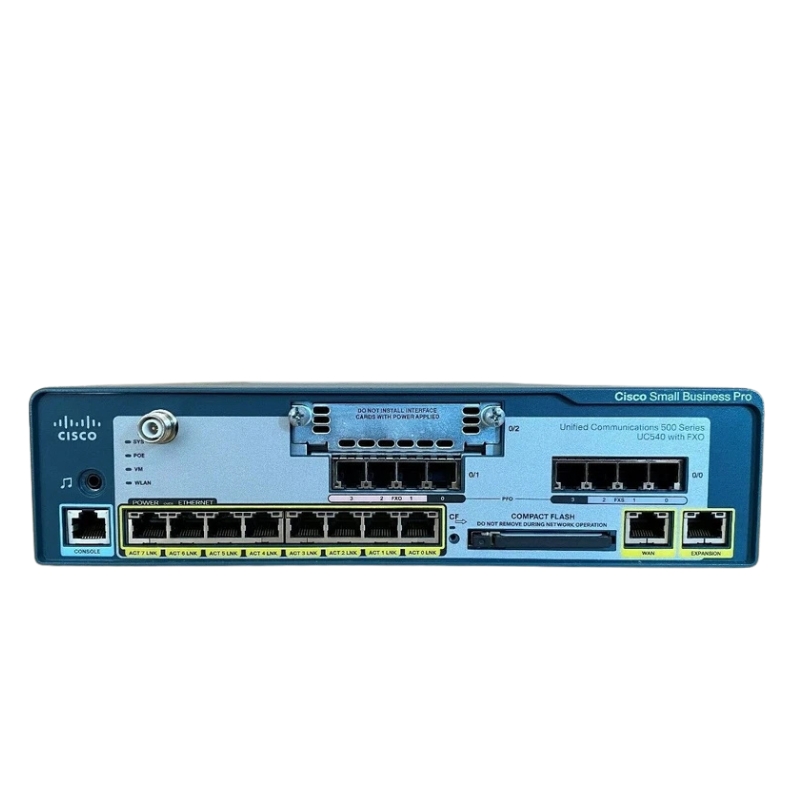

Cisco UC540W-FXO-K9 Small Business Wireless Router

Cisco UC540W-FXO-K9 Small Business Wireless Router

Overview

The Cisco UC540W-FXO-K9 Small Business Wireless Router is a feature-rich and reliable networking solution designed specifically for small businesses. It offers advanced functionality and seamless connectivity to help businesses optimize their communications and enhance productivity.

Cisco UC540W-FXO-K9 Key Specifications

Manufacturer Details

• Brand: Cisco
• Part Number: UC540W-FXO-K9
• Series: 500
• Product Type: VoIP Gateway & Wireless Router

Wireless Capabilities

Wireless Standards and Performance

• Wireless LAN Standard: IEEE 802.11b/g
• Maximum Wireless Speed: 54 Mbps
• ISM Band: Yes
• UNII Band: No

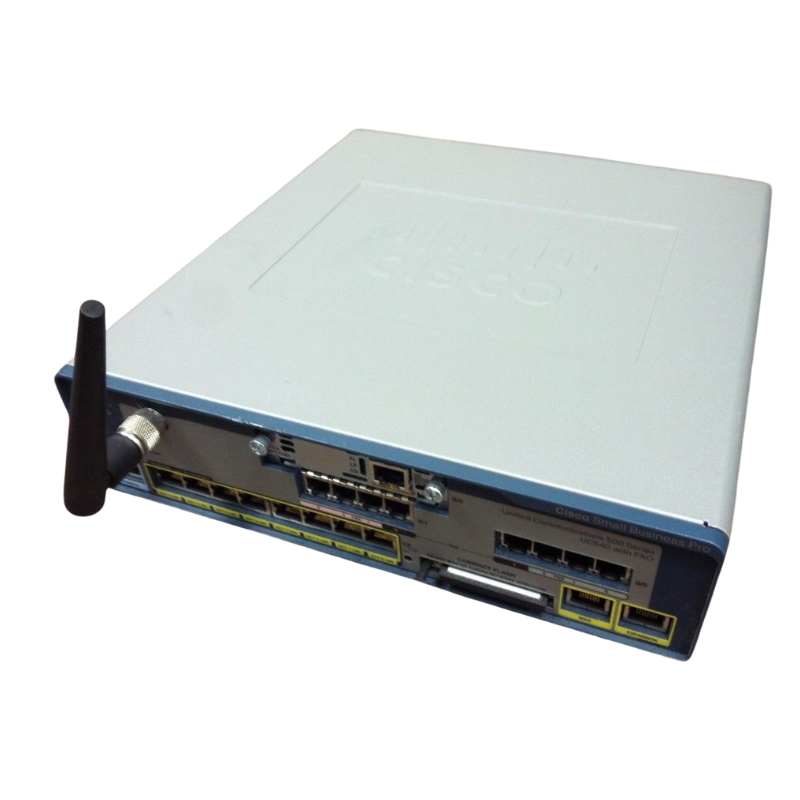

Range and Antenna Specifications

• Indoor Antenna Range: Up to 320 feet
• ISM Band Frequency: 2.40 GHz
• Antenna Gain: 2.2 dB
• Antenna Connector Type: RP-TNC Connector

Wireless Security Features

• Encryption Protocols: AES, TKIP/SSN
• Authentication Methods: EAP, EAP-FAST, Cisco LEAP, Cisco PEAP
• Additional Security: MAC Authentication, RADIUS, Preshared Keys (PSKs), IEEE 802.1x Authentication

Connectivity and Ports

Port Configuration

• Ethernet Ports: Yes
• Fast Ethernet Ports: Yes
• Network (RJ-45) Ports: 8
• Powerline Integration: No
• PoE (RJ-45) Port: Yes
• Management Port: Yes
• Broadband (RJ-45) Ports: 1

Management and Protocols

• Management Interface: Web-Based, Command Line
• Protocols: Ethernet, SNMP, Syslog, Cisco Unity Express 3.2, Cisco WebEx, Cisco TimeCardView, Cisco Configuration Assistant (CCA)
• Data Link Protocols: Ethernet, Fast Ethernet, IEEE 802.11b/g

Security Enhancements

Firewall and Encryption

• Network Address Translation (NAT)
• IPsec, SSL, TLS
• Data Encryption: DES, 3DES
• Stateful Inspection Firewall

Technical and Environmental Specifications

Form Factor and Connectivity

• Form Factor: External
• Connectivity: Wireless and Wired
• Ethernet Technology: Fast Ethernet
• Voice Codecs: G.711, G.729a
• Telephony Interfaces: 4 phones (FXS), 4 lines (FXO)

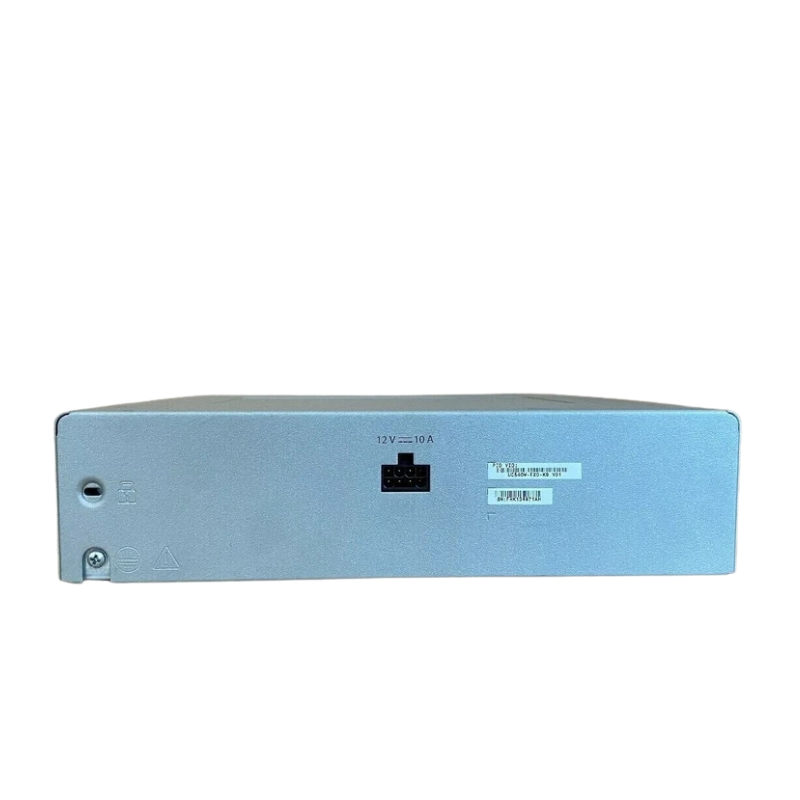

Power Requirements

• Input Voltage: 110 V AC or 220 V AC
• Power Source: AC Supply
• Power Over Ethernet (PoE): Supported

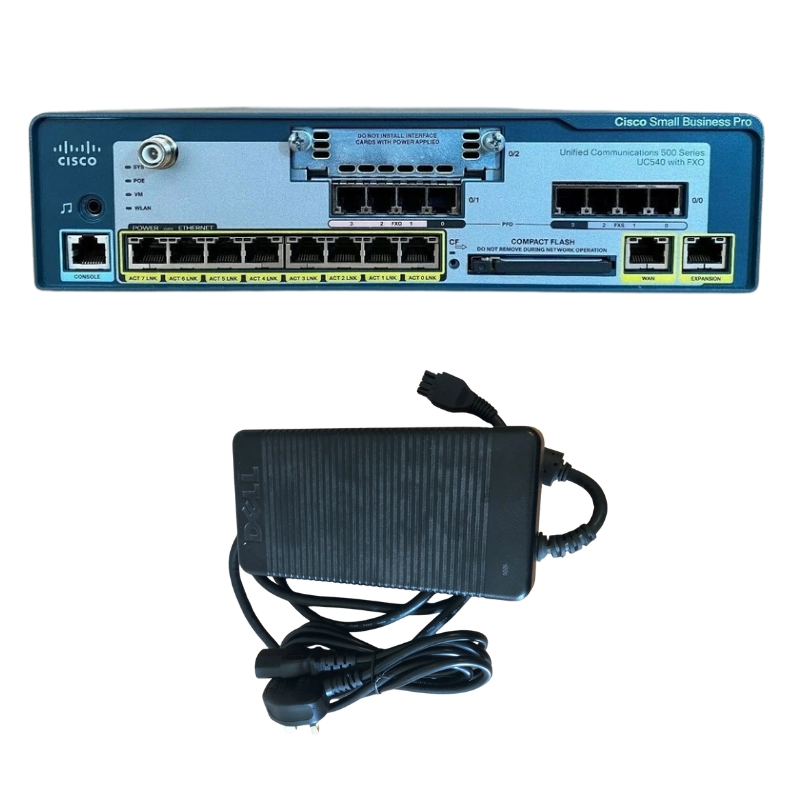

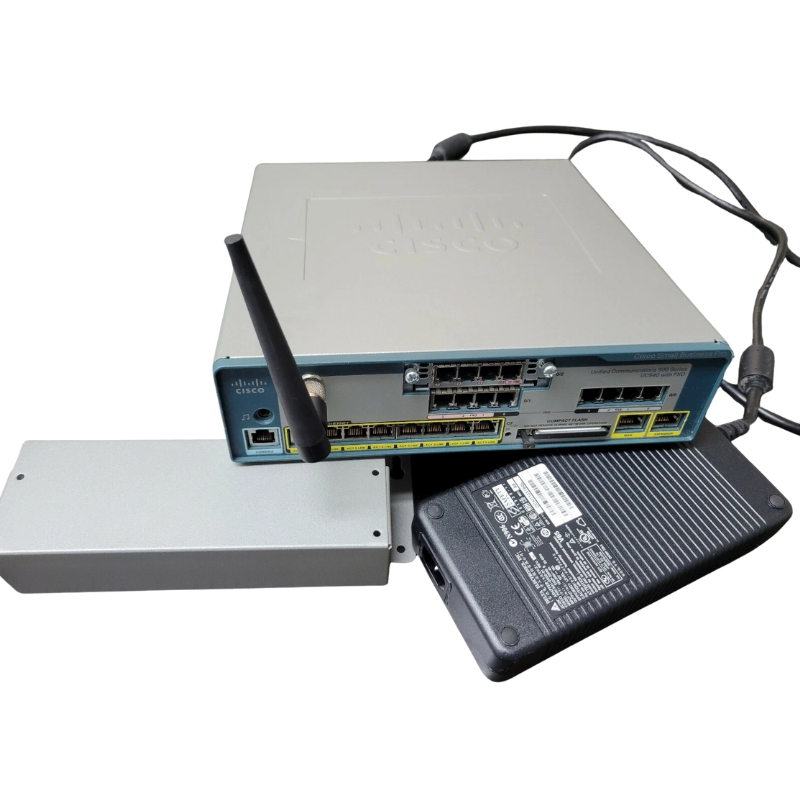

• Power Device: External Power Adapter

Environmental Conditions

• Operating Temperature Range: 32 °F to 104 °F
• Humidity Range: 10% to 85% Operating

Expansion and Compliance

Expansion Options

• Expansion Slots: 1 x VIC

Compliance Standards

• Standards: CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN50082-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, CS-03, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, BSMI CNS 13438, EN 300 386

Key Features

1. Wireless Connectivity

The UC540W-FXO-K9 router provides wireless connectivity, allowing devices to connect to the network without the need for cables. This enables greater flexibility and convenience for employees to access resources from anywhere within the office premises.

2. Integrated Voice and Data

With its integrated voice and data capabilities, the router enables businesses to consolidate their communication infrastructure. It supports IP telephony, allowing businesses to make and receive calls over the internet, reducing costs associated with traditional phone lines.

3. FXO Ports

The router comes equipped with Foreign Exchange Office (FXO) ports, which allow connection to traditional analog phone lines. This feature is particularly useful for businesses that still rely on analog lines or need to integrate with existing telephony systems.

4. Advanced Security

Security is a top priority for any business, and the UC540W-FXO-K9 router ensures robust protection against threats. It includes features such as firewall, VPN support, and secure remote access to safeguard sensitive data and prevent unauthorized access.

5. Quality of Service (QoS)

To prioritize critical applications such as voice and video, the router offers Quality of Service (QoS) functionality. This ensures that bandwidth-intensive applications receive the necessary resources, ensuring smooth and uninterrupted communication.

Benefits

1. Enhanced Communication

By integrating voice and data capabilities, the UC540W-FXO-K9 router streamlines communication processes. Businesses can enjoy the convenience of making and receiving calls over the internet while accessing other network resources simultaneously.

2. Cost Savings

The router eliminates the need for separate phone lines, reducing telecommunication costs significantly. Additionally, it supports cost-effective IP telephony, allowing businesses to make long-distance or international calls at lower rates compared to traditional phone services.

3. Increased Productivity

With wireless connectivity, employees can access critical resources and collaborate more effectively from anywhere within the office premises. This flexibility enhances productivity and enables seamless communication between team members.

4. Scalability

The UC540W-FXO-K9 router is designed to accommodate the growing needs of small businesses. It offers scalability options, allowing businesses to expand their network infrastructure and add additional devices as their requirements evolve.

5. Reliable Performance

Cisco is renowned for its reliable networking solutions, and the UC540W-FXO-K9 router is no exception. It delivers consistent performance and uptime, ensuring uninterrupted communication and seamless connectivity for business operations.

Technical Specifications

1. Wireless Standards

The router supports IEEE 802.11n wireless standard, providing faster speeds and broader coverage compared to older standards.

2. Ports and Interfaces

- 4 x 10/100 Ethernet LAN ports
- 1 x 10/100 Ethernet WAN port
- 2 x FXO ports
- 2 x FXS ports

3. VPN Support

The router supports Virtual Private Network (VPN) connectivity, allowing secure remote access for employees working from home or on the go.

4. Security Features

- Stateful Packet Inspection (SPI) firewall
- Access Control Lists (ACLs)
- Intrusion Prevention System (IPS)
- Secure Sockets Layer (SSL) VPN

5. Dimensions and Power

- Dimensions: 6.7 x 10.6 x 1.8 inches
- Weight: 2.7 pounds
- Power input: 100-240V AC, 50-60 Hz

Conclusion

The Cisco UC540W-FXO-K9 Small Business Wireless Router offers a comprehensive solution for small businesses seeking advanced networking capabilities. With its integrated voice and data features, wireless connectivity, and robust security measures, businesses can enhance communication, reduce costs, and improve productivity. Additionally, its scalability and reliable performance make it an ideal choice for businesses looking to expand their operations.
