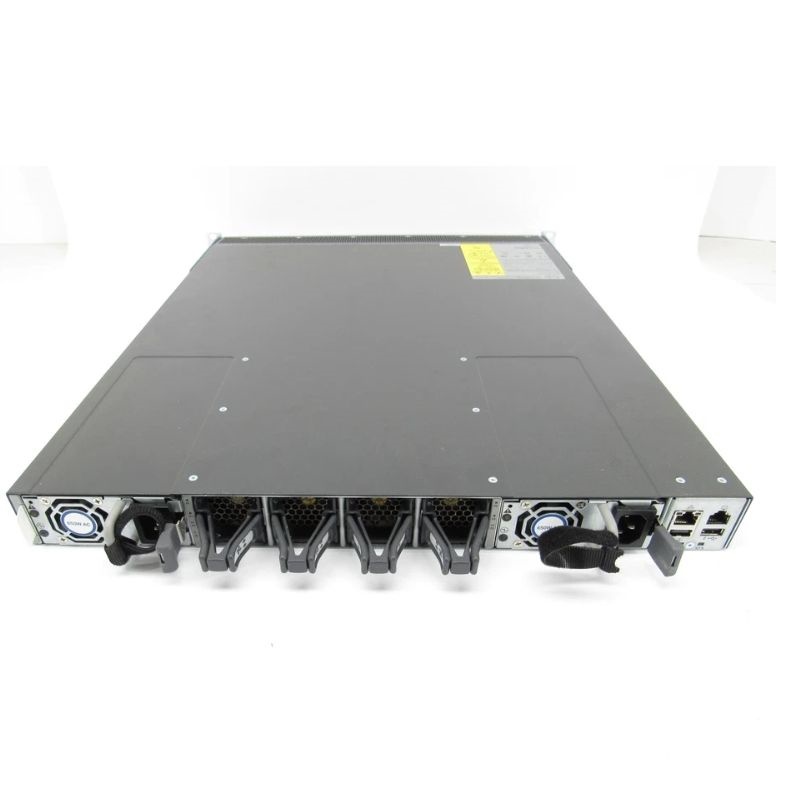

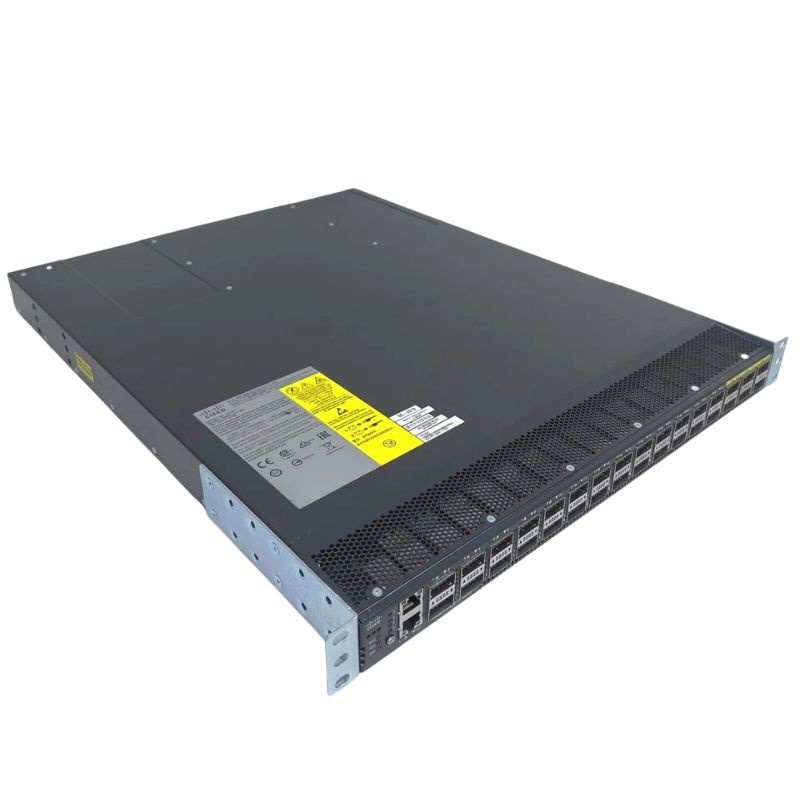

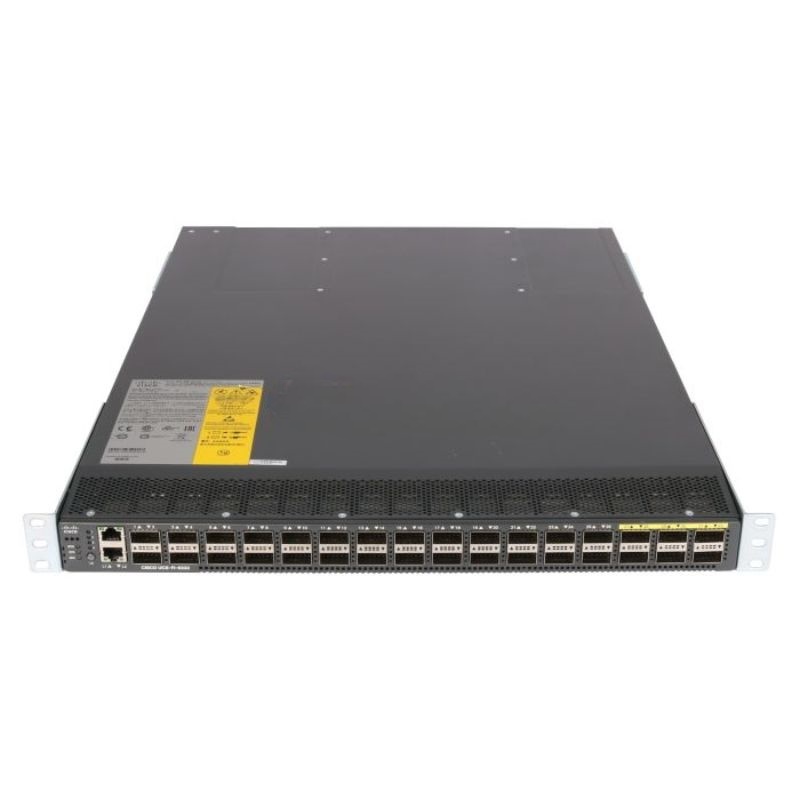

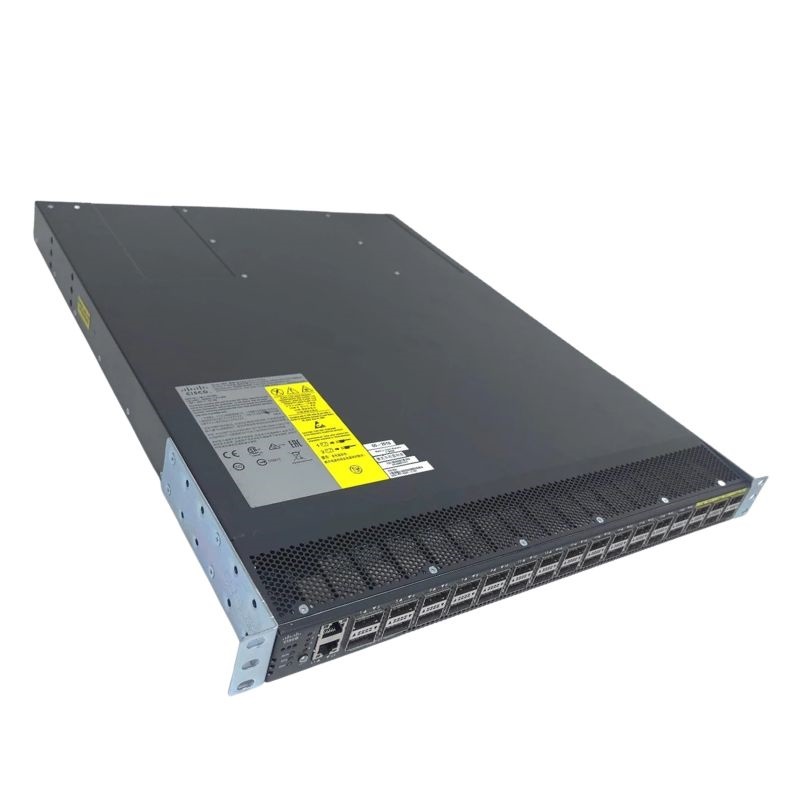

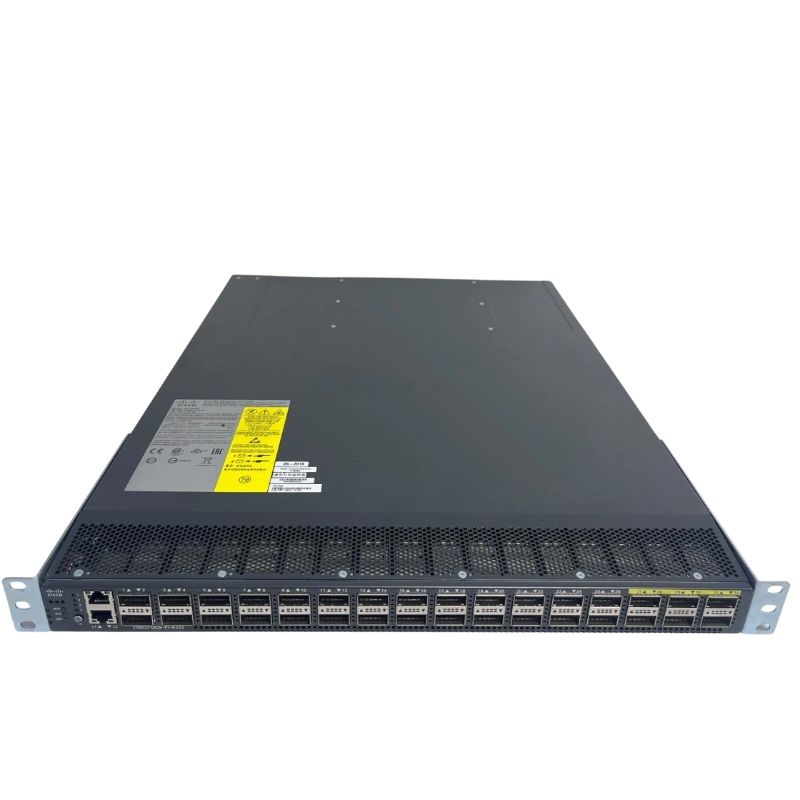

UCS-FI-6332-U Cisco Fabric Interconnect Switch, 32 Ports

Cisco UCS-FI-6332-U Fabric Interconnect Switch Overview

The Cisco UCS-FI-6332-U 32 Ports Fabric Interconnect Switch is a high-performance networking solution designed for modern data centers requiring scalable, low-latency, and high-bandwidth connectivity. a global leader in networking technology, this rack-mountable switch is engineered to support advanced virtualization, unified computing, and enterprise-grade workloads.

General Information

• Manufacturer: Cisco
• Part Number: UCS-FI-6332-U
• Device Type: Network Switch
• Category: Networking Equipment
• Subcategory: Hubs and Switches
• Subtype: 40 Gigabit Ethernet

Physical Attributes

• Form Factor: Rack-mountable
• Width: 17.3 inches
• Depth: 29.5 inches
• Height: 3.5 inches
• Weight: 22 pounds

Supported Routing and Protocol Features

• IGMP (Internet Group Management Protocol)
• IGMPv2 for multicast group management
• IGMPv3 for enhanced multicast control and efficiency

Performance Metrics

• MAC Address Table Capacity: up to 32,000 entries
• Jumbo Frame Support: up to 9216 bytes for high-efficiency data transfer
• Enhanced traffic routing for reduced congestion

Remote Management Features

• Support for RMON (Remote Network Monitoring)
• Real-time performance tracking and diagnostics
• Centralized configuration and monitoring capabilities

Common Use Cases

• Enterprise data center networking
• Virtualized computing environments
• High-performance cloud infrastructure
• Storage area network (SAN) connectivity
• Unified computing system integration

Key Reasons for Selection

• Optimized for high-density networking environments
• Seamless integration with Cisco UCS architecture
• Robust performance for mission-critical workloads
• Advanced multicast and traffic management support

Cisco UCS-FI-6332-U 32 Ports Fabric Interconnect Switch

The Cisco UCS-FI-6332-U 32 Ports Fabric Interconnect Switch is a high-performance unified network switching platform designed for modern data center environments that demand low-latency connectivity, simplified infrastructure management, and scalable compute integration. As part of the Cisco Unified Computing System architecture developed this fabric interconnect plays a critical role in converging LAN and SAN traffic while enabling seamless server management through centralized orchestration.

Engineered for enterprise-grade deployments, the UCS-FI-6332-U provides a balanced combination of high port density, flexible uplink configuration, and integrated management capabilities. It is widely deployed in virtualized environments, cloud infrastructure setups, and high-performance computing clusters where predictable throughput and operational efficiency are essential.

Architecture and Design Principles of Cisco UCS Fabric Interconnect Systems

Unified Computing System Integration Model

The Cisco UCS architecture is built around the concept of unifying compute, networking, and storage access into a single cohesive system. The UCS-FI-6332-U acts as the central switching and management node in this ecosystem, connecting blade servers, rack servers, and external networks under a unified fabric. This architecture eliminates traditional network complexity by reducing the number of discrete switching layers required in a data center.

High-Speed Switching Fabric Design

The switch is built on a high-throughput, low-latency switching architecture that supports modern data center workloads. It provides line-rate performance across all supported ports, ensuring that east-west and north-south traffic flows efficiently without congestion bottlenecks. This design is especially important for virtualization clusters, database systems, and cloud-native applications.

Hardware Optimization for Enterprise Workloads

The hardware platform of the UCS-FI-6332-U is optimized for deterministic performance under heavy workloads. It is engineered with advanced packet processing engines, buffer optimization techniques, and redundant system components that ensure high availability. These optimizations reduce jitter and packet loss, supporting mission-critical applications.

Port Density and Connectivity Capabilities

32-Port High-Speed Fabric Interface Design

The Cisco UCS-FI-6332-U offers 32 high-speed ports designed to connect UCS servers and upstream network infrastructure. These ports serve as unified access points for both Ethernet and Fibre Channel over Ethernet (FCoE) traffic, enabling convergence of storage and data networking into a single fabric layer.

Scalable Uplink Architecture

In addition to server-facing ports, the system supports flexible uplink configurations that allow seamless expansion into aggregation or core switching layers. This scalability ensures that organizations can grow their data center networks without redesigning the underlying architecture.

Low-Latency Data Transport

The switching fabric is engineered for minimal latency, making it suitable for environments where real-time data processing is critical. Applications such as financial trading systems, virtualization clusters, and AI workloads benefit from the predictable packet forwarding behavior of the UCS-FI-6332-U.

Unified Fabric Technology and Convergence Benefits

Converged Network and Storage Traffic

One of the defining features of the UCS-FI-6332-U is its ability to handle both network and storage traffic over a single unified infrastructure. This convergence reduces the need for separate SAN and LAN switching systems, lowering hardware costs and simplifying cabling infrastructure.

Fibre Channel over Ethernet Support

The switch supports FCoE functionality, allowing traditional Fibre Channel storage protocols to operate over Ethernet networks. This capability enables organizations to consolidate storage networks without sacrificing performance or reliability.

Improved Data Center Efficiency

By consolidating multiple network layers into a single fabric interconnect system, organizations can significantly reduce power consumption, rack space requirements, and operational complexity. This efficiency is particularly valuable in large-scale cloud and enterprise environments.

Virtualization and Cloud Infrastructure Optimization

Support for Virtual Machine Density

The Cisco UCS-FI-6332-U is designed to support highly virtualized environments where multiple virtual machines share physical infrastructure resources. Its high bandwidth capacity ensures that VM mobility and workload distribution occur without network bottlenecks.

Dynamic Resource Allocation

Through integration with Cisco UCS Manager, the fabric interconnect enables dynamic allocation of network resources to compute nodes. This allows administrators to adjust bandwidth, connectivity policies, and service profiles without manual hardware reconfiguration.

Cloud-Ready Networking Infrastructure

The switch is commonly deployed in private cloud and hybrid cloud environments where scalability and automation are key requirements. Its architecture supports rapid provisioning and elastic scaling of compute and storage resources.

Management and Orchestration Capabilities

Cisco UCS Manager Integration

The UCS-FI-6332-U is tightly integrated with Cisco UCS Manager, a centralized management platform that provides unified control over compute, networking, and storage resources. This integration simplifies configuration, monitoring, and lifecycle management of data center infrastructure.

Policy-Based Configuration Model

Instead of manual device-level configuration, the system uses a policy-based model where administrators define service profiles. These profiles automatically apply consistent configurations across servers and network interfaces, reducing operational errors and improving deployment speed.

High Availability and Redundancy Design

Clustered Fabric Interconnect Deployment

In enterprise deployments, the UCS-FI-6332-U is typically deployed in redundant pairs to ensure high availability. This clustered configuration allows failover in the event of hardware or software issues, maintaining continuous network service.

Non-Disruptive Upgrades

The platform supports non-disruptive firmware upgrades, enabling organizations to update system software without taking down the entire fabric. This capability is essential for maintaining uptime in mission-critical environments.

Fault Tolerance and Resilience

Built-in redundancy mechanisms ensure that port failures or link disruptions do not affect overall system performance. Traffic is automatically rerouted through available paths, maintaining service continuity.

Security and Data Protection Features

Secure Network Segmentation

The switch supports secure segmentation techniques that isolate workloads and prevent unauthorized access between different network domains. This is particularly important in multi-tenant cloud environments.

Role-Based Access Control

Administrative access to the system is governed by role-based access control mechanisms, ensuring that only authorized users can modify configuration settings or access sensitive operational data.

Performance Optimization and Traffic Engineering

Advanced Packet Scheduling

The UCS-FI-6332-U utilizes intelligent packet scheduling mechanisms to prioritize critical workloads and ensure balanced traffic distribution across available ports.

Quality of Service Implementation

Quality of Service policies can be applied to ensure that latency-sensitive applications such as voice, video, and transactional systems receive priority over bulk data transfers.

Bandwidth Efficiency Mechanisms

The switch incorporates traffic optimization techniques that reduce congestion and improve overall throughput efficiency in high-density environments.

Data Center Use Cases and Deployment Scenarios

Enterprise Virtualization Clusters

The UCS-FI-6332-U is commonly deployed in virtualized server environments where large numbers of virtual machines require consistent and high-speed connectivity to shared storage and network resources.

Cloud Service Provider Infrastructure

Cloud providers use this fabric interconnect to build scalable and automated infrastructure platforms that support multi-tenant environments and dynamic resource allocation.

High-Performance Computing Environments

In HPC deployments, the switch supports high-throughput data exchange between compute nodes, enabling complex simulations, scientific computing, and AI model training workloads.

Enterprise Data Center Modernization

Organizations upgrading from legacy switching architectures use the UCS-FI-6332-U to consolidate infrastructure, reduce operational overhead, and improve scalability.

Scalability and Future Expansion Capabilities

Modular Infrastructure Growth

The fabric interconnect architecture allows organizations to expand their infrastructure without replacing existing systems. Additional servers and uplinks can be integrated seamlessly.

Support for Evolving Workloads

As enterprise workloads evolve toward AI, machine learning, and big data analytics, the UCS-FI-6332-U provides the bandwidth and flexibility required to support these emerging demands.

Integration with Next-Generation Networking

The platform is designed to integrate with next-generation networking technologies, ensuring long-term viability within evolving data center architectures.

Operational Efficiency and Lifecycle Management

Automated Provisioning Workflows

Automated provisioning reduces the time required to deploy new infrastructure components. This improves agility and reduces manual configuration effort.

Predictive Maintenance Capabilities

System monitoring tools provide insights into hardware health and performance trends, enabling predictive maintenance strategies that minimize downtime.

Energy Efficiency Optimization

The switch is designed with energy-efficient components that reduce power consumption while maintaining high performance levels, contributing to lower operational costs.
