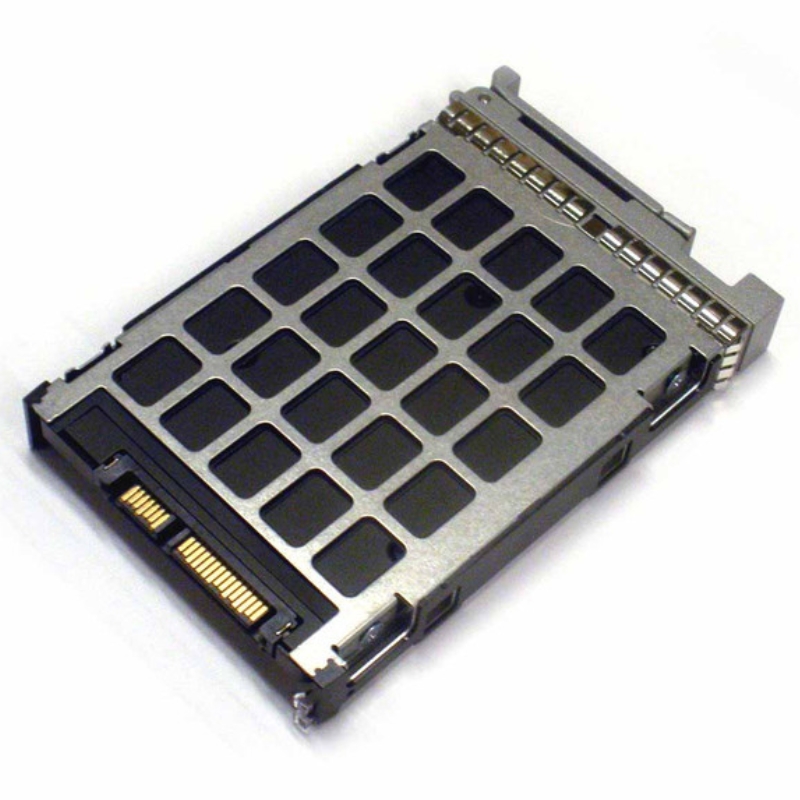

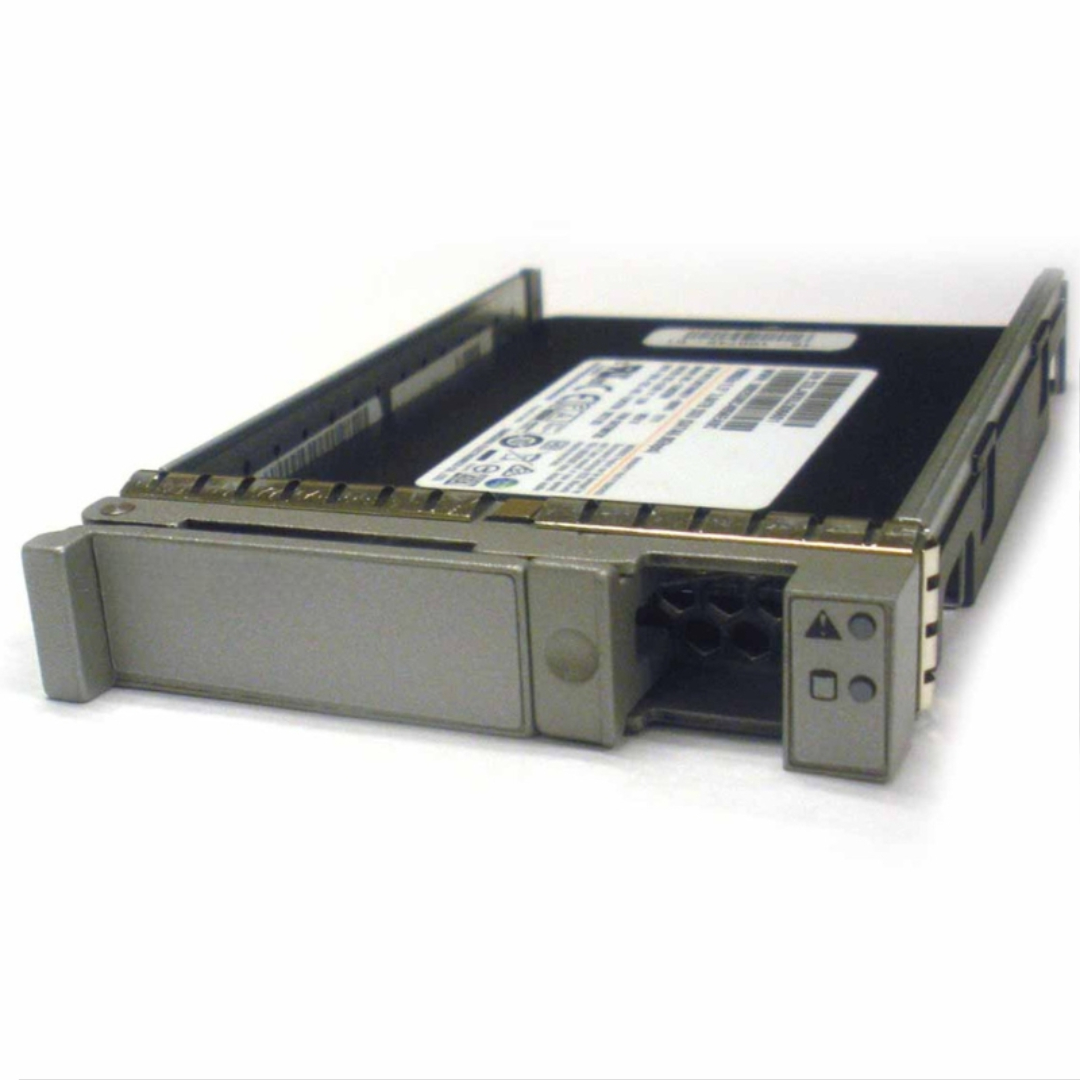

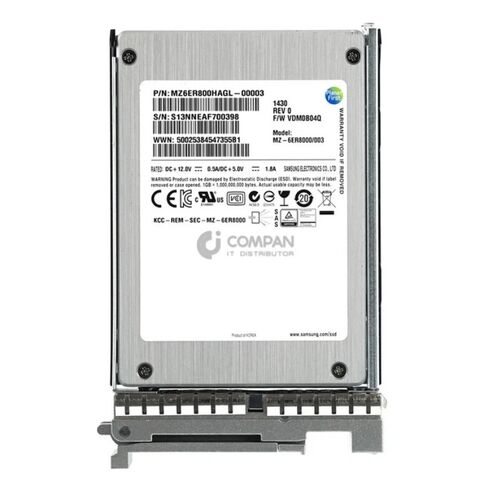

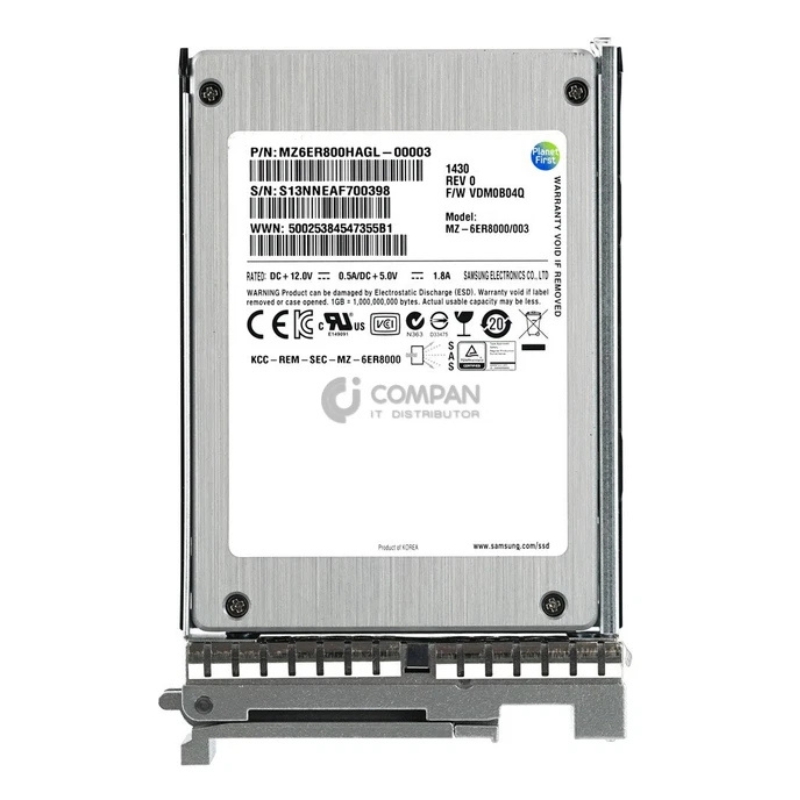

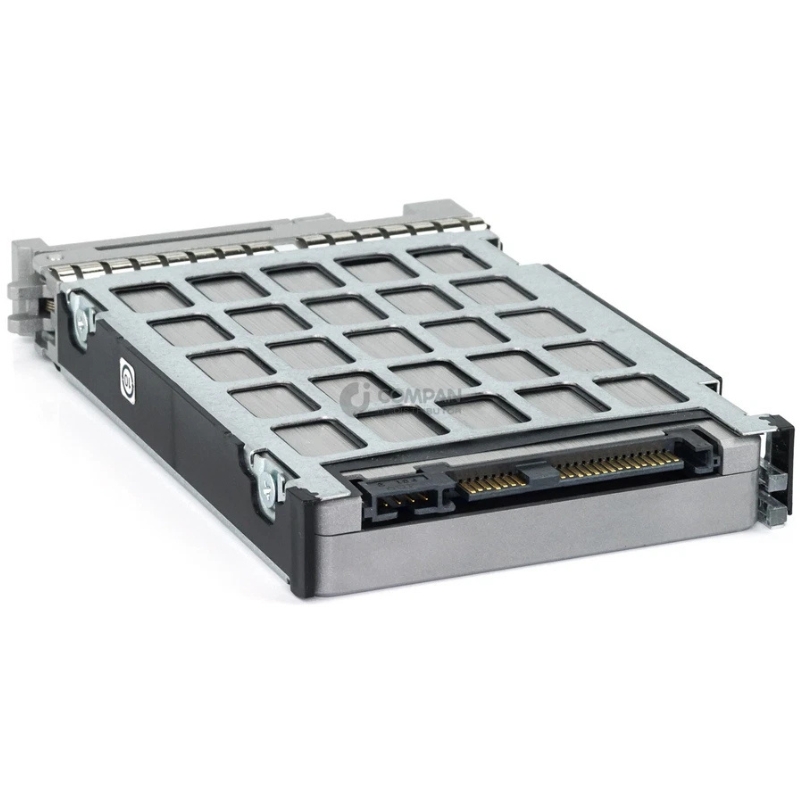

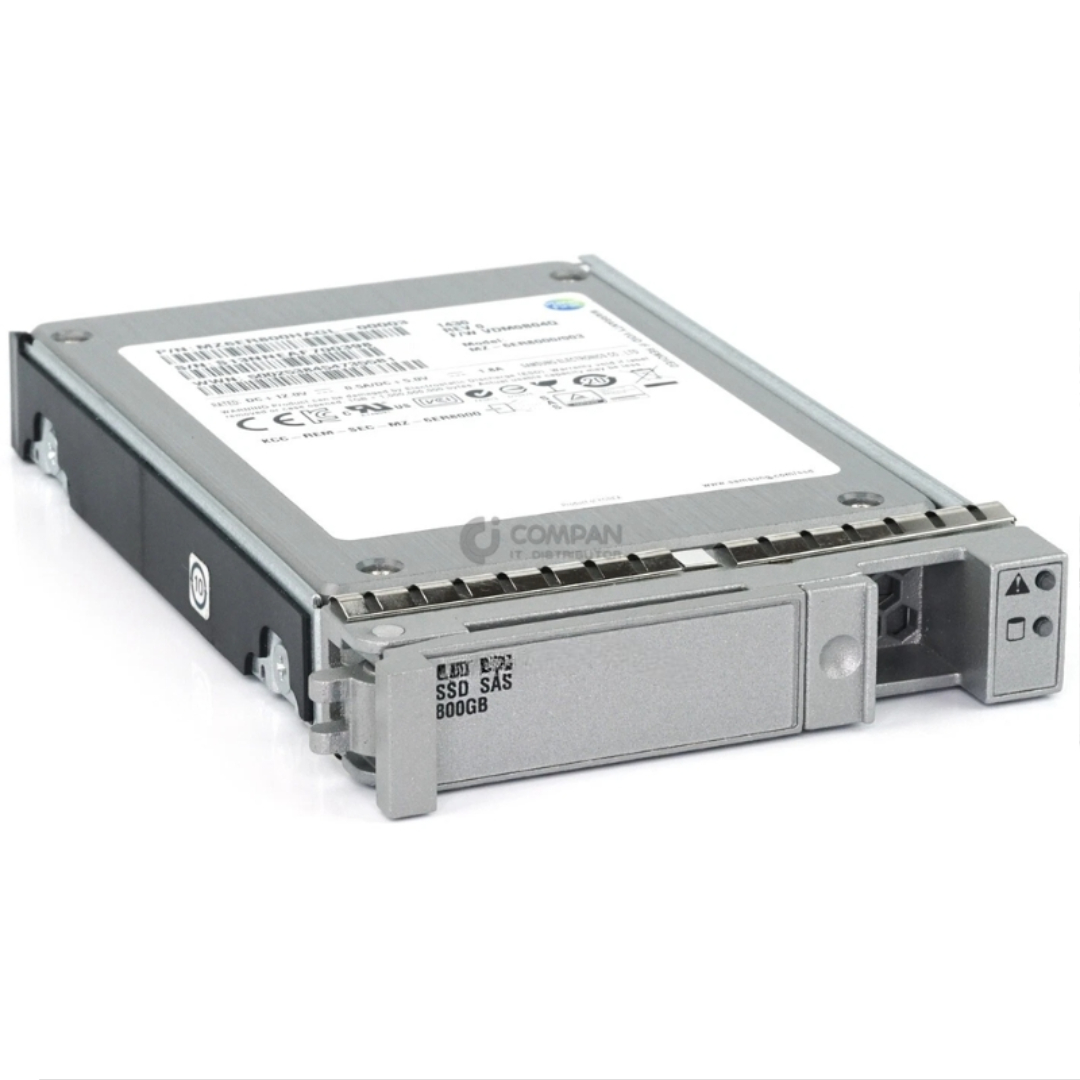

UCS-SD800G123X-EP Cisco 800GB SSD SAS 12GBPS SFF Hot Swap

Cisco UCS 800GB SAS 12Gbps Enterprise Performance SSD

The Cisco UCS-SD800G123X-EP represents the pinnacle of enterprise storage technology, engineered specifically for demanding data center environments where performance, reliability, and scalability are non-negotiable. As part of Cisco's Unified Computing System (UCS) portfolio, this 800GB SAS 12Gbps Hot-Swap Enterprise Performance Solid State Drive is designed to deliver exceptional I/O throughput and consistent low latency for mission-critical applications, virtualized infrastructures, and high-performance computing workloads.

Understanding Enterprise Performance SAS SSDs

Enterprise Performance SAS SSDs form a critical category within the data storage hierarchy, bridging the gap between cost-effective capacity drives and ultra-high-performance NVMe solutions. These drives are characterized by their robust construction, advanced error correction, power-loss protection, and sustained performance under heavy workloads.

The SAS 12Gbps Interface Advantage

The Serial Attached SCSI (SAS) interface operating at 12 gigabits per second provides a significant performance uplift over previous 6Gbps generations and offers distinct advantages over SATA alternatives for enterprise environments.

Full-Duplex Operation

Unlike SATA's half-duplex communication, SAS operates in full-duplex mode, allowing simultaneous read and write operations. This capability effectively doubles the available bandwidth for mixed workloads, making the Cisco UCS-SD800G123X-EP particularly well-suited for database applications and virtualization scenarios where concurrent operations are common.

Dual-Port Capability

SAS architecture incorporates native dual-porting, providing redundant paths to the storage device. This critical feature enables multipath I/O and high-availability configurations, ensuring continuous data accessibility even in the event of a host bus adapter failure or path disruption. For the UCS-SD800G123X-EP, this means enhanced reliability for always-on enterprise applications.

Expanded Connectivity and Scalability

The SAS protocol supports expansive connectivity through SAS expanders, allowing numerous drives to be connected to a single controller while maintaining performance characteristics. This scalability makes the 800GB drive ideal for storage-dense deployments within Cisco UCS platforms and other enterprise servers supporting SAS infrastructure.

Technical Architecture of the UCS-SD800G123X-EP

The internal architecture of the Cisco UCS 800GB Enterprise Performance SSD incorporates multiple advanced technologies working in concert to deliver consistent enterprise-grade performance.

NAND Flash Technology and Endurance

This drive utilizes enterprise-grade Multi-Level Cell (eMLC) or similar high-endurance NAND flash memory, specifically engineered to withstand the rigorous write demands of server workloads. The flash management system includes advanced wear-leveling algorithms that distribute write operations evenly across all available memory cells, significantly extending the drive's operational lifespan.

Over-Provisioning Strategy

The Cisco UCS-SD800G123X-EP implements strategic over-provisioning, where a portion of the physical NAND capacity is reserved and not accessible to the user. This reserved space serves multiple purposes: it acts as a replacement pool for failed memory blocks, provides working space for garbage collection processes, and helps maintain consistent write performance as the drive fills with data.

Advanced Controller Architecture

At the heart of this SSD lies a sophisticated controller featuring multiple processing cores, dedicated DRAM cache, and hardware-accelerated encryption engines. This controller manages all aspects of drive operation, including error correction, wear leveling, bad block management, and interface communication.

Power-Loss Protection (PLP) Mechanisms

Enterprise SSDs distinguish themselves through robust power-loss protection systems. The UCS-SD800G123X-EP incorporates both architectural and component-level protections, including tantalum capacitors or similar energy storage devices that provide sufficient hold-up time to complete in-progress writes and preserve data in the DRAM cache during unexpected power interruptions.

Performance Characteristics and Workload Optimization

The "Enterprise Performance" designation indicates that this drive is engineered for sustained performance under heavy I/O loads, unlike consumer-grade SSDs that may throttle significantly during extended write operations.

Consistent I/O Performance Metrics

While specific performance figures vary by generation and NAND technology, drives in this category typically deliver exceptional random read/write IOPS (Input/Output Operations Per Second) and sequential transfer rates that maximize the available 12Gbps SAS bandwidth. The performance profile remains consistent across various workload patterns and throughout the drive's capacity range.

Read-Intensive vs. Mixed-Use Performance

The UCS-SD800G123X-EP is optimized for mixed-use enterprise workloads, balancing both read and write performance characteristics. This makes it suitable for applications requiring both rapid data retrieval and consistent write capabilities, such as database transaction processing, email servers, and collaborative applications.

Latency Characteristics

Enterprise SSDs excel in providing consistently low latency for I/O operations. The UCS-SD800G123X-EP delivers microsecond-level response times, significantly outperforming traditional hard disk drives and contributing to improved application responsiveness and user experience in I/O-sensitive environments.

Form Factor and Hot-Swap Capability

The 2.5-inch Small Form Factor (SFF) design represents the standard for modern enterprise storage, balancing capacity, performance, and density requirements in contemporary data center configurations.

Hot-Swap Functionality

The hot-swap capability of the UCS-SD800G123X-EP enables drive replacement, addition, or removal without powering down the entire system. This feature is critical for maintaining system availability and facilitating non-disruptive maintenance in 24/7 operational environments.

Hot-Swap Implementation Requirements

Proper hot-swap functionality requires compatibility at multiple levels: the drive itself must support hot-swap, the backplane must be designed for hot-swap operations, the HBA/RAID controller must support hot-plug detection, and the operating system must include appropriate drivers and storage stack support. The Cisco UCS-SD800G123X-EP is designed to meet all these requirements within compatible Cisco UCS systems.

Integration with Cisco Unified Computing System

The UCS-SD800G123X-EP is not merely a compatible component but an integrated element of the Cisco Unified Computing System, designed to work seamlessly within UCS server and blade environments.

UCS Manager Integration

When deployed within UCS infrastructure, these drives can be managed holistically through Cisco UCS Manager, providing centralized management, monitoring, and policy-based configuration. This integration simplifies storage provisioning, firmware management, and health monitoring across the entire UCS domain.

Policy-Based Storage Management

UCS Manager enables policy-based management of storage resources, including service profiles that can define specific storage configurations, RAID settings, and boot policies. The UCS-SD800G123X-EP operates within this policy framework, ensuring consistent configuration and deployment across multiple servers.

Firmware and Compatibility Assurance

Cisco maintains rigorous testing and validation of firmware updates for UCS components, including the SD800G123X-EP SSD. This ensures that firmware revisions maintain compatibility with UCS system components and provide optimal performance, security, and reliability characteristics.

Enterprise Reliability and Endurance Specifications

Enterprise SSDs are characterized by their robust reliability metrics, which far exceed those of consumer-grade storage devices.

Mean Time Between Failures (MTBF)

The UCS-SD800G123X-EP features an exceptionally high MTBF rating, typically measured in millions of hours, reflecting the drive's design for continuous operation in demanding environments. This metric, combined with a low Annualized Failure Rate (AFR), provides quantitative assurance of the drive's reliability.

Terabytes Written (TBW) Endurance Rating

Enterprise SSDs are rated for total bytes written over their operational lifespan. The UCS-SD800G123X-EP's TBW rating reflects its enterprise-grade NAND flash and wear-leveling algorithms, ensuring sufficient endurance for write-intensive enterprise workloads throughout the drive's warranty period and beyond.

Wear-Leveling Algorithms

Advanced wear-leveling algorithms dynamically distribute write operations across all available NAND blocks, preventing specific blocks from wearing out prematurely. This sophisticated management significantly extends the drive's usable life and maintains consistent performance throughout its lifespan.

Data Integrity and Protection Features

The UCS-SD800G123X-EP incorporates multiple layers of data protection to ensure data integrity from the host interface to the NAND flash media.

End-to-End Data Protection

This drive implements end-to-end data protection, where protection information is generated when data is received from the host and verified throughout its journey within the drive. This includes data transfers between the DRAM cache, controller, and NAND flash memory, detecting and correcting errors that might occur during internal data movement.

Advanced Error Correction Codes

Sophisticated Error Correction Code algorithms, typically Low-Density Parity Check codes, provide robust correction capabilities for bit errors that naturally occur in NAND flash memory. These ECC engines can correct multiple bit errors per codeword, significantly enhancing data reliability and extending the drive's usable life.

RAID Support and Implications

When deployed in RAID configurations, the advanced error correction capabilities of the UCS-SD800G123X-EP reduce the probability of uncorrectable errors that could trigger RAID rebuilds. This characteristic is particularly important in large-scale storage deployments where rebuild times for high-capacity drives can impact system performance and availability.

Use Cases and Application Scenarios

The performance and reliability characteristics of the UCS-SD800G123X-EP make it suitable for a wide range of enterprise computing scenarios.

Virtualization Infrastructure

In virtualized environments running VMware vSphere, Microsoft Hyper-V, or other hypervisors, the drive delivers the high IOPS and low latency necessary to support multiple virtual machines concurrently. Its consistent performance helps prevent I/O contention that can degrade virtual machine performance during peak utilization periods.

Virtual Desktop Infrastructure (VDI)

For VDI deployments, where boot storms and login storms create intense I/O patterns, the UCS-SD800G123X-EP provides the random read performance needed for rapid booting and the write performance required for user profile and application activity.

Database Management Systems

Database servers hosting SQL Server, Oracle, MySQL, and other DBMS platforms benefit from the drive's balanced read/write performance and low latency characteristics. Transaction processing, index operations, and query performance all see significant improvements compared to traditional hard disk drives.

High-Performance Computing

In HPC environments, the drive serves as high-performance local storage for scratch space, temporary files, and datasets requiring rapid access. Its sustained throughput capabilities support data-intensive applications in scientific computing, financial modeling, and engineering simulation.

Environmental Specifications and Power Efficiency

Enterprise storage components must operate reliably within data center environmental conditions while optimizing power consumption.

Operating Temperature Ranges

The UCS-SD800G123X-EP is designed to operate within standard enterprise temperature ranges, typically 0°C to 70°C, with appropriate airflow. Enterprise SSDs generally have wider operating temperature ranges than consumer drives, reflecting their deployment in various data center environments.

Power Consumption Profiles

SSD power consumption varies by operational state—active, idle, and standby. The UCS-SD800G123X-EP implements power management features that optimize consumption during lower activity periods while maintaining responsiveness. Compared to traditional hard drives, SSDs typically offer significantly better performance per watt.

Power Management Features

Advanced power management capabilities allow the drive to transition between power states based on I/O activity patterns, reducing overall energy consumption in the data center. These transitions are managed to minimize impact on application performance and response times.
