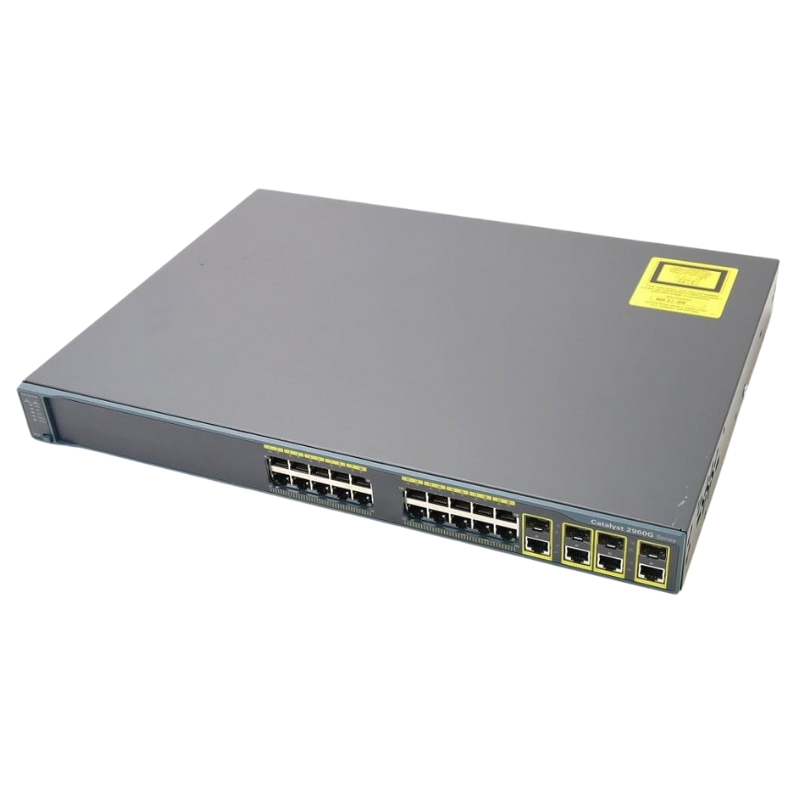

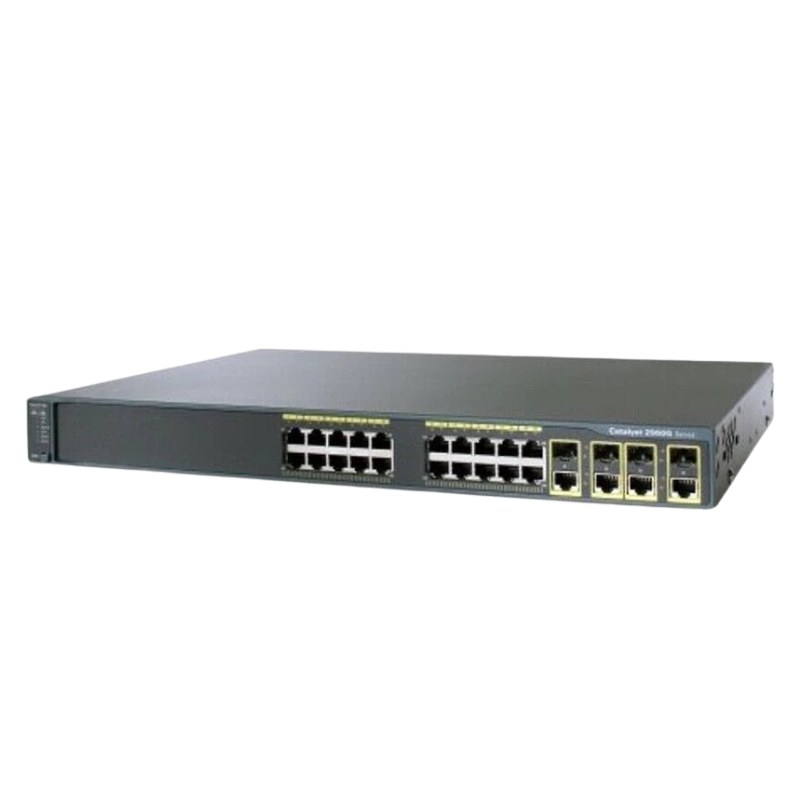

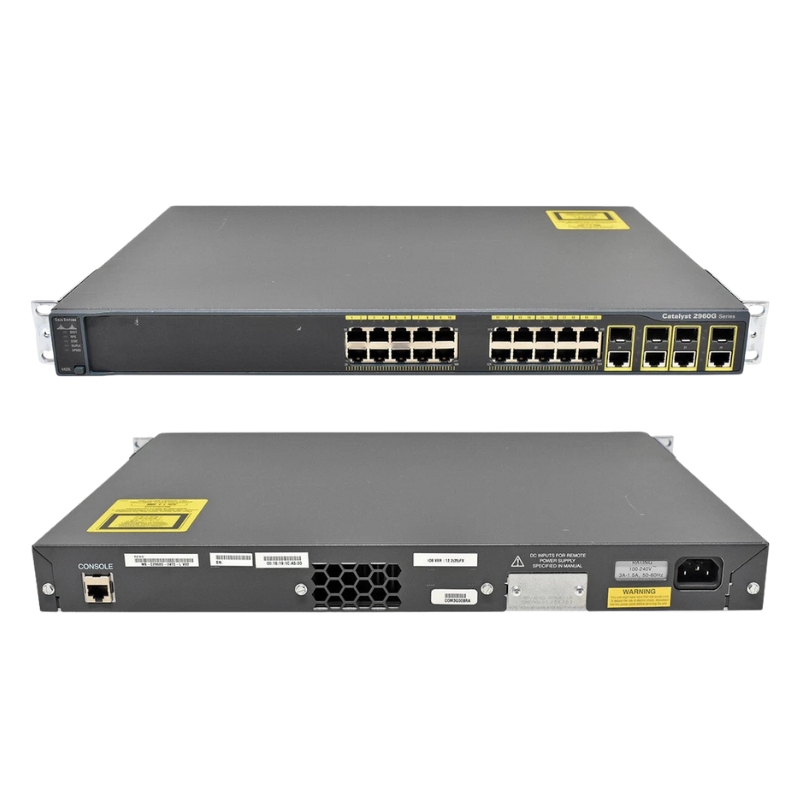

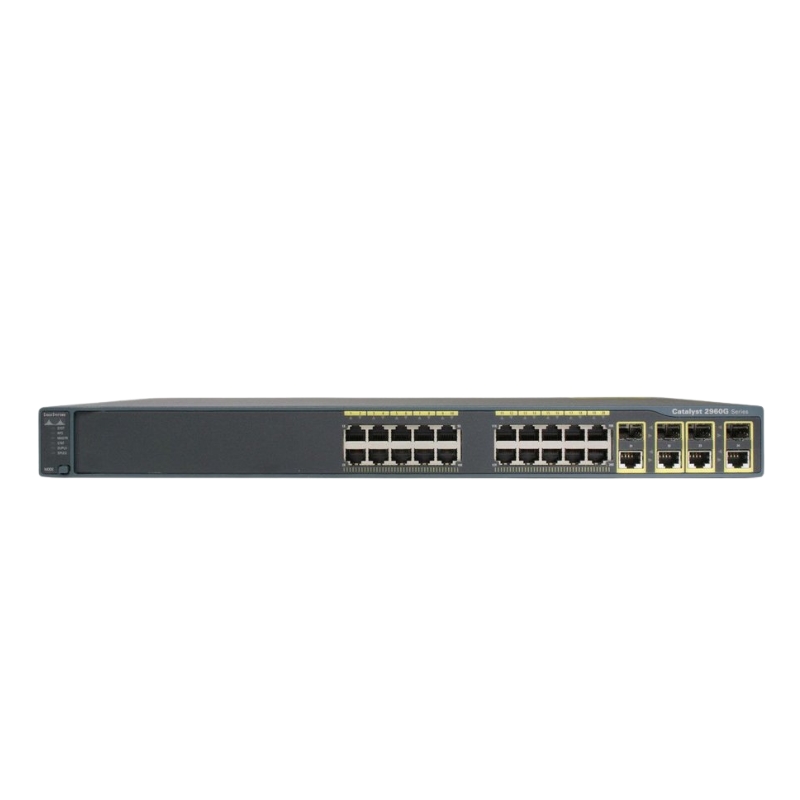

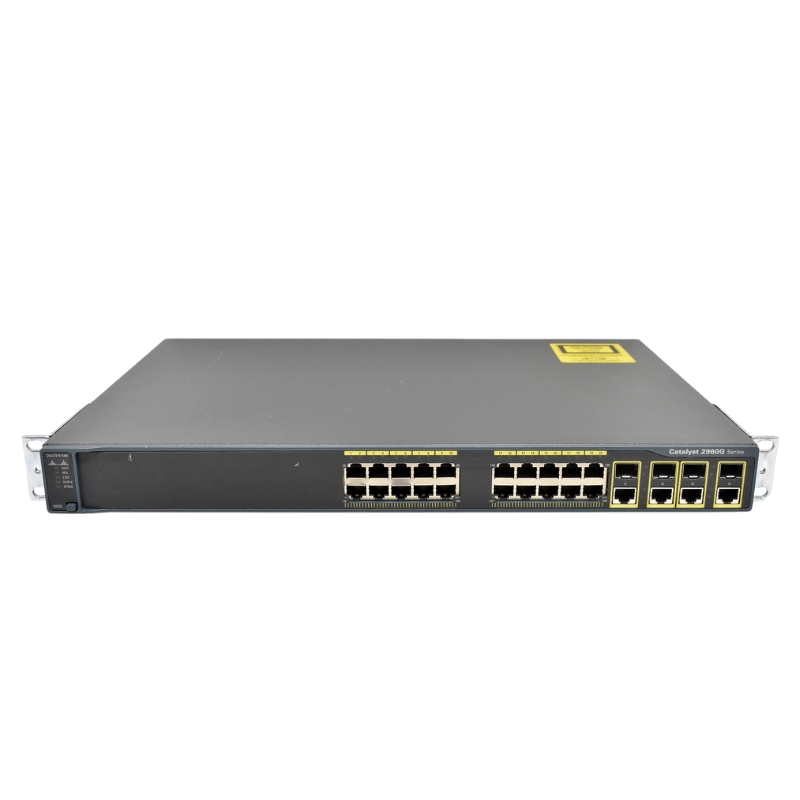

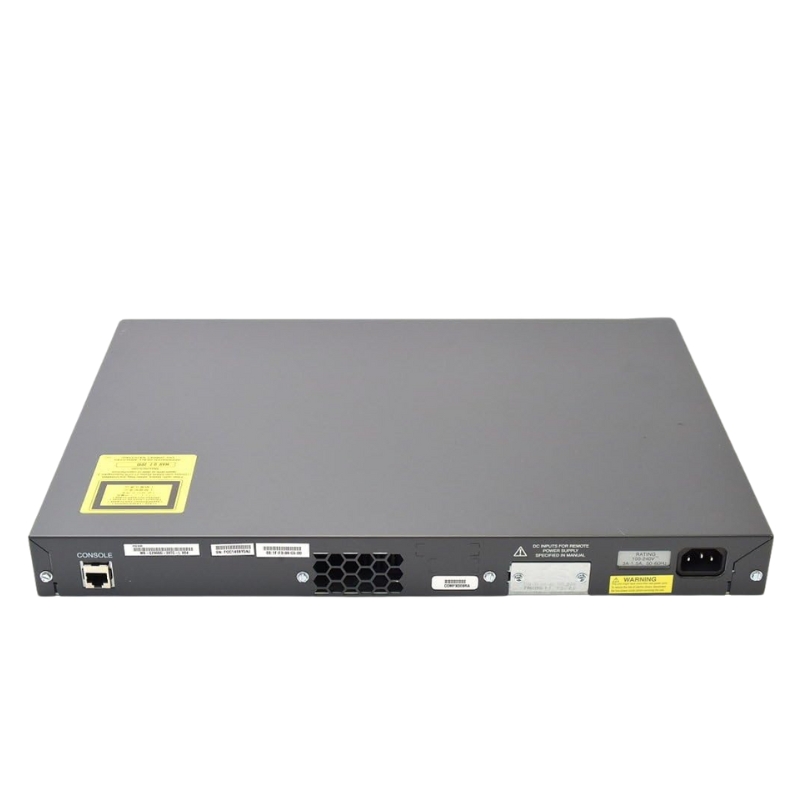

WS-C2960G-24TC-L Cisco Catalyst 24 Ports Gigabit Ethernet Layer 2 Switch

Cisco WS-C2960G-24TC-L Catalyst 24-Port Ethernet Switch

The Cisco WS-C2960G-24TC-L Catalyst switch is engineered for dependable Layer 2 switching in business networks that require reliable connectivity, consistent throughput, and simplified administration. Built by Cisco, this enterprise-class switch provides a practical solution for organizations seeking efficient Ethernet switching with integrated management capabilities and scalable network expansion options.

Core Hardware Overview

• Manufacturer: Cisco
• Model Number: WS-C2960G-24TC-L
• Device Category: Network Switch
• Switch Type: Layer 2 Ethernet Switching
• Deployment Format: External Rackmount
• Rack Height: 1U

Compact Rackmount Design

The device is built for standard rack environments, allowing IT teams to integrate the switch easily within structured network cabinets or data center racks. Its compact 1U profile conserves space while maintaining accessibility for maintenance and cable management.

• Width: 17.5 inches
• Depth: 12.9 inches
• Height: 1.7 inches
• Optimized for rack-mounted installations

Ethernet Port Configuration

This Catalyst model delivers versatile connectivity through multiple Ethernet interfaces designed for desktop devices, servers, and network infrastructure. The switch combines Fast Ethernet access ports with high-speed uplink interfaces for flexible deployment.

Primary Access Ports

• 20 x Ethernet ports supporting 10BASE-T
• 20 x Fast Ethernet ports supporting 100BASE-TX
• 20 x Gigabit Ethernet ports supporting 1000BASE-T
• Automatic speed detection for connected devices

Dedicated Uplink Interfaces

To simplify backbone integration and uplink aggregation, the switch includes high-performance combo ports that support copper and fiber connectivity.

• 4 x 10/100/1000BASE-T uplink interfaces
• 4 x SFP Mini-GBIC expansion slots
• Flexible copper or fiber uplink deployment
• Supports scalable network expansion

Switching Performance and Data Transfer

The Cisco Catalyst 2960G series is designed to maintain stable packet forwarding across enterprise LAN environments. It supports multiple Ethernet standards while ensuring efficient communication between connected devices.

• Maximum data transfer rate up to 100 Mbps
• Support for Ethernet, Fast Ethernet, and Gigabit Ethernet standards
• Optimized switching for Layer 2 network segmentation
• Reliable packet forwarding for business applications

Duplex Communication Modes

• Half-duplex communication support
• Full-duplex transmission capability
• Adaptive link negotiation for optimal bandwidth

Network Management Capabilities

Administrators benefit from a wide selection of remote management protocols that allow centralized monitoring, configuration, and troubleshooting. These tools simplify switch management across distributed enterprise networks.

Supported Management Protocols

• SNMP Version 1
• SNMP Version 2c
• SNMP Version 3
• RMON (Remote Monitoring)
• Telnet remote configuration

Administrative Advantages

• Centralized device monitoring
• Remote configuration capabilities
• Performance statistics and diagnostics
• Secure management via SNMPv3

Advanced Layer 2 Networking Features

The switch incorporates several built-in features that enhance traffic control, network segmentation, and multicast performance across enterprise environments.

Integrated Switching Technologies

• Auto-sensing per connected device
• Automatic port negotiation
• Dynamic Host Configuration Protocol (DHCP) compatibility
• VLAN segmentation for network isolation
• IGMP Snooping for efficient multicast traffic handling

Network Optimization Benefits

• Improved broadcast control using VLAN technology
• Enhanced bandwidth allocation
• Better traffic prioritization within LAN segments
• Efficient delivery of streaming and multicast data

Memory Architecture

The Cisco WS-C2960G-24TC-L integrates system memory components that help maintain stable switching operations and store firmware required for device functionality.

• Installed RAM: 64 MB
• Internal Flash Memory: 32 MB
• Supports firmware storage and configuration files

Power Specifications

This Catalyst switch operates using standard AC electrical input, allowing it to function in typical office networks, server rooms, and enterprise data infrastructure.

• Input Voltage: AC 120 / 230 V
• Frequency: 50 / 60 Hz
• Compatible with global power standards

Cisco WS-C2960G-24TC-L Catalyst 24 Ports L2 Switch Overview

The Cisco WS-C2960G-24TC-L Catalyst 24 Ports Switch Gigabit Ethernet Layer 2 represents a foundational component in enterprise networking environments that require reliable connectivity, efficient traffic management, and scalable switching architecture. Built as part of the widely adopted Cisco Catalyst 2960 Series, this switch is engineered to deliver consistent Layer 2 switching performance for organizations seeking dependable network infrastructure. With twenty-four Gigabit Ethernet ports and dual uplink interfaces, the device supports high-speed communication across office networks, data centers, campus environments, and branch deployments where stability and performance are critical.

Designed with Cisco’s enterprise-grade networking technology, the WS-C2960G-24TC-L supports robust switching capabilities, secure access control, and advanced traffic management features. The device plays a central role in connecting workstations, printers, wireless access points, servers, and other network devices while ensuring smooth data transmission across the network. Organizations often deploy this model as an access-layer switch, allowing it to handle endpoint connectivity while integrating seamlessly with distribution or core switches in a hierarchical network architecture.

As network traffic demands continue to grow due to cloud applications, multimedia collaboration, and data-intensive workloads, Gigabit Ethernet switching solutions like the WS-C2960G-24TC-L provide the necessary bandwidth and reliability required by modern enterprises. The switch supports intelligent network services that enhance operational efficiency, maintain network availability, and improve the overall user experience within corporate networks.

Hardware Architecture and Gigabit Ethernet Performance

High-Speed Switching Capabilities

The Cisco WS-C2960G-24TC-L switch incorporates a robust hardware architecture designed to deliver high-performance packet forwarding and low latency. Equipped with twenty-four 10/100/1000 Gigabit Ethernet ports, the switch allows network administrators to connect a wide range of devices without compromising bandwidth availability. Each port automatically negotiates speed and duplex settings, ensuring optimal performance when connecting various endpoint devices.

The switching fabric within the Catalyst 2960G series provides efficient data processing capabilities that support simultaneous communication across multiple devices. This architecture ensures that data packets are forwarded quickly and accurately across the network, reducing congestion and preventing performance bottlenecks. The integrated hardware is optimized for Layer 2 switching, enabling the switch to handle large volumes of traffic while maintaining consistent throughput across all ports.

Dual Uplink Interfaces for Flexible Network Expansion

In addition to the twenty-four Gigabit Ethernet ports, the Cisco WS-C2960G-24TC-L includes two dual-purpose uplink interfaces that support copper or small form-factor pluggable (SFP) fiber connectivity. These uplink ports allow administrators to connect the switch to aggregation switches, routers, or core network infrastructure while maintaining high-speed connectivity between network segments.

Fiber uplink capabilities offer extended transmission distances and improved electromagnetic interference resistance, making them suitable for campus deployments, data center connections, or cross-building networking environments. The flexibility provided by dual uplink interfaces enables network architects to design scalable infrastructures that can grow alongside organizational requirements.

Energy Efficiency and Hardware Reliability

Enterprise networks require switching solutions that not only deliver high performance but also operate efficiently in terms of energy consumption and hardware durability. The Cisco WS-C2960G-24TC-L is designed to function continuously in demanding environments while maintaining stable power usage. The device incorporates advanced hardware components that minimize heat generation and optimize power efficiency, contributing to long-term operational stability.

The robust construction of the switch ensures dependable operation in enterprise racks and network cabinets. Cisco’s reputation for manufacturing reliable networking equipment is evident in the durability and longevity of this model, which continues to serve many organizations as a trusted networking component.

Layer 2 Switching Capabilities

Efficient Ethernet Switching Framework

The Cisco WS-C2960G-24TC-L operates as a Layer 2 switch, which means it processes network traffic using Media Access Control (MAC) addresses rather than IP routing. This approach enables efficient frame forwarding within local networks while maintaining high throughput and low latency. Layer 2 switching forms the backbone of most local area networks, making devices like the Catalyst 2960G essential for network connectivity.

By maintaining a MAC address table, the switch identifies the location of connected devices and forwards frames only to the appropriate destination ports. This targeted data delivery reduces unnecessary network traffic and enhances overall performance. As more devices connect to the network, the switch dynamically updates its address table to maintain accurate forwarding decisions.

VLAN Support for Network Segmentation

Virtual Local Area Network functionality allows the Cisco WS-C2960G-24TC-L to divide a single physical network into multiple logical networks. VLAN segmentation improves network organization, enhances security, and reduces broadcast traffic. Administrators can group devices based on department, project, or security requirements, ensuring that traffic flows only within the intended network segments.

Through VLAN configuration, organizations can isolate sensitive systems such as financial servers, development environments, or administrative workstations. This segmentation helps reduce the risk of unauthorized access and improves overall network management by allowing administrators to apply specific policies to each VLAN.

Spanning Tree Protocol Implementation

Network redundancy is essential for maintaining high availability. The Cisco WS-C2960G-24TC-L supports Spanning Tree Protocol and its variants to prevent loops in Ethernet networks while enabling redundant links between switches. When multiple switches are interconnected, redundant paths can create broadcast storms that disrupt network operations. Spanning Tree Protocol intelligently disables redundant paths while preserving backup links for failover situations.

If a primary link fails, the protocol automatically activates the redundant connection, restoring network connectivity with minimal disruption. This mechanism helps ensure continuous network operation even in complex switching environments.

Security Features for Enterprise Networks

Port Security and Access Control

Network security remains a top priority for organizations that manage large numbers of connected devices. The Cisco WS-C2960G-24TC-L includes built-in security mechanisms designed to protect network infrastructure from unauthorized access. Port security features allow administrators to define which devices can connect to specific switch ports based on MAC address authentication.

This capability prevents unknown devices from connecting to the network, reducing the risk of internal security breaches. When an unauthorized device attempts to access a protected port, the switch can automatically disable the connection or generate alerts for network administrators.

Access Control Lists and Traffic Filtering

The switch supports Access Control Lists that enable administrators to filter traffic based on predefined policies. ACLs provide granular control over which data packets are allowed or denied within the network. By applying these policies at the switch level, organizations can enforce security rules before traffic reaches critical servers or sensitive network segments.

Traffic filtering mechanisms also help improve network performance by blocking unnecessary or malicious traffic that could otherwise consume valuable bandwidth. These capabilities are particularly important in enterprise environments where large volumes of data pass through network switches.

Secure Management and Authentication

Administrators require secure methods for managing network devices remotely. The Cisco WS-C2960G-24TC-L supports encrypted management protocols and authentication mechanisms that protect administrative access. Secure management ensures that only authorized personnel can configure or monitor the switch.

Authentication features integrate with centralized identity management systems, allowing organizations to enforce consistent security policies across all network infrastructure devices. This integration simplifies user management while enhancing security across the network environment.

Network Management and Monitoring Capabilities

Centralized Management Through Cisco Software

The Cisco WS-C2960G-24TC-L integrates seamlessly with Cisco network management platforms, allowing administrators to monitor performance, configure settings, and troubleshoot issues from centralized interfaces. This centralized management approach simplifies network administration and reduces the time required to maintain large infrastructures.

Network administrators can configure VLANs, monitor port status, adjust traffic policies, and analyze network performance metrics through intuitive management tools. These capabilities allow organizations to maintain optimal network performance while quickly identifying potential issues before they impact operations.

Command-Line Interface and Configuration Flexibility

The switch provides a powerful command-line interface that allows experienced network engineers to configure advanced settings and customize network behavior. The CLI offers precise control over every aspect of switch operation, including security settings, VLAN configuration, port management, and system diagnostics.

This level of configuration flexibility enables organizations to tailor the switch to their specific networking requirements. Engineers can implement complex network policies and automation scripts that streamline infrastructure management and ensure consistent configuration across multiple devices.

Network Monitoring and Diagnostics

Effective network monitoring is essential for maintaining high availability and identifying performance bottlenecks. The Cisco WS-C2960G-24TC-L provides comprehensive monitoring capabilities that allow administrators to track traffic patterns, port utilization, and system health.

Diagnostic tools built into the switch help detect hardware issues, cable faults, and connectivity problems. These tools simplify troubleshooting processes and reduce downtime by allowing administrators to quickly isolate and resolve network issues.

Deployment Scenarios for Cisco Catalyst 2960G Switches

Enterprise Office Network Deployments

The Cisco WS-C2960G-24TC-L is frequently deployed in enterprise office networks where reliable connectivity is required for workstations, VoIP phones, wireless access points, and printers. Its twenty-four Gigabit Ethernet ports provide ample connectivity for departments or office floors, making it a practical solution for medium-sized business environments.

Within corporate networks, the switch typically operates at the access layer, connecting endpoint devices to aggregation switches that handle higher-level traffic routing. This hierarchical design ensures efficient data flow throughout the network infrastructure.

Campus and Educational Institution Networks

Educational institutions often require robust networking solutions capable of supporting thousands of connected devices across classrooms, laboratories, and administrative offices. The Cisco WS-C2960G-24TC-L provides the stability and performance required for such environments.

Students, faculty, and administrative staff rely on consistent network connectivity for research, communication, and digital learning platforms. The switch helps maintain reliable connections while supporting VLAN segmentation that separates academic networks from administrative systems.

Small Data Center and Server Room Connectivity

Although primarily designed as an access-layer switch, the Cisco WS-C2960G-24TC-L can also support smaller server environments where Gigabit connectivity is sufficient for server communication and application hosting. Servers, storage devices, and virtualization platforms benefit from the switch’s reliable data transfer capabilities.

In such deployments, the switch may connect multiple servers while uplinking to higher-capacity distribution switches that handle routing and core network functions. This layered approach ensures efficient resource utilization while maintaining scalability for future expansion.

Advantages of Cisco Catalyst Switching Technology

Proven Enterprise Networking Platform

Cisco Catalyst switches are recognized globally for their reliability, performance, and feature-rich architecture. The WS-C2960G-24TC-L inherits this reputation by delivering stable switching capabilities backed by Cisco’s extensive networking expertise. Organizations deploying Catalyst switches benefit from proven technology that has been refined through decades of development.

The consistent software environment across Cisco devices simplifies network management while ensuring compatibility with other Cisco networking components. This interoperability allows organizations to build cohesive infrastructure ecosystems that operate seamlessly together.

Long-Term Scalability and Network Growth

Enterprise networks evolve continuously as organizations adopt new technologies, expand their workforce, and implement additional digital services. The Cisco WS-C2960G-24TC-L supports scalable network architectures that accommodate future growth. Through uplink connectivity and integration with higher-capacity switches, the device can remain part of a growing network infrastructure.

Scalability ensures that organizations can expand their network capacity without replacing existing hardware prematurely. This capability helps reduce infrastructure costs while supporting long-term technology investments.

Integration with Modern Networking Technologies

Although designed primarily for Layer 2 switching, the Cisco WS-C2960G-24TC-L integrates with broader networking technologies such as wireless infrastructure, unified communications systems, and cloud-based services. The switch provides the reliable wired foundation required to support these modern digital platforms.

Wireless access points, voice over IP systems, and collaborative communication tools depend on stable wired connectivity to deliver consistent performance. The Catalyst 2960G switch ensures that these services operate efficiently by providing dependable network connectivity.

Operational Reliability and Continuous Network Availability

Redundancy and Failover Support

Network reliability is essential for business continuity. The Cisco WS-C2960G-24TC-L includes features designed to maintain connectivity even when hardware or link failures occur. Redundant network paths combined with Spanning Tree Protocol provide automatic failover capabilities that keep networks operational.

When a link becomes unavailable, the switch can redirect traffic through alternative paths, minimizing service disruption. This resilience is particularly important in organizations that depend heavily on digital communication and online services.

Consistent Performance Under Heavy Workloads

Enterprise networks often experience periods of intense data traffic due to file transfers, cloud synchronization, video conferencing, and application updates. The hardware architecture of the Cisco WS-C2960G-24TC-L ensures that performance remains stable even during high network utilization.

Advanced traffic management capabilities prioritize critical network services while maintaining fair bandwidth distribution among connected devices. This approach ensures that essential business applications continue to function efficiently during peak usage periods.

Dependable Network Infrastructure for Modern Organizations

The Cisco WS-C2960G-24TC-L Catalyst 24 Ports Switch Gigabit Ethernet Layer 2 serves as a dependable foundation for modern network infrastructures. By combining Gigabit Ethernet performance, advanced security features, flexible management capabilities, and scalable connectivity options, the switch supports a wide range of enterprise networking requirements.

Organizations seeking reliable access-layer switching solutions benefit from the proven design and operational stability of the Catalyst 2960G series. Whether deployed in office networks, educational campuses, or small data center environments, the switch provides the connectivity and performance required to support today’s digital business operations.
