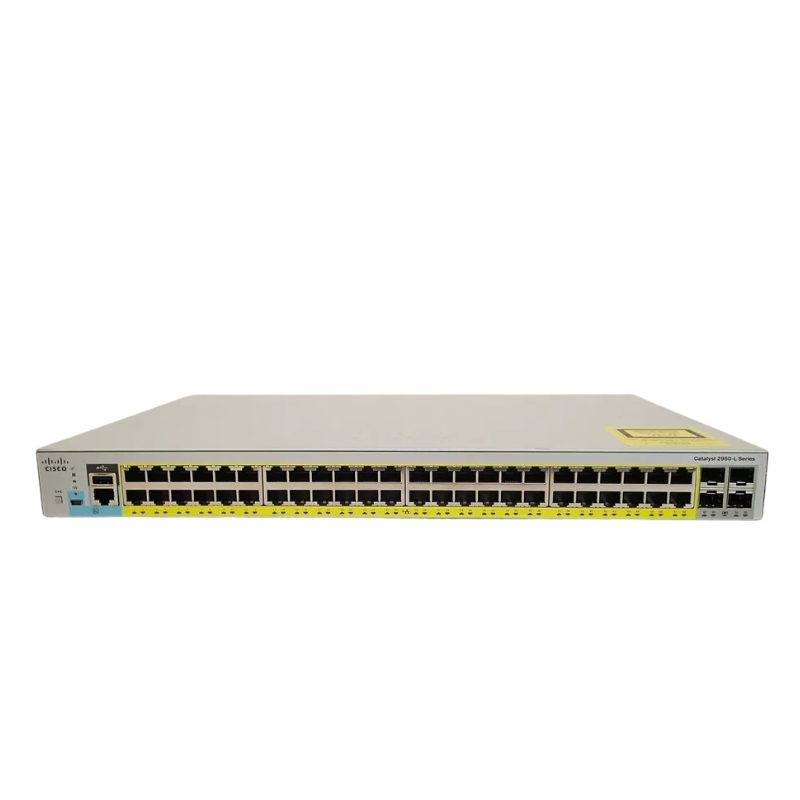

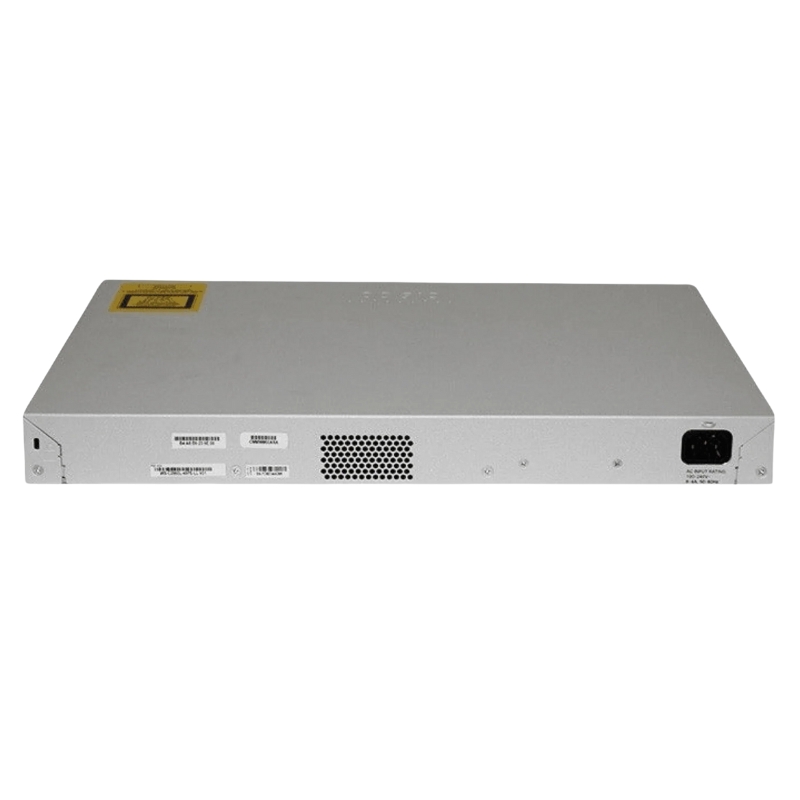

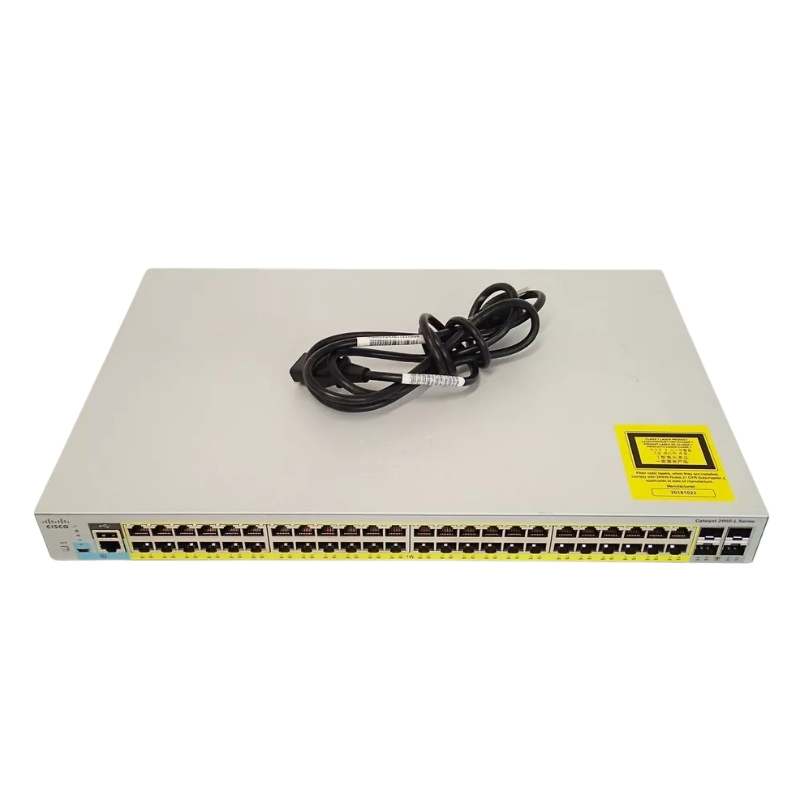

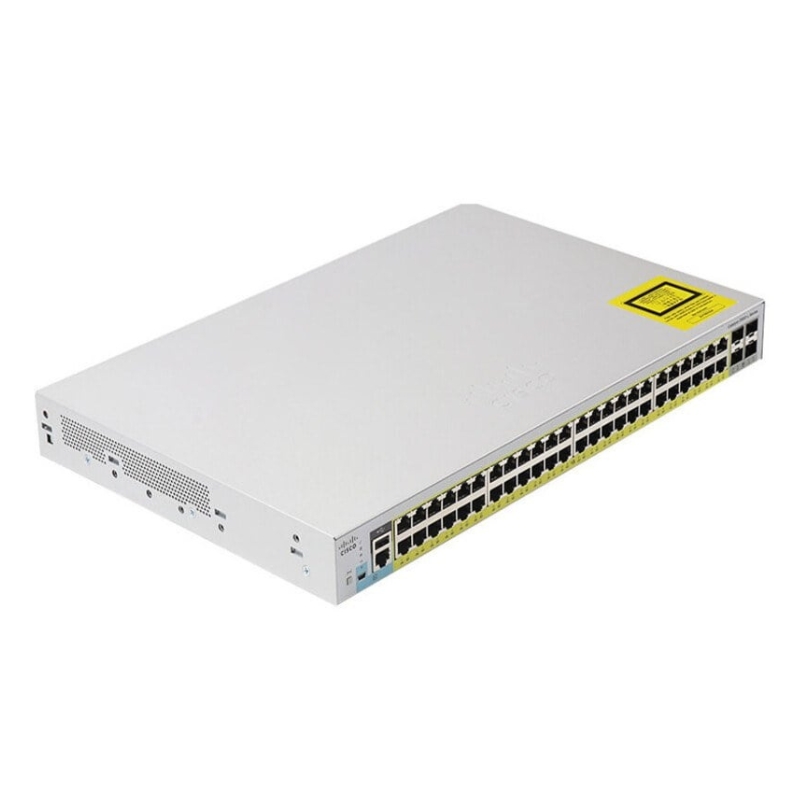

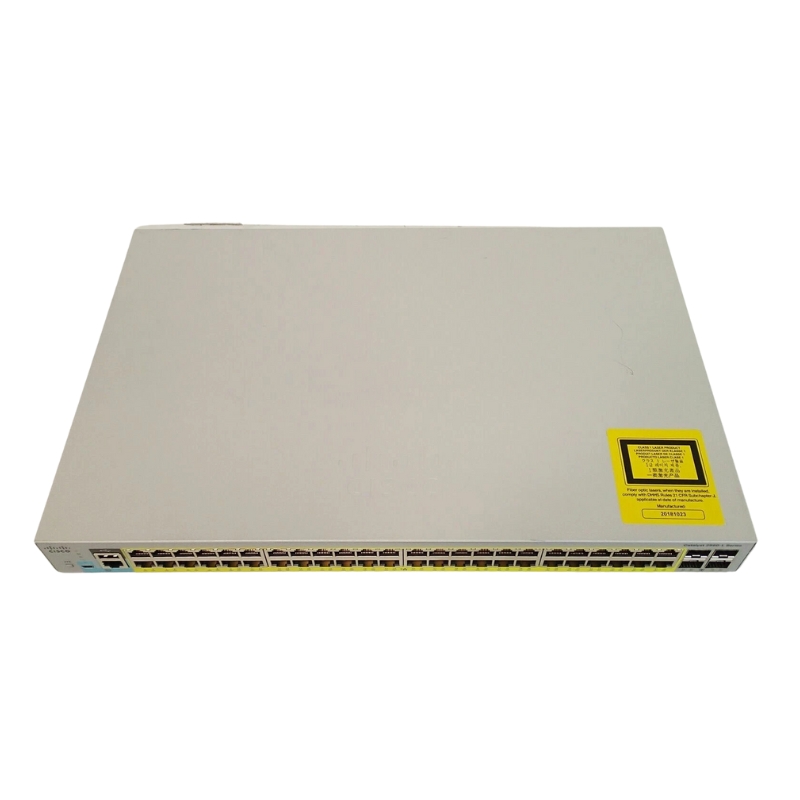

Cisco WS-C2960L-48PS-LL Layer 4 Catalyst Switch

Cisco WS-C2960L-48PS-LL Managed L4 Switch

General Product Information

• Manufacturer: Cisco
• Model Number: WS-C2960L-48PS-LL
• Product Line: Catalyst
• Product Series: 2960-L
• Product Type: Ethernet Switch

Interfaces and Ports

Port Configuration

• Total Network Ports: 48 Gigabit Ethernet
• Uplink Ports: Yes
• Modular Ports: Yes
• Stack Ports: No
• Expansion Slots: 4 SFP

Performance Details

Supported Media Types

• Media Types: Optical Fiber, Twisted Pair
• Ethernet Technologies: 10 Gigabit Ethernet, Gigabit Ethernet
• Network Technologies: 10/100/1000Base-T, 1000Base-X

Network and Communication

Layer and Protocols

• Layer Supported: 4
• Routing Protocols: IGMP, MLD, MLDv2
• Remote Management: CLI, HTTP, RMON, RMON 2, SNMP v1, SNMP v2c, SNMP v3, SSH, Telnet, TFTP

Compliance and Standards

• Standards Compliant: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Advanced Features

• Access Control List (ACL) Support: Yes
• ARP Support: Yes
• Auto-negotiation: Yes
• Auto-uplink (Auto MDI/MDI-X): Yes
• BOOTP Support: Yes
• Broadcast Storm Control: Yes
• Cisco EnergyWise Technology: Yes
• Class of Service (CoS): Yes
• DHCP Snooping: Yes
• Dynamic ARP Inspection (DAI): Yes
• Dynamic Trunking Protocol (DTP): Yes
• Dynamic VLAN Support (GVRP): Yes
• Energy Efficient Ethernet: Yes
• Fanless Design: Yes
• IGMP Filtering: Yes
• Internet Control Message Protocol (ICMP): Yes
• Intrusion Detection System (IDS): Yes
• Link Aggregation Control Protocol (LACP): Yes
• Management Information Base (MIB): Yes
• Multicast Storm Control: Yes
• Multiple Spanning Tree Protocol (MSTP) Support: Yes
• Network Timing Protocol (NTP): Yes
• Port Aggregation Protocol (PAgP) Support: Yes
• Port Security: Yes
• Rapid Per-VLAN Spanning Tree Plus (PVRST+): Yes
• Rapid Spanning Tree Protocol (RSTP) Support: Yes
• Spanning-tree Root Guard (STRG): Yes
• Unicast Storm Control: Yes
• Uni-Directional Link Detection (UDLD): Yes
• VLAN Trunking Protocol (VTP): Yes
• Weighted Round Robin (WRR) Queuing: Yes
• Weighted Tail Drop (WTD): Yes

Power and Environmental Specifications

• Power Source: Power Supply

Ports:

The Cisco WS-C2960L-48PS-LL Ethernet Catalyst Switch is equipped with an impressive 48 ports, making it an ideal choice for businesses and organizations that require a high-performance network infrastructure. These ports provide the essential connectivity needed to connect a wide range of devices, including computers, printers, servers, and other network devices.

Increased Connectivity:

With 48 ports, this Cisco switch offers users a significant increase in connectivity options. Whether you have a small business with multiple workstations or a large enterprise with numerous departments, the abundance of ports ensures that you can connect all your devices without the need for additional switches or hubs. This eliminates the hassle of dealing with tangled cables and simplifies network management.

Flexibility and Scalability:

The 48 ports on the Cisco WS-C2960L-48PS-LL Ethernet Catalyst Switch provide users with unparalleled flexibility and scalability. Each port supports various connection speeds, including 10/100/1000 Mbps, allowing you to connect devices with different network requirements. Furthermore, these ports are compatible with both Ethernet and Gigabit Ethernet cables, enabling seamless integration into existing network setups.

Whether you need to expand your network in the future or accommodate new devices, this switch offers the scalability to meet your evolving needs. You can easily add or remove devices without disrupting the entire network infrastructure. This flexibility ensures that your network can adapt to changes in your organization's requirements without costly upgrades or replacements.

Power over Ethernet (PoE) Support:

In addition to its 48 ports, the Cisco WS-C2960L-48PS-LL switch also features Power over Ethernet (PoE) support on all its ports. PoE technology allows you to power compatible devices directly through the Ethernet cable, eliminating the need for separate power supplies or outlets. This feature is particularly beneficial for devices such as IP phones, wireless access points, and IP cameras, as it simplifies installation and reduces cable clutter.

Cost and Time Savings:

By leveraging the PoE support on the Cisco WS-C2960L-48PS-LL switch, you can save both time and money. With traditional setups, installing devices that require separate power supplies would involve additional wiring and electrical work. This not only adds to the installation time but also increases the overall cost.

However, with PoE support, you can simply connect compatible devices to any of the 48 ports on this switch, and they will receive power and data simultaneously. This streamlined installation process saves both time and money, making it an attractive choice for businesses looking to optimize their network infrastructure.

Flexibility in Device Placement:

Another advantage of PoE support is the flexibility it offers in device placement. With traditional setups, devices needing a power source are limited to locations near electrical outlets. This can be highly restrictive in terms of device placement and may require additional wiring to reach the desired location.

However, with PoE-enabled switches like the Cisco WS-C2960L-48PS-LL, you can place devices wherever they are needed most, even if there is no nearby power outlet. This allows for greater flexibility in organizing your network infrastructure and ensures that devices can be located in optimal positions for maximum efficiency.

Enhanced Network Management:

The 48 ports on the Cisco WS-C2960L-48PS-LL switch play a crucial role in network management. Each port can be individually configured and monitored, allowing for fine-grained control over network traffic. This level of control is essential for optimizing network performance, ensuring smooth data transmission, and preventing bottlenecks.

Additionally, the switch supports advanced management features such as VLANs (Virtual Local Area Networks) and QoS (Quality of Service). VLANs enable the segmentation of the network into separate virtual networks, enhancing security and network performance. QoS allows you to prioritize certain types of traffic, ensuring that critical applications receive the necessary bandwidth for uninterrupted operation.

Improved Network Security:

With the increasing prevalence of cybersecurity threats, network security has become a top priority for businesses. The Cisco WS-C2960L-48PS-LL switch addresses this concern by providing enhanced network security features.

The 48 ports on this switch support features such as MAC address filtering, which allows you to specify which devices can access the network based on their unique MAC addresses. This helps prevent unauthorized devices from gaining access to your network.

Additionally, the switch supports advanced security protocols such as IEEE 802.1X authentication, which provides an extra layer of protection by requiring users and devices to authenticate before being granted access to the network. This prevents unauthorized users from connecting to your network and helps safeguard sensitive data.

In conclusion, the Cisco WS-C2960L-48PS-LL Ethernet Catalyst Switch's 48 ports offer numerous benefits and are of great importance for users. The increased connectivity options and flexibility provided by these ports simplify network management and allow for seamless expansion as your organization grows. The Power over Ethernet support not only saves time and money but also provides greater flexibility in device placement. The switch's advanced management and security features further enhance network performance and protect against cybersecurity threats. With its impressive port count and comprehensive feature set, the Cisco WS-C2960L-48PS-LL is a reliable choice for businesses seeking a high-performance and secure network infrastructure.
