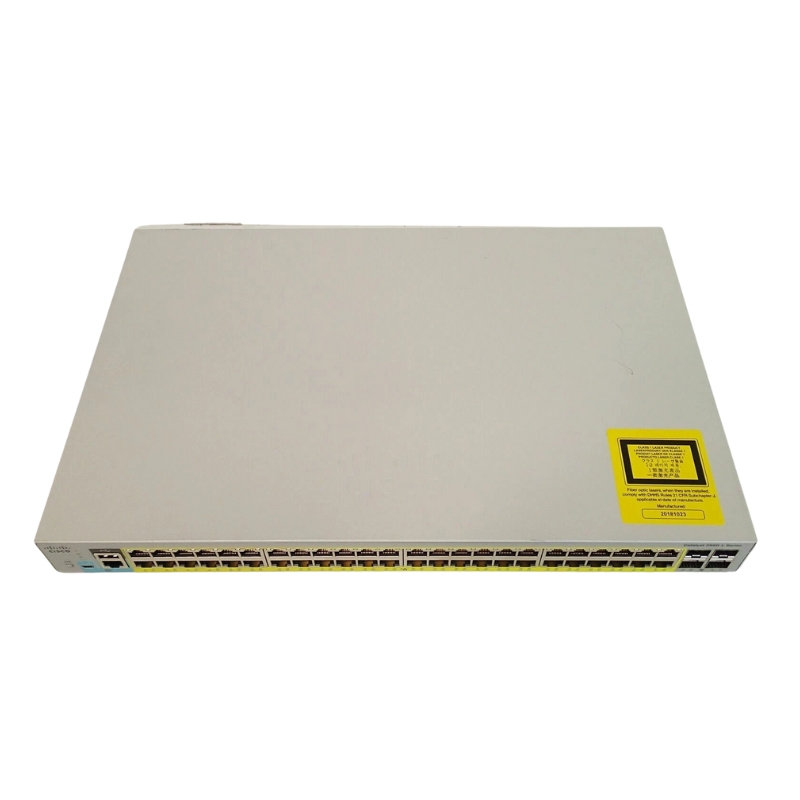

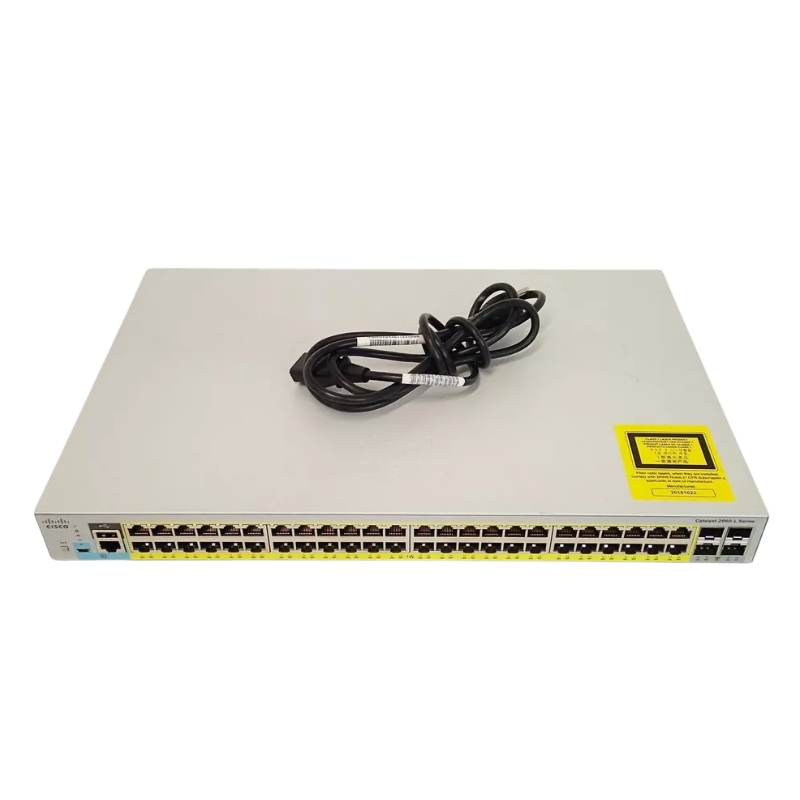

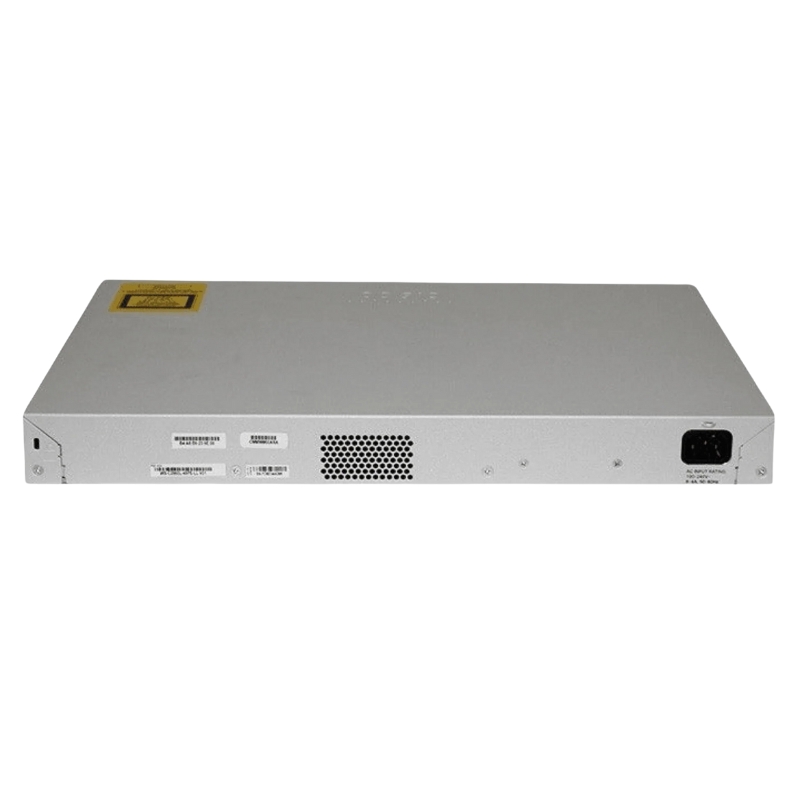

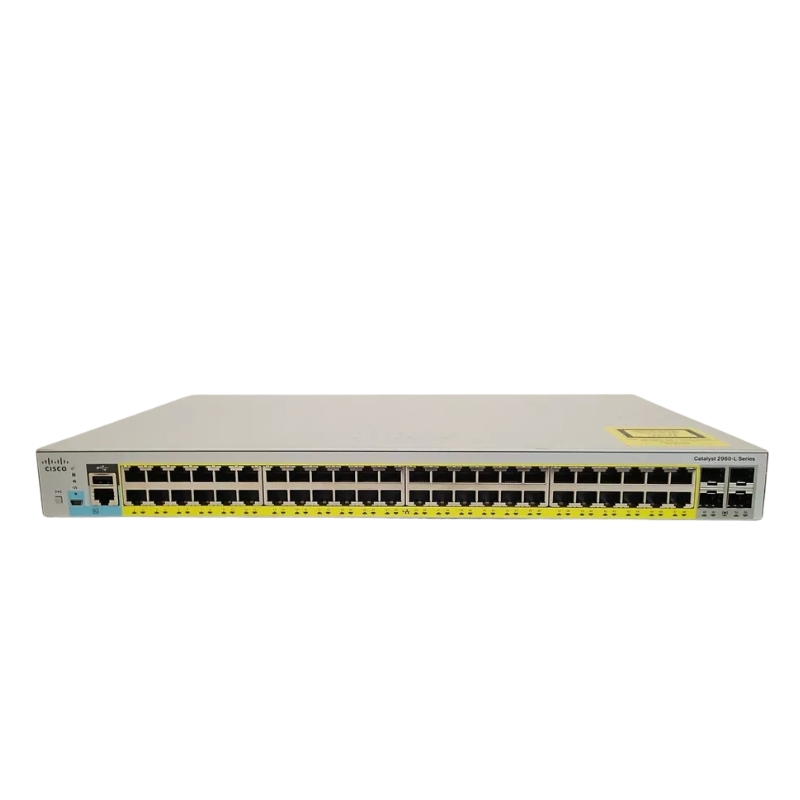

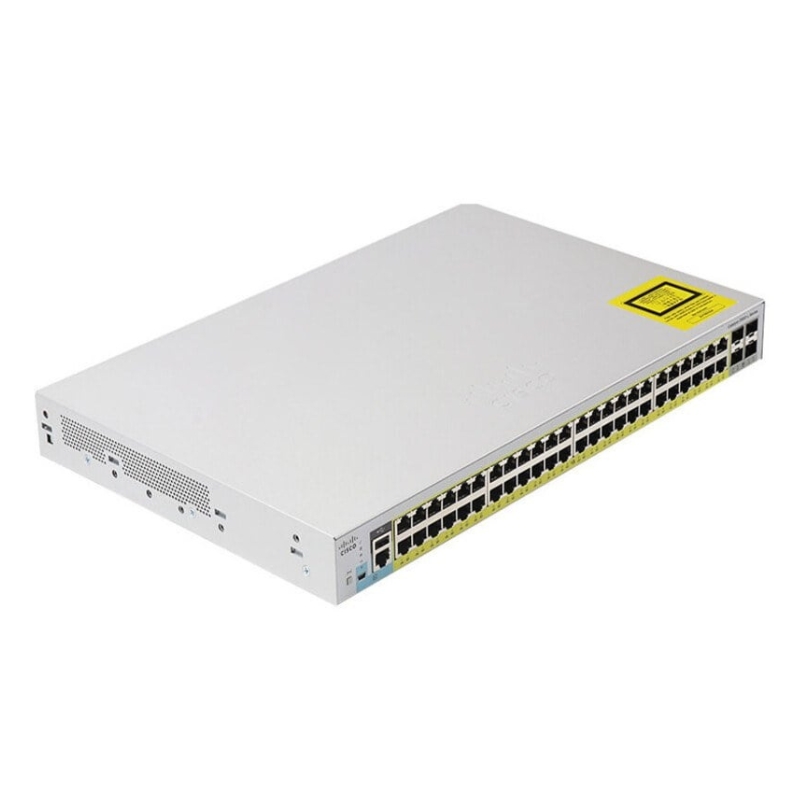

Cisco WS-C2960L-48TQ-LL Catalyst 2960L Managed Ethernet Switch

Cisco WS-C2960L-48TQ-LL Overview

General Product Information

• Manufacturer: Cisco
• Model Number: WS-C2960L-48TQ-LL
• Type: Ethernet Switch

Console Ports

• RJ45 Ethernet: 1
• USB Mini-B: 1
• 10/100/1000 Ethernet Ports: 48
• USB-A Port: 1 (for storage and Bluetooth console)

Performance and Capacity

• Forwarding Bandwidth: 88 Gbps
• Switching Bandwidth: 176 Gbps
• Forwarding Rate (64-byte L3 packets): 77.38 Mpps
• Unicast MAC Addresses: 8K
• Maximum Active VLANs: 64
• Available VLAN IDs: 4094
• Maximum STP Instances: 64
• Maximum SPAN Sessions: 1
• MTU-L3 Packet Size: 9198 bytes
• Jumbo Frame Size: 10,240 bytes

Memory and Processing

• CPU: ARMv7, 800 MHz
• DRAM: 512 MB
• Flash Memory: 256 MB

Environmental Specifications

Operating Conditions

• Temperature Range (up to 5,000 ft): 23ºF to 113ºF (–5ºC to 45ºC)
• Temperature Range (up to 10,000 ft): 23ºF to 104ºF (–5ºC to 40ºC)
• Altitude: 10,000 ft (3000m)
• Relative Humidity: 5% to 90% at 40ºC

Storage Conditions

• Temperature Range: –13º to 158ºF (–25º to 70ºC)
• Altitude: 15,000 ft (4500m)
• Relative Humidity: 5% to 95% at 65ºC
• Cold Start Temperature: Minimum 0°C (32°F)

Electrical Specifications

• Voltage (Auto-ranging): 110 to 220V AC
• Frequency: 50 to 60 Hz
• Current: 0.29A to 0.48A
• Maximum Power Consumption: 0.09 kVA
• Power Usage:
  • 0% Traffic: 29.7 Watts
  • 10% Traffic: 41.1 Watts
  • 100% Traffic: 41.1 Watts
  • Weighted Average: 37.3 Watts

Safety and Compliance

• Safety Standards: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
• EMC Emissions: 47CFR Part 15 Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A
• EMC Immunity: EN55024, CISPR24, EN300386, KN24
• Environmental Compliance: RoHS Directive 2011/65/EU
• Telco Certification: Common Language Equipment Identifier (CLEI) code
• Government Certifications: USGv6 and IPv6 Ready Logo

Connectors and Interfaces

• 10BASE-T Ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 UTP cabling
• 100BASE-TX Ports: RJ-45 connectors, 2-pair Category 5 UTP cabling
• 1000BASE-T Ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
• 1000BASE-T SFP-Based Ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

Indicator LEDs

Details about indicator LEDs are not specified in this document.

Ports

48 Gigabit Ethernet Ports

The Cisco WS-C2960L-48TQ-LL Managed Ethernet Switch is equipped with remarkable 48 Gigabit Ethernet ports. This extensive port capacity makes it an ideal choice for medium to large-sized businesses that require a high-performing network infrastructure. With 48 ports available, this switch allows for seamless connectivity and data transfer between multiple devices, ensuring smooth operations and enhanced productivity.

Increased Flexibility and Scalability

Having 48 Gigabit Ethernet ports on the Cisco WS-C2960L-48TQ-LL offers increased flexibility and scalability for businesses. Each port provides a reliable and high-speed connection for various devices such as computers, servers, printers, and IP phones. This versatility allows organizations to easily expand their network as needed without worrying about running out of available ports. Whether you need to add more devices or accommodate future growth, the abundance of ports on this switch ensures your network can adapt to changing requirements effortlessly.

Enhanced Network Performance

The 48 Gigabit Ethernet ports on this Cisco switch significantly contribute to enhanced network performance. Each port supports Gigabit speeds, providing up to 1000Mbps of data transfer rates. This high-speed connectivity enables fast and efficient communication between devices, reducing latency and ensuring smooth data transmission. Whether you are transferring large files, streaming high-definition media, or engaging in bandwidth-intensive applications, the 48 Gigabit Ethernet ports ensure that your network can handle the demands without compromising performance.

Improved Work Efficiency

The availability of 48 Gigabit Ethernet ports on the Cisco WS-C2960L-48TQ-LL directly translates into improved work efficiency. With a sufficient number of ports, employees can connect their devices directly to the network without the need for additional hardware or complex configurations. This plug-and-play functionality simplifies the process of onboarding new devices, saving valuable time and effort. Furthermore, the high-speed connectivity provided by these ports enables employees to access and share data quickly, fostering collaboration and productivity within the organization.

Reduced Network Congestion

Network congestion can severely impact performance and user experience. However, with 48 Gigabit Ethernet ports available on the Cisco WS-C2960L-48TQ-LL, the likelihood of network congestion is significantly reduced. The ample number of ports allows for better distribution of network traffic, minimizing bottlenecks and ensuring smooth data flow. This is particularly crucial in environments with a high volume of network-intensive tasks, such as large file transfers or video conferencing. By providing an abundance of ports, this switch helps maintain optimal network performance and user satisfaction.

Future-Proof Investment

Investing in a network switch with 48 Gigabit Ethernet ports offers long-term benefits for businesses. As technology continues to evolve, the demand for high-speed connectivity and the number of devices requiring network access will only increase. By choosing a switch with 48 ports, organizations can future-proof their network infrastructure and avoid the need for immediate upgrades or replacements. This forward-thinking approach saves both time and resources in the long run, allowing businesses to focus on their core operations without worrying about network limitations.

In conclusion, the Cisco WS-C2960L-48TQ-LL Managed Ethernet Switch's 48 Gigabit Ethernet ports provide users with increased flexibility, enhanced network performance, improved work efficiency, reduced network congestion, and a future-proof investment. With its remarkable port capacity, this switch ensures seamless connectivity and data transfer between multiple devices within medium to large-sized businesses. Whether you are expanding your network or accommodating future growth, the 48 Gigabit Ethernet ports on this Cisco switch offer unparalleled benefits that directly contribute to a reliable and high-performing network infrastructure.
