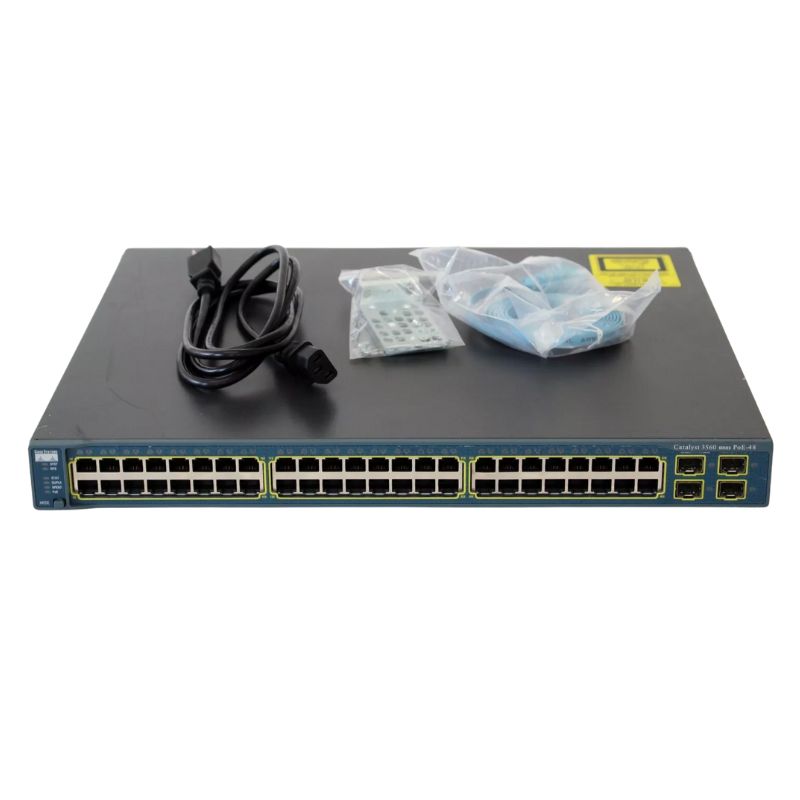

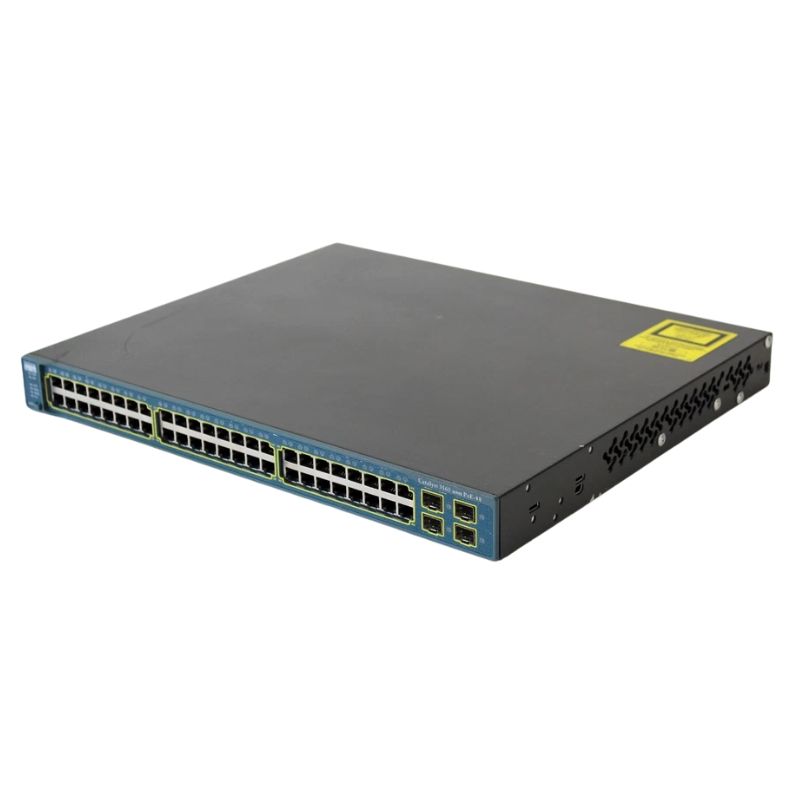

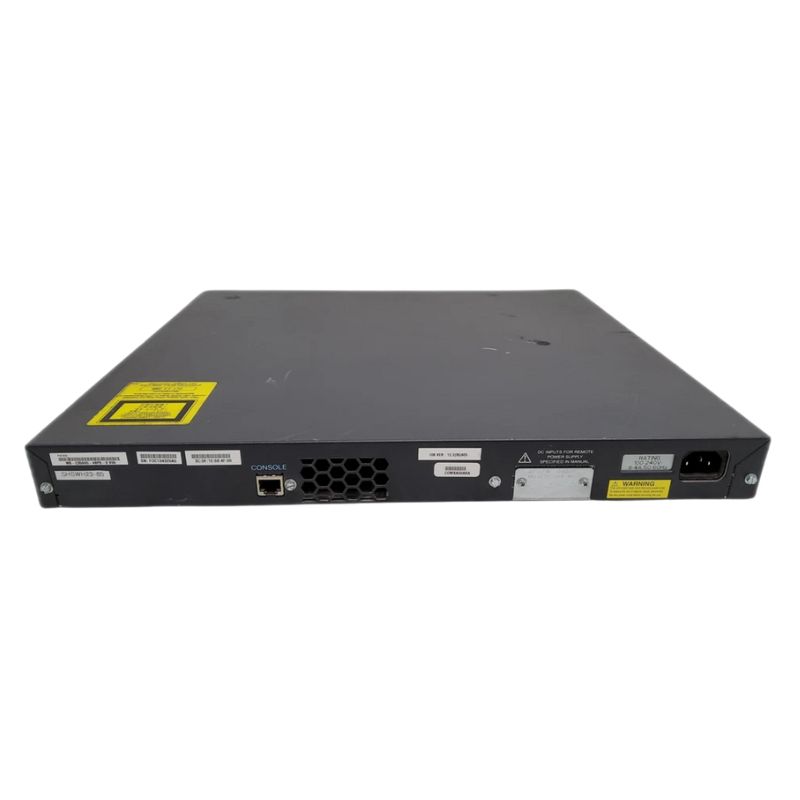

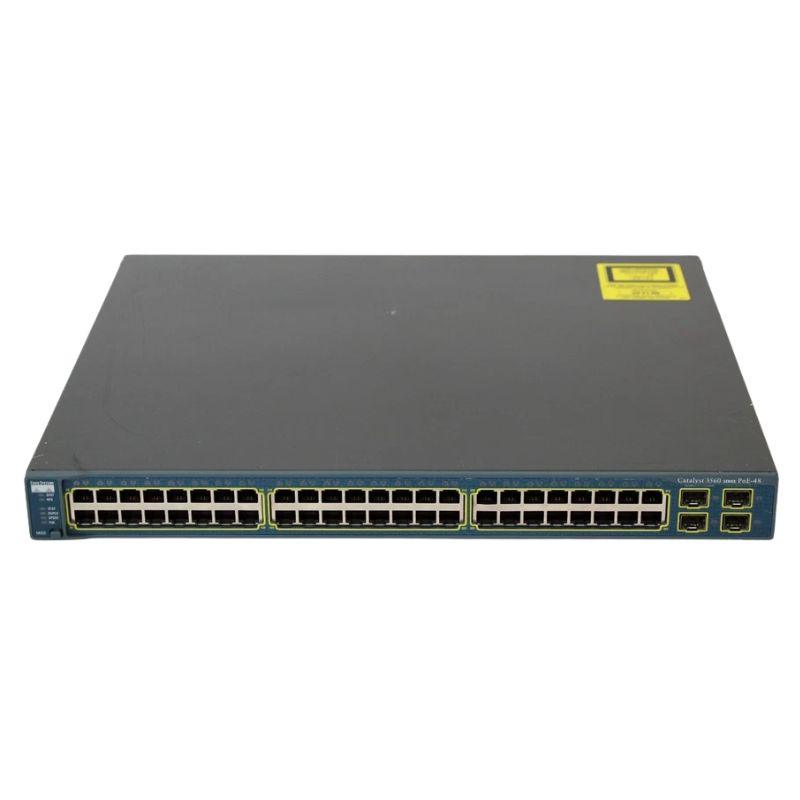

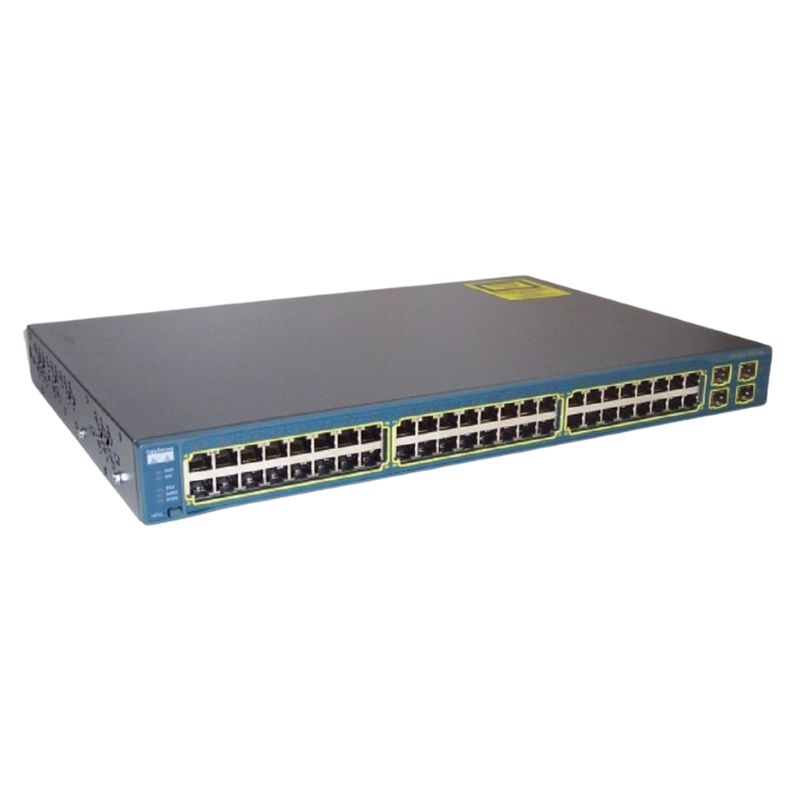

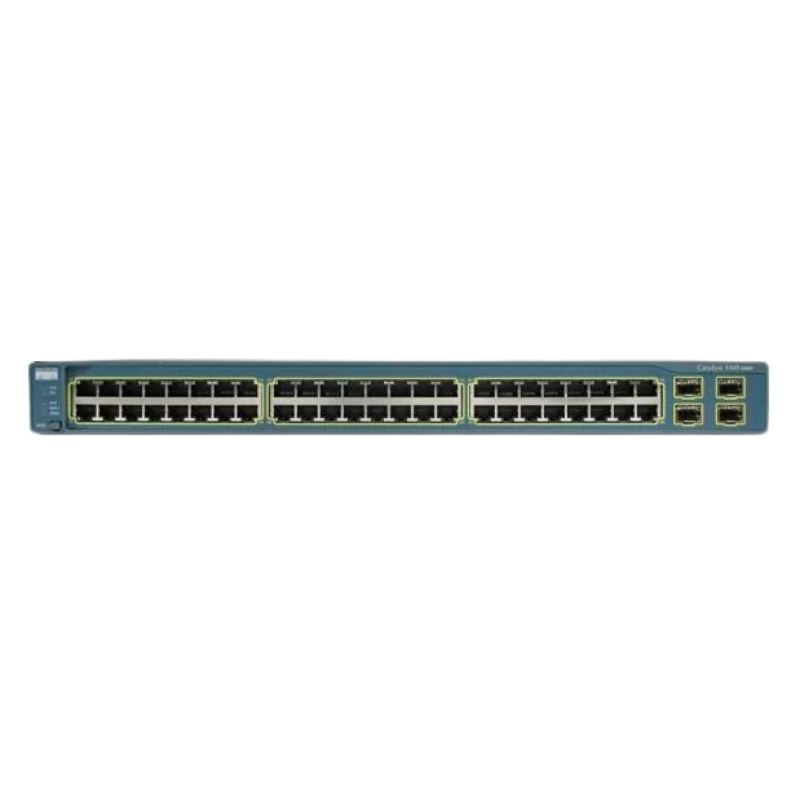

Cisco WS-C3560-48PS-S Catalyst 3560 Ethernet Switch, 48 Ports

Ports

The Cisco Catalyst 3560 Cisco WS-C3560-48PS-S Ethernet Switch is equipped with 48 ports, making it an ideal choice for businesses and organizations that require high-density connectivity. These ports provide users with numerous benefits and play a crucial role in ensuring efficient network operations. Let's explore the importance and advantages of the 48 ports feature in more detail.

Cisco WS-C3560-48PS-S Overview

Manufacturer Details

• Brand: Cisco
• Part Number: WS-C3560-48PS-S

Product Series

Series: 3560

Type of Device

Type: Managed Switch

Port Configuration

• Total Ports: 48
• Management Port: Present
• PoE (RJ-45) Ports: 48
• Token Ring Port: Absent
• LRE Port: Absent
• Bypass: Not Included

Layer and Media Specifications

• Layer Supported: 3
• Media Type: Twisted Pair
• Cable Standard: Category 5
• Ethernet Technology: Fast Ethernet
• Network Technology: 10/100Base-TX

Expansion Capabilities

• Number of Expansion Slots: 4
• Slot Type: SFP
• Shared SFP Slot: Yes
• Number of SFP Slots: 4
• MTBF: 173,500 Hours

Memory Specifications

• Standard Memory: 128 MB
• Flash Memory: 16 MB

Power Requirements

• PoE (RJ-45) Port: Yes
• Input Voltage: 220 V AC, 110 V AC
• Power Source: Power Supply
• Redundant Power Supply: Available

Management Protocols

• Routing Protocols: OSPF, IGRP, BGP-4, RIP-1, RIP-2, EIGRP, HSRP, DVMRP, PIM-SM, static IP routing, PIM-DM, IGMPv3
• Remote Management: SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c

Key Features

• Full Duplex Capability
• Layer 3 and Layer 2 Switching
• Auto-Sensing per Device
• IP Routing
• DHCP Support
• Power over Ethernet (PoE)
• Auto-Negotiation
• Trunking and MPLS Support
• VLAN Support
• Auto-Uplink (Auto MDI/MDI-X)
• IGMP Snooping
• Traffic Shaping
• Manageable
• DHCP Snooping
• Dynamic Trunking Protocol (DTP) Support
• Port Aggregation Protocol (PAgP) Support
• Trivial File Transfer Protocol (TFTP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• DHCP Server
• Virtual Route Forwarding-Lite (VRF-Lite)
• MLD Snooping
• Dynamic ARP Inspection (DAI)
• Time Domain Reflectometry (TDR)

Standards Compliance

• IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q
• IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af
• IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s

Environmental Conditions

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 113 °F
• Humidity Range: 10 – 85%
• Maximum Altitude: 9840 ft

Increased Connectivity

One of the primary benefits of having 48 ports is the significant increase in connectivity options. With this many ports, users can connect a vast number of devices to the network simultaneously. Whether it's computers, printers, IP phones, or other network devices, the Cisco Catalyst 3560 offers ample room for expansion and connection. This high-density connectivity allows businesses to scale their operations seamlessly without worrying about running out of ports.

Flexibility in Network Design

Having 48 ports provides users with unmatched flexibility when it comes to designing their network infrastructure. The abundance of ports allows for intricate network arrangements, enabling businesses to create separate VLANs (Virtual Local Area Networks) for different departments or projects. This segregation helps improve security and enables efficient management of network traffic. Additionally, the Cisco Catalyst 3560 supports advanced features such as Quality of Service (QoS), which prioritizes certain types of traffic over others, ensuring critical applications receive the necessary bandwidth.

Easy Expansion

As businesses grow, their networking needs also evolve. The 48 ports on the Cisco Catalyst 3560 facilitate easy expansion without requiring additional hardware investments. Users can simply connect new devices to the available ports, eliminating the need for costly upgrades or purchasing additional switches. This scalability is particularly beneficial for small and medium-sized businesses that may have limited budgets but still need room for future growth.

Power over Ethernet (PoE) Support

The Cisco WS-C3560-48PS-S Ethernet Switch also features Power over Ethernet (PoE) support on all 48 ports. This capability allows devices such as IP phones, wireless access points, and surveillance cameras to receive power and data through a single Ethernet cable. The PoE feature eliminates the need for separate power sources, reducing clutter and simplifying installation. It also enables flexible placement of devices without the restriction of being near a power outlet.

Cost Savings

By supporting PoE on all 48 ports, the Cisco Catalyst 3560 eliminates the need for additional power infrastructure. This not only reduces installation costs but also lowers ongoing operational expenses. With PoE, businesses can save on electricity bills by efficiently managing power consumption. Additionally, the simplified installation process saves time and effort for IT teams, allowing them to focus on other critical tasks.

Enhanced Device Mobility

The PoE support enables enhanced device mobility within the network infrastructure. Devices powered by PoE can be easily relocated or added without complicated rewiring or reliance on nearby power outlets. This flexibility is particularly advantageous in dynamic environments where devices need to be frequently moved or when new devices are introduced regularly. The 48 PoE ports on the Cisco Catalyst 3560 offer users the freedom to adapt their network infrastructure to changing requirements with minimal effort.

High Performance and Reliability

With 48 ports, the Cisco Catalyst 3560 ensures high performance and reliability, even in demanding network environments. Each port supports fast Ethernet or Gigabit Ethernet speeds, providing fast data transfer rates and efficient communication between devices. The switch's architecture is designed to handle heavy network traffic seamlessly, preventing bottlenecks and ensuring smooth operations.

Redundancy and Failover Protection

The Cisco Catalyst 3560 is equipped with features that enhance network reliability and minimize downtime. With its 48 ports, the switch supports link aggregation, allowing users to combine multiple ports into a single logical link. This configuration provides redundancy and load balancing, ensuring uninterrupted connectivity even if one link fails. The switch also supports Spanning Tree Protocol (STP), which prevents network loops and automatically redirects traffic in case of link failures. These features contribute to a stable and resilient network infrastructure, reducing the risk of disruptions and maximizing uptime.

Advanced Security Measures

The 48 ports on the Cisco Catalyst 3560 enable the implementation of robust security measures to safeguard the network and connected devices. With separate VLANs for different departments, users can isolate sensitive data or restrict access to specific resources. The switch supports advanced security protocols such as 802.1X authentication, port security, and Access Control Lists (ACLs), providing granular control over network access and preventing unauthorized access or malicious activities.

Conclusion

The Cisco Catalyst 3560 Cisco WS-C3560-48PS-S Ethernet Switch's 48 ports offer numerous benefits and play a vital role in ensuring seamless connectivity, scalability, and network efficiency. The high-density connectivity allows businesses to connect a wide range of devices simultaneously, while the PoE support simplifies installation and enhances device mobility. With features like redundancy, advanced security measures, and high-performance capabilities, the Cisco Catalyst 3560 is an excellent choice for organizations looking for a reliable and versatile Ethernet switch.
