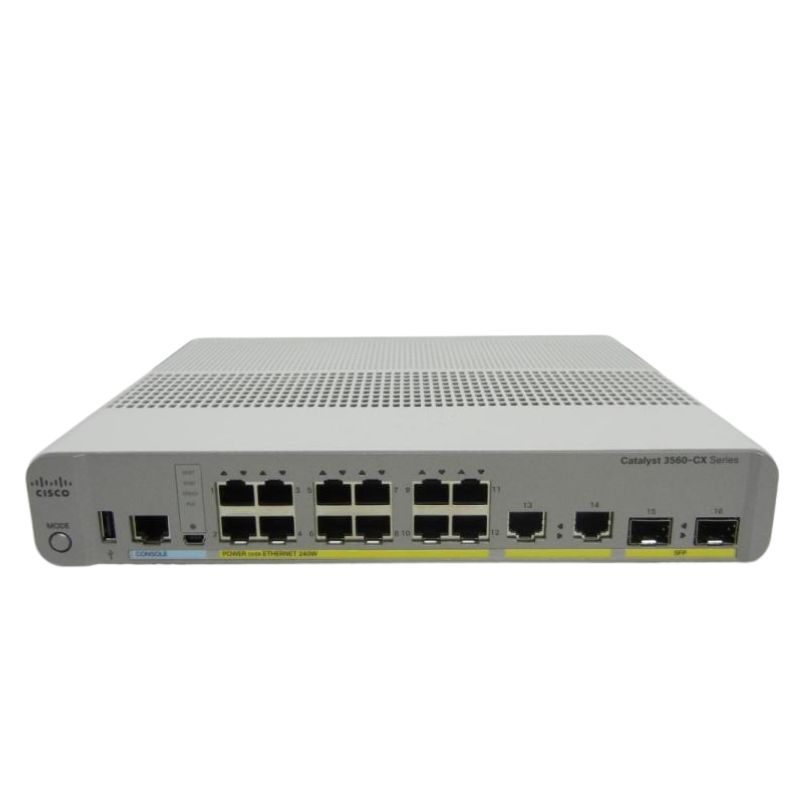

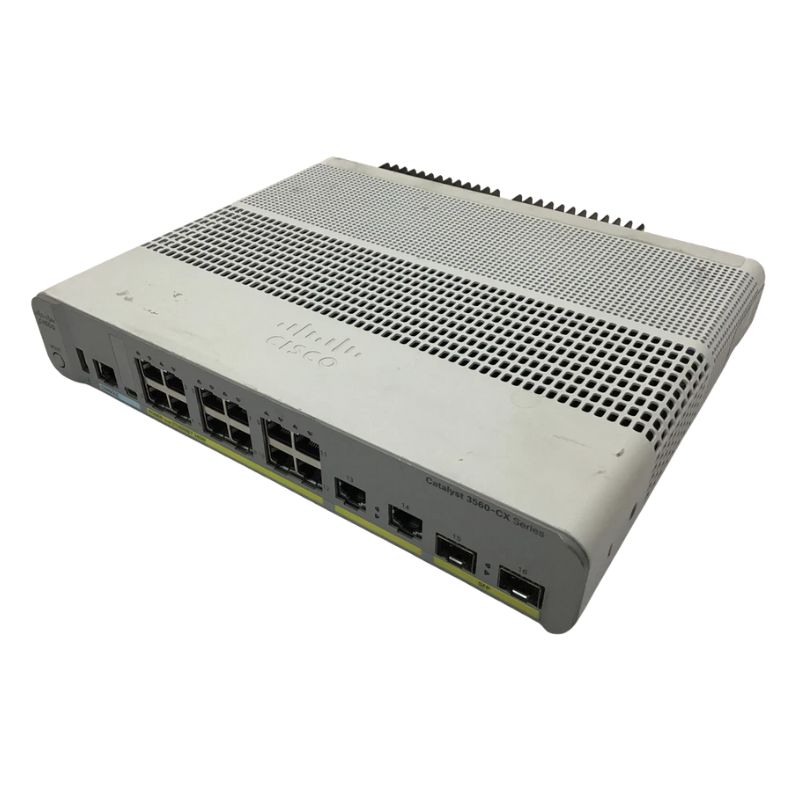

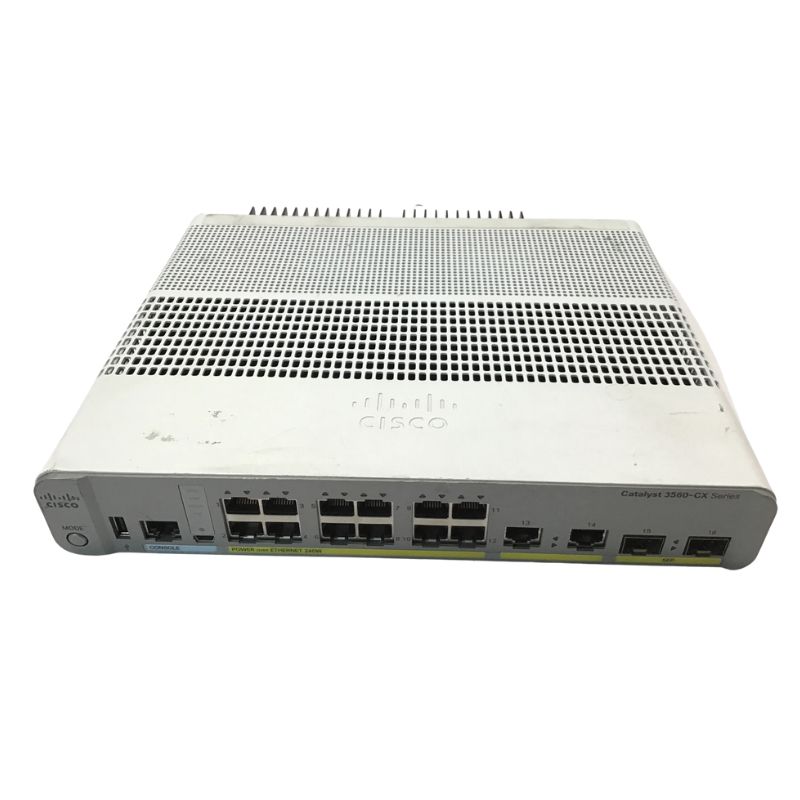

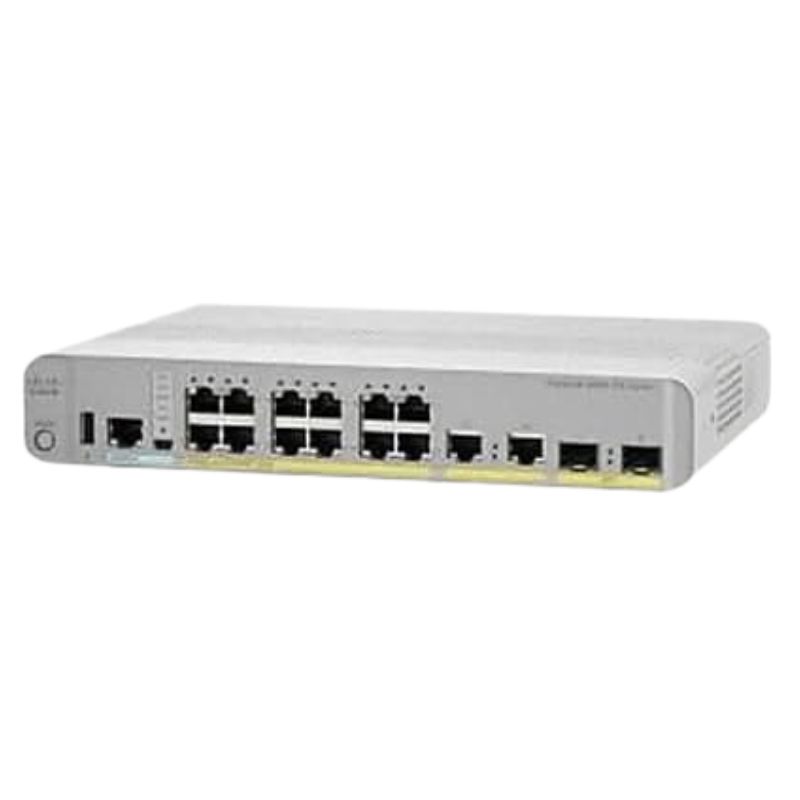

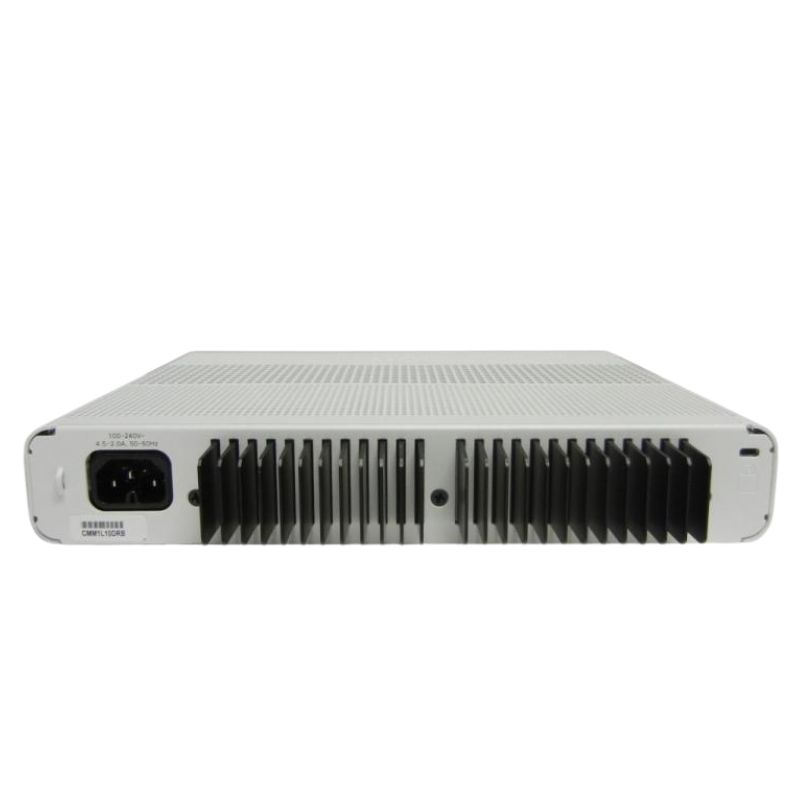

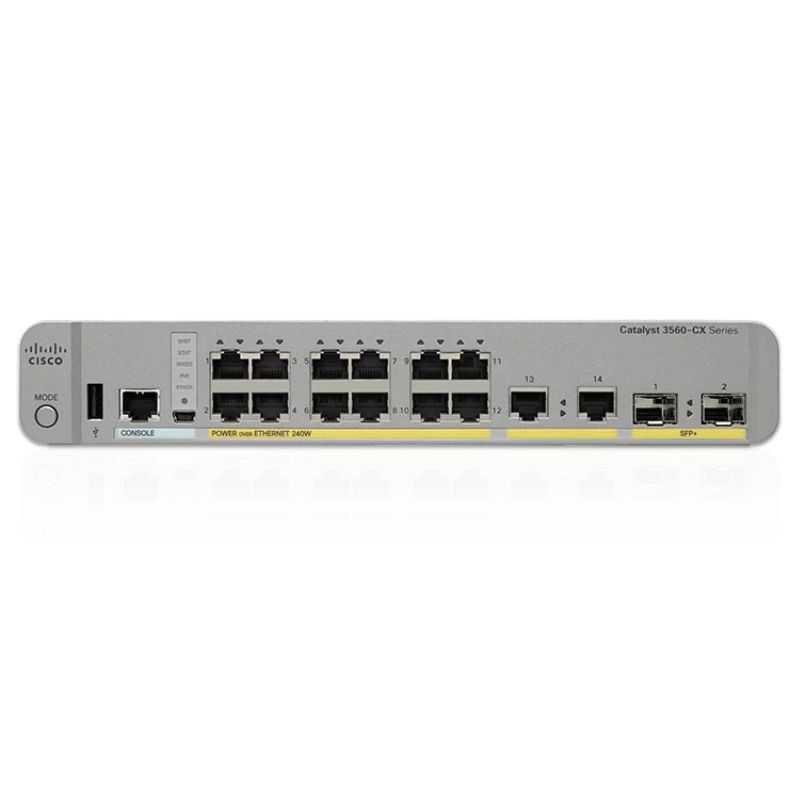

Cisco WS-C3560CX-12PD-S Layer 3 Catalyst 3560-CX 12 Ports Managed Switch

Ports

The Cisco WS-C3560CX-12PD-S Managed Switch is equipped with 12 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient network infrastructure. These ports provide the necessary connectivity for devices such as computers, printers, and servers, ensuring seamless communication and data transfer within the network.

WS-C3560CX-12PD-S Overview

Device Specifications

• Type: Managed Switch
• Ports: 12 x 10/100/1000 (PoE+) + 2 x Combo SFP+
• Enclosure Options: Desktop, Rack-mountable, Din Rail Mountable, Wall-mountable 1U

Performance and Capacity

• Forwarding Capacity: 34 Gbps
• Forwarding Rate (64-byte Packets): 50.6 Mpps
• VLANs Supported: Up to 1023
• Jumbo Frame Support: 9018 Bytes

Power Over Ethernet (PoE)

• PoE Standard: PoE+
• PoE Budget: 240 W

Routing and Management Protocols

• Routing Protocols: RIP-1, RIP-2, Static IP Routing
• Remote Management: SNMP v1, SNMP v2c, SNMP v3, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, HTTP, TFTP, CLI

Advanced Features

• BootP Support
• ARP Support
• VLAN Support
• Syslog Support
• DiffServ Support
• IPv6 Support
• Spanning Tree Protocol (STP) Support
• DHCP Snooping
• Port Aggregation Protocol (PAgP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• Fanless Design
• Shaped Round Robin (SRR)
• MAC Address Notification
• Remote Switch Port Analyzer (RSPAN)
• Energy Efficient Ethernet
• Multicast VLAN Registration (MVR)
• Class of Service (CoS)
• Weighted Tail Drop (WTD)

Compliance and Standards

• IEEE Standards: 802.3, 802.3u, 802.3z, 802.1d, 802.1q, 802.3ab, 802.1p, 802.3af, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3ah, 802.1ae, 802.1ab (LLDP), 802.3az

Power Requirements

• Power Supply: AC 120/230 V (50/60 Hz)

High Port Density

The 12 ports offered by the Cisco WS-C3560CX-12PD-S Managed Switch provide high port density, allowing users to connect multiple devices simultaneously. This feature is particularly useful in environments where there is a high demand for network connectivity, such as offices with a large number of employees or classrooms with numerous students. With 12 ports available, users can easily connect their devices without the need for additional hardware or complicated configurations.

Flexibility and Scalability

With 12 ports, the Cisco WS-C3560CX-12PD-S Managed Switch offers flexibility and scalability, enabling businesses to adapt and expand their network as needed. The switch can accommodate new devices or additional network resources without the need for significant infrastructure changes. This allows businesses to easily scale their network infrastructure according to their growth and evolving needs, making it a cost-effective solution in the long run.

Additionally, the switch supports various connectivity options, including Fast Ethernet and Gigabit Ethernet, providing users with the flexibility to choose the appropriate speed based on their requirements. This versatility ensures that the switch can support both older devices and newer technologies, offering backward compatibility while also preparing for future upgrades.

Improved Network Performance

The 12 ports on the Cisco WS-C3560CX-12PD-S Managed Switch contribute to improved network performance by reducing congestion and optimizing data transfer speeds. With more ports available, there is less likelihood of network bottlenecks, ensuring smooth and uninterrupted communication between devices. This is especially important in environments where there is a high volume of data traffic, such as video streaming, file sharing, or video conferencing.

The switch also features advanced quality of service (QoS) capabilities, allowing users to prioritize network traffic based on their specific requirements. This ensures that critical applications or data receive the necessary bandwidth and are not affected by less important traffic. With 12 ports, users have greater control over their network traffic management, resulting in enhanced performance and improved user experience.

Layer

The Cisco WS-C3560CX-12PD-S Managed Switch operates at Layer 3 of the OSI model, making it a powerful networking device that offers advanced features and capabilities. Layer 3 switches combine the functionalities of traditional Layer 2 switches with routing capabilities, enabling them to make intelligent forwarding decisions based on IP addresses.

Enhanced Routing

With Layer 3 capabilities, the Cisco WS-C3560CX-12PD-S Managed Switch can perform dynamic routing protocols such as OSPF (Open Shortest Path First) and EIGRP (Enhanced Interior Gateway Routing Protocol). These routing protocols allow the switch to exchange routing information with other devices in the network, making it an integral part of a complex network infrastructure.

By incorporating Layer 3 functionality, the switch can make optimized routing decisions based on factors such as network congestion, link quality, and shortest path calculation. This ensures efficient data transfer between different segments of the network and minimizes latency, resulting in improved network performance and reduced packet loss.

Improved Security

Layer 3 switches offer enhanced security features compared to their Layer 2 counterparts. The Cisco WS-C3560CX-12PD-S Managed Switch leverages its Layer 3 capabilities to implement access control lists (ACLs) and other security measures to protect the network from unauthorized access and potential threats.

ACLs allow users to define specific rules and policies to control traffic flow within the network. By filtering traffic based on IP addresses, protocols, or ports, users can restrict access to sensitive resources or block malicious activity. This helps to safeguard critical data and prevent unauthorized users from compromising the network's integrity.

Inter-VLAN Routing

Another key benefit of Layer 3 switches is their ability to perform inter-VLAN routing. VLANs (Virtual Local Area Networks) allow for logical segmentation of the network, separating different departments or groups of users into distinct virtual networks. The Cisco WS-C3560CX-12PD-S Managed Switch can route traffic between these VLANs, enabling communication between different segments while maintaining network security.

This feature offers several advantages, including improved network performance and reduced broadcast domain. By routing traffic between VLANs, the switch minimizes unnecessary broadcast traffic, resulting in a more efficient network and better overall performance. It also enhances network security by isolating and segregating sensitive data or resources from other parts of the network.

In conclusion, the Cisco WS-C3560CX-12PD-S Managed Switch's 12 ports provide high port density, flexibility, and scalability for businesses. The Layer 3 capabilities offer enhanced routing, improved security, and inter-VLAN routing features. These features benefit users by improving network performance, enabling efficient data transfer, enhancing security measures, and providing a flexible and scalable network infrastructure.
