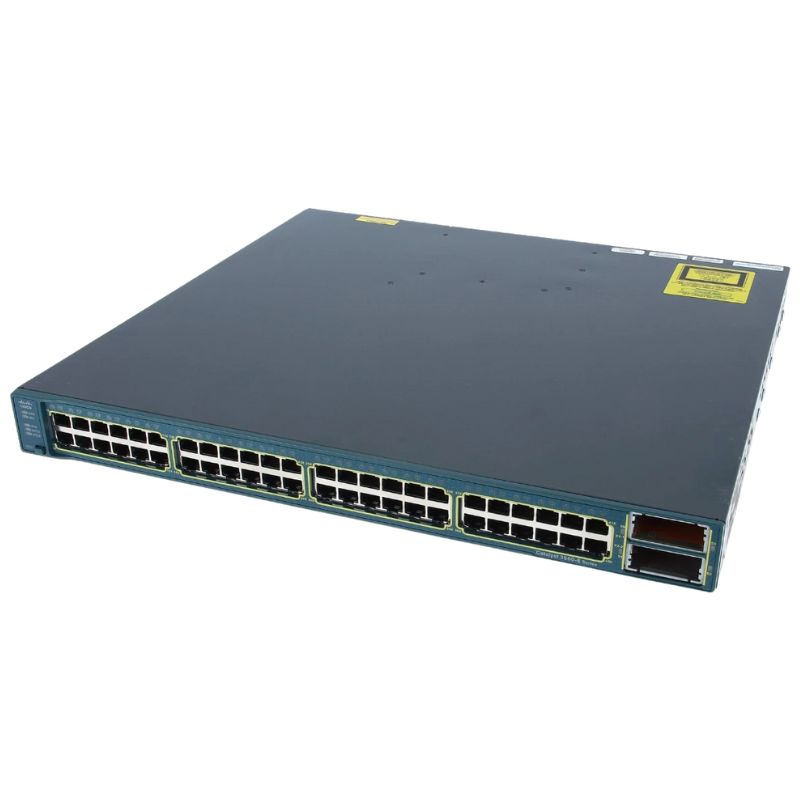

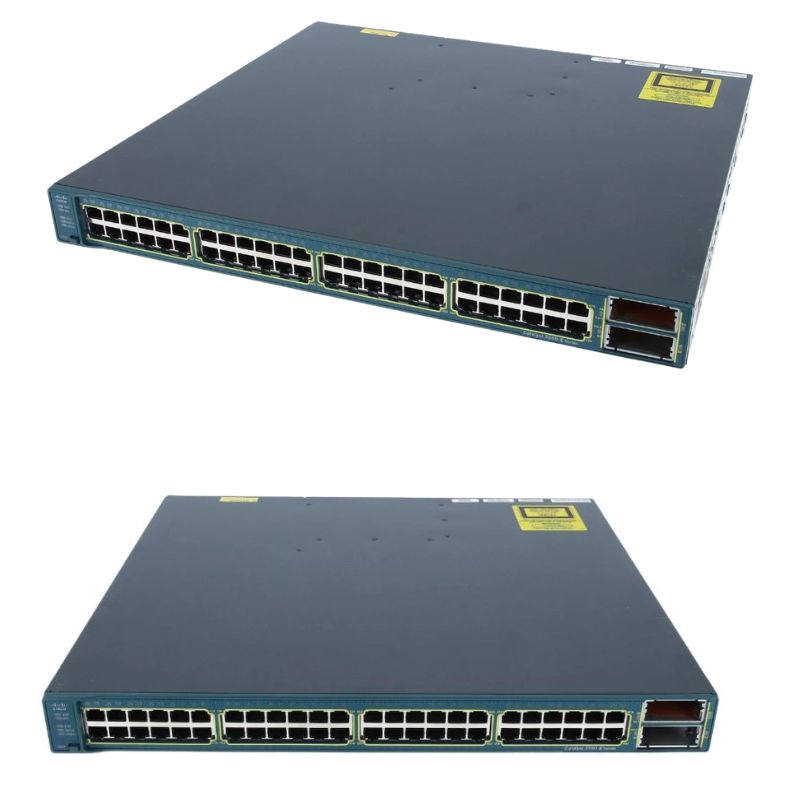

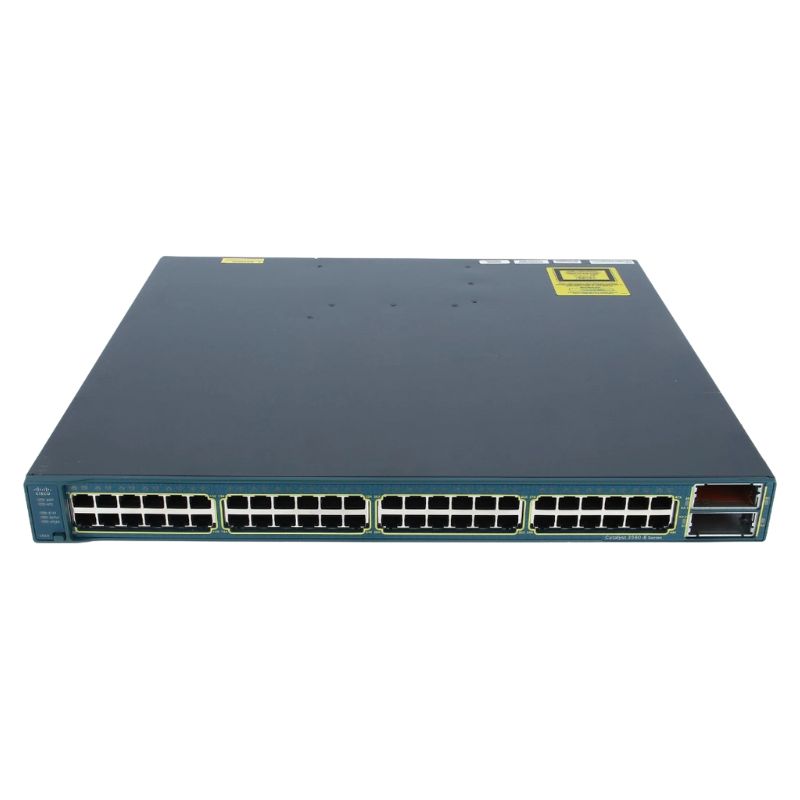

WS-C3560E-48TD-SD Cisco 48-Ports Ethernet Switch

Cisco WS-C3560E-48TD-SD 48-Port Managed Switch

The Cisco WS-C3560E-48TD-SD belongs to the renowned Catalyst 3560-E Series, offering a robust multilayer managed Ethernet solution. Designed for enterprise-grade networks, this switch combines high performance, advanced features, and scalability, making it suitable for both campus and data center environments.

Key Features and General Specifications

• Manufacturer: Cisco
• Part Number: WS-C3560E-48TD-SD
• Product Series: 3560-E
• Product Type: Ethernet Switch
• Product Title: Catalyst 3560E-48TD Multilayer Managed Switch

Port Configuration

• Uplink Ports: 2 x 10 Gigabit Ethernet SFP+
• Management Port: 1 x RJ-45 Serial Console
• Network Ports: 48 x 1 Gigabit Ethernet RJ-45

Performance Specifications

• Layer 2 Switching (basic connectivity)
• Layer 2 Switching (intelligent services)
• Layer 3 Routing Support
• Voice over IP (VoIP) Capable

Form Factor and Deployment

• Fixed Form Factor
• Rack-Mountable Design (1-RU)
• Supports Standalone or Clustering Deployment

Switching Capacity and Performance

• Switching Capacity: 68 Gbps
• Throughput: 101.2 Mpps
• Backplane Bandwidth: 68 Gbps
• Total Network Ports: 48
• Ethernet Technology: Gigabit Ethernet, 10/100/1000Base-T

Power Management and Redundancy

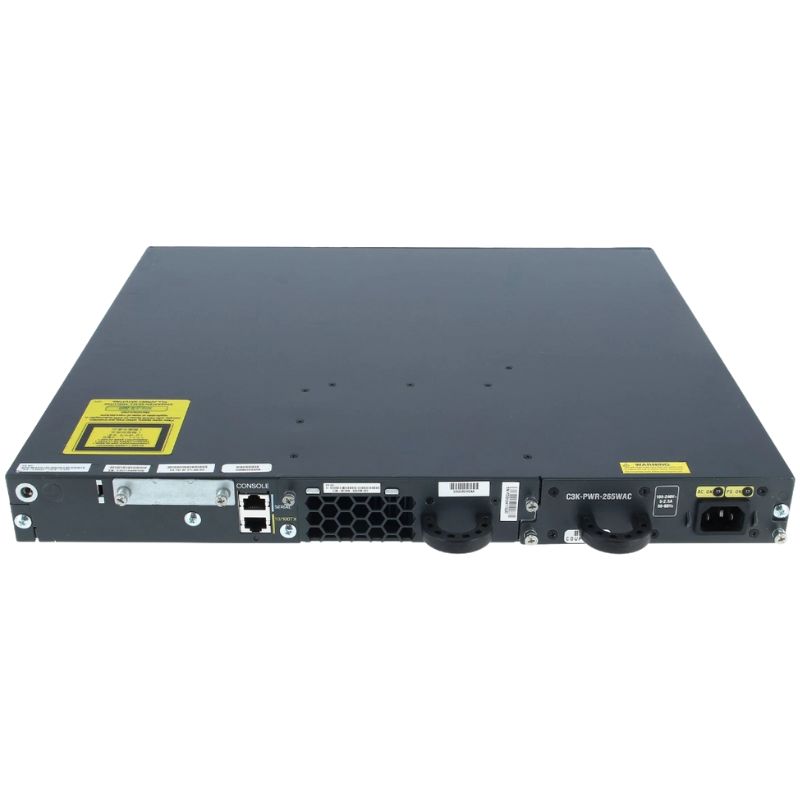

• Included 265W AC power supply (field-replaceable)
• Fan tray included for thermal management
• Support for external redundant power supply
• Internal hardware redundancy for high availability

Rack and Mounting Features

• 1-RU rack mount included
• Flexible installation options for standard network racks

Advanced Network Management

• SPAN (Switched Port Analyzer) for traffic monitoring
• RSPAN (Remote SPAN) for remote traffic analysis
• CiscoView for graphical management
• CDP (Cisco Discovery Protocol)
• VTP (VLAN Trunking Protocol)
• Telnet Client for remote administration
• BOOTP and TFTP support for network boot and file transfers
• CiscoWorks and RMON for enhanced network monitoring
• SNMP management for scalable monitoring
• Web-based graphical interface for easy administration
• Clustering support for unified network management

Scalability and VLAN Capabilities

• Supports up to 1024 VLANs
• VLAN scalability up to 4,000 entries
• High throughput suitable for growing enterprise networks
• WAN interface support: Not applicable

Expansion and Connectivity Options

• Total Expansion Slots: 2
• Expansion Slot Type: X2

Manageability and Protocol Support

• Layer 4 protocol support for advanced traffic management
• Fully manageable via multiple protocols including SNMP, Telnet, and web-based interface
• Supports clustering for simplified network administration

High Availability and Reliability

• Hardware redundancy to prevent service interruption
• Optional external redundant power supply for continuous operation
• Internal redundant power supply ensures uninterrupted connectivity

Performance Optimization

• Optimized Gigabit Ethernet for high-speed data transfer
• Multilayer switching ensures efficient traffic management
• Enhanced network throughput for demanding applications

VoIP Integration

• Voice-capable ports for IP telephony
• Quality of Service (QoS) support for real-time voice and video

Network Flexibility

• Supports both Layer 2 and Layer 3 services for diverse network needs
• Allows integration with existing Cisco network infrastructure
• Enables seamless scaling as network demands grow

Cisco WS-C3560E-48TD-SD 48-Ports Ethernet Switch

The Cisco WS-C3560E-48TD-SD is a high-performance 48-port Ethernet switch that belongs to the renowned Cisco Catalyst 3560E Series. This switch is designed to deliver exceptional scalability, reliable connectivity, and comprehensive Layer 2 and Layer 3 features for enterprise networks. Its advanced hardware architecture and versatile software capabilities make it suitable for demanding applications in campus networks, enterprise data centers, and branch offices.

High-Density 48-Port Connectivity

Equipped with 48 Fast Ethernet ports, the WS-C3560E-48TD-SD provides high-density connectivity for large network deployments. Each port is capable of supporting high-speed data transmission, ensuring smooth communication between devices such as servers, computers, and IP-based devices. The high port density allows network administrators to consolidate connections efficiently and reduce the complexity of network cabling.

Flexible Uplink Options

This switch offers flexible uplink options, featuring two dual-purpose uplink ports that support either Gigabit Ethernet or Small Form-Factor Pluggable (SFP) modules. These uplinks enable seamless integration with existing network infrastructure, allowing organizations to scale their networks without compromising performance or reliability. The SFP uplinks also provide the ability to establish fiber connections over long distances, enhancing network reach and versatility.

Advanced Layer 3 Switching Capabilities

The WS-C3560E-48TD-SD supports comprehensive Layer 3 switching features, including static routing, Routing Information Protocol (RIP), Open Shortest Path First (OSPF), and Enhanced Interior Gateway Routing Protocol (EIGRP). These features allow the switch to perform efficient routing between VLANs, improving network performance and reducing latency. The Layer 3 capabilities also enhance the switch's ability to manage large-scale network traffic efficiently.

Power over Ethernet (PoE) and Energy Efficiency

Although the WS-C3560E-48TD-SD model itself is not PoE-enabled, the Cisco Catalyst 3560E Series includes models that offer Power over Ethernet functionality. For organizations seeking to deploy IP phones, wireless access points, or security cameras, PoE-enabled variants provide a convenient and cost-effective solution. Additionally, Cisco's energy-efficient design ensures lower power consumption without compromising network performance, reducing operational costs and supporting sustainable IT practices.

Robust Security Features

Security is a critical aspect of enterprise networking, and the WS-C3560E-48TD-SD delivers a robust suite of security features to protect network integrity. These include access control lists (ACLs) to restrict unauthorized traffic, secure management through Secure Shell (SSH) and Secure Sockets Layer (SSL), and port security mechanisms to prevent unauthorized devices from connecting. Advanced authentication protocols, including 802.1X, allow organizations to implement user-based access control, ensuring that only authorized personnel gain network access.

Quality of Service (QoS) for Optimized Traffic Management

The switch incorporates advanced Quality of Service (QoS) features to manage network traffic efficiently. QoS ensures that critical applications such as VoIP, video conferencing, and real-time data transfers receive priority over less time-sensitive traffic. By controlling packet flow, bandwidth allocation, and traffic shaping, the WS-C3560E-48TD-SD minimizes congestion and latency, delivering consistent performance for business-critical applications.

Scalability and Network Expansion

Scalability is a key strength of the Cisco WS-C3560E-48TD-SD. The switch supports stacking technology, allowing multiple units to operate as a single logical switch. This capability simplifies management, enhances redundancy, and enables networks to grow without major infrastructure changes. Cisco's StackWise technology ensures that stacked switches operate with high reliability and maintain consistent network performance, even as additional switches are added to the stack.

Comprehensive Network Management

Cisco provides extensive network management tools for the WS-C3560E-48TD-SD, making it easier to monitor, configure, and maintain network operations. The switch is compatible with Cisco Prime Infrastructure, which allows administrators to perform automated configuration, proactive monitoring, and detailed reporting. Additionally, the switch supports industry-standard protocols such as SNMP, RMON, and syslog, facilitating seamless integration with third-party management systems.

Resiliency and High Availability

The WS-C3560E-48TD-SD offers high availability features to maintain uninterrupted network services. Redundant power supplies, support for spanning tree protocols, and fast convergence mechanisms ensure minimal downtime in the event of hardware failures or network disruptions. These resiliency features are essential for enterprise environments where consistent network uptime is critical for business operations.

Flexible Deployment Options

This switch is ideal for various deployment scenarios, including campus access layers, aggregation layers, and small data center environments. Its compact form factor and quiet operation make it suitable for installation in wiring closets, server rooms, and office environments. The WS-C3560E-48TD-SD also integrates seamlessly with other Cisco networking products, including wireless access points, routers, and security appliances, providing a cohesive and flexible network solution.

Enhanced Reliability with Cisco IOS Software

The WS-C3560E-48TD-SD operates on Cisco IOS Software, providing a reliable and feature-rich operating environment. IOS offers a wide range of network protocols, security measures, and management tools that enhance the functionality and stability of the switch. Regular software updates ensure continued support for new technologies, enabling organizations to future-proof their network infrastructure.

Deployment Scenarios and Use Cases

The 48-port configuration of the WS-C3560E-48TD-SD makes it particularly suitable for medium to large-sized enterprise networks. It can support high-density office environments where numerous endpoints require connectivity. The switch is also ideal for deploying VLANs to segment network traffic, providing improved security and traffic management. In branch offices, it serves as a reliable access layer switch, offering seamless connectivity and efficient network performance.

Integration with Cisco Security Solutions

Integration with Cisco's security portfolio enhances the WS-C3560E-48TD-SD's ability to protect sensitive data and ensure compliance. The switch can work alongside Cisco Identity Services Engine (ISE) to enforce network access policies and monitor network behavior. Additionally, its compatibility with Cisco TrustSec allows for scalable, role-based access control, securing communications across enterprise networks.

Long-Term Investment and Future-Proofing

Investing in the WS-C3560E-48TD-SD provides long-term value due to its durable hardware, versatile software features, and compatibility with emerging networking standards. The switch's modular uplinks, Layer 3 capabilities, and support for network stacking ensure that it can adapt to evolving business requirements. Organizations can expand their network capacity and functionality without replacing existing infrastructure, reducing total cost of ownership.

Comprehensive Technical Support and Warranty

Cisco provides extensive technical support for the WS-C3560E-48TD-SD, including online resources, documentation, and troubleshooting guides. The switch is backed by Cisco's standard warranty, with options for extended support and service contracts. This ensures that organizations have access to expert assistance and replacement parts if needed, maintaining network reliability and minimizing operational disruptions.
