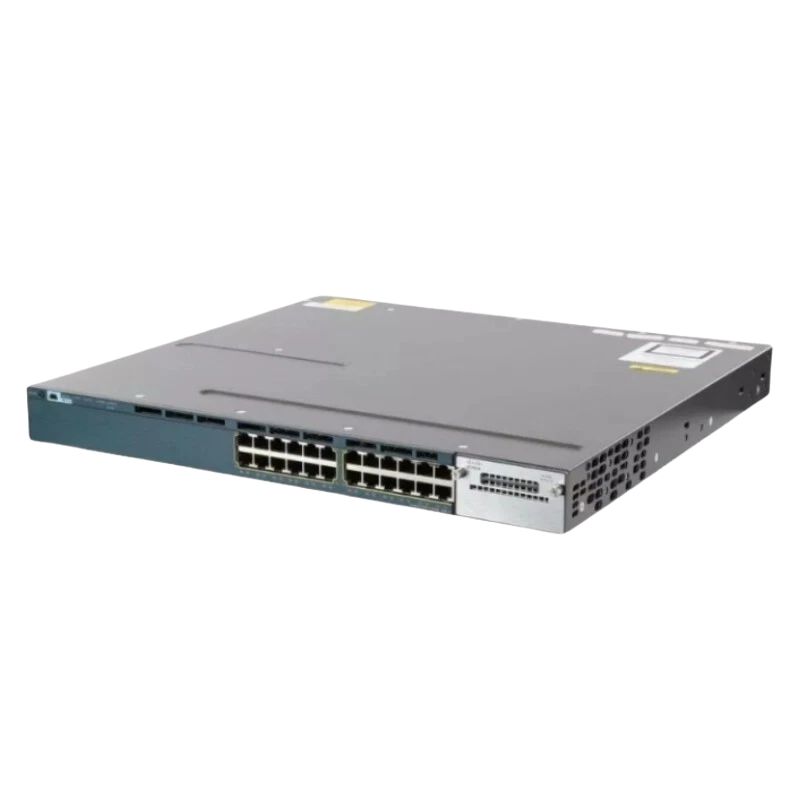

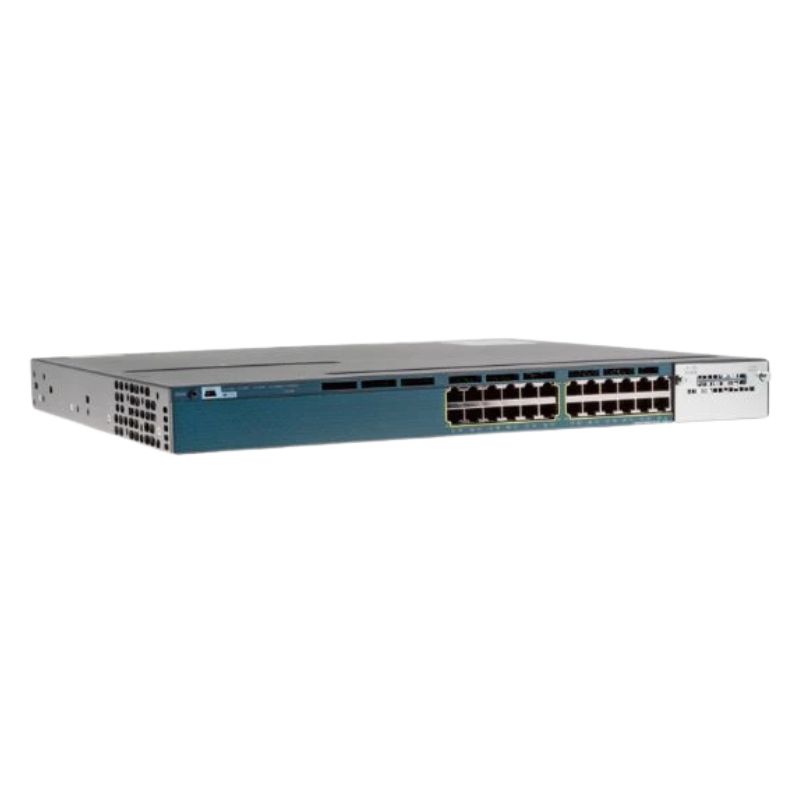

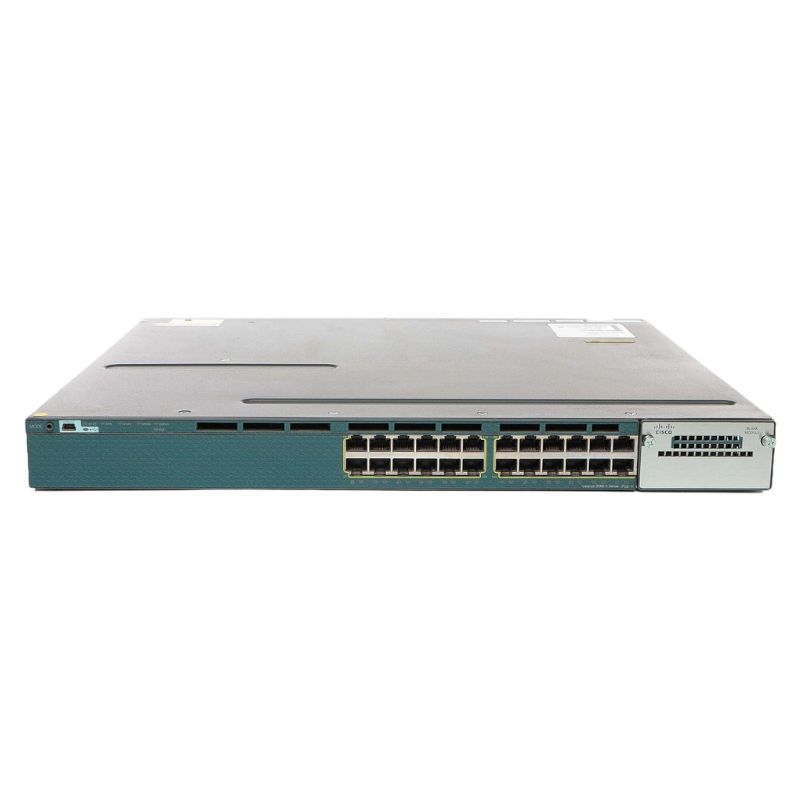

WS-C3560X-24T-E Cisco Ethernet Switch 24 Ports IP Services

Cisco WS-C3560X-24T-E Catalyst 3560-X Series 24-Port Switch

The Cisco WS-C3560X-24T-E switch from the Catalyst 3560-X product family delivers dependable enterprise-class switching performance designed for modern network infrastructures. Built to support high-speed Gigabit Ethernet connectivity, this managed switch enables organizations to maintain stable and efficient LAN operations. With advanced switching capabilities and flexible management options, it is well suited for campus networks, branch offices, and growing business environments that require secure and scalable network access.

Core Product Specifications

• Manufacturer: Cisco
• Model Number: WS-C3560X-24T-E
• Device Category: Managed Ethernet Switch
• Switch Series: Catalyst 3560-X
• Port Configuration: 24 Ethernet Ports
• Deployment Type: Enterprise LAN Switching

24-Port Gigabit Ethernet Connectivity

Equipped with twenty-four RJ-45 Gigabit Ethernet ports, this switching device enables high-speed data transmission across network segments. Each port supports 10/100/1000Base-T standards, allowing compatibility with a wide range of existing networking equipment while ensuring smooth migration to Gigabit infrastructure.

Network Interface Features

• 24 × RJ-45 Gigabit Ethernet interfaces
• Support for 10 Mbps, 100 Mbps, and 1000 Mbps speeds
• Optimized for twisted pair cabling
• Dedicated management interface for device administration
• Integrated USB connectivity for configuration and file transfers

Excluded or Unsupported Interfaces

• No Token Ring port support
• No Long Reach Ethernet (LRE) interface
• No dedicated uplink port included
• Bypass capability not available

Gigabit Ethernet Media and Transmission Technology

The Cisco Catalyst 3560-X platform supports standard twisted pair copper media for reliable Gigabit Ethernet connectivity. This ensures compatibility with common structured cabling systems used in offices, data rooms, and enterprise facilities. Its switching architecture is optimized for efficient packet forwarding and reduced latency in high-demand environments.

Supported Ethernet Standards

• Gigabit Ethernet switching architecture
• 10/100/1000Base-T network technology
• Twisted pair copper cable support
• Consistent high-bandwidth communication

Switch Management and Administrative Controls

This manageable switch provides network administrators with extensive control over traffic management and device configuration. The integrated management port allows secure access for monitoring, configuration, and troubleshooting, enabling efficient network management across enterprise environments.

Management Capabilities

• Centralized switch configuration
• Monitoring and traffic management features
• Administrative access through a dedicated management interface
• USB port for software updates and configuration storage

Hardware Architecture and Expansion Options

Although the Cisco WS-C3560X-24T-E is built as a fixed-configuration switch, it still provides expansion flexibility through an available slot. This slot enables optional network modules, allowing organizations to extend functionality or integrate additional connectivity features when required.

Expansion Specifications

• 1 available expansion slot
• No shared SFP slot included
• Non-modular switch chassis

Layer 2 Switching Capabilities

Operating at Layer 2 of the OSI model, this Catalyst switch focuses on efficient frame forwarding and network segmentation. It helps maintain organized traffic distribution and supports structured LAN environments where stable switching performance is essential.

Layer 2 Network Advantages

• Efficient switching between local network devices
• Improved traffic segmentation across network segments
• Enhanced LAN performance and reliability
• Optimized bandwidth utilization

Memory and Processing Resources

To support smooth network operation and configuration processing, the Cisco Catalyst 3560-X switch includes integrated system memory and flash storage. These resources allow the device to manage firmware, configurations, and operational data effectively.

Memory Details

• 256 MB DRAM system memory
• 64 MB flash storage capacity
• Memory architecture optimized for switch firmware and configuration files

Reliability and Operational Stability

The WS-C3560X-24T-E is engineered for long-term reliability in demanding networking environments. Its Mean Time Between Failures (MTBF) rating reflects the durability expected from enterprise networking equipment designed for continuous operation.

Reliability Metrics

• MTBF rating of approximately 208,218 hours
• Stable switching performance under heavy workloads
• Enterprise-grade hardware durability

Power Configuration and Redundancy

Power reliability is a critical component of network infrastructure. This Catalyst switch supports multiple input voltage options and offers redundant power supply capability to ensure uninterrupted network operation.

Power Specifications

• Input voltage support: 110V AC and 220V AC
• Primary power supplied through an internal power supply
• Redundant power supply support for enhanced uptime
• No Power over Ethernet (PoE) ports included

Ideal Deployment Environments

• Enterprise campus networks
• Business office LAN infrastructures
• Secure internal network segmentation
• High-performance Gigabit Ethernet switching environments

Cisco WS-C3560X-24T-E 24 Ports IP Services Ethernet Switch

The Cisco WS-C3560X-24T-E 24 Ports IP Services Ethernet Switch represents a highly capable enterprise networking solution designed to support advanced routing, switching, and network management requirements within modern organizations. Built as part of the Catalyst 3560-X Series, this Ethernet switch is engineered to deliver high-performance Layer 2 and Layer 3 switching while maintaining scalability, reliability, and security. With 24 Gigabit Ethernet ports, robust IP Services feature sets, and integration capabilities for advanced network infrastructures, the switch enables businesses to build stable and efficient communication frameworks.

Organizations that rely on high-speed data transfer, secure internal communications, and reliable connectivity benefit significantly from enterprise-grade switches such as the WS-C3560X-24T-E. The switch offers extensive management capabilities, advanced routing protocols, and flexible configuration options that allow network administrators to control traffic flow and optimize performance. Its architecture is specifically designed for campus networks, branch offices, and data-driven enterprise environments where consistent network performance is essential for productivity and operational continuity.

Hardware Architecture and Gigabit Ethernet Connectivity

The Cisco WS-C3560X-24T-E switch is equipped with 24 Gigabit Ethernet ports that provide high-speed wired connectivity for various network devices including servers, workstations, printers, wireless access points, and IP telephony systems. Gigabit Ethernet technology ensures that data packets are transmitted quickly and efficiently, reducing network latency and supporting bandwidth-intensive applications such as video conferencing, cloud computing, and large file transfers.

The hardware architecture of the switch is built around a robust switching fabric that allows simultaneous data transmission across multiple ports without congestion. This design ensures consistent throughput even during periods of heavy network utilization. Enterprises that require reliable communication between departments or across different network segments benefit from the switch's ability to maintain steady performance under demanding workloads.

Switching Capacity and Throughput Efficiency

The switching capacity of enterprise Ethernet switches determines how efficiently they can process and forward data packets. The WS-C3560X-24T-E is engineered with high switching throughput, allowing it to manage large volumes of traffic across its ports while maintaining minimal packet loss. This capability is especially important in environments where multiple users simultaneously access applications hosted on internal servers or external cloud platforms.

By efficiently managing traffic flow between connected devices, the switch helps prevent bottlenecks that can degrade network performance. This ensures that users experience smooth connectivity even when performing data-intensive operations. Businesses that depend on continuous network access benefit from the switch’s ability to deliver consistent performance and reliable packet forwarding.

Expansion Modules and Uplink Options

In addition to its integrated Gigabit Ethernet ports, the Cisco WS-C3560X-24T-E supports modular uplink expansion options. These uplink modules allow organizations to connect the switch to core network infrastructure or other distribution switches using high-speed fiber or copper connections. Such flexibility enables network architects to design scalable infrastructures that can grow alongside business needs.

The availability of uplink expansion modules also allows organizations to integrate the switch into multi-layer network architectures. By connecting access layer switches to aggregation or core switches, administrators can create efficient traffic distribution paths that improve overall network performance and resilience.

IP Services Feature Set for Advanced Layer 3 Networking

One of the defining characteristics of the Cisco WS-C3560X-24T-E Ethernet switch is its IP Services feature set. This advanced software capability extends beyond basic Layer 2 switching to provide full Layer 3 routing functions within the network. As a result, the switch can perform inter-VLAN routing, manage routing tables, and support dynamic routing protocols.

Layer 3 capabilities allow organizations to segment networks into multiple virtual LANs while still enabling controlled communication between them. This segmentation enhances security, improves traffic management, and allows administrators to apply different policies to various departments or application groups. By integrating routing capabilities directly within the switch, organizations can reduce reliance on separate routers and simplify network architecture.

Dynamic Routing Protocol Support

The IP Services software license includes support for advanced dynamic routing protocols that enable the switch to participate in complex network environments. Protocols such as Open Shortest Path First and Enhanced Interior Gateway Routing Protocol allow the switch to exchange routing information with other devices across the network. Through dynamic routing, the switch automatically determines optimal paths for data packets, ensuring efficient communication between network segments.

Dynamic routing also improves network resilience by allowing automatic recalculation of routes in the event of link failures or topology changes. This capability helps maintain uninterrupted connectivity across the network, ensuring that users can continue accessing resources even when infrastructure components experience disruptions.

Inter-VLAN Routing Efficiency

Inter-VLAN routing is a crucial function for enterprise networks that separate traffic into different virtual LANs. The Cisco WS-C3560X-24T-E enables high-speed routing between VLANs without requiring external routing hardware. By performing routing operations within the switch itself, the device significantly reduces latency and improves the overall efficiency of internal communication.

Organizations can implement VLAN-based segmentation to isolate sensitive data, separate departmental traffic, and optimize bandwidth allocation. The switch’s ability to route traffic between these segments while maintaining strict access control policies enhances both security and performance within the enterprise network.

Network Security and Access Control Capabilities

Security is a fundamental requirement in modern networking environments, and the Cisco WS-C3560X-24T-E incorporates multiple layers of protection to safeguard network infrastructure. These security mechanisms help prevent unauthorized access, protect sensitive data, and mitigate threats originating from internal or external sources.

Advanced security features integrated into the switch enable administrators to control device access, monitor traffic patterns, and enforce security policies throughout the network. Such capabilities are essential for organizations that must comply with regulatory standards or protect confidential business information.

Port-Based Authentication and Identity Management

Port-based authentication mechanisms allow network administrators to verify the identity of devices attempting to connect to the network. The switch supports authentication frameworks that validate users and endpoints before granting access. This ensures that only authorized devices are permitted to communicate within the network environment.

Identity-based networking provides granular control over network access. Administrators can assign different privileges based on user roles, device types, or authentication results. This capability strengthens overall network security while maintaining flexibility for legitimate users.

Access Control Lists and Traffic Filtering

Access Control Lists allow administrators to define rules that determine which packets are permitted or denied within the network. By configuring ACLs on the Cisco WS-C3560X-24T-E, organizations can restrict specific types of traffic, block unauthorized communication, and enforce segmentation policies.

Traffic filtering through ACLs enables precise control over how data flows between network segments. This capability helps protect critical resources such as application servers, databases, and management systems from unauthorized access attempts. Through well-designed ACL policies, organizations can significantly reduce the risk of security breaches.

Quality of Service for Network Traffic Prioritization

Quality of Service is an essential feature for networks that support diverse applications with varying bandwidth and latency requirements. The Cisco WS-C3560X-24T-E switch includes advanced QoS mechanisms that allow administrators to classify, prioritize, and manage network traffic effectively.

Through QoS configuration, time-sensitive applications such as voice over IP communications and video conferencing receive higher priority compared to less critical traffic such as file downloads. This prioritization ensures consistent performance for critical business services while maintaining overall network stability.

Traffic Classification and Queue Management

Traffic classification involves identifying different types of network traffic based on predefined criteria. The switch analyzes packet headers and assigns them to appropriate queues according to configured policies. Each queue can be allocated specific bandwidth resources, ensuring that priority traffic is transmitted promptly.

Queue management mechanisms help prevent congestion by distributing network resources intelligently. Even during periods of heavy traffic, the switch maintains fair bandwidth allocation while protecting high-priority applications from performance degradation.

Bandwidth Allocation Strategies

Bandwidth allocation plays a vital role in maintaining consistent network performance. The Cisco WS-C3560X-24T-E allows administrators to define bandwidth limits, shaping policies, and priority queues for different traffic classes. By controlling how bandwidth is distributed, organizations can ensure optimal utilization of network resources.

This capability is particularly beneficial in environments where multiple applications compete for bandwidth. Administrators can ensure that mission-critical services remain unaffected by lower-priority traffic, thereby improving overall user experience and operational efficiency.

Energy Efficiency and Intelligent Power Management

Energy efficiency has become an important consideration for organizations seeking to reduce operational costs and environmental impact. The Cisco WS-C3560X-24T-E incorporates intelligent power management features designed to minimize energy consumption without compromising performance.

These power management technologies enable the switch to adjust energy usage based on network activity. By reducing power consumption during periods of low utilization, organizations can lower electricity costs and improve sustainability within their IT infrastructure.

Energy Efficient Ethernet Technology

Energy Efficient Ethernet technology allows network devices to enter low-power states when data transmission is not actively occurring. The Cisco WS-C3560X-24T-E supports this capability, helping organizations reduce power usage across their networking equipment.

When network traffic increases, the switch automatically resumes full operational performance, ensuring that connectivity remains uninterrupted. This dynamic power management approach balances energy savings with high availability.

Network Management and Monitoring Capabilities

Efficient network management is critical for maintaining performance, diagnosing issues, and implementing configuration changes. The Cisco WS-C3560X-24T-E provides comprehensive management features that enable administrators to monitor network health and control switch operations through centralized interfaces.

Management protocols and monitoring tools allow administrators to analyze traffic patterns, detect anomalies, and optimize network performance. These capabilities contribute to proactive network maintenance and faster troubleshooting when problems arise.

Remote Management and Configuration Interfaces

The switch supports remote management protocols that allow administrators to configure and monitor the device from centralized management platforms. Remote access capabilities simplify network administration by eliminating the need for physical interaction with the hardware.

Through secure management interfaces, administrators can modify configurations, apply software updates, and review performance statistics in real time. This flexibility enables IT teams to maintain efficient network operations even across geographically distributed locations.

Network Monitoring and Performance Analytics

Monitoring tools integrated within the switch provide detailed insights into network performance. Administrators can review metrics such as bandwidth utilization, packet error rates, and interface activity to identify potential issues before they escalate.

Performance analytics also support capacity planning by revealing traffic trends and usage patterns. By analyzing these insights, organizations can make informed decisions regarding network upgrades and infrastructure expansion.

Scalability and Integration within Enterprise Networks

The Cisco WS-C3560X-24T-E is designed to integrate seamlessly into existing enterprise network architectures. Its modular expansion capabilities, advanced routing features, and high-performance switching make it suitable for both small and large-scale deployments.

As businesses expand their operations and adopt new technologies, network infrastructure must evolve accordingly. The switch supports scalable deployment models that allow organizations to add additional switches, increase uplink bandwidth, and expand network segmentation without disrupting existing operations.

Deployment in Campus and Branch Networks

Campus networks often require reliable switching solutions capable of connecting large numbers of users and devices. The Cisco WS-C3560X-24T-E serves as an effective access layer switch that provides high-speed connectivity for workstations, wireless access points, and IP communication systems.

Branch offices also benefit from the switch’s integrated routing capabilities, which enable local traffic management and efficient communication with central data centers. By combining switching and routing functions within a single device, organizations can simplify network design while maintaining robust performance.

Support for Virtualized and Cloud-Based Environments

Modern enterprises increasingly rely on virtualization platforms and cloud-based services to support business operations. The Cisco WS-C3560X-24T-E switch facilitates seamless integration with these technologies by providing high-speed connectivity and reliable traffic management.

Virtualized environments generate substantial east-west traffic between servers and storage systems. The switch’s high throughput and advanced routing features help manage this traffic efficiently, ensuring that virtual machines and applications maintain consistent performance levels across the network infrastructure.

Long-Term Reliability in Enterprise Infrastructure

Reliability is a fundamental requirement for enterprise networking equipment, and the Cisco WS-C3560X-24T-E is engineered with durability and stability in mind. Its hardware components are designed to operate continuously under demanding conditions, providing consistent performance over extended operational lifecycles.

Organizations that deploy enterprise-grade Ethernet switches expect minimal downtime and dependable connectivity. The robust architecture, advanced feature set, and proven switching technology within the WS-C3560X-24T-E ensure that businesses can rely on their network infrastructure to support critical applications, collaborative tools, and digital services essential for modern operations.
