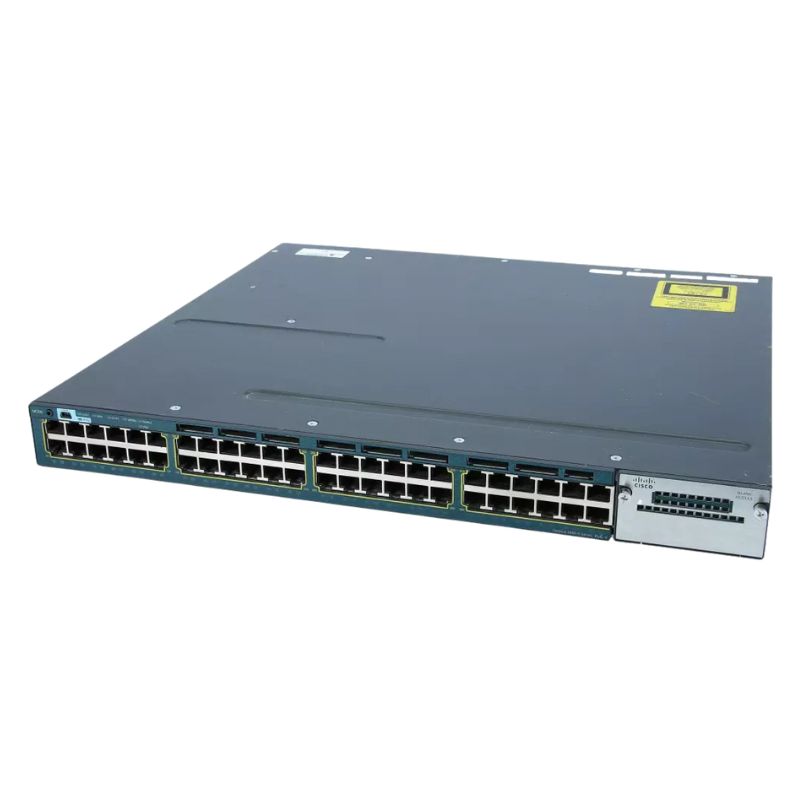

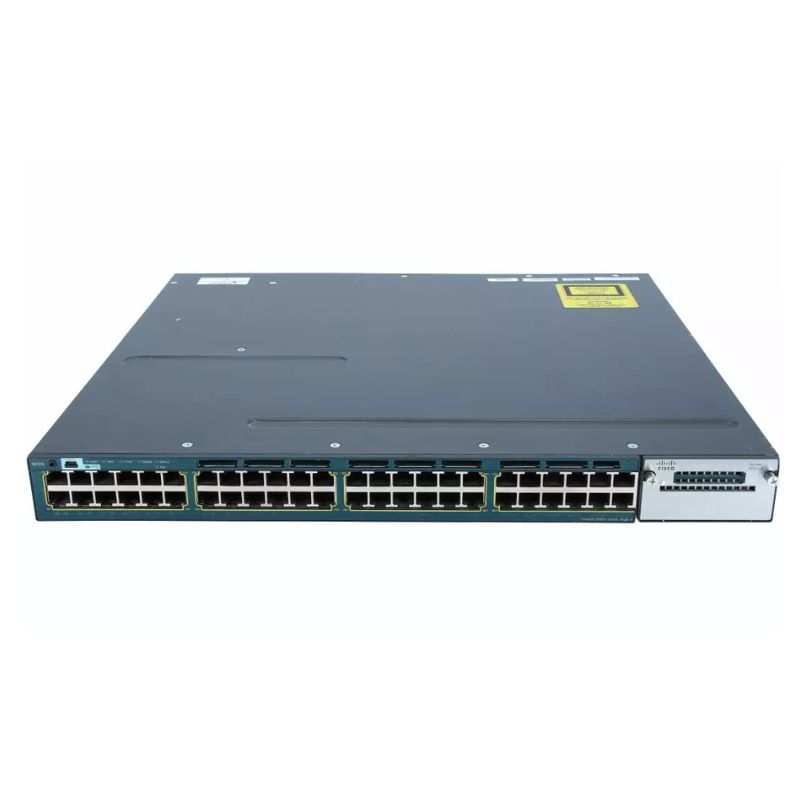

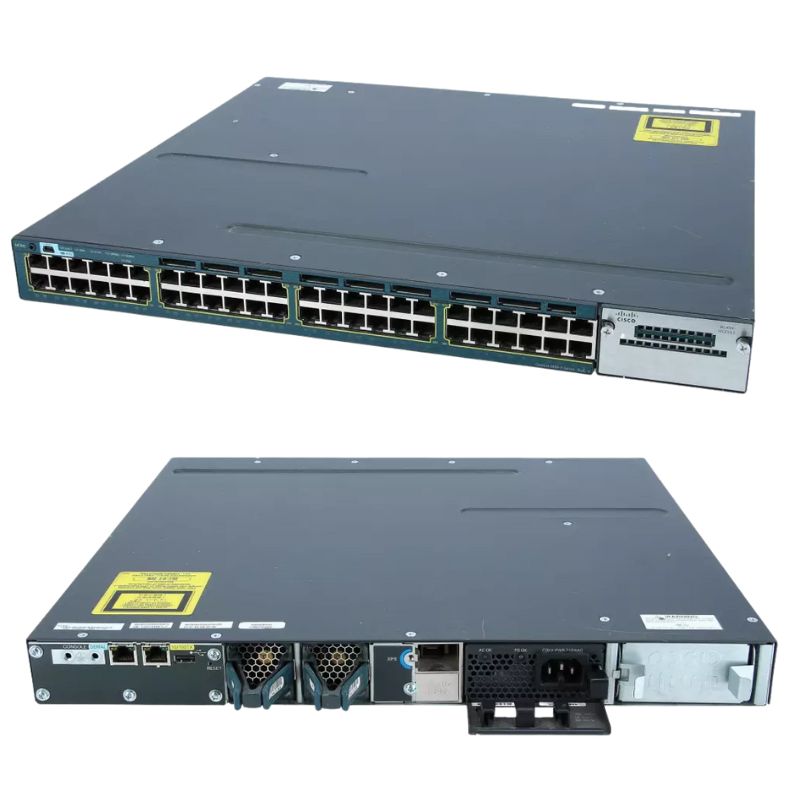

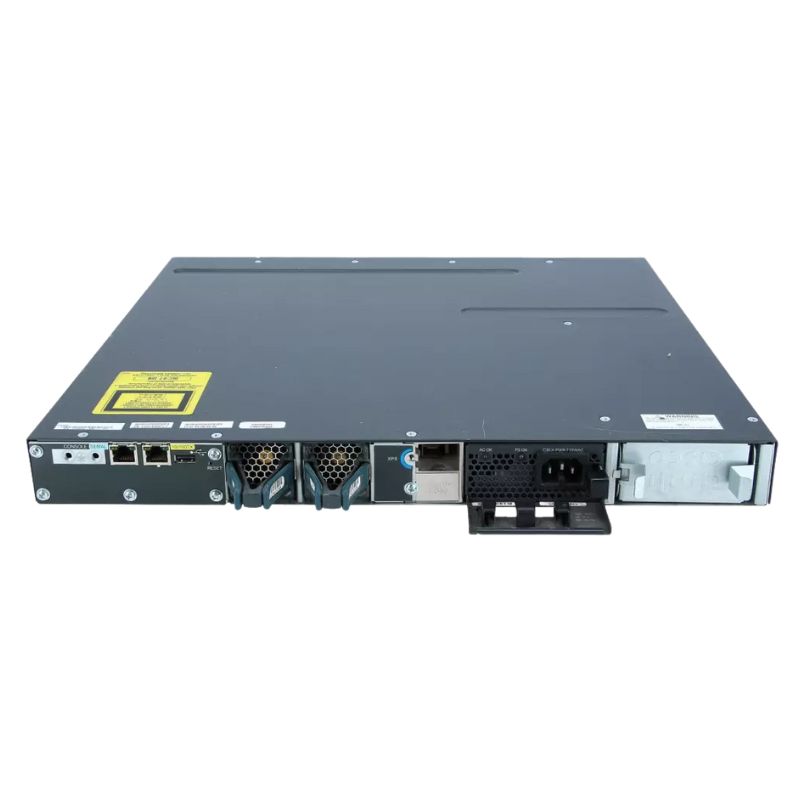

Cisco WS-C3560X-48U-L Catalyst 3560X Switch 48 Port UPoE LAN Base

Cisco WS-C3560X-48U-L Layer 3 Switch

Product Information

• Manufacturer: Cisco
• Model Number: WS-C3560X-48U-L
• Product Name: Catalyst 3560X-48U Layer 3 Switch
• Product Type: Layer 3 Network Switch

Interface and Port Configuration

• Total Network Ports: 48 Gigabit Ethernet Ports (RJ-45)
• Token Ring Ports: Not Available
• LRE Ports: Not Supported
• Management Port: Yes, for network management
• USB Ports: Yes, included for additional connectivity options
• UPOE (Universal Power over Ethernet) Ports: 48 UPOE ports available
• Port/Expansion Slot Details:
  • 48 x Gigabit Ethernet Network Ports
  • 1 x Expansion Slot for modular upgrades

Media and Performance Specifications

• Supported Media Type: Twisted Pair Cabling
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T for high-speed networking

I/O Expansion Capabilities

• Number of Expansion Slots: 1 slot for future expansion

Network and Communication Features

• Layer Supported: Layer 3 for advanced routing functionalities

Management and Protocol Support

• Manageable: Yes, with support for various management protocols including:
• Dynamic Host Configuration Protocol (DHCP)
• Simple Network Management Protocol (SNMP) versions 1, 2, 3
• Remote Monitoring (RMON) for network performance tracking
• Telnet for remote access
• Command-Line Interface (CLI) for detailed configuration
• Syslog for logging events
• Management Information Base (MIB) for network management
• Web-based management interface for user-friendly control

Memory and Storage

• Standard Memory: 256 MB DRAM
• Flash Memory: 128 MB for storing configurations and software

Reliability and Power Specifications

• Mean Time Between Failures (MTBF): 189,710 hours for enhanced reliability
• PoE (Power over Ethernet) Ports: Yes, for powering devices directly through network ports
• Input Voltage: Supports both 110 V AC and 220 V AC
• Power Source: Internal power supply unit

Port Feature: 48 Ports

The Cisco Catalyst 3560X Switch is equipped with 48 ports, making it an ideal choice for businesses and organizations that require a high number of network connections. With these 48 ports, users can connect a wide range of devices, including computers, printers, IP phones, and servers, to the network.

Increased Scalability

One of the key benefits of having 48 ports on the Cisco Catalyst 3560X Switch is the increased scalability it provides. With more ports available, businesses can easily expand their network infrastructure and accommodate more devices without the need for additional switches. This scalability is particularly important for growing businesses that anticipate adding more devices to their network in the future.

Efficient Network Management

Having 48 ports also allows for efficient network management. Each port can be assigned to a specific device or department, making it easier to track and troubleshoot connectivity issues. Additionally, the switch supports advanced features such as VLANs (Virtual Local Area Networks) which enable network administrators to segment the network into smaller, more manageable groups.

Improved Performance

With 48 ports available, the Cisco Catalyst 3560X Switch ensures that each connected device receives optimal network performance. The switch supports high-speed data transfer rates and advanced protocols such as Gigabit Ethernet and Fast Ethernet, ensuring that data flows smoothly and efficiently between devices.

Furthermore, the 48 ports are designed to handle heavy network traffic and provide reliable connectivity even during peak usage periods. This is crucial for businesses that rely on uninterrupted access to their network resources.

Power Over Ethernet Feature: UPoE

The Cisco Catalyst 3560X Switch offers Power over Ethernet (PoE) functionality, specifically Ultra PoE (UPoE). This feature allows the switch to provide both data and power to compatible devices, eliminating the need for separate power cables and adapters.

Simplified Deployment

The UPoE feature simplifies the deployment of network devices by eliminating the need for additional power outlets near each device. Devices such as IP phones, wireless access points, and surveillance cameras can be conveniently powered through the Ethernet cable connected to the switch. This not only reduces clutter but also makes it easier to install and relocate network devices.

Cost Savings

By utilizing UPoE, businesses can significantly reduce their overall infrastructure costs. With traditional power sources, each network device would require a separate power outlet and adapter. With UPoE, businesses can save on the cost of purchasing and maintaining these additional power supplies.

Additionally, UPoE allows for centralized power management, enabling businesses to monitor and control the power consumption of connected devices. This not only helps reduce energy usage but also allows for more efficient allocation of resources.

Flexibility and Reliability

The UPoE feature also offers flexibility and reliability. Devices powered through UPoE can be easily relocated or added to the network without the need for additional power considerations. This makes it particularly useful in dynamic environments where devices may need to be moved frequently or where new devices are regularly added.

Furthermore, UPoE provides uninterrupted power supply to critical network devices. In the event of a power outage, devices connected through UPoE can still remain operational using backup power sources such as uninterruptible power supplies (UPS). This ensures that essential services such as IP telephony or security systems remain functional even during emergencies.

Feature: LAN Base

The Cisco Catalyst 3560X Switch is equipped with LAN Base software, which provides a comprehensive set of features and capabilities for local area network management.

Advanced Network Security

With LAN Base, businesses can enhance their network security and protect sensitive data. The software includes features such as Access Control Lists (ACLs), which allow administrators to control and filter network traffic based on predefined rules. This helps prevent unauthorized access and ensures that only authorized users can access specific network resources.

Additionally, LAN Base supports features such as DHCP (Dynamic Host Configuration Protocol) snooping, IP Source Guard, and Dynamic ARP Inspection, which help prevent various types of network attacks, including DHCP spoofing, IP address spoofing, and ARP cache poisoning.

Improved Network Performance

LAN Base also offers features that improve network performance and reliability. The software includes advanced QoS (Quality of Service) capabilities that prioritize network traffic based on specific criteria, such as application type or user priority. This ensures that critical applications receive the necessary bandwidth and resources, resulting in improved performance and reduced latency.

Furthermore, LAN Base supports features such as link aggregation and Spanning Tree Protocol (STP), which provide redundancy and failover capabilities. These features help ensure that the network remains operational even in the event of a link or device failure.

Enhanced Network Management

The LAN Base software provides comprehensive network management capabilities. Administrators can easily configure and monitor the switch through a web-based interface or command-line interface (CLI). The software also supports SNMP (Simple Network Management Protocol) for centralized monitoring and management of multiple switches.

Additionally, LAN Base includes features such as VLAN support, port mirroring, and MAC address notification, which simplify network administration tasks and enable efficient troubleshooting of connectivity issues.

Part Number Feature: WS-C3560X-48U-L

The Cisco Catalyst 3560X Switch is identified by its unique part number, WS-C3560X-48U-L. This part number provides important information about the specific model and configuration of the switch.

Model Identification

The part number WS-C3560X-48U-L identifies the model of the Cisco Catalyst 3560X Switch. This specific model is equipped with 48 ports, supports UPoE, and includes LAN Base software.

Configuration Details

The part number also provides information about the specific configuration of the switch. In this case, the "48U" in the part number indicates that the switch has 48 ports with UPoE functionality. The "L" indicates that the switch includes LAN Base software.

This level of detail allows users and network administrators to quickly identify the capabilities and features of the switch without the need for further investigation.

Compatibility and Expansion Options

The part number also ensures compatibility with other Cisco networking equipment. When selecting additional switches or expansion modules, users can refer to the part number to ensure compatibility and avoid any compatibility issues or limitations.

Furthermore, the part number provides information about available expansion options. Users can refer to documentation or contact Cisco support to determine which expansion modules or accessories are compatible with their specific switch model.

In conclusion, the Cisco Catalyst 3560X Switch offers a range of features and capabilities that make it a versatile and reliable choice for businesses and organizations. From its 48 ports for increased scalability and efficient network management, to its UPoE functionality for simplified deployment and cost savings, to its LAN Base software for enhanced security and network performance, and finally to its part number that provides detailed information about the model and configuration, this switch delivers on multiple fronts. Whether it's for small businesses looking to expand their network or large enterprises requiring robust networking solutions, the Cisco Catalyst 3560X Switch proves to be a valuable asset.
