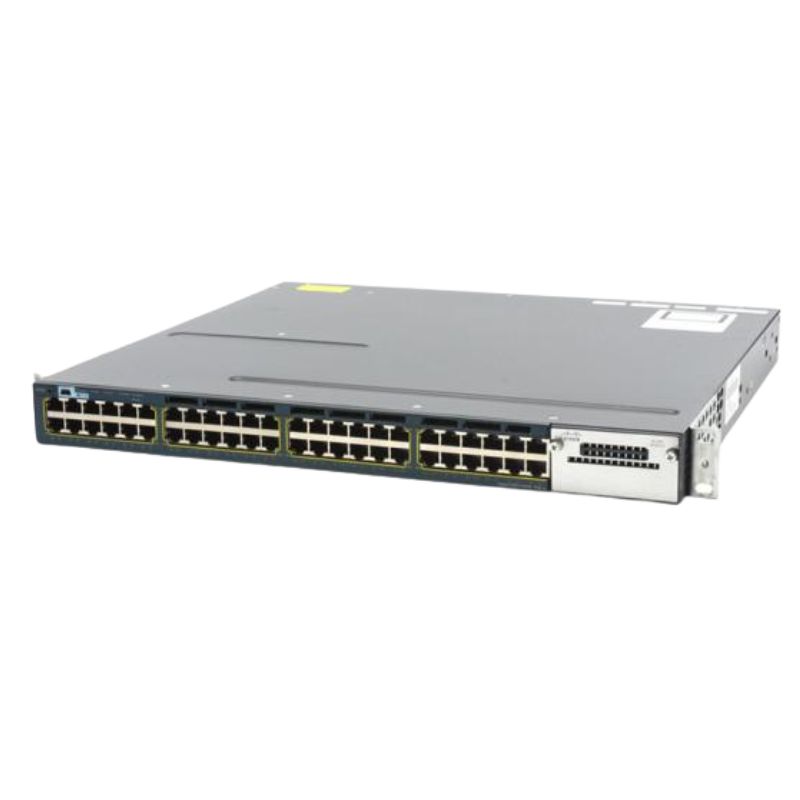

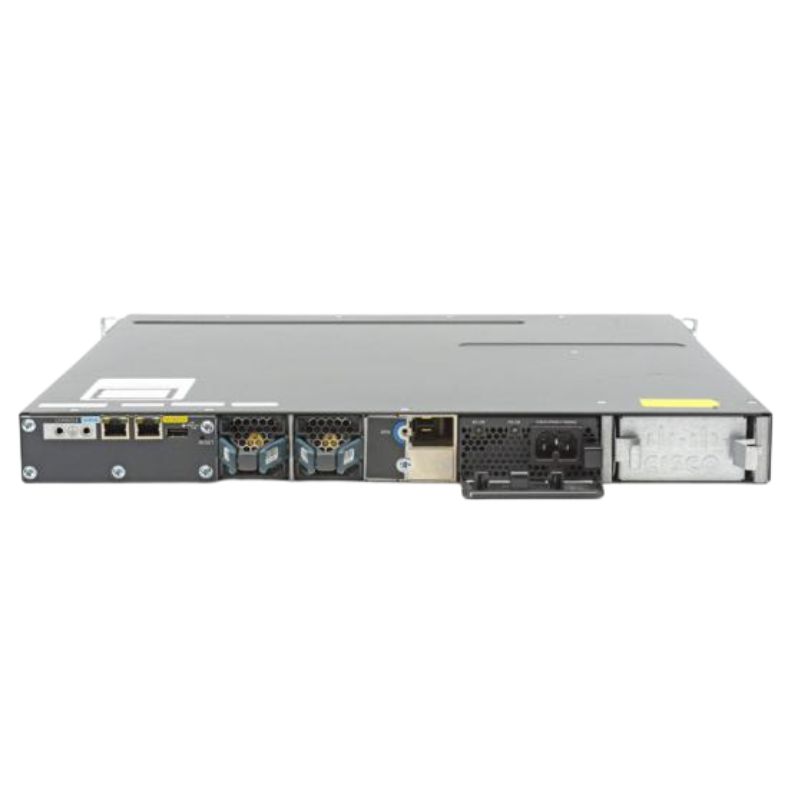

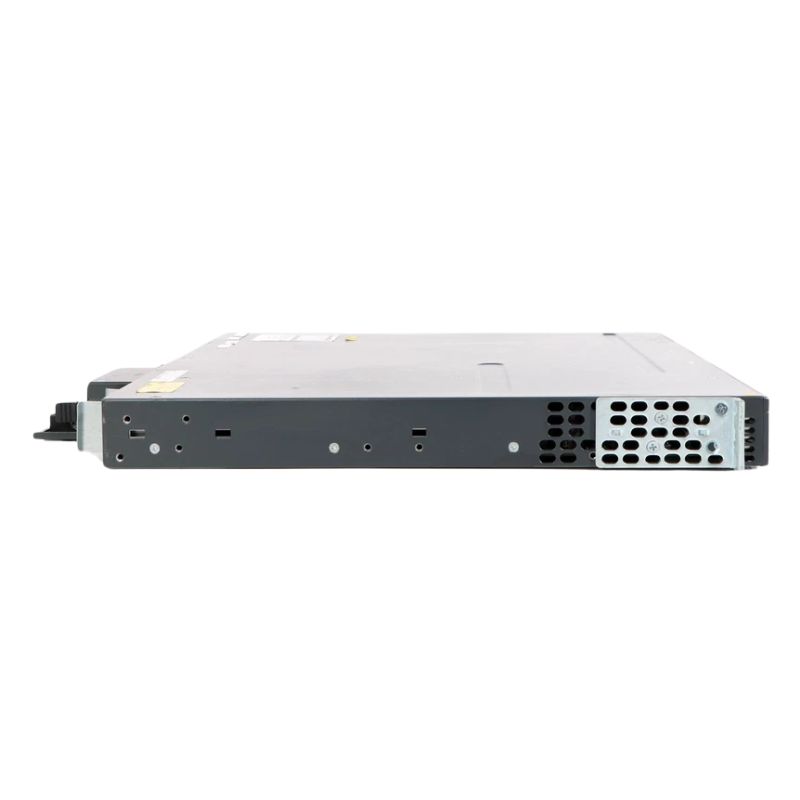

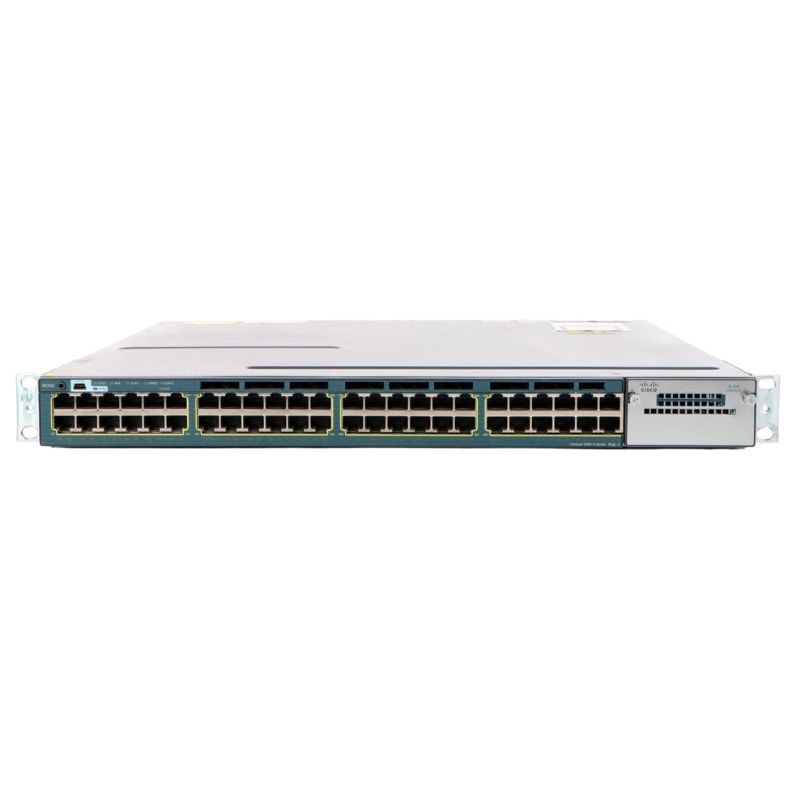

Cisco WS-C3560X-48U-S Catalyst 48 Ports Managed Switch Rack-Mountable UPOE

Overview of Cisco Catalyst WS-C3560X-48U-S Ethernet Switch

The Cisco Catalyst WS-C3560X-48U-S is a robust Ethernet switch designed to meet diverse networking needs. A reliable member of the Catalyst 3560-X series, this switch offers excellent manageability, efficiency, and scalability for enterprise-level operations. The part number, SKU# WS-C3560X-48U-S, represents a highly versatile device, suitable for both desktop and rack-mount installations.

Key Features of WS-C3560X-48U-S

• Device Type: Managed switch with 48 high-performance ports
• Enclosure Type: Supports both desktop and rack-mount (1U form factor)
• Ports: 48 x 10/100/1000 (UPOE) for Gigabit Ethernet connections
• PoE Budget: A powerful 800W UPOE, ideal for various power needs
• Layer 2 Switching: Provides efficient traffic management and data flow
• Dynamic IP Address Assignment: Ensures seamless network management

High-Performance Switching Capabilities

• Switching Fabric Capacity: 160 Gbps ensures a smooth data transmission experience
• Forwarding Rate: Capable of forwarding data at 101.2 Mpps for optimal performance
• VLAN Support: Can handle up to 1005 Virtual Interfaces and 1000 Switched Virtual Interfaces
• Jumbo Frame Support: With 9216 bytes frame size, it efficiently handles large packets

Advanced Routing Protocols

• Routing Options: Supports RIP-1, RIP-2, HSRP, Static IP Routing, and RIPng
• Protocols for Remote Management: Managed remotely using SNMP, RMON, Telnet, SSH, TFTP, and CLI

Enhanced Features for Greater Control and Flexibility

• Hot Swap Module Replacement: Replace modules without system shutdown for minimal disruption
• Layer 2 Features: Including VLAN support, trunking, and DHCP Snooping
• Traffic Shaping and Control: Features like Broadcast, Multicast, and Unicast Storm Control enhance network stability
• Auto-Negotiation and Auto-Uplink: Simplifies setup and port configuration

Security and Access Control

• Access Control Lists (ACL): Strengthen network security by filtering traffic
• Dynamic ARP Inspection (DAI): Prevents network attacks by ensuring IP-to-MAC address bindings
• Quality of Service (QoS): Prioritizes traffic for smoother network performance
• Port Security Features: Includes Dynamic Trunking Protocol (DTP) and Port Aggregation Protocol (PAGP)

Power and Redundancy Options

• Power Supply: AC 120/230 V (50/60 Hz) ensures compatibility with global power standards
• Power Redundancy: Optional feature to ensure constant uptime even in case of power failures

Supported Standards and Protocols

• IEEE Standards: Complies with various IEEE standards such as IEEE 802.3, IEEE 802.1d, IEEE 802.1q, and many more
• Security Protocols: Supports IEEE 802.1x for network access control and IEEE 802.1ae for secure MAC level encryption

Layer 3 Features

• Multicast Management: MLD Snooping to improve multicast traffic performance
• EIGRP Stub Routing: Efficient routing protocol to enhance Layer 3 routing options

Network Optimization Features

• Quality of Service (QoS): Ensures optimal bandwidth allocation for critical applications
• Traffic Prioritization: Uses Shaped Round Robin (SRR) for intelligent traffic scheduling
• Spanning Tree Protocols: Supports Rapid Spanning Tree Protocol (RSTP) and Per-VLAN Spanning Tree Plus (PVST+)

Cisco StackWise Technology

Utilizes Cisco's StackWise technology to create a unified, resilient network architecture by stacking switches together. This offers simplified management, increased throughput, and redundancy without manual configuration.

Remote Monitoring and Management

• Protocols: SNMP (v1, v2, v3), RMON, TFTP, and SSH for secure, flexible management
• Switch Port Analyzer: The Remote Switch Port Analyzer (RSPAN) feature simplifies monitoring of traffic from multiple ports

Conclusion

The Cisco WS-C3560X-48U-S stands out as a powerful and flexible switch designed for businesses aiming to scale and optimize their networks. Its comprehensive feature set ensures top-notch performance, security, and reliability in demanding environments.

Ports

The Cisco WS-C3560X-48U-S Managed Switch is equipped with 48 ports, making it an ideal choice for businesses that require a high number of network connections. Whether you need to connect multiple devices in a small office or provide connectivity for a large enterprise, the 48 ports on this switch offer the flexibility and scalability you need.

Increased Connectivity

With 48 ports, this managed switch allows you to connect a wide range of devices such as computers, printers, servers, and IP phones. This means you can easily expand your network infrastructure without having to invest in additional switches or equipment. The increased connectivity also enables seamless communication and collaboration between different departments or workgroups within your organization.

Efficient Data Transfer

Each port on the Cisco WS-C3560X-48U-S Managed Switch supports high-speed data transfer rates, allowing for efficient and reliable communication between devices. Whether you're transferring large files, streaming multimedia content, or running demanding applications, the 48 ports ensure that your network can handle the bandwidth requirements without any performance issues.

Network Segmentation

Having 48 ports allows you to create separate network segments based on different criteria such as departments, security levels, or specific functions. This segmentation enhances network security by isolating sensitive data or devices from potential threats. It also helps optimize network performance by reducing congestion and improving overall efficiency.

Mounting

The Cisco WS-C3560X-48U-S Managed Switch offers rack-mountable design, making it easy to integrate into existing server racks or cabinets. This feature provides several benefits for users who prefer a neat and organized networking setup.

Space-Saving Solution

Rack-mountable switches are designed to be installed in standard server racks or cabinets. By mounting the Cisco WS-C3560X-48U-S switch in a rack, you can efficiently utilize your available space and keep your networking equipment in a centralized location. This helps to reduce clutter and optimize the use of floor or wall space, especially in crowded server rooms or data centers.

Easy Installation and Maintenance

The rack-mountable design of this switch simplifies installation and maintenance processes. With standard mounting brackets, you can securely attach the switch to the rack without the need for additional hardware or complex procedures. This makes it easier for IT professionals to set up and manage their network infrastructure, saving time and effort in the long run.

Improved Cooling and Ventilation

When mounted in a rack, the Cisco WS-C3560X-48U-S Managed Switch benefits from the cooling and ventilation systems present in the rack itself. This ensures proper airflow around the switch, preventing overheating and potential performance issues. Additionally, the organized cable management associated with rack-mounted switches helps maintain a tidy environment, further facilitating airflow and cooling.

Power

The Cisco WS-C3560X-48U-S Managed Switch supports UPOE (Universal Power Over Ethernet), offering significant benefits in terms of power delivery and network flexibility.

Powering Multiple Devices

With UPOE technology, this switch provides power not only to network devices but also to devices that support PoE (Power over Ethernet), such as IP phones, wireless access points, and security cameras. The 48 ports on this switch are all capable of delivering power, enabling you to connect and power multiple devices simultaneously without the need for additional power sources or cables.

Flexibility and Scalability

UPOE allows for greater flexibility when it comes to deploying network devices. You can easily add or relocate devices within your network infrastructure without worrying about power availability. This flexibility makes it convenient to adapt to changing business needs or expand your network without the hassle of additional power provisioning.

Reduced Costs and Simplified Infrastructure

By utilizing UPOE, you can significantly reduce the number of power outlets and power adapters required for your network devices. This not only saves costs but also simplifies your infrastructure. With a single power source, you can eliminate the need for multiple power cables and adapters, resulting in a cleaner and more organized setup.

In conclusion, the Cisco WS-C3560X-48U-S Managed Switch offers 48 ports, rack-mountable design, and UPOE capabilities, providing users with increased connectivity, efficient data transfer, network segmentation options, space-saving solutions, easy installation and maintenance, improved cooling and ventilation, powering multiple devices, flexibility and scalability, reduced costs, and simplified infrastructure. Whether you're setting up a small office network or managing a complex enterprise infrastructure, these features make the Cisco WS-C3560X-48U-S Managed Switch an ideal choice for your networking needs.
