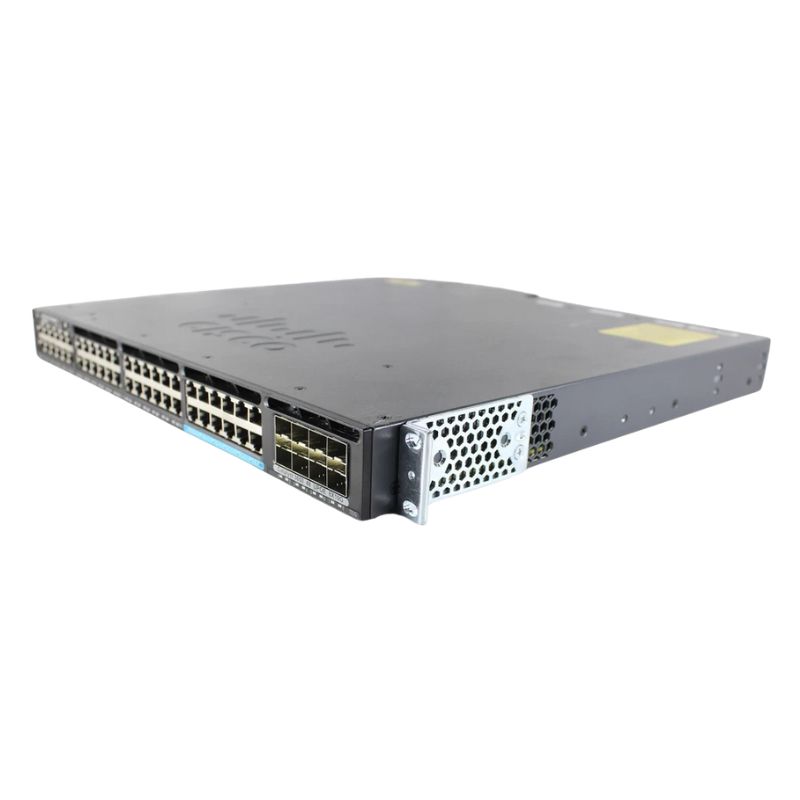

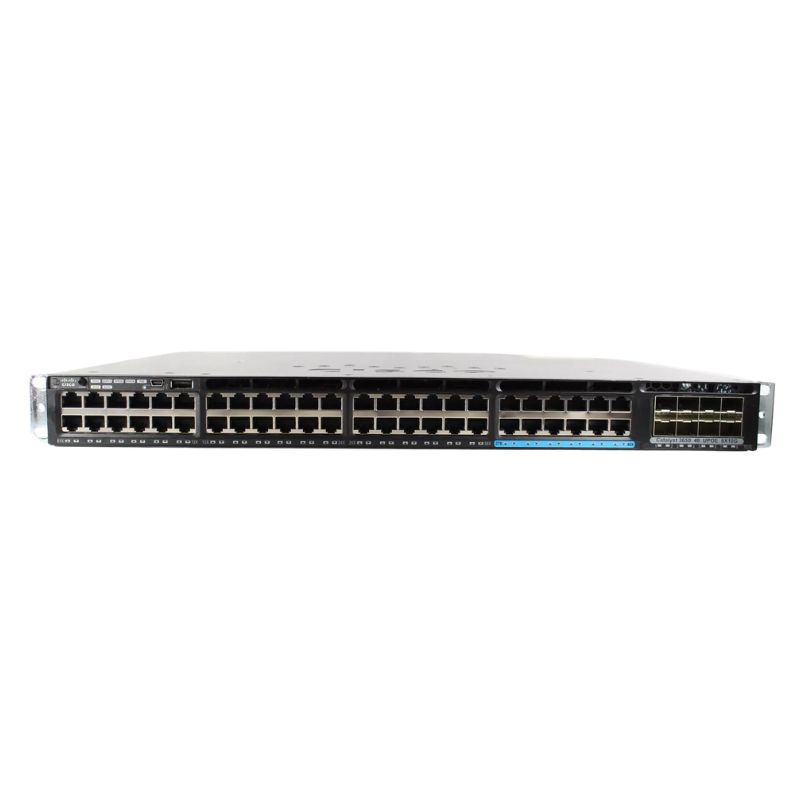

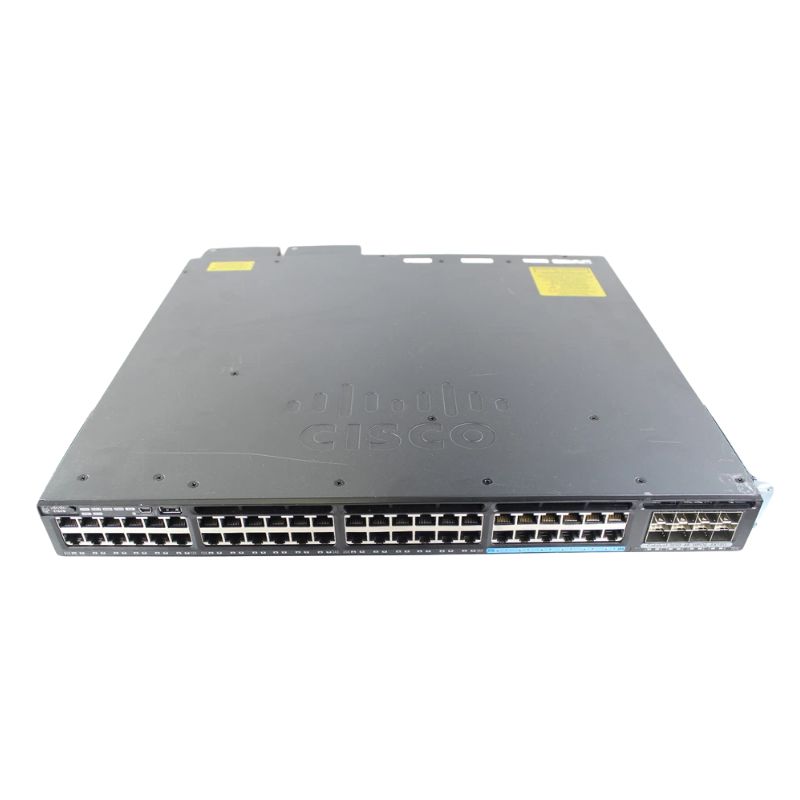

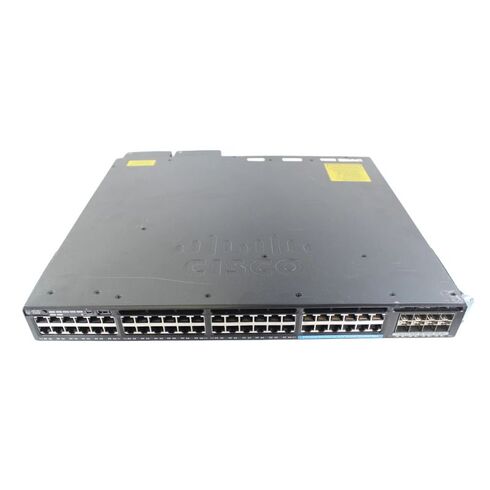

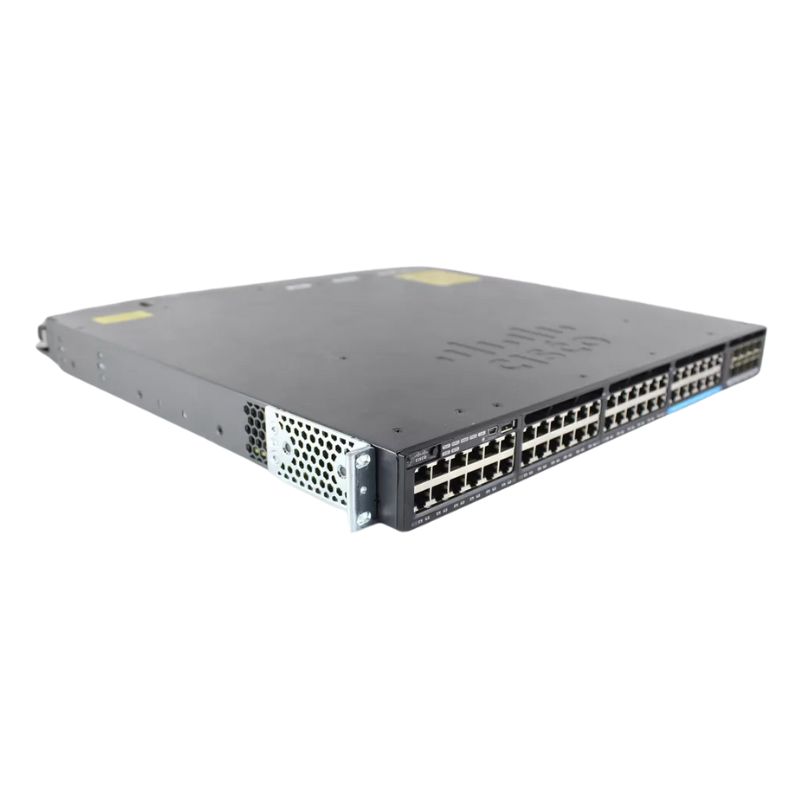

Cisco WS-C3650-12X48UR-L Catalyst 3650 48 Ports Switch

Cisco Catalyst 3650-12X48UR-L Ethernet Switch Overview

Product Information

• Manufacturer: Cisco Systems, Inc.
• Part Number: WS-C3650-12X48UR-L
• Series: Catalyst 3650
• Model: 3650-12X48UR-L
• Product Type: Ethernet Switch

Interfaces and Ports

Network Ports

• Total Network Ports: 48
• 36 Gigabit Ethernet RJ-45 Ports
• 12 Multi-Gigabit Ethernet Ports (up to 10Gbps)
• 8 SFP+ Uplink Ports for 10 Gigabit connections

Management and Console Ports

• 1x RJ-45 Management Console Port
• 1x RJ-45 Ethernet Management Port
• 1x USB Type-A Port

Performance and Networking

• Switching Capacity: 472 Gbps
• Stacking Bandwidth: 160 Gbps
• Forwarding Rate: 351.19 Mpps
• Layer Support: Layer 3 (L3)
• MAC Address Table: Supports up to 32,000 MAC addresses
• Routing Table: Handles up to 24,000 IPv4 routes

Expansion Slots and Stacking

• 8 SFP+ Expansion Slots for Uplinks
• Compatible with Cisco StackWise®-160 Stacking Technology
• Optional Stacking Kit Available: C3650-STACK-KIT (sold separately)

Power and PoE Features

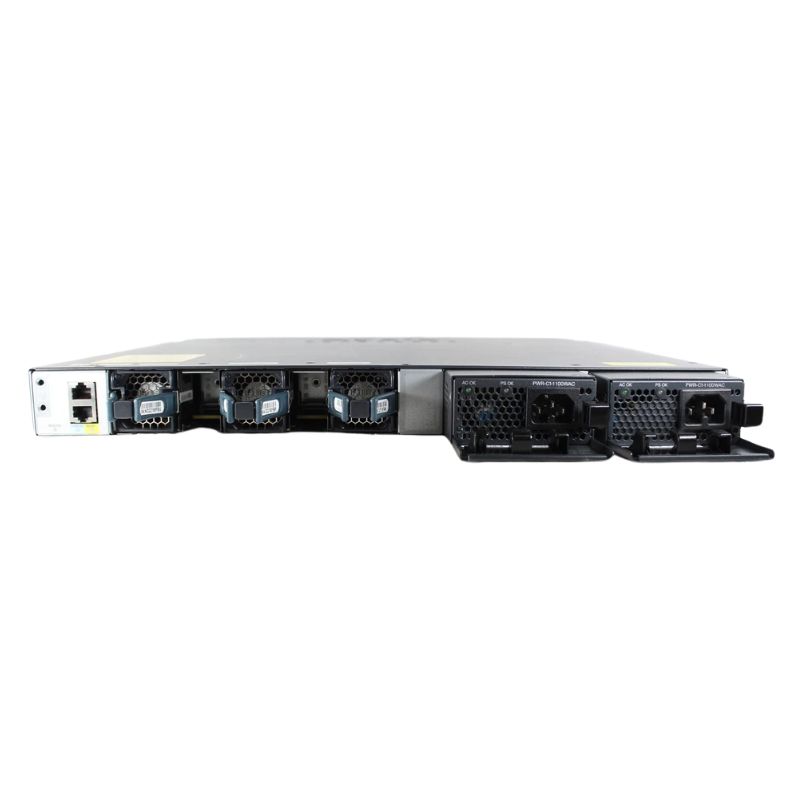

Power Supply

• Comes with a 1100WAC Power Supply
• Dual Power Supply Support for Redundancy
• Compatible with Additional Power Supplies (PWR-C1-715WAC, PWR-C2-1025WAC)

PoE Capabilities

• Power over Ethernet Plus (PoE+) Budget: 660W
• Supports Cisco Universal PoE (UPOE®) for enhanced power efficiency

Physical and Environmental Specifications

Dimensions

• Form Factor: 1U Rack-Mountable
• Dimensions: 1.7" x 17.5" x 19.1"
• Weight: Approximately 17.8 lbs

Environmental Properties

• Mean Time Between Failures (MTBF): 201,680 hours
• Operating Temperature Range: 23°F to 113°F (adjusted by altitude)
• Storage Temperature: -40°F to 158°F
• Maximum Operating Altitude: Up to 16,400 ft (5000 m)

Management and Protocols

• Manageable: Yes, via CLI and SNMP (v1, v2c, v3)
• Supported Networking Protocols: ACL, ARP, CoS, DHCP, DSCP, VLAN, IGMP v2/v3, QoS, RADIUS, SSH, TACACS+, and more
• Advanced Layer 3 Routing: Includes RIP-1, RIP-2, Static Routing, RIPng

Key Features

• Supports the latest 802.11ac Wave 2 wireless standard for enhanced wireless speed
• Enables seamless integration of wired and wireless networks with Cisco Unified Access™ Data Plane
• Modular design allows for field-replaceable fans and power supplies, boosting operational uptime

Compliance and Standards

• RoHS Compliant
• Certified under multiple standards, including FCC Part 15 Class A, CISPR 22, CISPR 24, EN 55024, ISO 7779, UL 60950-1

Ports

The Cisco WS-C3650-12X48UR-L Switch is equipped with a remarkable 48 ports, making it an excellent choice for businesses and organizations with high network traffic demands. These ports provide users with the ability to connect numerous devices, ensuring seamless communication and data transfer across the network.

Increased Connectivity

With 48 ports at your disposal, this switch allows you to connect a wide range of devices simultaneously. Whether it's computers, printers, servers, or other networking equipment, the Cisco WS-C3650-12X48UR-L Switch ensures that you have ample connectivity options available. This is especially beneficial in large office environments or data centers where multiple devices need to be connected for efficient operations.

Flexibility and Scalability

The abundance of ports on this Cisco switch provides users with the flexibility to expand their network infrastructure as needed. As your business grows or new devices are added, having extra ports readily available eliminates the need for additional switches or complex configurations. This scalability allows for easy integration of new equipment, reducing downtime and simplifying network management.

Higher Bandwidth

The 48 ports on the Cisco WS-C3650-12X48UR-L Switch support high-speed data transfer rates, ensuring smooth and uninterrupted communication between connected devices. This is particularly important when dealing with bandwidth-intensive applications such as video conferencing, large file transfers, or multimedia streaming. The increased bandwidth capacity provided by these ports enables efficient data flow, enhancing productivity and user experience.

Improved Network Performance

By distributing network traffic across multiple ports, this switch mitigates congestion and prevents bottlenecks that can hinder overall network performance. Each port operates independently, allowing for simultaneous data transfers without compromising speed or quality. This feature is especially critical in environments where real-time data transmission and uninterrupted connectivity are essential, such as financial institutions or healthcare facilities.

Enhanced Network Security

The Cisco WS-C3650-12X48UR-L Switch's 48 ports enable the implementation of advanced security measures to protect your network. With more ports available, you have the option to segregate devices into separate VLANs (Virtual Local Area Networks) based on their security requirements. This isolation prevents unauthorized access and improves network security by limiting potential attack vectors. Additionally, the switch supports various security protocols and features, such as Access Control Lists (ACLs) and port security, further enhancing your network's protection.

Simplified Network Management

The abundance of ports allows for a more streamlined network infrastructure, simplifying network management tasks. With fewer switches needed to accommodate multiple devices, IT administrators can reduce the complexity of their network and streamline troubleshooting processes. This saves time and effort, leading to improved efficiency in managing and maintaining the network infrastructure.

Cost-Efficiency

By offering 48 ports in a single switch, the Cisco WS-C3650-12X48UR-L Switch eliminates the need for additional hardware investments. Instead of purchasing multiple switches to accommodate a large number of devices, this switch provides a cost-effective solution. Consolidating your network infrastructure not only saves on equipment costs but also reduces power consumption and cabling requirements, resulting in long-term cost savings.

Manageable

The Cisco WS-C3650-12X48UR-L Switch is designed to be highly manageable, with a primary focus on ease of use and efficient network administration. Its manageability features make it an ideal choice for businesses looking for a single-switch solution with simplified management capabilities.

Centralized Network Control

With this switch, users can enjoy centralized control over their entire network infrastructure. The Cisco WS-C3650-12X48UR-L Switch supports various management protocols, including SNMP (Simple Network Management Protocol) and Cisco's proprietary protocols like Cisco IOS Software and Cisco Prime Infrastructure. These protocols enable administrators to monitor and manage the switch's operations, configurations, and performance from a central point, providing a comprehensive view of the network.

Intuitive Web-Based Interface

The switch comes equipped with a user-friendly web-based interface that simplifies configuration and administration tasks. This interface allows administrators to access the switch's settings, monitor network traffic, and make necessary adjustments without the need for complex command-line interfaces. The intuitive interface reduces the learning curve for network administrators, enabling them to efficiently manage the switch and optimize network performance.

Remote Management Capabilities

The Cisco WS-C3650-12X48UR-L Switch supports remote management, allowing administrators to monitor and control the switch from anywhere in the network. This remote management capability is particularly beneficial for businesses with multiple locations or distributed networks. Administrators can remotely access and configure the switch, eliminating the need for physical presence at each site. This feature saves time and resources, enabling efficient network administration even in geographically dispersed environments.

Automated Configuration

The switch supports automated configuration options, such as Cisco Smart Install and Auto Smartports. These features simplify the initial setup process by automatically detecting connected devices and applying predefined configurations based on device type. This automation reduces manual configuration efforts and eliminates potential human errors, ensuring consistent and optimized network settings across all devices.

Comprehensive Monitoring and Troubleshooting

With extensive monitoring capabilities, this Cisco switch allows administrators to proactively identify and resolve network issues before they impact productivity. The switch provides detailed statistics on network traffic, performance metrics, and error logs, enabling administrators to quickly troubleshoot problems and identify bottlenecks. This comprehensive monitoring ensures optimal network performance and minimizes downtime.

Quality of Service (QoS) Control

The Cisco WS-C3650-12X48UR-L Switch offers advanced Quality of Service (QoS) features, allowing administrators to prioritize network traffic based on specific requirements. This ensures that critical applications, such as voice or video communications, receive the necessary bandwidth and network resources for seamless operation. QoS control enhances user experience and guarantees consistent performance for time-sensitive applications.

Enhanced Network Stability

The manageability features of this switch contribute to network stability and reliability. With centralized control and comprehensive monitoring, administrators can identify and resolve network issues promptly, minimizing potential downtime. The ability to remotely manage the switch also facilitates quick response times, ensuring uninterrupted network connectivity. This reliability is crucial for businesses that heavily rely on their networks for daily operations.

In conclusion, the Cisco WS-C3650-12X48UR-L Switch's 48 ports provide users with increased connectivity, flexibility, and scalability. The high-speed data transfer rates and improved network performance offered by these ports enhance productivity and user experience. Additionally, the switch's manageability features, such as centralized control, intuitive web-based interface, and remote management capabilities, simplify network administration tasks and ensure network stability. Overall, this switch is a reliable and efficient solution for businesses seeking a robust networking infrastructure.
