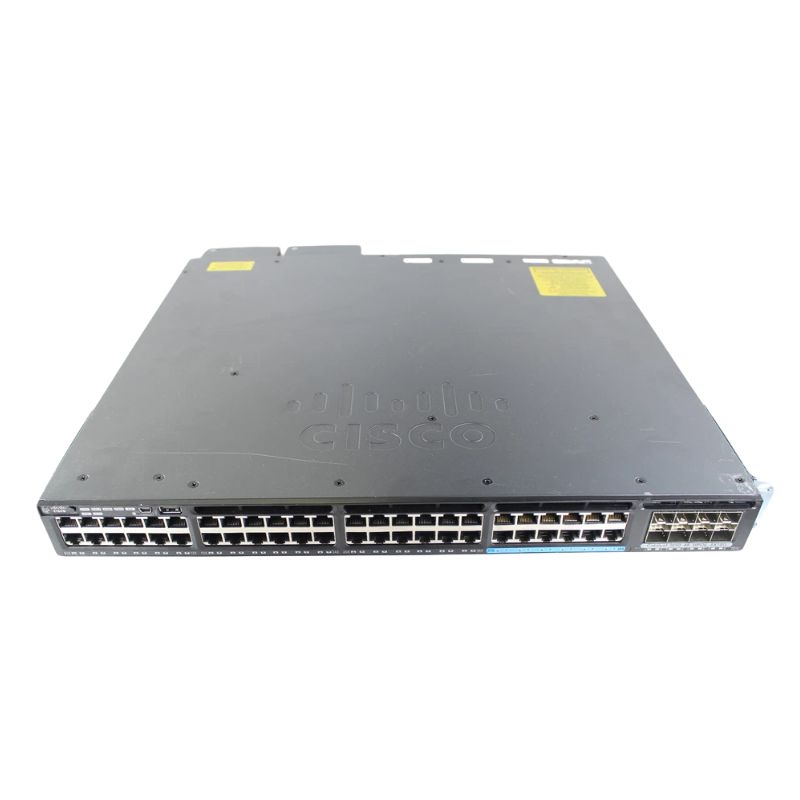

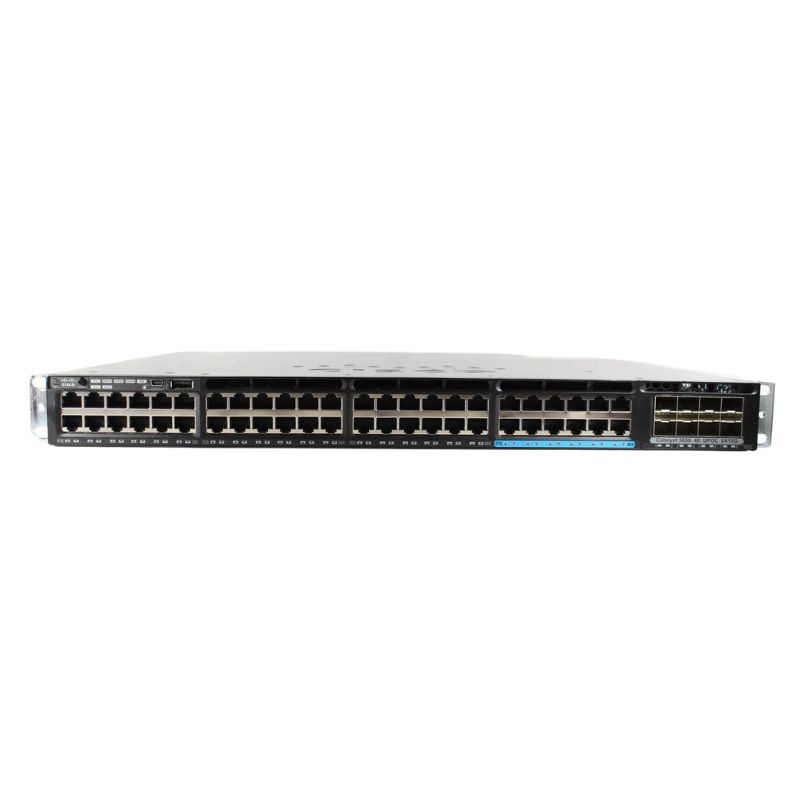

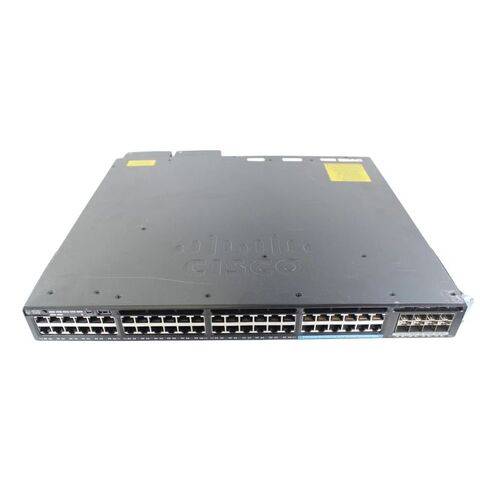

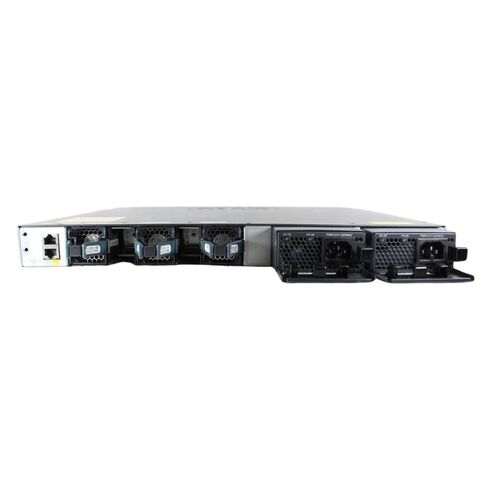

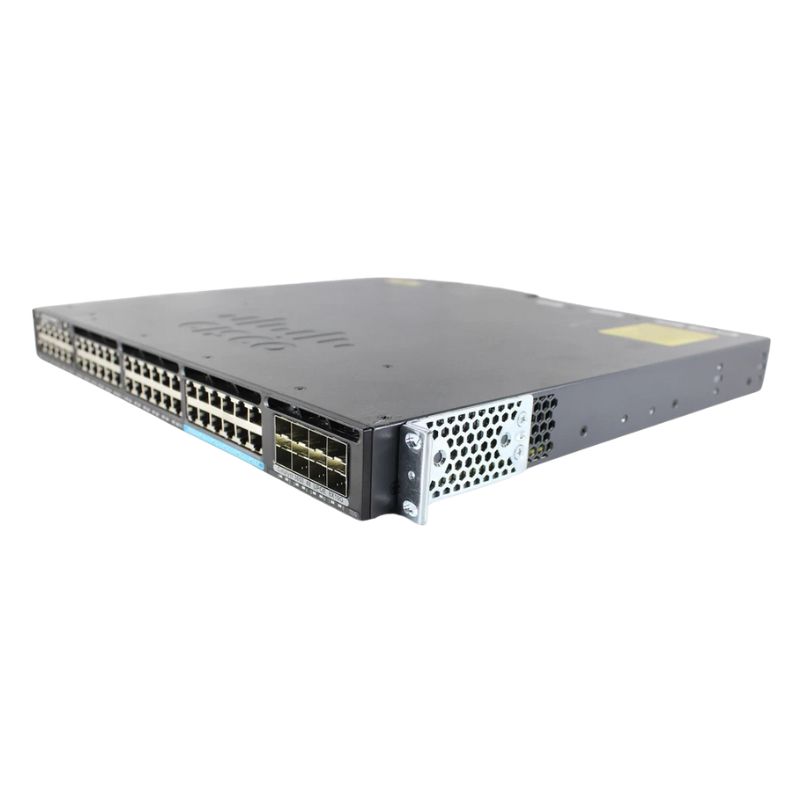

Cisco WS-C3650-12X48UR-S Catalyst 3650 Series Managed Switch

Ports

The Cisco WS-C3650-12X48UR-S Managed Switch is equipped with a remarkable 48 ports, making it an excellent choice for businesses that require a high-density network solution. These ports provide the means to connect multiple devices and facilitate seamless communication within the network infrastructure. Let's dive into the benefits and importance of this feature for users.

Product Overview

Manufacturer Details

• Brand: Cisco
• Part Number: WS-C3650-12X48UR-SSeries and Model

• Product Line: Catalyst
• Series: 3650
• Model: 3650-12X48UR-E
• Type: Ethernet Switch

Key Features

Port Configuration

• 48 Ethernet Ports: Comprehensive connectivity
• Uplink Ports: Integrated for extended network reach
• Port Types: 12 x 10 Gigabit Ethernet, 36 x Gigabit Ethernet, 8 x 10 Gigabit Ethernet Uplink

Switch Capabilities

• Layer: 3 Switch
• Expansion Slots: 8 total
• Slot Type: SFP+
• Shared SFP Slot: No
• SFP+ Slots: 8

Media and Performance

Supported Media

• Media Types: Optical Fiber, Twisted Pair
• Ethernet Technologies: 10 Gigabit Ethernet, Gigabit Ethernet
• Network Technologies: 10/100/1000Base-TX, 10GBase-T, 10GBase-X

Network and Communication

Layer and Management

• Layer Supported: 3
• Manageable: Yes
• Routing Protocols: RIP-1, RIP-2, Static IP Routing, RIPng
• MAC Address Table: 32,000 entries
• Jumbo Frame Support: 9,198 bytes
• Authentication Methods: Kerberos, Secure Shell (SSH), RADIUS, TACACS+

Power Specifications

Power Source and Support

• Power Supply: Yes
• Redundant Power Supply: Supported
• Power Provided: 1,100 Watt
• Voltage Required: AC 120/230 V (50 – 60 Hz)

Memory

Memory Capacity

• RAM: 4 GB
• Flash Memory: 4 GB

Expansion and Connectivity

Interfaces and Slots

• Interfaces: 36 x 1000Base-T RJ-45 UPOE, 12 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE, 8 x 10GBase-X SFP+
• Expansion Slots: 1 (total) / 1 (free) x Stacking Module Slot

Environmental Parameters

Operating Conditions

• Operating Temperature: 23 °F to 113 °F
• Humidity Range: 5 – 96% (non-condensing)
• Storage Temperature: -40 °F to 158 °F

Additional Information

Miscellaneous Features

• Rack Mounting Kit: Included
• MTBF: 201,680 hours
• Compliance Standards: RoHS, UL 60950-1 Second Edition, FCC Part 15 A

Increased Connectivity

With 48 ports, this managed switch offers an extensive range of connectivity options, allowing businesses to connect a large number of devices simultaneously. Whether it's computers, printers, servers, or other network equipment, this switch ensures that all devices can be easily integrated into the network. This capability is especially beneficial for organizations with expanding operations or those requiring extensive connectivity within their premises.

Flexibility and Scalability

The abundance of ports in the Cisco WS-C3650-12X48UR-S Managed Switch provides businesses with the flexibility to adapt to their ever-evolving networking needs. As businesses grow and demand for network expansion arises, this switch can accommodate additional devices without the need for investing in extra switches or complex network restructuring. It allows organizations to scale their networks effortlessly, saving time and resources.

Improved Network Performance

Having 48 ports on this managed switch enhances overall network performance. Each port supports high-speed data transfer rates, ensuring efficient communication between connected devices. This results in reduced latency, improved data transmission speeds, and enhanced productivity across the network. Whether it's transferring large files or streaming multimedia content, users can experience seamless connectivity and uninterrupted data flow.

Enhanced Network Security

The Cisco WS-C3650-12X48UR-S Managed Switch's 48 ports play a vital role in enhancing network security. By connecting all devices through this switch, businesses can implement robust security measures at a central point, protecting the entire network from potential threats. With the ability to configure access control lists (ACLs), port security, and other security features, users can ensure that only authorized devices have access to the network, preventing unauthorized access and potential data breaches.

Improved Network Management

The presence of 48 ports simplifies network management tasks. With a centralized switch, administrators can conveniently control and monitor the connected devices, reducing the complexity associated with managing multiple switches. This switch also offers advanced management features such as VLAN support, quality of service (QoS) prioritization, and multicast control. These features enable administrators to optimize network performance, prioritize critical traffic, and streamline network operations.

Cost Efficiency

The Cisco WS-C3650-12X48UR-S Managed Switch offers cost efficiency through its 48 ports. By consolidating multiple devices onto a single switch, businesses can reduce the need for purchasing additional switches, resulting in cost savings. Moreover, the switch's energy-efficient design helps minimize power consumption, reducing operational costs in the long run.

Future-Proof Investment

Investing in a managed switch with 48 ports is a future-proof decision for businesses. As technology advances and networking demands increase, having more ports ensures compatibility with future devices and expansion plans. This switch provides the capacity to accommodate emerging technologies and support future network requirements, safeguarding your investment for years to come.

In conclusion, the Cisco WS-C3650-12X48UR-S Managed Switch's 48 ports deliver numerous benefits to users. From increased connectivity and flexibility to improved network performance and security, these ports empower businesses to efficiently manage their networks with ease. With cost efficiency and future-proof capabilities, this managed switch proves to be an invaluable asset for organizations seeking reliable and scalable networking solutions.
