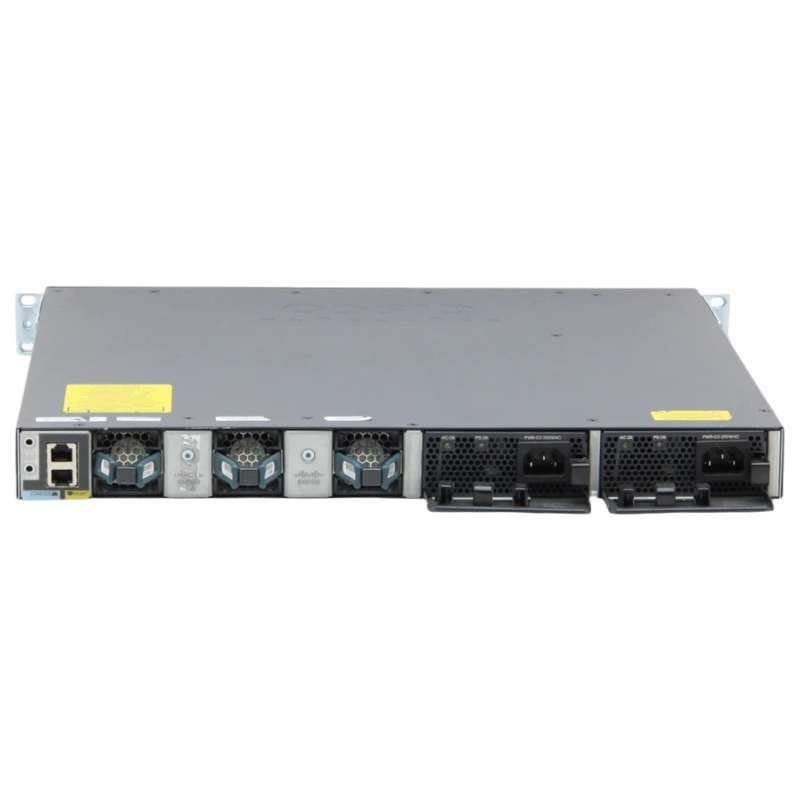

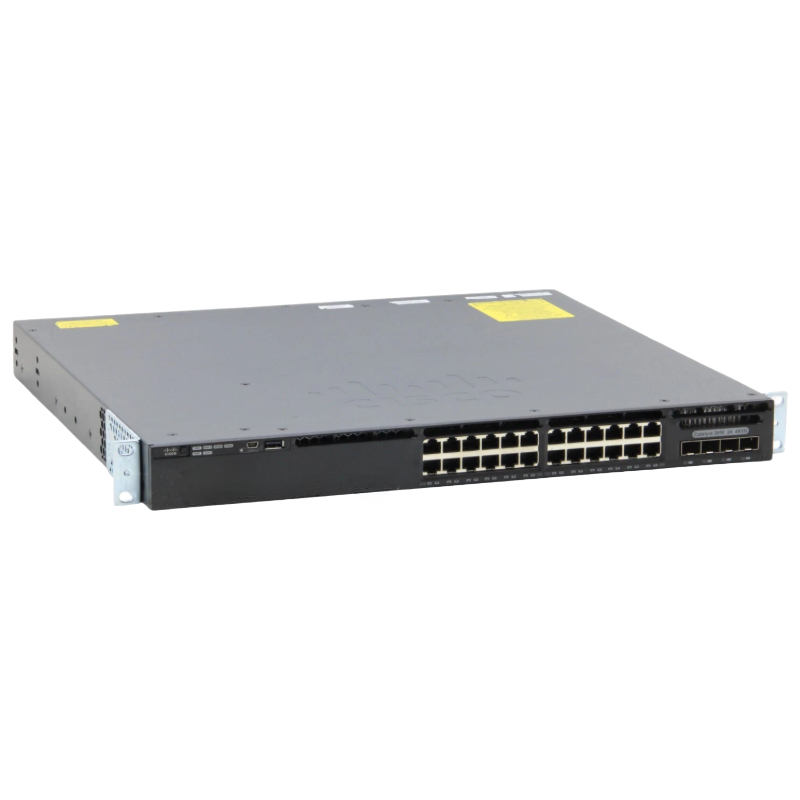

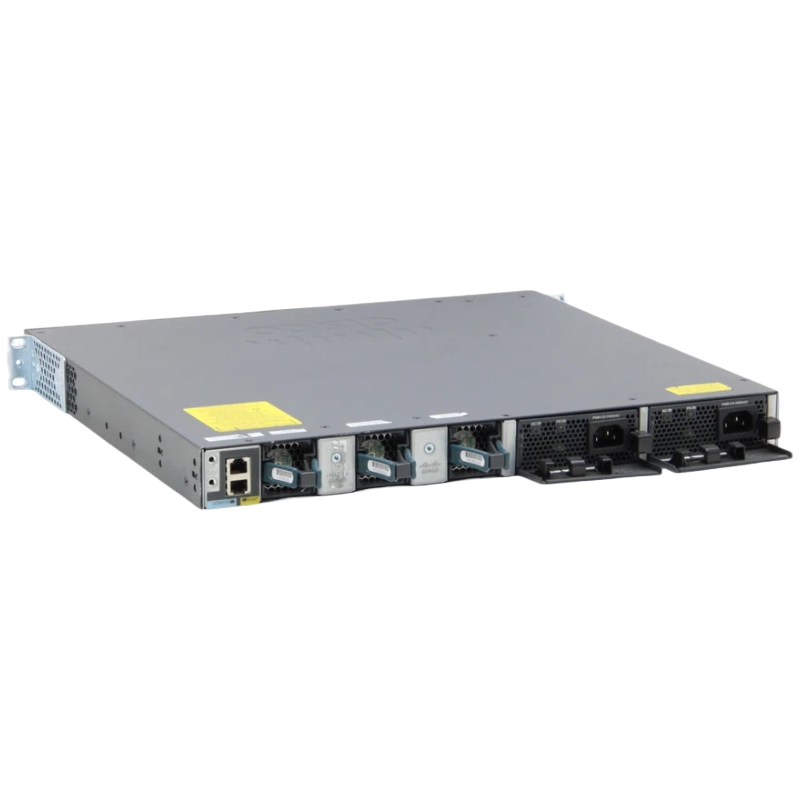

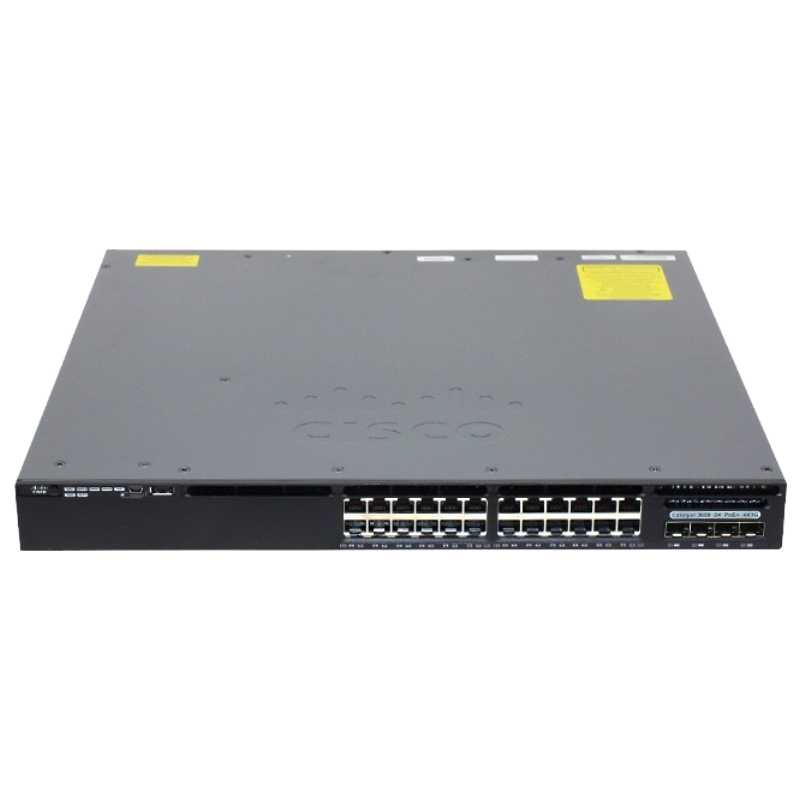

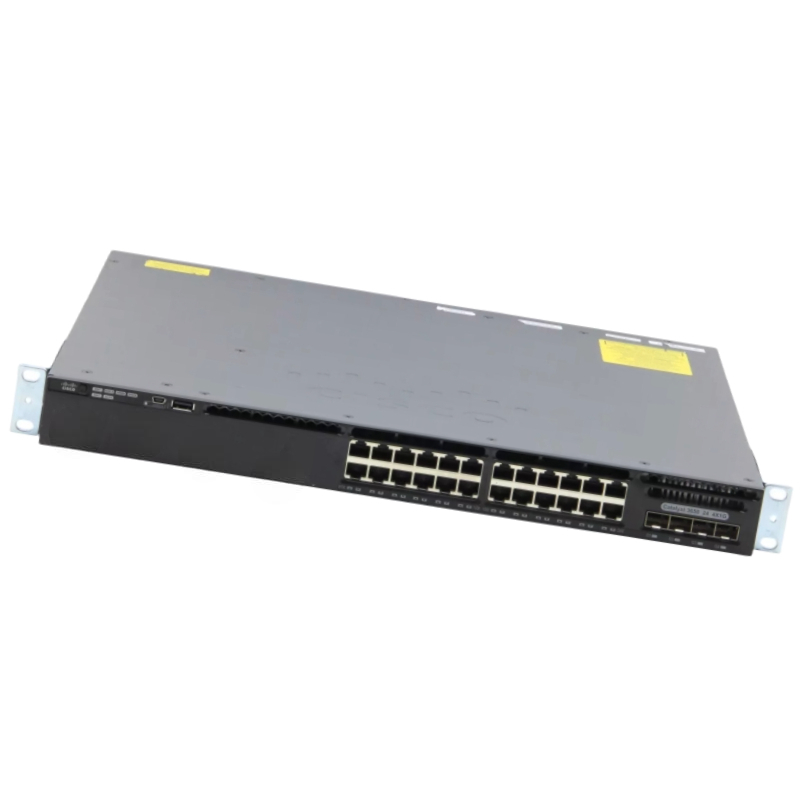

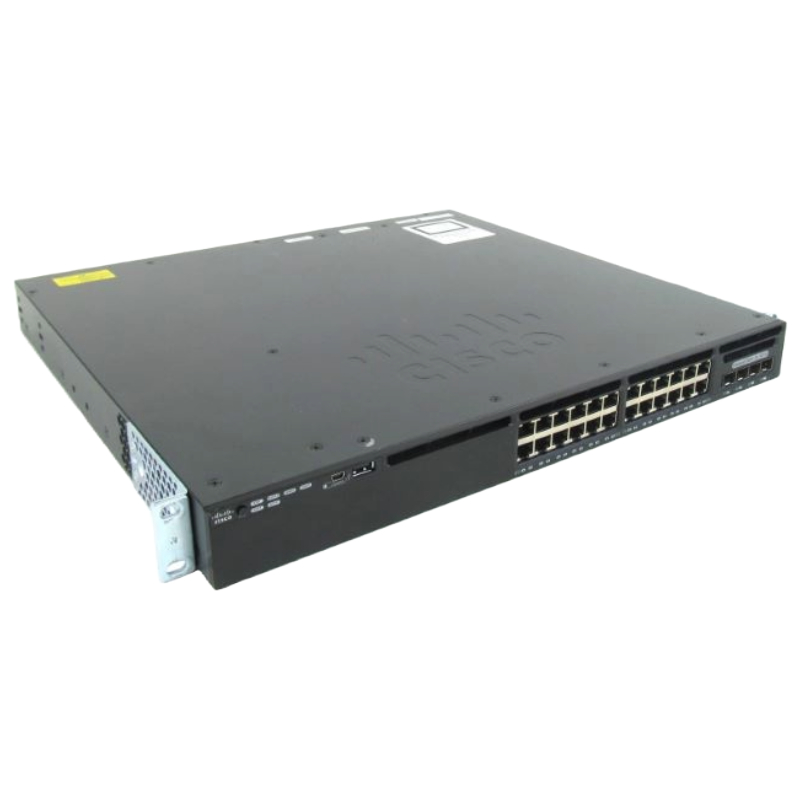

Cisco WS-C3650-24TS-S 24 Ports Manageable Switch Catalyst 3650-24TS 4x SFP Ports

Ports

The Cisco WS-C3650-24TS-S Switch is equipped with 24 ports, making it an ideal choice for businesses and organizations that require a high number of network connections. These ports serve as the entry points for various devices to connect to the switch, allowing for seamless communication and data transfer within the network.

Overview of the Cisco WS-C3650-24TS-S Switch

Manufacturer and Model

Brand: Cisco

Model Number: WS-C3650-24TS-S

Series: Catalyst 3650

Type: Layer 3 Switch

Port Configuration

• Total Network Ports: 24
• Gigabit Ethernet Ports: 24
• Gigabit Ethernet Uplink Ports: 4
• Token Ring Port: Absent
• LRE Port: Absent
• Uplink Port: Present
• Bypass: Not Available
• Modular Design: Not Supported
• Management Port: Included
• Stack Port: Included

Performance Specifications

Supported Media and Technology

• Media Type: Twisted Pair
• Ethernet Standard: Gigabit Ethernet
• Network Technology: 10/100/1000Base-T

Expansion Capabilities

Slots and Memory

• Total Expansion Slots: 4
• Slot Type: SFP
• SFP Slots: 4
• Standard Memory: 4 GB
• Memory Type: DRAM
• Flash Memory: 2 GB

Power and Redundancy

• PoE (RJ-45) Port: Not Available
• Input Voltage: 110 V AC or 220 V AC
• Power Source: Internal Power Supply
• Redundant Power Supply: Yes

Advanced Features

• Layer 2 Switching
• ARP Support
• VLAN and Trunking Support
• IGMP Snooping
• Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP) Support
• DHCP Snooping and Port Aggregation Protocol (PAGP)
• Access Control List (ACL) Support
• Quality of Service (QoS) and RADIUS Support
• MLD Snooping and Dynamic ARP Inspection (DAI)
• EIGRP Stub Routing and Uni-directional Link Detection (UDLD)
• Rapid Per-VLAN Spanning Tree Plus (PVRST+)
• Link Aggregation Control Protocol (LACP)
• Remote Switch Port Analyzer (RSPAN)
• Energy-Efficient Ethernet
• Flexible NetFlow (FnF)

Compliance and Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1d
• IEEE 802.1q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.1s
• IEEE 802.1ab (LLDP)

Increased Connectivity

With 24 ports available, the Cisco WS-C3650-24TS-S Switch offers a significant increase in connectivity options compared to switches with fewer ports. This is especially beneficial for larger organizations that have numerous devices and users that need to be connected to the network simultaneously. The abundance of ports ensures that there are enough connections available to accommodate all the devices, preventing bottlenecks and congestion.

Scalability

The 24 ports on the Cisco WS-C3650-24TS-S Switch also provide scalability for future growth. As businesses expand and add more devices to their network, having extra ports allows for easy integration without the need for additional switches or equipment. This scalability not only saves costs but also simplifies network management as all devices can be connected to a single switch.

Flexibility

The multitude of ports gives users the flexibility to connect various devices, including computers, printers, servers, IP phones, and wireless access points. This versatility is particularly advantageous in multi-functional environments such as offices, schools, or hospitals where different types of devices need to be connected simultaneously. The Cisco WS-C3650-24TS-S Switch ensures that there are enough ports to cater to different device requirements.

Improved Performance

Having 24 ports on the Cisco WS-C3650-24TS-S Switch helps distribute network traffic evenly across multiple devices. This prevents congestion and ensures smooth data transmission, even during peak usage periods. By minimizing bottlenecks, the switch enhances overall network performance and reduces latency, resulting in improved productivity and user satisfaction.

Manageable

The Cisco WS-C3650-24TS-S Switch features manageability capabilities that provide users with control and oversight over their network infrastructure. With its manageable features, this switch enables administrators to easily configure, monitor, and troubleshoot the network, ensuring optimal performance and security.

Remote Management

One of the key benefits of the manageable feature is the ability to remotely manage the switch. Administrators can access the switch's management interface from any location with an internet connection, eliminating the need for on-site presence. This remote management capability simplifies network administration and troubleshooting, saving time and resources.

Configuration Flexibility

The Cisco WS-C3650-24TS-S Switch allows administrators to configure various network settings according to their specific requirements. This includes setting up virtual LANs (VLANs), Quality of Service (QoS) policies, and access control lists (ACLs). The ability to customize these settings provides flexibility in tailoring the network to suit different applications and user needs.

Monitoring and Troubleshooting

The switch's manageability features also include monitoring tools that allow administrators to track network performance, identify potential issues, and troubleshoot problems. This includes monitoring bandwidth usage, identifying devices causing excessive traffic, and detecting network anomalies. With these monitoring capabilities, administrators can proactively address network issues before they impact user experience or disrupt critical operations.

Enhanced Security

The manageability features of the Cisco WS-C3650-24TS-S Switch contribute to improved network security. Administrators can implement security measures such as access control, port security, and authentication protocols to protect against unauthorized access or data breaches. The ability to centrally manage these security settings ensures consistent implementation across the network, reducing vulnerabilities and enhancing overall network protection.

SFP Ports

The Cisco WS-C3650-24TS-S Switch is equipped with four SFP (Small Form-Factor Pluggable) ports. These ports offer additional connectivity options and flexibility for users, allowing them to connect different types of network equipment and extend the reach of their network.

Optical Fiber Connectivity

SFP ports support the use of optical fiber cables, enabling long-distance data transmission with minimal signal degradation. This makes the Cisco WS-C3650-24TS-S Switch suitable for environments where traditional copper-based Ethernet connections are not feasible or require longer distances. Optical fiber connectivity offers higher bandwidth capacity and immunity to electromagnetic interference, resulting in more reliable and stable network connections.

Interoperability

The SFP ports on the Cisco WS-C3650-24TS-S Switch are compatible with various types of SFP modules. This interoperability allows users to choose the most suitable SFP module for their specific networking needs, whether it be multimode or single-mode fiber, or even copper-based connections. The ability to use different SFP modules provides flexibility in adapting to different network requirements or upgrading existing infrastructure.

Network Extension

With the four SFP ports, users can extend their network beyond the physical limitations of traditional Ethernet connections. This is particularly useful in scenarios where devices are located in separate buildings or areas that are far apart. By utilizing optical fiber connections through the SFP ports, users can establish high-speed and reliable network links over long distances, ensuring seamless communication between remote locations.

Redundancy and Resilience

SFP ports also enable users to create redundant network paths for enhanced resilience. By connecting multiple switches using SFP ports, users can establish a redundant network topology that ensures uninterrupted connectivity even if one link fails. This redundancy feature is crucial in mission-critical environments where network downtime can result in significant financial losses or operational disruptions.

In conclusion, the Cisco WS-C3650-24TS-S Switch's 24 ports provide increased connectivity, scalability, flexibility, and improved performance. The manageable features offer remote management, configuration flexibility, monitoring, troubleshooting, and enhanced security. The four SFP ports enable optical fiber connectivity, interoperability, network extension, and redundancy. These features collectively make the Cisco WS-C3650-24TS-S Switch a powerful and versatile networking solution for businesses and organizations of all sizes.
