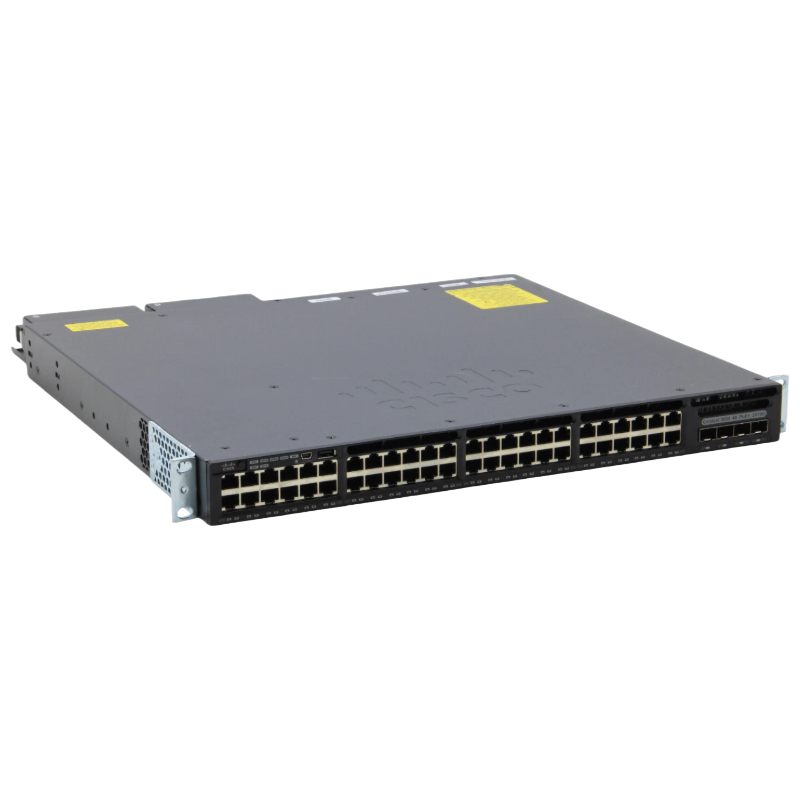

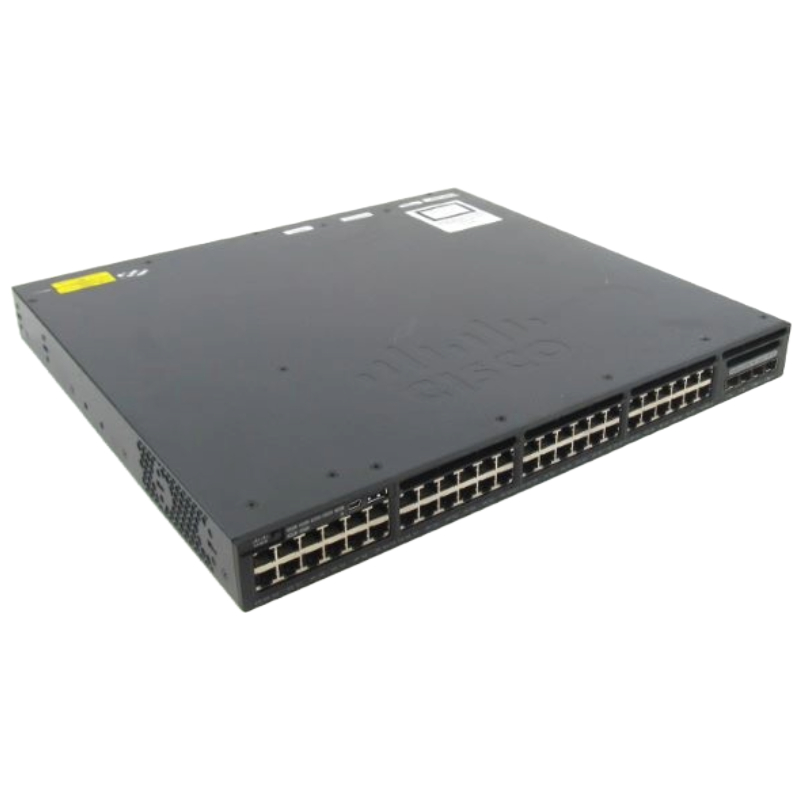

Cisco WS-C3650-48FWD-S 48 Port L3 Managed Switch Rack-mountable

Cisco WS-C3650-48FWD-S Layer 3 Switch

Quick Specifications

• Product Code: WS-C3650-48FWD-S
• Included Bundle: 5 AP licenses
• Enclosure Type: Rack-mountable (1U)
• Feature Set: IP Base
• Uplink Interfaces:
  • 2 x 1G SFP, 2 x 10G SFP+
  • or 4 x 1G SFP
• Ports: 48 x 10/100/1000 POE+ Ethernet
• Available PoE Power: 775W
• Maximum Stacking Capability: 9
• Stack Bandwidth: 160 Gbps
• Forwarding Performance: 104.16 Mpps
• Switching Capacity: 176 Gbps
• Memory:
  • RAM: 4 GB
  • Flash Memory: 2 GB
• Dimensions: 44.5 x 48.6 x 4.4 cm

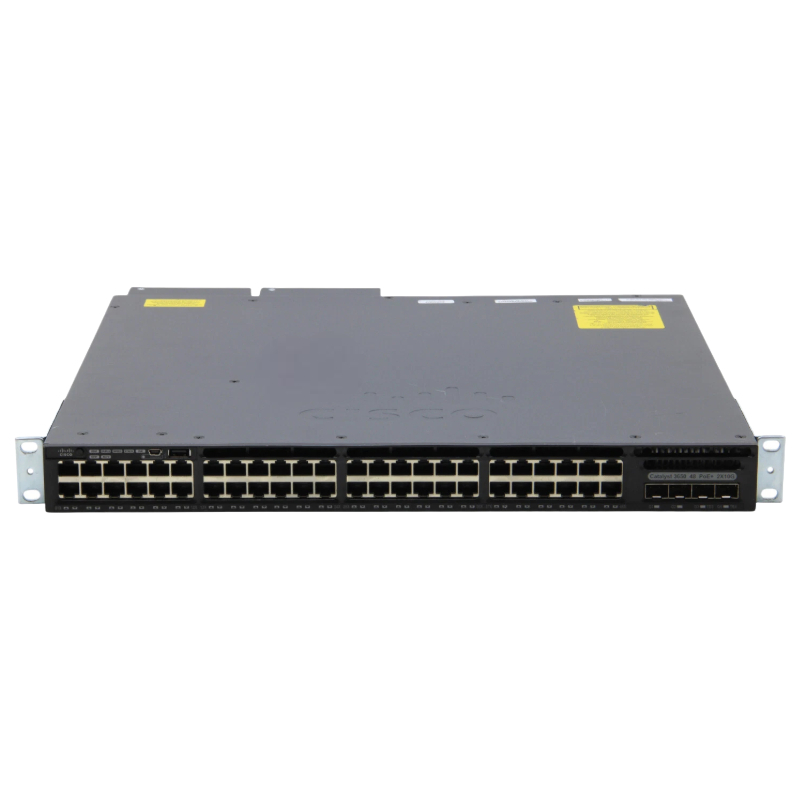

Networking Interfaces

• Ports:
  • 48 x 10/100/1000 (POE+)
  • 2 x 10G SFP+
  • 2 x 1G SFP
• Management Interfaces:
  • Ethernet management port: RJ-45 connectors
  • Management console port: RJ-45-to-DB9 for PC connections

Performance Metrics

• Switching Capacity: 176 Gbps
• Maximum Stacking Number: 9
• Stack Bandwidth: 160 Gbps
• Forwarding Performance: 104.16 Mpps
• FNF Entries: 48,000
• Maximum VLAN IDs: 4,094
• MAC Address Table Size: 32,000 entries
• CPU: Multicore processor

Wireless Capabilities

• Number of Access Points per Switch/Stack: 50
• Supported Wireless Clients per Switch/Stack: 1,000
• Total WLANs per Switch: 64
• Wireless Bandwidth per Switch: Up to 40 Gbps
• Compatible Aironet AP Series: 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion and Connectivity Options

• Console Ports:
  • USB (Type-B)
  • Ethernet (RJ-45)
• Expansion Slots: Power redundant slot
• Accessory Kits:
  • ACC-KIT-T1: Accessory kit
  • RACK-KIT-T1: Rack mount kit
  • 4PT-KIT-T1: Extension rails and brackets for four-point mounting
• Stacking Module and Cables:
  • C3650-STACK-KIT: Stack Module
  • STACK-T2-50CM: 0.5 m StackWise-160 cable
  • STACK-T2-1M: 1.0 m StackWise-160 cable
  • STACK-T2-3M: 3.0 m StackWise-160 cable

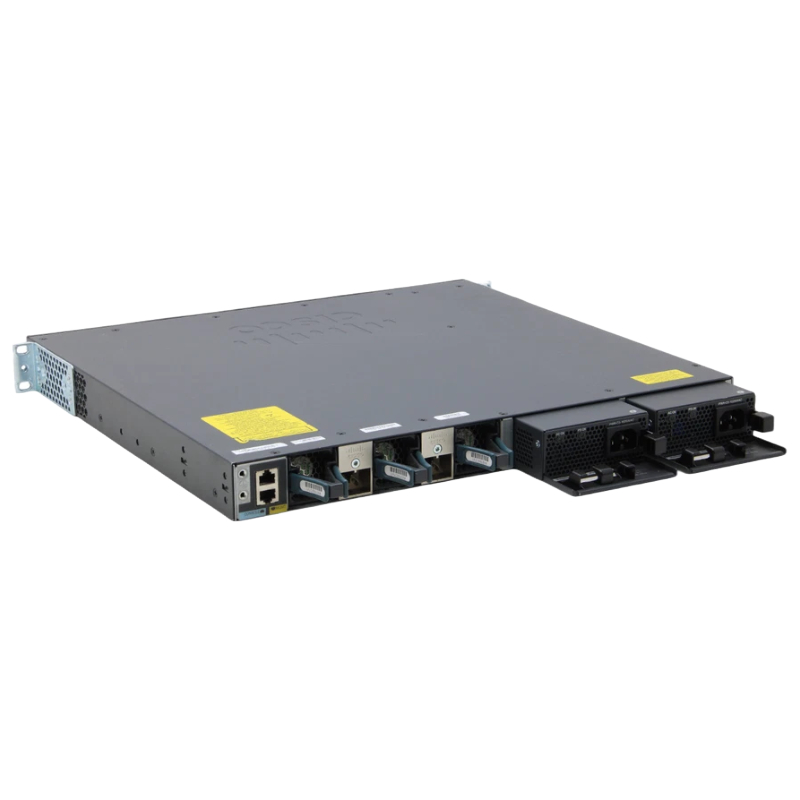

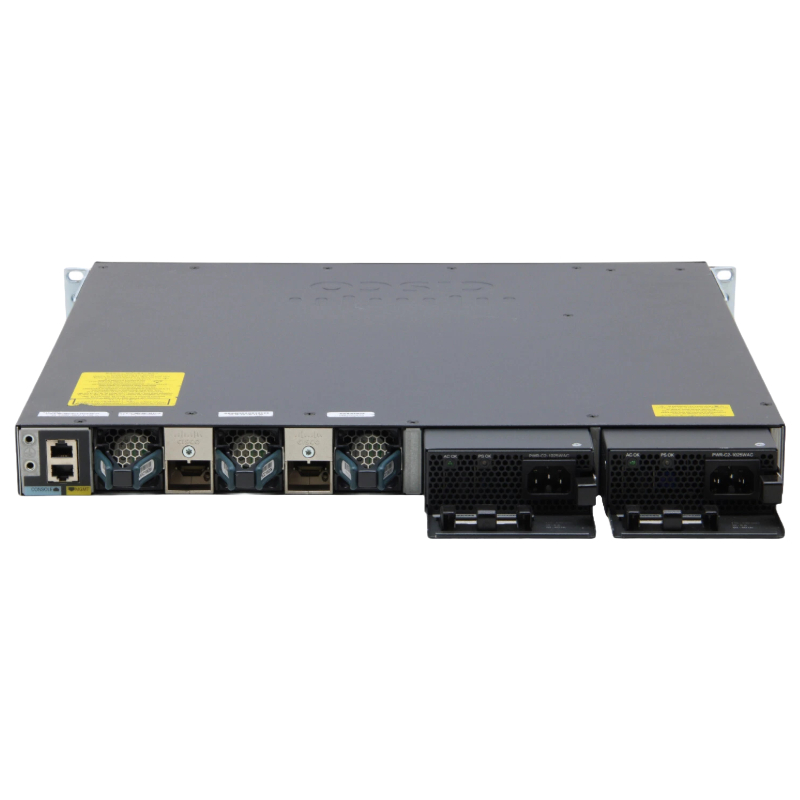

Power Specifications

• Power Supply: PWR-C2-1025WAC
• Power Device: Redundant plug-in module
• Power Redundancy: Optional
• Voltage Range: 100V-240V (Auto)
• Standalone Power Consumption: 109.4 Watts (max)

Physical Characteristics

• Width: 17.5 inches (44.5 cm)
• Depth: 19.125 inches (48.6 cm)
• Height: 1.73 inches (4.4 cm)
• Shipping Weight: 17.49 kg
• Rack Mounting Kit: Optional
• MTBF: 383,760 hours

Ports

The Cisco WS-C3650-48FWD-S Managed Switch is equipped with an impressive 48 ports, making it an ideal choice for businesses and organizations with high network demands. These ports offer numerous benefits and play a crucial role in ensuring a seamless and efficient network infrastructure.

Enhanced Connectivity

With 48 ports, this managed switch enables you to connect a large number of devices to your network. Whether it's computers, printers, servers, or other networking equipment, you can easily establish reliable connections without the need for additional switches or hubs. This eliminates the hassle of managing multiple devices and simplifies your network setup.

Increased Bandwidth

The abundance of ports on the Cisco WS-C3650-48FWD-S ensures that each connected device receives ample bandwidth, promoting smooth data transfer and minimizing bottlenecks. This is especially important in environments where bandwidth-intensive applications or multimedia streaming are common. By allocating dedicated ports to such devices, you can ensure uninterrupted performance and prevent congestion on the network.

Flexibility and Scalability

The 48 ports on this managed switch provide flexibility and scalability options for your network infrastructure. You have the freedom to connect new devices as your business expands or replace existing devices without worrying about running out of available ports. This makes it easier to adapt to changing requirements and accommodate future growth without significant investments in additional switches.

Power over Ethernet (PoE)

In addition to the sheer number of ports, the Cisco WS-C3650-48FWD-S also supports Power over Ethernet (PoE) technology. This means that certain ports on the switch can deliver power to compatible devices, such as IP phones, wireless access points, or security cameras, eliminating the need for separate power supplies. PoE simplifies installation and reduces cable clutter, making it an attractive feature for businesses looking to streamline their network infrastructure.

Link Aggregation

Link aggregation, also known as port trunking, allows you to combine multiple ports on the Cisco WS-C3650-48FWD-S into a single logical link. This feature enhances network performance and provides redundancy by increasing the available bandwidth and ensuring network availability even if one of the connections fails. Link aggregation is particularly useful for high-bandwidth applications or environments where uninterrupted connectivity is critical.

Improved Network Management

The large number of ports on this managed switch simplifies network management tasks. With 48 ports at your disposal, you can easily segment your network into logical groups based on departments, floors, or specific requirements. This allows for efficient troubleshooting, monitoring, and maintenance activities. Additionally, the switch's management capabilities enable you to configure and control each port individually or in groups, providing granular control over your network infrastructure.

Layer

The Cisco WS-C3650-48FWD-S Managed Switch operates at Layer 3 of the OSI model, offering advanced networking capabilities that are essential for modern networks. This layer plays a crucial role in ensuring efficient routing and addressing, providing numerous benefits for users.

Efficient Routing

Layer 3 switches, also known as multilayer switches, combine the functionality of traditional Layer 2 switches with routing capabilities found in routers. This means that the Cisco WS-C3650-48FWD-S can make intelligent routing decisions based on IP addresses, allowing for efficient data transfer between different network segments or VLANs (Virtual Local Area Networks). By leveraging Layer 3 capabilities, you can optimize traffic flow and improve network performance.

Enhanced Security

Layer 3 switches offer enhanced security features compared to Layer 2 switches. With the ability to inspect and filter traffic based on IP addresses, you can implement access control policies, firewall rules, and other security measures at the switch level. This helps protect your network from unauthorized access, malware, and other threats. Additionally, Layer 3 switches support features like Virtual Private Networks (VPNs) and Network Address Translation (NAT), further enhancing network security.

Scalability and Flexibility

Layer 3 switches provide scalability and flexibility options for your network infrastructure. With the ability to route traffic between different VLANs or subnets, you can create logical networks that can be easily expanded or modified as your business needs change. Layer 3 switches also support dynamic routing protocols, such as OSPF (Open Shortest Path First) or EIGRP (Enhanced Interior Gateway Routing Protocol), allowing for automatic network updates and efficient utilization of available resources.

Quality of Service (QoS)

Layer 3 switches like the Cisco WS-C3650-48FWD-S offer advanced Quality of Service (QoS) capabilities. QoS allows you to prioritize certain types of traffic, ensuring that critical applications or services receive the necessary bandwidth and latency requirements. This is particularly important in environments where real-time applications like VoIP (Voice over IP) or video conferencing are used. By prioritizing traffic at the switch level, you can guarantee a consistent user experience and prevent performance degradation.

Network Segmentation

Layer 3 switches enable network segmentation by dividing your network into smaller, isolated segments or VLANs. This allows you to logically separate different departments, user groups, or specific applications while maintaining connectivity between them when necessary. Network segmentation enhances security by isolating sensitive data or critical systems from the rest of the network, reducing the attack surface and limiting the impact of potential security breaches.

Improved Performance and Reliability

By operating at Layer 3, the Cisco WS-C3650-48FWD-S can offload routing tasks from the core network, improving overall performance and reliability. This is especially beneficial in networks with heavy traffic loads or complex routing requirements. Layer 3 switches can efficiently handle routing at the edge of the network, reducing congestion and latency in the core. Additionally, Layer 3 switches support features like Equal-Cost Multipath (ECMP) routing, which provides load balancing and redundancy by distributing traffic across multiple paths.

Mounting

The Cisco WS-C3650-48FWD-S Managed Switch is designed to be rack-mountable, offering users a convenient and space-saving solution for deploying and managing their network infrastructure.

Space Optimization

Rack-mountable switches are specifically designed to fit into standard server racks, allowing for efficient use of available space. By mounting the Cisco WS-C3650-48FWD-S in a rack, you can consolidate your networking equipment in a centralized location, reducing clutter and optimizing the use of valuable floor space. This is particularly important in data centers or server rooms where space is often limited.

Easy Installation and Maintenance

Rack-mountable switches offer easy installation and maintenance options. They typically come with mounting brackets or rails that allow for quick and secure attachment to standard racks. This eliminates the need for complex mounting procedures or additional hardware. Furthermore, rack-mountable switches can be easily accessed and managed from the front panel, simplifying cable management and troubleshooting tasks.

Scalability and Expandability

Rack-mountable switches provide scalability and expandability options for your network infrastructure. Server racks are designed to accommodate multiple devices, allowing you to add or replace switches as your business grows or requirements change. This modular approach makes it easier to scale your network without major disruptions or costly reconfigurations. Additionally, rack-mountable switches often come with expansion slots or modules that enable you to add new features or interfaces when needed.

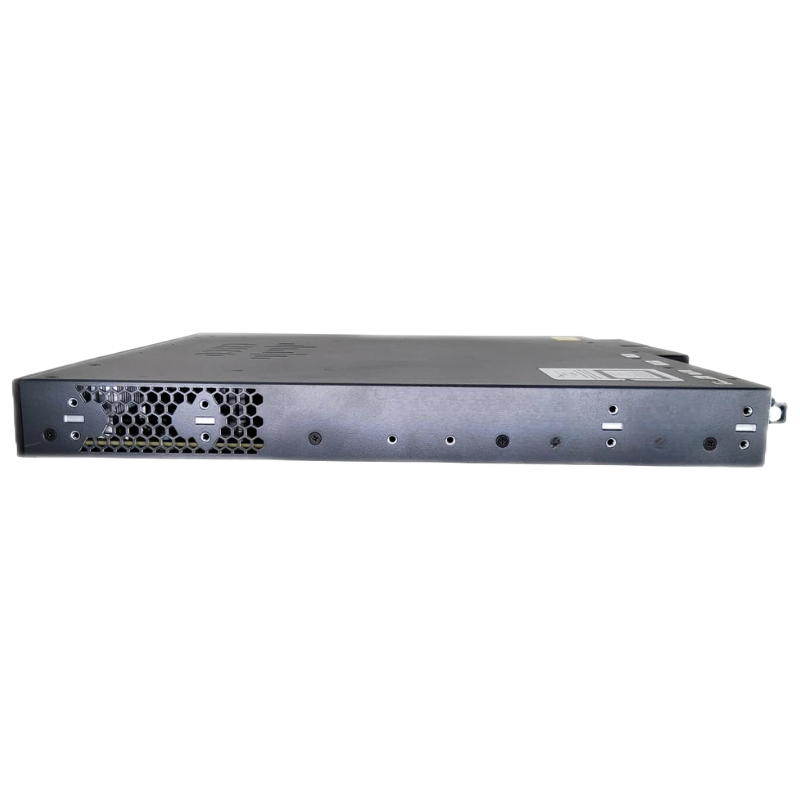

Cooling and Ventilation

Rack-mountable switches are designed to facilitate proper cooling and ventilation. They feature front-to-back airflow patterns, ensuring efficient heat dissipation and preventing equipment overheating. This is crucial for maintaining optimal performance and reliability, especially in environments where multiple networking devices are densely packed in a rack. By deploying a rack-mountable switch like the Cisco WS-C3650-48FWD-S, you can ensure the longevity and stability of your network infrastructure.

Physical Security

Rack-mountable switches offer improved physical security compared to standalone or wall-mounted switches. By housing your networking equipment in a locked server rack, you can restrict unauthorized access to sensitive devices and prevent tampering or theft. This is particularly important in environments where physical security is a concern, such as data centers or server rooms. Rack-mountable switches also provide cable management options, reducing the risk of accidental disconnections or damage.

Centralized Management

Deploying rack-mountable switches allows for centralized management of your network infrastructure. With all your networking equipment located in a single rack, you can easily access and control each switch from one central point. This simplifies configuration tasks, firmware updates, and monitoring activities. Centralized management also improves troubleshooting efficiency, as you can quickly identify and resolve network issues without the need to physically access each switch individually.

In conclusion, the Cisco WS-C3650-48FWD-S Managed Switch offers an impressive 48 ports, Layer 3 capabilities, and rack-mountable design. These features provide enhanced connectivity, increased bandwidth, flexibility, scalability, efficient routing, enhanced security, space optimization, easy installation and maintenance, improved performance and reliability, and centralized management. Whether you are running a small business or a large enterprise, this managed switch offers the necessary features to build a robust and future-proof network infrastructure.
