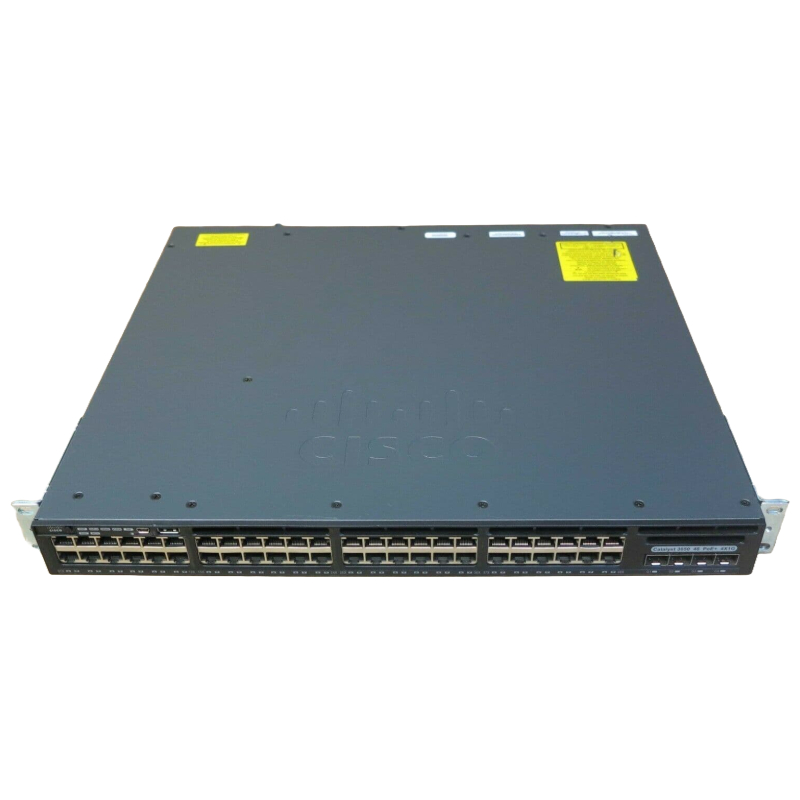

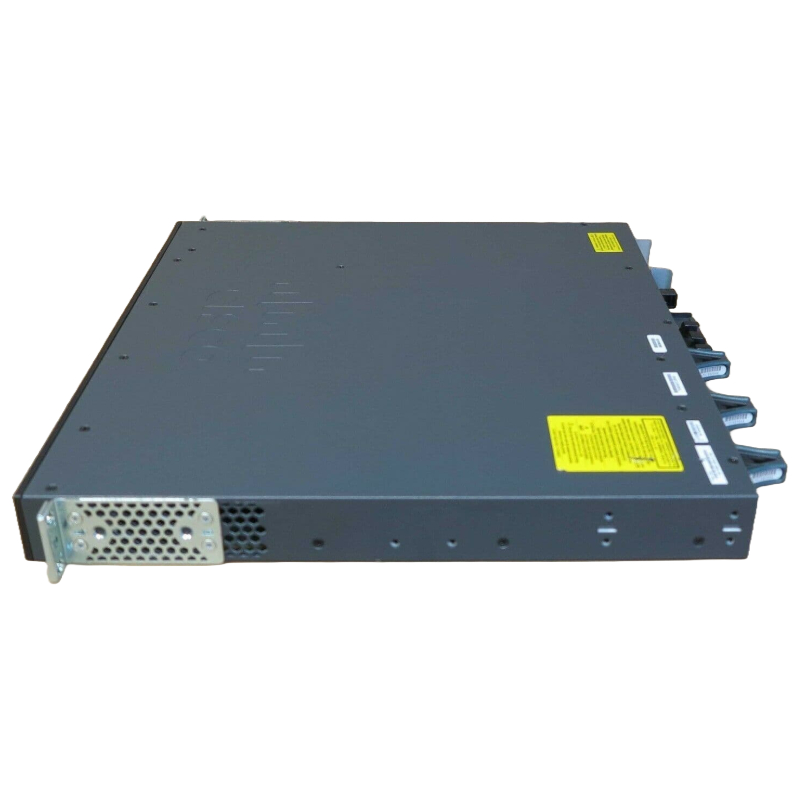

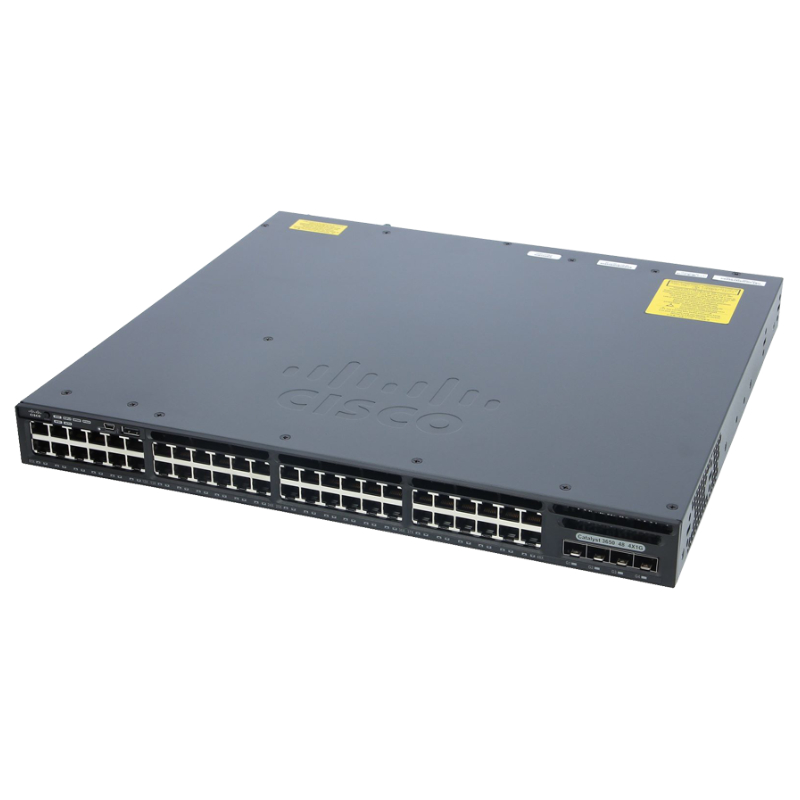

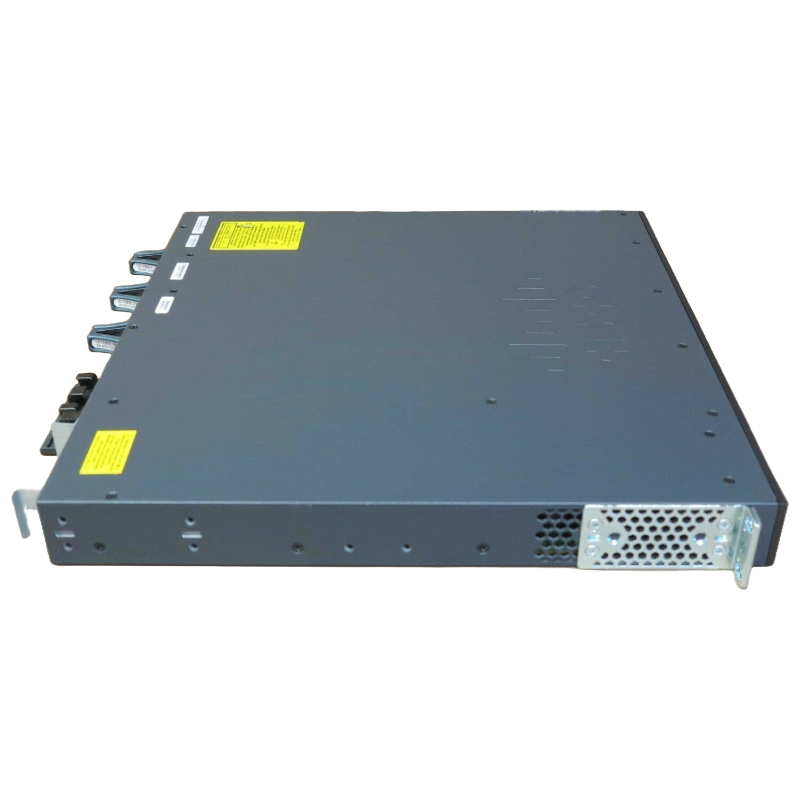

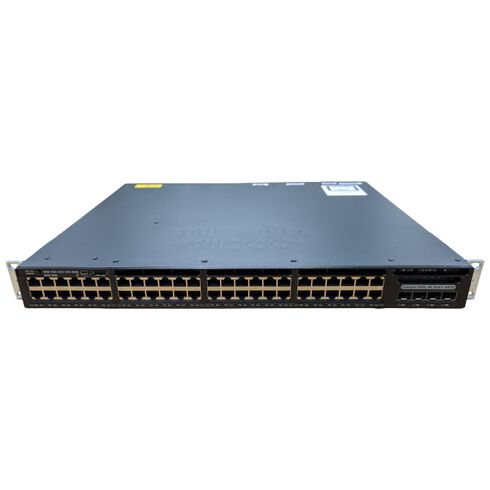

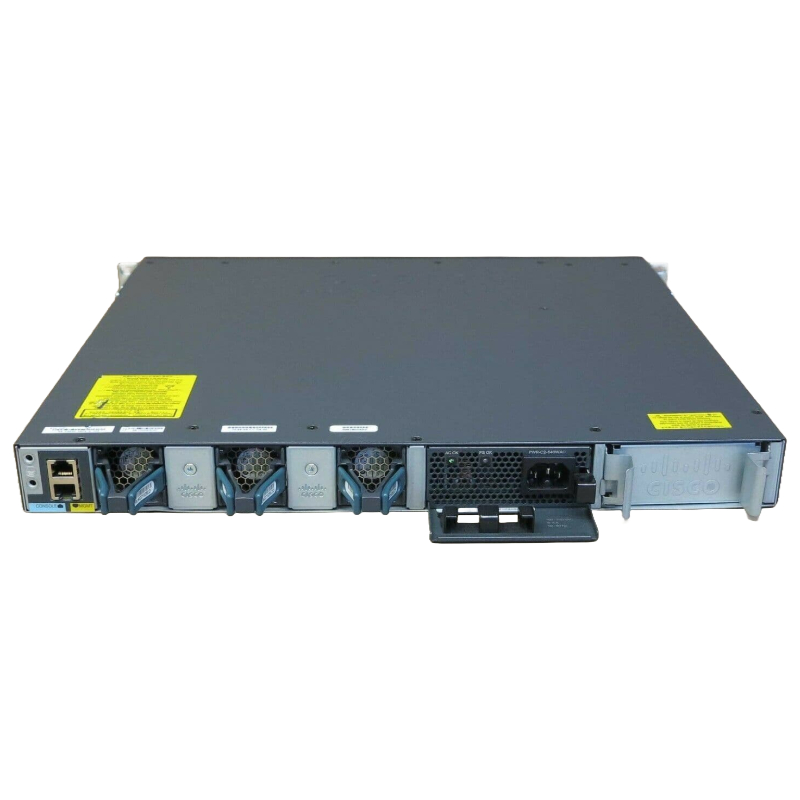

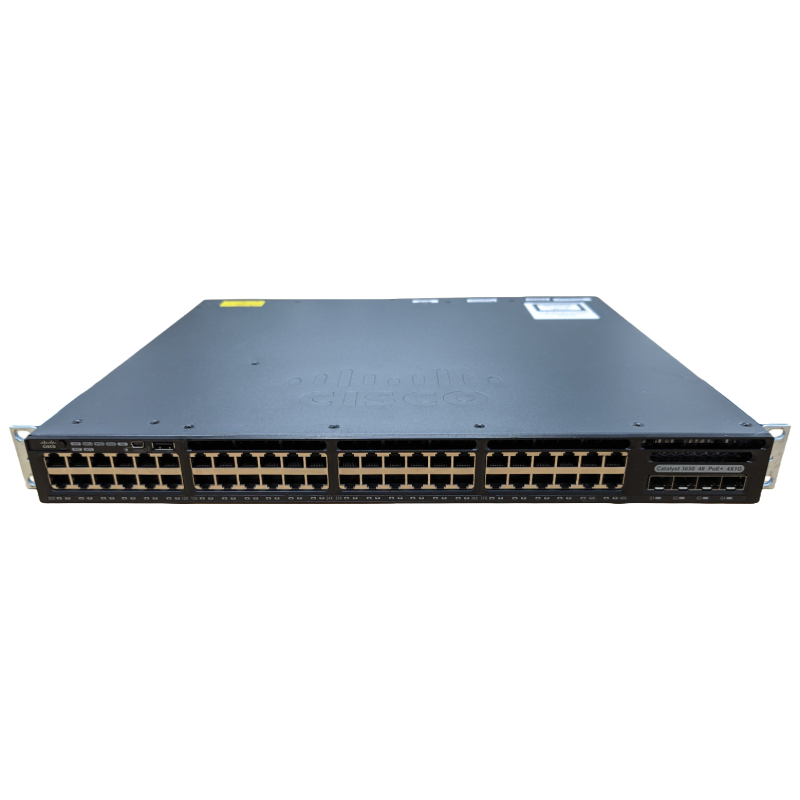

Cisco WS-C3650-48PS-E Catalyst 3650 L3 Switch 48 Ports 4 Expansion Slots

Overview of WS-C3650-48PS-E Switch

General Information

• Device Type: Network Switch - 48 Ports - Layer 3 - Managed - Stackable
• Enclosure Type: Suitable for Desktop or Rack Mount (1U)
• Interfaces: Gigabit Ethernet
• Ports: 48 x 10/100/1000 (PoE+) and 4 x SFP

Power and Performance

• Power Over Ethernet (PoE): PoE+
• PoE Budget: 390 Watts
• Switching Capacity: 176 Gbps
• Forwarding Performance: 130.95 Million Packets Per Second (Mpps)

Capacity Specifications

• IPv4 Routes: 24,000
• NetFlow Entries: 48,000
• Virtual Local Area Networks (VLANs): 4,000
• Switched Virtual Interfaces (SVIs): 1,000
• MAC Address Table Size: 32,000 Entries
• Jumbo Frame Support: Up to 9,198 Bytes

Routing and Protocols

• Routing Protocols: BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, Static IP Routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, Policy-Based Routing (PBR), RIPng

Remote Management and Monitoring

• Remote Management Protocols: SNMP v1, v2c, v3; RMON (1, 2, 3, 9); Telnet; SSH; CLI

Features and Functionalities

• Layer 2 Switching: Yes
• ARP Support: Yes
• Trunking: Yes
• VLAN Support: Yes
• IGMP Snooping: Yes
• IPv6 Support: Yes
• Rapid Spanning Tree Protocol (RSTP) Support: Yes
• Multiple Spanning Tree Protocol (MSTP) Support: Yes
• DHCP Snooping: Yes
• Port Aggregation Protocol (PAgP) Support: Yes
• Access Control List (ACL) Support: Yes
• Quality of Service (QoS): Yes
• RADIUS Support: Yes
• Virtual Route Forwarding-Lite (VRF-Lite): Yes
• MLD Snooping: Yes
• Dynamic ARP Inspection (DAI): Yes
• Uni-Directional Link Detection (UDLD): Yes
• Rapid Per-VLAN Spanning Tree Plus (PVRST+): Yes
• Link Aggregation Control Protocol (LACP): Yes
• Remote Switch Port Analyzer (RSPAN): Yes
• Energy Efficient Ethernet: Yes
• Flexible NetFlow (FNF): Yes

Compliance and Standards

• Standards Compliance: IEEE 802.3, 802.3u, 802.3z, 802.1d, 802.1q, 802.3ab, 802.1p, 802.3af, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.1ab (LLDP), 802.3at

Power Requirements

• Power Supply: AC 120/230V (50/60 Hz)
• Power Redundancy: Optional

Ports

The Cisco Catalyst 3650 Layer 3 Switch boasts an impressive 48 ports, making it an excellent choice for businesses and organizations that require a high-density network solution. These ports provide numerous benefits and play a crucial role in enhancing network performance, scalability, and flexibility.

Increased Connectivity

One of the primary advantages of the Cisco Catalyst 3650's 48 ports is the increased connectivity it offers. With a larger number of ports, users can connect more devices to the switch, such as computers, printers, servers, and access points. This allows for seamless communication and efficient data transfer across the network.

Whether you have a small office with multiple workstations or a large enterprise with numerous departments, the 48 ports ensure that you have enough capacity to connect all your devices without any bottlenecks. This high-density solution eliminates the need for additional switches or complicated cabling setups, saving both time and money.

Versatility and Flexibility

Having 48 ports on the Cisco Catalyst 3650 Layer 3 Switch provides users with unmatched versatility and flexibility when it comes to network design and expansion. The abundance of ports allows IT administrators to easily accommodate new devices or scale up their network infrastructure as their organization grows.

Additionally, the switch supports various Ethernet standards, including Fast Ethernet (10/100Mbps) and Gigabit Ethernet (10/100/1000Mbps). This flexibility ensures compatibility with a wide range of devices, from legacy systems to modern high-speed devices. Users can connect devices of different speeds without any issues, maximizing the switch's utilization.

Furthermore, the Cisco Catalyst 3650 offers Power over Ethernet (PoE) capabilities on select models. This means that certain ports can provide power to compatible devices, such as IP phones, wireless access points, or security cameras, eliminating the need for separate power sources. This simplifies installation and reduces cable clutter, enhancing overall network efficiency.

Improved Network Performance

With 48 ports, the Cisco Catalyst 3650 Layer 3 Switch enables efficient traffic management and optimized network performance. The switch utilizes advanced features like Quality of Service (QoS) and traffic prioritization to ensure critical applications receive the necessary bandwidth and resources.

The QoS capabilities allow IT administrators to prioritize specific types of traffic, such as voice or video, over less time-sensitive data. By assigning higher priority to essential traffic, the switch ensures smooth operation of mission-critical applications and services, preventing performance degradation and bottlenecks.

Furthermore, the Cisco Catalyst 3650 supports features like VLANs (Virtual Local Area Networks), which enable network segmentation. This allows users to create separate virtual networks within the switch, effectively isolating different departments or user groups. By keeping network traffic separate, VLANs enhance security, reduce congestion, and improve overall network efficiency.

Scalability and Future-Proofing

The 48 ports on the Cisco Catalyst 3650 Layer 3 Switch provide ample room for network expansion and future-proofing. As businesses grow and technology advances, the demand for additional network connections also increases. Having a switch with a large number of ports ensures that you can easily accommodate new devices or users without investing in additional infrastructure.

Furthermore, the Cisco Catalyst 3650 supports stacking. Stacking allows multiple switches to operate as a single logical unit, sharing resources and simplifying management. With stacking capabilities, organizations can easily add more switches to the stack as needed, increasing port capacity without sacrificing manageability.

Centralized Management

The Cisco Catalyst 3650 Layer 3 Switch offers centralized management through Cisco's intuitive network management platform, Cisco DNA Center. This powerful software allows IT administrators to configure, monitor, and troubleshoot the entire network from a single interface.

With the ability to manage all switches, including the Cisco Catalyst 3650, from one platform, administrators can streamline operations, reduce configuration errors, and improve overall network security. They can easily monitor port utilization, identify potential bottlenecks, and take proactive measures to optimize performance.

In conclusion, the 48 ports on the Cisco Catalyst 3650 Layer 3 Switch deliver significant benefits to users. The increased connectivity, versatility, and flexibility enable seamless communication and efficient data transfer. Improved network performance, scalability, and centralized management further enhance the switch's value. With its robust features and ample port capacity, the Cisco Catalyst 3650 is a reliable network solution suitable for organizations of all sizes.

Expansion Slots

The Cisco Catalyst 3650 Layer 3 Switch is equipped with four expansion slots, providing users with enhanced capabilities for future growth and network customization. These expansion slots offer numerous benefits and play a vital role in expanding the switch's functionality to meet evolving business needs.

Enhanced Functionality

The four expansion slots on the Cisco Catalyst 3650 enable users to add various modules and interfaces to enhance the switch's functionality. These modules can include additional Ethernet ports, fiber optic interfaces, or specialized modules for specific applications or protocols.

For example, organizations requiring high-speed fiber connectivity can install fiber optic modules in the expansion slots to connect remote locations or backbone networks. This allows for faster data transfer over longer distances without sacrificing performance or reliability.

Similarly, businesses that require additional Ethernet ports can add module cards with extra ports to expand the switch's capacity. This eliminates the need for separate switches or complex cabling solutions and simplifies network management.

Network Customization

The expansion slots on the Cisco Catalyst 3650 Layer 3 Switch also enable network customization based on specific requirements. Different modules can be installed to support various network protocols or technologies, allowing organizations to tailor their network infrastructure to their unique needs.

For example, users can add modules for Voice over IP (VoIP) to enable seamless integration of IP telephony systems. These modules provide additional features and capabilities, such as Power over Ethernet (PoE) support for IP phones, ensuring a reliable and efficient voice communication system.

Additionally, organizations can install modules for wireless connectivity, such as Cisco's Wireless LAN Controller (WLC) module. This module allows the switch to act as a wireless LAN controller, providing centralized management and enhanced security for wireless access points.

Future-Proofing

The four expansion slots on the Cisco Catalyst 3650 Layer 3 Switch offer future-proofing capabilities, ensuring that the switch can adapt to evolving technology and business requirements. As new modules and interfaces become available, users can easily upgrade their switch without replacing the entire unit.

This flexibility allows organizations to stay ahead of technological advancements and industry standards without costly hardware replacements. By simply adding new modules to the expansion slots, businesses can take advantage of the latest features and functionalities, maximizing the lifespan of their network infrastructure investment.

Improved Reliability

The expansion slots on the Cisco Catalyst 3650 also contribute to improved reliability and network uptime. By adding redundant modules in the expansion slots, organizations can create a highly resilient network architecture.

Redundant modules provide backup functionality in case of module failure or maintenance. If a module in one slot fails, the switch automatically switches over to the redundant module, ensuring uninterrupted network operation. This redundancy minimizes downtime and ensures continuous service availability for critical applications and services.

In conclusion, the four expansion slots on the Cisco Catalyst 3650 Layer 3 Switch offer significant benefits to users. The enhanced functionality, network customization, and future-proofing capabilities empower organizations to tailor their network infrastructure to their specific needs. Improved reliability through redundant modules further enhances the switch's value, guaranteeing uninterrupted network operation. With its expansion slot versatility, the Cisco Catalyst 3650 is a versatile and scalable network solution suitable for businesses seeking to optimize their network performance and adapt to future requirements.
