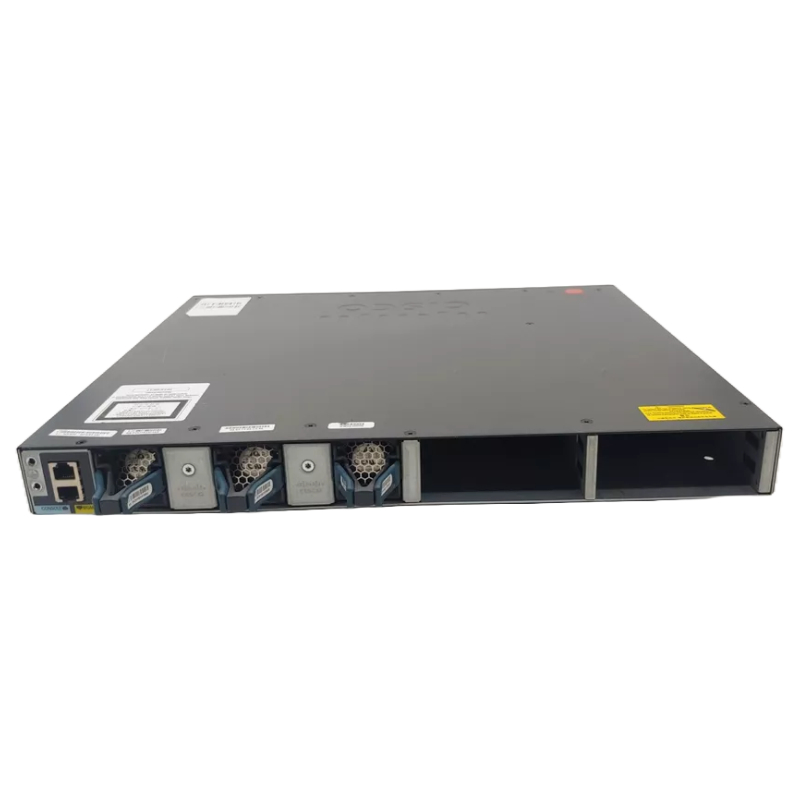

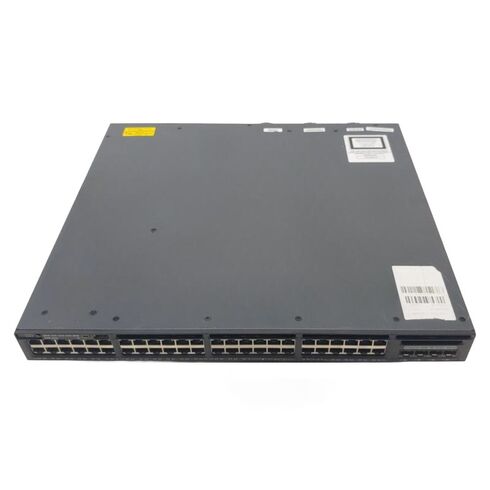

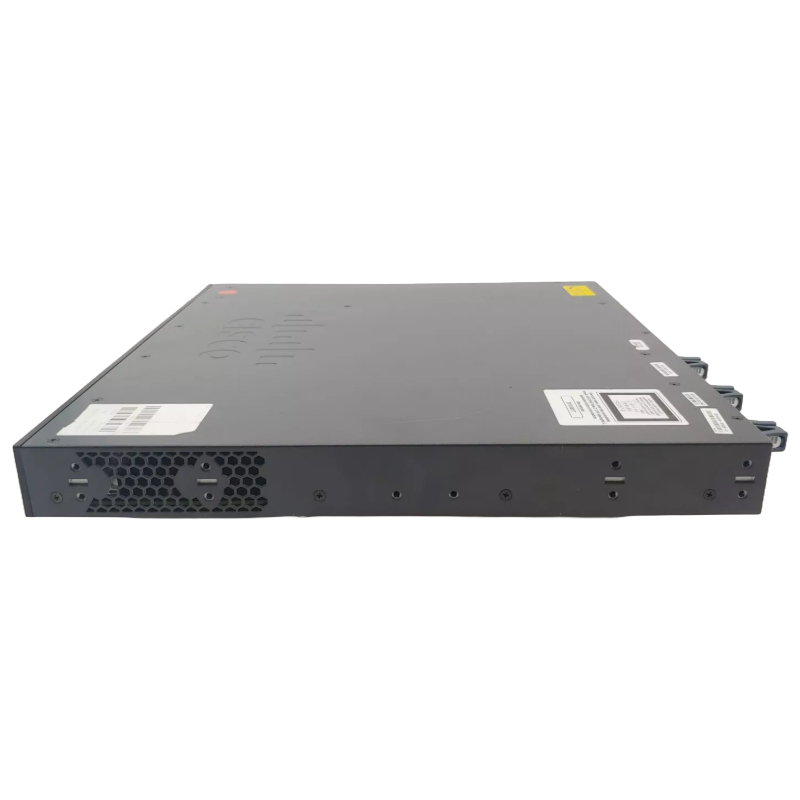

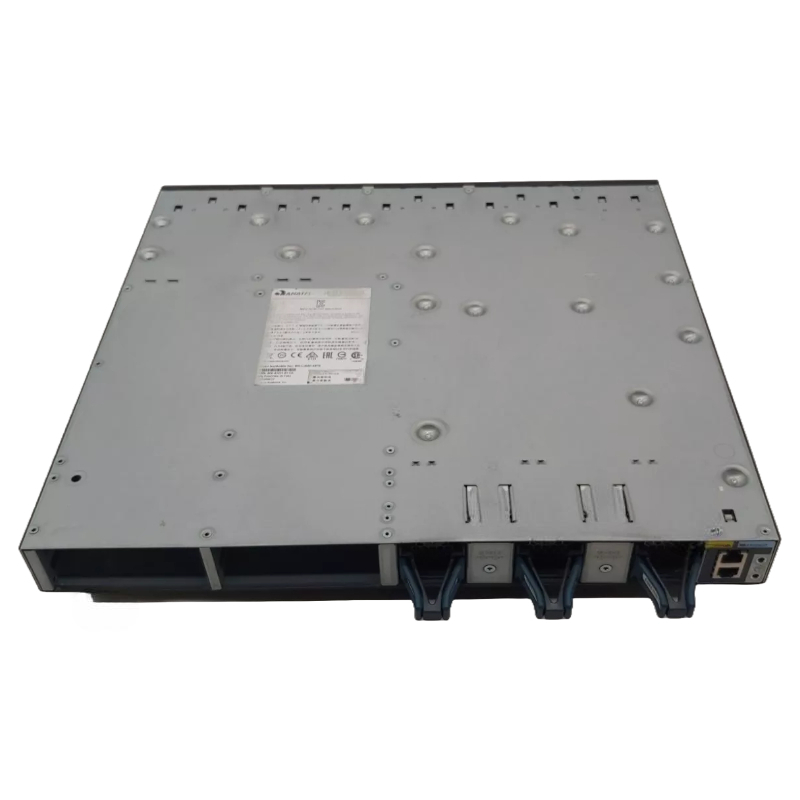

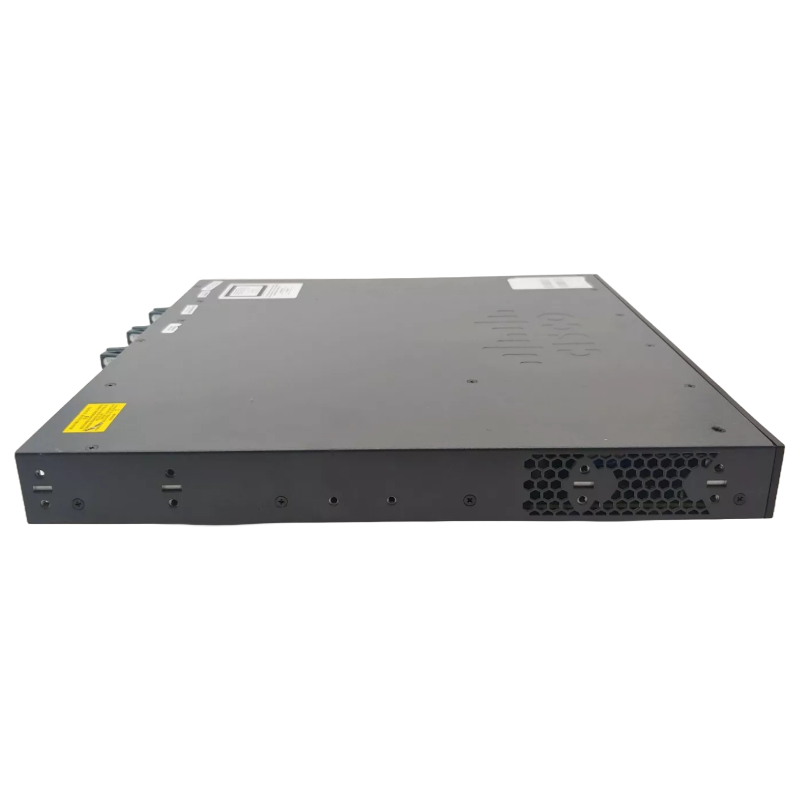

Cisco WS-C3650-48TS-E Catalyst 3650 Switch (48 Ports)

Device Overview of Cisco WS-C3650-48TS-E Switch

• Brand: Cisco
• Part Number: WS-C3650-48TS-E
• Product Type: Switch

General Specifications

• Type: 48-Port Switch
• Layer: L3
• Management: Managed
• Form Factor: Stackable
• Mounting Options: Desktop or Rack-mountable (1U)

Connectivity and Ports

• Interface Type: Gigabit Ethernet
• Port Configuration: 48 x 10/100/1000 Mbps + 4 x SFP

Performance Metrics

• Switching Capacity: 176 Gbps
• Forwarding Throughput: 130.95 Mpps

Capacity and Scaling

• IPv4 Routing Entries: 24,000
• NetFlow Entries: 48,000
• Virtual LANs (VLANs): 4,000
• Switched Virtual Interfaces (SVIs): 1,000
• MAC Address Table Capacity: 32,000 entries
• Jumbo Frame Size: 9,198 bytes

Routing and Protocols

• Supported Routing Protocols: BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, Static IP Routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, Policy-Based Routing (PBR), RIPng

Management and Monitoring

• Remote Management Options: SNMP v1, SNMP v2c, SNMP v3, RMON (v1, v2, v3, v9), Telnet, SSH, CLI

Advanced Features

• Layer 2 Features: ARP Support, VLAN Trunking, IGMP Snooping
• IPv6 Capabilities: IPv6 Support
• Spanning Tree Protocols: Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), Rapid Per-VLAN Spanning Tree Plus (PVRST+)
• Security and Access Control: DHCP Snooping, Access Control Lists (ACLs), Dynamic ARP Inspection (DAI)
• Link Aggregation: Port Aggregation Protocol (PAgP), Link Aggregation Control Protocol (LACP)
• Additional Features: Energy Efficient Ethernet, Flexible NetFlow (FNF), Remote Switch Port Analyzer (RSPAN), Uni-Directional Link Detection (UDLD)

Compliance and Standards

• Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1d, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at

Power Specifications

• Power Supply: AC 120/230V (50/60 Hz)
• Redundancy: Optional

Ports

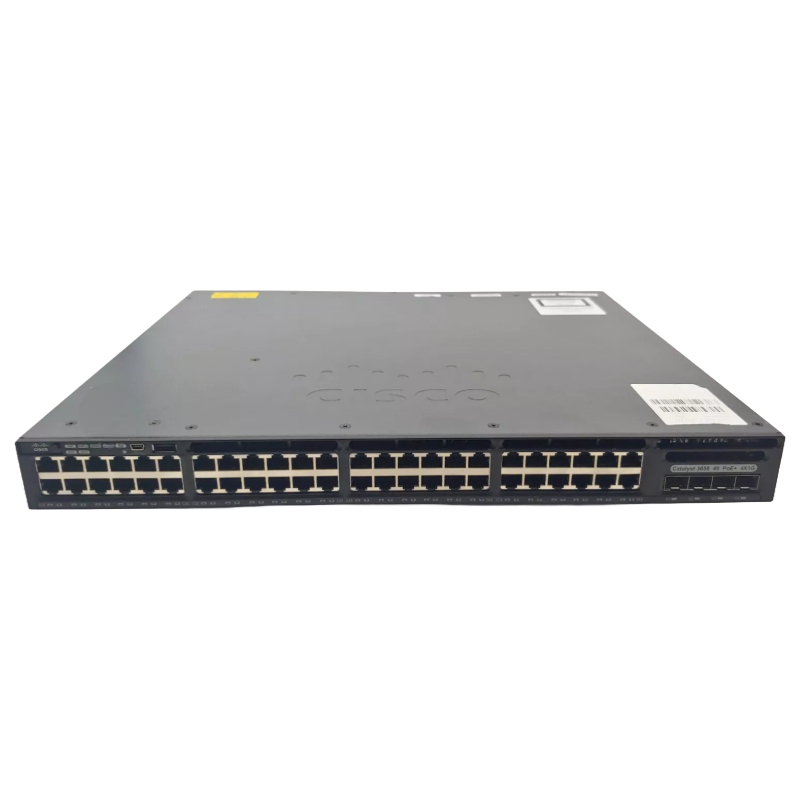

The Cisco WS-C3650-48TS-E Switch is equipped with an impressive 48 ports, making it a top choice for businesses and organizations that require high-speed connectivity and the ability to connect multiple devices simultaneously. Whether you are setting up a small office network or a large enterprise infrastructure, the abundance of ports provided by this switch is an invaluable feature.

Increased Connectivity

With 48 ports, this switch offers an extensive range of connectivity options. Each port can be used to connect various devices such as computers, servers, printers, IP phones, access points, and more. This increased connectivity capability allows businesses to expand their network infrastructure without worrying about running out of available ports. It eliminates the need for additional switches or complex configurations, simplifying network management and reducing costs.

High-Speed Data Transfer

In today's digital age, businesses heavily rely on fast and reliable data transfer. The Cisco WS-C3650-48TS-E Switch ensures high-speed data transfer between connected devices. Each port supports Gigabit Ethernet, offering data transfer rates of up to 1 gigabit per second (Gbps). This high-speed connectivity facilitates seamless communication and enables efficient data sharing across the network. It enhances productivity and reduces latency, especially when dealing with bandwidth-intensive applications and large file transfers.

Improved Network Performance

The 48 ports on this switch enable businesses to create a robust and scalable network infrastructure. Multiple devices can be connected directly to the switch, eliminating the need for daisy-chaining or cascading switches. This direct connectivity results in improved network performance as it reduces latency and eliminates potential bottlenecks caused by long network chains. With each device connected directly to the switch, users experience faster response times, enhanced reliability, and smoother operation of their applications.

VLAN Support for Network Segmentation

The Cisco WS-C3650-48TS-E Switch supports Virtual Local Area Networks (VLANs), allowing users to segment their network into smaller, isolated networks. This feature provides enhanced security, improved network management, and better control over network traffic. VLANs enable businesses to separate various departments, projects, or guest networks, ensuring that sensitive data remains isolated and protected. By utilizing VLANs, network administrators can implement security policies, prioritize network traffic, and optimize network performance.

Power over Ethernet (PoE) Capability

Another advantage of the Cisco WS-C3650-48TS-E Switch is its Power over Ethernet (PoE) capability. This means that the switch can provide power to compatible devices via the Ethernet cable, eliminating the need for separate power adapters. With 48 PoE ports available, businesses can easily power IP phones, wireless access points, surveillance cameras, and other PoE-enabled devices without requiring additional power sources or electrical outlets. This simplifies installation and reduces cable clutter.

Flexible Deployment Options

The abundance of ports on the Cisco WS-C3650-48TS-E Switch offers flexibility in network deployment. The switch can be deployed as a standalone device or as part of a stackable switch system. Stacking multiple switches allows for increased scalability and simplified management. It enables businesses to expand their network infrastructure without sacrificing performance or manageability.

Future-Proof Investment

Investing in a switch with 48 ports ensures future-proofing your network infrastructure. As technology evolves and businesses grow, the demand for connectivity increases. By choosing a switch with ample ports, businesses can easily accommodate future expansion and avoid costly upgrades or replacements down the line. The Cisco WS-C3650-48TS-E Switch provides businesses with a solid foundation for their network infrastructure, supporting their growth and adapting to changing needs.

In conclusion, the 48 ports offered by the Cisco WS-C3650-48TS-E Switch are a significant feature that provides increased connectivity, high-speed data transfer, improved network performance, VLAN support for network segmentation, Power over Ethernet capability, flexible deployment options, and future-proof investment. Whether you are a small business or a large enterprise, this switch delivers the necessary connectivity and performance to meet your networking requirements.
