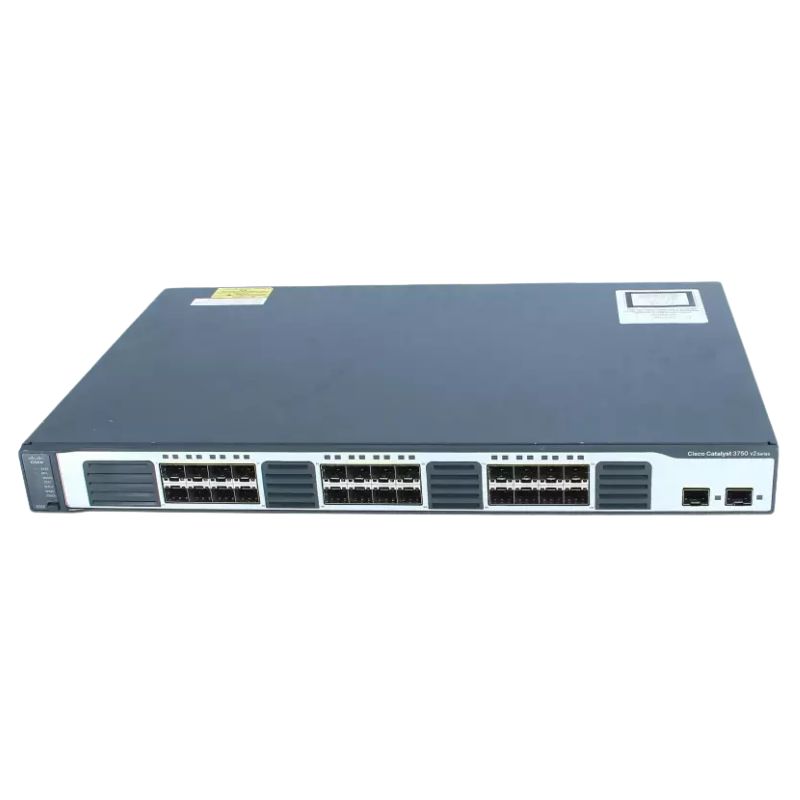

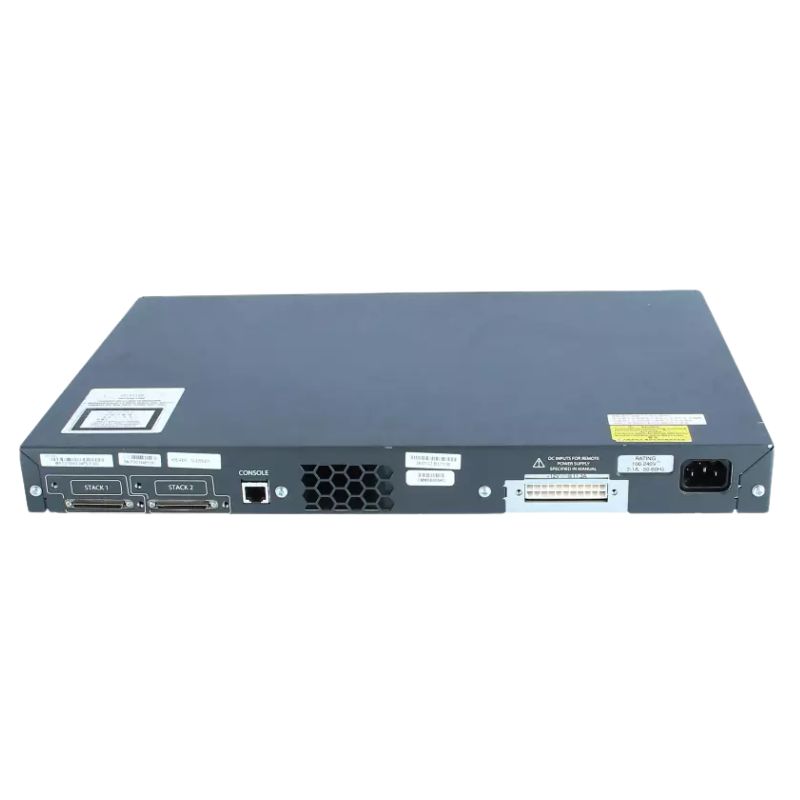

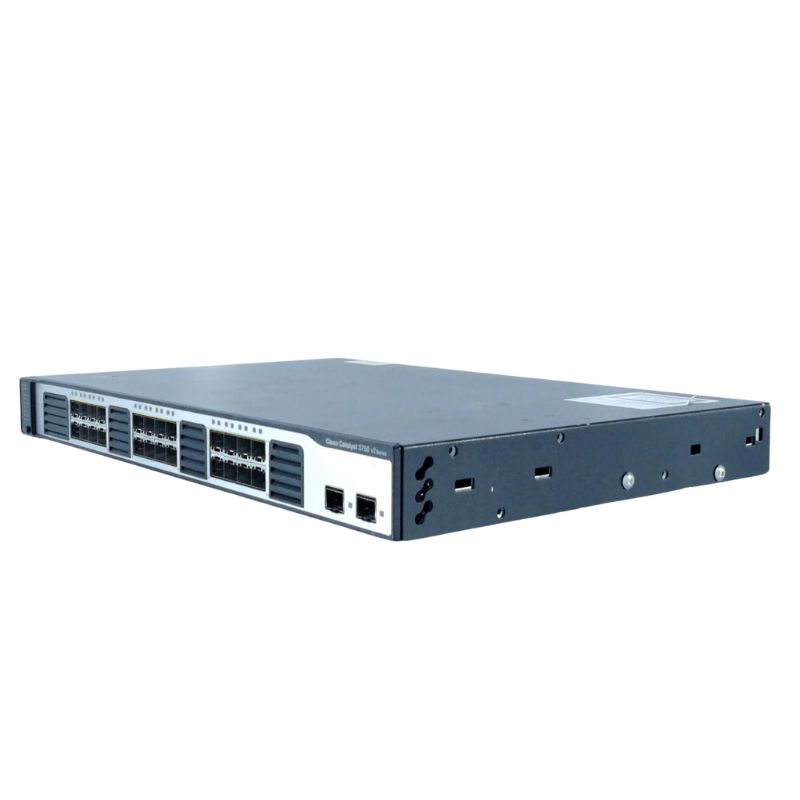

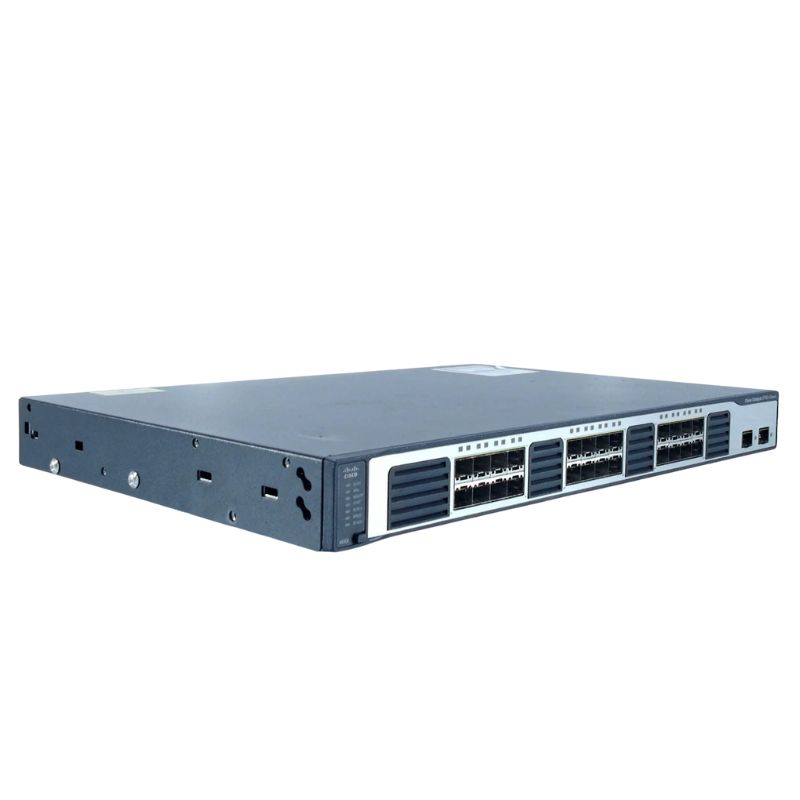

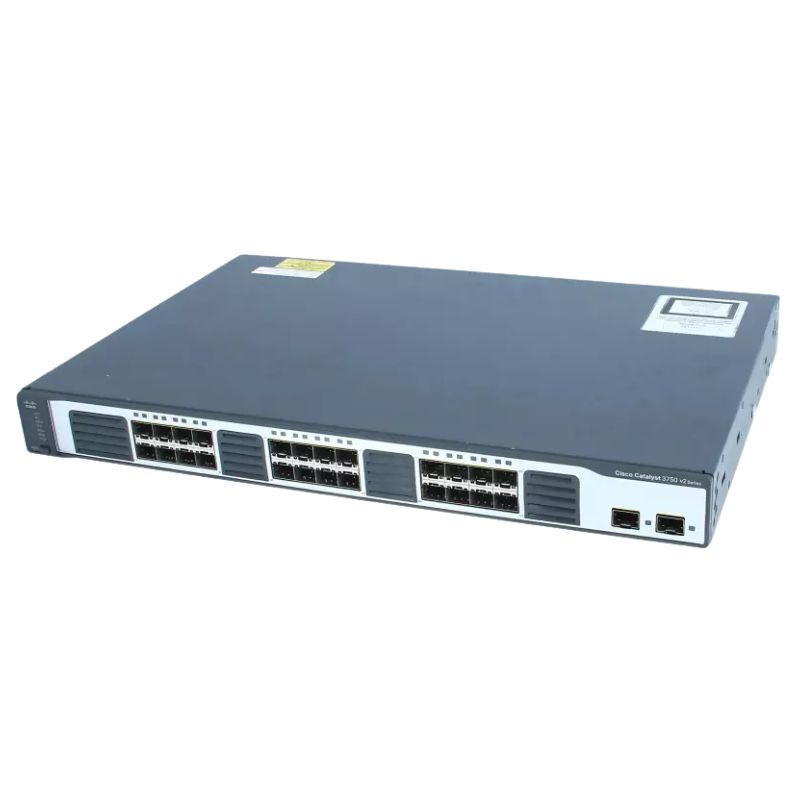

Cisco WS-C3750V2-24FS-S Catalyst 3750V2 Switch (24 Ports)

CISCO Catalyst WS-C3750V2-24FS-S Overview

The CISCO Catalyst WS-C3750V2-24FS-S is a robust Layer 3 managed switch, ideal for enhancing network performance with its advanced feature set and reliable design. It offers a stackable form factor, energy-efficient operation, and is designed for high-performance environments requiring extensive scalability and robust management capabilities.

Key Features

• Layer 3 Managed Switch - Delivers comprehensive management capabilities, supporting advanced routing, VLANs, and traffic management.
• Energy-efficient Operation - Designed to lower power consumption, contributing to reduced operational costs.
• Stackable Design - Easily stack multiple switches for seamless scalability and simplified management.

Port Configuration

• Fast Ethernet Ports: 24 x 100 Mbps RJ-45 Ethernet ports
• Uplink Ports: 2 x Gigabit Ethernet ports for high-speed connections
• SFP Module Slots: 26 SFP slots for fiber-optic connectivity, offering versatile networking options.

Networking Standards and Protocols

• Networking Standards: IEEE 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3u, 802.3z
• VLAN Support: Configurable up to 1000 VLANs for enhanced network segmentation and security.
• IP Routing: Supports 2000 routing entries for efficient data routing.
• Spanning Tree Protocol: Ensures loop-free network operation and maximizes uptime.

Performance and Capacity

• Switching Capacity: 32 Gbps for high-speed data transfers
• Throughput: 6.5 Mpps (million packets per second)
• MAC Address Table: Supports 12,000 entries, ideal for handling large networks.
• Jumbo Frames Support: Provides efficient handling of large data packets for improved performance.

Security and QoS Features

• Access Control Lists (ACLs): Ensures strict control over network traffic with robust filtering options.
• 802.1x RADIUS Authentication: Provides secure user access and control.
• MAC Address Filtering: Allows filtering and monitoring of devices based on MAC addresses.
• Quality of Service (QoS): Enables traffic prioritization, ensuring critical applications receive sufficient bandwidth.
• IGMP Snooping: Optimizes multicast traffic to ensure efficient data delivery.

Connectivity and Expansion

• Copper Ethernet Cabling: Supports 1000BASE-T, 100BASE-TX, 10BASE-T technologies.
• Fiber Ethernet Cabling: Compatible with 1000BASE-LH, 1000BASE-LX, 1000BASE-SX, and 1000BASE-ZX for flexible fiber optic connectivity.
• Auto MDI/MDI-X: Automatically adjusts for straight-through or crossover cables, simplifying installations.

Reliability and Redundancy

• Broadcast Storm Control: Helps prevent network congestion and packet loss by controlling broadcast traffic.
• Link Aggregation: Combines multiple connections to increase bandwidth and provide redundancy in case of failure.
• Rate Limiting: Controls the flow of traffic to prevent network overload and ensure smooth operations.

Management and Monitoring

• Management Protocols: Supports SNMPv1/v2/v3, TCP for efficient network monitoring and management.
• Web-based Management: Provides a user-friendly interface for configuring and managing the switch.
• System Event Log: Keeps detailed logs of system events for troubleshooting and analysis.

Power and Environmental Specifications

• AC Input Voltage: 100 - 240 V, 50 - 60 Hz
• Power Consumption: Designed for energy efficiency with reduced power usage
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Storage Temperature: -25°C to 70°C (-13°F to 158°F)
• Operating Altitude: 0 - 3000 meters
• Non-operating Altitude: 0 - 4573 meters

Dimensions and Physical Properties

• Dimensions: 174.6 mm (W) x 116.2 mm (D) x 17.3 mm (H)
• Weight: 4.1 kg
• Mean Time Between Failures (MTBF): 349,610 hours, ensuring long-lasting reliability.

Compliance and Certifications

• Certifications: Fully compliant with international standards including IEEE, CE, FCC, and others, ensuring robust and reliable performance across diverse environments.

Ports

The Cisco WS-C3750V2-24FS-S Switch is equipped with 24 ports, making it an ideal choice for small to medium-sized businesses or organizations that require a reliable and efficient network solution. These ports provide the necessary connectivity for connecting various devices, such as computers, servers, printers, and other networked devices.

Increased Connectivity

The 24 ports on the Cisco WS-C3750V2-24FS-S Switch allow for increased connectivity options within your network. With more ports available, you can easily connect multiple devices without the need for additional switches or hubs. This is particularly beneficial in environments where there are numerous networked devices that require a stable and fast connection.

Whether you have a small office with a few computers or a larger organization with multiple departments and workstations, the 24 ports ensure that you have enough connectivity options to meet your networking needs.

Flexibility in Network Design

The presence of 24 ports on this switch gives you the flexibility to design your network in a way that best suits your requirements. You can connect devices directly to the switch or create VLANs (Virtual Local Area Networks) to segment your network based on departments or specific functions.

By dividing your network into VLANs, you can control traffic flow and improve security by isolating sensitive data or devices from the rest of the network. The 24 ports allow you to allocate specific ports to each VLAN, ensuring efficient management and organization of your network infrastructure.

Scalability

The 24 ports on the Cisco WS-C3750V2-24FS-S Switch also provide scalability for future growth. As your business or organization expands, you may need to add more devices to your network. Having additional ports readily available allows for easy expansion without the need to invest in additional switches or equipment.

This scalability ensures that your network can grow with your business, saving you both time and money in the long run.

Power over Ethernet (PoE) Support

Another significant advantage of the Cisco WS-C3750V2-24FS-S Switch is its support for Power over Ethernet (PoE). This feature allows the switch to deliver power to connected devices, such as IP phones, wireless access points, and security cameras, through the Ethernet cable.

With 24 PoE ports, you can eliminate the need for separate power supplies or adapters for these devices, reducing clutter and simplifying installation. This feature is especially beneficial in environments where power outlets may be limited or difficult to access.

Enhanced Network Performance

The 24 ports on the Cisco WS-C3750V2-24FS-S Switch contribute to enhanced network performance by providing high-speed connectivity. Each port supports Gigabit Ethernet, ensuring fast data transfer rates between devices.

With this level of performance, you can experience seamless file transfers, smooth multimedia streaming, and efficient data access across your network. This is particularly important in environments where large amounts of data need to be transmitted quickly, such as video editing studios or data-intensive applications.

Series

The Cisco WS-C3750V2-24FS-S Switch belongs to the Catalyst 3750V2 series, which is renowned for its advanced features and reliability. This series has been designed to meet the demanding requirements of modern networks and provide businesses with a robust and secure networking solution.

Advanced Layer 3 Routing

One of the key benefits of the Catalyst 3750V2 series is its advanced Layer 3 routing capabilities. Layer 3 routing allows for the efficient forwarding of network traffic between different subnets or VLANs. This ensures optimal network performance and enables the implementation of complex networking architectures.

The Cisco WS-C3750V2-24FS-S Switch, being part of this series, offers enhanced Layer 3 routing functionality, making it suitable for organizations that require advanced routing capabilities.

Improved Network Security

Security is a top priority for any network, and the Catalyst 3750V2 series excels in providing robust security features. These switches support features such as Access Control Lists (ACLs), Secure Shell (SSH) Protocol, and Port Security, which help protect your network from unauthorized access and potential threats.

By utilizing these security features, you can ensure that only authorized devices and users have access to your network, preventing unauthorized access or data breaches.

High Reliability and Redundancy

The Catalyst 3750V2 series switches are known for their high reliability and redundancy. These switches incorporate features such as redundant power supplies and hot-swappable modules, ensuring uninterrupted operation even in the event of a hardware failure.

The Cisco WS-C3750V2-24FS-S Switch, being part of this series, provides businesses with peace of mind knowing that their network will remain operational even in challenging circumstances.

Easy Network Management

Managing a network can be complex, especially in larger organizations. The Catalyst 3750V2 series simplifies network management through its intuitive graphical user interface (GUI) and command-line interface (CLI).

These switches also support various management protocols, including Simple Network Management Protocol (SNMP) and Remote Monitoring (RMON), allowing for centralized monitoring and configuration of network devices.

The Cisco WS-C3750V2-24FS-S Switch, as part of this series, offers easy network management capabilities, reducing the time and effort required to administer and maintain your network infrastructure.
