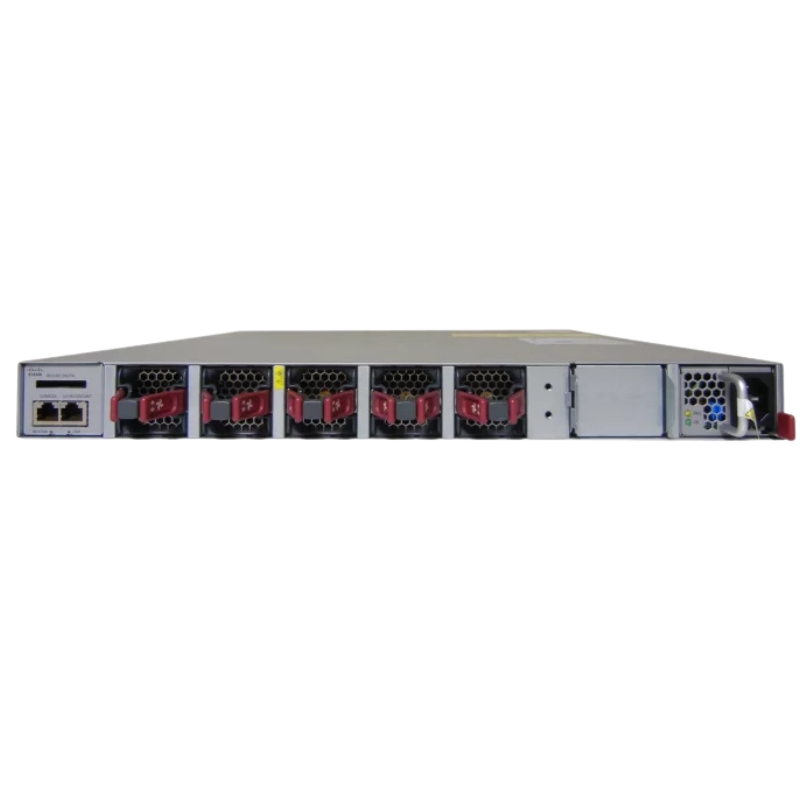

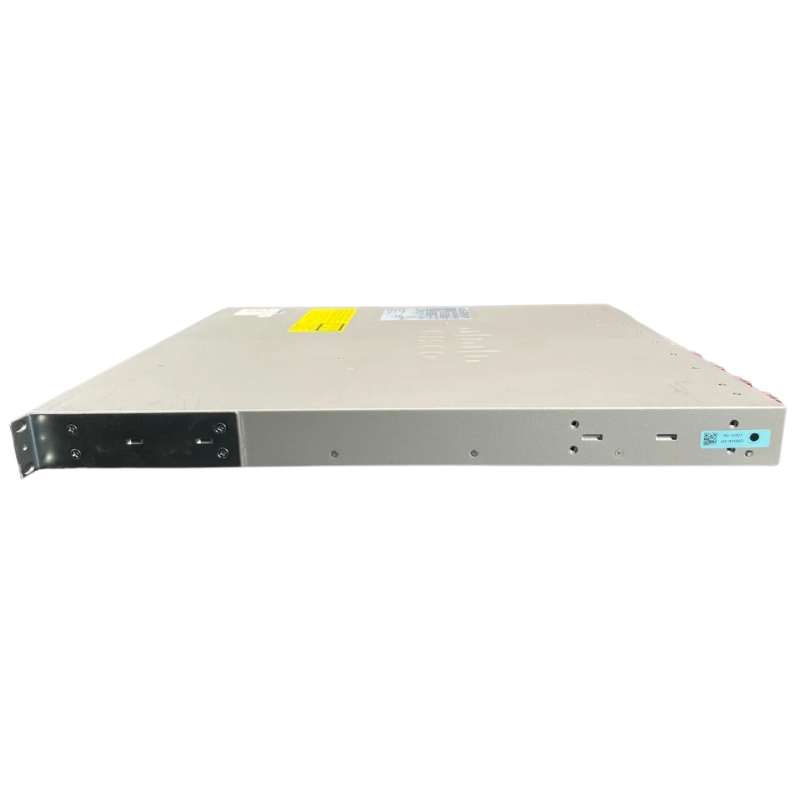

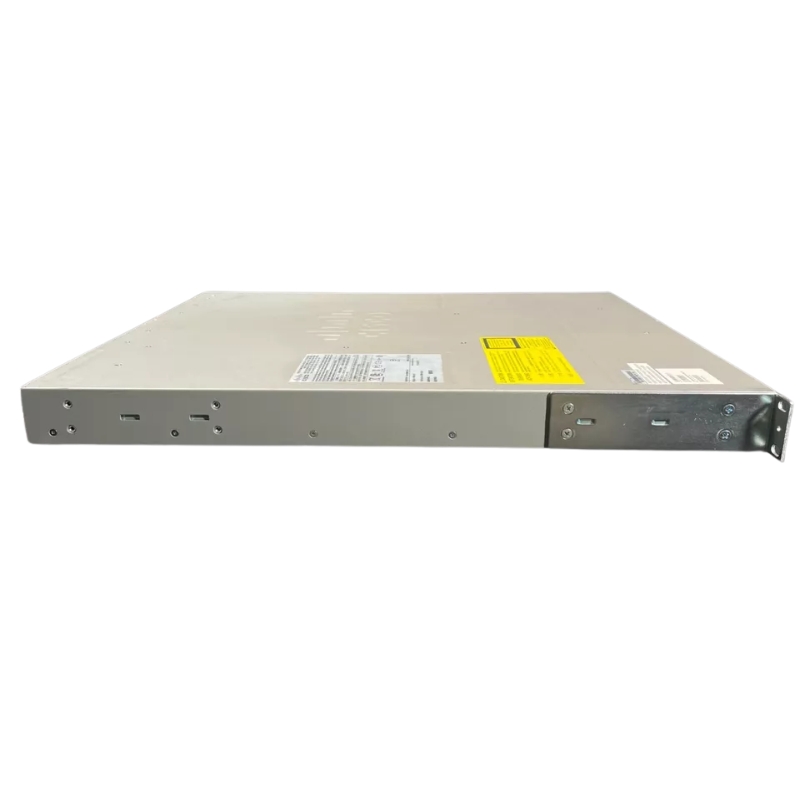

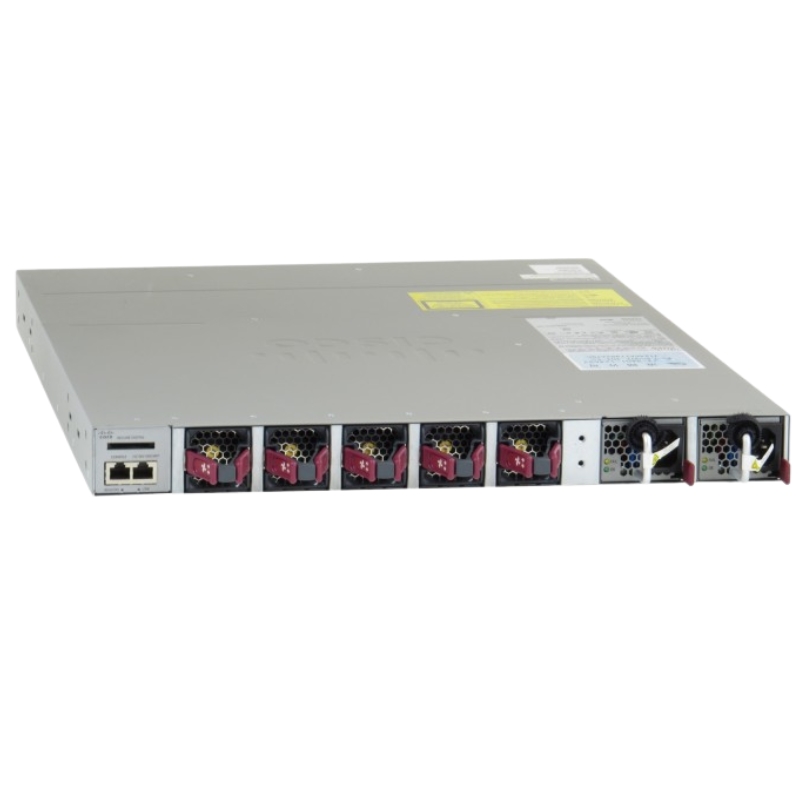

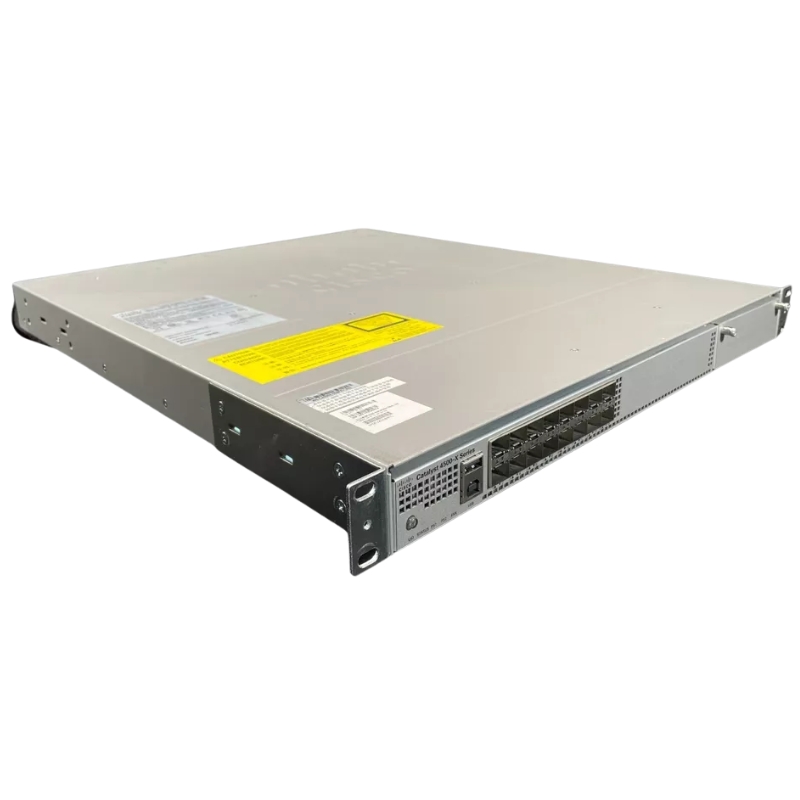

Cisco WS-C4500X-16SFP+ Catalyst Switch Layer 2 Ethernet

Number Of Ports: 16

The Cisco WS-C4500X-16SFP+ Catalyst Switch is equipped with 16 ports, making it an ideal choice for businesses and organizations that require a high level of network connectivity. These ports provide a reliable and efficient way to connect multiple devices, such as computers, printers, and servers, to the network.

Main Specifications of Layer 2 Switch

• Part Number: WS-C4500X-16SFP+
• Manufacturer: Cisco
• Product Type: 16 Ports Switch

Technical Specifications

• Mounting: Rack-mountable
• Ports: 16 x 10 Gigabit SFP+

Performance Metrics

• Throughput: 800 Gbps
• IPv4 Routing Capacity: 250 Mpps
• IPv6 Routing Capacity: 125 Mpps

Capacity Details

• IPv4 Forwarding Table Entries: 64,000
• IPv6 Forwarding Table Entries: 32,000
• NetFlow Entries: 128,000
• Virtual Interfaces (VLANs): 4,094
• IGMP Groups: 32,000
• Multicast Entries (IPv4): 24,000
• Multicast Entries (IPv6): 12,000
• ARP Entries: 47,000
• Spanning Tree Protocol Instances: 10,000
• QoS Hardware Queues: 64
• QoS Hardware Entries: 128,000
• ACL Entries: 131,072
• MAC Address Table Size: 55,000 Entries
• Jumbo Frame Support: 9,216 bytes

Management and Features

• Remote Management Protocols: RMON 1, RMON 2
• Switching Features: Layer 2 Switching, VLAN Support
• Access Control List (ACL) Support: Yes
• Quality of Service (QoS): Yes
• Airflow: Front to Back
• Fans: Redundant Hot Swappable

Compliance and Standards

• IEEE 802.3
• IEEE 802.1d
• IEEE 802.1q
• IEEE 802.1p
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.3ae
• IEEE 802.1s

Power Supply Details

Power Specifications

• Power Supply Feature: Compatible with 4500-X Series
• AC Power Rating: 750W
• System Power Consumption: 330W Nominal / 400W Maximum
• Input Voltage Range: AC 100-240 VAC 50-60 Hz / DC -72 VDC to -40 VDC
• DC Power Rating: 750W
• AC to DC Failover: Yes

Heat Output and Current

• Total Output BTU/hr: 1,122 BTU/hr (330W) Nominal / 1,365 BTU/hr (400W) Max
• Input Current: AC 11A @ 110VAC, 6A @ 200VAC / DC 25A Max
• Output Ratings: 12V @ 62A & 3.3V @ 3A
• Output Holdup Time: AC = 16 ms, DC = 4 ms @ Maximum Load

Power Supply Input Receptacles

• AC Receptacle: IEC 60320 C15
• DC Receptacle: Custom Detachable Screw Terminal (Supplied)
• Power Cord Rating: AC 15A / DC 25A

Increased Connectivity

With 16 ports, this Cisco Catalyst switch offers increased connectivity options for users. It allows businesses to connect a larger number of devices to their network without the need for additional switches or equipment. This is particularly beneficial for growing businesses or organizations that require more connectivity as their operations expand.

Flexibility in Network Setup

The 16 ports on the Cisco WS-C4500X-16SFP+ Catalyst Switch provide flexibility in network setup. With a sufficient number of ports, businesses can easily set up different VLANs (Virtual Local Area Networks) to segregate traffic and improve security. This feature allows for better network management and enhances overall network performance.

High-Speed Data Transfer

The 16 ports on this Catalyst switch support high-speed data transfer rates, ensuring smooth and efficient communication between connected devices. This is especially important for tasks that require large data transfers, such as video streaming or file sharing. The high-speed data transfer capability of the Cisco WS-C4500X-16SFP+ Catalyst Switch helps to optimize productivity and reduce latency.

Scalability

The 16 ports on this Cisco Catalyst switch offer scalability, allowing businesses to easily expand their network as needed. Whether it's adding more devices or accommodating future growth, the ample number of ports ensures that businesses can scale their network without limitations. This scalability feature saves businesses time and resources by eliminating the need to invest in additional switches or equipment.

Cost-Effectiveness

By providing 16 ports, the Cisco WS-C4500X-16SFP+ Catalyst Switch offers cost-effectiveness for businesses. With a single switch that can accommodate multiple devices, businesses can reduce their overall infrastructure costs. This eliminates the need for purchasing multiple switches and reduces the complexity of network management.

Enhanced Network Performance

The 16 ports on this Catalyst switch contribute to enhanced network performance. By providing ample connectivity options, businesses can distribute network traffic evenly and reduce congestion. This results in faster data transfer speeds, improved response times, and a more reliable network infrastructure overall.

Interface Type: SFP+

The Cisco WS-C4500X-16SFP+ Catalyst Switch features an interface type known as SFP+ (Small Form-Factor Pluggable Plus). This interface type offers significant benefits for users in terms of flexibility, speed, and compatibility.

Flexibility in Connectivity

The SFP+ interface type provides flexibility in connectivity options for users. It supports various types of optical transceivers, allowing businesses to choose the most suitable ones for their specific needs. Whether it's connecting via fiber optic cables or copper cables, the SFP+ interface offers versatility and adaptability to different network setups.

Increased Bandwidth

The SFP+ interface type supports higher bandwidths compared to other interface types. It enables faster data transfer rates, which is crucial for bandwidth-intensive tasks such as data backups, video streaming, or cloud computing. The increased bandwidth provided by the SFP+ interface enhances overall network performance and improves user experience.

Compatibility with Existing Infrastructure

The SFP+ interface type is designed to be backward compatible with its predecessor, the SFP interface. This means that users can seamlessly integrate the Cisco WS-C4500X-16SFP+ Catalyst Switch into their existing network infrastructure without the need for major upgrades or replacements. This compatibility feature saves businesses time and resources by allowing them to leverage their current investments.

Future-Proofing

By utilizing the SFP+ interface type, businesses can future-proof their network infrastructure. This interface type supports higher data transfer rates and is capable of handling emerging technologies and increasing bandwidth demands. Investing in a switch with an SFP+ interface ensures that businesses can adapt to future advancements without requiring significant infrastructure changes.

Longer Distance Connectivity

The SFP+ interface type enables longer distance connectivity compared to other interface types. It allows for network connections over fiber optic cables that can span several kilometers, making it suitable for businesses with geographically dispersed locations or larger physical infrastructures. The longer distance connectivity capability of the Cisco WS-C4500X-16SFP+ Catalyst Switch offers flexibility and reliability in network setup.

Improved Network Performance

The SFP+ interface type contributes to improved network performance by providing faster data transfer speeds and increased bandwidth. This results in reduced latency, enhanced response times, and a more efficient utilization of network resources. The improved network performance offered by the Cisco WS-C4500X-16SFP+ Catalyst Switch helps businesses optimize productivity and meet the demands of their network users.

Layer: 2

The Cisco WS-C4500X-16SFP+ Catalyst Switch operates at Layer 2 of the OSI (Open Systems Interconnection) model. Layer 2 switching provides several benefits in terms of network management, security, and efficiency.

Efficient Network Segmentation

Layer 2 switching allows for efficient network segmentation through the use of VLANs. VLANs enable businesses to logically separate different departments or workgroups within their network while still maintaining connectivity. This segmentation enhances network security and simplifies network management by reducing the complexity of configuring and managing multiple physical networks.

Improved Traffic Control

Layer 2 switching provides improved traffic control capabilities. It allows businesses to implement features such as Quality of Service (QoS), which prioritizes certain types of network traffic over others. This ensures that critical applications or services receive the necessary bandwidth and guarantees a consistent level of performance. The improved traffic control offered by Layer 2 switching helps businesses optimize their network resources and deliver a reliable user experience.

Enhanced Broadcast Control

Layer 2 switching enhances broadcast control within a network. It prevents unnecessary broadcast traffic from flooding the entire network by limiting it to the VLANs or specific segments to which it belongs. This improves overall network efficiency and reduces the impact of broadcast storms, which can cause network congestion and performance issues.

Secure Network Infrastructure

Layer 2 switching contributes to a secure network infrastructure. It enables businesses to implement security measures such as port security, which allows them to restrict access to specific ports based on MAC addresses. This prevents unauthorized devices from connecting to the network and enhances overall network security.

Simplified Network Management

Layer 2 switching simplifies network management by providing a more straightforward and intuitive configuration process. It eliminates the need for complex routing protocols and simplifies troubleshooting procedures. With Layer 2 switching, businesses can focus on managing VLANs and ensuring smooth connectivity without the additional overhead associated with Layer 3 routing.

Optimized Performance

The Layer 2 switching capability of the Cisco WS-C4500X-16SFP+ Catalyst Switch optimizes network performance. By efficiently managing network traffic, controlling broadcasts, and implementing security measures, businesses can achieve a more reliable and efficient network infrastructure. The optimized performance offered by Layer 2 switching helps businesses meet their network requirements and deliver a seamless user experience.

Ethernet Support: 1

The Cisco WS-C4500X-16SFP+ Catalyst Switch provides support for Ethernet, which is the most widely used networking technology for local area networks (LANs). This Ethernet support offers several benefits in terms of compatibility, reliability, and scalability.

Compatibility with Existing Infrastructure

Supporting Ethernet ensures compatibility with the majority of devices and network equipment in use today. Whether it's connecting computers, printers, IP phones, or servers, Ethernet is the standard technology for wired network connections. The Ethernet support of the Cisco WS-C4500X-16SFP+ Catalyst Switch allows businesses to seamlessly integrate it into their existing infrastructure without requiring major changes or upgrades.

Reliable and Stable Connectivity

Ethernet is known for its reliability and stability in providing network connectivity. It offers a robust and proven technology that ensures consistent performance and minimal downtime. With the Ethernet support of the Cisco Catalyst switch, businesses can rely on stable connections for their critical applications and services.

Scalability

Ethernet provides scalability options for businesses. It supports various speeds, ranging from 10Mbps to 100Gbps, allowing businesses to scale their network infrastructure based on their requirements. The scalability offered by Ethernet ensures that businesses can accommodate future growth and technological advancements without significant infrastructure changes.

High-Speed Data Transfer

Ethernet supports high-speed data transfer rates, allowing businesses to benefit from faster communication and data exchange. Whether it's transferring large files, streaming high-definition videos, or accessing cloud-based applications, the high-speed data transfer capability of Ethernet ensures efficient operations and enhances productivity.

Cost-Effective Solution

Supporting Ethernet makes the Cisco WS-C4500X-16SFP+ Catalyst Switch a cost-effective solution for businesses. Ethernet is a widely adopted technology, which means that it offers economies of scale in terms of equipment availability and pricing. Businesses can leverage the cost-effectiveness of Ethernet to build a reliable and efficient network infrastructure without exceeding their budget.

Interoperability

Ethernet support ensures interoperability between different devices and network equipment. It provides a standardized communication protocol that allows devices from different manufacturers to seamlessly connect and communicate with each other. The interoperability offered by Ethernet simplifies network integration and reduces compatibility issues.

In conclusion, the Cisco WS-C4500X-16SFP+ Catalyst Switch with its 16 ports provides increased connectivity options, flexibility in network setup, high-speed data transfer, scalability, cost-effectiveness, and enhanced network performance. The SFP+ interface type offers flexibility in connectivity, increased bandwidth, compatibility with existing infrastructure, future-proofing capabilities, longer-distance connectivity, and improved network performance. The Layer 2 functionality brings efficient network segmentation, improved traffic control, enhanced broadcast control, secure network infrastructure, simplified network management, and optimized performance. Finally, the Ethernet support ensures compatibility with existing infrastructure, reliable and stable connectivity, scalability, high-speed data transfer, cost-effectiveness, and interoperability. With these features and benefits combined, the Cisco WS-C4500X-16SFP+ Catalyst Switch is an excellent choice for businesses and organizations seeking a reliable and efficient network solution.
