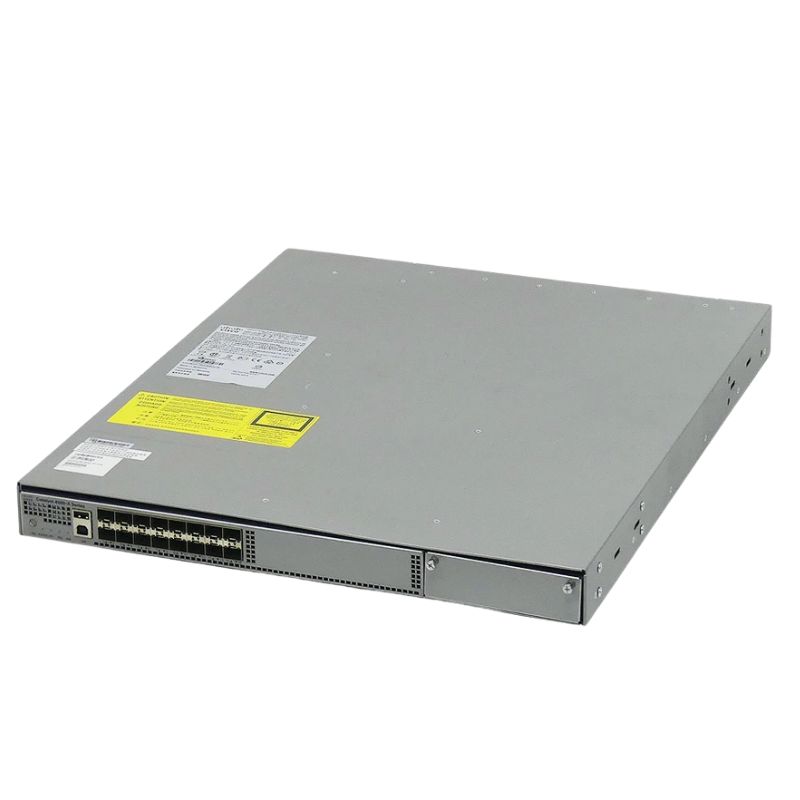

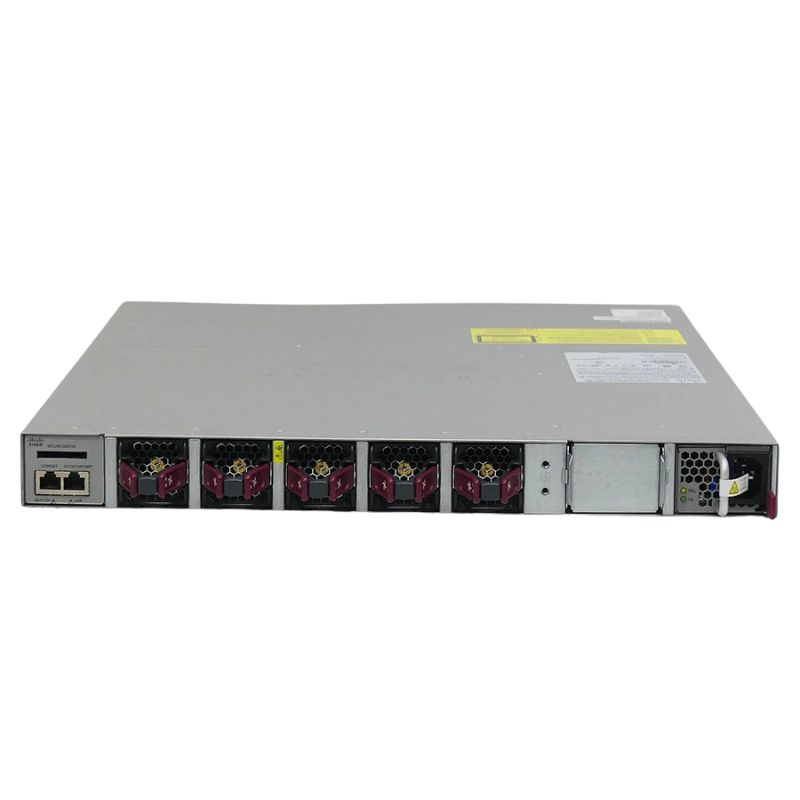

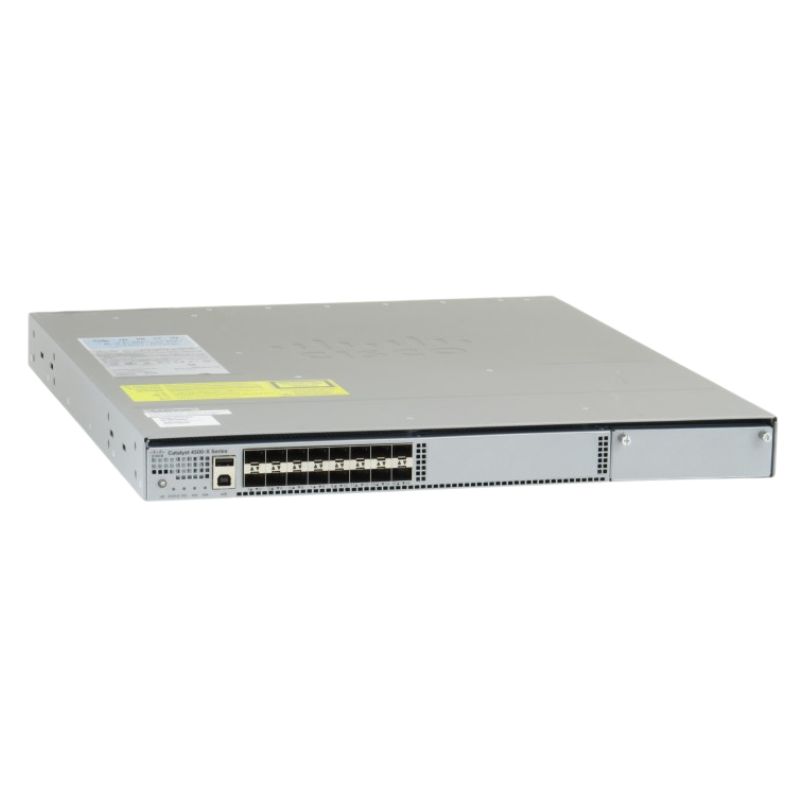

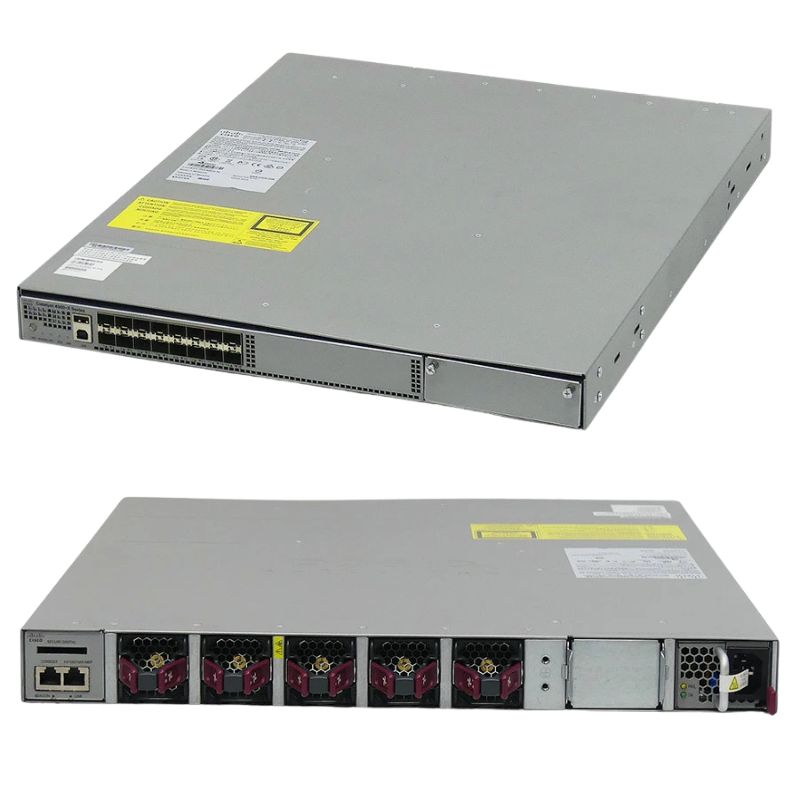

Cisco WS-C4500X-F-16SFP+ Catalyst 4500-X Chassis 16 Ports Ethernet Switch Twisted Pair

Overview of Cisco WS-C4500X-F-16SFP+ Ethernet Switch

Manufacturer and Product Details

• Manufacturer: Cisco
• Part Number: WS-C4500X-F-16SFP+
• Product Line: Catalyst
• Series: 4500-X
• Type: Ethernet Switch

Key Features of WS-C4500X-F-16SFP+ Ethernet Switch

• Non-modular with a fixed configuration for efficient management
• 16 high-performance SFP+ expansion slots
• Supports up to 800 Gbps throughput for large data-intensive networks
• Advanced Layer 3 routing with support for IPv4 and IPv6

Performance Specifications

• IPv4 Routing: 250 Mpps (Million packets per second)
• IPv6 Routing: 125 Mpps for modern network environments
• Max Throughput: 800 Gbps, providing unparalleled network speed

Interface and I/O Expansions

• Comes with 16 SFP+ slots for fiber connectivity
• No shared slots; all SFP+ ports dedicated to high-speed traffic
• Multiple interface options including USB, Console, and Ethernet management ports
• Expandable via SD Memory Card Slot and additional expansion bay

Memory and Processing Power

• Equipped with a 1.5 GHz processor for smooth network management
• 4 GB DDR2 SDRAM ensuring responsive system performance
• 2 GB flash memory for configuration storage

Network Capacity and Scalability

• IPv4 Forwarding: 64,000 entries for high scalability
• IPv6 Forwarding: 32,000 entries for future-proofing networks
• NetFlow Entries: 128,000 for advanced traffic analysis
• Supports up to 4,094 Virtual LANs (VLANs) for optimal network segmentation
• Highly scalable with 32,000 IGMP groups and 47,000 ARP entries

Advanced Layer 2 and Layer 3 Capabilities

• Comprehensive Layer 2 switching support for optimal traffic management
• Robust Access Control List (ACL) for enhanced security policies
• Built-in Quality of Service (QoS) for smooth traffic prioritization
• Spanning Tree Protocol support with up to 10,000 instances

Power Efficiency and Redundancy

• Power Supply: Supports hot-swappable, redundant power supplies
• Power Consumption: 330 Watts during standard operation
• Optional 1+1 power redundancy scheme available for uninterrupted uptime

Cooling and Environmental Features

• Front-to-back airflow design for optimized cooling
• Hot-swappable redundant fans ensure reliable thermal management

Compliance with Networking Standards

• Compliant with IEEE 802.3 standards for Ethernet networking
• Support for IEEE 802.1Q VLAN tagging and 802.1X port security
• Advanced features like LACP (802.3ad) and Rapid Spanning Tree Protocol (802.1W)

Final Expansion and Connectivity Options

• 16 x 10GbE / 1GbE SFP/SFP+ ports for scalable fiber networking
• 1 x 10/100/1000Base-T RJ-45 port for management
• 1 x USB Type A and 1 x Console (RJ-45) port

Ports

The Cisco Catalyst 4500-X Chassis Ethernet Switch is equipped with 16 ports, making it an ideal choice for organizations that require a high-density switch to handle large volumes of network traffic. The availability of 16 ports ensures that users can connect multiple devices simultaneously, allowing for efficient data transfer and seamless communication within the network.

Increased Connectivity

With 16 ports, the Cisco Catalyst 4500-X Chassis Ethernet Switch offers enhanced connectivity options for businesses of all sizes. This increased number of ports allows organizations to connect a wide range of devices, including computers, printers, servers, and other networking equipment. The ability to connect multiple devices simultaneously reduces the need for additional switches or routers, simplifying network architecture and minimizing costs.

Improved Network Performance

By providing 16 ports, the Cisco Catalyst 4500-X Chassis Ethernet Switch ensures improved network performance. Each port can accommodate high-speed connections, enabling faster data transfer rates and minimizing latency. This is particularly beneficial for businesses that rely heavily on data-intensive applications or require real-time access to information. With the increased number of ports, the switch can handle higher loads of network traffic without compromising performance.

Flexibility and Scalability

The availability of 16 ports offers flexibility and scalability to accommodate future growth and changing business needs. As organizations expand their operations or add new devices to their network, having additional ports allows for easy integration without the need for investing in additional switches. This scalability ensures that the Cisco Catalyst 4500-X Chassis Ethernet Switch can adapt to evolving requirements and support the growth of the organization's network infrastructure.

Interface

The Cisco Catalyst 4500-X Chassis Ethernet Switch features an SFP+ interface, providing users with high-speed connectivity options for their network devices. The SFP+ interface offers numerous benefits and is particularly important for businesses that require fast and reliable network connections.

High-Speed Data Transfer

The SFP+ interface allows for high-speed data transfer, making it possible to transmit large volumes of data quickly and efficiently. This is especially important for organizations that rely on bandwidth-intensive applications, such as video conferencing, data backup, or cloud computing. The high-speed interface ensures that data can be transmitted without delays or bottlenecks, improving overall network performance and user experience.

Compatibility

The SFP+ interface is compatible with a wide range of networking equipment, including switches, routers, and servers. This compatibility ensures seamless integration with existing network infrastructure, allowing businesses to leverage their current investments in networking hardware. The ability to connect to various devices using the SFP+ interface enhances flexibility and simplifies network management.

Flexibility in Network Design

The SFP+ interface provides flexibility in network design by supporting different types of optical and copper transceivers. This versatility allows businesses to choose the most suitable transceiver for their specific needs, whether it's for short-range or long-range connections or different types of cabling. The ability to customize the interface based on requirements ensures optimal performance and cost-effectiveness.

Cabling

The Cisco Catalyst 4500-X Chassis Ethernet Switch supports twisted pair cabling, offering users a reliable and cost-effective solution for their network connectivity needs. Twisted pair cabling is widely used in various industries and has several benefits that make it an ideal choice for businesses.

Cost-Effectiveness

Twisted pair cabling is one of the most affordable options for network connectivity. The cost of twisted pair cables is significantly lower compared to other types of cabling, such as fiber optic cables. This makes it an attractive choice for organizations that need to deploy a large number of network connections or have budget constraints. The affordability of twisted pair cabling allows businesses to allocate their resources more efficiently and invest in other critical areas.

Ease of Installation

Installing twisted pair cabling is relatively simple. The cables are widely available and easy to handle, making the installation process less time-consuming and complex. Businesses can save on installation costs by using twisted pair cabling, as it requires minimal expertise and specialized tools. The ease of installation also allows for quick deployment or modification of network connections, enabling businesses to adapt their infrastructure as needed.

Compatibility

Twisted pair cabling is compatible with a wide range of networking equipment, including switches, routers, and network interface cards (NICs). This compatibility ensures seamless integration with existing network infrastructure, eliminating the need for extensive upgrades or replacements. The ability to use twisted pair cabling with various devices provides businesses with flexibility and simplifies network management.

In conclusion, the Cisco Catalyst 4500-X Chassis Ethernet Switch offers a range of features that cater to the diverse needs of businesses. The availability of 16 ports ensures increased connectivity, improved network performance, and scalability for future growth. The SFP+ interface provides high-speed data transfer, compatibility with different devices, and flexibility in network design. Twisted pair cabling offers cost-effectiveness, ease of installation, and compatibility with various networking equipment. By considering these features and their benefits, businesses can make an informed decision when choosing the Cisco Catalyst 4500-X Chassis Ethernet Switch for their networking requirements.
