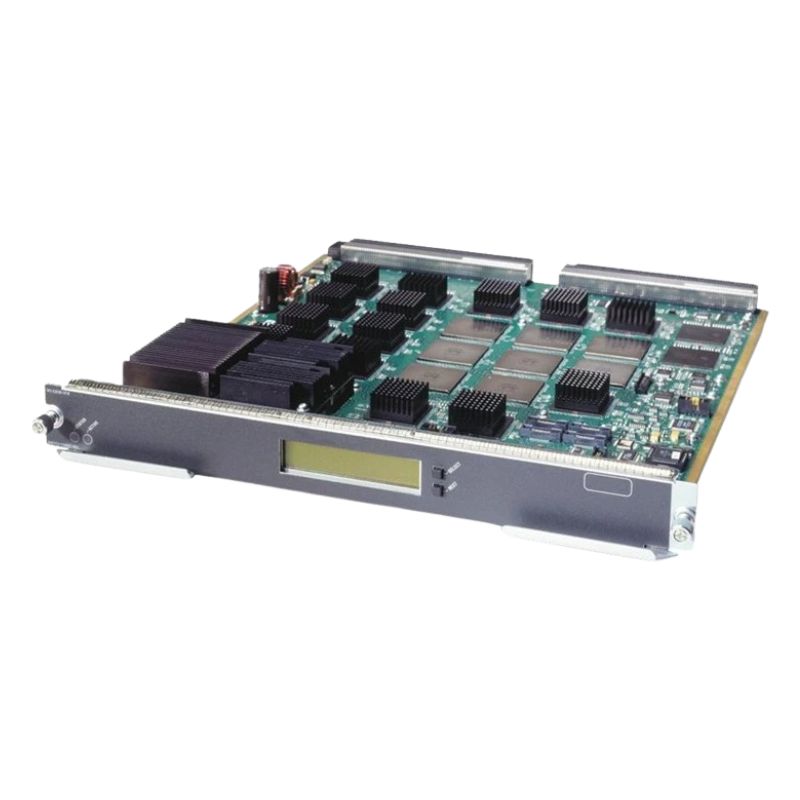

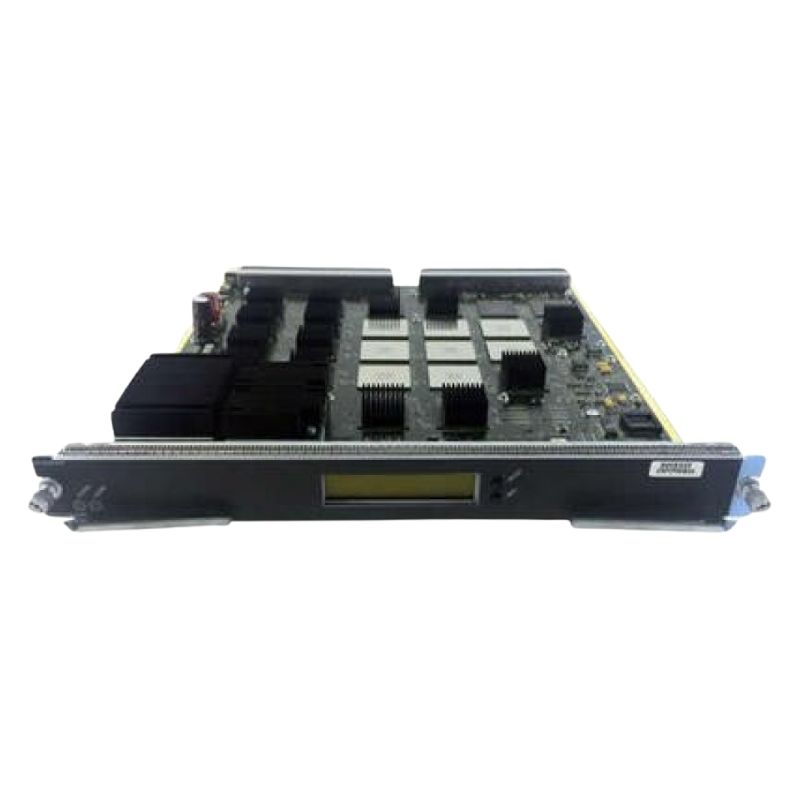

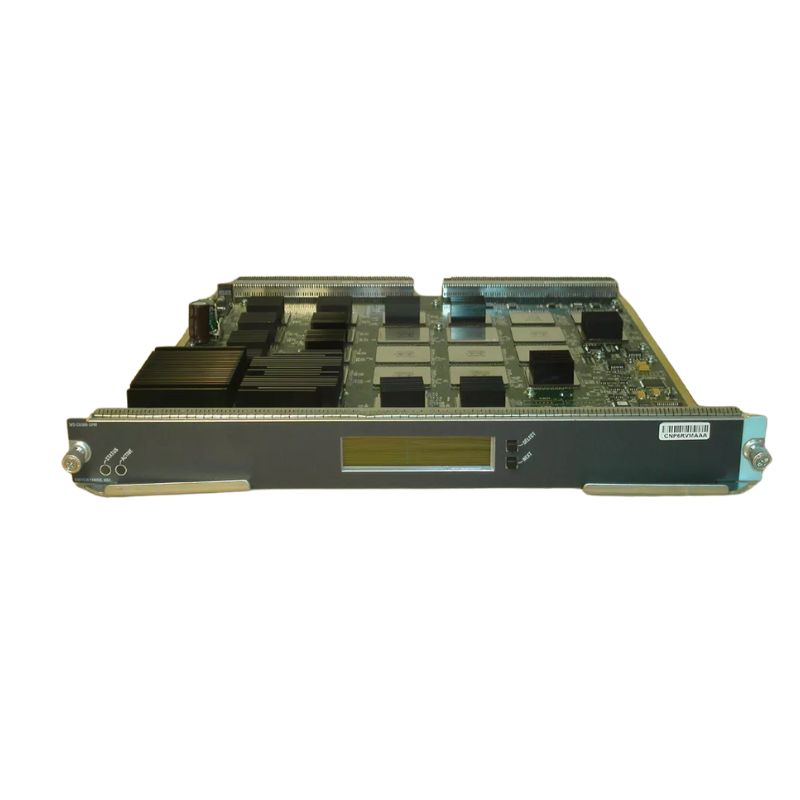

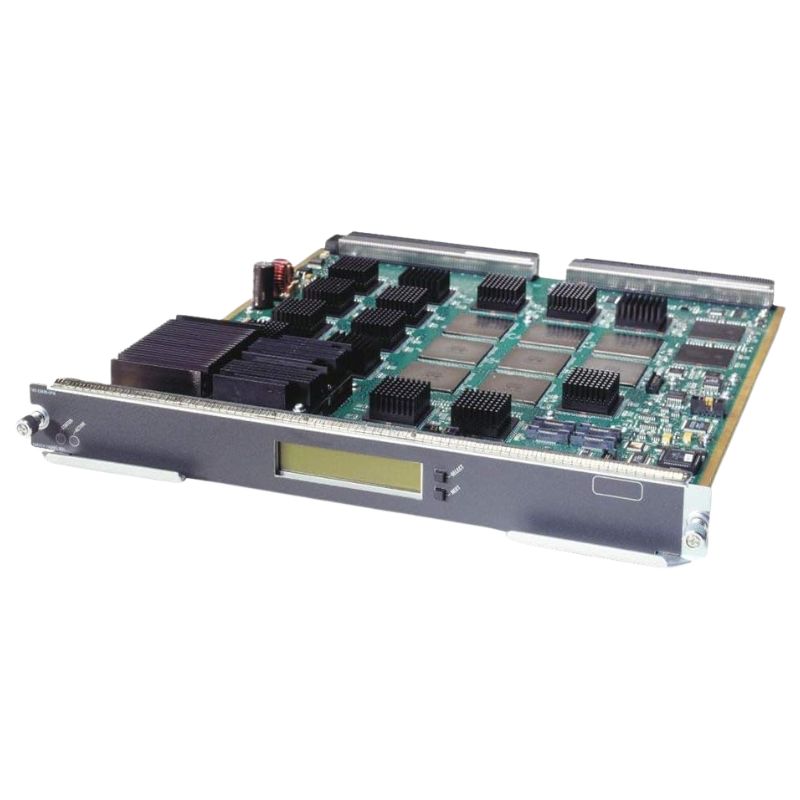

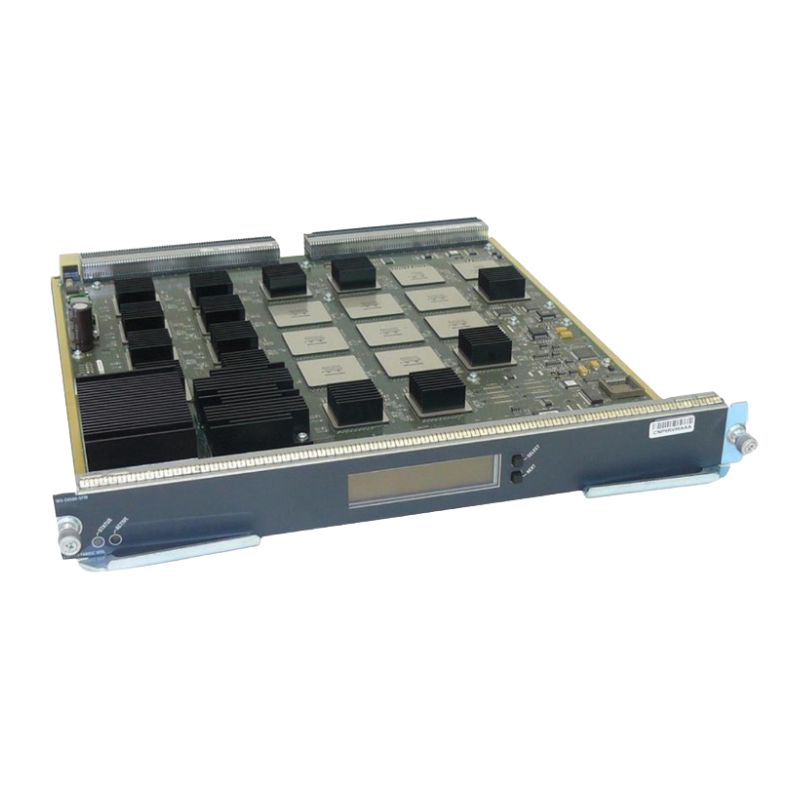

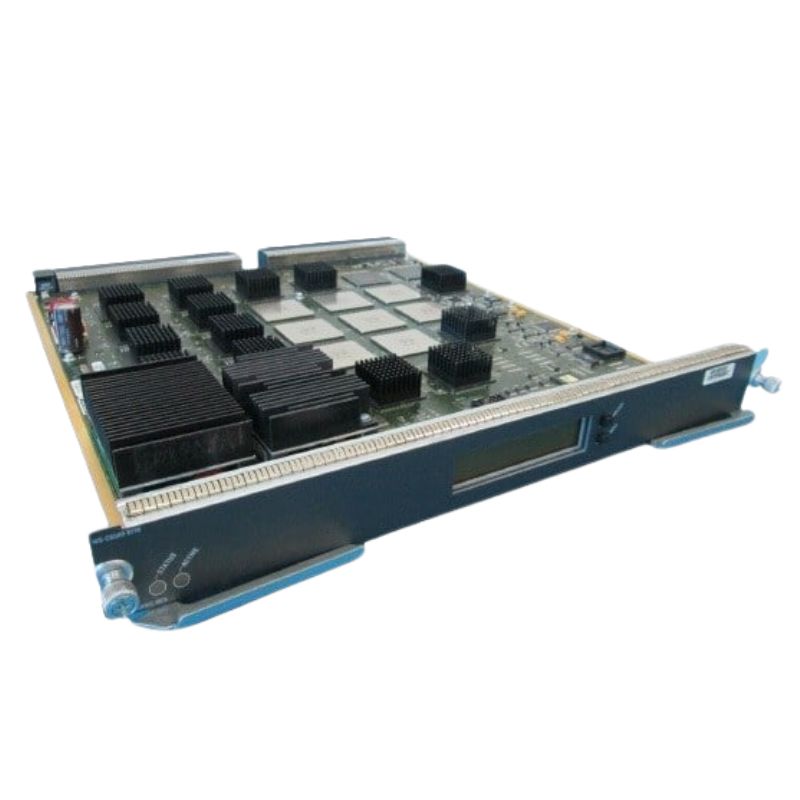

Cisco WS-C6500-SFM Managed Layer 3 Switch Fabric Module

Overview of Cisco WS-C6500-SFM Switch Fabric Module

General Information

• Manufacturer: Cisco
• Part Number: WS-C6500-SFM
• Type: Switch Fabric Module
• Chassis Compatibility: Rack-Mountable

Technical Specifications

Network Switch Chassis Details

• Application/Usage: Data Networking
• Fixed Ports/Expansion Slot: 1 x Gigabit Ethernet Expansion Slot
• Form Factor: Plug-in Module
• Switching Capabilities: Supports Layer 2 and Layer 3 switching
• Ethernet Speed: Gigabit Ethernet (10/100/1000 Mbps)
• Expansion Slots: Multiple slots available

Advanced Features

• Delivers up to 30 million packets per second (Mpps) with Cisco Express Forwarding (CEF) on Supervisor Engine 2
• Provides up to 210 Mpps distributed forwarding when used with DCF-enabled switch fabric modules
• Supports high-performance services including Quality of Service (QoS) and hardware-based security through Access Control Lists (ACLs)
• Offers redundant power supply options for enhanced reliability

Compatibility

• Catalyst 6506
• Catalyst 6509
• Catalyst 6509-NEB Switch
• Cisco 7606 Internet Router
• Cisco 7609 Internet Router Chassis

Cisco WS-C6500-SFM Managed Layer 3 Switch Fabric Module

Overview

The Cisco WS-C6500-SFM Managed Layer 3 Switch Fabric Module is a high-performance switch fabric module designed for use in the Cisco Catalyst 6500 Series switches. This module provides advanced switching capabilities and delivers high-speed and reliable performance for enterprise networks.

Key Features

• High-speed Performance:

  The Cisco WS-C6500-SFM offers high-speed switching capacity of up to 720 Gbps, ensuring fast and efficient data transfer within the network.

• Scalability:

  With support for up to two fabric modules per Cisco Catalyst 6500 Series switch, the WS-C6500-SFM allows for easy scalability and expansion of network capabilities.

• Advanced Switching Capabilities:

  This switch fabric module supports Layer 3 switching, enabling efficient routing of data packets across different network segments.

• Redundancy and High Availability:

  The WS-C6500-SFM module features redundant fabric channels and supports hot-swappable operation, ensuring minimal downtime and uninterrupted network connectivity.

• Enhanced Security:

  With integrated security features such as Access Control Lists (ACLs) and Secure Shell (SSH) protocol support, this switch fabric module provides enhanced security for network traffic.

Benefits

Improved Network Performance

The Cisco WS-C6500-SFM Managed Layer 3 Switch Fabric Module enhances network performance by providing high-speed switching capacity. With its ability to handle large amounts of data traffic, this module ensures smooth and efficient operation of enterprise networks. This results in improved productivity and user experience for network users.

Scalability and Flexibility

With support for up to two fabric modules, the WS-C6500-SFM offers scalability and flexibility, allowing organizations to easily expand their network infrastructure as their needs grow. This module enables seamless integration with existing network equipment and ensures future-proofing of the network.

Advanced Switching Capabilities

The Layer 3 switching capabilities of the WS-C6500-SFM module enable efficient routing of data packets across different network segments. This allows for optimized traffic flow, reduced latency, and improved overall network performance. Additionally, the module supports advanced features such as Quality of Service (QoS) and multicast routing, further enhancing the switching capabilities.

Redundancy and High Availability

The redundant fabric channels of the WS-C6500-SFM module provide built-in redundancy, ensuring high availability and reliability of the network. In the event of a fabric channel failure, the module seamlessly switches to the redundant channel, minimizing downtime and preventing disruption to critical network services. The hot-swappable operation feature allows for easy replacement or addition of modules without affecting network operation.

Enhanced Security

The Cisco WS-C6500-SFM Managed Layer 3 Switch Fabric Module offers enhanced security features to protect network traffic from unauthorized access. The Access Control Lists (ACLs) feature allows administrators to control traffic flow based on specific criteria, ensuring that only authorized communication is allowed. The support for Secure Shell (SSH) protocol adds an additional layer of security by encrypting management traffic over the network.

Technical Specifications

The Cisco WS-C6500-SFM Managed Layer 3 Switch Fabric Module has the following technical specifications:

• Switching Capacity:

  Up to 720 Gbps

• Compatibility:

  Cisco Catalyst 6500 Series switches

• Number of Fabric Modules Supported:

  Up to 2 per switch

• Redundancy:

  Redundant fabric channels

• Hot-swappable Operation:

  Yes

• Security Features:

  Access Control Lists (ACLs), Secure Shell (SSH) support

In Conclusion

The Cisco WS-C6500-SFM Managed Layer 3 Switch Fabric Module is a high-performance and reliable solution for enterprise networks. With its advanced switching capabilities, scalability, and enhanced security features, this module provides organizations with improved network performance, flexibility, and peace of mind. Upgrade your network infrastructure with the Cisco WS-C6500-SFM for a seamless and efficient networking experience.
