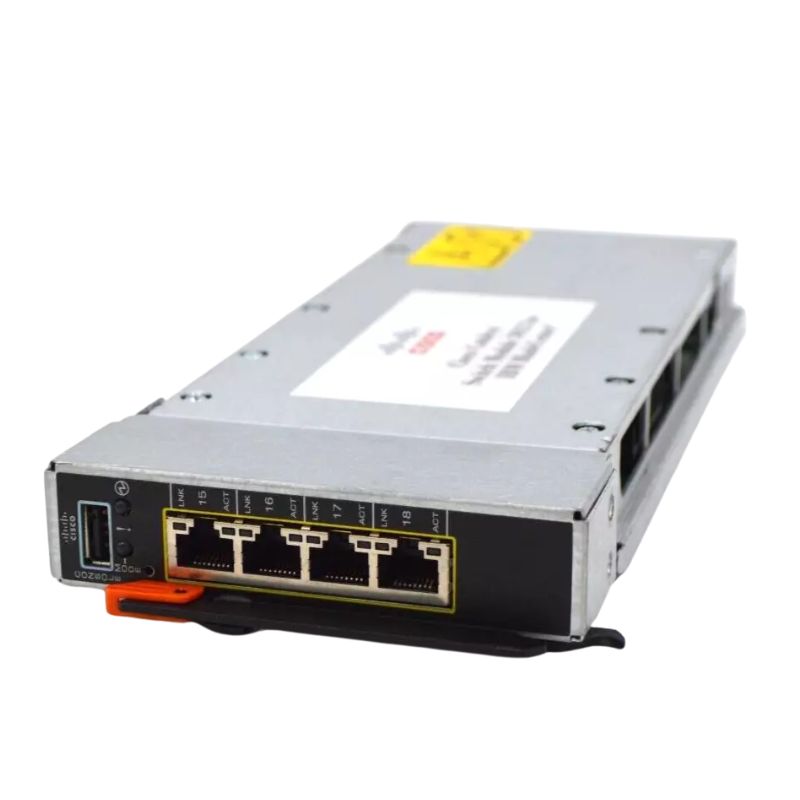

Cisco WS-CBS3012-IBM-I Catalyst 4 Ports Switching Module

General Details of the Cisco Catalyst 3012 Switching Module

Manufacturer and Model Information

• Manufacturer: Cisco
• Part Number (SKU): WS-CBS3012-IBM-I
• Model: 3012
• Product Line: Catalyst

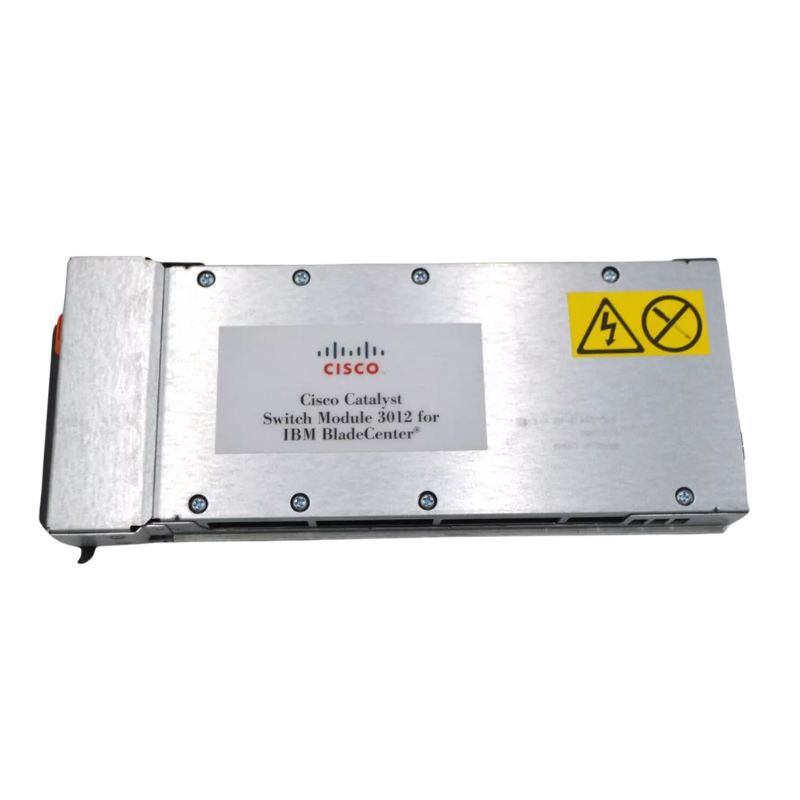

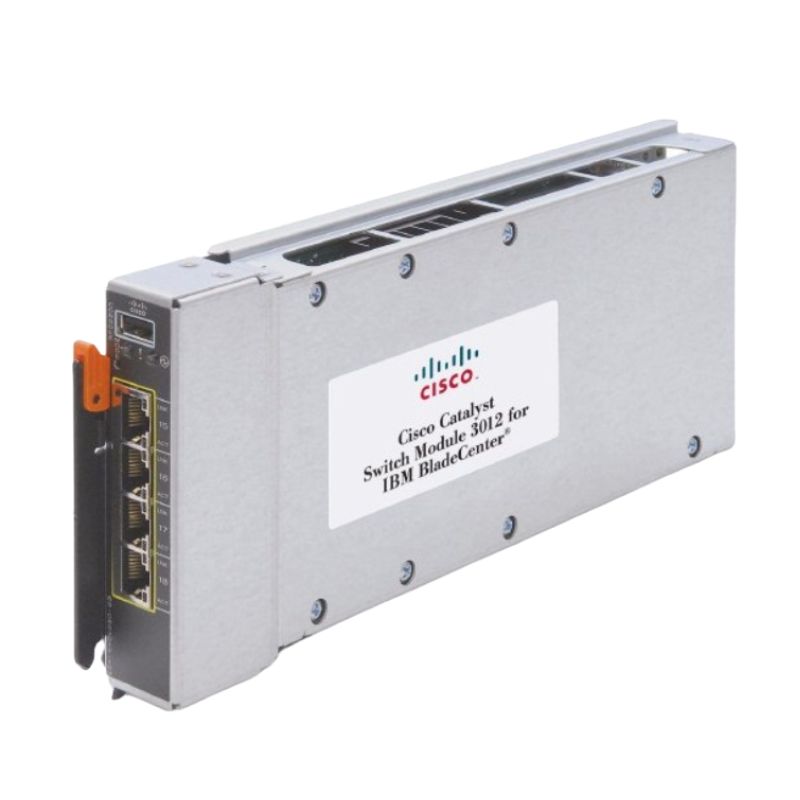

• Product Name: Catalyst 3012 Switching Module for IBM BladeCenter
• Type: Switching Module

Technical Specifications

Application and Switching Technology

• Application: Network Switching
• Switching Technology: Twisted Pair Switching

Interfaces and Ports

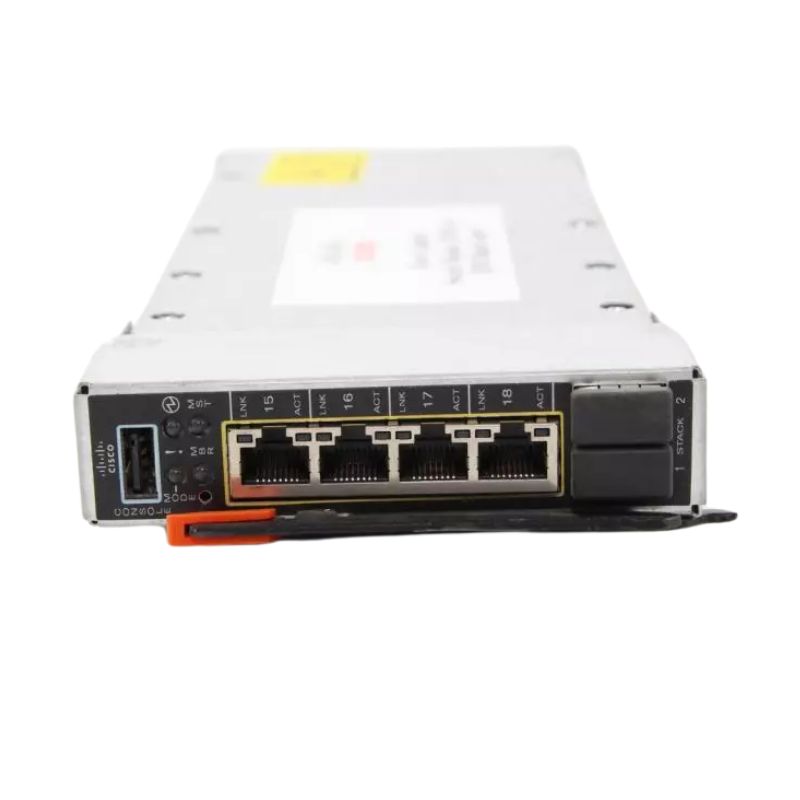

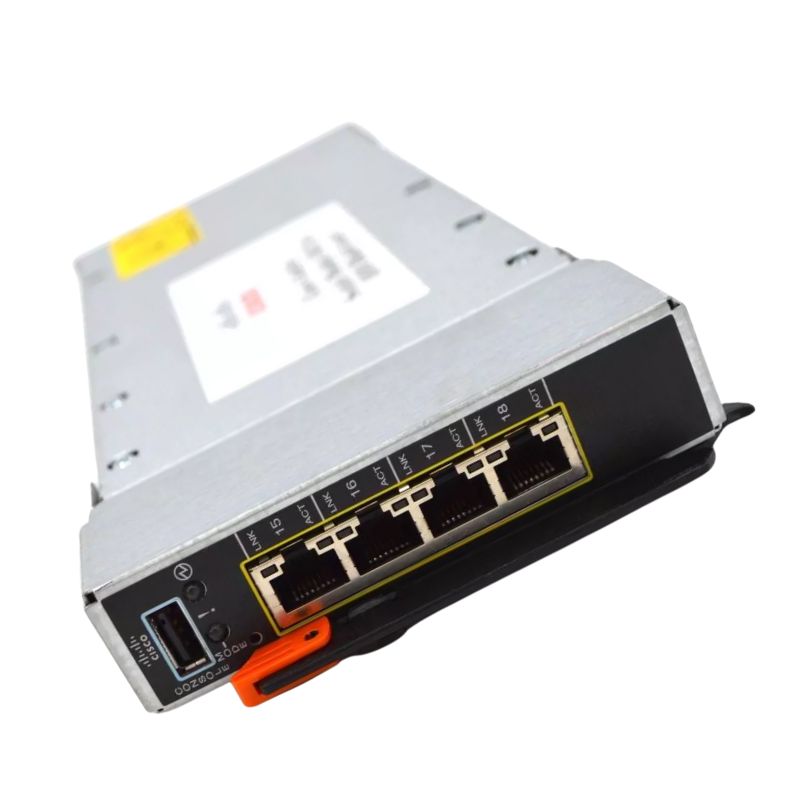

• Port Configuration: 4 x 10/100/1000Base-T LAN
• Management Port: 1 x RJ-45 Console Management
• LAN Ports: 4 x RJ-45 10/100/1000Base-T

Media and Performance Details

Connectivity Media

• Media Type: Twisted Pair 100/1000Base-T

Data Transfer Rates

• Gigabit Ethernet: 1 Gbps
• Fast Ethernet: 100 Mbps
• Ethernet: 10 Mbps

Management and Protocols

Management Tools

• Management Software: Cisco Device Manager, CiscoWorks Support

Supported Protocols

• IEEE 802.1p QoS
• IEEE 802.1q VLAN
• SNMP v1, v2c, v3
• HTTP
• Telnet
• DHCP
• CLI
• RMON
• Syslog

Additional Information

• Switching Fabric: 36 Gbps
• Forwarding Rate: 36 million packets per second (mpps)
• Operating System: Cisco IOS Software
• RAM: 256MB SDRAM
• Flash Memory: 64MB
• Power Requirement: 12V
• Security Protocols: IEEE 802.1x, SSH, SSL, TACACS, RADIUS

Compatibility

• Compatible With: IBM BladeCenter

Ports

The Catalyst Cisco WS-CBS3012-IBM-I Switching Module is equipped with 4 ports, making it a highly versatile and powerful networking solution. These ports enable seamless connectivity between various devices, allowing for efficient data transmission and communication within a network.

Increased Flexibility and Scalability

With its 4 ports, this switching module offers users increased flexibility and scalability. The multiple ports allow for the connection of different devices simultaneously, such as servers, computers, printers, and other networking equipment. This flexibility makes it an ideal choice for businesses and organizations that require a diverse range of connections to support their operations.

The 4 ports also provide room for future expansion. As the network grows or new devices are added, having additional ports readily available ensures that the infrastructure can accommodate the increased demand without requiring additional costly hardware upgrades. This scalability allows businesses to adapt to changing requirements without disrupting their existing network infrastructure.

Enhanced Performance and Throughput

Each of the 4 ports on the Catalyst Cisco WS-CBS3012-IBM-I Switching Module supports high-speed data transmission, ensuring optimal performance and throughput. This is particularly important in environments where large amounts of data are transferred frequently, such as data centers or multimedia production facilities.

By having multiple ports available, bandwidth can be effectively distributed across different devices, preventing bottlenecks and ensuring smooth and uninterrupted data flow. This results in improved overall network performance and faster data transfers, enhancing productivity and reducing potential delays or downtime.

Efficient Network Segmentation

The 4 ports on this switching module can be utilized to segment a network effectively. Network segmentation involves dividing a network into smaller subnetworks or VLANs (Virtual Local Area Networks), which helps isolate traffic and improve security.

By assigning different devices to separate ports, network administrators can create logical boundaries within the network, ensuring that sensitive data remains isolated and protected. This feature is particularly valuable for organizations that handle confidential information or have strict regulatory compliance requirements.

Redundancy and High Availability

Having 4 ports on the Catalyst Cisco WS-CBS3012-IBM-I Switching Module allows for redundancy and high availability configurations. Redundancy is crucial in mission-critical environments where any network downtime can result in significant financial losses or operational disruptions.

By connecting devices to multiple ports, administrators can implement link aggregation techniques such as EtherChannel or LACP (Link Aggregation Control Protocol). These techniques combine multiple ports into a single logical link, providing increased bandwidth and ensuring that if one port fails, traffic will seamlessly flow through the remaining functional ports. This redundancy enhances network reliability and minimizes the risk of downtime.

Easy Management and Troubleshooting

The presence of 4 ports simplifies network management and troubleshooting tasks. Each port can be individually configured, allowing for granular control over network settings and traffic distribution. Network administrators can easily monitor each port's performance, identify potential bottlenecks, and optimize the network's overall efficiency.

Furthermore, when troubleshooting network issues, having multiple ports facilitates the process of isolating problematic devices or connections. By systematically testing each port, administrators can pinpoint the source of the problem more efficiently, reducing downtime and minimizing the impact on end-users.

In conclusion, the Catalyst Cisco WS-CBS3012-IBM-I Switching Module's 4 ports provide users with increased flexibility, scalability, enhanced performance, efficient network segmentation, redundancy, high availability configurations, and simplified management and troubleshooting. These features make it an excellent choice for businesses and organizations that require a reliable and versatile networking solution to support their growing needs. Whether it is for data centers, offices, or any other networking environment, the 4 ports offered by this switching module deliver outstanding benefits and play a crucial role in ensuring a robust and efficient network infrastructure.
