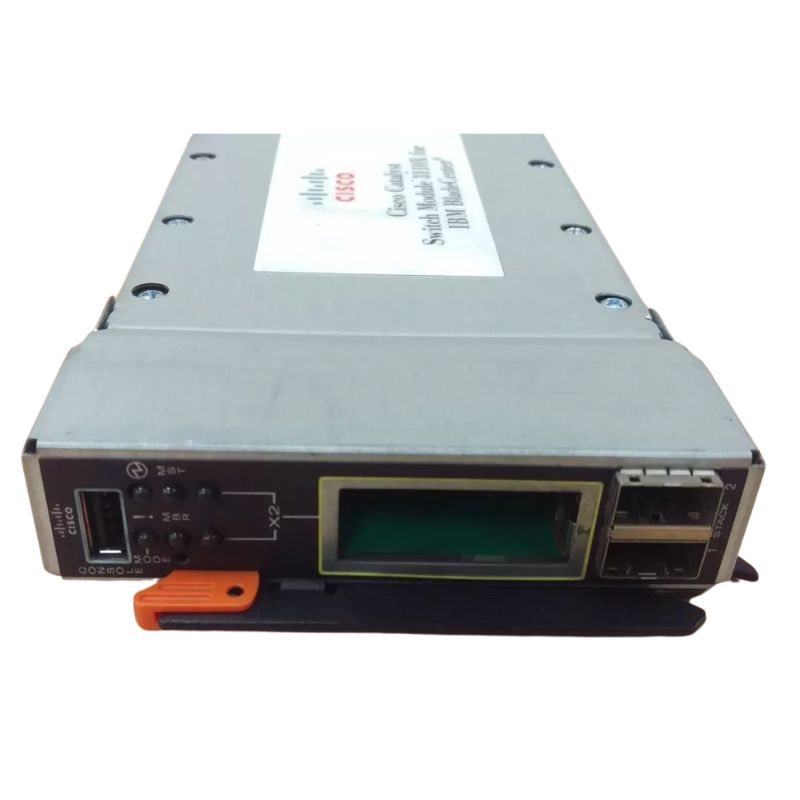

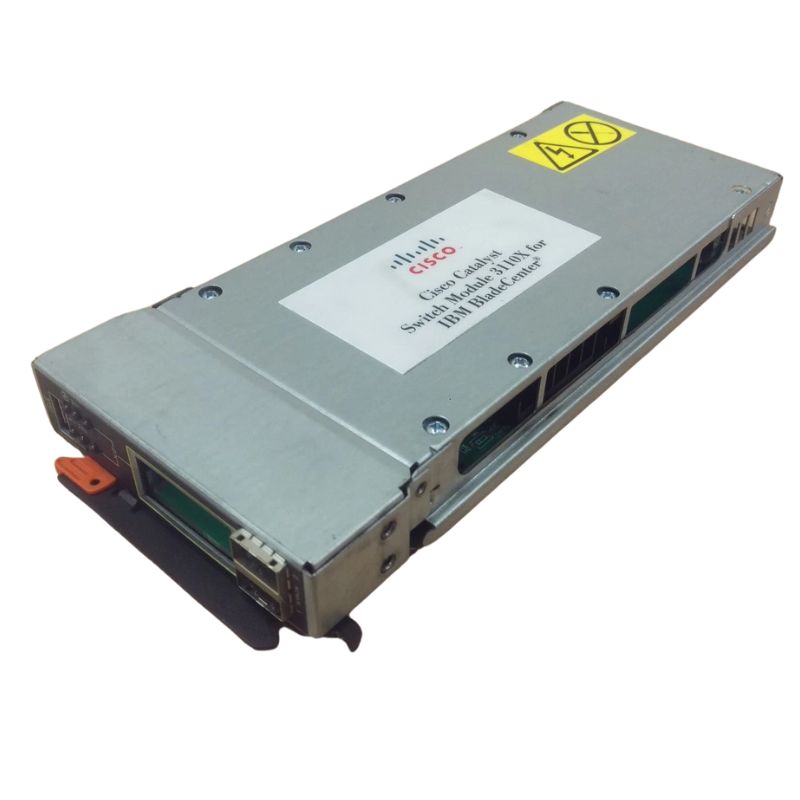

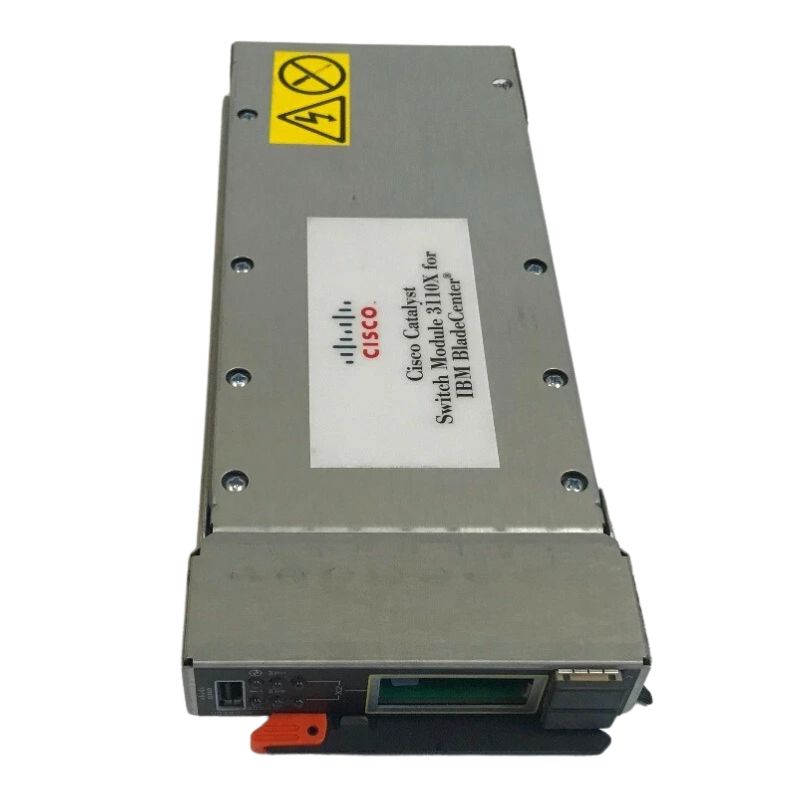

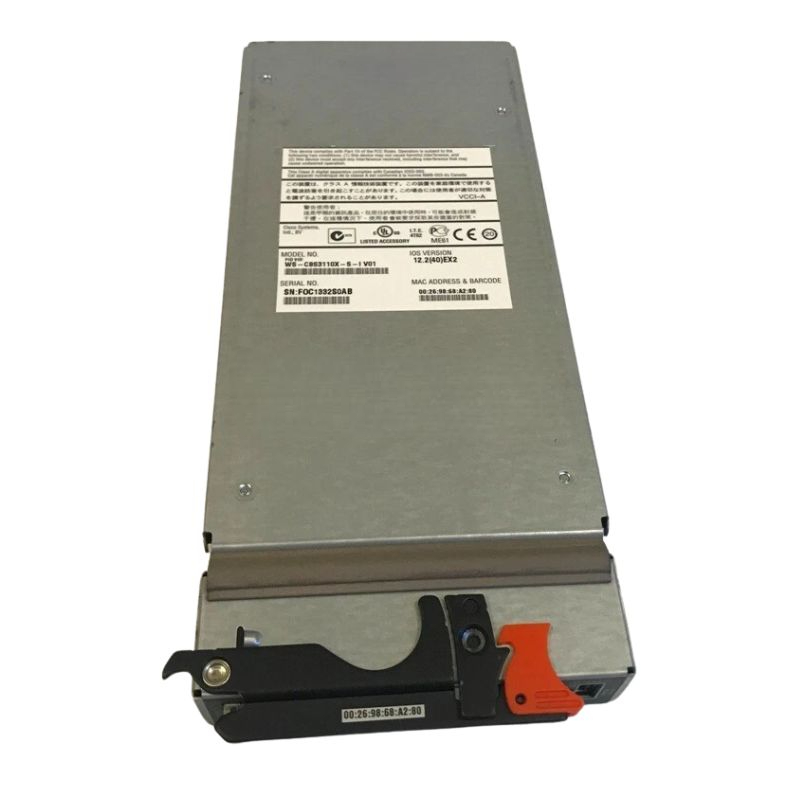

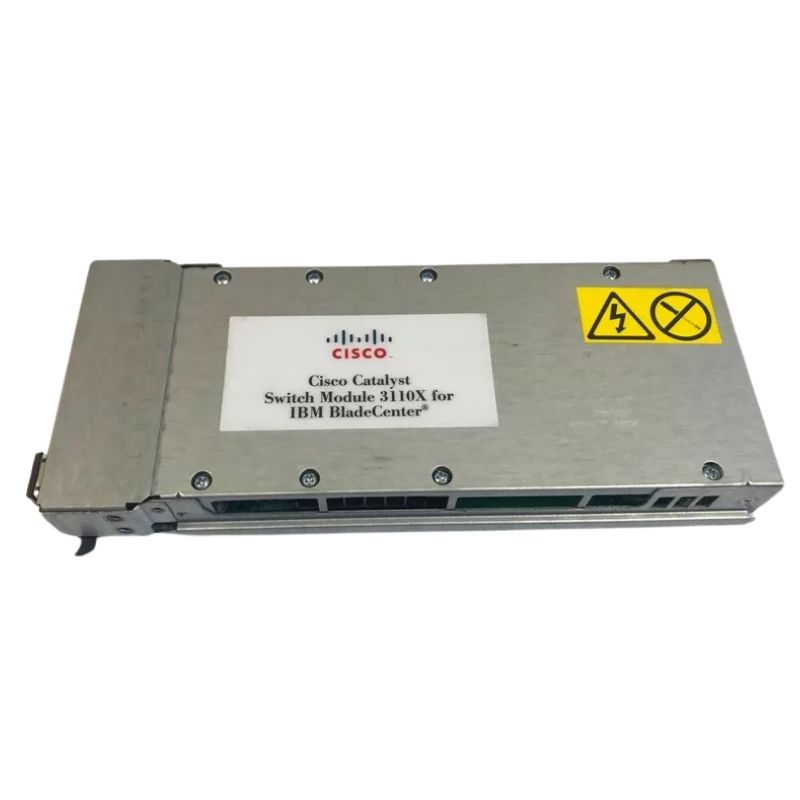

Cisco WS-CBS3110X-S-I Catalyst Managed Switch Module

Overview Cisco Catalyst 3110X Switch Module

Manufacturer Details

• Manufacturer: Cisco
• Part Number: WS-CBS3110X-S-I
• Model: Catalyst 3110X
• Product Type: Switching Module

Technical Specifications

General Usage

• Application: Network Switching
• Form Factor: Plug-in Module
• Connectivity: Wired

Interfaces and Ports

• Stack Ports: 2
• USB Management Port: 1

Expansion Capabilities

• Expansion Slots: 1
• Cabling Type: 10GBase-X Ethernet

Networking Protocols

Supported Protocols

• IEEE 802.1D (Bridging)
• IEEE 802.1p (Priority Tagging)
• IEEE 802.1Q (VLAN Tagging)
• IEEE 802.1s (Multiple VLAN Instances)
• IEEE 802.1W (Rapid Spanning Tree)
• IEEE 802.1x (Port-Based Network Access Control)
• IEEE 802.3 (Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3ad (Link Aggregation Control Protocol)
• IEEE 802.3u (Fast Ethernet)
• IEEE 802.3x (Flow Control)
• IEEE 802.3z (Gigabit Ethernet)

Remote Management Protocols

• HTTP
• RMON 1
• RMON 2
• SNMP Versions 1, 2c, and 3
• Telnet

Routing Protocols

• HSRP (Hot Standby Router Protocol)
• RIP Versions 1 and 2
• Static IP Routing

Switching Protocol

• Ethernet Switching

Compatibility

• IBM BladeCenter

Features

Layer 3 Switching

The Cisco WS-CBS3110X-S-I Managed Switch Module is equipped with layer 3 switching capabilities, which allows for efficient routing of network traffic. Layer 3 switches can make intelligent decisions based on IP addresses, enabling them to forward packets more efficiently and effectively than layer 2 switches. This feature is particularly beneficial for larger networks with heavy traffic loads, as it helps to improve overall network performance and reduce congestion.

Improved Network Performance

Layer 3 switching provides improved network performance by allowing the switch to make routing decisions based on IP addresses. This eliminates the need for routers, which can introduce latency and slow down the network. With layer 3 switching, the switch can quickly and efficiently route packets to their intended destinations, resulting in faster data transfer speeds and reduced network congestion.

Enhanced Scalability

Another significant benefit of layer 3 switching is its ability to enhance network scalability. Layer 3 switches can support a larger number of devices on the network compared to layer 2 switches. This is due to their ability to create multiple virtual networks or VLANs, which can segment the network and improve overall performance. With the Cisco WS-CBS3110X-S-I Managed Switch Module's support for layer 3 switching, users can easily expand their networks without sacrificing performance or introducing additional complexity.

Simplified Network Management

Layer 3 switching also simplifies network management by consolidating routing and switching functions into a single device. This reduces the need for separate routers and switches, streamlining the management process. With the Cisco WS-CBS3110X-S-I Managed Switch Module, users can easily configure and manage their network settings through a user-friendly interface, saving time and effort.

Stackable

One of the key features of the Cisco WS-CBS3110X-S-I Managed Switch Module is its stackability. This allows multiple switches to be connected and operated as a single logical unit, providing increased scalability, redundancy, and ease of management.

Increased Scalability

By stacking multiple switches together, users can easily expand their network capacity without the need for complex configurations or additional equipment. This feature is particularly useful for growing businesses or organizations that anticipate future network expansion. With the ability to stack switches, users can seamlessly add more ports and increase the overall performance of their network without disrupting current operations.

Enhanced Redundancy

Stacking switches also provides enhanced redundancy for critical network applications. With a stack of switches, if one switch fails, the others can automatically take over its functions, ensuring uninterrupted network connectivity. This feature is especially important for businesses that rely on continuous network availability to support their operations and prevent costly downtime.

Simplified Management

Stackable switches offer simplified management by allowing users to manage multiple switches as a single entity. This reduces the complexity of managing individual switches, as configurations and settings can be applied to the entire stack simultaneously. With the Cisco WS-CBS3110X-S-I Managed Switch Module's stackability feature, users can easily monitor and control their network from a centralized management interface, saving time and effort.

IPv6 Support

As the world moves towards IPv6, it is essential for networking devices to support this new protocol. The Cisco WS-CBS3110X-S-I Managed Switch Module offers full IPv6 support, ensuring compatibility with modern networks and future-proofing your infrastructure.

Future-Proofing Your Network

IPv6 support is becoming increasingly important as IPv4 addresses continue to deplete. By investing in a switch with IPv6 support like the Cisco WS-CBS3110X-S-I, users can ensure that their network infrastructure is ready for the transition to IPv6. This not only eliminates the need for costly upgrades or replacements down the line but also allows for seamless integration with other IPv6-enabled devices and services.

Improved Security

IPv6 brings with it enhanced security features compared to its predecessor, IPv4. With built-in support for IPsec (Internet Protocol Security), the Cisco WS-CBS3110X-S-I Managed Switch Module can provide encrypted communication and secure data transfer over IPv6 networks. This is particularly important for businesses that deal with sensitive information or require strict security measures to protect their network and data.

Quality of Service (QoS) Support

Quality of Service (QoS) support is a critical feature for network devices, especially in environments where different types of traffic require prioritization. The Cisco WS-CBS3110X-S-I Managed Switch Module offers robust QoS capabilities, allowing users to prioritize and manage network traffic effectively.

Optimized Network Performance

QoS support enables the Cisco WS-CBS3110X-S-I Managed Switch Module to prioritize specific types of traffic, ensuring that critical applications or services receive the necessary bandwidth and resources. By allocating the appropriate amount of bandwidth to different types of traffic, users can optimize network performance and ensure a smooth user experience, even during peak usage periods.

Improved User Satisfaction

By implementing QoS policies on the Cisco WS-CBS3110X-S-I Managed Switch Module, users can prioritize important applications such as voice or video conferencing, ensuring high-quality communication and reducing latency. This improves user satisfaction and productivity, as employees can rely on seamless and reliable network connections for their daily tasks.

Traffic Control and Bandwidth Management

QoS support also provides traffic control and bandwidth management capabilities. The Cisco WS-CBS3110X-S-I Managed Switch Module allows users to define QoS policies based on specific criteria, such as source or destination IP addresses, ports, or protocols. This level of control enables efficient bandwidth allocation and prevents certain types of traffic from overwhelming the network, ensuring fair usage and optimal performance for all users.

Virtual Local Area Network (VLAN) Support

Virtual Local Area Network (VLAN) support is a crucial feature for network segmentation and security. The Cisco WS-CBS3110X-S-I Managed Switch Module offers robust VLAN capabilities, allowing users to create multiple virtual networks within a single physical network infrastructure.

Enhanced Network Security

VLAN support allows users to isolate different groups of devices or users within the network. This enhances network security by preventing unauthorized access to sensitive data or resources. With the Cisco WS-CBS3110X-S-I Managed Switch Module's VLAN support, users can easily configure separate VLANs for different departments or guest networks, ensuring that each group has limited access to only the resources they require.

Improved Network Performance and Efficiency

VLAN support also improves network performance and efficiency by reducing broadcast traffic and increasing available bandwidth. By dividing the network into smaller, more manageable segments, the Cisco WS-CBS3110X-S-I Managed Switch Module can limit the propagation of broadcast messages, preventing unnecessary traffic and reducing network congestion. This results in improved overall network performance and better utilization of available resources.

Flexibility and Scalability

The Cisco WS-CBS3110X-S-I Managed Switch Module's VLAN support offers flexibility and scalability for network design and expansion. Users can easily add or remove VLANs as their network requirements change without disrupting the rest of the infrastructure. This flexibility allows for efficient adaptation to evolving business needs, making the switch an ideal choice for growing organizations.
