WS-SUP32-GE-3B Cisco Catalyst 6500 Engine 32 Port Gigabit Ethernet

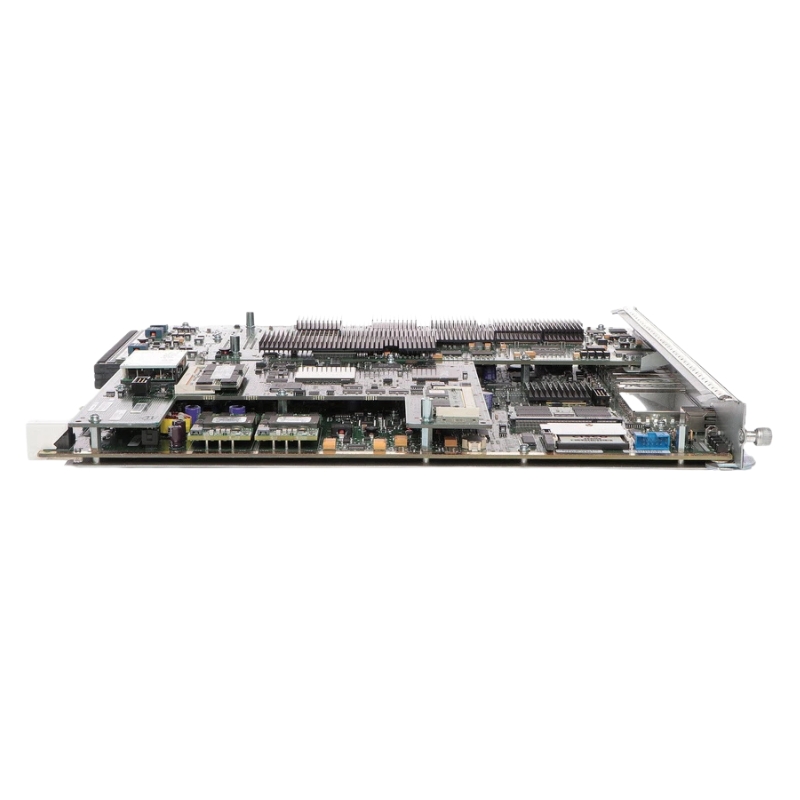

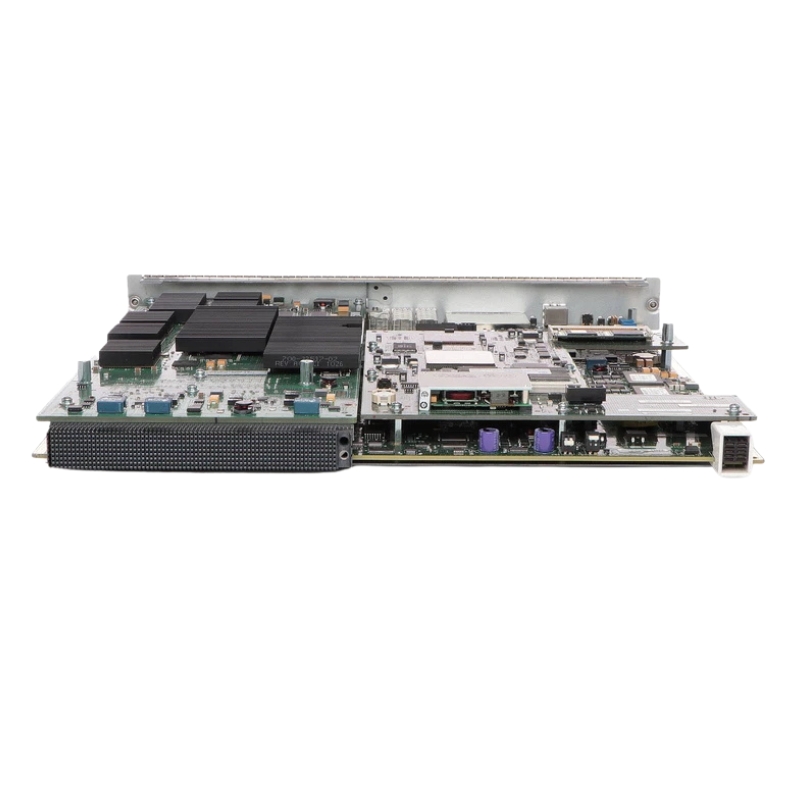

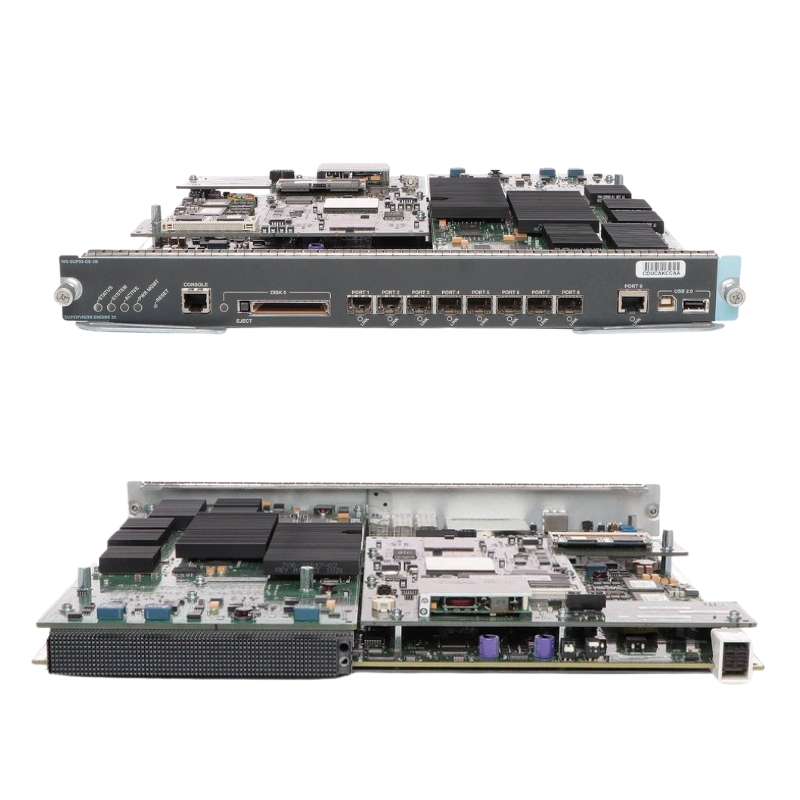

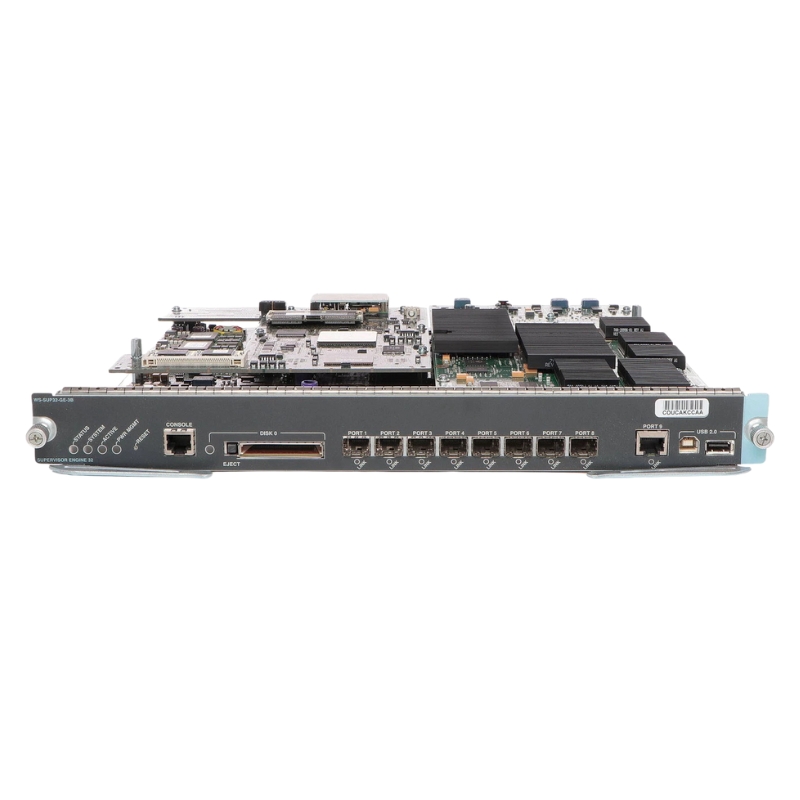

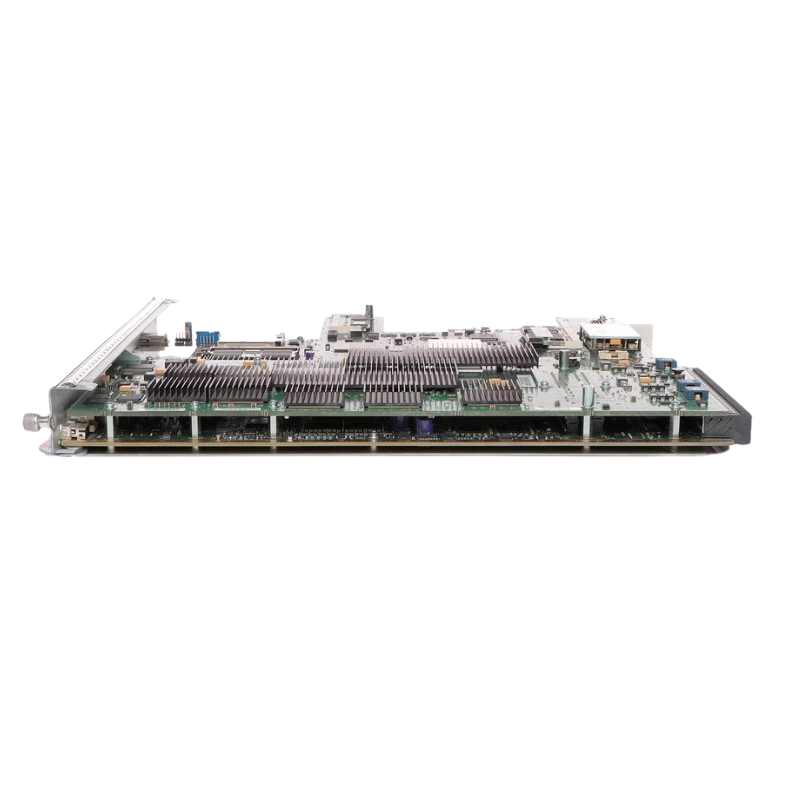

Cisco WS-SUP32-GE-3B Catalyst 6500 Supervisor Engine

The Cisco WS-SUP32-GE-3B is a high-capacity supervisor engine designed for the Cisco Catalyst 6500 Series and Cisco 7600 Series platforms. Built for enterprise-grade switching environments, it delivers advanced control, high-speed Gigabit Ethernet connectivity, and scalable network management capabilities for modern data-driven infrastructures.

Product Details

• Manufacturer: Cisco
• Model Number: WS-SUP32-GE-3B
• Product Category: Management Module

Key Operational Benefits

• Centralized control for Catalyst 6500 switching architecture
• Efficient management of Gigabit Ethernet traffic flows
• Enhanced system scalability for enterprise networks
• Optimized routing and switching performance
• Reliable operation for mission-critical infrastructures

Ethernet and Port Configuration

• Downlink Capacity: 32 Gigabit Ethernet ports
• Uplink Interface: 1 × RJ-45 10/100/1000Base-T
• Console Port: 1 × RJ-45 management interface
• USB Ports: 2 × USB connectivity ports

Key Product Highlights

• 32-port Gigabit Ethernet supervisor engine
• Designed for Cisco Catalyst 6500 and Cisco 7600 Series
• Supports 10/100/1000Base-T connectivity
• Includes SFP-based expansion capabilities
• High-performance centralized network control module
• Built for scalable enterprise networking environments

Networking Standards

• 10/100/1000Base-T Ethernet technology
• Gigabit Ethernet (1 Gbps) data throughput
• Twisted pair copper media support

Throughput and Efficiency

• Maximum data transfer rate: 1 Gbit/s per interface
• Designed for high-density enterprise traffic environments
• Supports advanced switching and routing workloads
• Optimized for consistent low-latency performance

System Reliability Features

• Stable packet processing under heavy load conditions
• High availability architecture for continuous operation
• Redundant-ready system design for enterprise resilience

Module and Slot Architecture

• Total expansion slots: 9
• Supports Small Form-factor Pluggable (SFP) modules
• Compatible with dual daughter card configurations
• Flexible hardware upgrade path for evolving networks

Upgrade Flexibility

• Supports modular network expansion strategies
• Enables seamless integration of additional interfaces
• Designed for long-term infrastructure scalability

Compatibility and Supported Platforms

• Cisco Catalyst 6500 Series Switches
• Cisco 7600 Series Routers

Integration Advantages

• Seamless interoperability within Cisco enterprise ecosystems
• Supports hybrid network environments
• Easy integration into existing switching infrastructures

System Control Interfaces

• RJ-45 console port for direct device configuration
• USB ports for firmware and configuration management
• Advanced system monitoring capabilities

Operational Efficiency

• Simplified network administration
• Enhanced troubleshooting and diagnostics tools
• Centralized configuration management

Enterprise Deployment Benefits

• Ideal for large-scale corporate networks
• Supports high-performance data centers
• Enables efficient campus network management
• Suitable for service provider infrastructure

Cisco WS-SUP32-GE-3B 32 Port Supervisor Engine

The Cisco WS-SUP32-GE-3B Catalyst 6500 Engine 32 Port Gigabit Ethernet is a high-performance supervisor and switching engine component designed for integration within the modular Catalyst 6500 Series chassis developed by this module serves as a central intelligence and switching fabric interface that enables high-density Gigabit Ethernet connectivity, advanced Layer 2 and Layer 3 forwarding, and scalable enterprise network management. It is engineered for large-scale deployments where performance, redundancy, and modular expandability are critical requirements.

Role of WS-SUP32-GE-3B in Catalyst 6500 Architecture

Within the Catalyst 6500 ecosystem, the WS-SUP32-GE-3B functions as a Supervisor Engine that integrates switching control, routing intelligence, and high-density Gigabit Ethernet port access into a single modular unit. It is designed to manage the entire chassis operation, including control plane processing, forwarding table computation, and inter-module communication. By combining supervisory functions with 32 built-in Gigabit Ethernet ports, it eliminates the need for separate line cards in certain deployment scenarios, thereby optimizing slot utilization.

Integration with Modular Switching Fabric

The Catalyst 6500 switching architecture is built around a high-speed backplane that allows multiple line cards and supervisor engines to communicate simultaneously. The WS-SUP32-GE-3B leverages this architecture to deliver consistent throughput and low-latency packet forwarding across all connected interfaces. It ensures that traffic flows efficiently between access, distribution, and core layers in enterprise networks.

Control Plane and Data Plane Separation

One of the key design principles of the WS-SUP32-GE-3B is the separation of control plane and data plane operations. The control plane is responsible for managing routing protocols, network topology updates, and system configuration, while the data plane handles packet forwarding at wire speed. This separation enhances scalability and ensures that network performance remains stable even under heavy load conditions.

32-Port Gigabit Ethernet Interface Design

The integrated 32-port Gigabit Ethernet architecture of the WS-SUP32-GE-3B provides high-density connectivity for enterprise networks. These ports support 10/100/1000 Mbps auto-negotiation, enabling flexible deployment across legacy and modern network infrastructures. The high port density allows organizations to consolidate multiple access-layer connections into a single supervisor module.

Routing Intelligence and Control Functions

The module supports advanced routing protocols such as OSPF, EIGRP, and BGP, enabling it to operate in complex enterprise and service provider environments. It continuously updates routing tables and ensures optimal path selection for data traffic across the network infrastructure.

Forwarding Information Base Management

The Forwarding Information Base (FIB) is a critical component of the WS-SUP32-GE-3B architecture. It stores precomputed routing decisions that allow for rapid packet forwarding. By maintaining an optimized FIB, the module ensures that traffic is processed efficiently without requiring repeated software-based lookups.

Performance Optimization and Network Efficiency

The WS-SUP32-GE-3B is engineered for high-performance networking environments where efficiency and scalability are essential. It supports high-throughput Gigabit Ethernet switching with minimal latency, making it suitable for enterprise backbone and aggregation layers.

High-Speed Switching Fabric Utilization

The module leverages the Catalyst 6500 switching fabric to distribute traffic efficiently across multiple interfaces and line cards. This ensures that bandwidth is utilized optimally and that no single interface becomes a bottleneck under heavy traffic loads.

Enterprise Deployment Scenarios

The WS-SUP32-GE-3B is widely deployed in enterprise campus networks, data center aggregation layers, and service provider edge environments. Its combination of supervisory intelligence and integrated Gigabit Ethernet ports makes it highly versatile for different network architectures.

Campus Network Core and Distribution Layers

In enterprise campus environments, the module is often used in core or distribution layer switches where it aggregates traffic from multiple access switches. Its high port density and routing capabilities make it ideal for managing large-scale internal traffic flows.

Hardware-Based Access Control Implementation

Access control policies are implemented in hardware, allowing the module to filter traffic at wire speed without impacting performance. This ensures that unauthorized traffic is blocked before it can affect the network infrastructure.

Scalable Security Policy Deployment

The module supports large-scale deployment of security policies across multiple ports and interfaces. This ensures consistent enforcement of organizational security rules across the entire network infrastructure.

Operational Reliability and High Availability

Designed for mission-critical environments, the WS-SUP32-GE-3B supports high availability configurations that ensure continuous network operation even in the event of hardware or software failures. It integrates seamlessly with redundant supervisor architectures to maintain uptime.

Redundant Supervisor Deployment Models

In dual-supervisor configurations, the module can operate alongside a standby unit that takes over in case of failure. This ensures uninterrupted network service and minimizes downtime in enterprise environments.

Scalability and Long-Term Network Growth

The modular design of the Catalyst 6500 platform allows the WS-SUP32-GE-3B to scale alongside growing network demands. Organizations can expand their infrastructure incrementally without replacing existing hardware, ensuring cost-effective long-term growth.

Incremental Expansion of Network Capacity

By adding additional line cards and modules, organizations can increase network capacity while maintaining a consistent architecture. The WS-SUP32-GE-3B serves as a central component in this scalable design.

Legacy and Modern Integration

The module supports integration with both legacy and modern networking technologies, allowing organizations to maintain hybrid environments during infrastructure transitions. This ensures smooth migration paths for evolving network requirements.

Enterprise Lifecycle Stability

The WS-SUP32-GE-3B continues to provide value in long-term deployments where stability and reliability are prioritized. Its proven architecture ensures consistent performance across extended operational lifecycles within enterprise networks.
