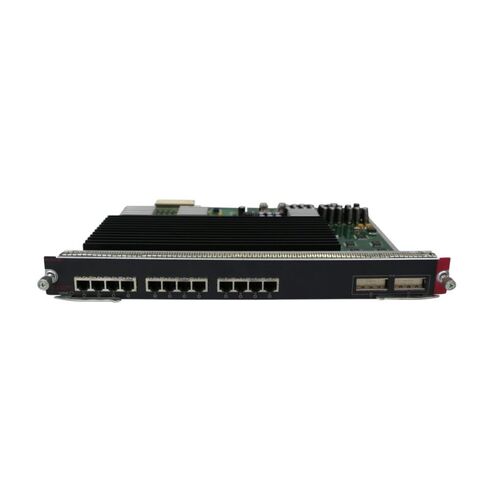

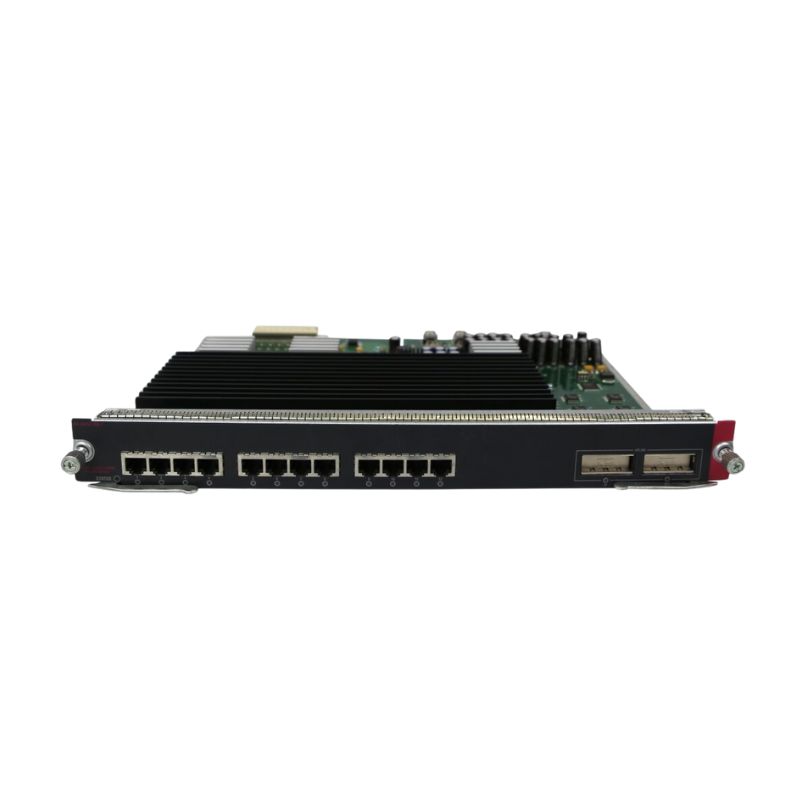

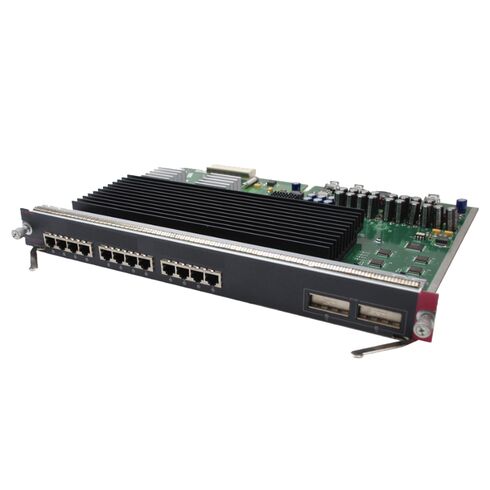

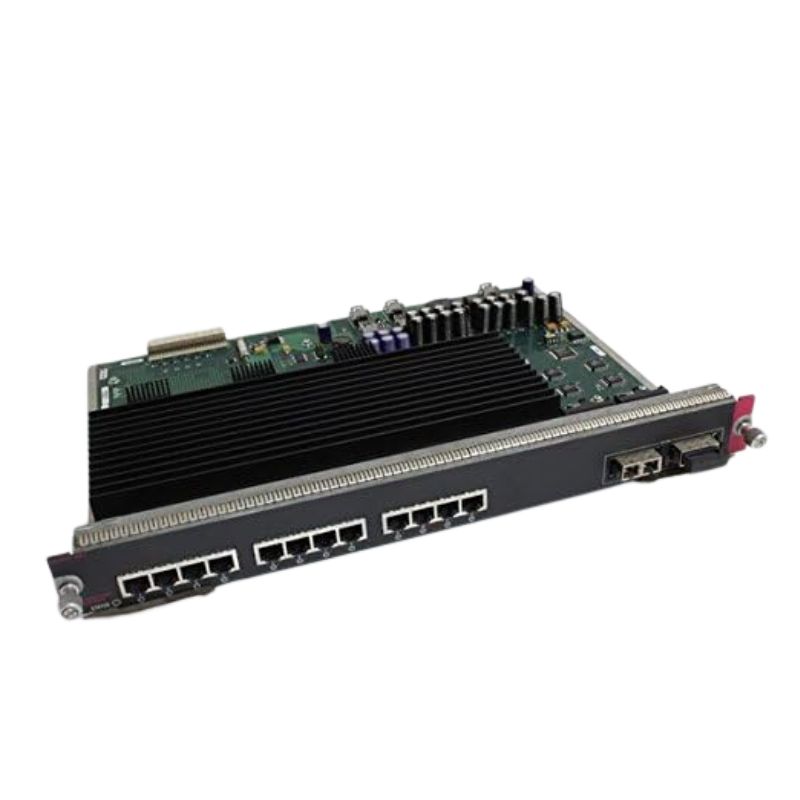

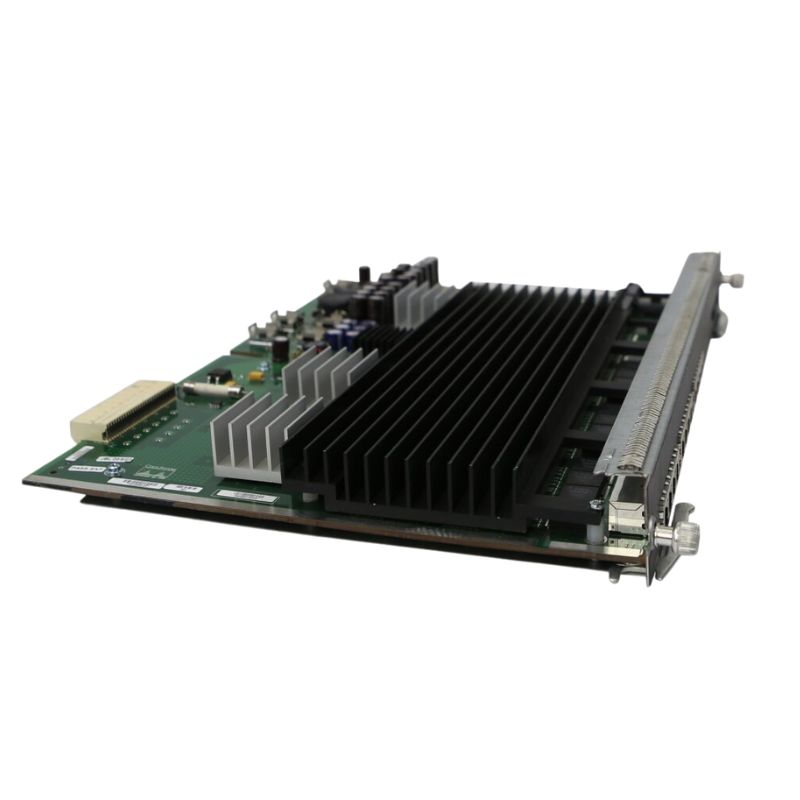

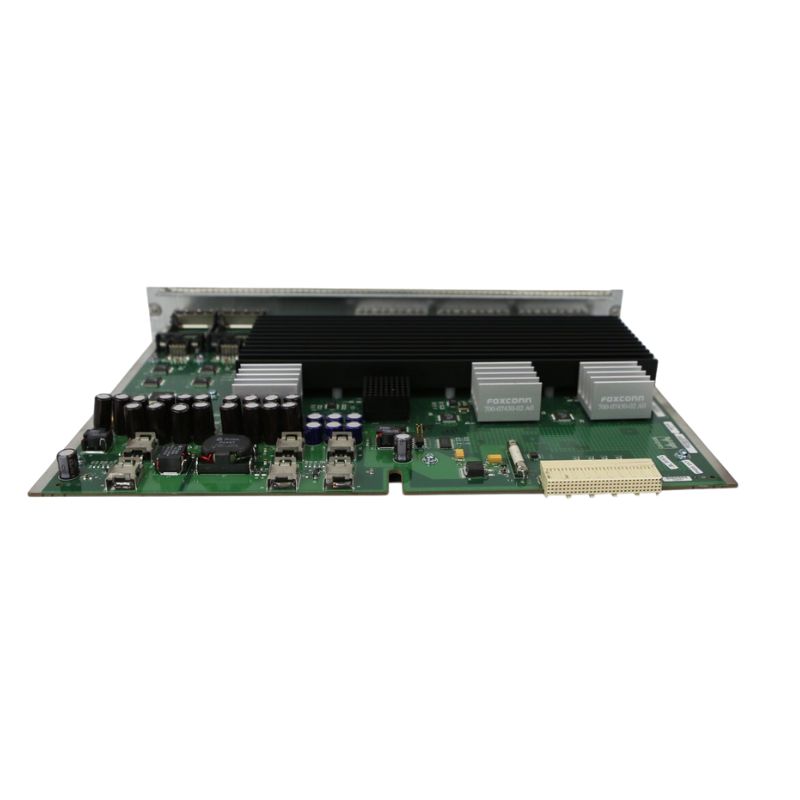

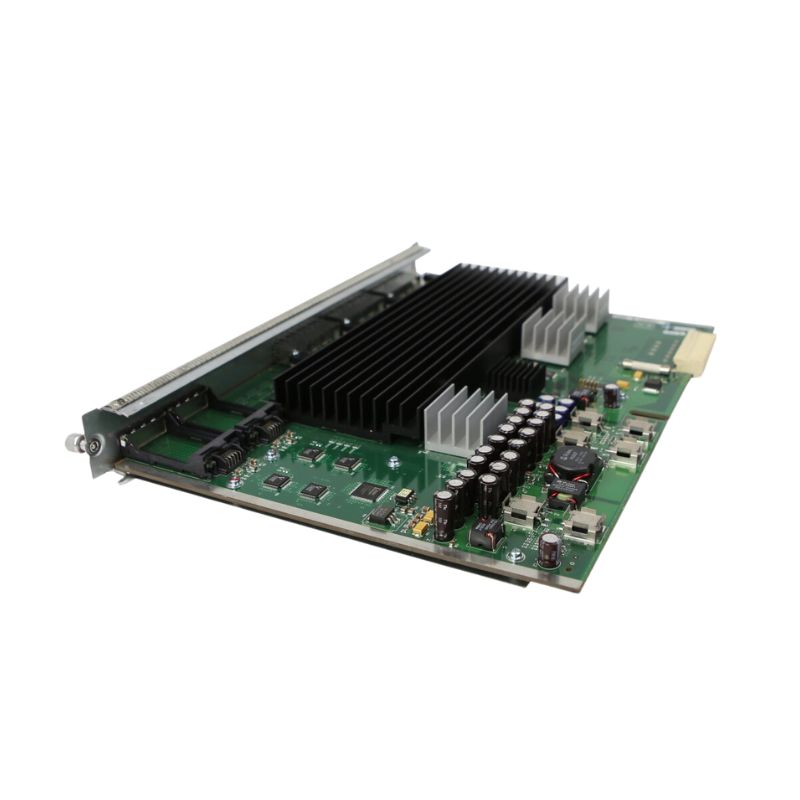

WS-X4412-2GB-T Cisco Catalyst 12 Ports Expansion Module

Cisco WS-X4412-2GB-T Catalyst Expansion Module

The Cisco WS-X4412-2GB-T Catalyst expansion module is engineered to enhance network scalability, port density, and overall switching efficiency within enterprise and campus infrastructures. Designed as a high-performance plug-in module, this expansion unit extends the capabilities of Cisco Catalyst 4000 Series switches by delivering reliable Gigabit Ethernet connectivity and flexible uplink options. Its modular architecture allows organizations to upgrade existing switching environments without replacing core hardware, ensuring cost-effective growth and long-term network adaptability.

General Information and Identification

• Manufacturer: Cisco
• Part Number: WS-X4412-2GB-T
• Product Type: Expansion Module
• Product Name: Catalyst 4000 12 Ports Expansion Module
• Line Series: Cisco Catalyst
• Series Category: 4000 Series

Enclosure and Module Design

• Plug-in expansion module format
• Optimized for Catalyst 4000 Series chassis
• Hot-swappable design for reduced downtime
• Compact form factor for efficient chassis utilization

Port Configuration Details

• 12 x 10/100/1000 Mbps Ethernet ports
• 2 x GBIC uplink ports
• Auto-negotiation for speed and duplex settings
• Support for full-duplex Gigabit Ethernet communication

Supported Networking Standards

• IEEE 802.3z Gigabit Ethernet standard
• Compliance with Ethernet and Fast Ethernet specifications
• Standards-based auto-negotiation support

Expansion Slot and Integration

• 1 x dedicated expansion slot interface
• Simple plug-and-play installation
• Supports incremental network upgrades
• Reduces need for full chassis replacement

Supported Catalyst Switch Models

• Fully compatible with Cisco Catalyst 4003
• Seamless integration with Cisco Catalyst 4006

Key Deployment Advantages

• Enhances port density without major infrastructure changes
• Supports both copper and fiber connectivity options
• Ensures reliable Gigabit Ethernet performance
• Optimized for Cisco Catalyst 4000 Series environments

Cisco WS-X4412-2GB-T Catalyst 12 Ports Expansion Module

The Cisco WS-X4412-2GB-T Catalyst 12 Ports Expansion Module belongs to a specialized category of modular network expansion hardware designed for Cisco Catalyst 4500 Series switches. This category focuses on high-performance Ethernet expansion modules that enhance switching capacity, improve network scalability, and extend the functional lifespan of enterprise-class chassis-based switches. Expansion modules in this category are engineered to integrate seamlessly with existing Catalyst architectures, enabling organizations to adapt to growing bandwidth demands, evolving application requirements, and increasing numbers of connected devices without replacing the entire switching infrastructure.

This category emphasizes modularity, reliability, and performance consistency. The Cisco WS-X4412-2GB-T module is representative of expansion hardware that supports enterprise-grade networking standards, offering Gigabit Ethernet connectivity optimized for data-intensive environments. The category addresses use cases such as campus networks, aggregation layers, and enterprise distribution environments where consistent throughput, low latency, and predictable behavior are critical.

Modular Expansion Architecture in Catalyst 4500 Series

Within the Catalyst 4500 Series ecosystem, expansion modules like the Cisco WS-X4412-2GB-T are integral components of the chassis-based design philosophy. This category is built around the concept of separating core switching intelligence from port density and interface types. By doing so, organizations gain the ability to scale horizontally by adding modules that provide additional ports or specialized connectivity without disrupting existing network operations.

The expansion module category supports a wide range of deployment strategies, including incremental growth, targeted upgrades, and hardware lifecycle management. The Cisco WS-X4412-2GB-T aligns with this approach by offering a defined number of Ethernet ports that integrate with the switching fabric of the Catalyst chassis, ensuring consistent forwarding performance across all installed modules.

Chassis-Based Networking Flexibility

Chassis-based networking remains a cornerstone of enterprise and service provider environments due to its flexibility and resilience. The expansion module category for Catalyst switches enables administrators to tailor port configurations to specific requirements. The Cisco WS-X4412-2GB-T provides twelve Ethernet ports, making it suitable for medium-density connectivity needs where reliability and throughput are prioritized over sheer port count.

This flexibility allows network architects to design layered networks that can evolve over time. As user populations increase or application profiles change, additional expansion modules can be installed to support new devices, higher data rates, or specialized traffic patterns. The category is therefore aligned with long-term infrastructure planning and investment protection.

Integration with Catalyst Switching Fabric

The expansion module category is defined by its tight integration with the Catalyst switching fabric. Modules such as the Cisco WS-X4412-2GB-T are designed to operate as native components of the switch, leveraging the chassis backplane for high-speed data transfer. This integration ensures that traffic entering through any port on the module is processed with the same quality of service, security policies, and routing logic as traffic from other modules.

This architectural consistency is essential for maintaining predictable network behavior. It allows administrators to apply uniform configurations across the entire switch, simplifying management and reducing the risk of misconfiguration. The category therefore supports centralized control and standardized network operations.

Ethernet Connectivity Characteristics

The Cisco WS-X4412-2GB-T expansion module category is centered on Ethernet connectivity optimized for enterprise environments. Ethernet remains the dominant networking technology due to its scalability, interoperability, and continuous evolution. Modules in this category provide copper-based Ethernet interfaces that support reliable data transmission over standard cabling infrastructures.

The emphasis on Gigabit Ethernet ensures compatibility with a wide range of endpoints, including workstations, servers, network appliances, and access layer switches. This category supports networks that require consistent throughput for applications such as file sharing, unified communications, database access, and virtualization.

Gigabit Ethernet Performance Considerations

Gigabit Ethernet ports in this category are designed to deliver sustained performance under varying traffic loads. The Cisco WS-X4412-2GB-T supports full-duplex communication, enabling simultaneous transmission and reception of data at gigabit speeds. This capability is essential for modern applications that generate bidirectional traffic patterns.

The category also emphasizes low latency and minimal packet loss, which are critical for real-time applications and transaction-sensitive workloads. By integrating directly with the Catalyst switching fabric, expansion modules ensure that Ethernet traffic is forwarded efficiently and reliably.

Compatibility with Enterprise Cabling Standards

Expansion modules in this category are designed to operate with widely adopted cabling standards, making them suitable for deployment in existing network environments. The Cisco WS-X4412-2GB-T supports copper Ethernet connections that align with common structured cabling practices, reducing the need for specialized installation or additional infrastructure investments.

This compatibility simplifies deployment and maintenance, allowing organizations to leverage their current cabling assets while upgrading switching capabilities. It also facilitates gradual network modernization, as older devices can coexist with newer endpoints within the same switching framework.

Role in Enterprise Network Design

The category encompassing the Cisco WS-X4412-2GB-T expansion module plays a significant role in enterprise network design strategies. Expansion modules are often deployed at the distribution or aggregation layers of the network, where they provide connectivity between access switches, servers, and core infrastructure components. This category supports hierarchical network models that emphasize scalability, redundancy, and manageability.

By adding expansion modules to Catalyst chassis, organizations can centralize connectivity while maintaining high availability. The modular approach allows for redundancy at the module level, enabling continued operation even if a single module requires maintenance or replacement.

Support for Campus and Data Center Environments

Campus networks benefit from expansion modules that can accommodate diverse connectivity requirements across buildings, floors, and departments. The Cisco WS-X4412-2GB-T category supports such environments by offering reliable Ethernet ports suitable for uplinks, server connections, or high-demand user segments.

In data center contexts, this category provides flexible connectivity options for aggregation switches that connect racks of servers or storage systems. The ability to scale port density through modular expansion aligns with the dynamic nature of data center operations, where capacity requirements can change rapidly.

Scalability and Growth Planning

Scalability is a defining characteristic of the expansion module category. The Cisco WS-X4412-2GB-T enables organizations to increase network capacity incrementally, adding ports as needed rather than overprovisioning from the outset. This approach supports cost-effective growth and aligns with budgetary constraints.

The category also facilitates long-term planning by allowing hardware upgrades without service interruption. Modules can be added or replaced during maintenance windows, minimizing downtime and preserving network availability.

Operational Reliability and Availability

Reliability is a core attribute of the expansion module category within the Catalyst ecosystem. The Cisco WS-X4412-2GB-T is designed to meet enterprise standards for uptime and durability. Expansion modules are built with robust components and undergo extensive testing to ensure consistent performance under continuous operation.

This category supports high-availability features inherent to the Catalyst platform, including redundant power supplies and cooling systems. By operating within a chassis that provides these protections, expansion modules benefit from enhanced resilience against hardware failures.

Hot-Swappable Module Design

Many expansion modules in this category are designed to be hot-swappable, allowing installation or replacement without powering down the entire switch. This capability is particularly valuable in mission-critical environments where downtime must be minimized. The Cisco WS-X4412-2GB-T aligns with this design philosophy, supporting maintenance activities that do not disrupt network services.

Hot-swappability contributes to operational efficiency by enabling rapid response to hardware issues. Network administrators can replace faulty modules while maintaining overall network functionality.

Thermal and Power Management Considerations

The expansion module category takes into account thermal and power management requirements. Modules are engineered to operate within defined power budgets and thermal envelopes, ensuring compatibility with the Catalyst chassis. The Cisco WS-X4412-2GB-T is designed to draw power efficiently while maintaining stable operation.

Effective thermal management contributes to long-term reliability by reducing stress on electronic components. This focus on sustainability aligns with enterprise expectations for dependable networking hardware.

Network Management and Control Capabilities

Expansion modules in the Cisco WS-X4412-2GB-T category integrate seamlessly with Cisco network management frameworks. This integration allows administrators to monitor, configure, and troubleshoot ports using familiar tools and interfaces. The category supports centralized management, which is essential for large-scale deployments.

By appearing as native components within the Catalyst switch, expansion modules inherit management features such as interface statistics, error monitoring, and configuration consistency. This unified approach simplifies day-to-day operations and reduces administrative overhead.

Consistency with Cisco IOS Features

The category is designed to be fully compatible with Cisco IOS software running on the Catalyst platform. The Cisco WS-X4412-2GB-T supports standard IOS commands and features, allowing administrators to apply policies related to security, quality of service, and traffic control uniformly across all ports.

This consistency ensures that expansion modules do not introduce complexity or require specialized management practices. Instead, they extend the existing capabilities of the switch in a predictable and controlled manner.

Security and Traffic Control Implications

The expansion module category also plays a role in enforcing network security and traffic control policies. The Cisco WS-X4412-2GB-T, as part of the Catalyst platform, supports features that help protect the network from unauthorized access and malicious activity. Ethernet ports on the module can be configured with security policies that align with organizational requirements.

This category supports segmentation, access control, and traffic prioritization, enabling networks to accommodate diverse user groups and application types securely.

Integration with Access Control Mechanisms

Expansion modules inherit access control capabilities from the Catalyst switch, allowing administrators to define port-level policies. The Cisco WS-X4412-2GB-T category supports features such as port security and authentication, which help ensure that only authorized devices can connect to the network.

These capabilities are essential in enterprise environments where regulatory compliance and data protection are critical concerns.

Quality of Service Alignment

Quality of service is a key consideration for networks that support voice, video, and critical applications. Expansion modules in this category support QoS features that prioritize traffic based on defined policies. The Cisco WS-X4412-2GB-T ensures that high-priority traffic receives appropriate bandwidth and low latency.

This alignment with QoS strategies enhances user experience and supports the reliable operation of real-time services.

Support for Legacy and Modern Environments

The expansion module category bridges the gap between legacy infrastructure and modern networking demands. The Cisco WS-X4412-2GB-T supports environments where older devices coexist with newer technologies, providing a stable platform for gradual modernization.

This compatibility ensures that organizations can transition at their own pace, balancing innovation with operational stability.

Standardization and Long-Term Availability

Standardization is a key advantage of this category. By using well-defined expansion modules, organizations can maintain consistency across deployments and simplify spare parts management. The Cisco WS-X4412-2GB-T fits within a standardized ecosystem that supports predictable performance and compatibility.

This standardization contributes to long-term availability and simplifies procurement, maintenance, and support processes across the network infrastructure.
