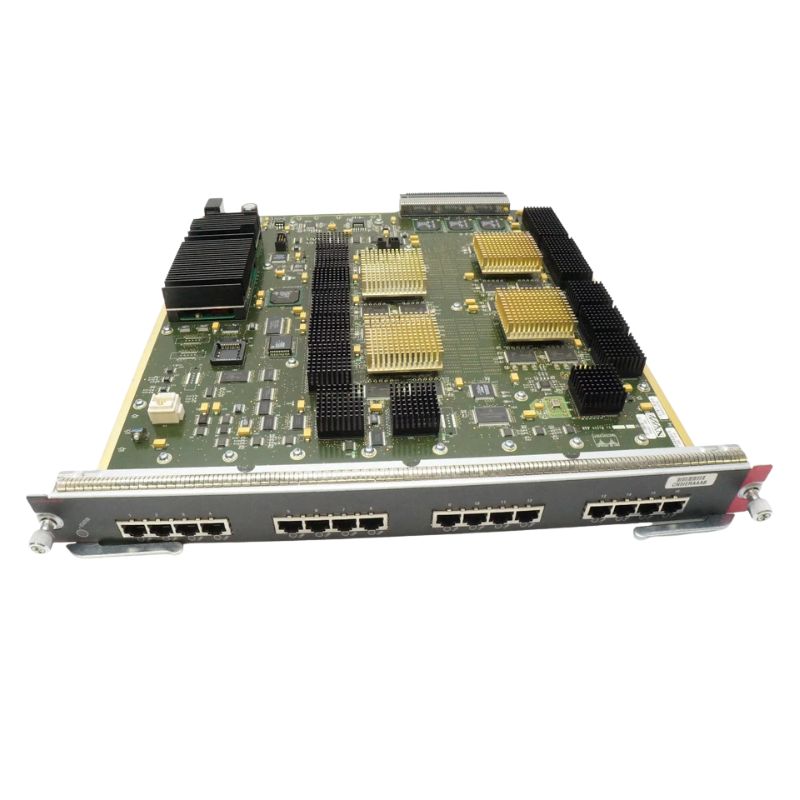

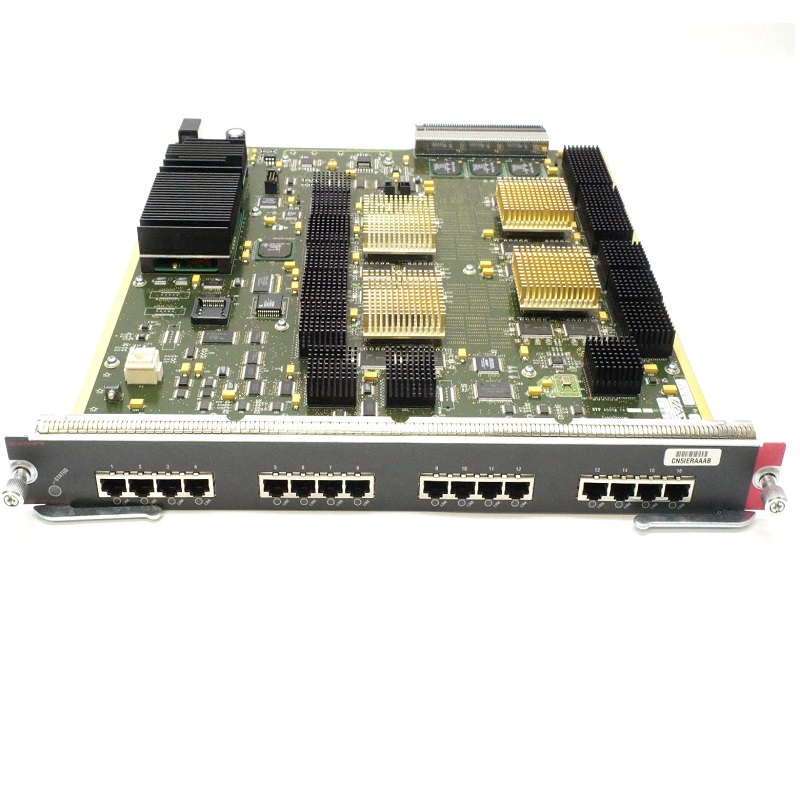

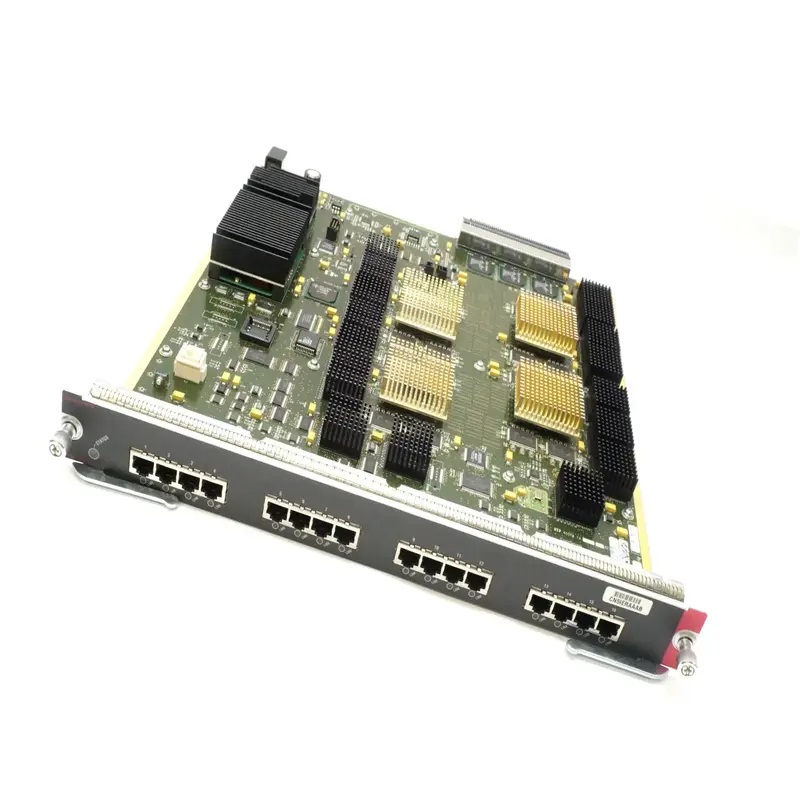

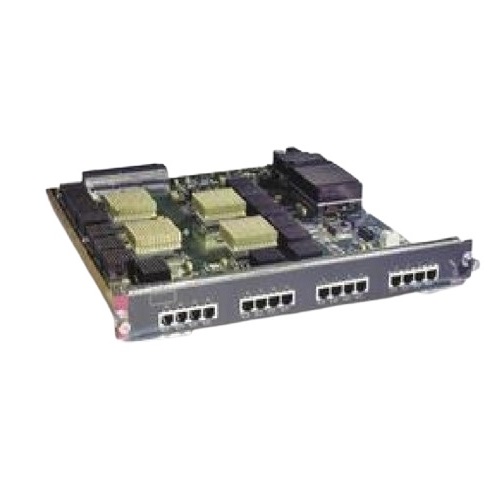

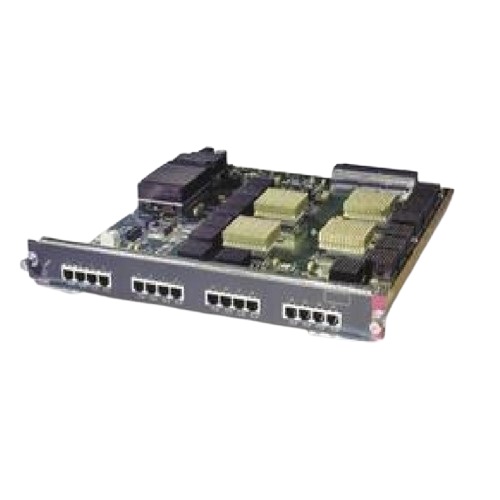

Cisco WS-X6316-GE-TX Ethernet Module - 16 Ports

Overview of Cisco WS-X6316-GE-TX Switching Module

Key Product Details

• Manufacturer: Cisco
• Part Number: WS-X6316-GE-TX
• Product Type: Catalyst Switching Module

Interface & Port Specifications

• Interfaces Supported: 16 x 1000Base-T LAN
• Connector Type: 16 x RJ-45 1000Base-T LAN

Networking & Performance Features

• Transmission Rate: 1 Gbps Gigabit Ethernet at distances up to 328 feet
• Media Type: Category 5 UTP cables
• Max Distance Supported: 328 feet using Category 5 UTP cabling

Management & Protocols

• Supported Protocols: STP, VRRP, HSRP
• Management Standards:
  • ETHERLIKE-MIB (RFC 1643)
  • IF-MIB (RFC 1573)
  • Bridge MIB (RFC 1493)
  • CISCO-STACK-MIB
  • CISCO-VTP-MIB
  • CISCO-CDP-MIB
  • RMON MIB (RFC 1757)
  • CISCO-STP-EXTENSIONS-MIB
  • CISCO-VLAN-BRIDGE-MIB
  • CISCO-VLAN-MEMBERSHIP-MIB
  • ENTITY-MIB (RFC 2037)
  • HC-RMON
  • RFC1213-MIB (MIB-II)
  • SIMON-MIB

Memory and Indicators

• Buffer Memory: 512 KB per port installed
• Status Indicators: Status, Link Good

Reliability & Durability

• MTBF (Mean Time Between Failures): 61,360.69 hours

Environmental Conditions

• Storage Temperature: -40°F to 167°F (-40°C to 75°C)
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Humidity: 10% to 90% non-condensing
• Operating Altitude: -197 feet to 13,123 feet (-60m to 4000m)

Ports

The Cisco WS-X6316-GE-TX Ethernet Module is equipped with a remarkable 16 ports, making it an ideal choice for businesses and organizations that require a high-density solution for their networking needs. With each port capable of supporting Gigabit Ethernet connectivity, this module offers unparalleled performance and flexibility for data transfer.

Increased Connectivity

Having 16 ports on a single module provides users with the ability to connect multiple devices simultaneously. Whether it is connecting servers, switches, or other networking equipment, the WS-X6316-GE-TX ensures that there are enough ports available to accommodate all the required connections. This increased connectivity eliminates the need for additional modules or switches, simplifying the network infrastructure and reducing costs.

Improved Bandwidth

The 16 ports on the Cisco WS-X6316-GE-TX Ethernet Module allow for a significant boost in available bandwidth. With each port supporting Gigabit Ethernet, users can harness the power of high-speed data transfer over their network. This improved bandwidth is crucial for businesses that deal with large amounts of data, such as video streaming, file transfers, or data-intensive applications. The increased bandwidth ensures that data flows smoothly and efficiently, resulting in enhanced productivity and reduced latency.

Flexibility in Network Design

The WS-X6316-GE-TX Ethernet Module's 16 ports offer users immense flexibility in designing their network infrastructure. With a high-density solution like this, businesses can create complex network topologies without compromising on performance. Whether it is building a large-scale data center, connecting multiple departments within an organization, or establishing a robust network for a growing business, the module's 16 ports provide the necessary flexibility to meet diverse networking requirements.

Expandability

In addition to the immediate benefits of having 16 ports, the Cisco WS-X6316-GE-TX Ethernet Module also offers expandability options. The module is compatible with various Cisco switches, allowing users to easily add more modules and expand their network as their needs evolve. This scalability ensures that businesses can future-proof their network infrastructure without the need for extensive overhauls or replacements.

Redundancy and Resilience

With 16 ports, the WS-X6316-GE-TX Ethernet Module enables users to implement redundancy and resilience in their network design. By connecting devices to multiple ports, businesses can create redundant paths for data transmission. In the event of a port failure or network interruption, traffic can be automatically rerouted through alternative paths, ensuring uninterrupted connectivity and minimizing downtime. This feature is particularly important for critical applications that require continuous network availability, such as financial transactions or real-time communications.

Cost and Space Savings

The Cisco WS-X6316-GE-TX Ethernet Module's 16 ports offer cost and space savings for businesses. With a single module providing a high-density solution, there is no need for additional modules or switches, reducing both upfront costs and ongoing maintenance expenses. Furthermore, the compact form factor of the module saves valuable rack space in data centers or server rooms, allowing for efficient utilization of available resources.

Summary

In summary, the 16 ports feature of the Cisco WS-X6316-GE-TX Ethernet Module brings numerous benefits to users. The increased connectivity allows for seamless connection of multiple devices, while the improved bandwidth ensures high-speed data transfer. The flexibility in network design enables businesses to create complex infrastructures without compromising performance. Expandability options provide scalability for future needs, while redundancy and resilience features guarantee uninterrupted connectivity. Lastly, cost and space savings make this module a cost-effective solution for organizations of all sizes.
