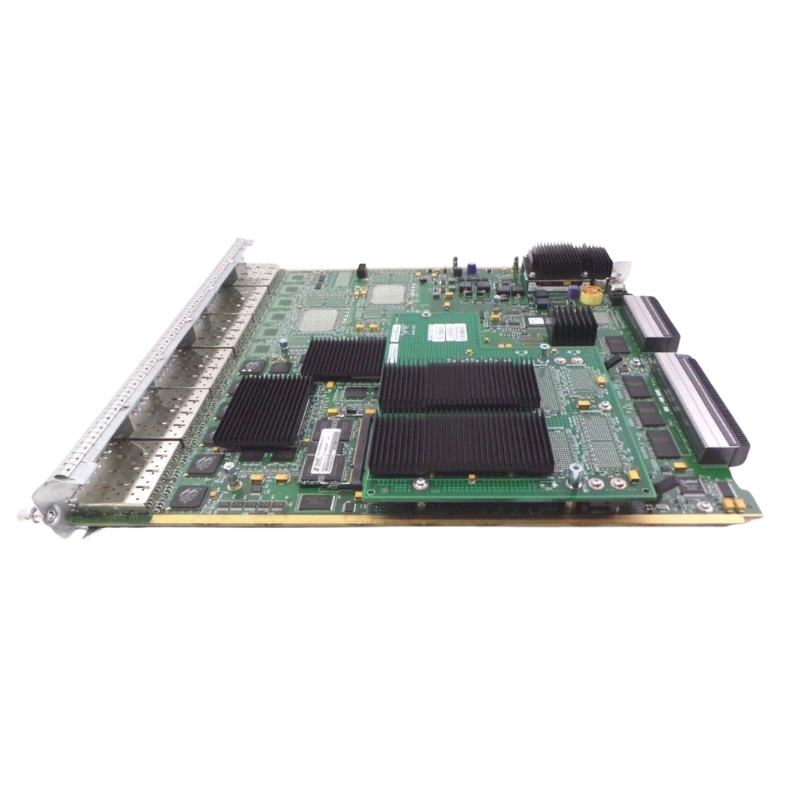

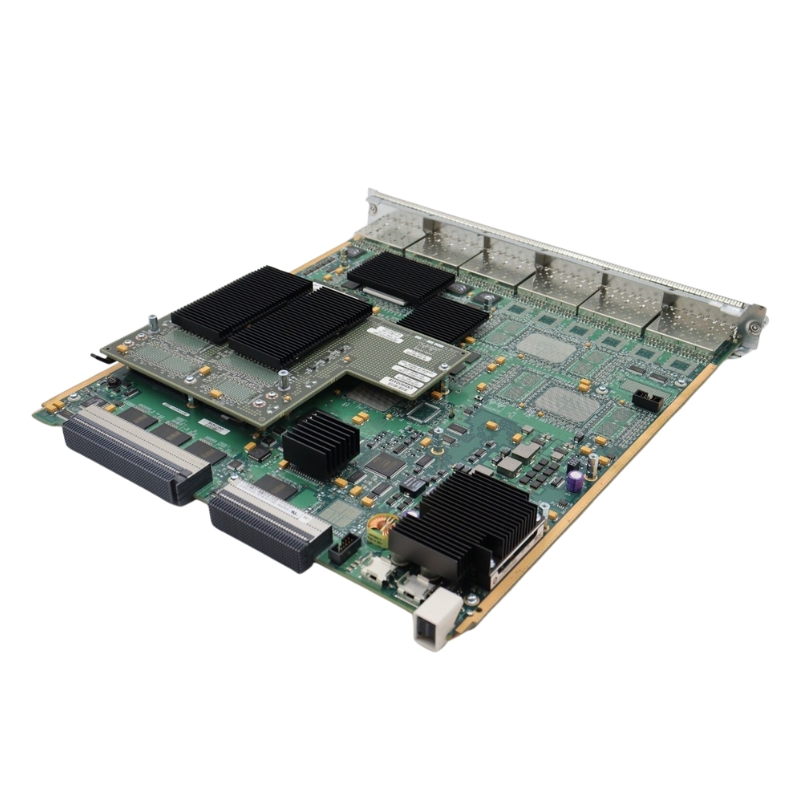

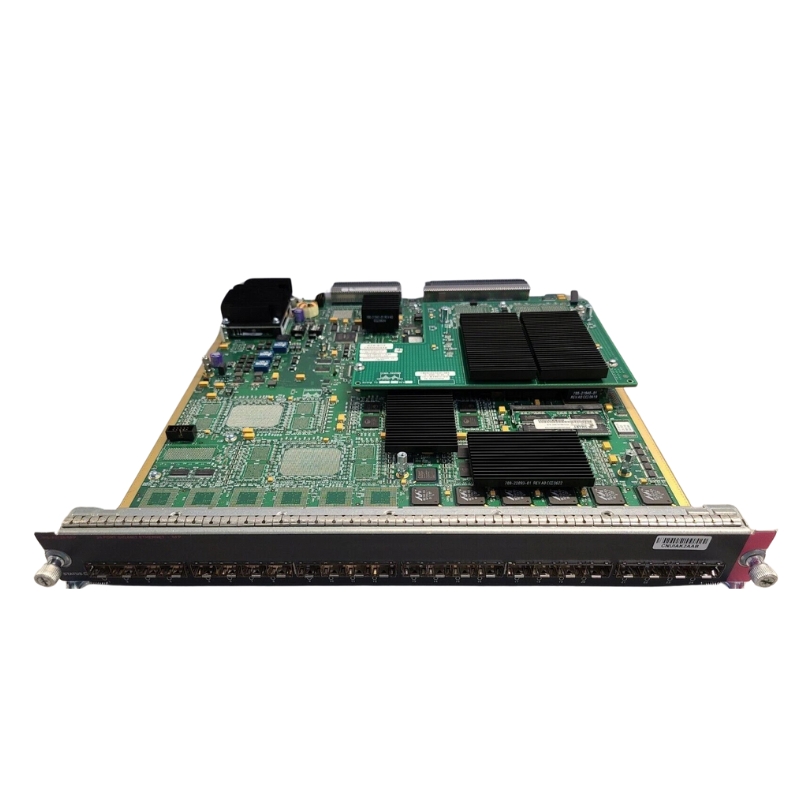

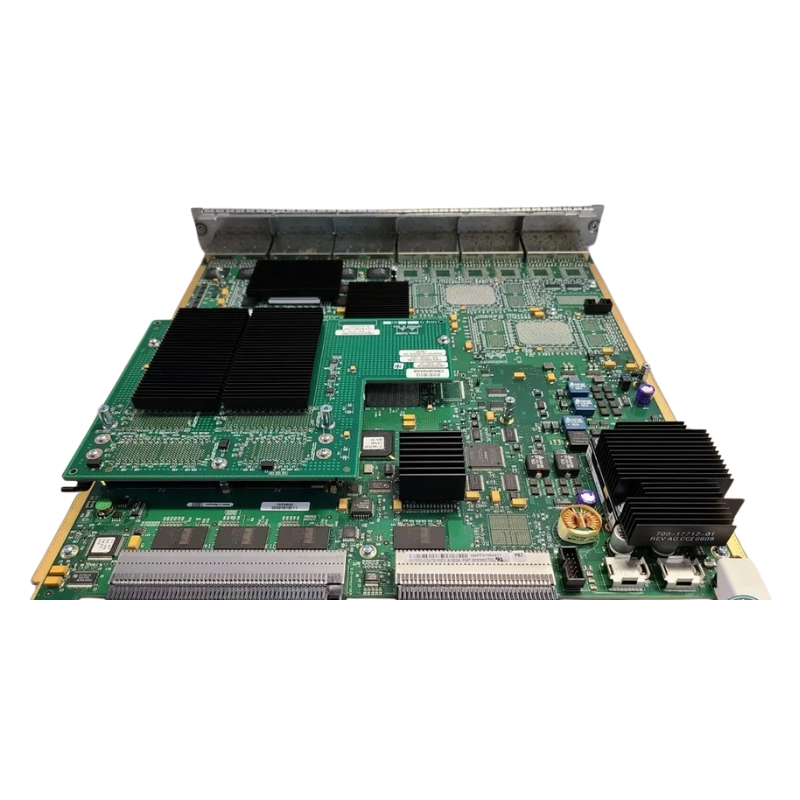

WS-X6724-SFP= Cisco 24 Ports Gigabit Ethernet Module Switch

Understanding the Platform: Catalyst 6500/7600 Series

To fully appreciate the WS-X6724-SFP=, one must understand its home platform. The Cisco Catalyst 6500 Series is a modular, chassis-based switching system renowned for its scalability, resilience, and comprehensive feature set. It operates with a distributed architecture, where supervisor engines handle system management and control-plane functions, while line cards like the WS-X6724-SFP= handle data-forwarding (data-plane) operations.

Chassis Compatibility and Integration

The WS-X6724-SFP= module is compatible with a wide range of Catalyst 6500 and 7600 Series chassis, including the 6503, 6504, 6506, 6509, 6509-V-E, 6513, and the 7600 series variants. Its integration is seamless, requiring insertion into any available slot (excluding those reserved for supervisor engines or specific service modules). The module communicates with the active supervisor engine via the chassis backplane, which provides power and a high-speed data fabric for inter-slot communication.

Backplane Fabric Capabilities

Depending on the chassis and supervisor engine configuration, the module can leverage different fabric bandwidths. With a Supervisor 720 engine and a compatible chassis fabric, the WS-X6724-SFP= can utilize a full 40 Gbps dedicated fabric channel per slot, ensuring that all 24 Gigabit ports can run at line rate simultaneously without oversubscription, a critical feature for bandwidth-intensive core and distribution layer deployments.

Technical Specifications and Hardware Details

The WS-X6724-SFP= is a meticulously engineered hardware component with specific characteristics that define its performance envelope and operational parameters.

Port Configuration and SFP Flexibility

The module provides 24 fixed ports, each supporting a Small Form-factor Pluggable (SFP) transceiver. This "SFP=" designation in the part number indicates it is sold as a spare or replacement module without the SFPs included. The SFP-based design is a key advantage, offering unparalleled flexibility. Network administrators can populate each port with the appropriate SFP module based on distance and cabling requirements:

GLC-SX-MMD: 1000BASE-SX SFP for multimode fiber (up to 550m).
GLC-LH-SMD: 1000BASE-LX/LH SFP for single-mode fiber (up to 10km).
GLC-ZX-SMD: 1000BASE-ZX SFP for extended reach single-mode fiber (up to 70km).
GLC-T: 1000BASE-T SFP for copper CAT5e/6 connections (up to 100m).

Performance and Forwarding Engine

At the heart of the module is a dedicated forwarding ASIC (Application-Specific Integrated Circuit). This hardware-based forwarding engine enables wire-speed Layer 2 and Layer 3 switching for all packet sizes. It maintains its own forwarding information base (FIB) and adjacency tables, downloaded from the supervisor engine, allowing it to make independent, high-speed switching decisions without constant consultation with the supervisor.

Memory and Buffering Architecture

The module incorporates dedicated onboard memory for packet buffering. This is essential for handling microbursts of traffic and preventing packet loss during periods of congestion, especially when uplinks are aggregated or when dealing with asymmetric traffic flows. The buffering strategy is a combination of shared and per-port queues, managed by the advanced QoS mechanisms.

Advanced Software Features and Capabilities

Beyond basic connectivity, the WS-X6724-SFP=, when operated with appropriate Cisco IOS® Software, supports a vast array of enterprise and service provider features.

Layer 2 Switching Suite

The module provides a comprehensive set of Layer 2 protocols essential for building resilient and loop-free campus networks:

Spanning Tree Protocol (STP): Full support for IEEE 802.1D (STP), 802.1w (Rapid STP), and 802.1s (Multiple STP).
VLAN Support: Full IEEE 802.1Q tagging support, with the ability to handle thousands of VLANs. Supports VLAN Trunking Protocol (VTP) in all modes.
EtherChannel / Link Aggregation: Support for Layer 2 EtherChannel (up to 8 ports per group) using either Cisco's PAgP or the standard IEEE 802.3ad (LACP). This is crucial for creating high-bandwidth, fault-tolerant uplinks.

Layer 3 Routing and Multicast

When used with a Supervisor Engine that supports Layer 3 functionality (like the Supervisor 720), the module becomes a full participant in IP routing:

IP Routing: Hardware-based routing for IPv4 and IPv6 (with appropriate software licenses). Supports static routing, RIP, OSPF, EIGRP, and BGP.
Multicast Routing: High-performance support for Protocol Independent Multicast (PIM) in Sparse Mode (PIM-SM) and Dense Mode (PIM-DM), essential for video distribution and financial data feeds.
CEF (Cisco Express Forwarding): The cornerstone of Cisco's high-speed routing architecture. The module utilizes distributed CEF (dCEF) for optimal packet forwarding.

Security and Access Control

Security is integrated at the hardware level. The module supports:

ACLs (Access Control Lists): Hardware-based forwarding of standard, extended, and named IP, IPX, and MAC ACLs at line rate, providing security policies without performance degradation.
Port Security: Limits MAC addresses allowed on a port, preventing unauthorized device access.
802.1X Authentication: Provides network access control based on user identity, integrating with RADIUS servers.

Quality of Service (QoS) and Traffic Management

The WS-X6724-SFP= features sophisticated QoS hardware to classify, police, mark, and queue traffic. It supports:

Classification & Marking: Based on DSCP, IP Precedence, 802.1p CoS, or ACLs.
Policing & Shaping: Traffic policing (e.g., Committed Access Rate - CAR) and shaping to enforce bandwidth contracts.
Queuing: Multiple egress queues per port (typically 1p3q4t or 1p3q8t configurations) with Weighted Tail Drop (WTD) and Weighted Random Early Detection (WRED) for congestion avoidance.
Scheduling: Strict Priority Queuing (PQ) for latency-sensitive traffic (like voice) combined with Weighted Round Robin (WRR) for bandwidth allocation among other queues.

Deployment Scenarios and Use Cases

The versatility of the WS-X6724-SFP= allowed it to be deployed in several key roles within enterprise and service provider networks.

Enterprise Campus Distribution Layer

In the classic three-tier campus model (Access-Distribution-Core), the WS-X6724-SFP= was an ideal choice for the distribution layer switch. Here, it would aggregate multiple access layer switches (often 10/100 or Gigabit copper switches) via fiber uplinks. Its Layer 3 routing capabilities enabled it to serve as the default gateway for user VLANs, performing inter-VLAN routing and applying security/QoS policies before traffic was passed to the core.

Data Center Server Aggregation

Within the data center, this module provided high-density Gigabit Ethernet connectivity for server farms. The SFP flexibility allowed for short-reach multimode connections to server racks or longer connections across a data center hall. Features like EtherChannel enabled NIC teaming from servers, while robust ACLs and QoS helped enforce application-level policies and ensure critical application performance.

High-Availability Designs

The module is fully compatible with the Catalyst 6500's high-availability features. Deploying modules in redundant chassis with Stateful Switchover (SSO) and Non-Stop Forwarding (NSF) provided hitless failover for network services, a requirement for mission-critical environments.

Considerations for Legacy and Modern Networks

While the WS-X6724-SFP= is a robust module, it is essential to understand its context in today's network technology lifecycle.

End-of-Life Status and Support

Cisco has announced End-of-Life (EOL) for the Catalyst 6500 Series and its components, including the WS-X6724-SFP=. This means it is no longer sold as new by Cisco, and software updates may be limited. However, a vast secondary market exists for these modules, supporting legacy deployments, cost-sensitive expansions, or lab environments. Understanding the software compatibility matrix is crucial.

Software Requirements (IOS)

The module requires specific Cisco IOS Software versions. It is fully supported in the native Cisco IOS® Software and the hybrid Cisco Catalyst Operating System (CatOS) is not typically used with this later-generation module. Common train versions include the Cisco IOS Software SXI, SXJ, and later trains that support the Supervisor 720. Always verify the exact minimum required version for your specific supervisor engine and feature set.

Power and Thermal Considerations

The module has a specific power consumption rating (varying based on populated SFPs; for example, copper SFPs generally draw more power than optical ones). This must be factored into the overall chassis power budget, especially when using redundant power supplies. Adequate cooling is also critical; the chassis must maintain airflow to prevent thermal shutdowns.

Catalyst 6500 vs. Nexus and Catalyst 9000

Modern successors include the Cisco Nexus 9000 Series for data centers and the Catalyst 9300/9400/9500 Series for the campus. Key advancements include:

Port Speeds: Migration from 1G to 10G, 25G, 40G, and 100G densities.
Fabric Bandwidth: Vastly increased fabric capacity, moving from 40 Gbps/slot to multiple terabits per second.
Form Factor: Shift towards fixed-configuration stackable switches and fabric-enabled modular chassis.
Automation & Programmability: Native support for model-driven programmability (YANG, NETCONF/RESTCONF) and automation tools like Ansible, unlike the largely CLI-driven 6500 platform.

Despite these advancements, the WS-X6724-SFP= remains a testament to the durability and capability of the Catalyst 6500 platform, often continuing to provide reliable service in countless networks worldwide.
