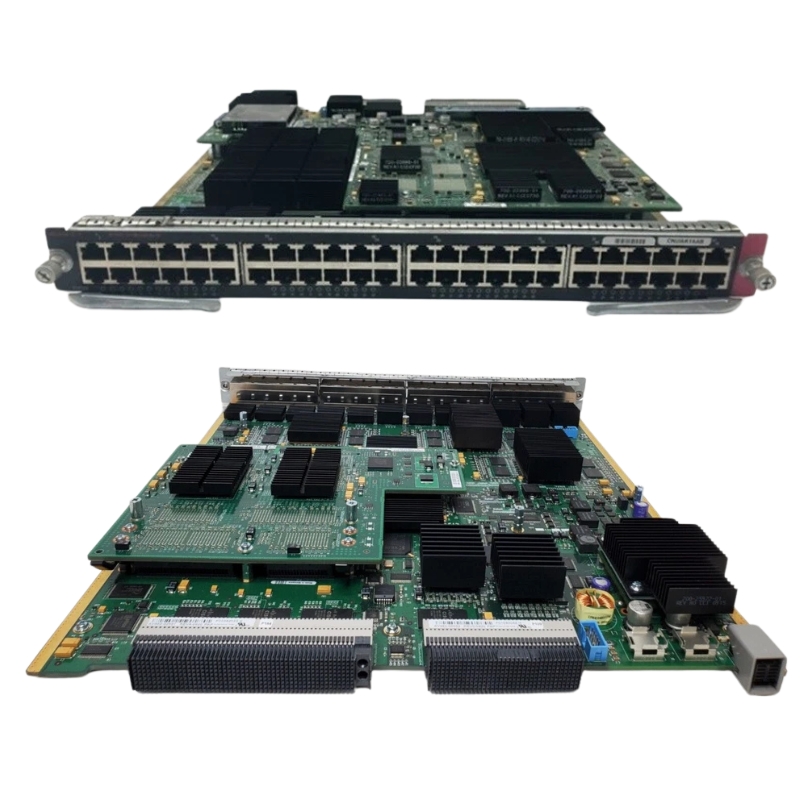

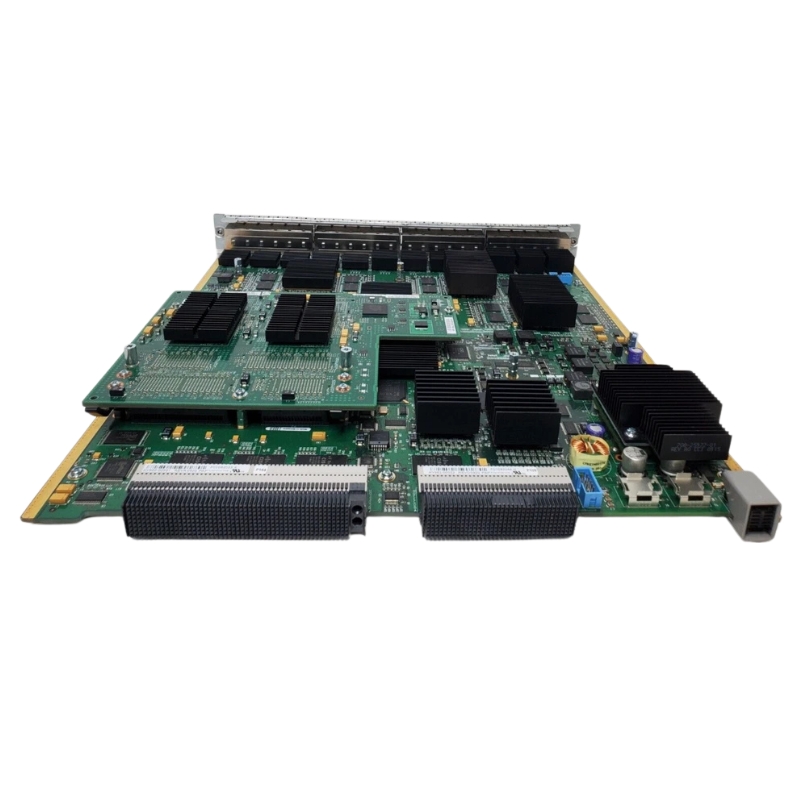

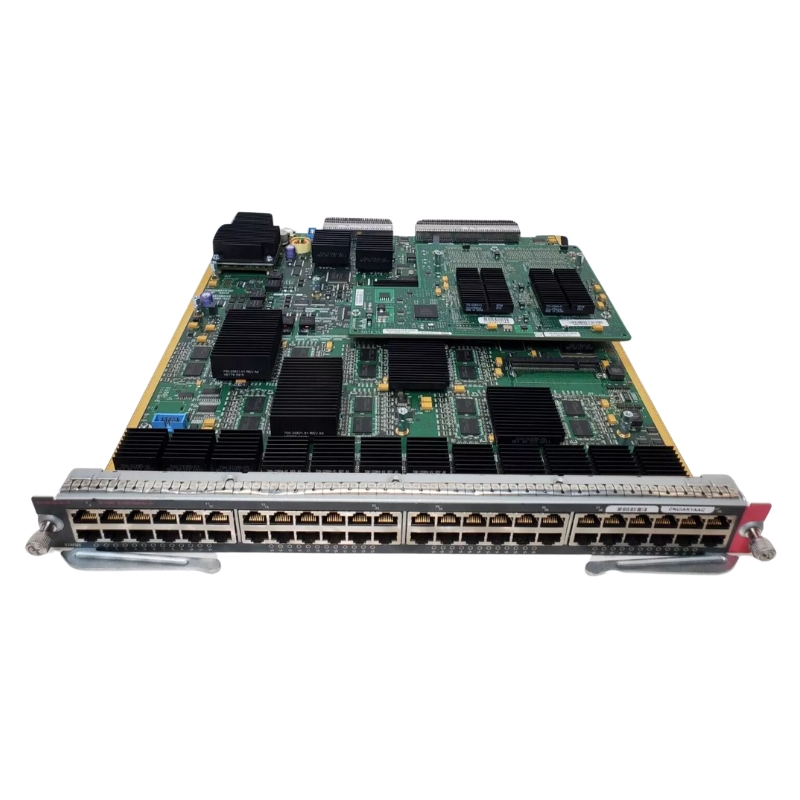

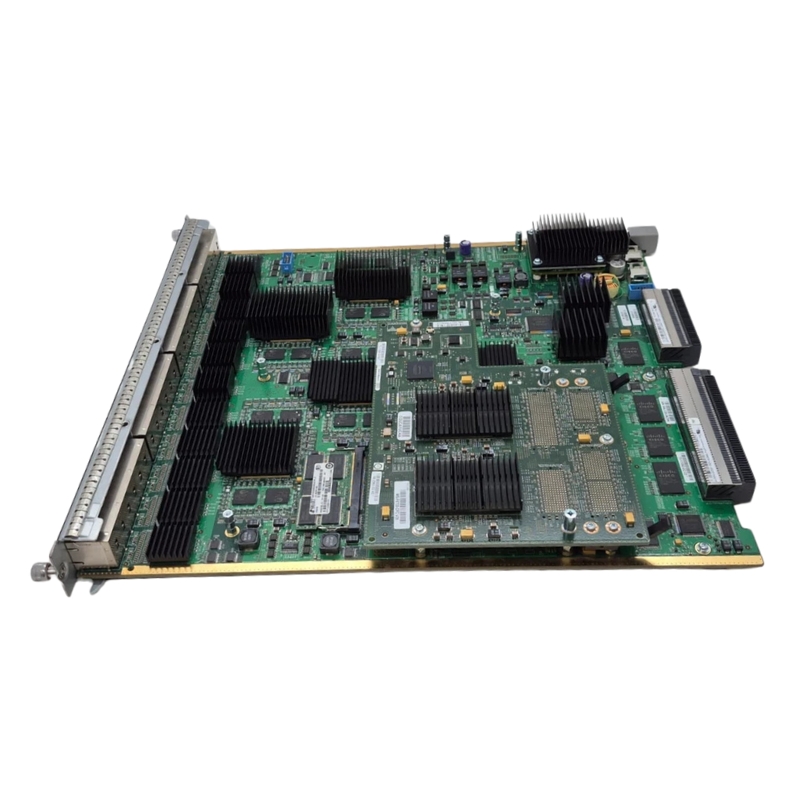

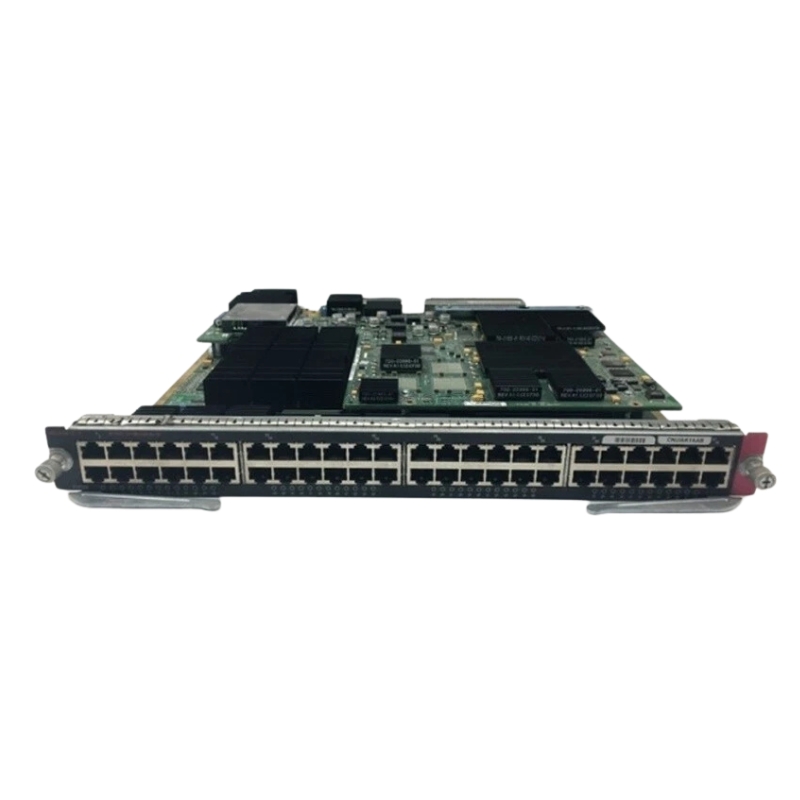

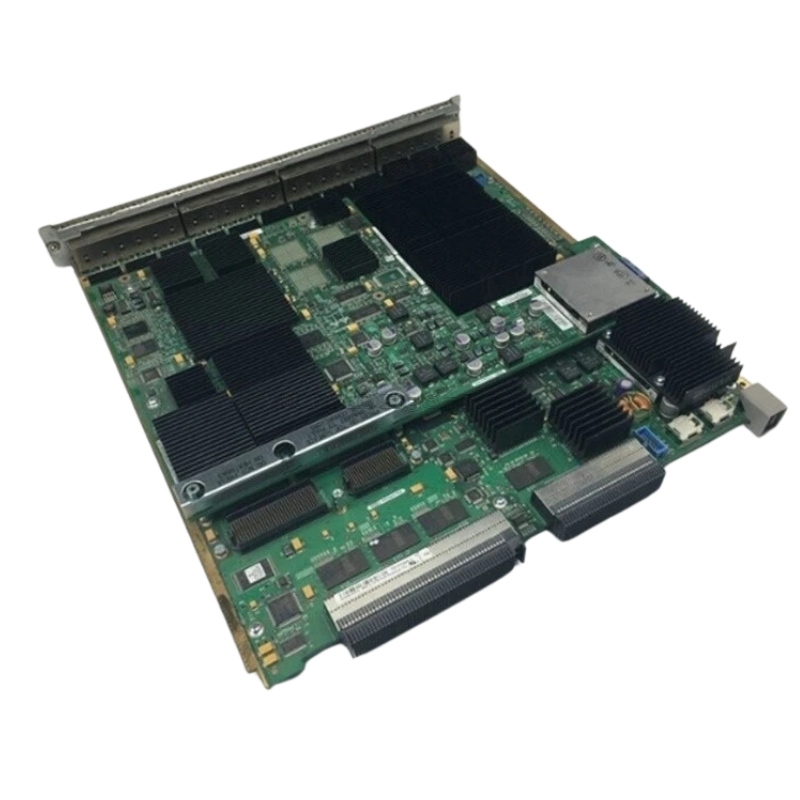

Cisco WS-X6748-GE-TX= Catalyst 6500 Switch Module, 48 Ports

Overview of Cisco WS-X6748-GE-TX=

Product Details

• Manufacturer: Cisco
• Part Number: WS-X6748-GE-TX=
• Product Type: Switching Module

Technical Specifications for Catalyst 48-Port Switch

Interfaces and Ports

• Ports: 48 x 10/100/1000Base-T LAN
• Details: 48 x RJ-45 10/100/1000Base-T LAN

Connectivity Media

• Category 5 or higher UTP 10/100/1000Base-T

Data Transfer Rates

• 10 Mbps Ethernet
• 100 Mbps Fast Ethernet
• 1 Gbps Gigabit Ethernet

Management and Protocols

Supported Protocols

• SNMP (Simple Network Management Protocol) v1/v2/v3
• RMON (Remote Monitoring) 1/2/3/9
• CiscoWorks
• IEEE 802.1q QoS (Quality of Service)
• IEEE 802.1p VLAN (Virtual Local Area Network)

Features

• Full duplex capability
• Auto-negotiation support
• VLAN support
• Rapid Spanning Tree Protocol (RSTP)
• Multiple Spanning Tree Protocol (MSTP)
• Quality of Service (QoS)
• Jumbo Frames support
• Time Domain Reflectometry (TDR)
• Per-VLAN Spanning Tree Plus (PVST+)

Environmental Specifications

Operating Conditions

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 104 °F
• Humidity Range: 10 – 90% (non-condensing)

Storage Conditions

• Minimum Storage Temperature: -40 °F
• Maximum Storage Temperature: 167 °F
• Maximum Altitude Operating: 13,120 ft

Compatibility

• Compatible with various Cisco Catalyst models:
• 6503, 6503 Firewall Security System, 6503 VPN System
• 6503-E, 6503-E chassis with Supervisor Engine 32
• 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle
• 6506, 6506 chassis
• 6506-E, 6506-E chassis with Supervisor Engine 32
• 6509, 6509 chassis
• 6509-E, 6509-E Application Control Engine (ACE) 30 8G Bundle

Ports

The Cisco Catalyst 6500 Switch Module Cisco WS-X6748-GE-TX= is equipped with a remarkable 48 ports, making it an ideal choice for businesses and organizations that require a high-density network solution. These ports provide the necessary connectivity for devices such as computers, servers, and network appliances, allowing seamless communication and data transfer within the network.

Increased Scalability

With 48 ports, this switch module offers incredible scalability to accommodate the growing needs of any network infrastructure. Businesses often experience expansion and an increase in the number of devices connected to their networks. Having 48 ports allows for easy integration of new devices without requiring additional switches or complex configurations. This scalability eliminates the need for frequent upgrades, saving both time and money in the long run.

Optimized Performance

The abundance of ports in the Cisco Catalyst 6500 Switch Module ensures optimized network performance. Each port operates at Gigabit Ethernet speeds, providing high-speed data transfer rates of up to 1 Gbps. This gigabit capability enables rapid and efficient data transmission, reducing latency and improving overall network responsiveness. Whether it is transferring large files or streaming high-definition multimedia content, the 48 ports guarantee a smooth and uninterrupted experience.

Enhanced Network Flexibility

Having 48 ports on a single switch module empowers network administrators with increased flexibility in network design and deployment. The ample number of ports allows for better segmentation of network traffic into separate VLANs (Virtual Local Area Networks). VLANs enable administrators to logically divide a physical network into multiple virtual networks, enhancing security and improving network performance by isolating traffic between different departments or user groups.

Furthermore, the Cisco Catalyst 6500 Switch Module supports advanced features such as link aggregation and quality of service (QoS) mechanisms. Link aggregation allows multiple ports to be combined into a single logical link, increasing bandwidth and providing redundancy. QoS mechanisms prioritize network traffic, ensuring critical applications receive the necessary bandwidth while preventing non-essential traffic from congesting the network.

Simplified Network Management

Managing a network with 48 ports can be a challenging task. However, Cisco provides comprehensive management tools and features to simplify network administration. The switch module supports Cisco IOS (Internetwork Operating System) software, a powerful operating system that offers a range of management capabilities. Network administrators can configure and monitor the switch module using a command-line interface (CLI) or a graphical user interface (GUI), providing flexibility based on their preferred method.

Additionally, the switch module is compatible with Cisco Network Assistant, a user-friendly software application that simplifies network management tasks. With Cisco Network Assistant, administrators can easily discover and configure devices, monitor network performance, and troubleshoot issues through an intuitive interface. The software provides centralized control and visibility over all network devices, ensuring efficient management of the 48 ports and the entire network infrastructure.

Cost-Effective Solution

The 48 ports offered by the Cisco Catalyst 6500 Switch Module WS-X6748-GE-TX= provide a cost-effective solution for organizations seeking high-density connectivity. Instead of investing in multiple switches to accommodate numerous devices, businesses can rely on this single switch module to connect their network infrastructure effectively. Consolidating the network into a single device reduces the overall cost of hardware procurement, maintenance, and power consumption.

Moreover, the Cisco Catalyst 6500 Switch Module is built to withstand the test of time. Its robust design ensures reliability and longevity, minimizing the need for frequent replacements or repairs. The switch module's durability translates into further cost savings by reducing downtime and eliminating the associated revenue losses.

In conclusion, the Cisco Catalyst 6500 Switch Module Cisco WS-X6748-GE-TX= offers an impressive 48 ports, bringing numerous benefits and importance to users. With increased scalability, optimized performance, enhanced network flexibility, simplified network management, and cost-effectiveness, this switch module caters to the growing demands of modern networks. Organizations can rely on its versatile features and exceptional port density to achieve seamless connectivity and efficient network operations.
