WS-X6908-10G-2T Cisco Expansion Module Ethernet 10 Gigabit 8 Ports

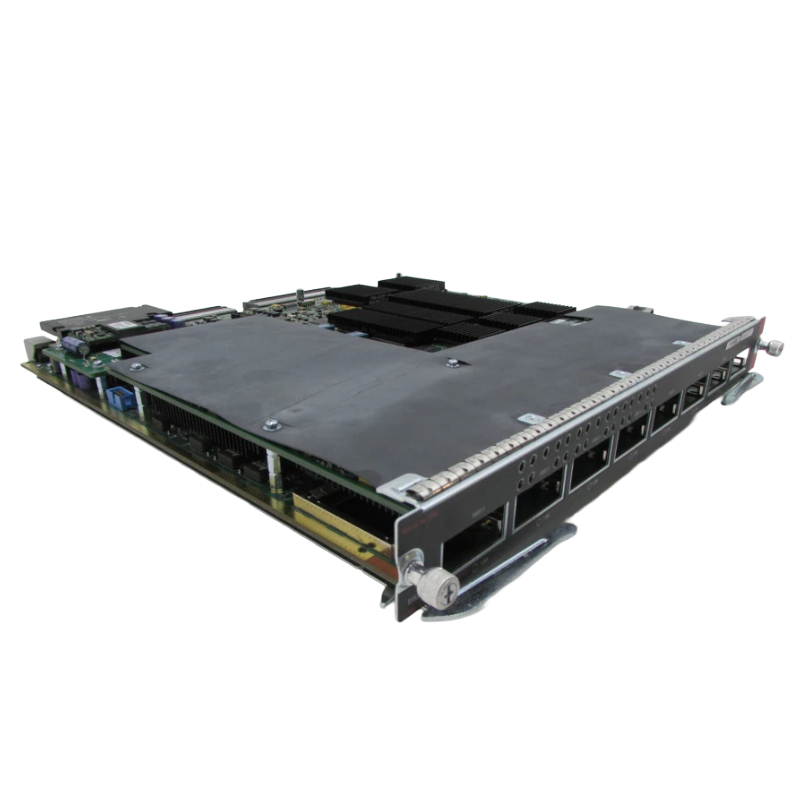

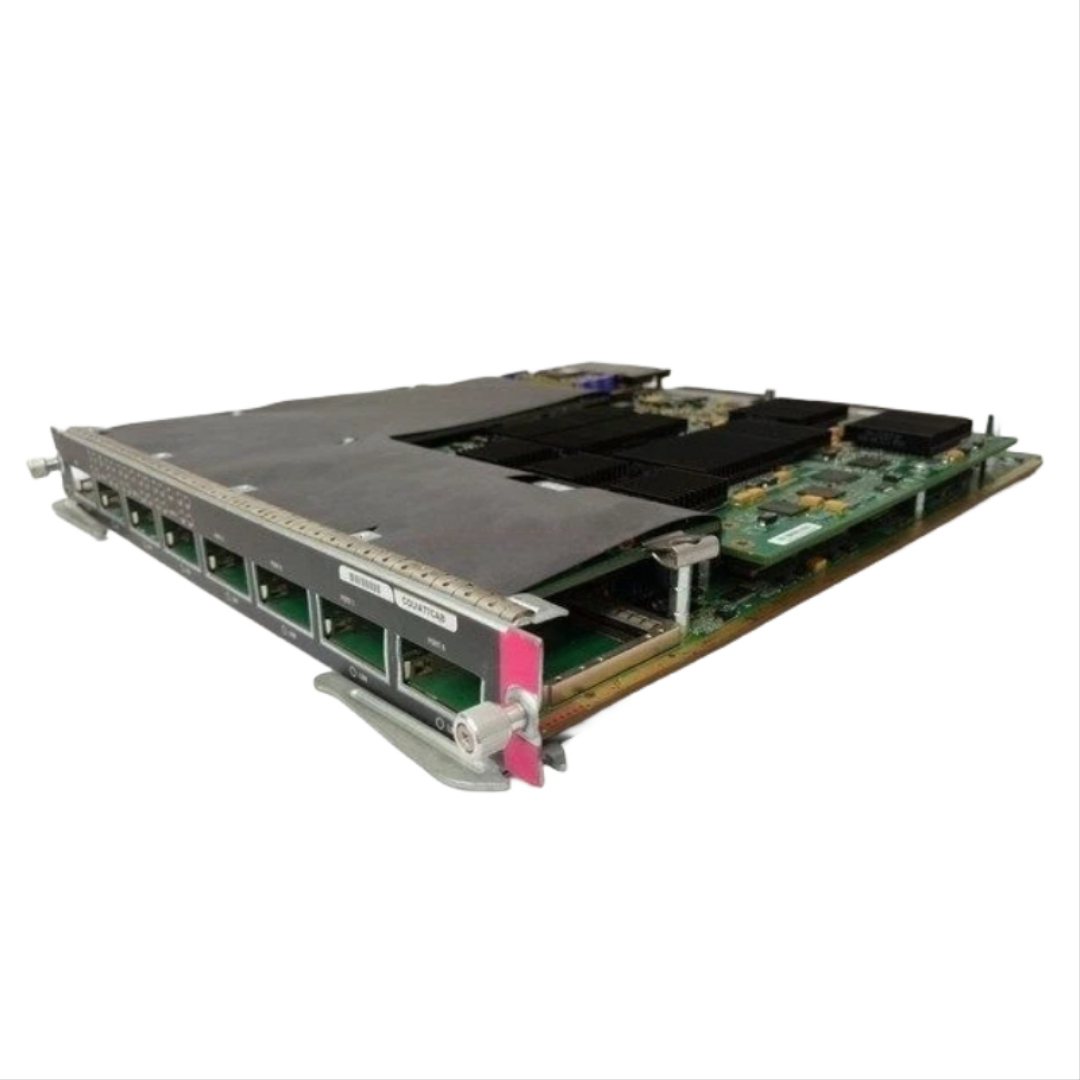

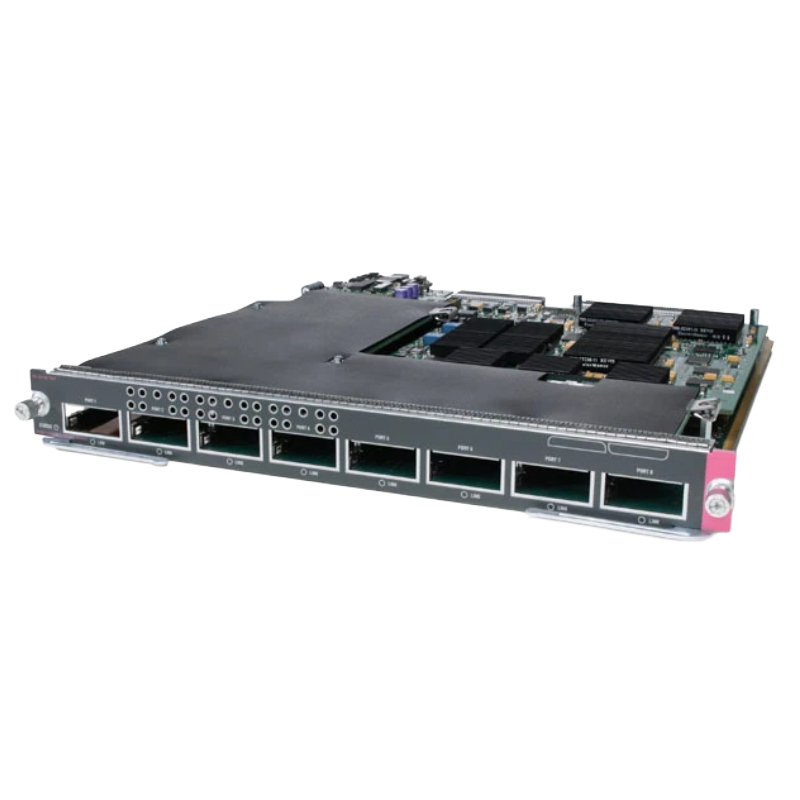

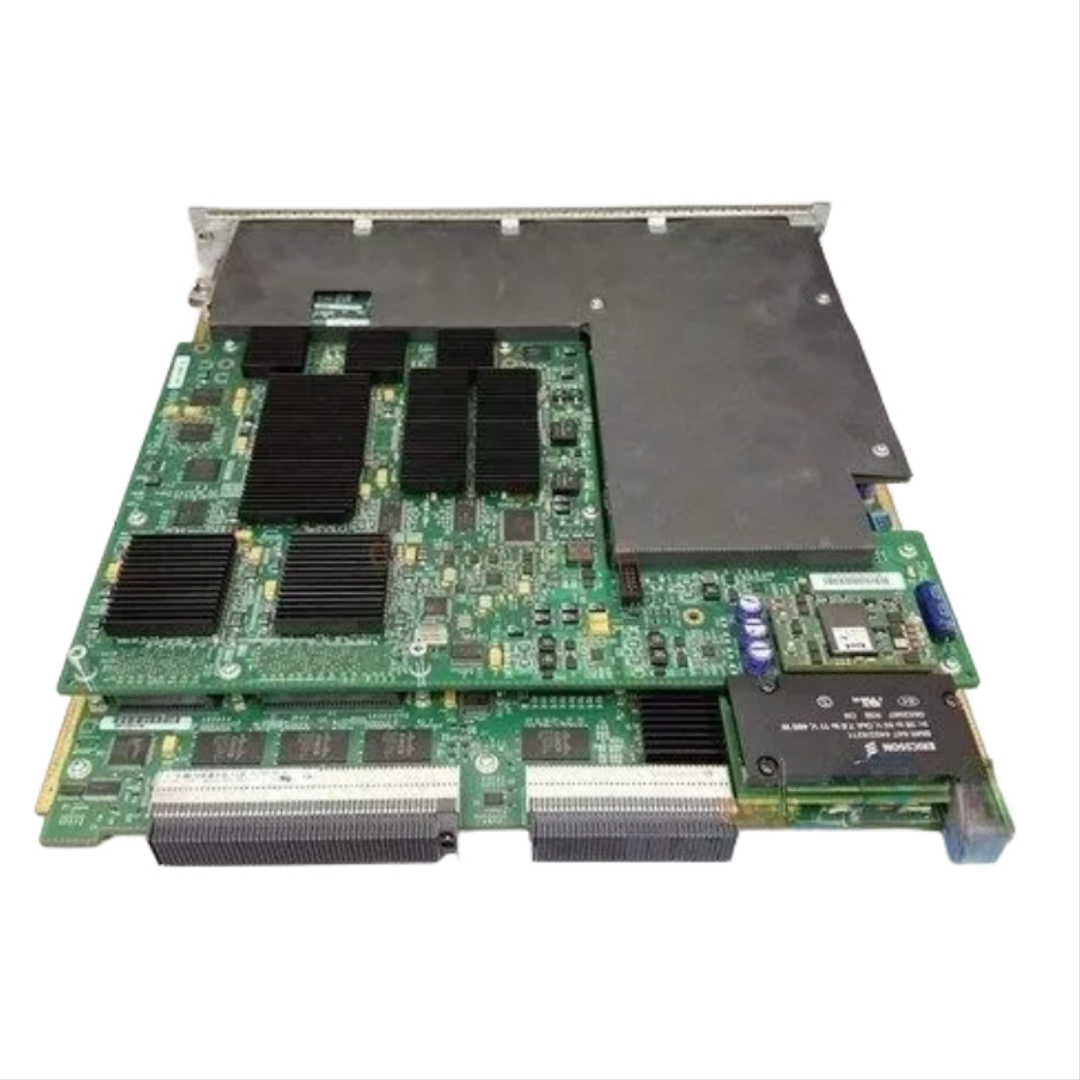

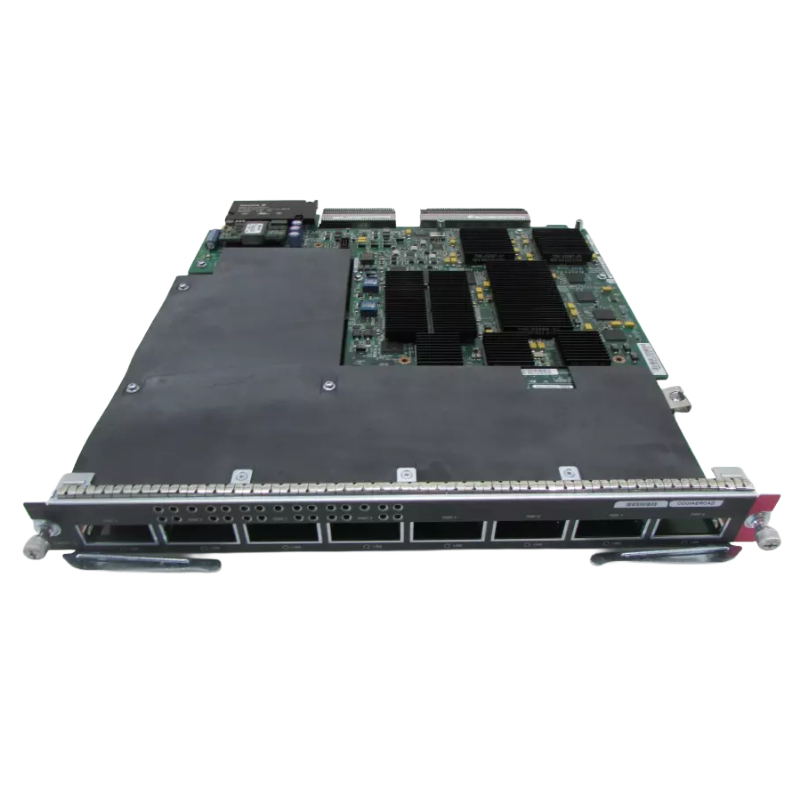

Cisco WS-X6908-10G-2T 8-Port Ethernet Expansion Module

The Cisco WS-X6908-10G-2T is a high-performance 8-port 10 Gigabit Ethernet expansion module engineered for enterprise-class networking environments that demand exceptional throughput, scalability, and reliability. Designed for Cisco Catalyst 6500 Series switches, this plug-in module enables organizations to expand network capacity while maintaining outstanding performance for data center, campus, and aggregation layer deployments. With support for advanced Layer 2 and Layer 3 technologies, the module delivers dependable connectivity for bandwidth-intensive applications, virtualization, cloud infrastructure, and mission-critical business operations.

Featuring eight dedicated 10GBASE-X interfaces and an impressive switching fabric bandwidth of 80 Gbps, the Cisco WS-X6908-10G-2T provides consistent low-latency communication while supporting high-speed traffic flows across enterprise networks. Its robust hardware architecture, extensive ACL capacity, and comprehensive standards compliance make it a preferred networking solution for organizations seeking long-term investment protection and operational efficiency.

General Information

• Manufacturer: Cisco
• Part Number: WS-X6908-10G-2T
• Product Type: Expansion Module
• Form Factor: Plug-in Module

Technical Specifications

• Number of Ports: 8
• Interface Type: Ethernet 10GBASE-X
• Data Link Protocol: 10 Gigabit LAN
• Maximum Data Transfer Rate: 10 Gbps
• Switching Fabric Bandwidth: 80 Gbps
• ACL Capacity: 64,000 Entries
• NetFlow Capacity: 512,000 Entries
• Memory: 2 GB RAM

Designed for High-Speed Enterprise Networks

• Enterprise core networking
• Campus backbone connectivity
• Server aggregation
• Virtual machine communication
• Storage networking
• Cloud infrastructure
• High-performance computing environments
• Large-scale business applications

Benefits of High Switching Capacity

• Faster packet forwarding
• Reduced latency
• Improved network responsiveness
• Support for heavy workloads
• Reliable performance during peak traffic
• Optimized application delivery
• Enhanced data center communications

Access Control List Capacity

• User-based access control
• Department segmentation
• Application filtering
• Traffic prioritization
• Security policy enforcement
• Compliance implementation

Advantages of Large NetFlow Capacity

• Comprehensive traffic analysis
• Performance monitoring
• Application visibility
• Capacity planning
• Bandwidth optimization
• Security investigation
• Traffic reporting
• Network troubleshooting

Supported IEEE Standards

• IEEE 802.1D
• IEEE 802.1Q VLAN
• IEEE 802.1P Quality of Service
• IEEE 802.3X Flow Control
• IEEE 802.3ad Link Aggregation (LACP)
• IEEE 802.1W Rapid Spanning Tree
• IEEE 802.3AE 10 Gigabit Ethernet
• IEEE 802.1S Multiple Spanning Tree
• IEEE 802.3AK
• IEEE 802.1AE MAC Security
• IEEE 802.3AN
• IEEE 802.3AQ

Scalability Benefits

• Easy network expansion
• Investment protection
• Reduced infrastructure replacement costs
• Simplified upgrades
• Support for growing user populations
• Increased bandwidth availability

Compatibility

Compatible Platforms

• Cisco Catalyst 6503-E
• Cisco Catalyst 6504-E
• Cisco Catalyst 6506-E
• Cisco Catalyst 6506-E IDSM-2
• Cisco Catalyst 6509-E
• Cisco Catalyst 6509-E 10 Gig
• Cisco Catalyst 6513-E

Management Benefits

• Enhanced visibility
• Simplified diagnostics
• Centralized monitoring
• Traffic optimization
• Performance reporting
• Policy enforcement

Cisco WS-X6908-10G-2T 8-Port Ethernet Module Overview

The Cisco WS-X6908-10G-2T 8 Ports Expansion Module Ethernet 10 Gigabit is a high-performance switching expansion component engineered for advanced enterprise, data center, and service provider network infrastructures. Designed as part of the Cisco Catalyst 6900 Series ecosystem, this module enhances modular switch chassis capabilities by delivering high-density 10 Gigabit Ethernet connectivity with optimized throughput, scalability, and resiliency.

Developed by Cisco, a global leader in networking technologies, this expansion module is built to meet the growing demand for high-speed data transmission, virtualization-ready infrastructure, and converged network environments where performance and reliability are critical.

Advanced Modular Switching Architecture

Integration within Catalyst 6900 Series Systems

The WS-X6908-10G-2T module is designed to seamlessly integrate into Cisco Catalyst 6900 Series chassis-based switches. It leverages the high-speed backplane architecture of the chassis, ensuring non-blocking data transfer between line cards and supervisor engines. This modular approach allows organizations to scale network capacity incrementally while maintaining consistent performance standards across the switching fabric.

High-Speed Switching Fabric Optimization

The switching fabric architecture supporting the WS-X6908-10G-2T module is optimized for low latency and high throughput. Each 10 Gigabit Ethernet port is engineered to handle intensive traffic loads such as virtualization workloads, cloud service interconnects, and large-scale data replication tasks. The module’s architecture ensures deterministic performance even under peak utilization scenarios.

10 Gigabit Ethernet Port Density and Performance

Eight-Port High-Speed Connectivity

The module provides eight dedicated 10 Gigabit Ethernet ports, enabling dense network aggregation and high-speed uplinks within enterprise backbone networks. These ports support advanced Ethernet standards, ensuring compatibility with a wide range of optical and copper transceivers depending on deployment requirements.

Optimized Throughput for Enterprise Applications

Each port on the WS-X6908-10G-2T is engineered for full-duplex communication, allowing simultaneous transmission and reception of data at 10 Gbps. This ensures that mission-critical applications such as enterprise resource planning systems, unified communications platforms, and large-scale database clusters operate without bottlenecks.

Hardware Design and Engineering Excellence

Robust Physical Construction

The WS-X6908-10G-2T module features a ruggedized design suitable for continuous operation in enterprise-grade environments. Its physical architecture is optimized for thermal efficiency, ensuring consistent performance even in high-density chassis configurations.

Efficient Thermal Management System

Thermal control is a critical component of high-performance switching modules. This expansion module is engineered with optimized airflow pathways and heat dissipation mechanisms that align with Catalyst 6900 chassis cooling systems. This ensures operational stability under heavy workloads.

Hot-Swappable Modular Design

The module supports hot-swappable installation, enabling network administrators to upgrade or replace components without disrupting overall system operations. This capability is essential for maintaining high availability in enterprise environments where downtime is not acceptable.

Enterprise-Grade Scalability and Network Expansion

Flexible Network Growth Strategy

The WS-X6908-10G-2T allows organizations to scale their network infrastructure without replacing existing chassis systems. This modular expansion capability reduces capital expenditure while enabling gradual network upgrades aligned with business growth requirements.

Seamless Integration with Existing Infrastructure

Designed for backward and forward compatibility within the Catalyst ecosystem, the module integrates smoothly with existing line cards, supervisor engines, and network configurations. This ensures minimal disruption during deployment and expansion phases.

Support for Virtualized Environments

Modern enterprise networks rely heavily on virtualization technologies. The WS-X6908-10G-2T supports virtual machine mobility, distributed computing environments, and software-defined networking architectures, enabling dynamic allocation of network resources.

Data Center Optimization Capabilities

High-Density Server Connectivity

In data center environments, the module serves as a high-density aggregation point for server racks requiring 10 Gigabit Ethernet connectivity. This ensures efficient east-west and north-south traffic distribution across compute clusters.

Cloud Infrastructure Readiness

The expansion module is optimized for cloud computing environments where scalable bandwidth and predictable latency are essential. It supports hybrid cloud and multi-cloud architectures by providing stable high-speed interconnectivity between distributed systems.

Storage Network Acceleration

For storage-intensive applications, the WS-X6908-10G-2T improves access speeds to storage area networks (SANs) and network-attached storage (NAS) systems. This results in faster backup operations, replication processes, and data retrieval cycles.

Network Performance and Traffic Management

Intelligent Traffic Prioritization

The module supports advanced Quality of Service (QoS) mechanisms that allow prioritization of critical traffic streams. This ensures that latency-sensitive applications receive higher priority over less critical network traffic.

Congestion Control Mechanisms

The WS-X6908-10G-2T includes intelligent congestion management features that dynamically adjust traffic flows based on network conditions, ensuring stable performance during peak demand periods.

Security and Network Integrity Features

Advanced Access Control Integration

The module supports integration with enterprise access control policies, ensuring that only authorized devices and users can access network resources. This strengthens overall network security posture.

Secure Data Transmission

Encryption support and secure tunneling compatibility ensure that data transmitted across the module remains protected against interception and unauthorized access. This is particularly important in financial and government networks.

Network Segmentation Support

The WS-X6908-10G-2T enables logical segmentation of network traffic through VLANs and virtual network structures, improving security isolation and reducing broadcast domain size.

Compatibility and Ecosystem Integration

Catalyst 6900 Series Compatibility

The module is fully compatible with Catalyst 6900 Series chassis systems, ensuring smooth integration into existing enterprise switching infrastructures. This compatibility extends to supervisor engines and other line cards within the same platform family.

Interoperability with Network Devices

Designed to operate within heterogeneous network environments, the module supports interoperability with a wide range of routing and switching devices, allowing seamless integration into multi-vendor ecosystems.

Software and Firmware Integration

The module operates under Cisco IOS-based management systems, providing consistent configuration, monitoring, and troubleshooting capabilities across the network infrastructure.

Operational Reliability and High Availability

Redundant System Architecture

The WS-X6908-10G-2T is engineered to support redundant system configurations, ensuring continuous network availability even in the event of hardware or software failures.

Failover Mechanisms

Advanced failover mechanisms enable seamless transition between redundant components, minimizing downtime and maintaining uninterrupted network service delivery.

Continuous Network Operation

The module is designed for 24/7 operation in mission-critical environments, supporting continuous uptime requirements for enterprise and service provider networks.

Deployment Scenarios and Industry Applications

Enterprise Backbone Networks

In enterprise environments, the module functions as a backbone connectivity solution, interconnecting multiple departments, buildings, or campuses with high-speed links.

Telecommunications Infrastructure

Telecom providers utilize the WS-X6908-10G-2T for aggregating subscriber traffic and delivering high-bandwidth services across metropolitan and regional networks.

Financial Services Networks

Financial institutions deploy this module in trading platforms and transaction processing systems where ultra-low latency and high reliability are essential.

Cloud Service Provider Networks

Cloud providers use the module to support multi-tenant environments, ensuring efficient traffic isolation and high-performance interconnectivity between virtualized resources.
